Fish Passage Site 20400249

Coordinates (dec. deg.): 61.20953°, -149.73374°
Legal Description: S013N003W24
Region: South Central

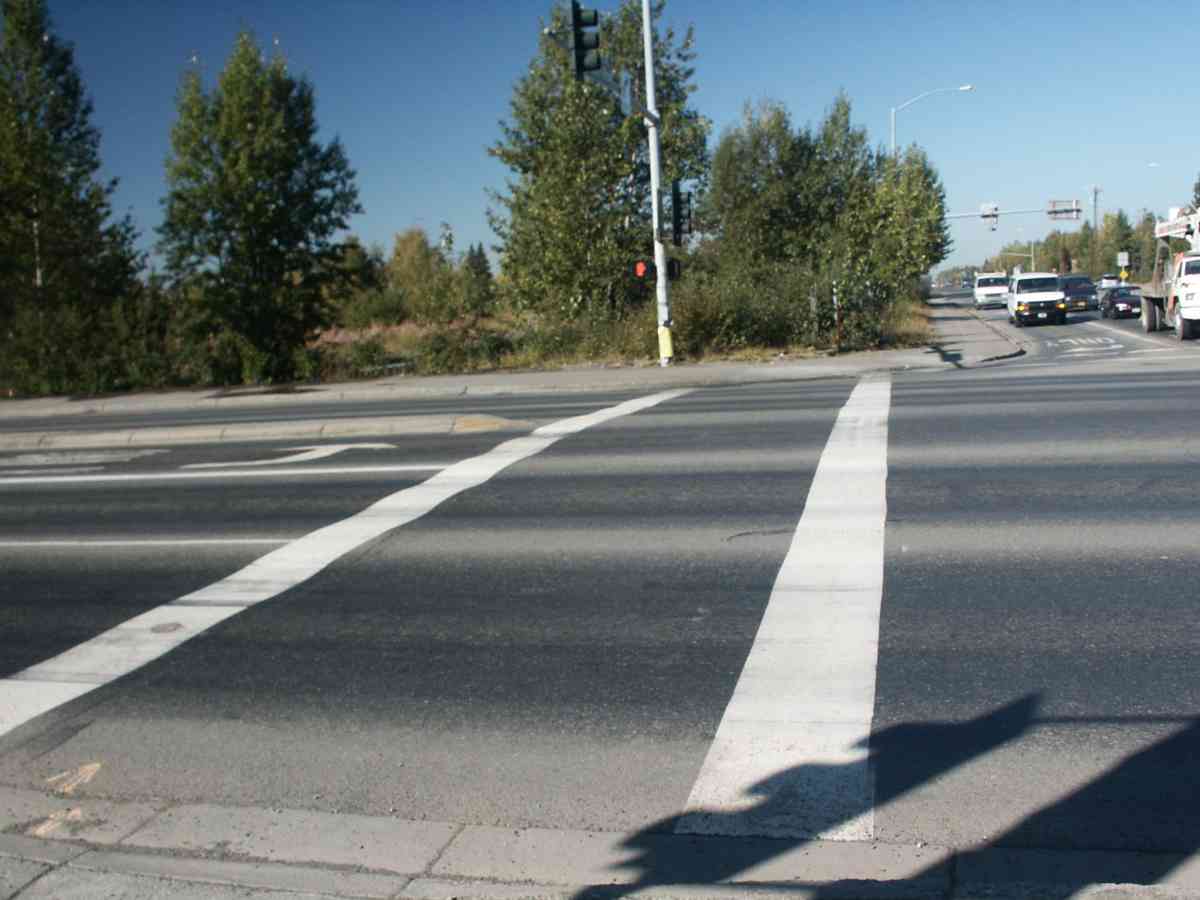

Road Name: Muldoon Road

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-50-10050
Stream Name: Chester Creek South Fork

Elevation:

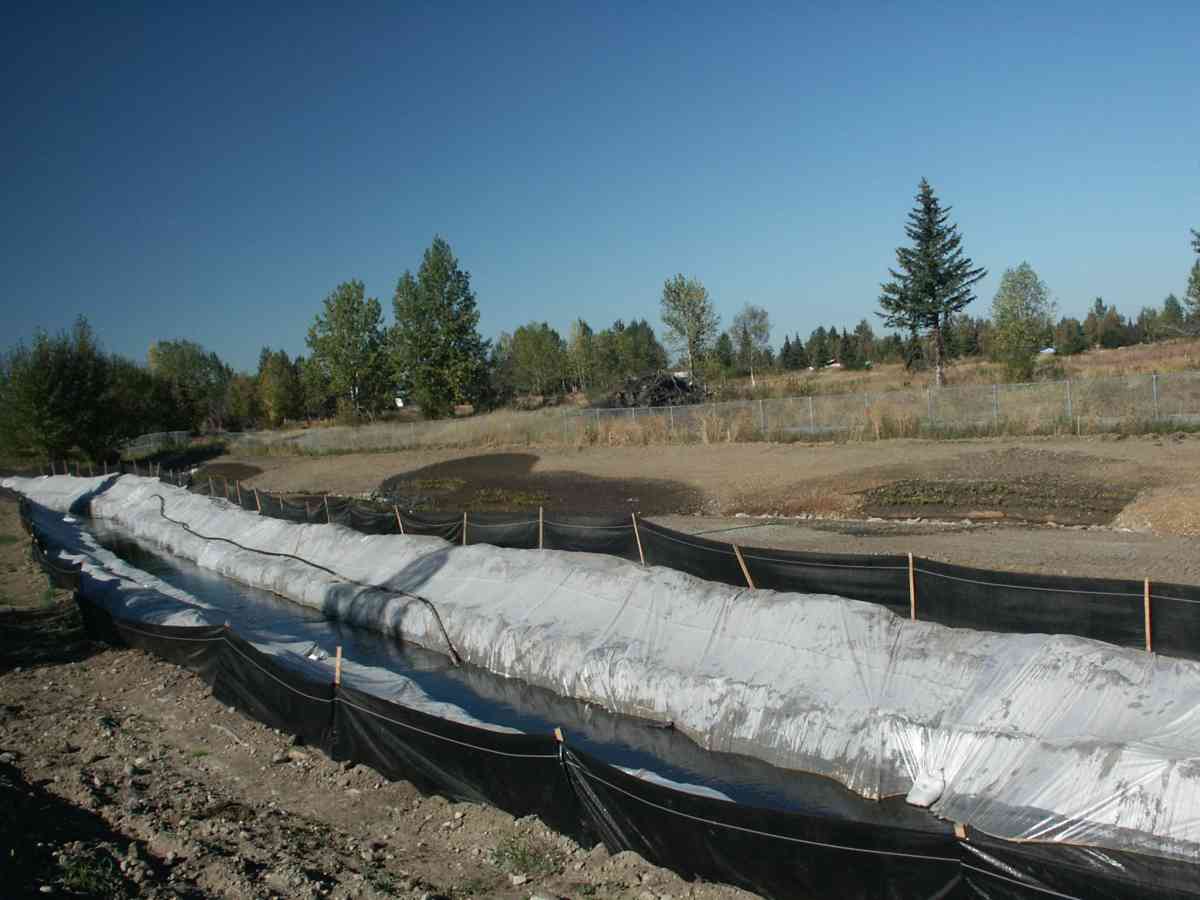

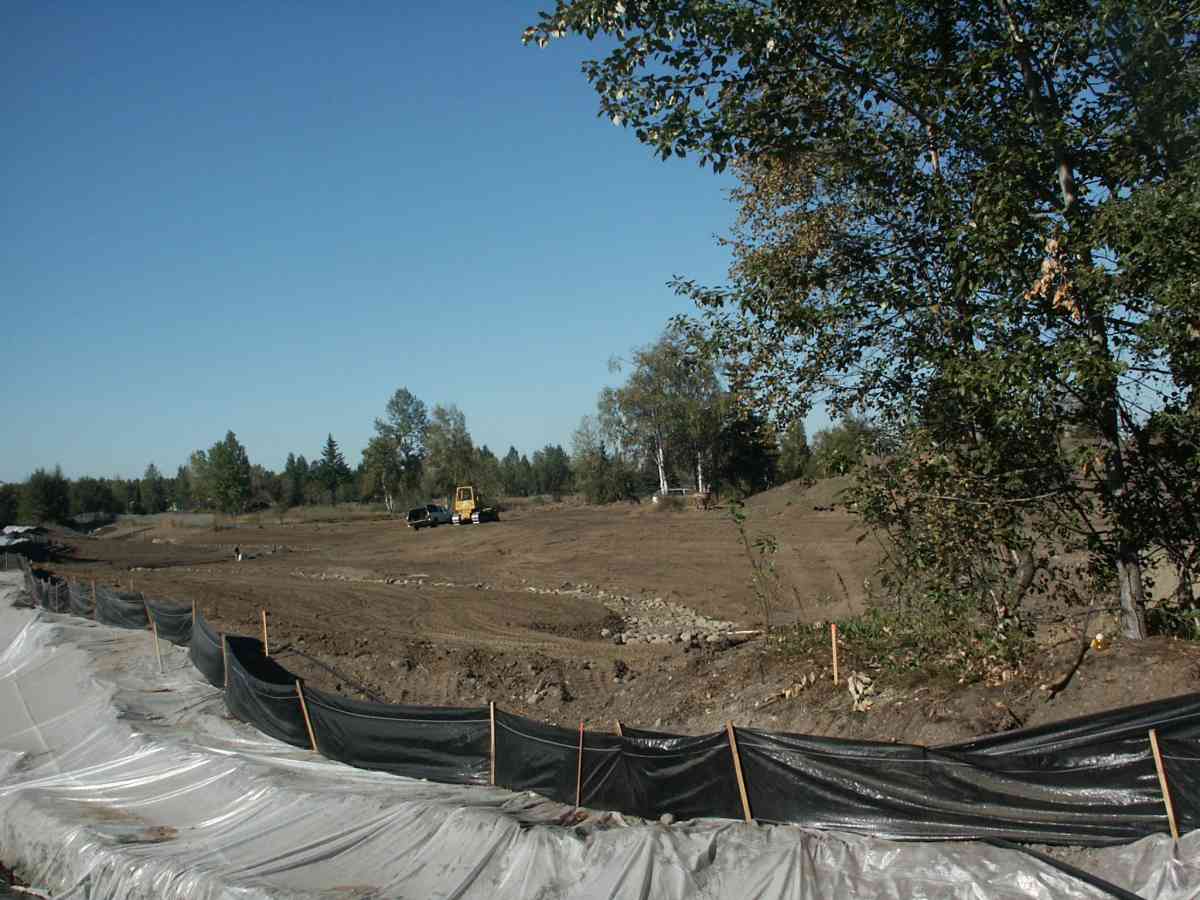

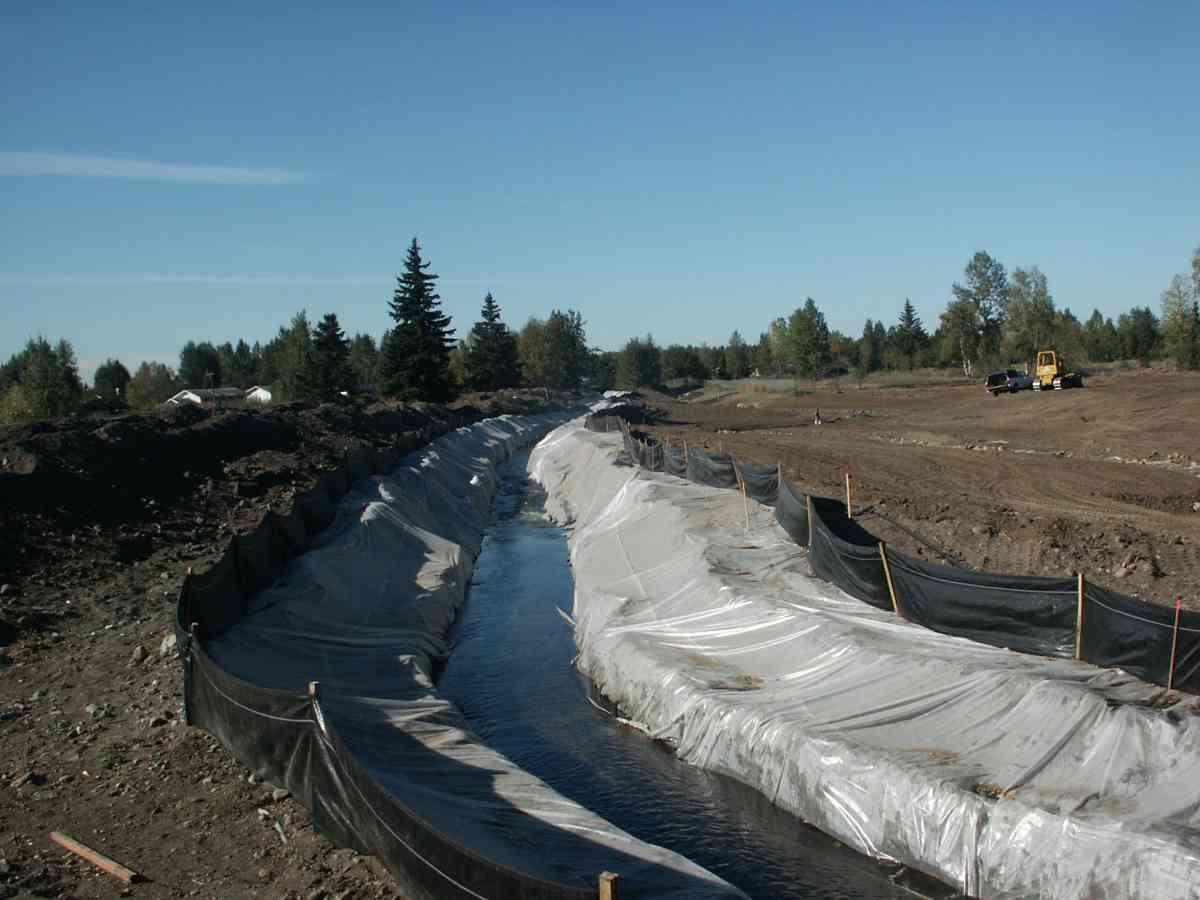

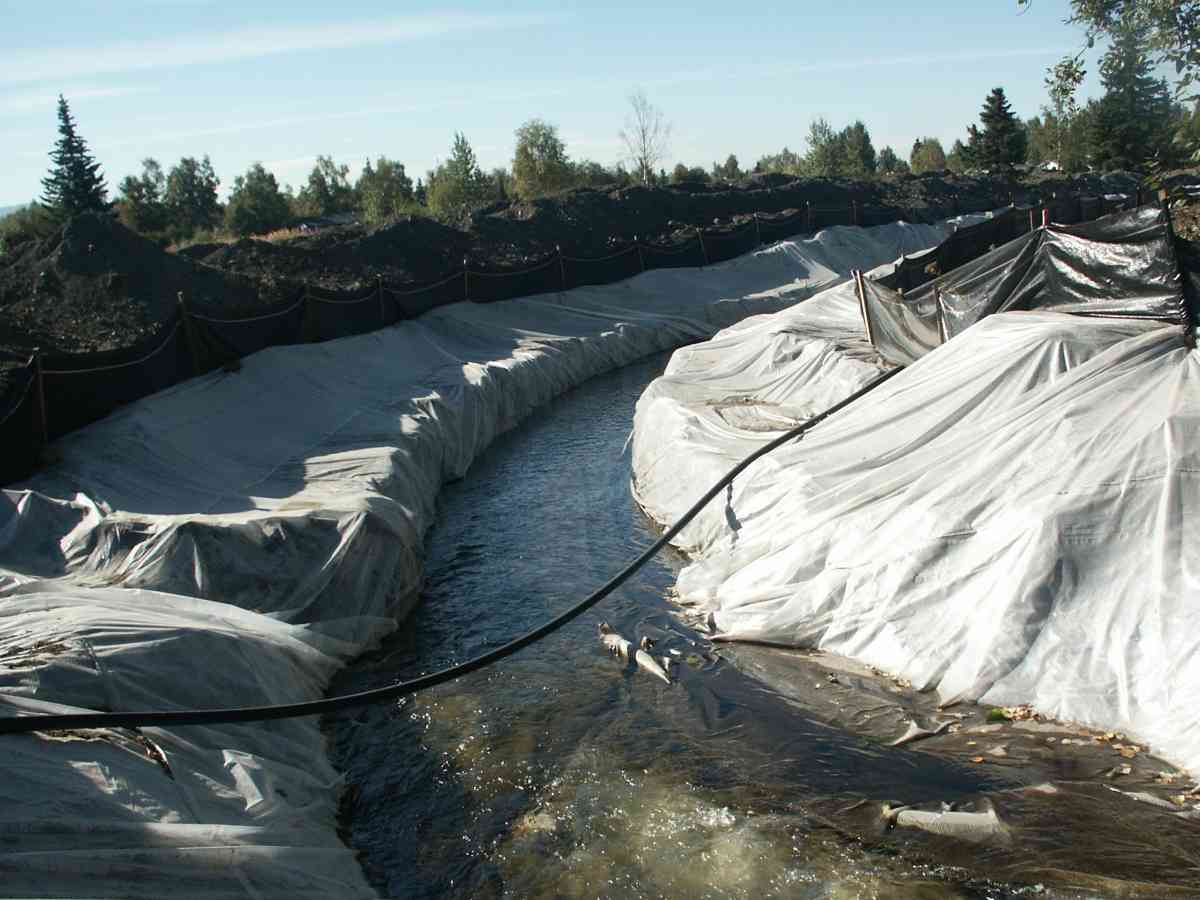

Site Comments: CHESTER CREEK WATERSHED, MULDOON TOWNSITE CREEK RESTORATON.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey ANC04-2A066

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

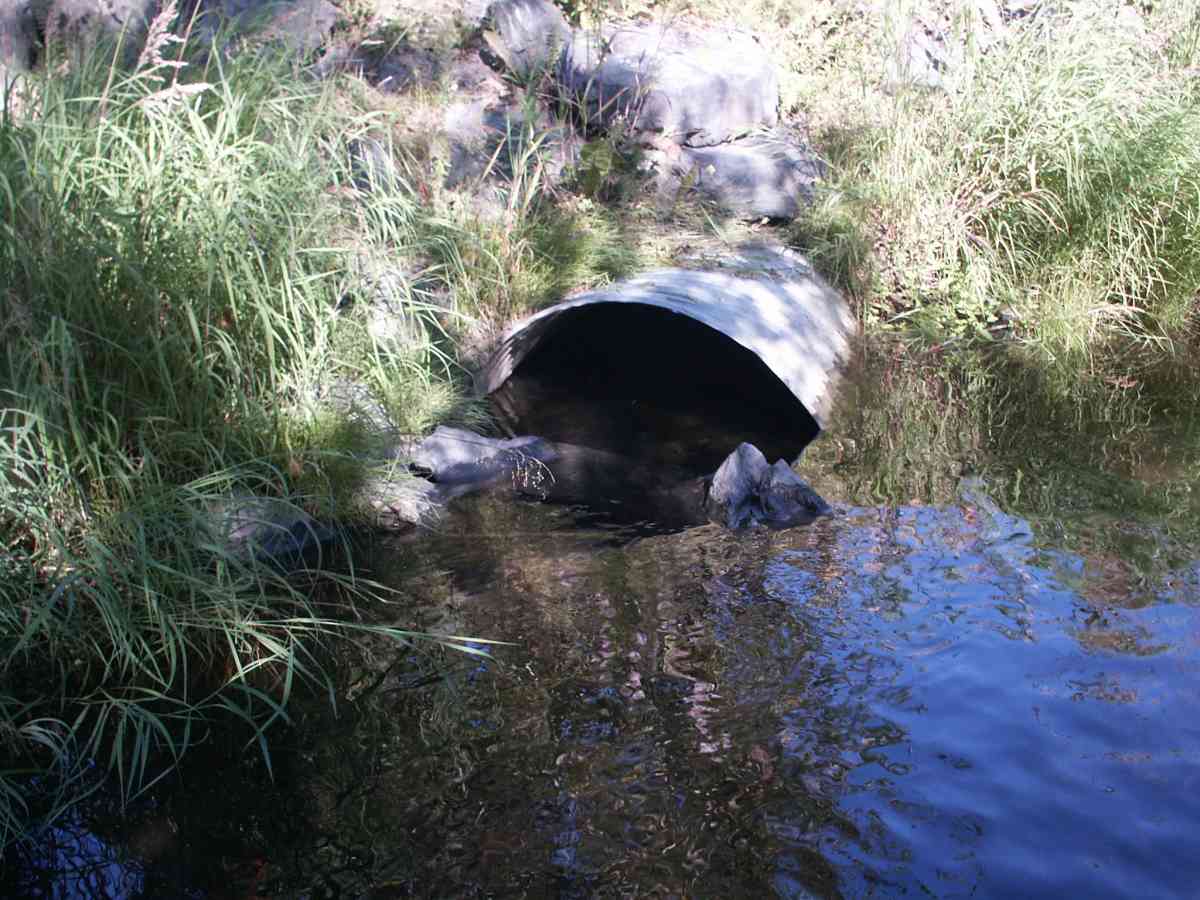

Comments: CHESTER CREEK WATERSHED, MULDOON TOWNSITE CREEK RESTORATON. LENGTH IS TAKEN FROM A SERIES OF TAPE MEASUREMENTS DUE TO ANGLE OF CULVERT UNDER RD. INLET PIPE ON OUTLET SIDE IS LIKELY RECHANNELLED NORTH CHESTER CREEK.

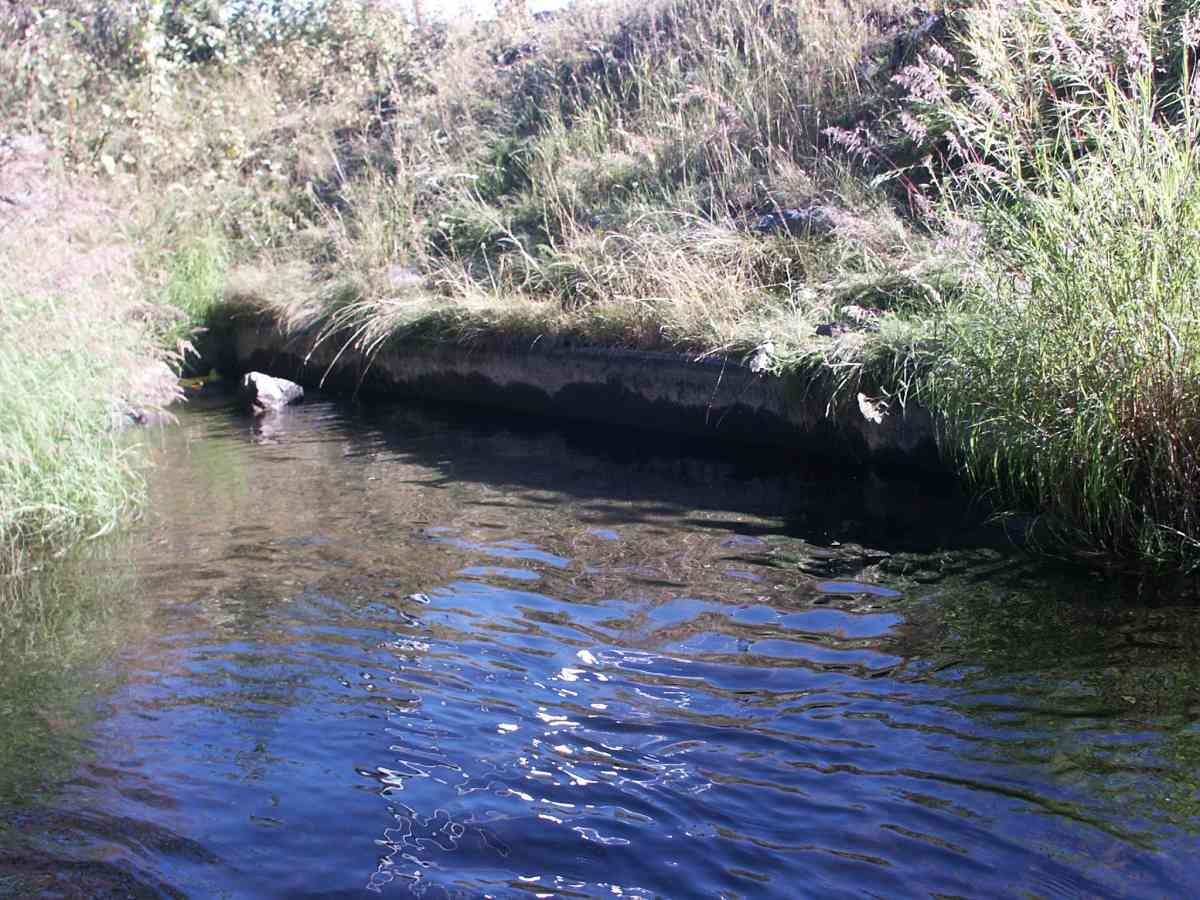

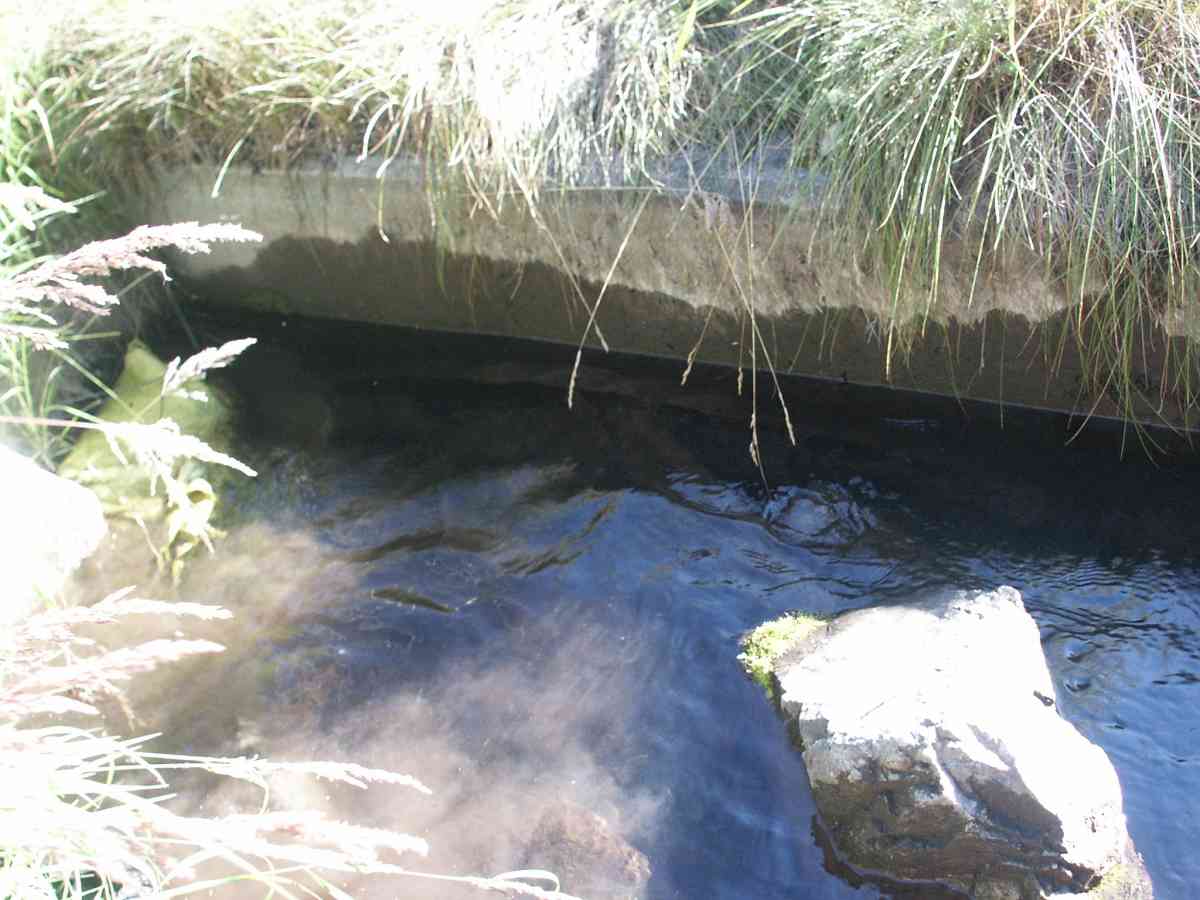

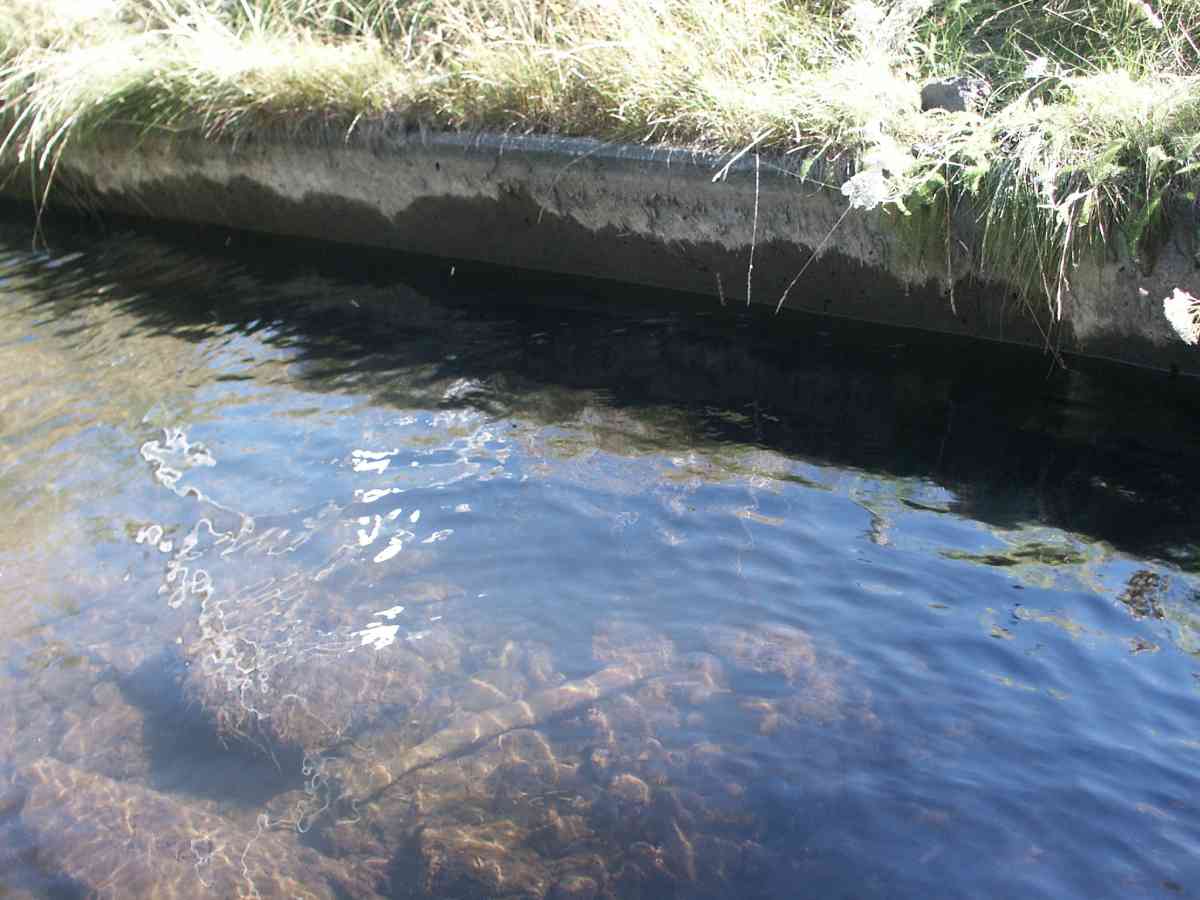

Culvert Measurements

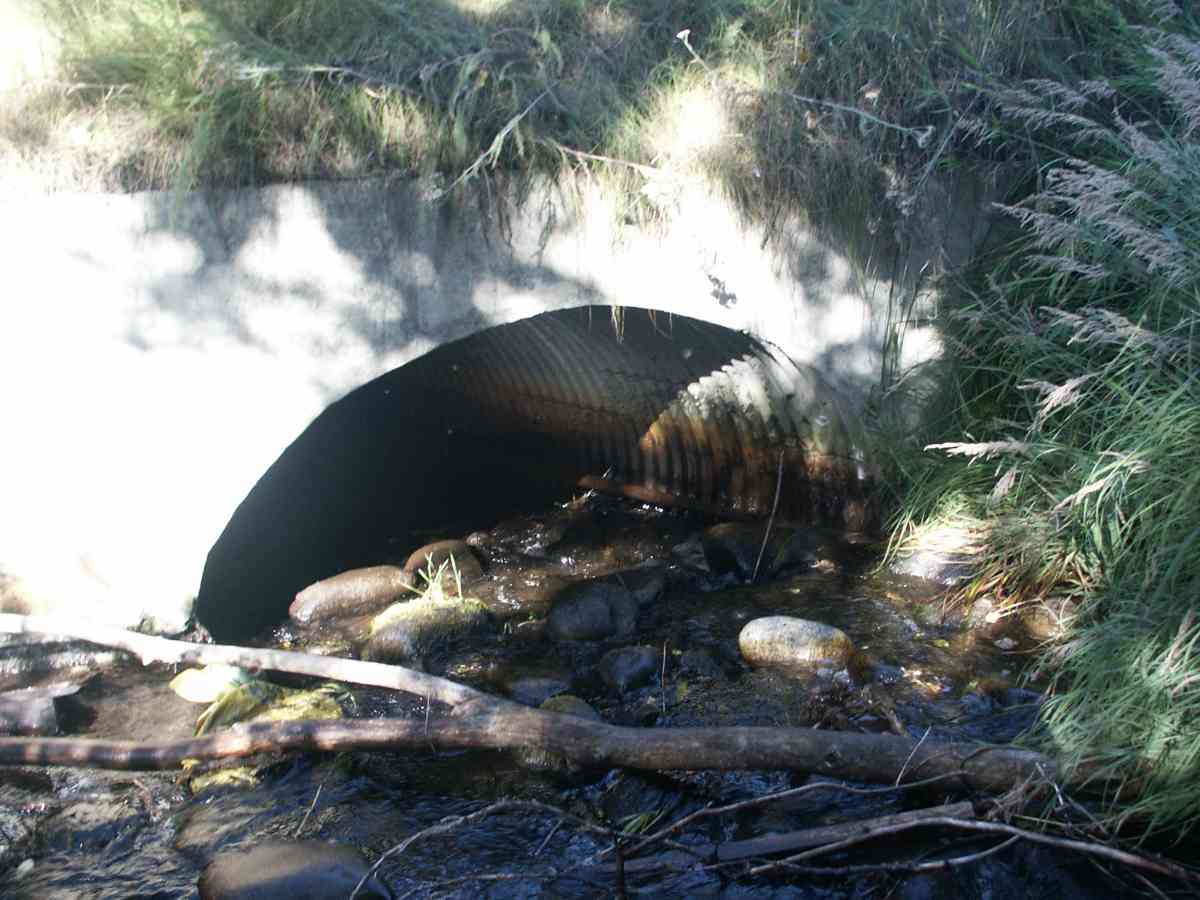

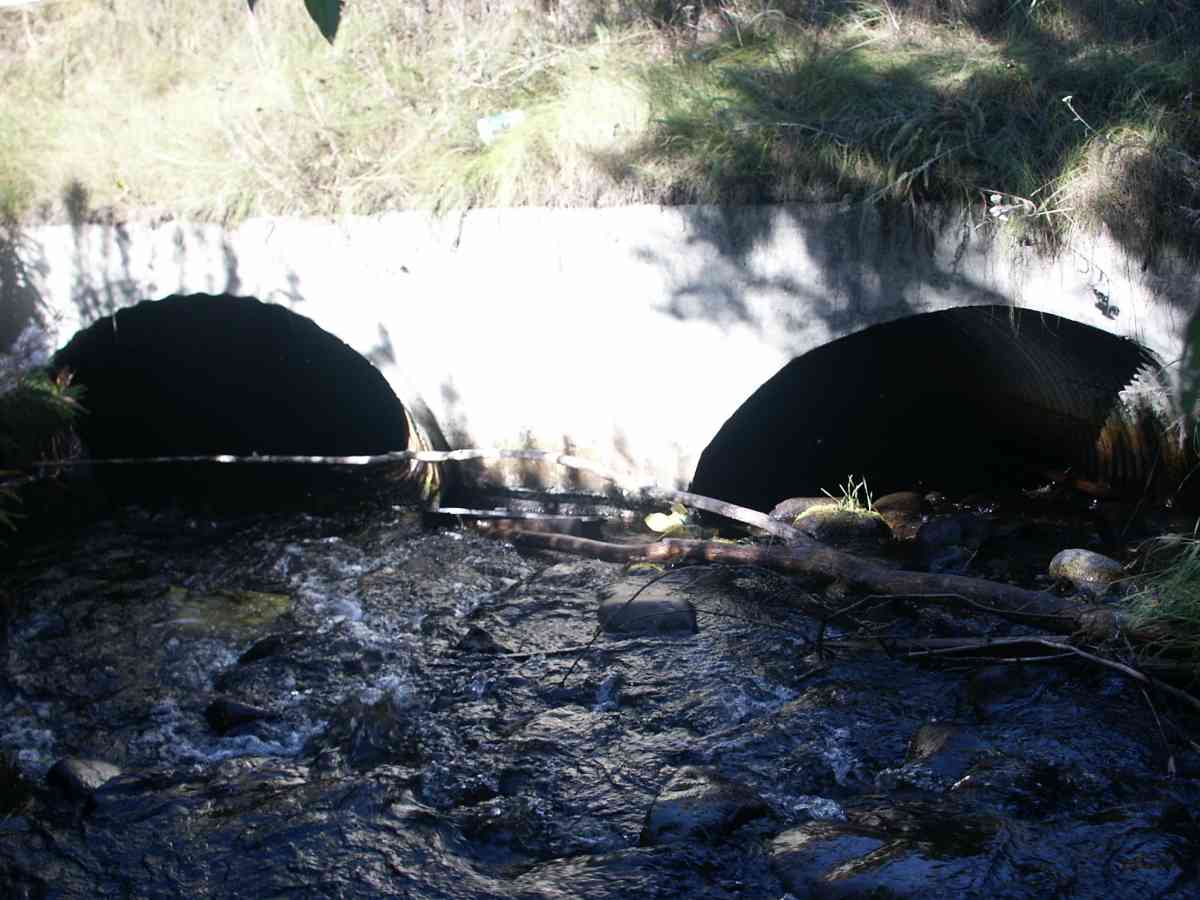

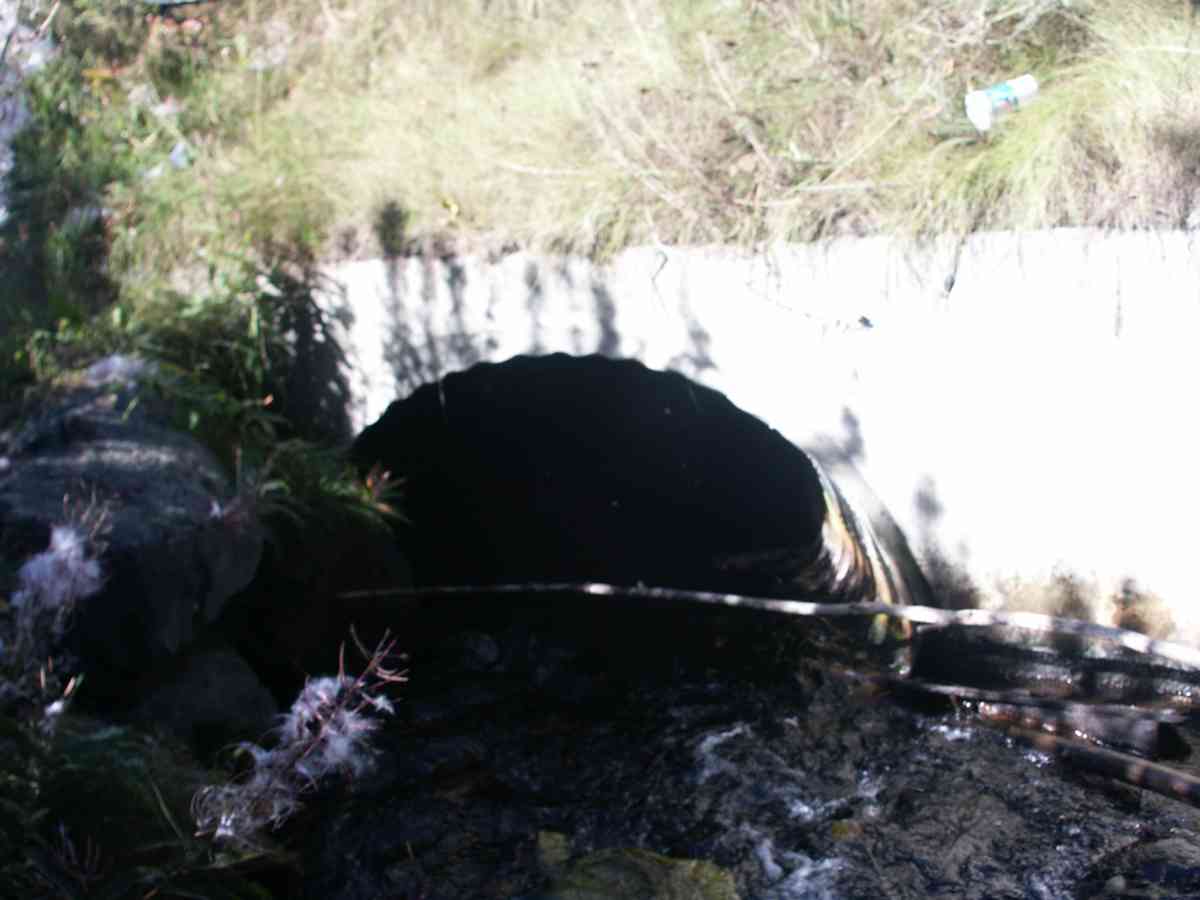

ID: 1 Structure Type: Pipe-arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 127.0
Inlet Type: Headwall
Outlet Type:
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):7.0
Height(ft):3.6
Apron Length(ft):
Water Depth(ft): 3.0
Rustline Height(ft):1.1
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio: 1.51
Culvert Gradient: 3.66%
Max Slope:
Max Slope Length:
ID: 2 Structure Type: Pipe-arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 127.0
Inlet Type: Headwall
Outlet Type:
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):7.0
Height(ft):3.2
Apron Length(ft):
Water Depth(ft): 0.8
Rustline Height(ft):1.4
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio: 1.51
Culvert Gradient: 3.75%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 16.00
Upstream bank full 100.0 15.50
Upstream bank full 125.0 11.50
Upstream bank full 150.0 12.00
Upstream bed width 75.0 10.00
Upstream bed width 100.0 9.50
Upstream bed width 125.0 8.00
Upstream bed width 150.0 8.00
Upstream ordinary high water 75.0 10.50
Upstream ordinary high water 100.0 10.00
Upstream ordinary high water 125.0 8.50
Upstream ordinary high water 150.0 8.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 97.22
D/S Tailcrest or 1st Thalweg 97.45
Max Pool Depth 97.52
OHW Left Bank 98.46
D/S Water Surface Elev 98.89
U/S Thalweg 1 100.67
U/S Thalweg 2 100.75
Outlet Invert (11.84+3.2 OFF TOP OF CUL) 2 0.00 0.0 95.41
Outlet Invert 1 0.00 0.0 95.51
Road Elev 63.50 107.72
Inlet Culvert Invert 1 127.00 0.0 100.16
Inlet Culvert Invert 2 127.00 0.0 100.17

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
