Fish Passage Site 20400147

Coordinates (dec. deg.): 61.15008°, -149.81186°
Legal Description: S012N003W09
Region: South Central

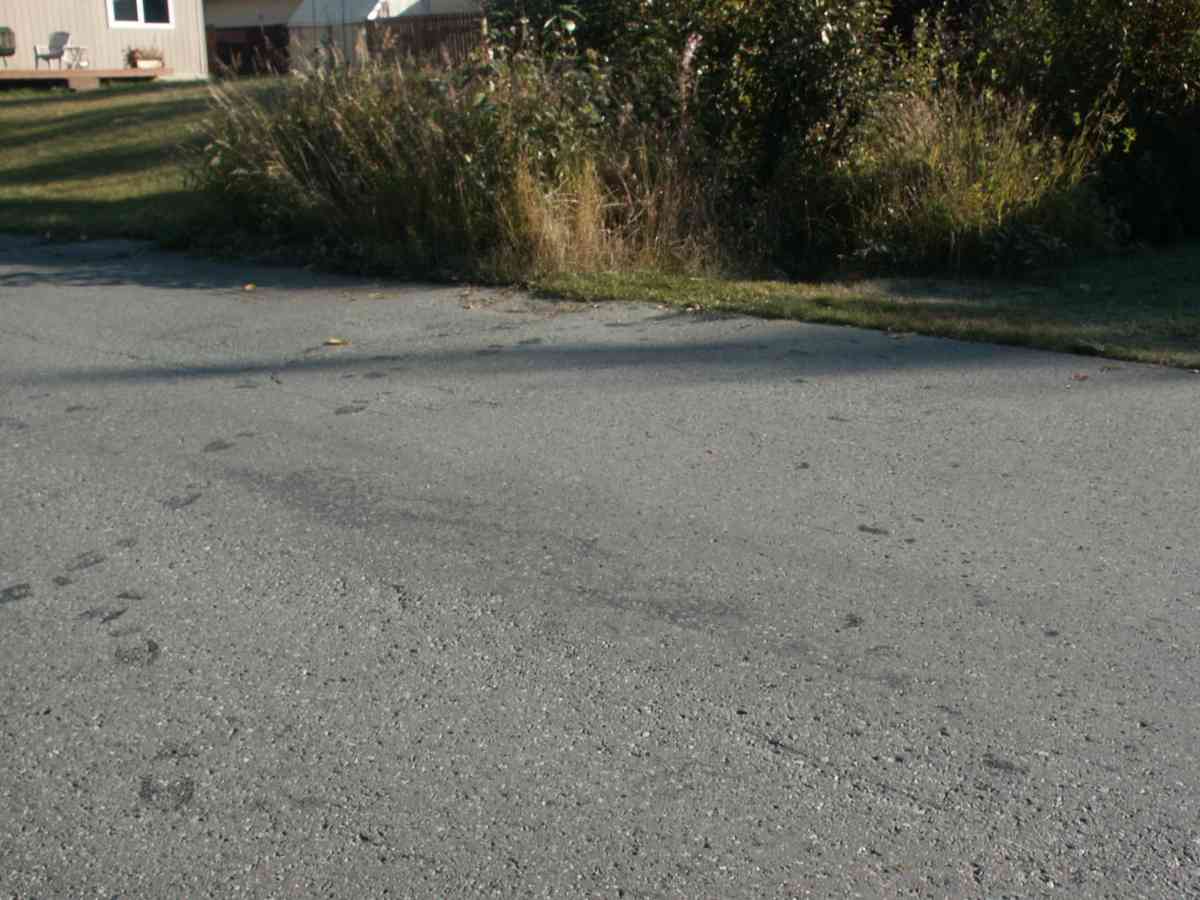

Road Name: WINCHESTER

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018-3005
Stream Name: Little Campbell Creek North Fork

Elevation:

Site Comments: CAMPBELL CREEK WATERSHED

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey ANC04-3A147

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: CAMBELL CREEK WATERSHED, DOLLY VARDEN CHAR TO 6 IN PRESENT BELOW OUTLET AND ABOVE INLET

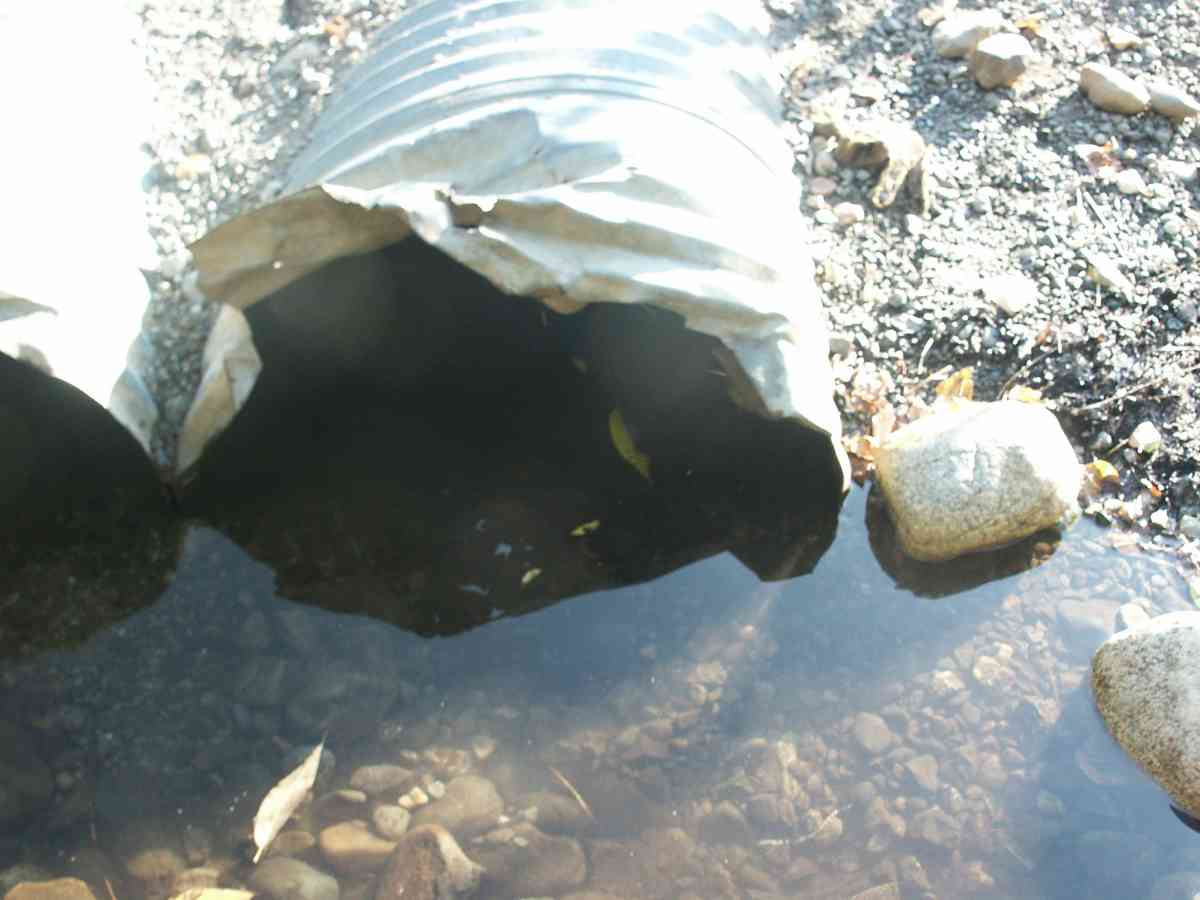

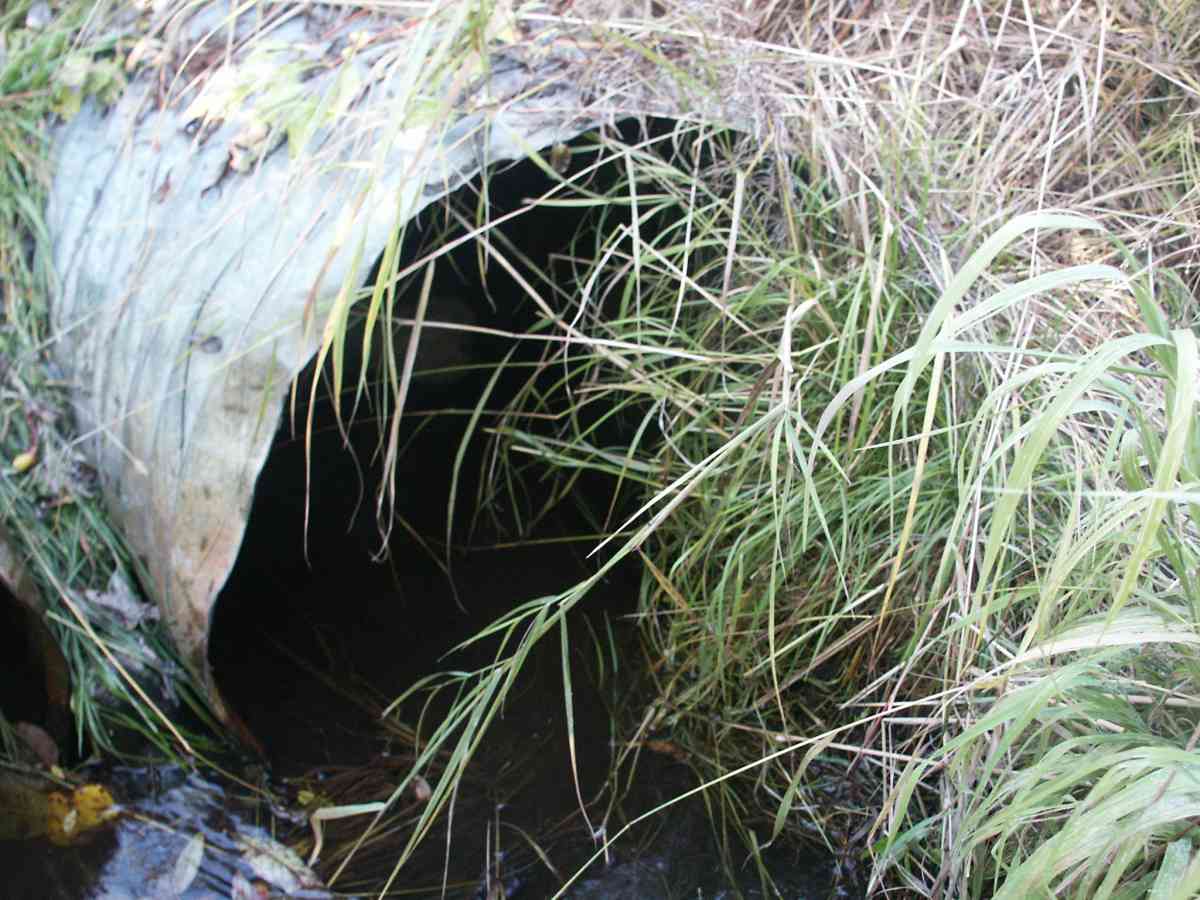

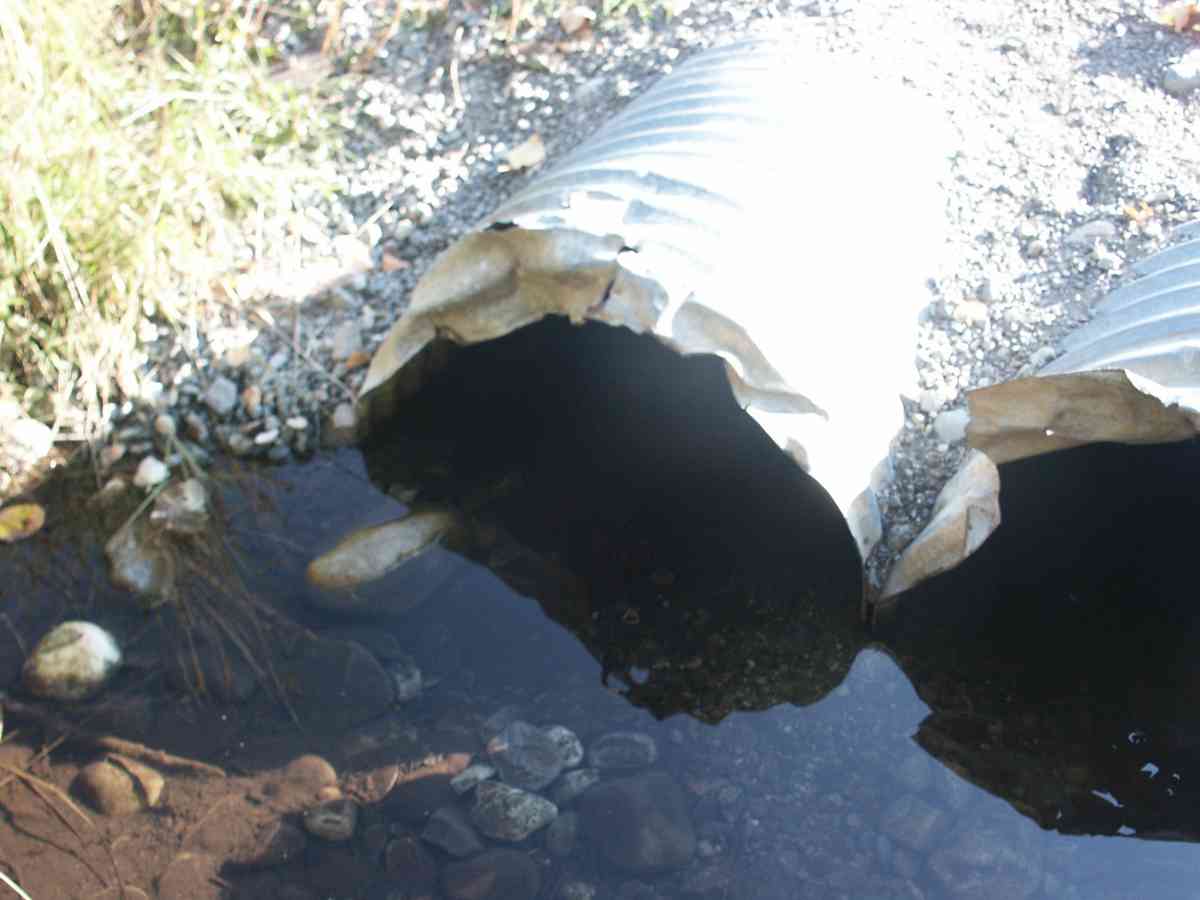

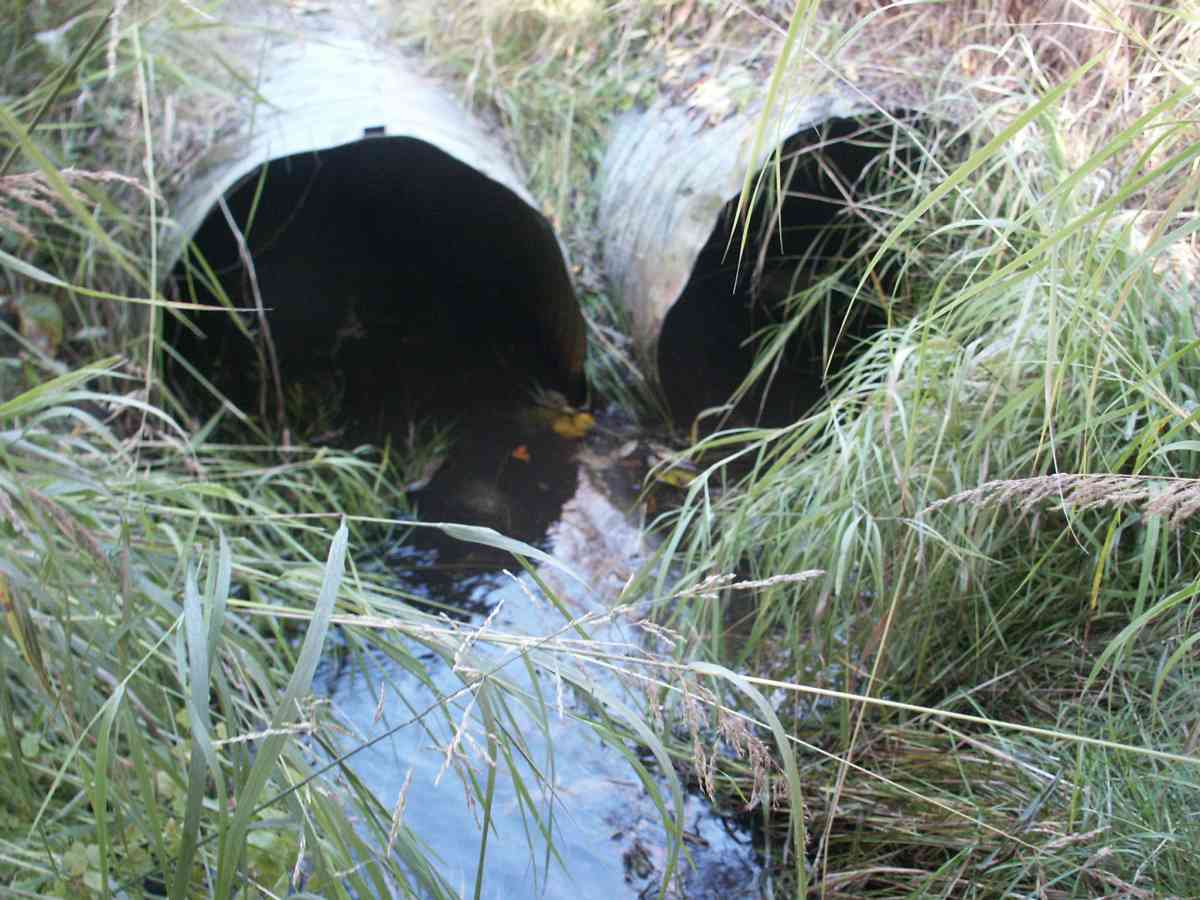

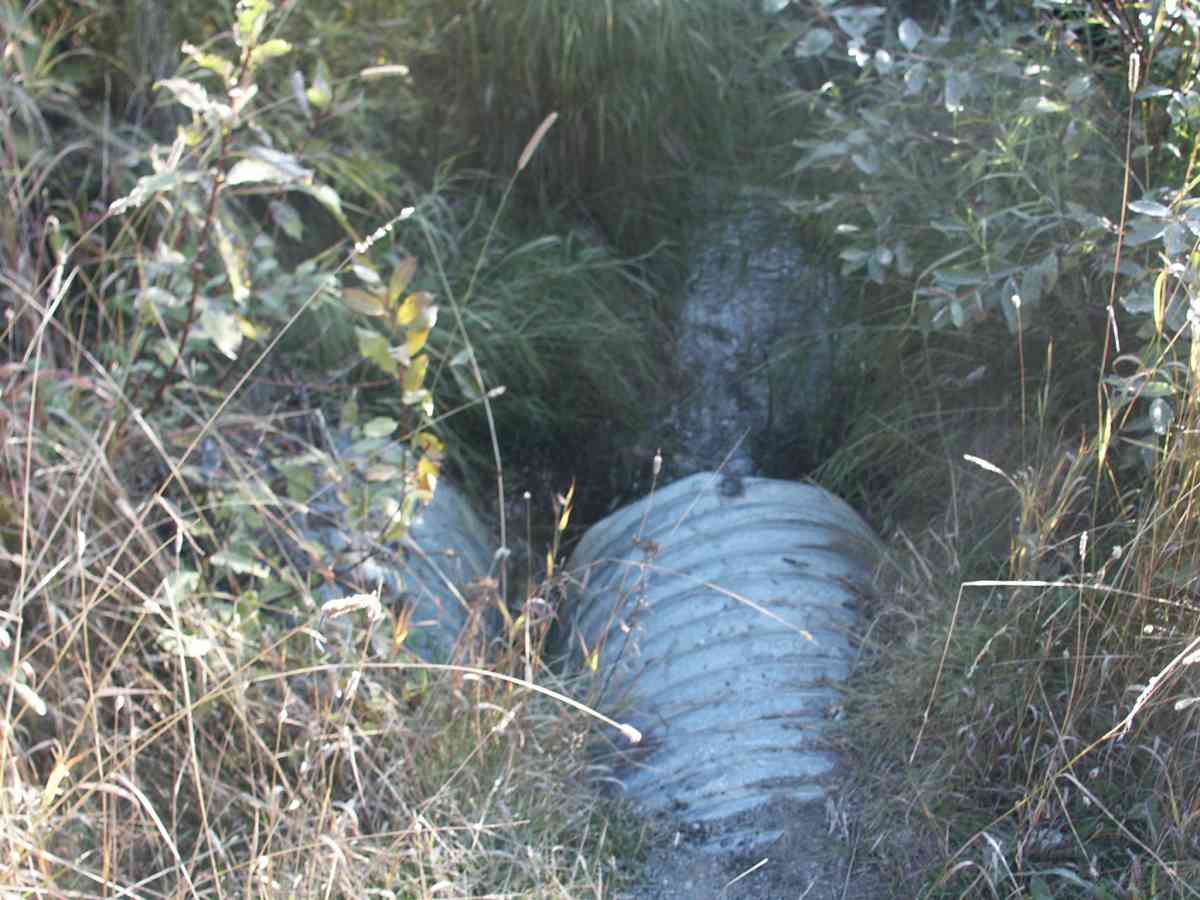

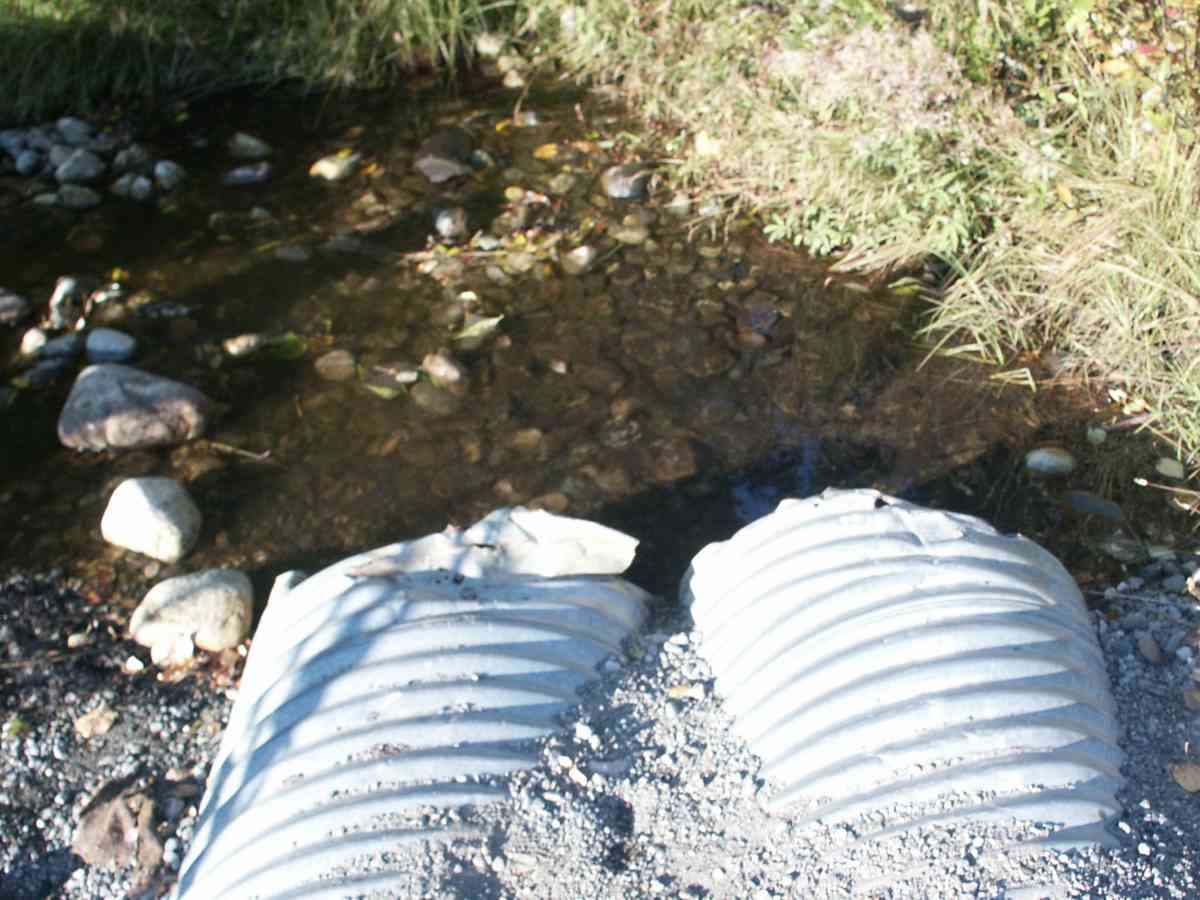

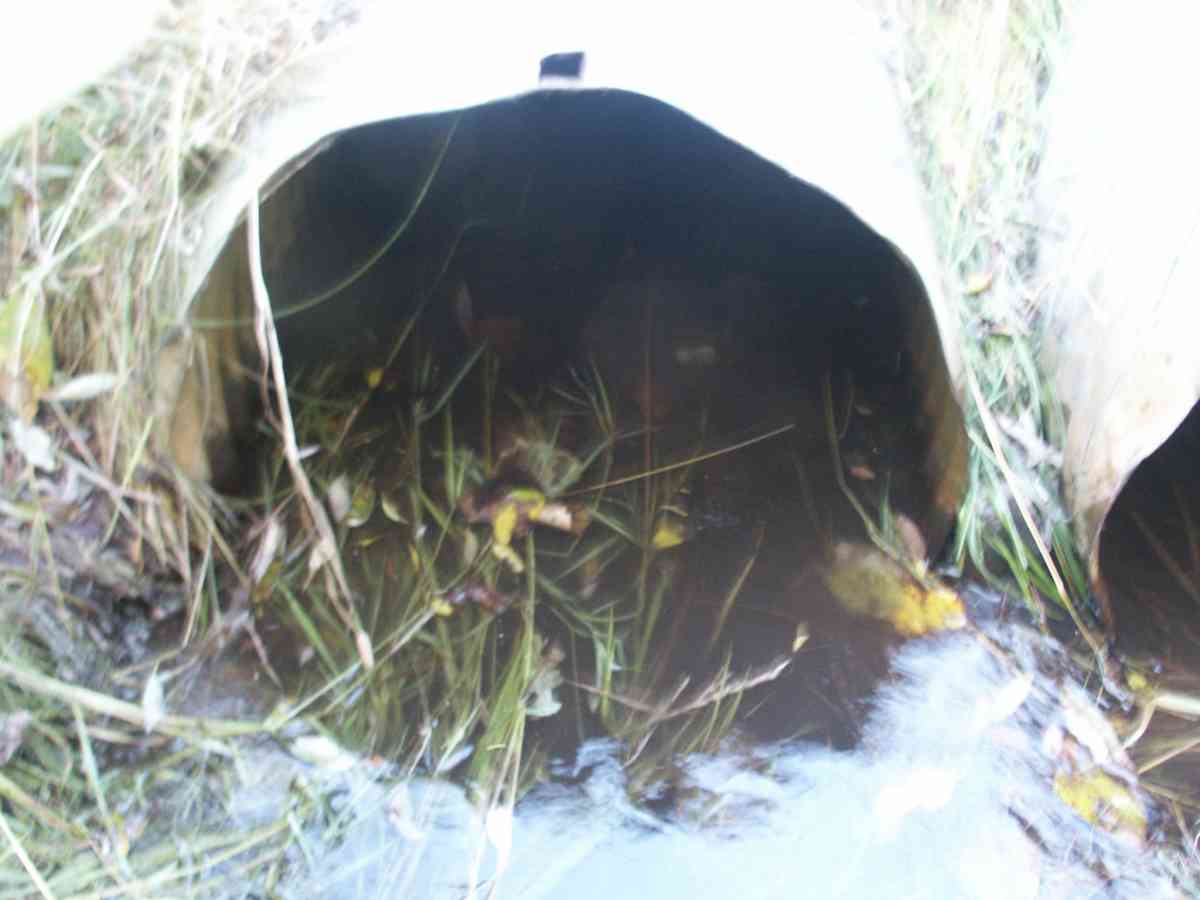

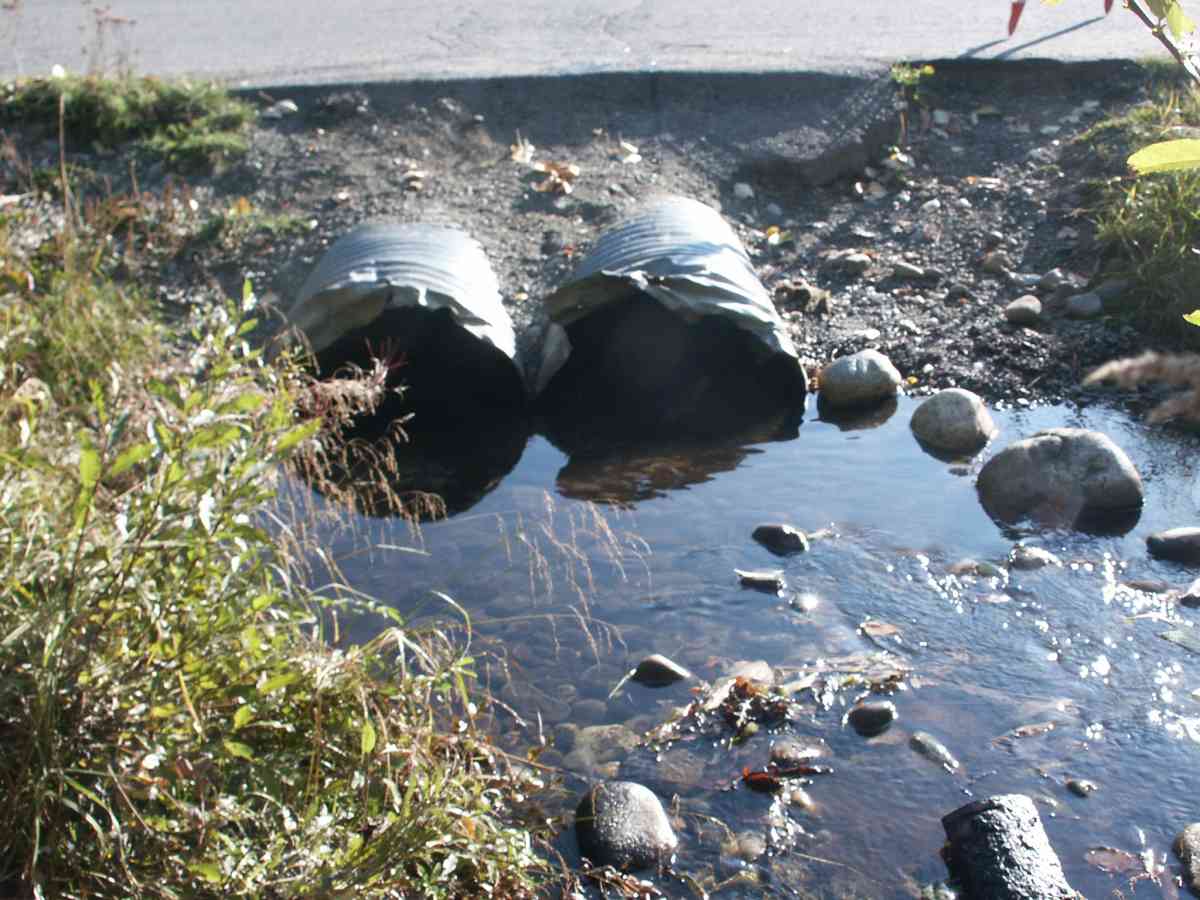

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.5
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.5
Height(ft):2.5
Apron Length(ft):
Water Depth(ft): 0.7
Rustline Height(ft):1.2
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type:
Constriction Ratio: 1.27
Culvert Gradient: 0.15%
Max Slope:
Max Slope Length:
ID: 2 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.7
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.5
Height(ft):2.5
Apron Length(ft):
Water Depth(ft): 0.6
Rustline Height(ft):1.1
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type:
Constriction Ratio: 1.27
Culvert Gradient: 0.34%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 8.90
Upstream bank full 100.0 10.60
Upstream bank full 125.0 11.10
Upstream bank full 150.0 12.90
Upstream bed width 75.0 3.20
Upstream bed width 100.0 3.10
Upstream bed width 125.0 3.60
Upstream bed width 150.0 5.00
Upstream ordinary high water 75.0 3.50
Upstream ordinary high water 100.0 3.20
Upstream ordinary high water 125.0 4.10
Upstream ordinary high water 150.0 5.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 97.71
U/S Thalweg 1 97.81
U/S Thalweg 2 97.81
D/S Thalweg 97.85
Max Pool Depth 97.98
OHW Left Bank 98.33
OHW Left Bank 98.45
Outlet Invert 1 0.00 0.0 97.66
Outlet Invert 2 0.00 0.0 97.73
Road Elev 20.00 100.64
Inlet Culvert Invert 1 40.00 0.0 97.72
Inlet Culvert Invert 2 40.00 0.0 97.87

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
