Fish Passage Site 20400130

Coordinates (dec. deg.): 61.13343°, -149.78483°
Legal Description: S012N003W15
Region: South Central

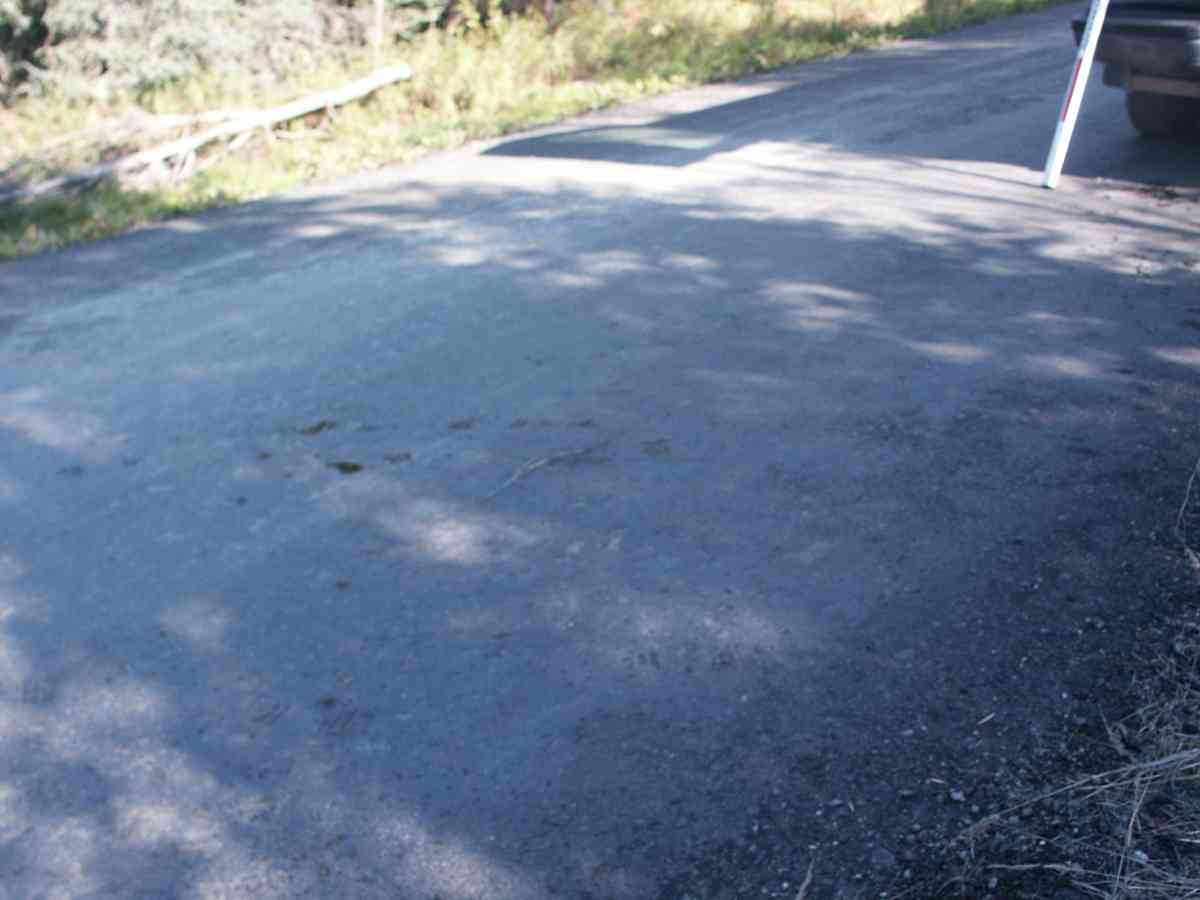

Road Name: East 98TH Street

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #:
Stream Name: Craig Creek

Elevation:

Site Comments: E. 98TH & VALLEY VIEW. CAMPBELL CREEK WATERSHED, CREEK IS UNDERGROUND IN SEVERAL PLACES ABOVE CULVERT INLET

Survey Date: Sep 15, 2004

Survey ANC04-3A130

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: CAMBELL CREEK WATERSHED, CREEK IS UNDERGROUND IN SEVERAL PLACES ABOVE CULVERT INLET

Culvert Measurements

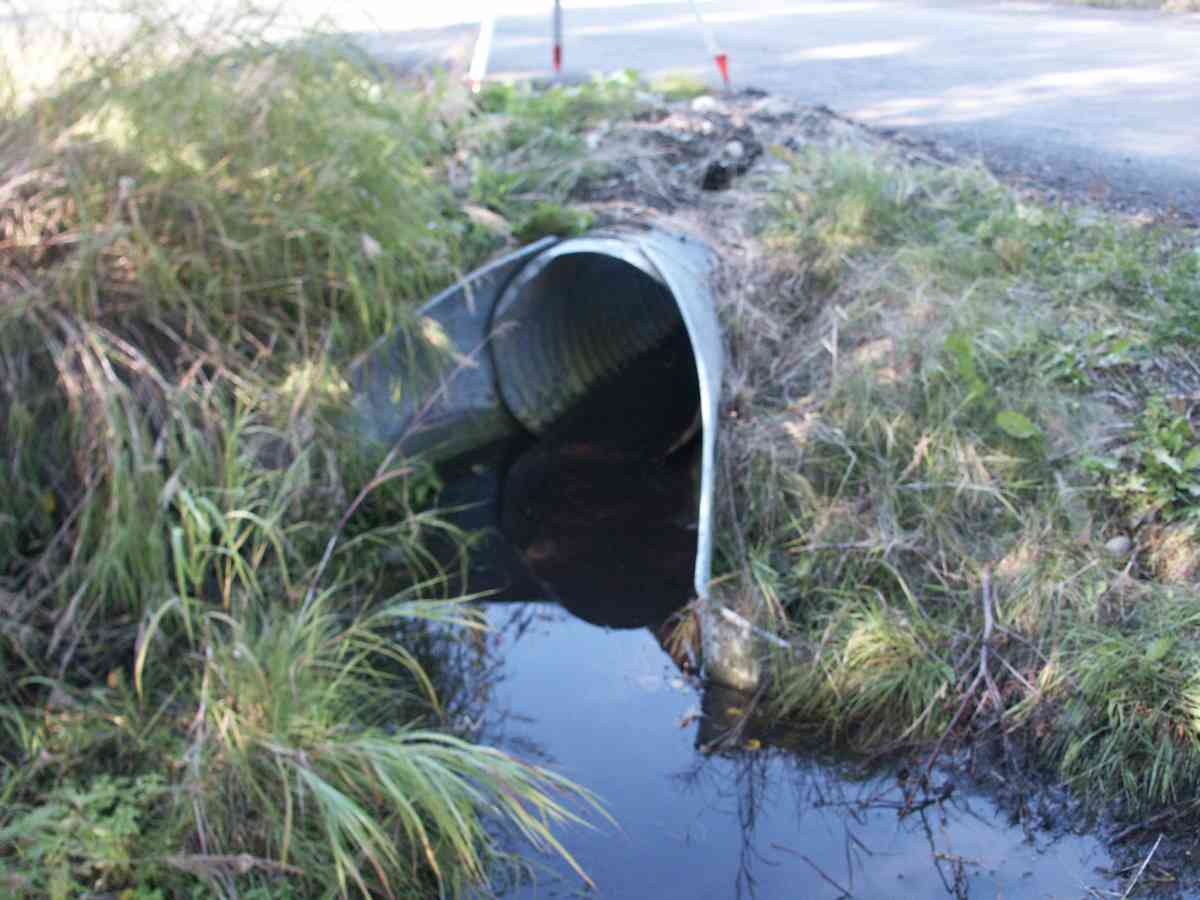

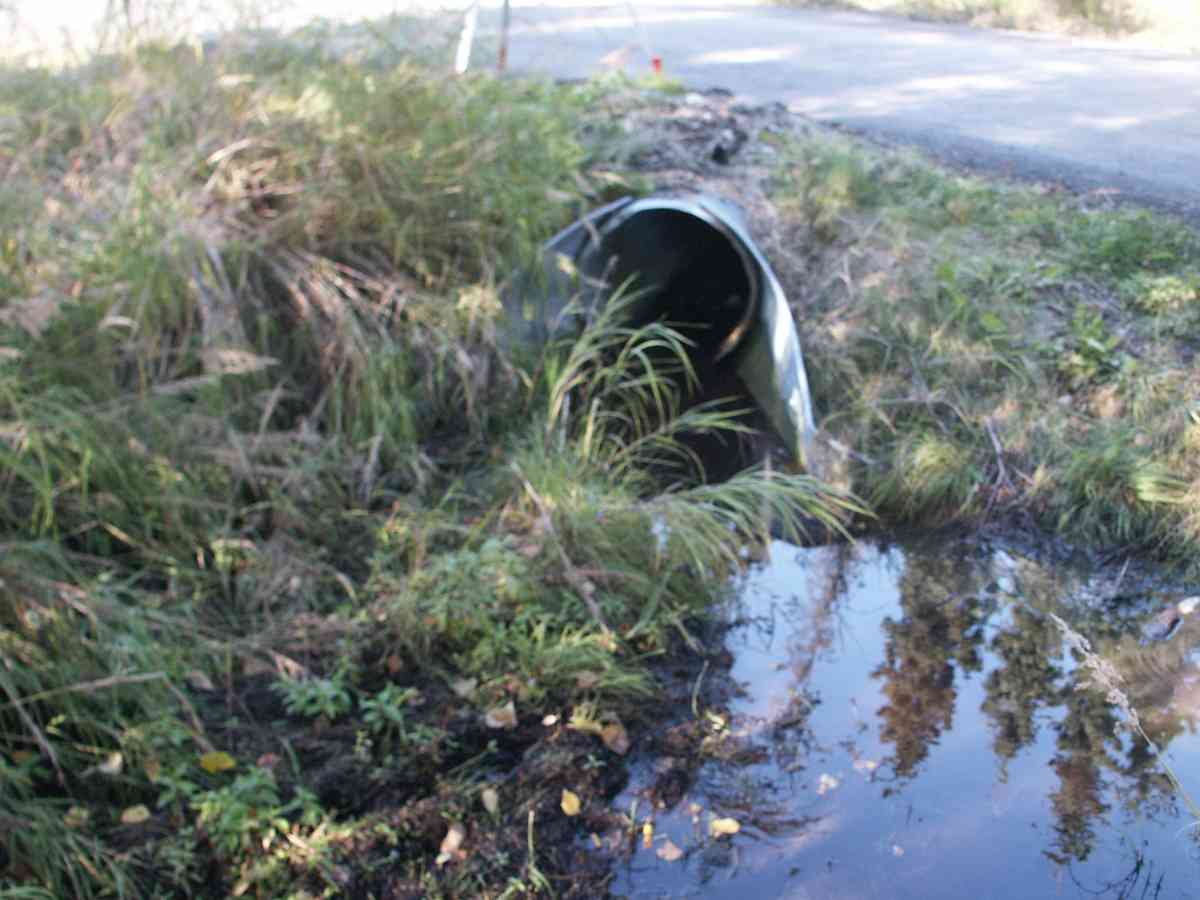

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 41.1

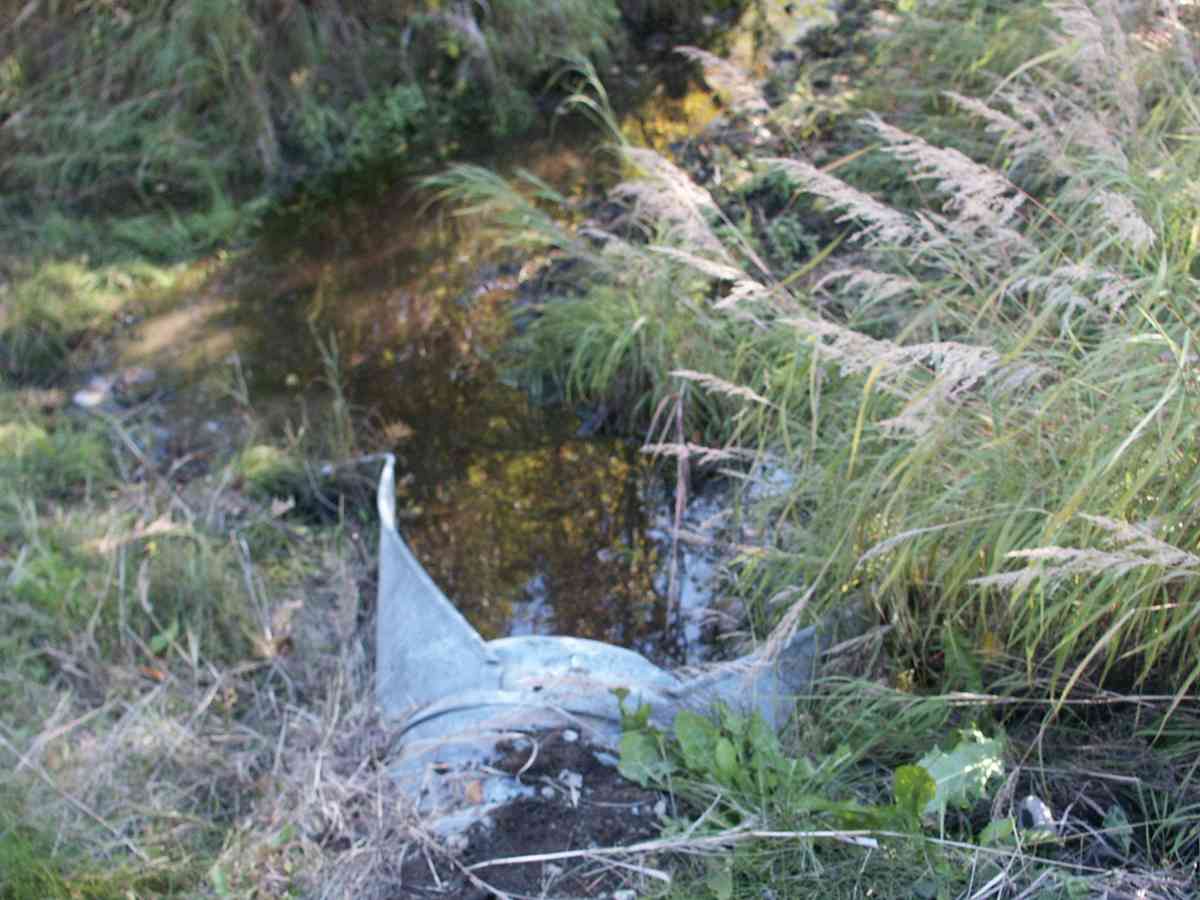

Inlet Type: Flared Inlet
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft): 0.2
Rustline Height(ft):0.4
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.13
Outfall Type:
Constriction Ratio: 0.87
Culvert Gradient: 2.75%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 5.60
Upstream bank full 100.0 6.00
Upstream bank full 125.0 5.70
Upstream bank full 150.0 6.10
Upstream bed width 75.0 1.50
Upstream bed width 100.0 2.20
Upstream bed width 125.0 2.20
Upstream bed width 150.0 3.20
Upstream ordinary high water 75.0 1.50
Upstream ordinary high water 100.0 2.30
Upstream ordinary high water 125.0 2.20
Upstream ordinary high water 150.0 3.20

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 96.65
D/S Thalweg 96.67
Max Pool Depth 96.76
OHW Left Bank 96.99
OHW Left Bank 97.20
U/S Thalweg 1 97.91
Outlet Invert 1 0.00 0.0 96.87
Road Elev 20.50 100.03
Inlet Culvert Invert 1 41.00 0.0 98.00

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
