Fish Passage Site 20400128

Coordinates (dec. deg.): 61.12544°, -149.78901°
Legal Description: S012N003W15
Region: South Central
Road Name: DRIVEWAY OFF OUR ROAD

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018
Stream Name: Little Campbell Creek South Fork

Elevation:

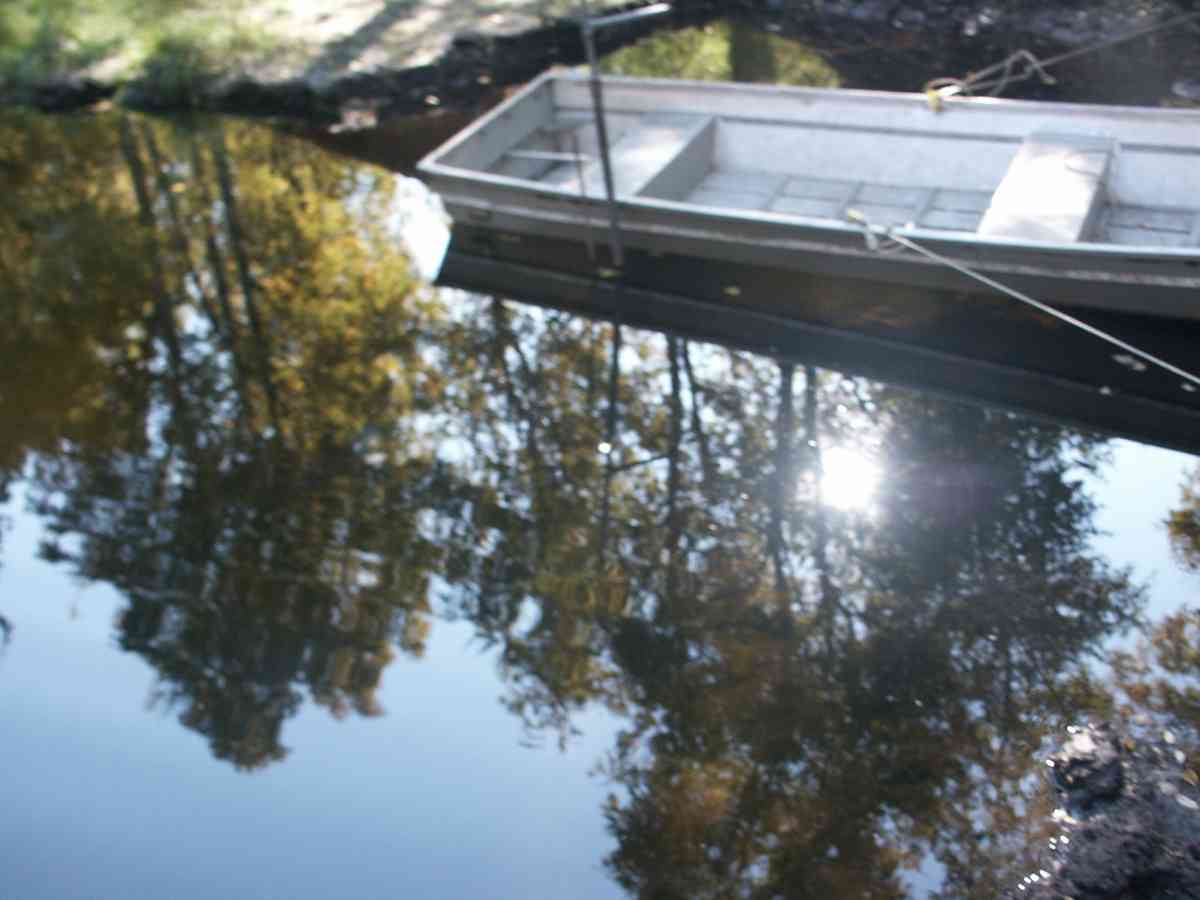

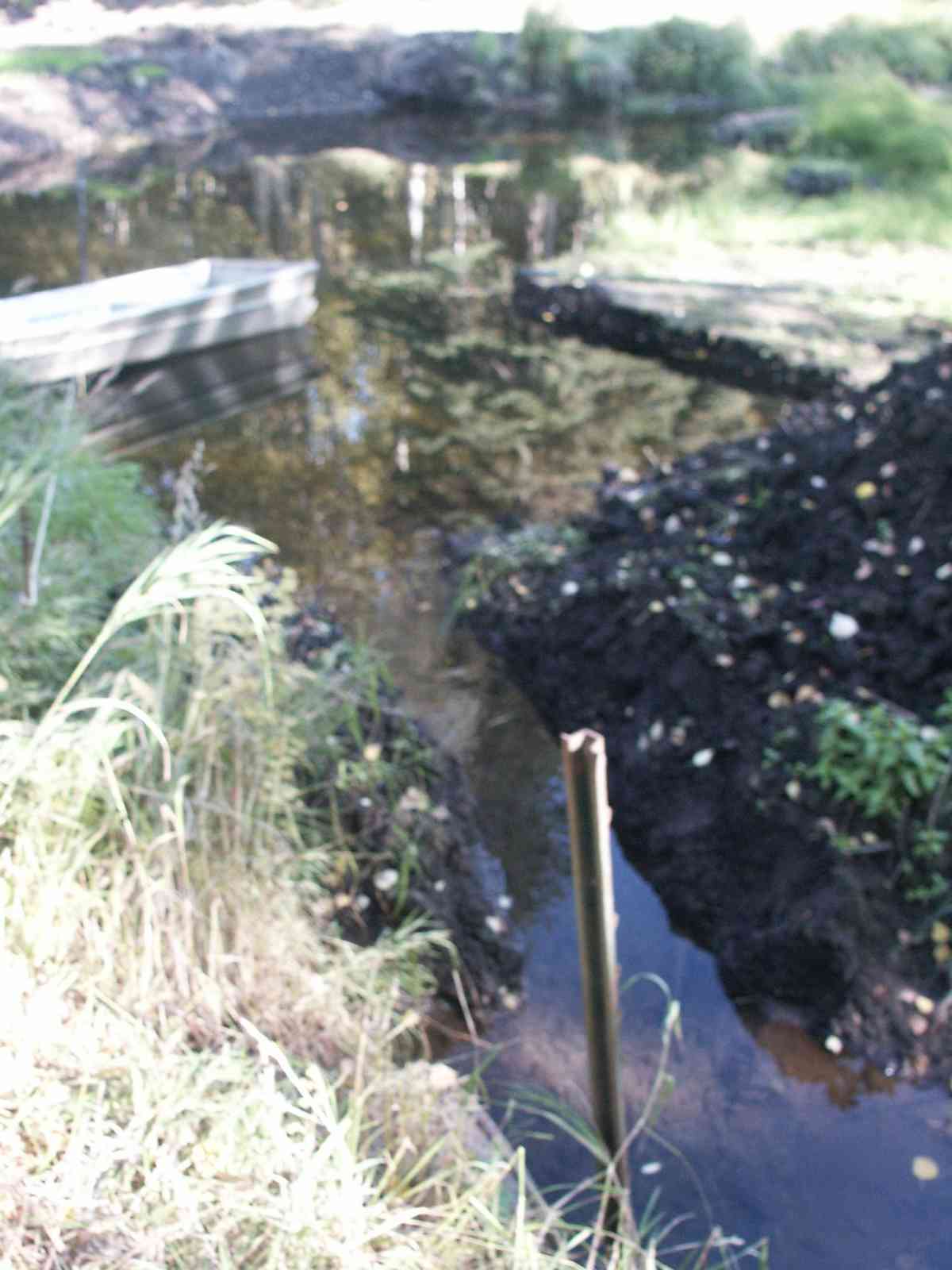

Site Comments: CAMBELL CREEK WATERSHED, POND ABOVE CULVERT ESTABLISHED 1953 (APPROXIMATLY)

Survey Date: Sep 15, 2004

Survey ANC04-3A128

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

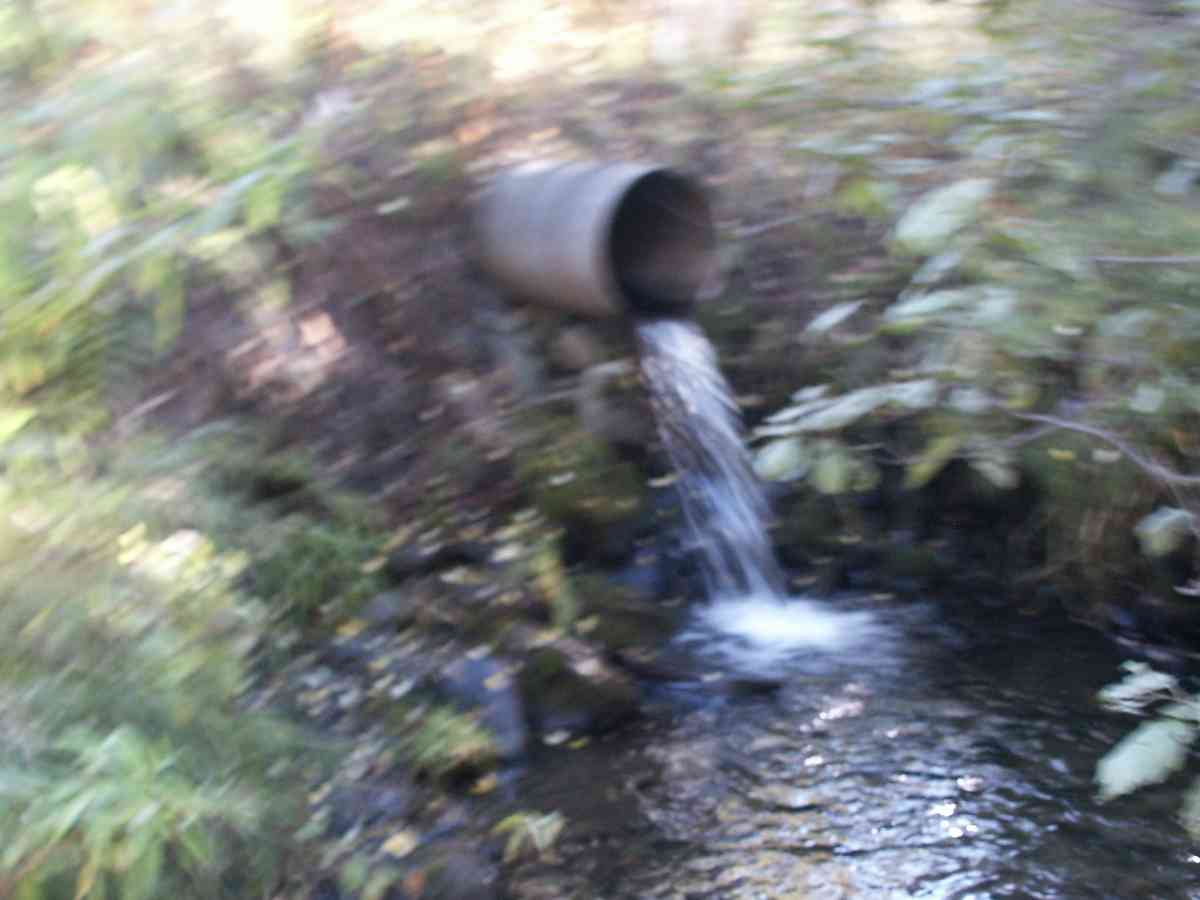

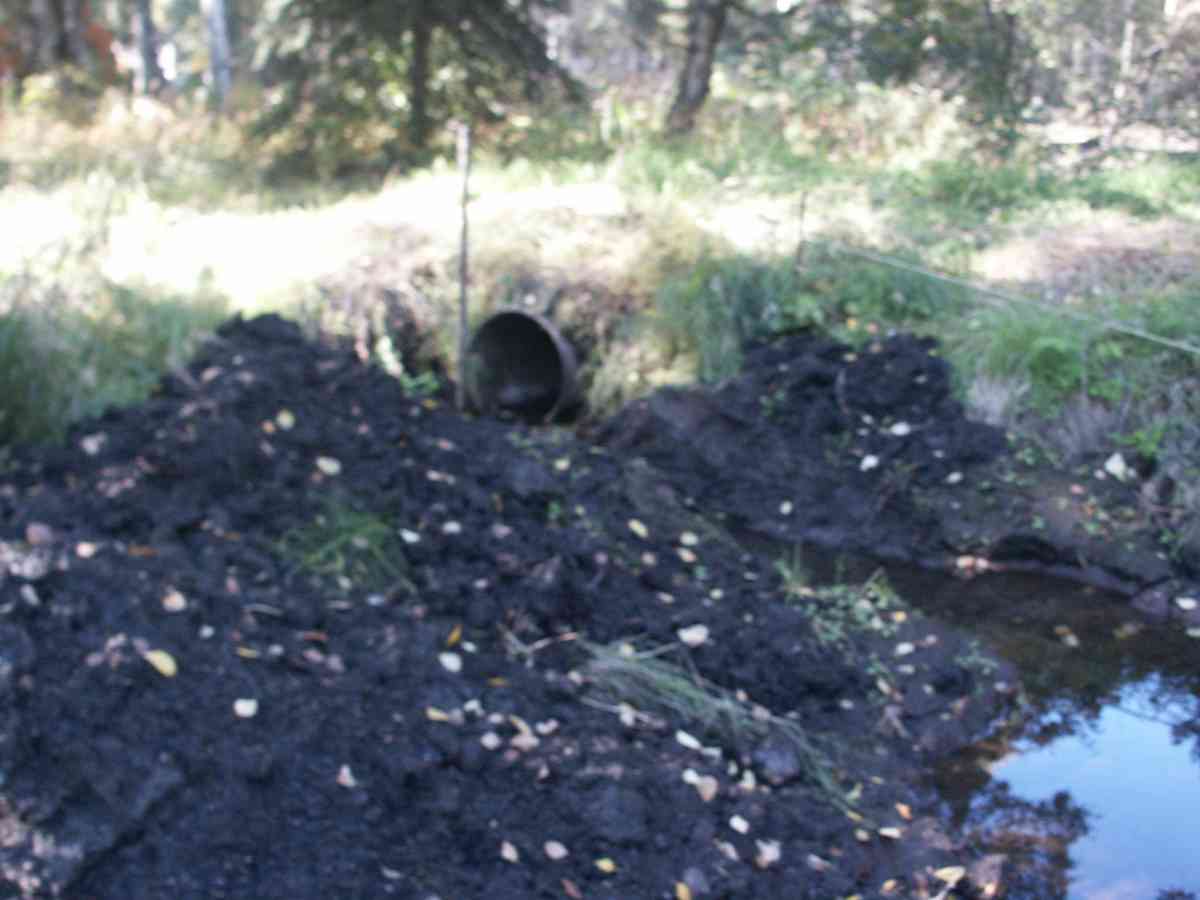

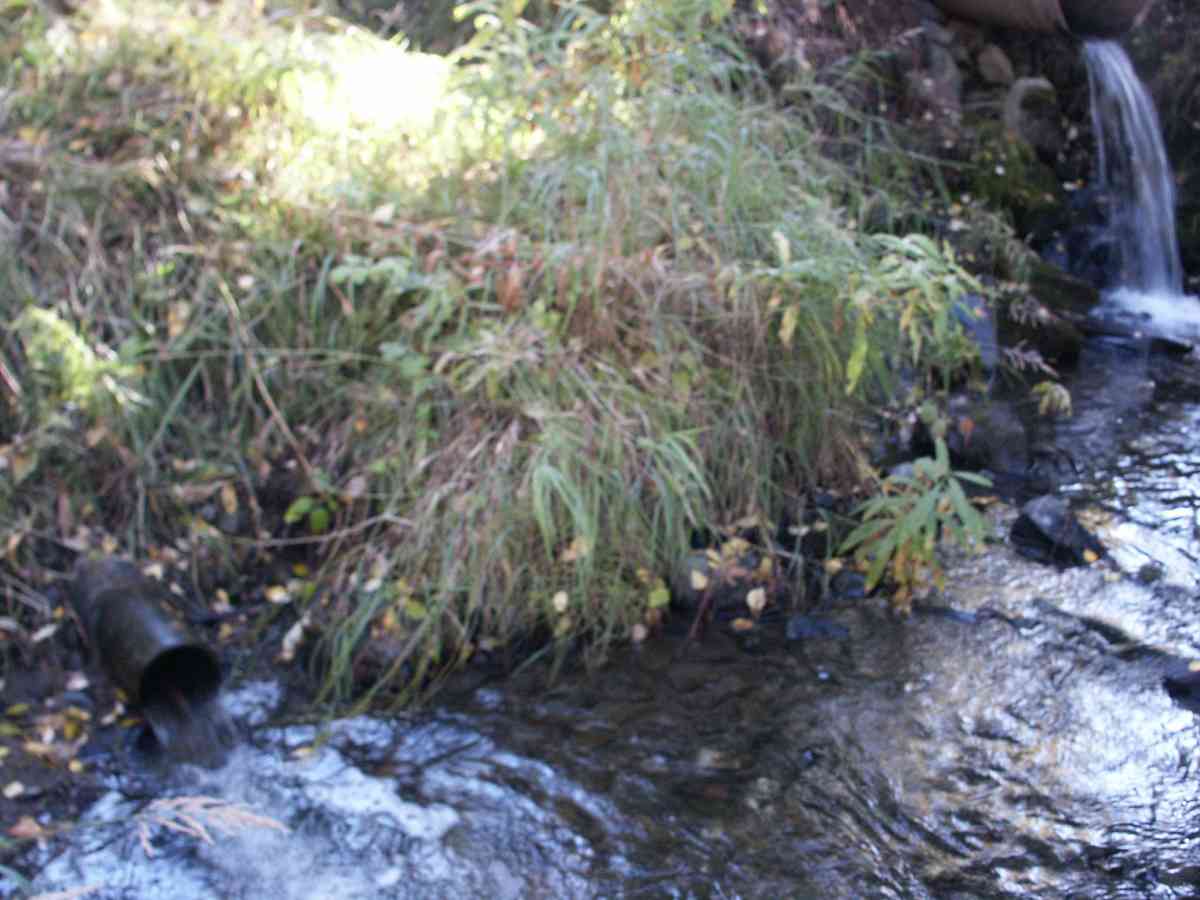

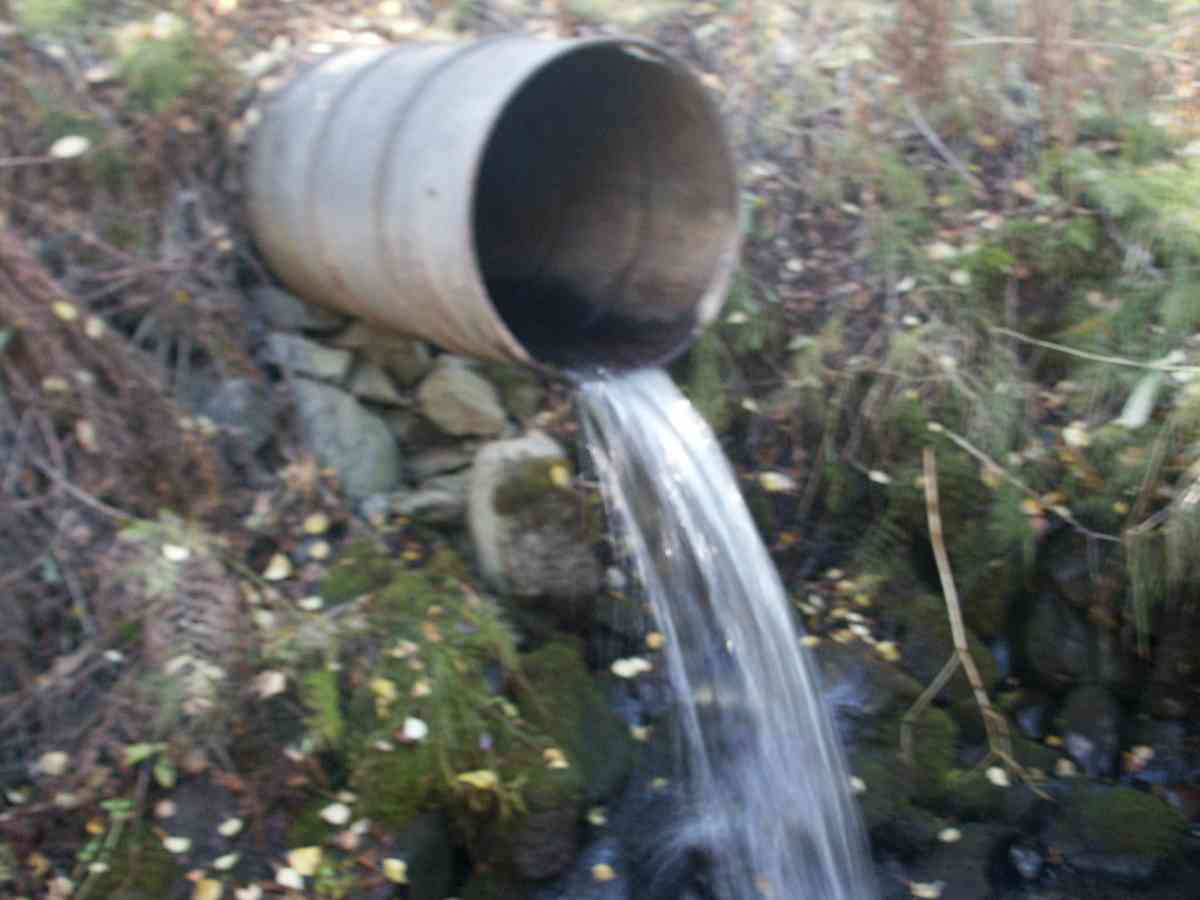

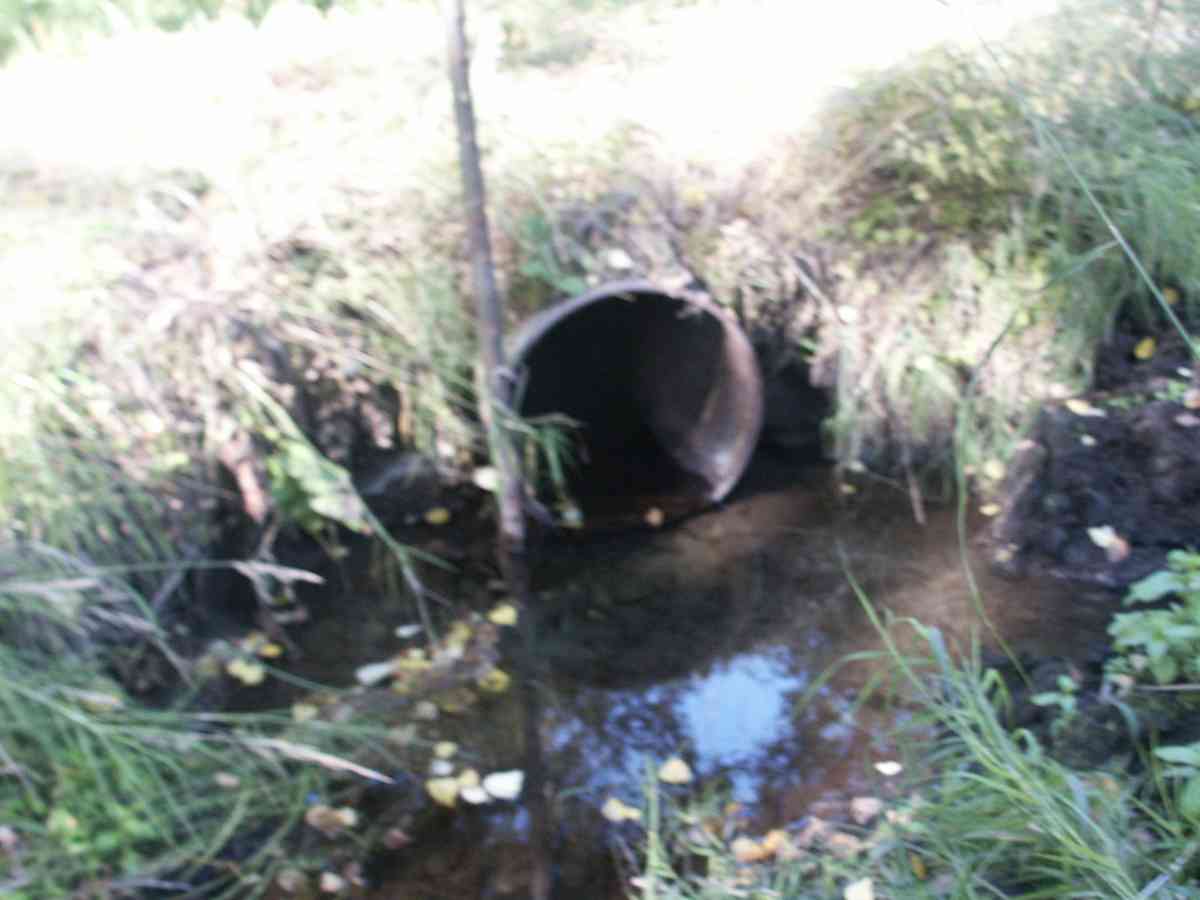

Comments: CAMBELL CREEK WATERSHED, NO UPSTREAM MEASUREMENTS TAKEN DUE TO POND ABOVE CULVERT ESTABLISHED 1953 (APPROXIMATLY), LARGE CULVERT IS WELDED 55 GAL DRUMS, SMALL CULVERT IS 6 IN DIA PIPE

Culvert Measurements

ID: 1 Structure Type: Other (Unknown) Fish Passage Rating:

Length(ft): 24.0
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.0
Corrugation Width(in.): 0.0
Condition Rating(1-5): 1
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):1.8
Height(ft):1.8
Apron Length(ft):
Water Depth(ft): 0.2
Rustline Height(ft):1.8
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 3.43
Outfall Type:
Constriction Ratio:
Culvert Gradient: 6.71%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 97.10
D/S Thalweg 97.10
D/S Tailcrest or 1st Thalweg 98.63
OHW Left Bank 98.81
OHW Left Bank 100.30
Outlet Invert 1 0.00 0.0 102.04
Road Elev 12.00 105.85
Inlet Culvert Invert 1 24.00 0.0 103.65

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
