Fish Passage Site 20400122
Coordinates (dec. deg.): 61.16101°, -149.83454°
Legal Description: S012N003W05
Region: South Central

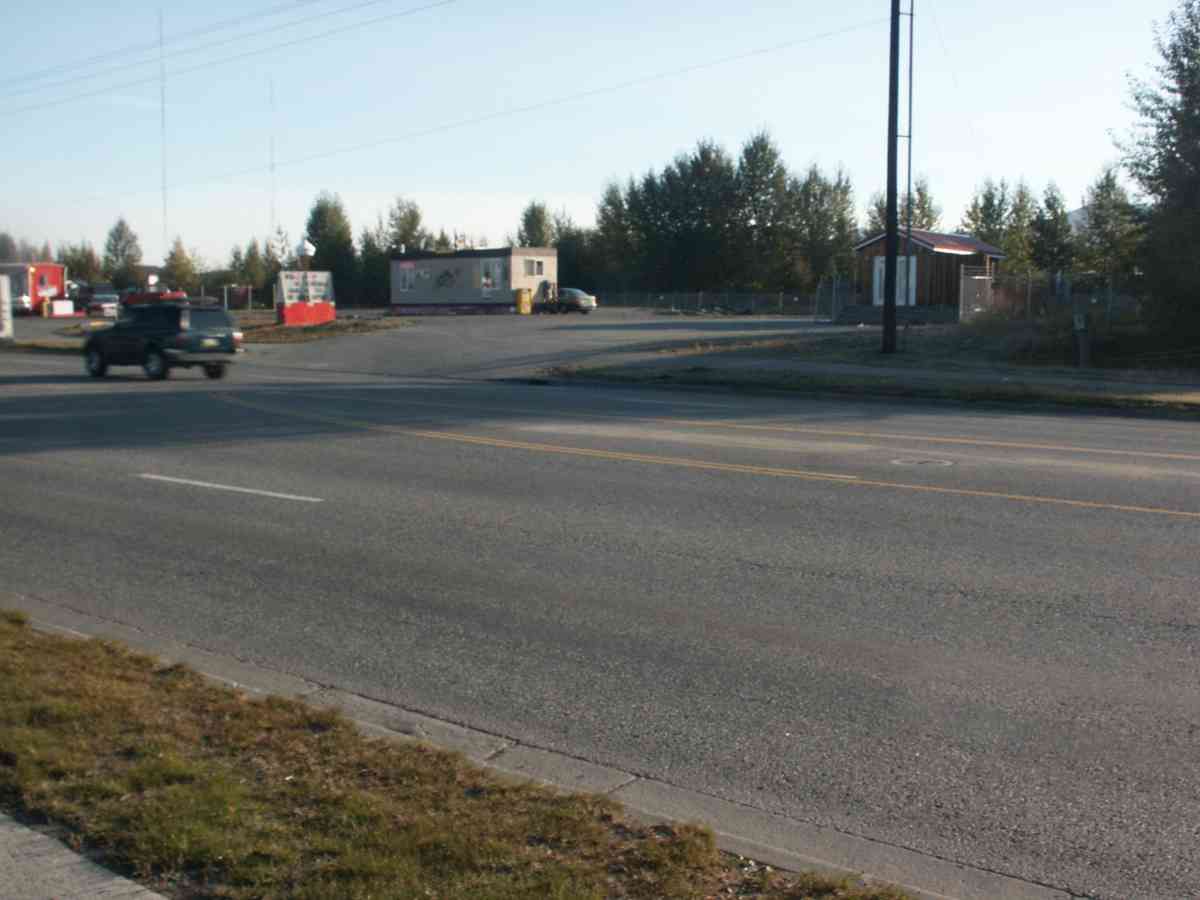

Road Name: LAKE OTIS PARKWAY
Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018-3005
Stream Name: Little Campbell Creek North Fork
Elevation:
Site Comments: CAMBELL CREEK WATERSHED
arrow to the right of the survey date below to choose a different report for this site.
Survey ANC04-3A122
Observers: Dean Beers, Vic Stanculescu
Overall Fish Passage Rating:
Tidal: No
Backwatered: No
Step Pools:
Construction Year:
Comments: CAMBELL CREEK WATERSHED, DOLLY VARDEN CHAR, SCULPIN & STICKLEBACK PRESENT AT CULVERT INLET
Culvert Measurements

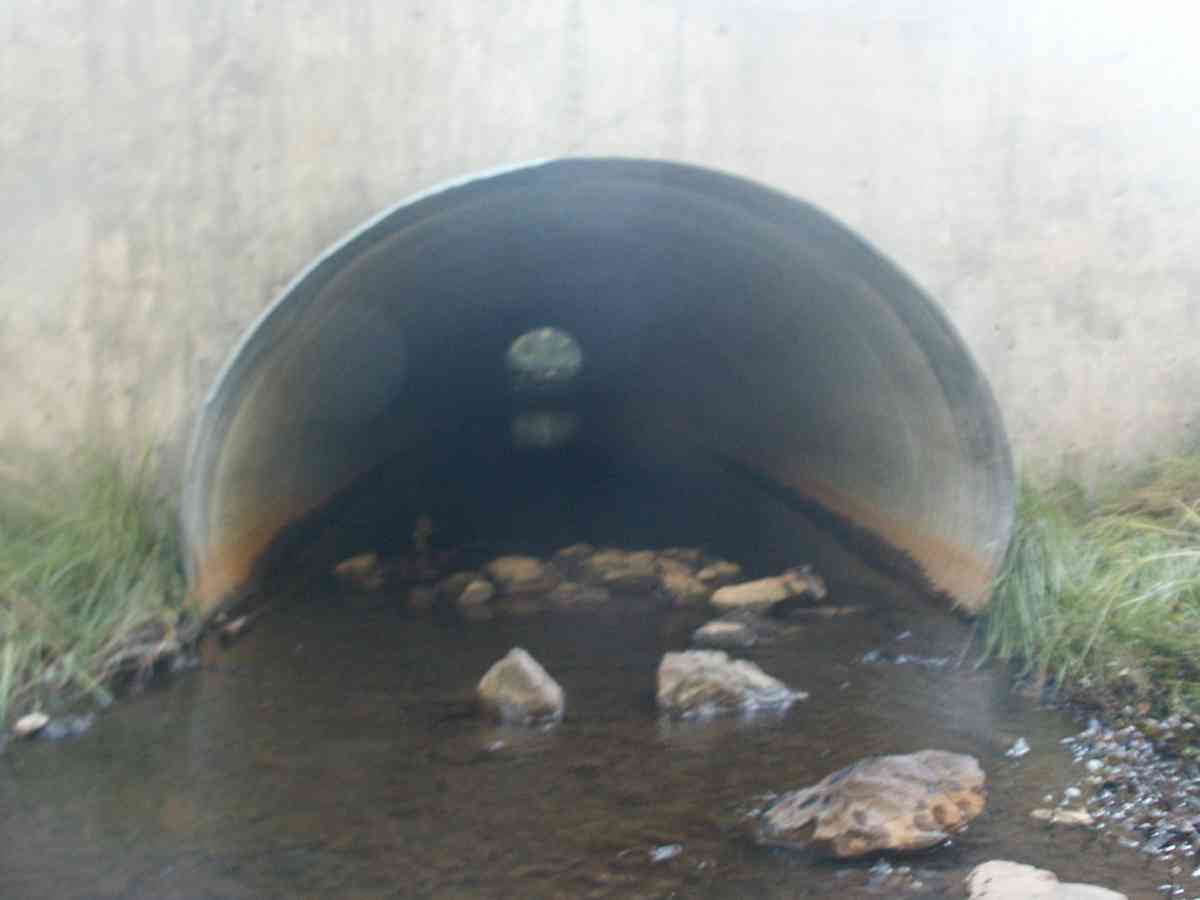

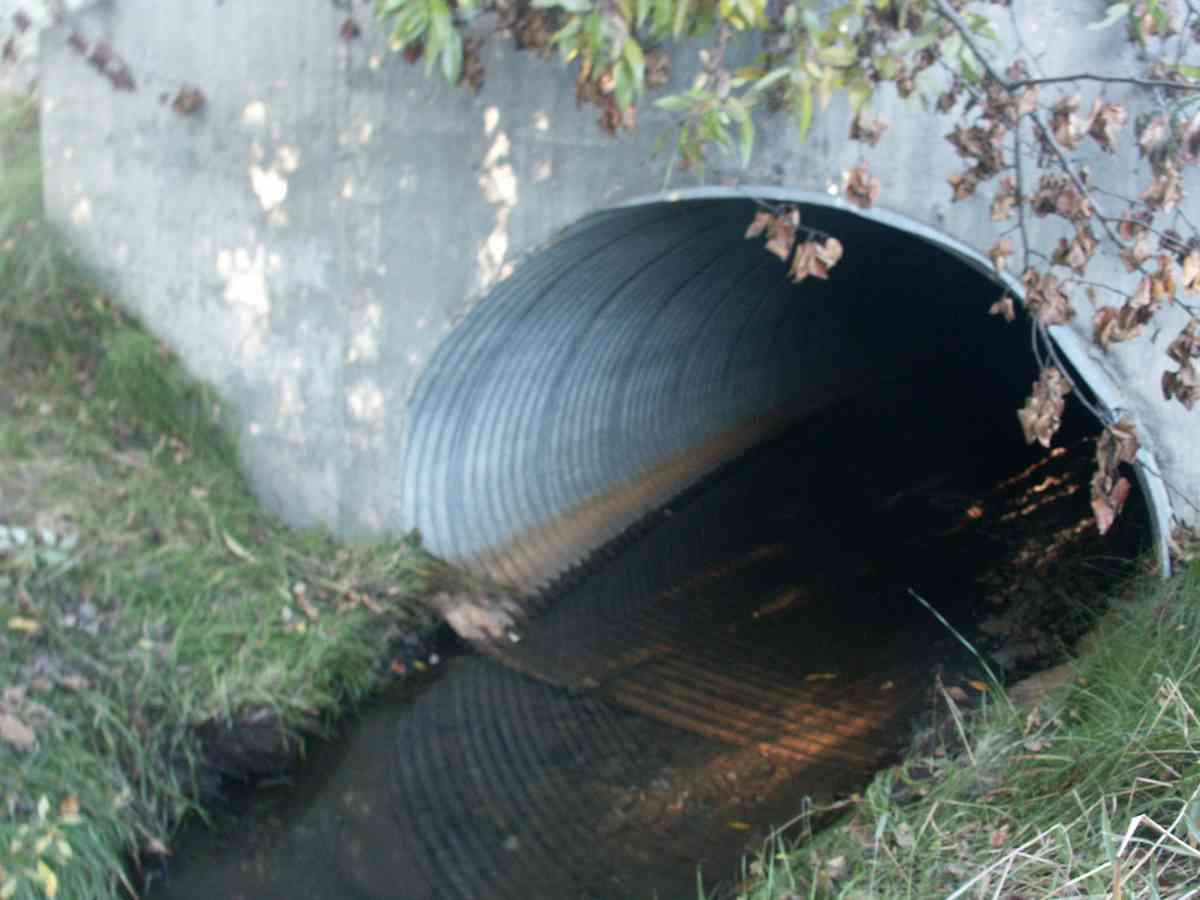

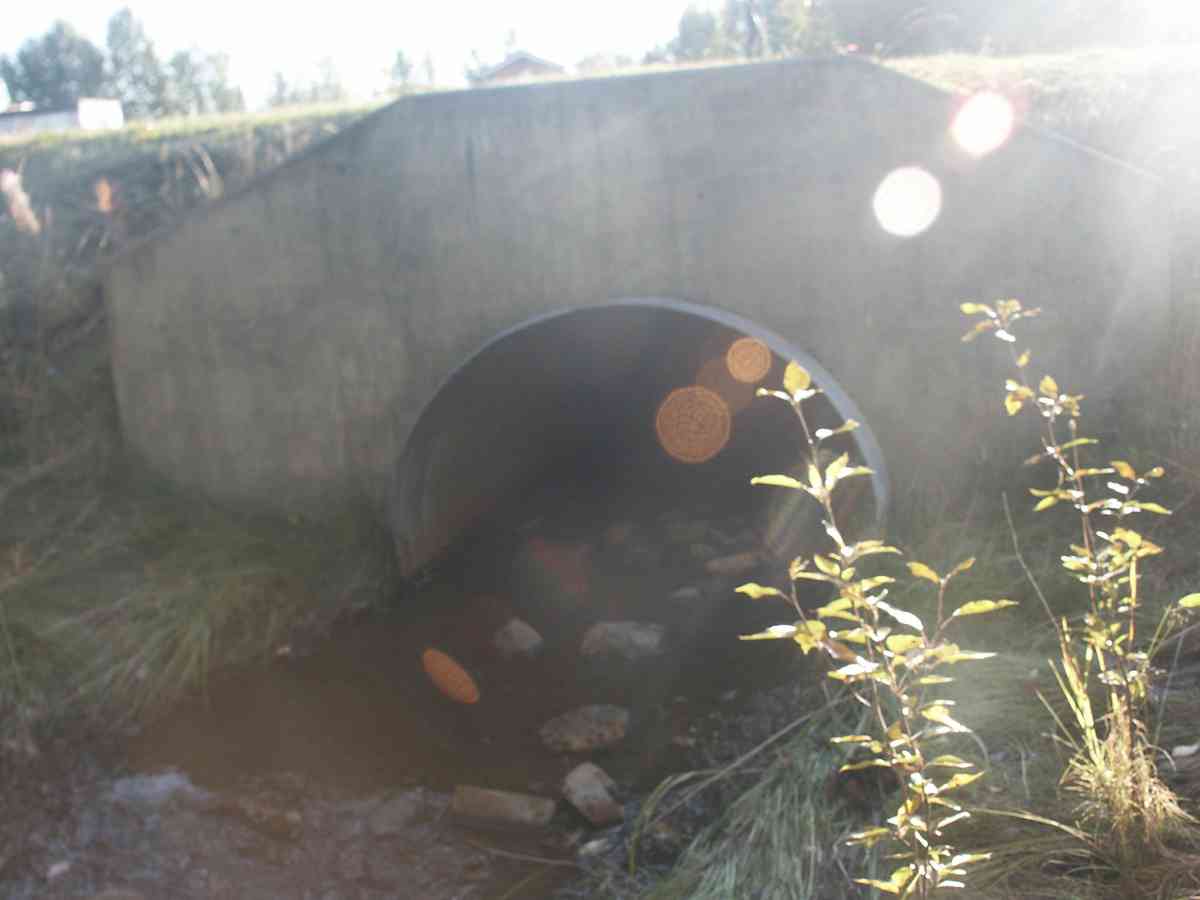

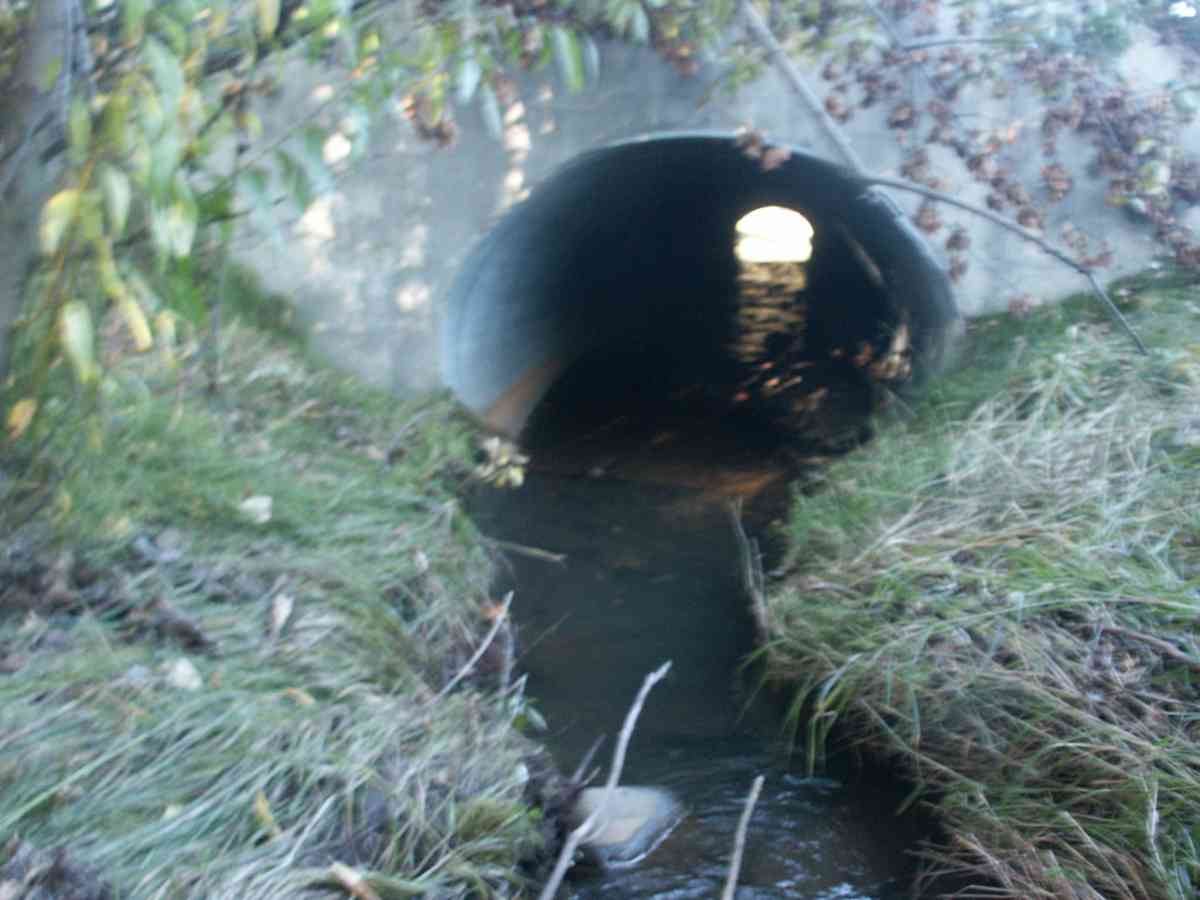

ID: 1 | Structure Type: Pipe-arch (Corrugated Metal) | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|
Stream Measurements
|
|
Stream Width Type | Distance From Crossing (ft) |
Stream Width (ft) |
---|---|---|
Upstream bank full | 75.0 | 8.20 |
Upstream bank full | 100.0 | 8.70 |
Upstream bank full | 125.0 | 9.00 |
Upstream bank full | 150.0 | 9.30 |
Upstream bed width | 75.0 | 3.50 |
Upstream bed width | 100.0 | 3.50 |
Upstream bed width | 125.0 | 3.60 |
Upstream bed width | 150.0 | 3.80 |
Upstream ordinary high water | 75.0 | 3.60 |
Upstream ordinary high water | 100.0 | 3.60 |
Upstream ordinary high water | 125.0 | 3.90 |
Upstream ordinary high water | 150.0 | 4.10 |
Elevations
Locator ID | Culvert Number |
River Distance (ft)1 |
Distance From Crossing (ft)2 |
Relative Elevation (ft) |
---|---|---|---|---|
D/S Thalweg | 89.35 | |||
D/S Tailcrest or 1st Thalweg | 89.39 | |||
U/S Thalweg | 1 | 89.40 | ||
Max Pool Depth | 89.51 | |||
OHW Left Bank | 89.65 | |||
OHW Left Bank | 89.69 | |||
Outlet Invert | 1 | 0.00 | 0.0 | 89.49 |
Road Elev | 59.00 | 96.90 | ||
Inlet Culvert Invert | 1 | 118.00 | 0.0 | 90.25 |
Notes:
- River distance is measured continuously throughout the survey reach along the thalweg of the stream.
- Measured from each end of the crossing along the thalweg of the stream.
Fish Sampling Efforts
Gear Type: Visual Observation, Ground (A) |
Fish Observations
No fish observations occurred during this survey.
