Fish Passage Site 20400119

Coordinates (dec. deg.): 61.12077°, -149.75536°
Legal Description: S012N003W23
Region: South Central
Road Name: MACBETH

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #:
Stream Name: Craig Creek

Elevation:

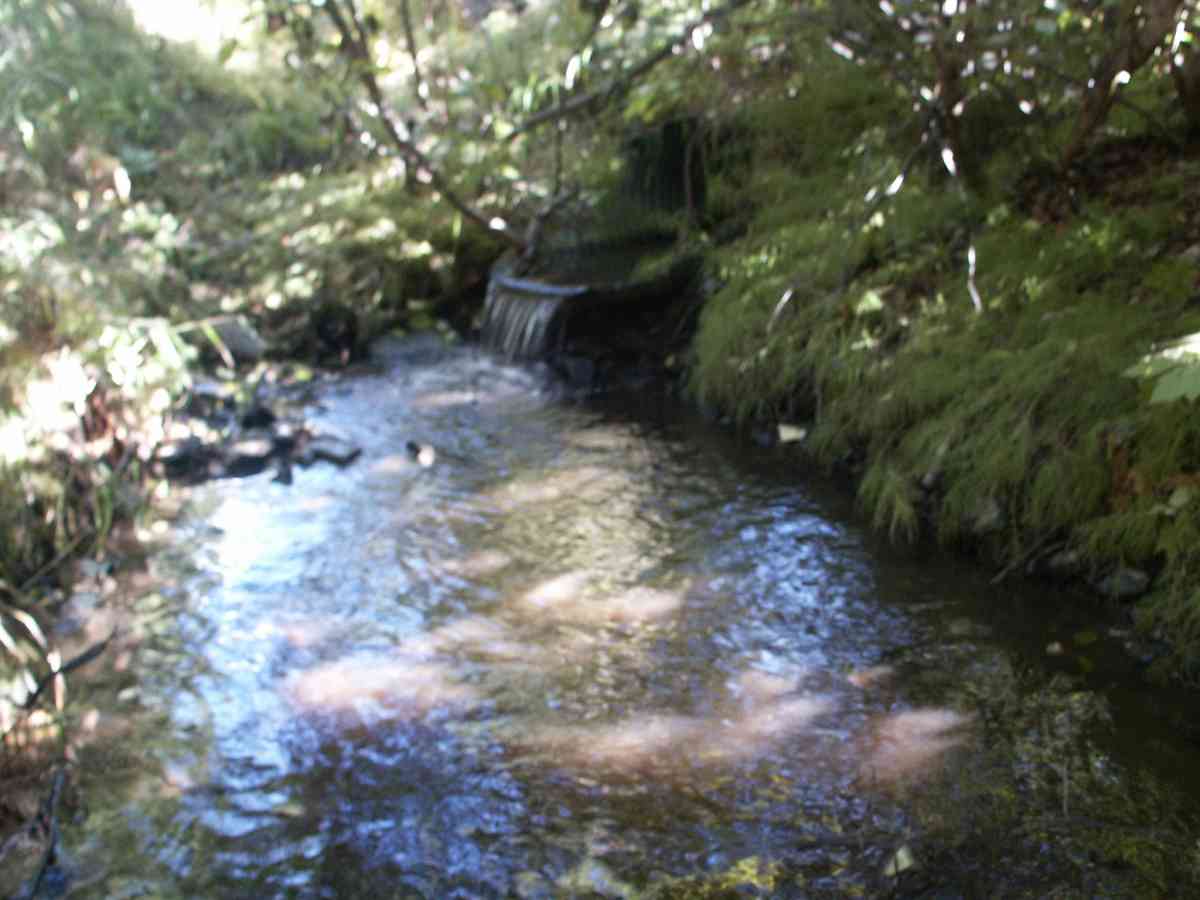

Site Comments: CAMBELL CREEK WATERSHED, A POND IS 100 FT ABOVE CULVERT AND DIRECTLY BELOW OUTLET

Survey Date: Sep 14, 2004

Survey ANC04-3A119

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: CAMBELL CREEK WATERSHED, A POND IS 100 FT ABOVE CULVERT AND DIRECTLY BELOW OUTLET, TRAPPED DOLLY VARDEN CHAR IN 4 HOUR SOAK BELOW OUTLET

Culvert Measurements

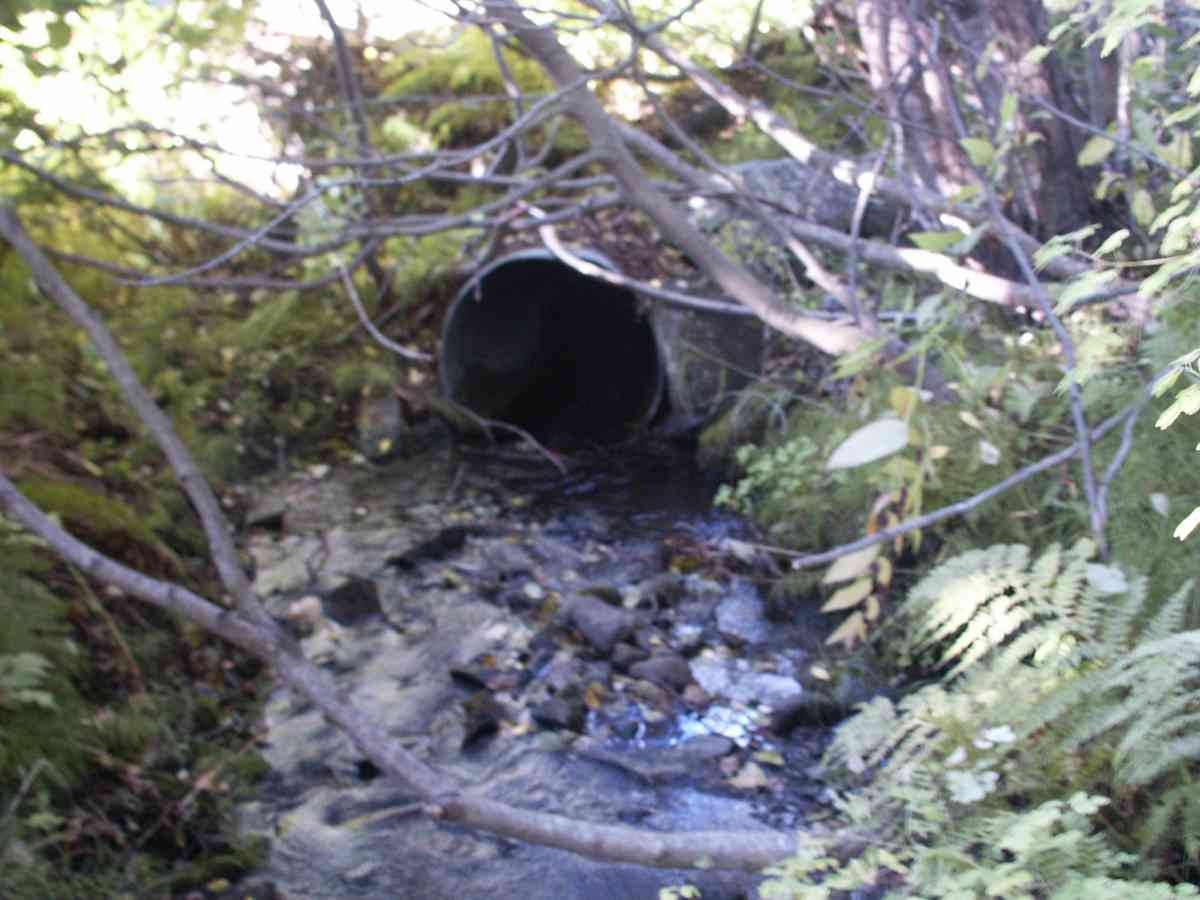

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 59.9

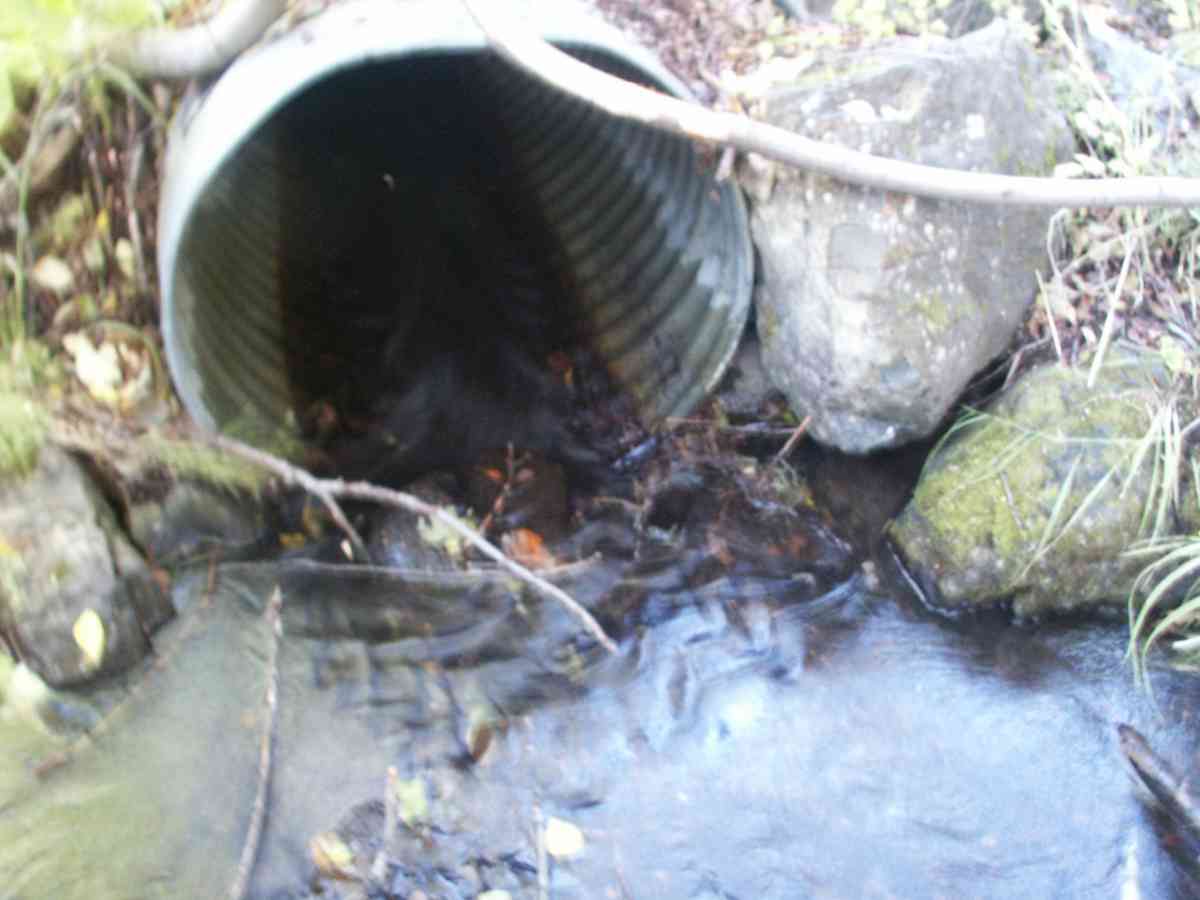

Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.5
Height(ft):2.5
Apron Length(ft):
Water Depth(ft): 0.2
Rustline Height(ft):0.4
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No

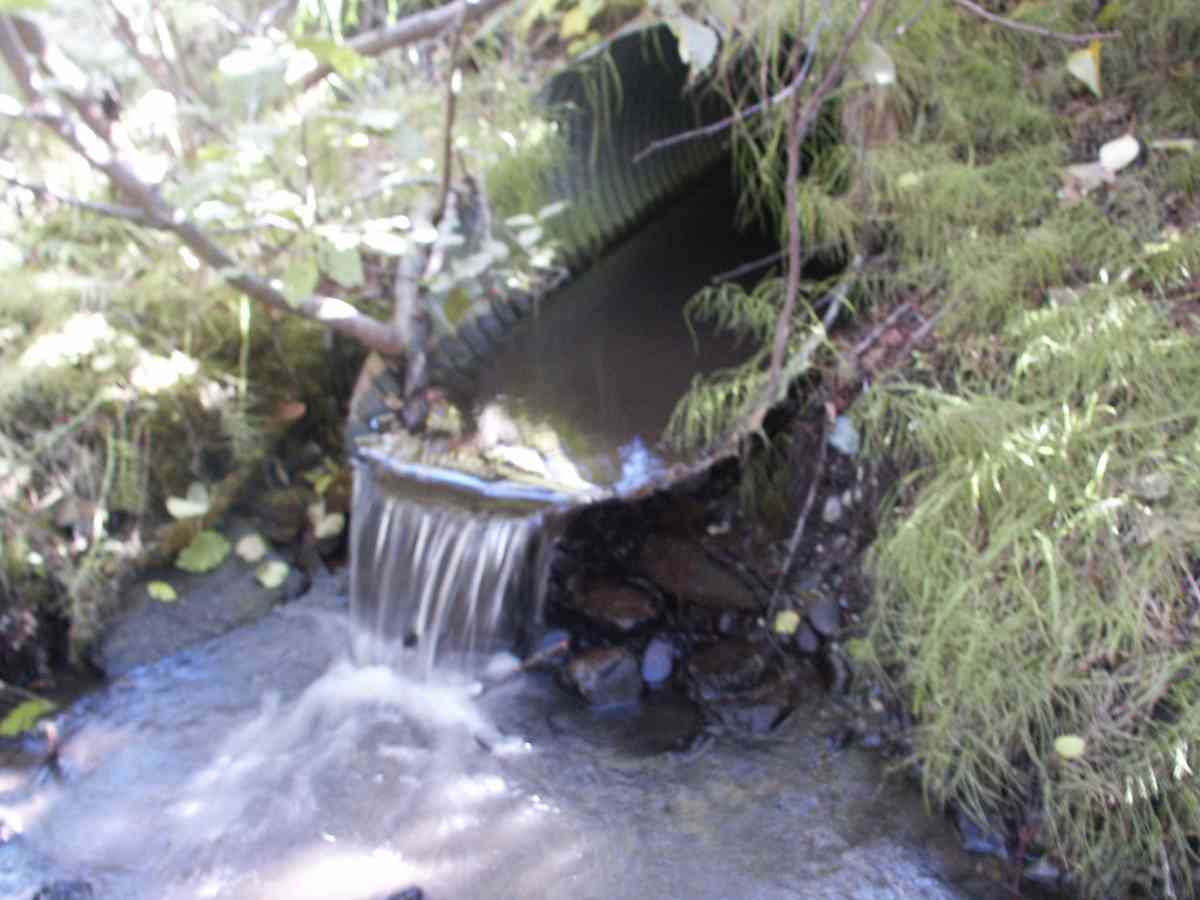

Outfall Height: 0.89
Outfall Type:
Constriction Ratio: 0.61
Culvert Gradient: 4.32%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)

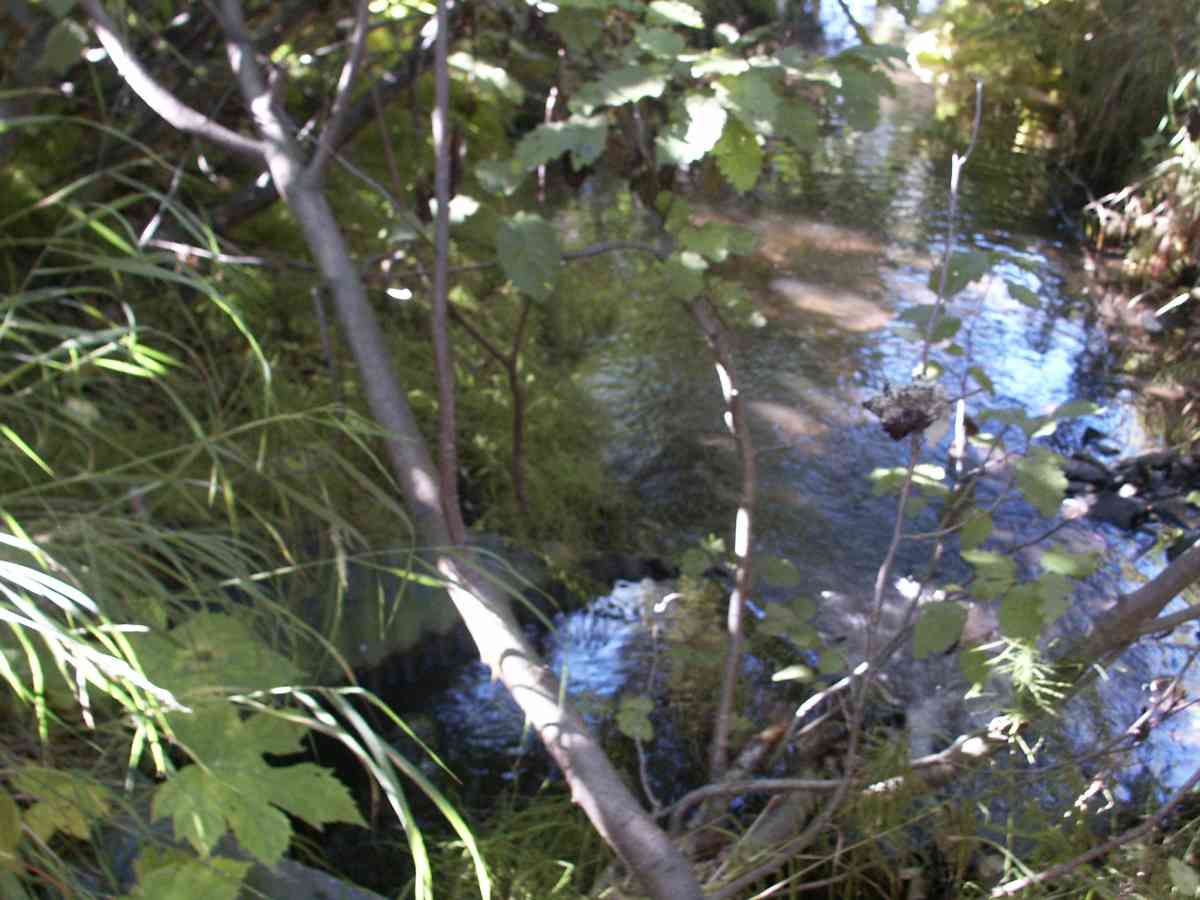

Upstream bank full 75.0 8.30
Upstream bank full 100.0 9.20
Upstream bed width 75.0 4.00
Upstream bed width 100.0 4.10
Upstream ordinary high water 75.0 4.10
Upstream ordinary high water 100.0 4.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 93.63
D/S Thalweg 93.71
D/S Tailcrest or 1st Thalweg 94.04
OHW Left Bank 94.34
OHW Left Bank 94.65
U/S Thalweg 1 98.03
Outlet Invert 1 0.00 0.0 95.03
Road Elev 29.50 104.41
Inlet Culvert Invert 1 59.00 0.0 97.62

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 4.0

Fish Observations

No fish observations occurred during this survey.
