Fish Passage Site 20400092

Coordinates (dec. deg.): 61.14796°, -149.85248°
Legal Description: S012N003W08
Region: South Central
Road Name: Seward Highway North Access Ro

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018
Stream Name: Little Campbell Creek South Fork

Elevation:

Site Comments: CAMBELL CREEK WATERSHED

Survey Date: Sep 07, 2004

Survey ANC04-3A092

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: CAMBELL CREEK WATERSHED, COHO FRY & DOLLY VARDEN CHAR PRESENT ABOVE CULVERT INLET

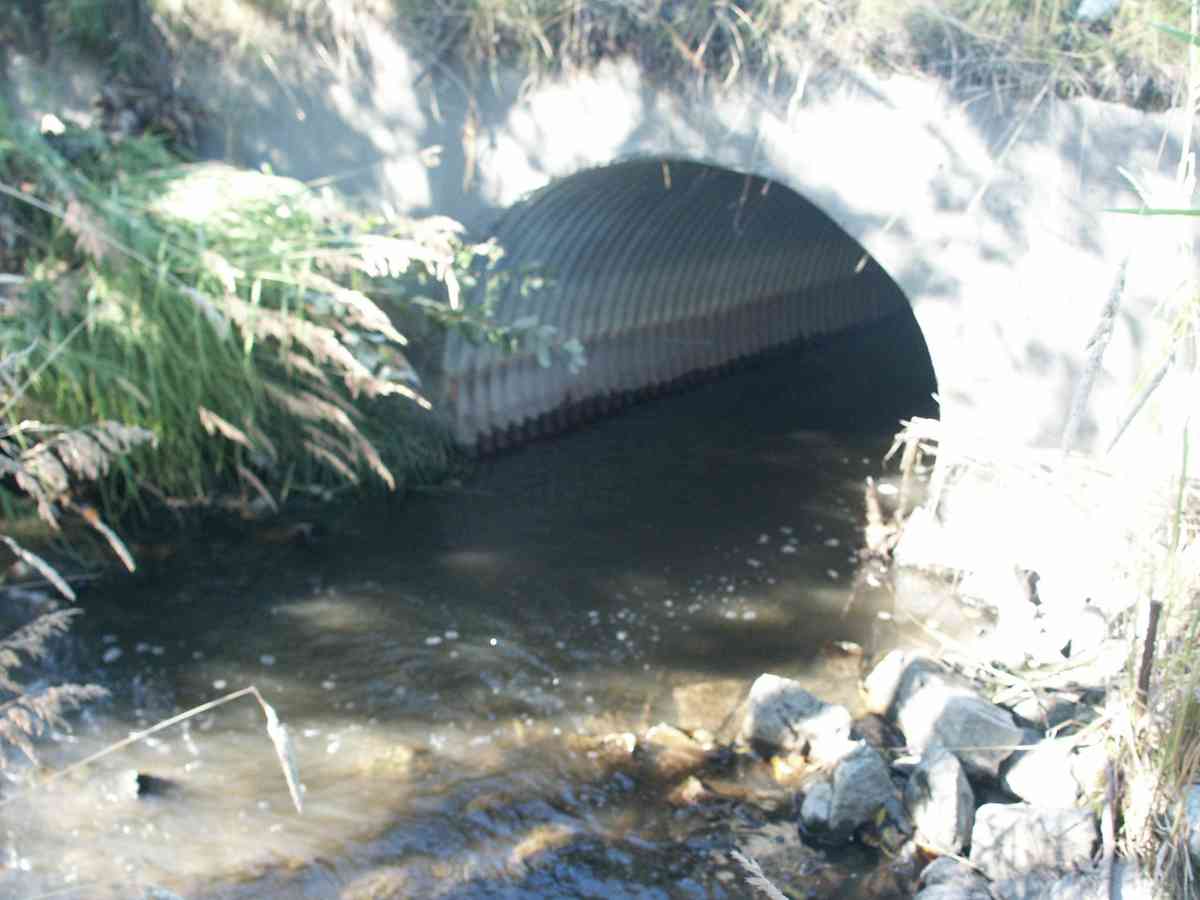

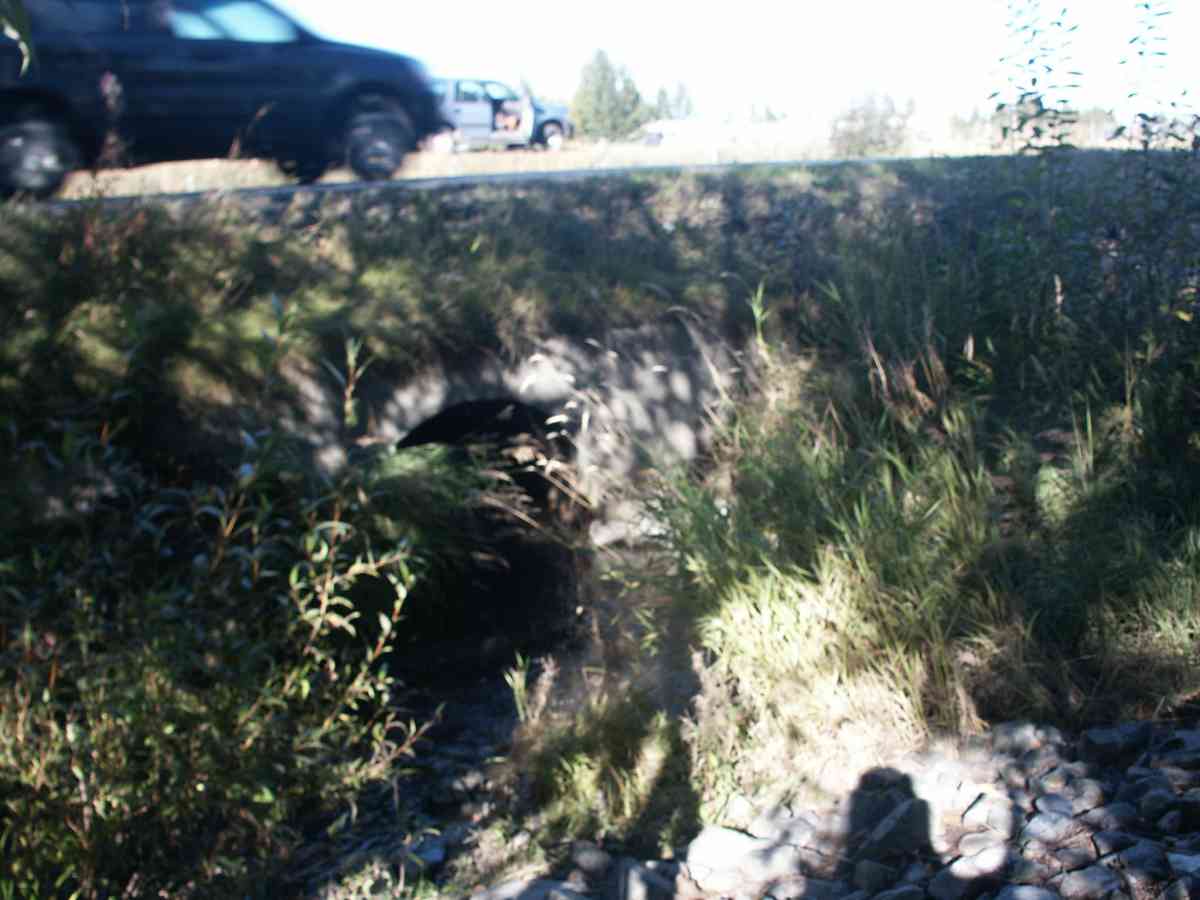

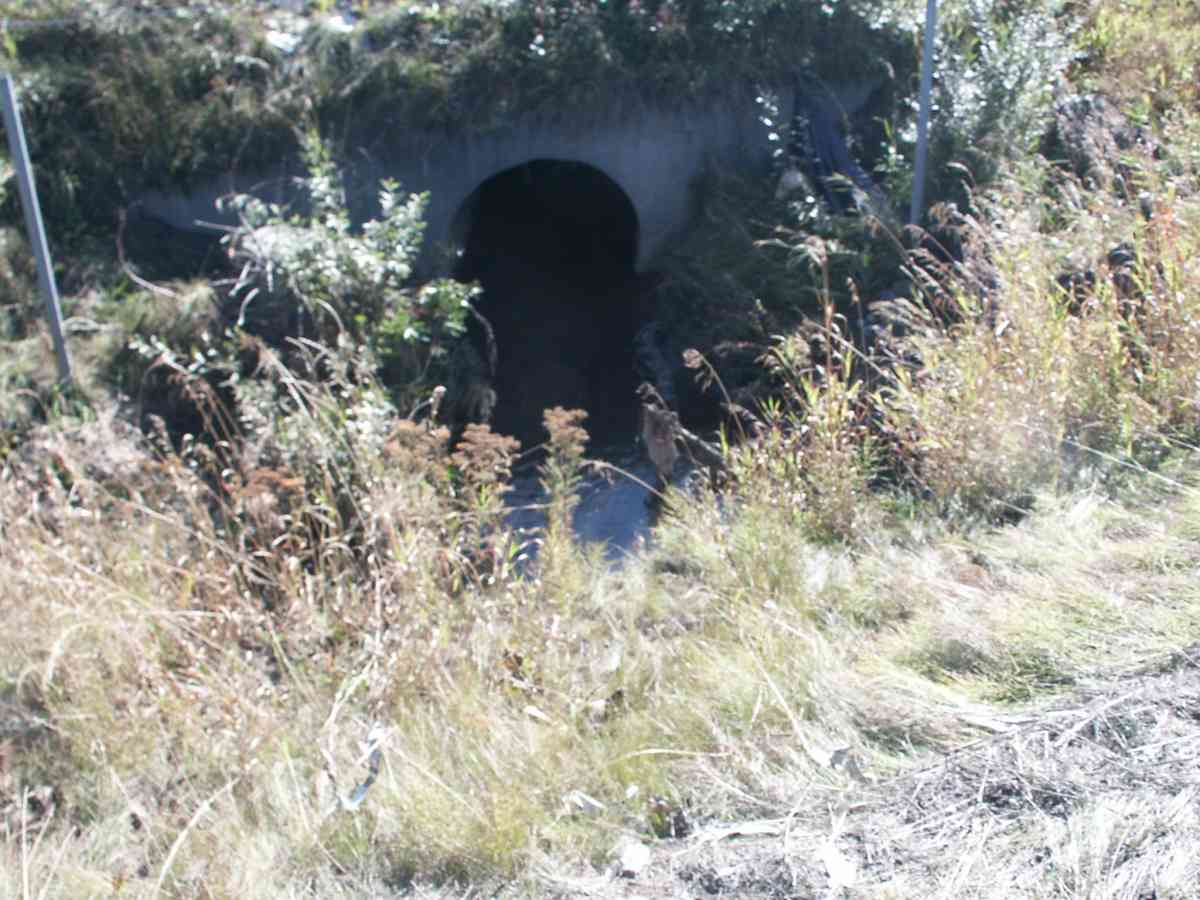

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 43.2
Inlet Type: Headwall
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.5
Height(ft):4.5
Apron Length(ft):
Water Depth(ft): 0.8
Rustline Height(ft):1.3
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.02
Outfall Type:
Constriction Ratio: 0.56
Culvert Gradient: -0.19%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 11.20
Upstream bank full 100.0 14.60
Upstream bank full 125.0 13.90
Upstream bank full 150.0 17.30
Upstream bed width 75.0 7.10
Upstream bed width 100.0 7.60
Upstream bed width 125.0 6.70
Upstream bed width 150.0 10.00
Upstream ordinary high water 75.0 7.10
Upstream ordinary high water 100.0 7.80
Upstream ordinary high water 125.0 7.10
Upstream ordinary high water 150.0 10.30

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 95.16
Max Pool Depth 95.22
D/S Tailcrest or 1st Thalweg 95.25
U/S Thalweg 1 95.41
OHW Left Bank 95.74
OHW Left Bank 96.03
Outlet Invert 1 0.00 0.0 94.96
Road Elev 21.50 103.19
Inlet Culvert Invert 1 43.00 0.0 94.88

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
