Fish Passage Site 20400080

Coordinates (dec. deg.): 61.15561°, -149.86011°
Legal Description: S012N003W05
Region: South Central
Road Name: 71ST Street

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018-3005
Stream Name: Little Campbell Creek North Fork

Elevation:

Site Comments: 71ST & BRIARWOOD. CAMPBELL CREEK WATERSHED

Survey Date: Aug 31, 2004

Survey ANC04-3A080

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: CAMBELL CREEK WATERSHED, COHO PRESENT AT THE SITE

Culvert Measurements

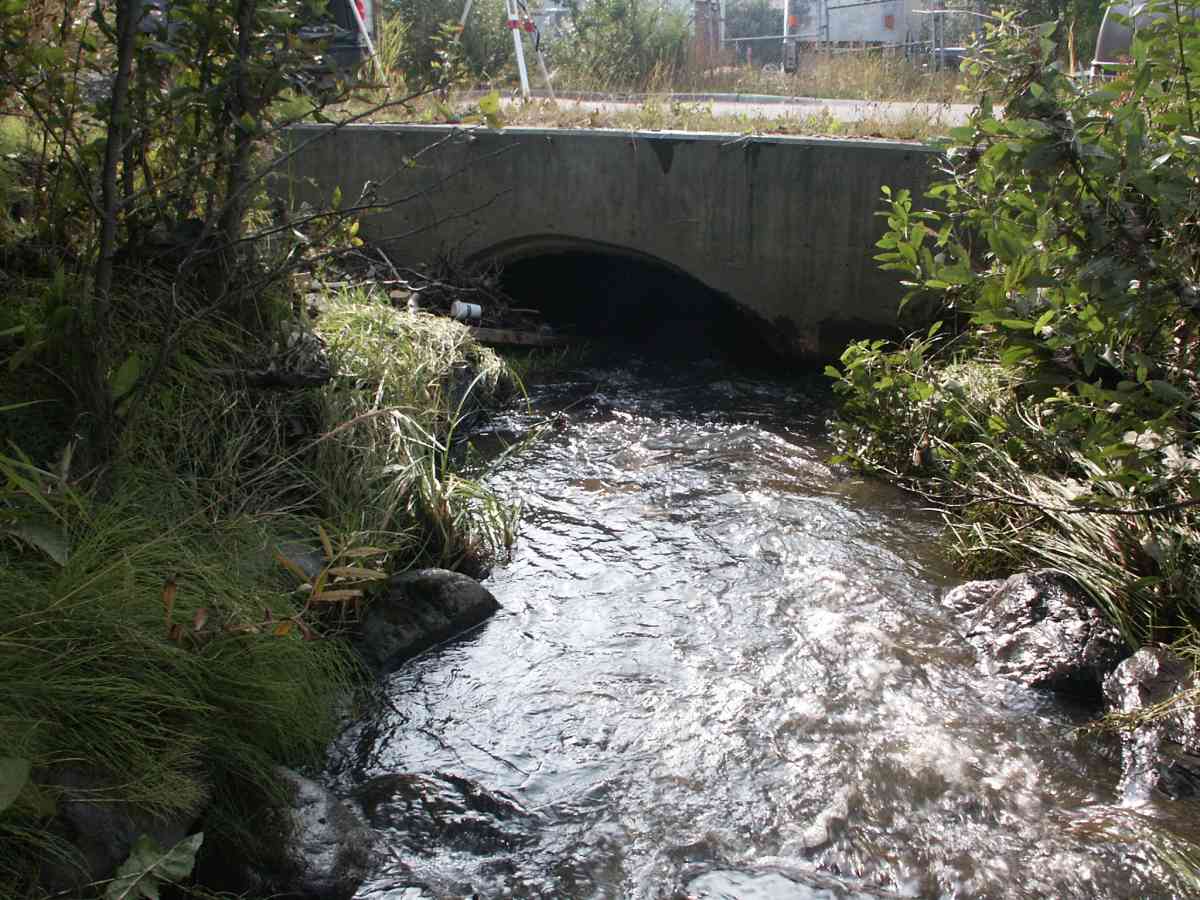

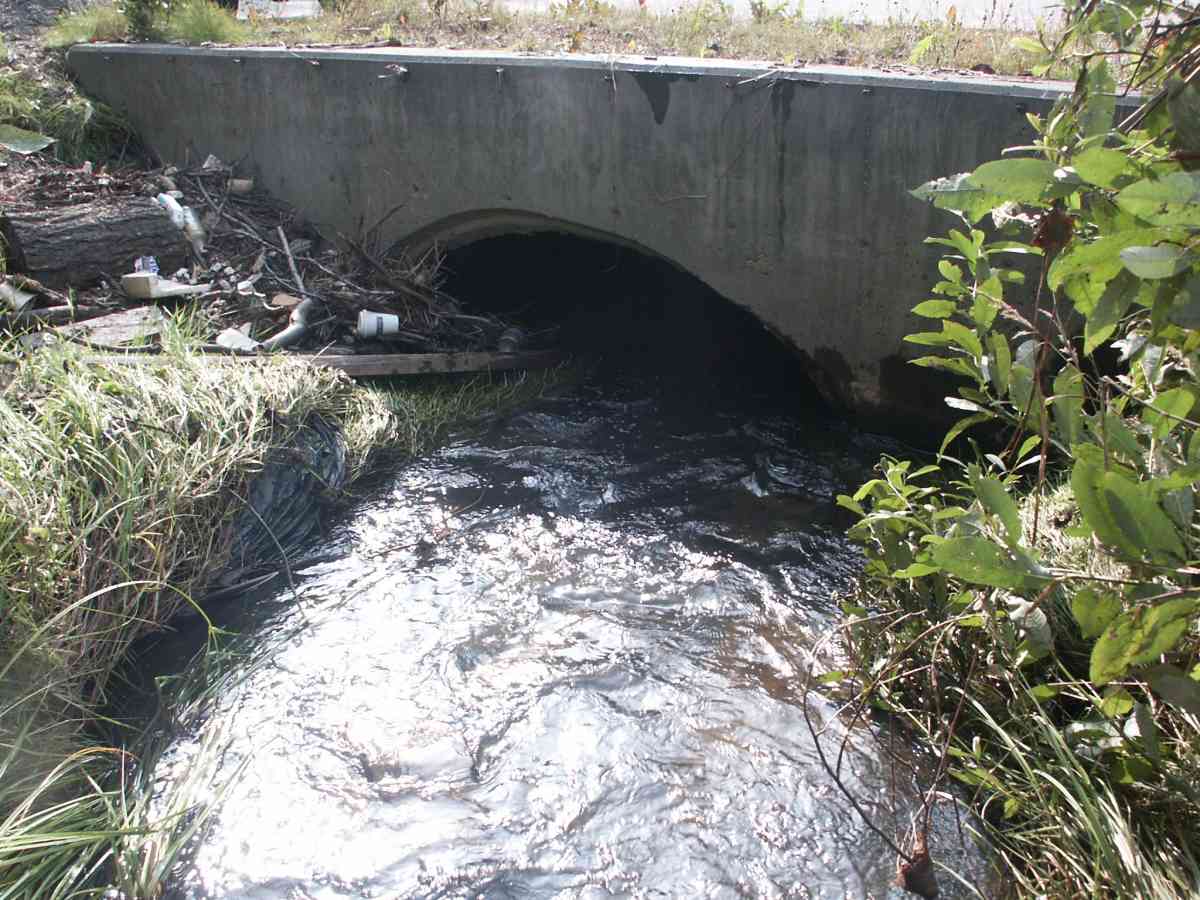

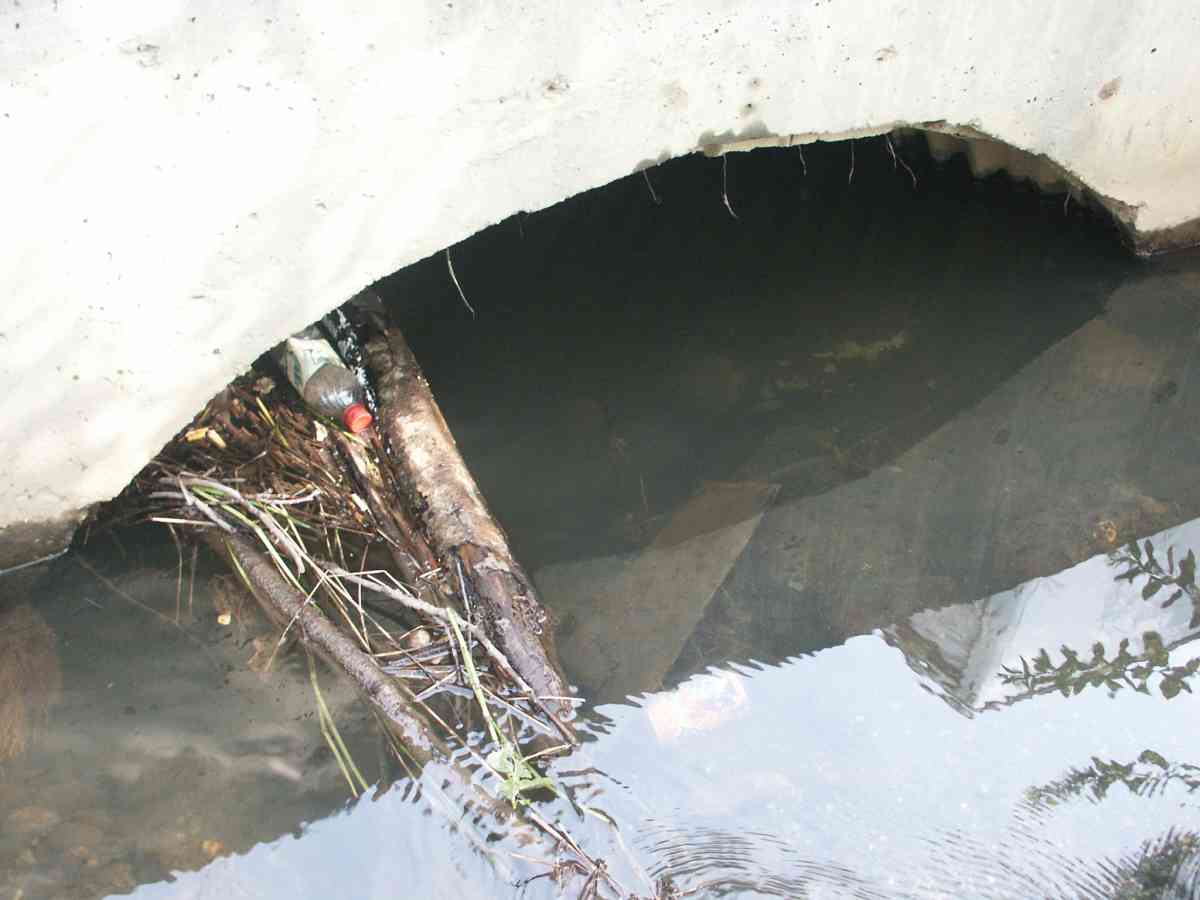

ID: 1 Structure Type: Pipe-arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 59.1
Inlet Type: Headwall
Outlet Type:
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):6.0
Height(ft):2.5
Apron Length(ft):
Water Depth(ft): 1.3
Rustline Height(ft):1.7
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.02
Outfall Type:
Constriction Ratio: 0.54
Culvert Gradient: 0.86%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 20.00
Upstream bank full 100.0 21.00
Upstream bank full 125.0 23.50
Upstream bank full 150.0 22.00
Upstream bed width 75.0 9.00
Upstream bed width 100.0 13.00
Upstream bed width 125.0 8.90
Upstream bed width 150.0 11.50
Upstream ordinary high water 75.0 9.50
Upstream ordinary high water 100.0 13.50
Upstream ordinary high water 125.0 9.20
Upstream ordinary high water 150.0 12.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 96.01
U/S Thalweg 1 96.15
Max Pool Depth 96.20
OHW Left Bank 96.64
OHW Left Bank 96.74
D/S Thalweg 95.56
Outlet Invert 1 0.00 0.0 95.42
Road Elev 29.50 99.27
Inlet Culvert Invert 1 59.00 0.0 95.93

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
