Fish Passage Site 20400058

Coordinates (dec. deg.): 61.19050°, -149.77355°
Legal Description: S013N003W26
Region: South Central
Road Name: Sylvia Street

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-50-10050
Stream Name: Chester Creek South Fork

Elevation:

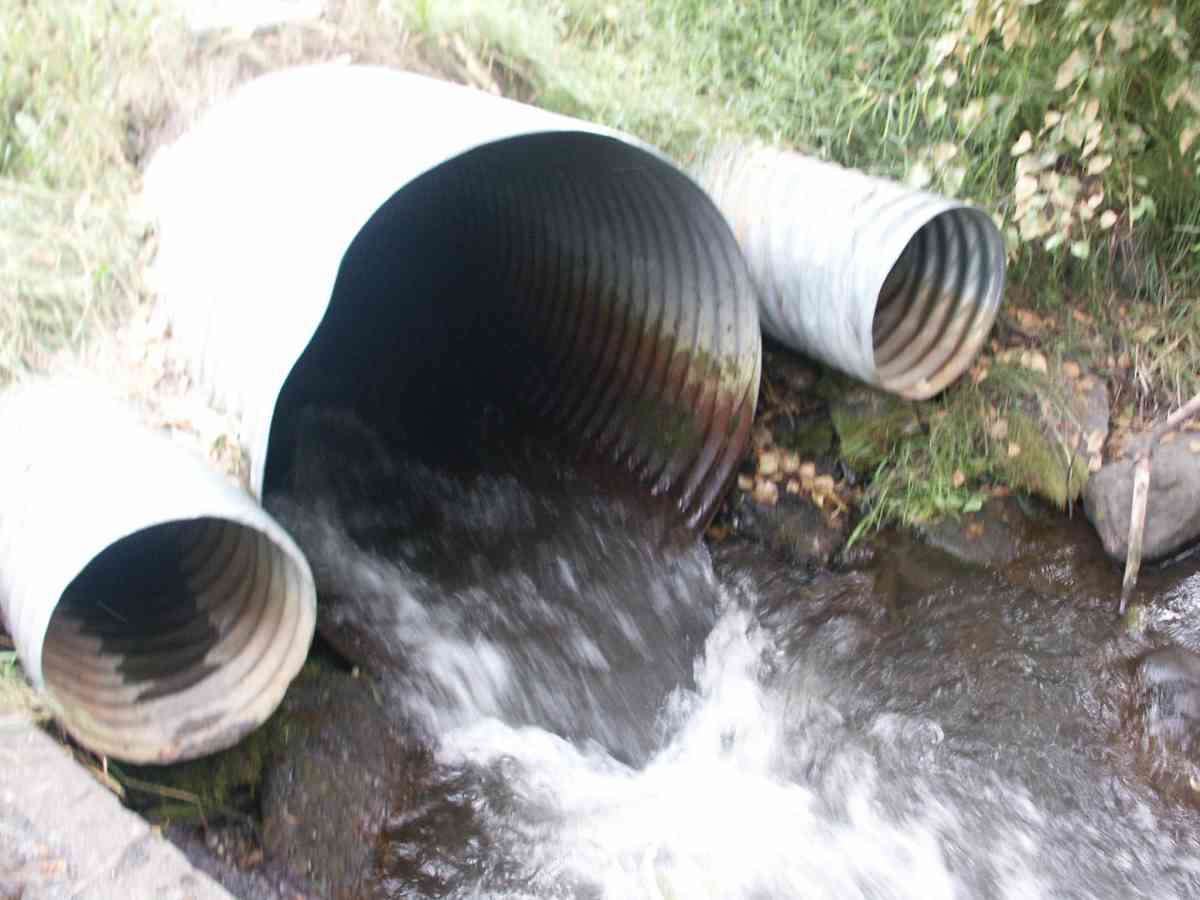

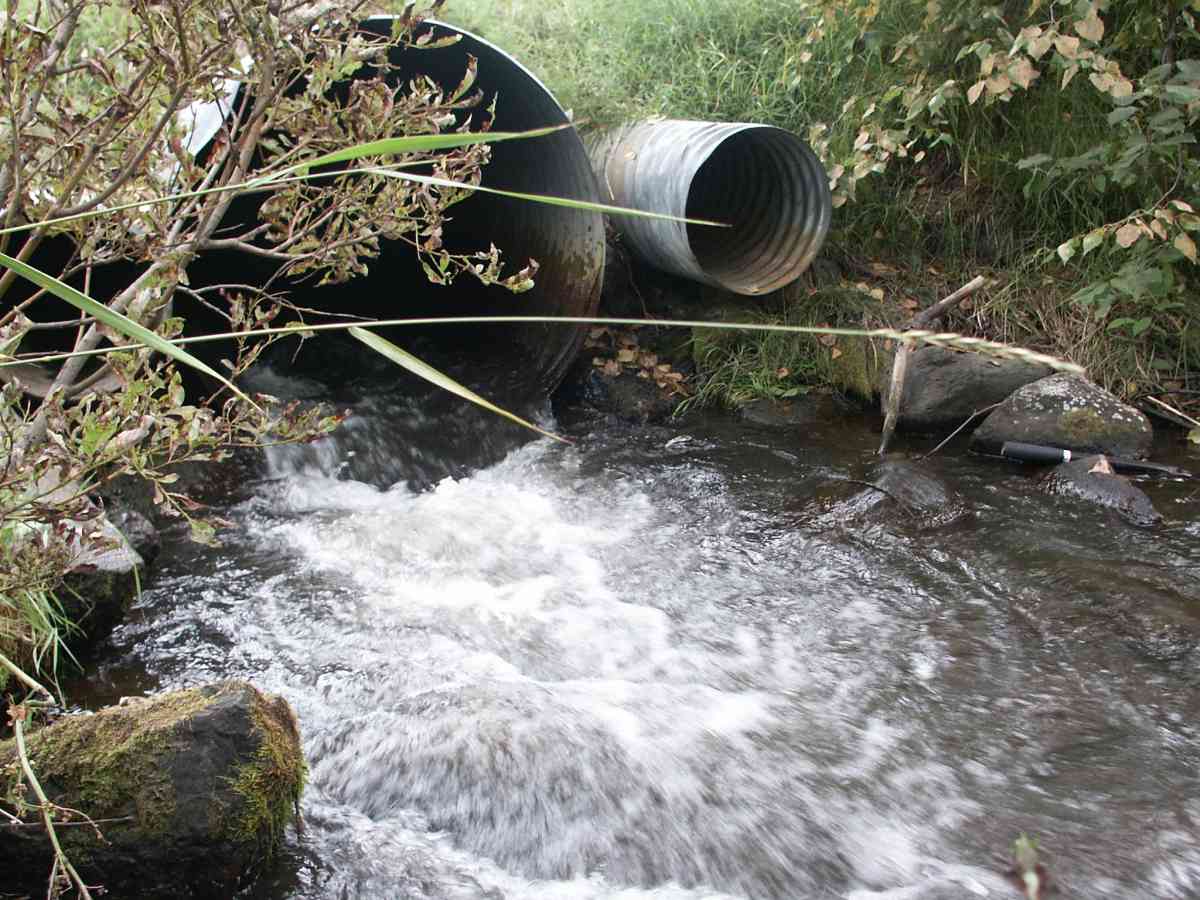

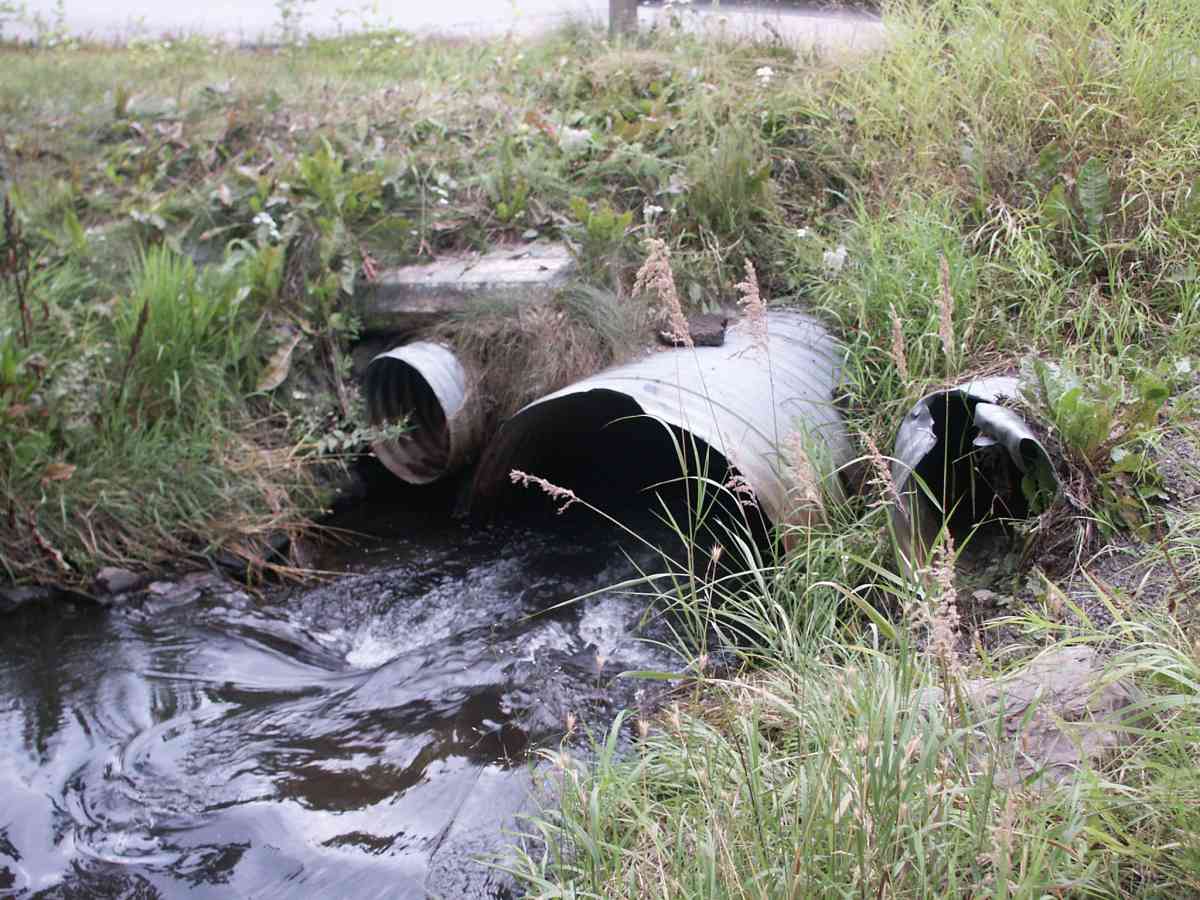

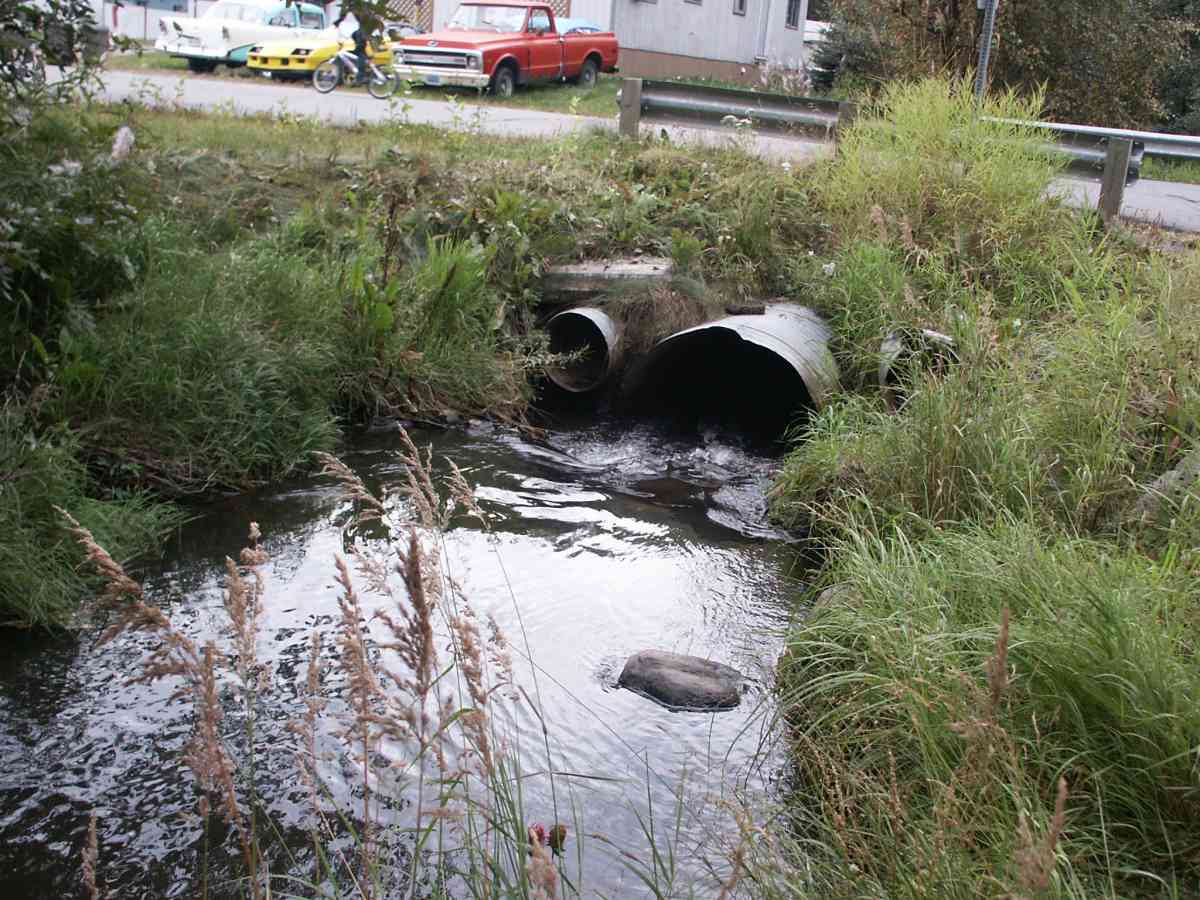

Site Comments: CHESTER CREEK WATERSHED, 2 FLOOD CULVERTS PRESENT

Survey Date: Aug 19, 2004

Survey ANC04-2A058

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: CHESTER CREEK WATERSHED, 2 FLOOD CULVERTS PRESENT

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 55.2
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.5
Height(ft):3.5
Apron Length(ft):
Water Depth(ft): 0.4
Rustline Height(ft):1.7
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.07
Outfall Type:
Constriction Ratio: 0.24
Culvert Gradient: 1.74%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 16.00
Upstream bank full 100.0 13.50
Upstream bank full 125.0 19.50
Upstream bed width 75.0 13.50
Upstream bed width 100.0 13.50
Upstream bed width 125.0 17.00
Upstream ordinary high water 75.0 13.50
Upstream ordinary high water 100.0 13.50
Upstream ordinary high water 125.0 17.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 91.73
Max Pool Depth 91.74
D/S Tailcrest or 1st Thalweg 91.81
OHW Left Bank 92.78
OHW Left Bank 92.83
U/S Thalweg 1 93.72
Outlet Invert 1 0.00 0.0 92.31
Road Elev 27.50 98.29
Inlet Culvert Invert 1 55.00 0.0 93.27

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
