Fish Passage Site 20400024

Coordinates (dec. deg.): 61.31487°, -149.57077°
Legal Description: S014N002W11
Region: South Central

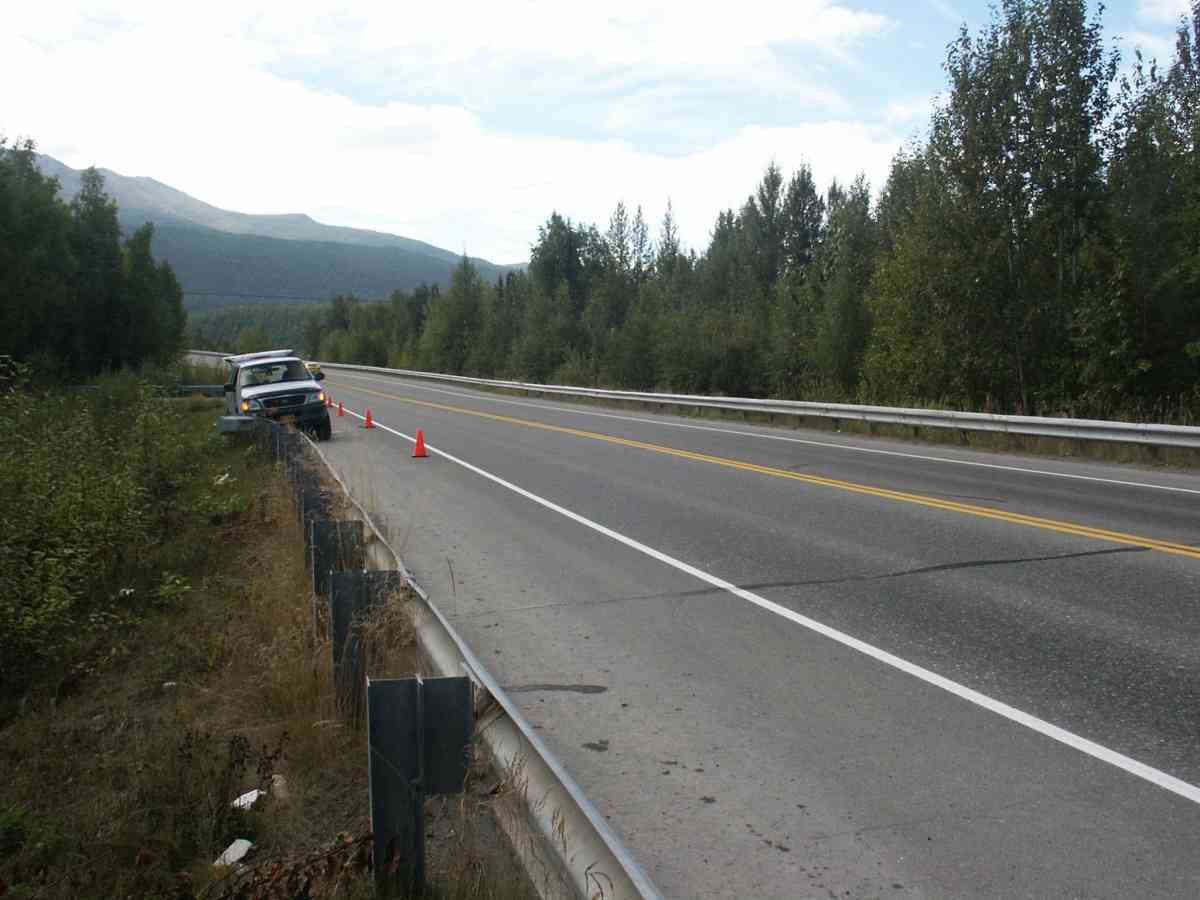

Road Name: Eagle River Road

Datum: NAD83
Quad Name / ITM: Anchorage B-7
AWC Stream #:
Stream Name: Meadow Creek

Elevation:

Site Comments: Eagle River Watershed.

Survey Date: Aug 09, 2004

Survey ANC04-1A024

Observers: Dean Beers, Joe Miller

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: Eagle River Watershed.

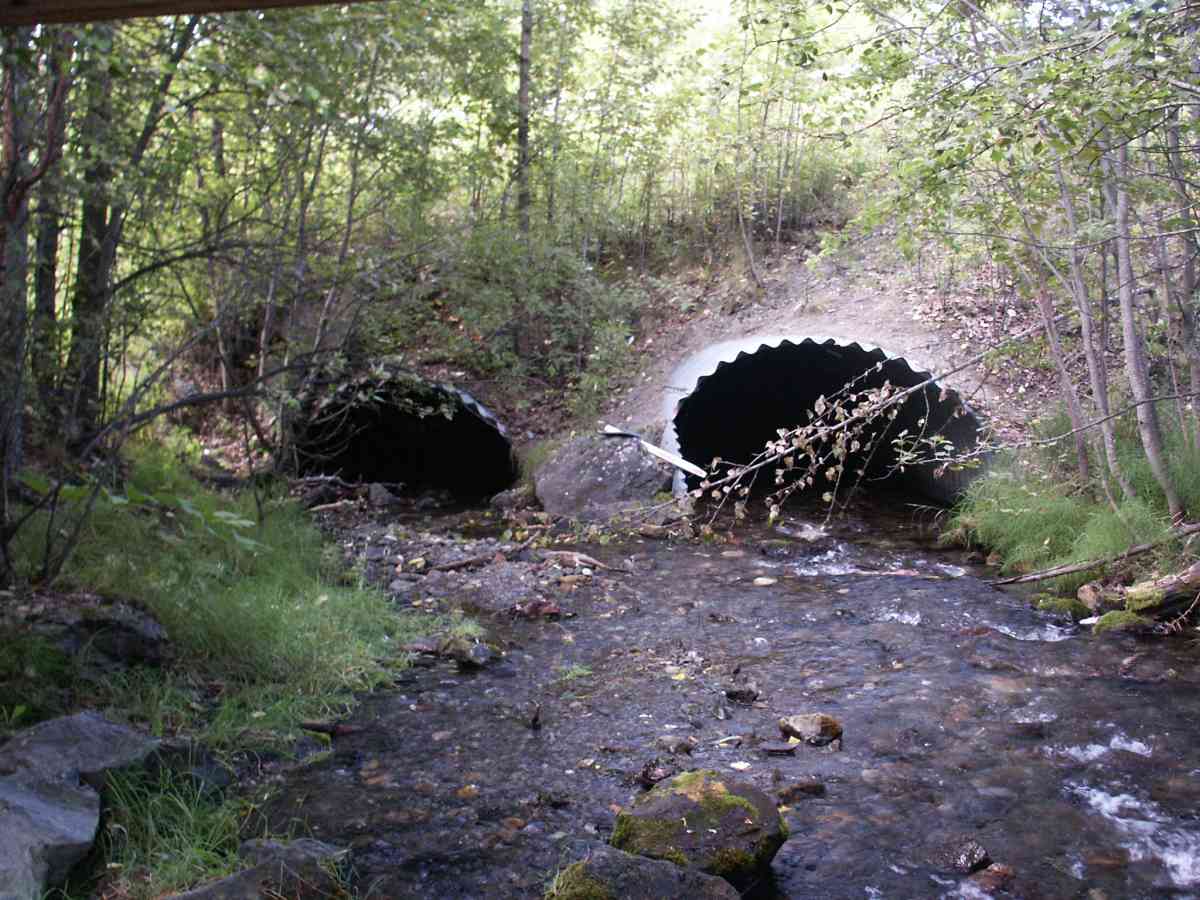

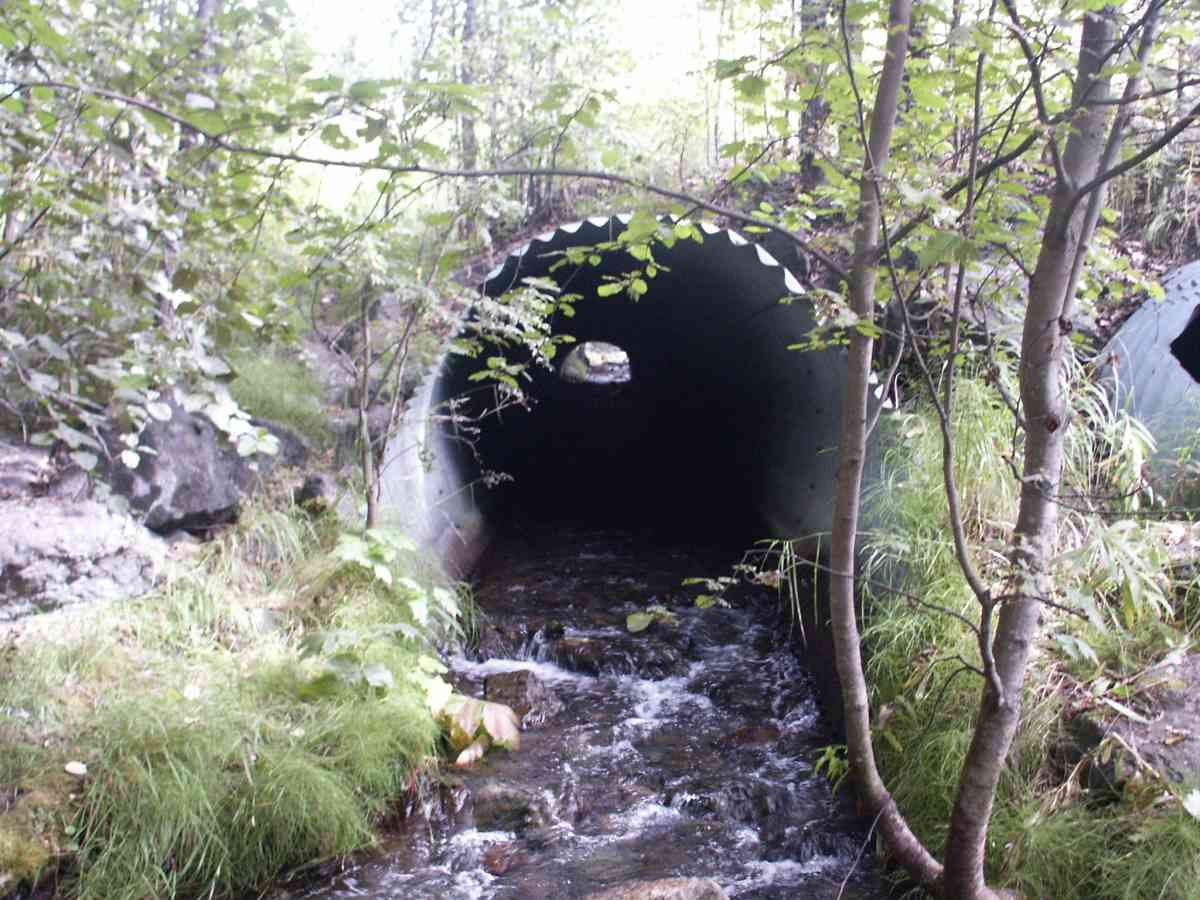

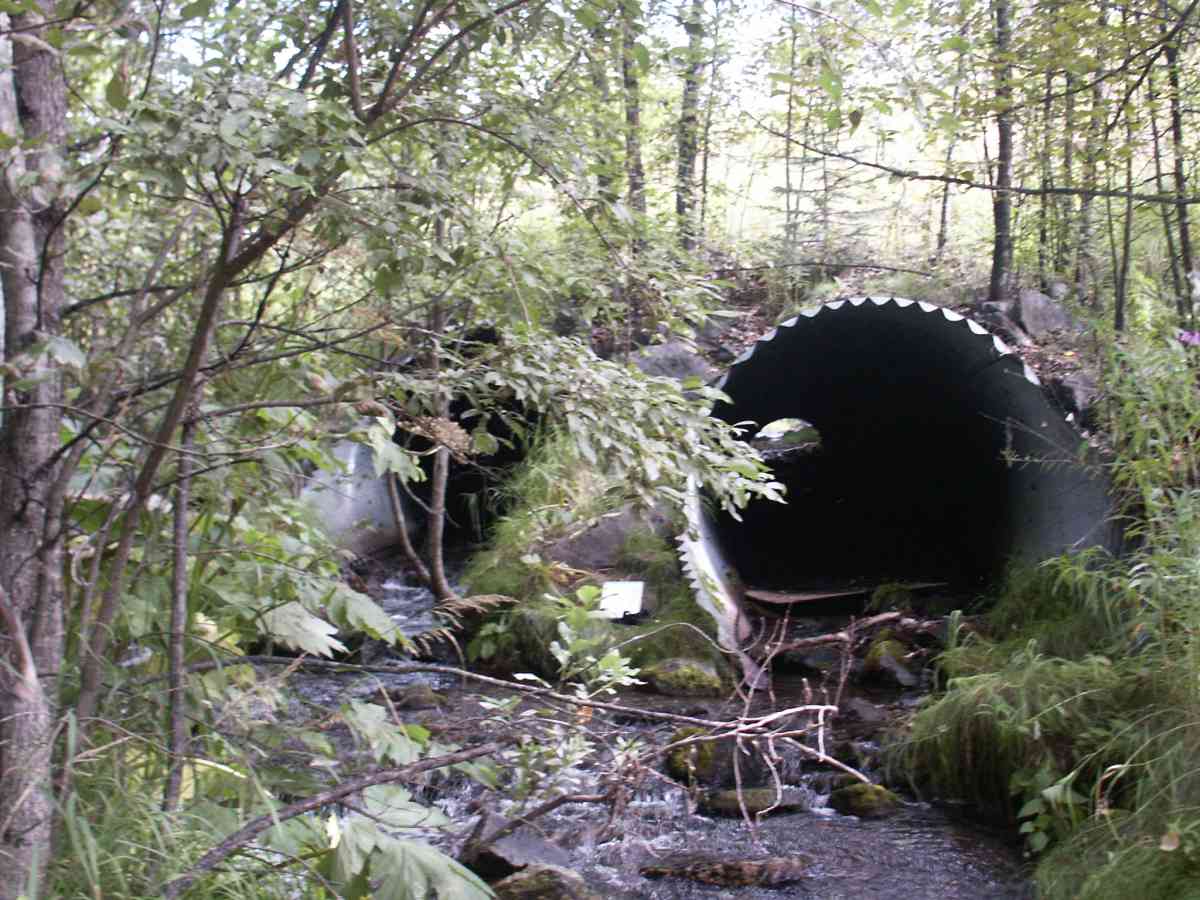

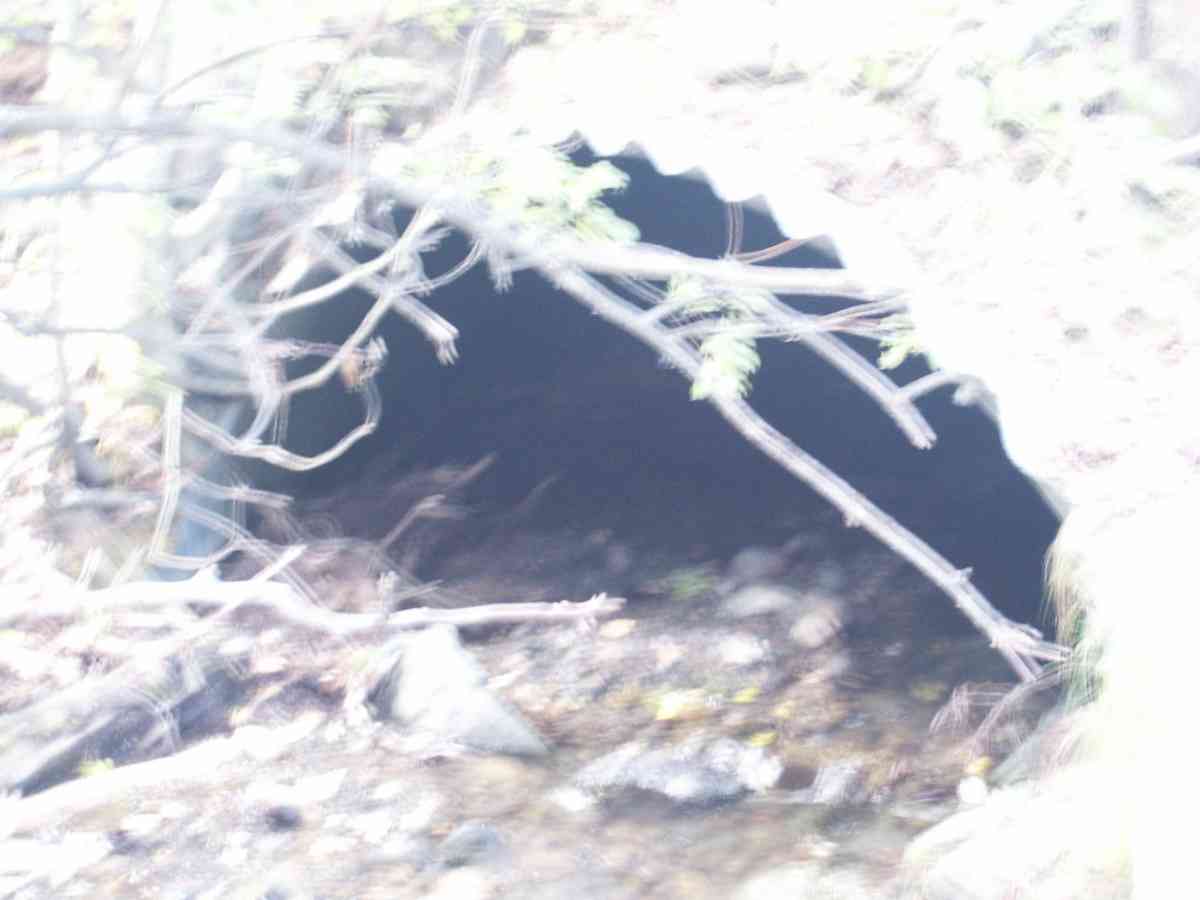

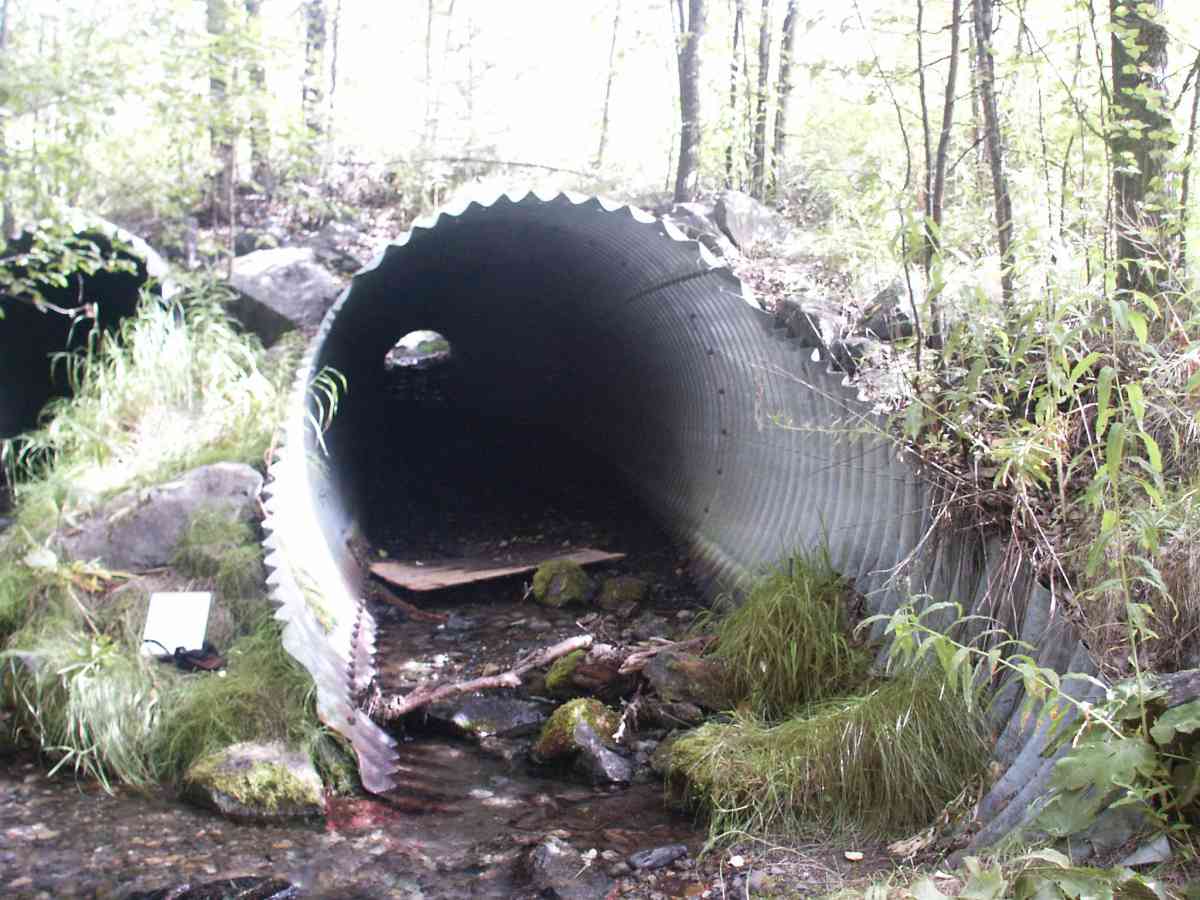

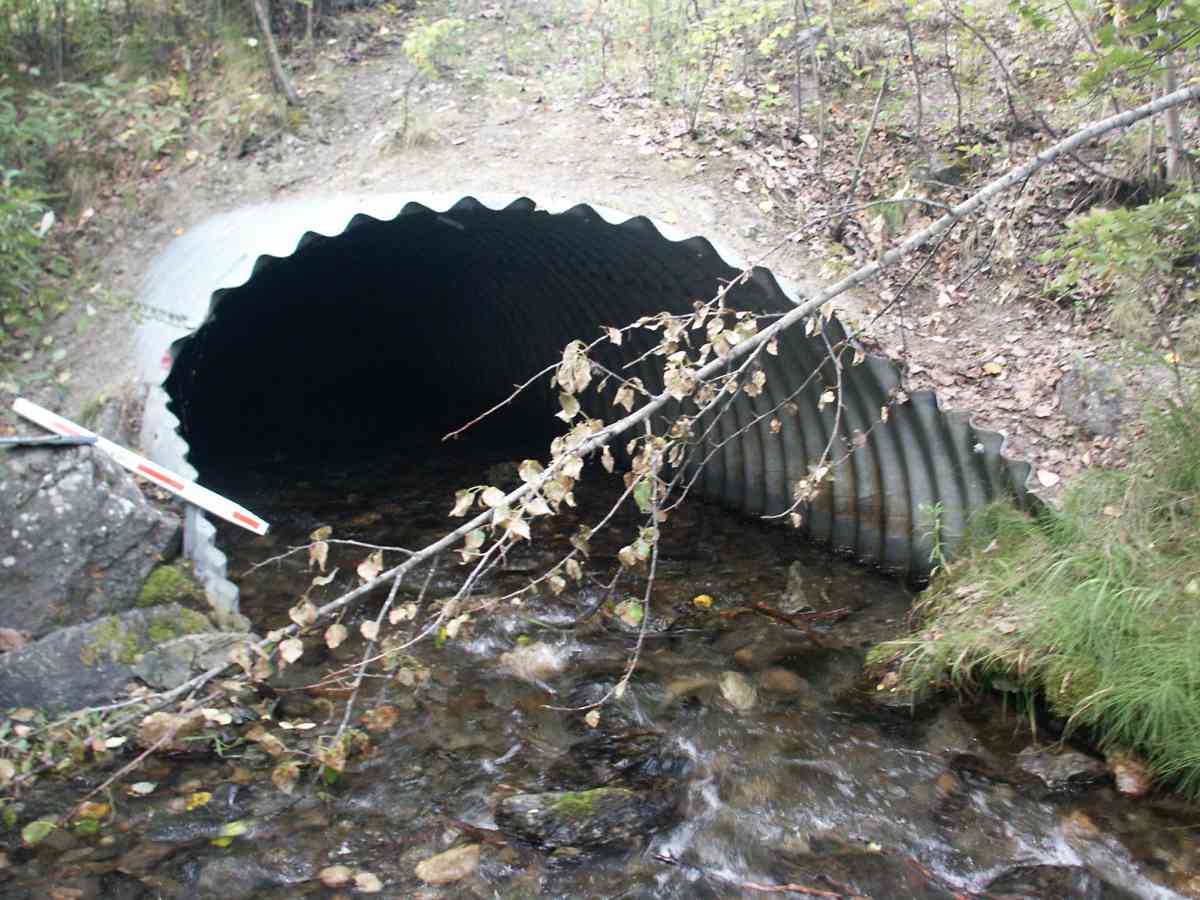

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 143.2
Inlet Type: Mitered
Outlet Type:
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):7.5
Height(ft):7.5
Apron Length(ft):
Water Depth(ft): 0.6
Rustline Height(ft):3.7
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.62
Outfall Type:
Constriction Ratio: 1.13
Culvert Gradient: 0.91%
Max Slope:
Max Slope Length:
ID: 2 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 142.3
Inlet Type: Mitered
Outlet Type:
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):7.5
Height(ft):7.5
Apron Length(ft):
Water Depth(ft): 0.8
Rustline Height(ft):3.0
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.62
Outfall Type:
Constriction Ratio: 1.13
Culvert Gradient: 1.64%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 15.60
Upstream bank full 100.0 15.80
Upstream bank full 125.0 19.00
Upstream bank full 150.0 19.70
Upstream bed width 75.0 2.80
Upstream bed width 100.0 13.80
Upstream bed width 125.0 5.10
Upstream bed width 150.0 8.20
Upstream ordinary high water 75.0 9.20
Upstream ordinary high water 100.0 14.30
Upstream ordinary high water 125.0 17.10
Upstream ordinary high water 150.0 12.50

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 89.80
Max Pool Depth 89.87
OHW Left Bank 89.89
D/S Tailcrest or 1st Thalweg 89.98
OHW Left Bank 90.34
U/S Thalweg 1 95.18
U/S Thalweg 2 95.18
Outlet Invert 2 0.00 0.0 90.16
Outlet Invert 1 0.00 0.0 89.71
Road Elev 71.00 108.02
Inlet Culvert Invert 1 142.00 0.0 91.01
Inlet Culvert Invert 2 142.00 0.0 92.50

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
