Fish Passage Site 20400012

Coordinates (dec. deg.): 61.38479°, -149.52530°
Legal Description: S015N001W18
Region: South Central
Road Name: Were Street

Datum: NAD83
Quad Name / ITM: Anchorage B-7
AWC Stream #:
Stream Name: Mink Creek

Elevation:

Site Comments: FIRE CREEK WATERSHED, BANK MEASUREMENTS INFLUENCED BY JERRY STREET

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey ANC04-1A012

Observers: Dean Beers, Joe Miller

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: FIRE CREEK WATERSHED, BANK MEASUREMENTS INFLUENCED BY JERRY STREET

Culvert Measurements

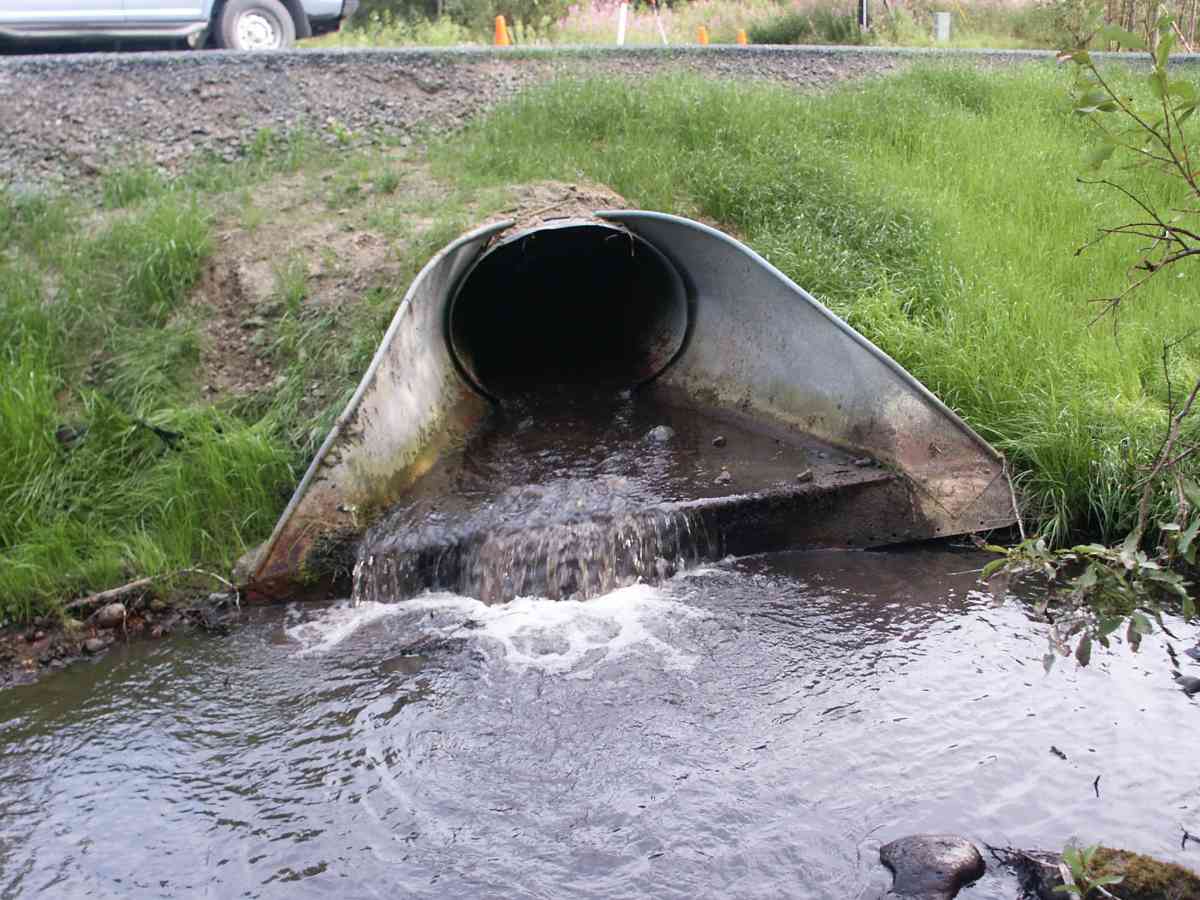

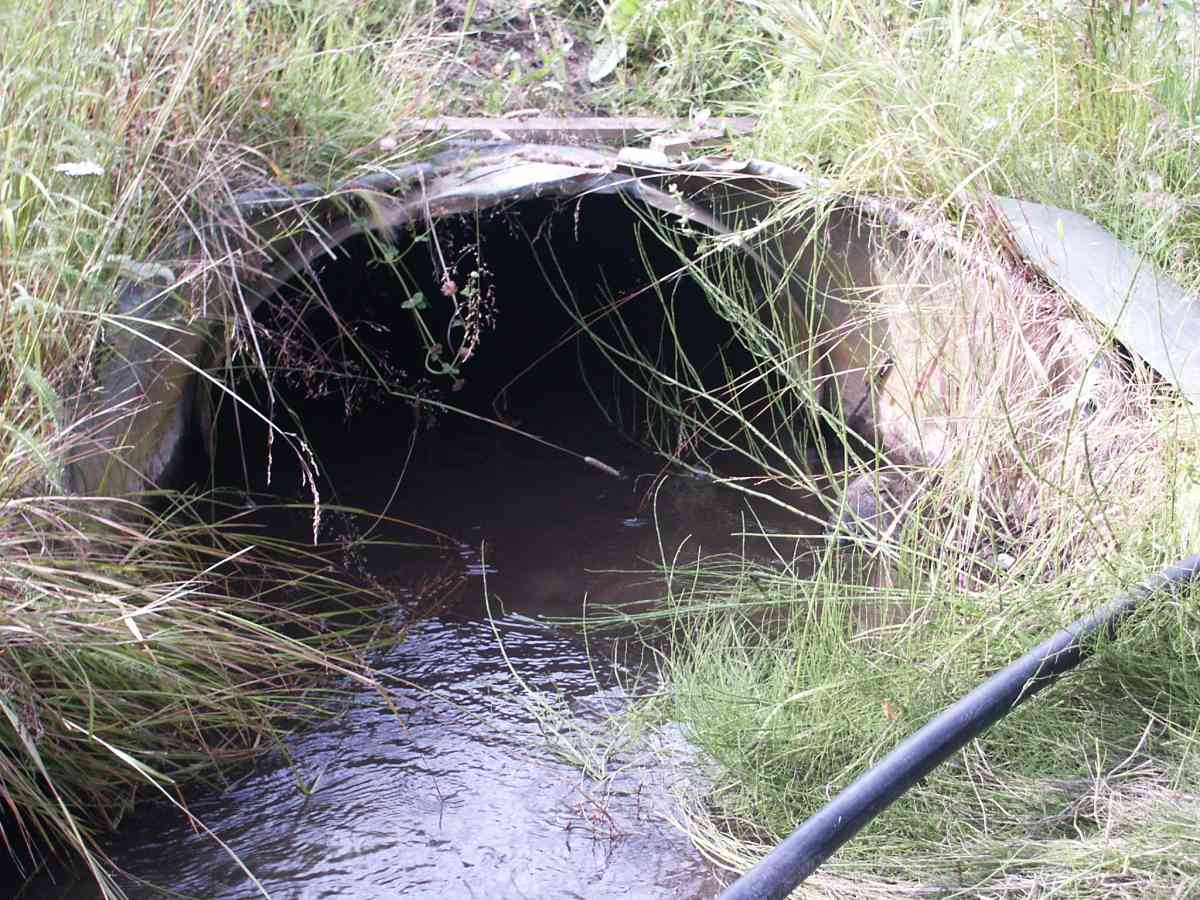

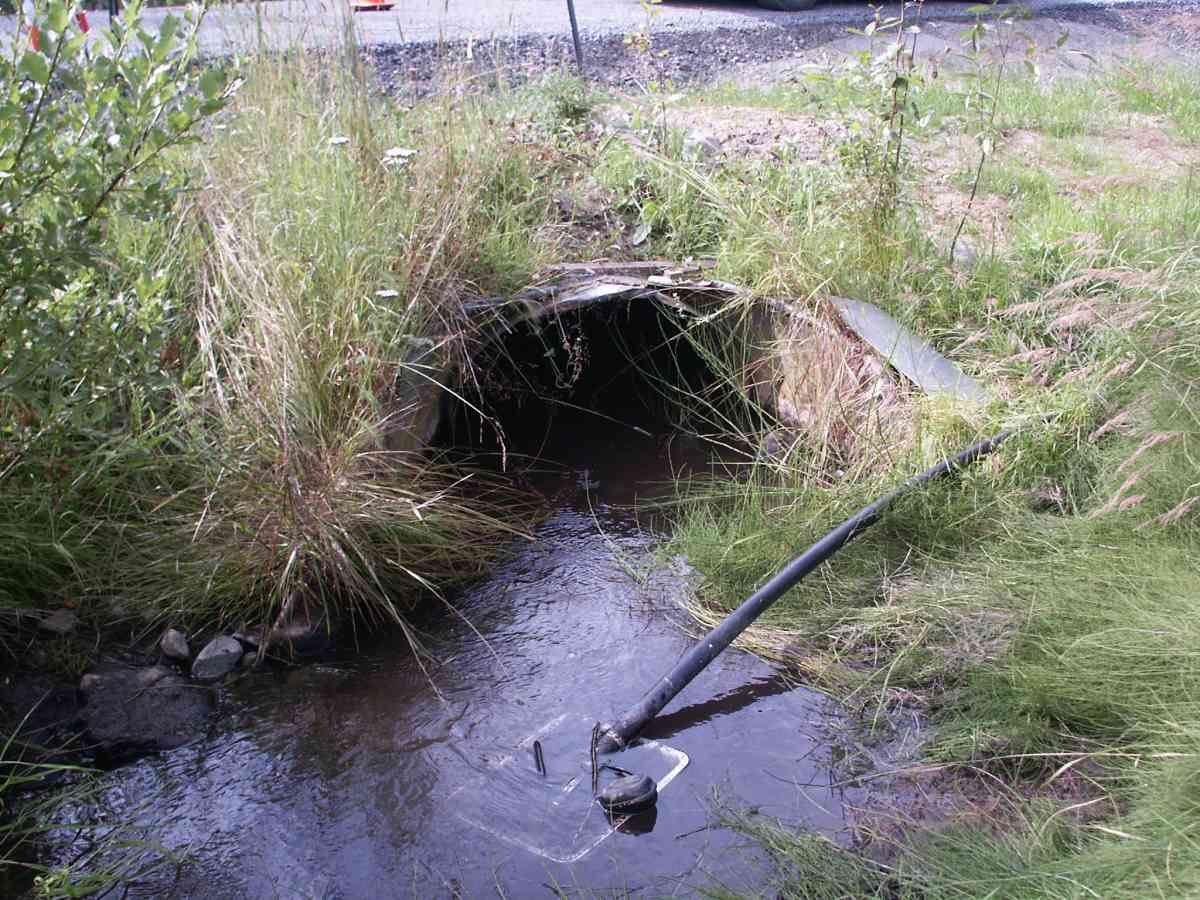

ID: 1 Structure Type: Pipe-arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 55.43
Inlet Type: Flared Inlet
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.4
Height(ft):2.5
Apron Length(ft):
Water Depth(ft): 0.2
Rustline Height(ft):1.4
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No

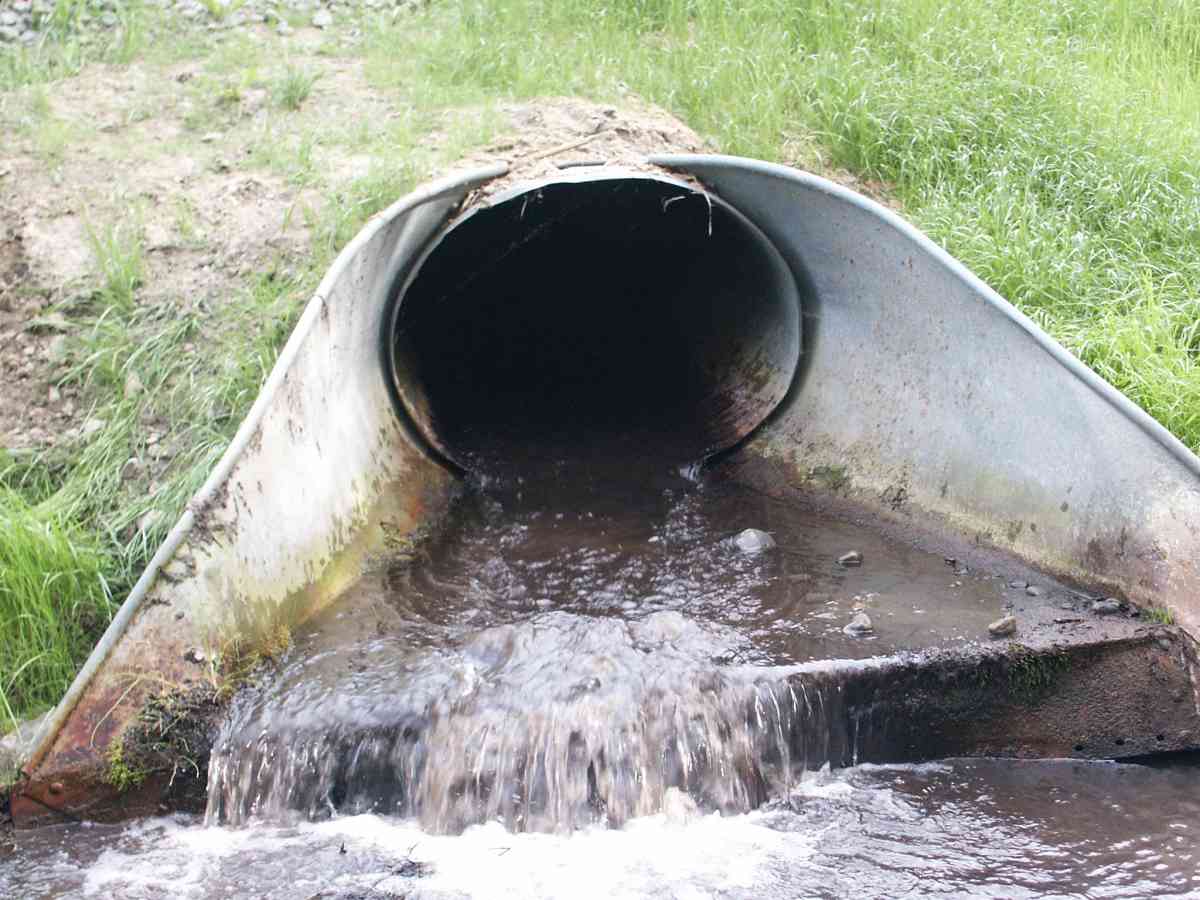

Outfall Height: 0.7
Outfall Type:
Constriction Ratio: 0.28
Culvert Gradient: 0.45%
Max Slope:
Max Slope Length:

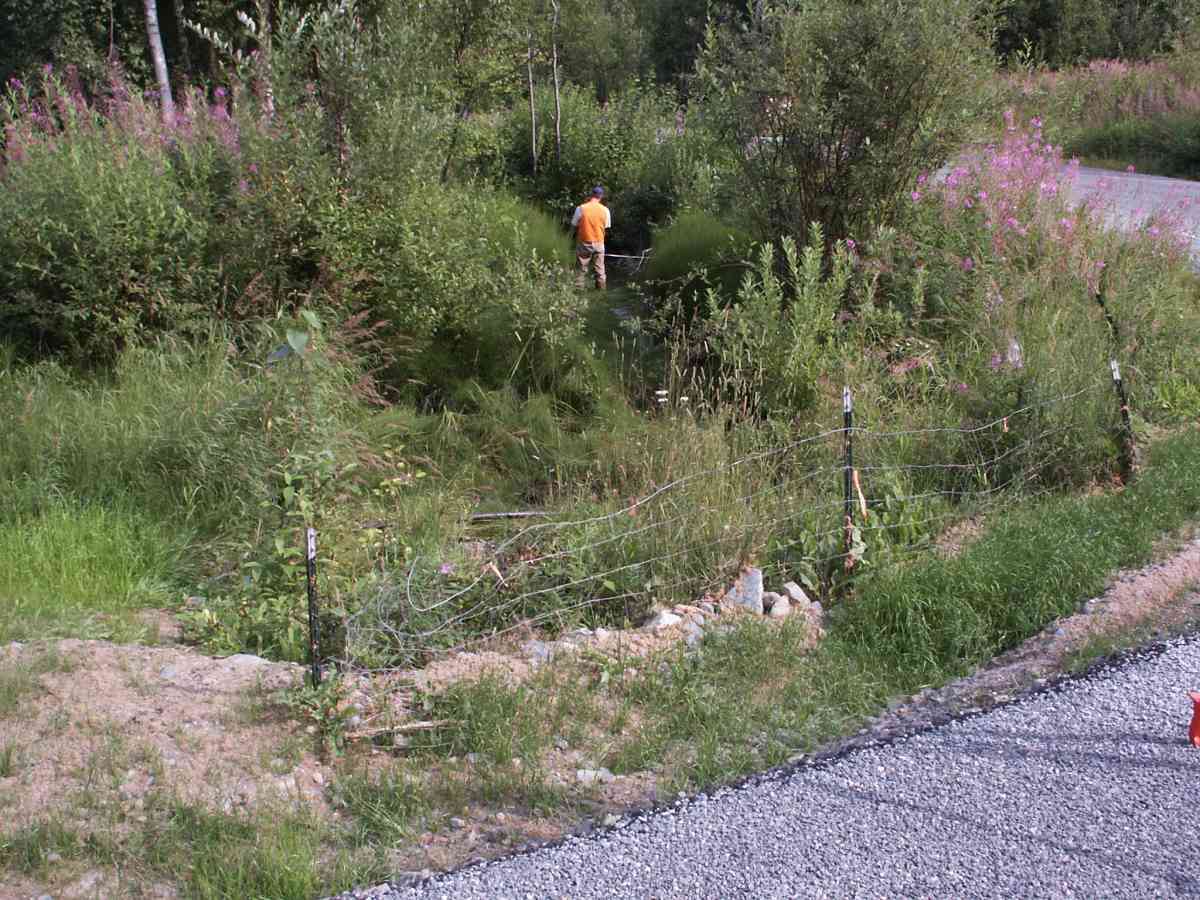

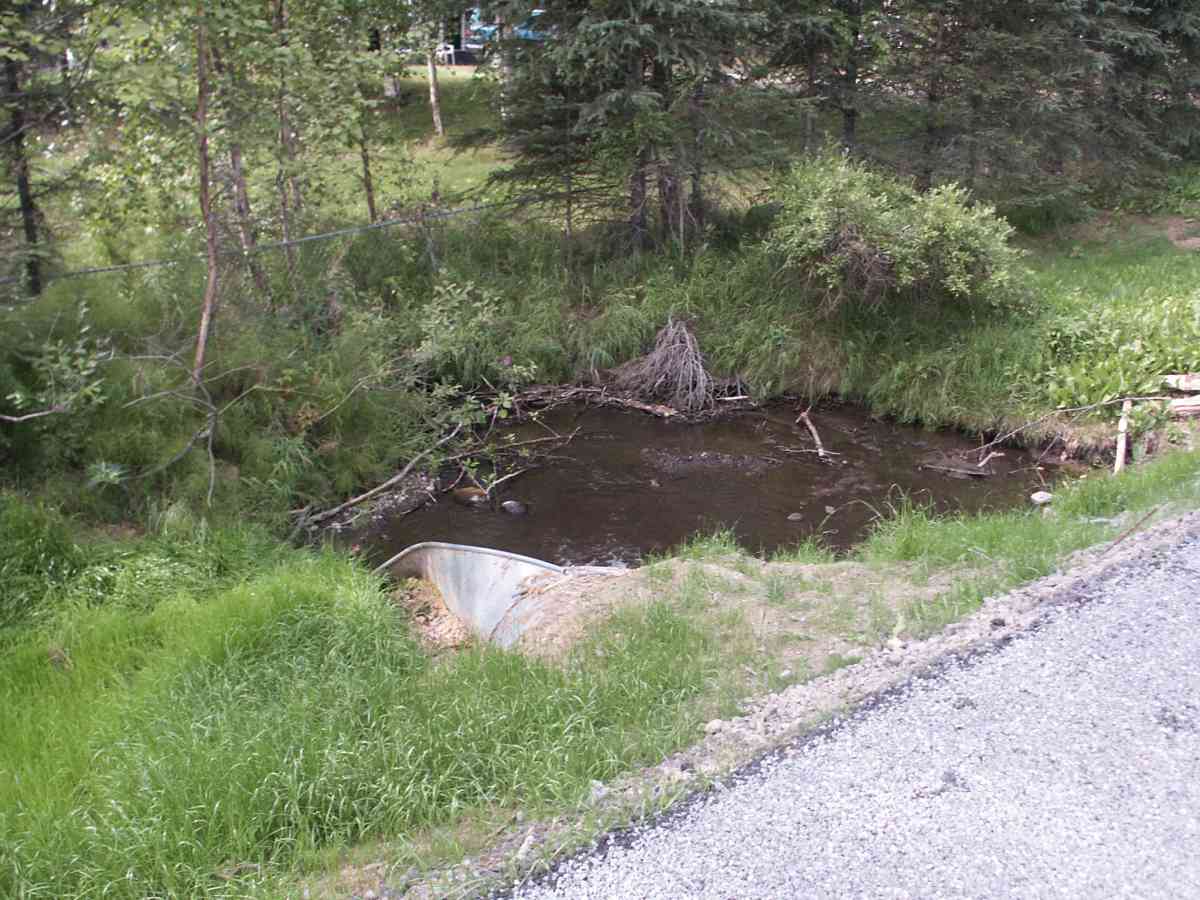

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 19.10
Upstream bank full 100.0 13.80
Upstream bank full 125.0 13.60
Upstream bank full 150.0 13.10
Upstream bed width 75.0 3.20
Upstream bed width 100.0 5.20
Upstream bed width 125.0 5.00
Upstream bed width 150.0 4.20
Upstream ordinary high water 75.0 16.00
Upstream ordinary high water 100.0 12.50
Upstream ordinary high water 125.0 10.10
Upstream ordinary high water 150.0 9.60

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 96.28
D/S Thalweg 96.29
Max Pool Depth 96.33
OHW Left Bank 96.76
OHW Left Bank 97.04
U/S Thalweg 1 97.51
Outlet Invert 1 0.00 0.0 97.26

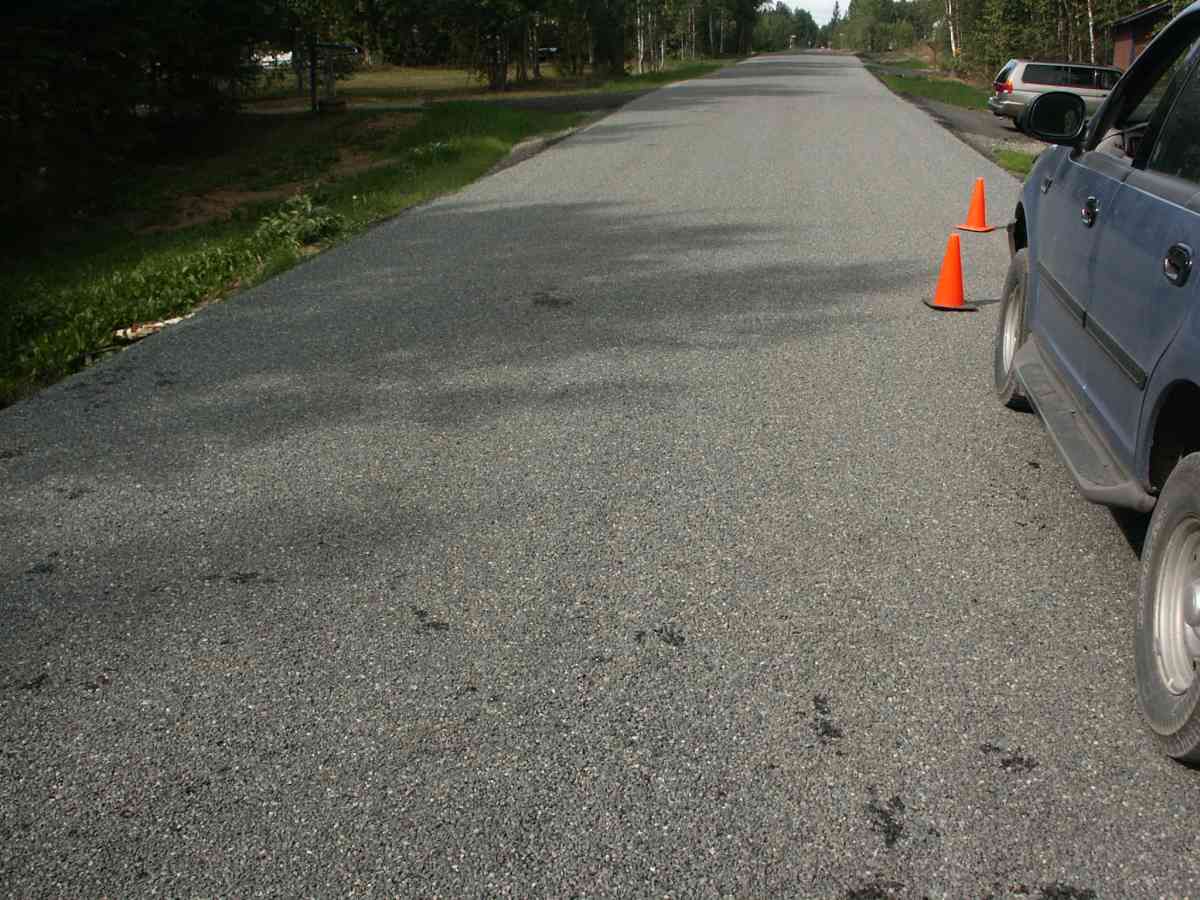

Road Elev 27.50 102.77
Inlet Culvert Invert 1 55.00 0.0 97.51

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
