Fish Passage Site 20300758

Coordinates (dec. deg.): 60.94703°, -149.38081°
Legal Description: S010N001W24
Region: South Central

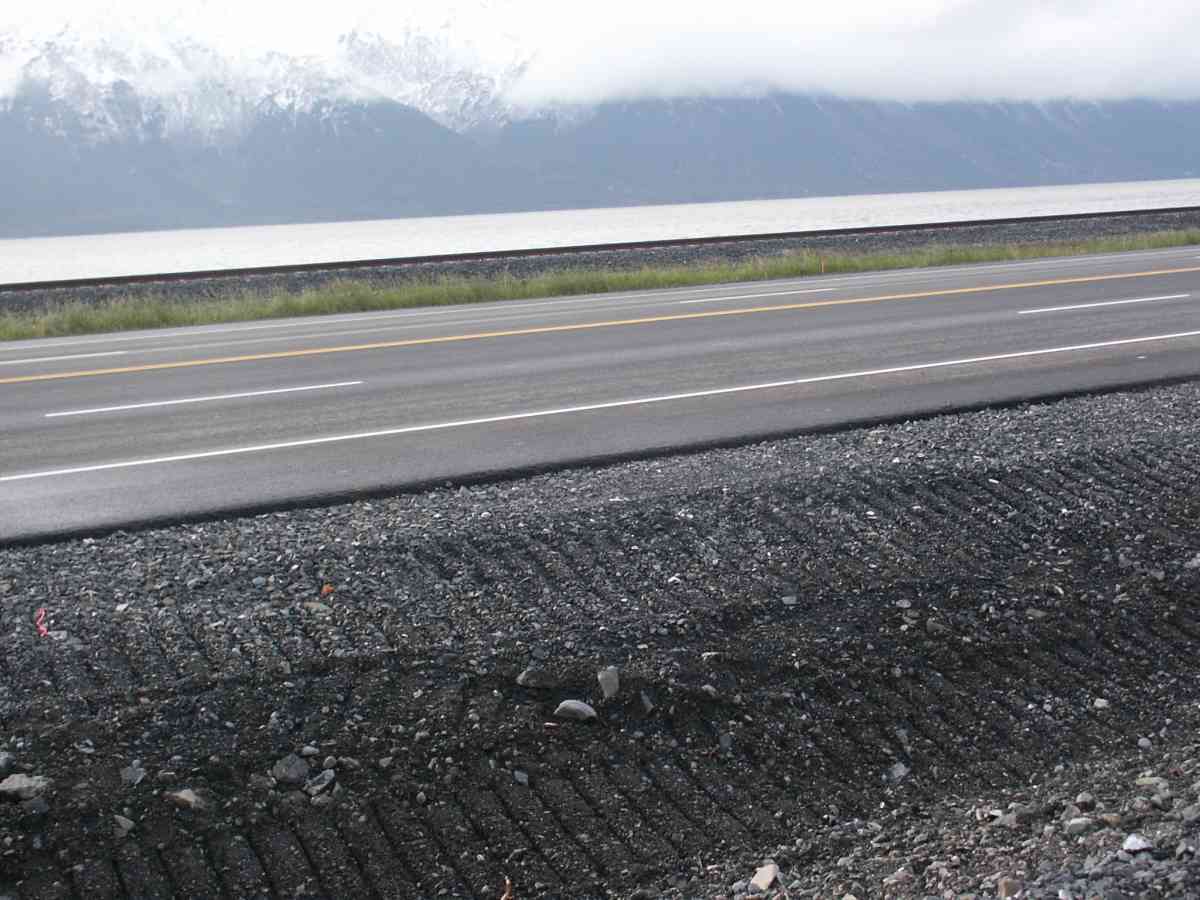

Road Name: Seward Highway

Datum: NAD83
Quad Name / ITM: Seward D-7
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey ANC04-4A235

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Gray

Tidal: Yes
Backwatered: No

Step Pools:
Construction Year:


Comments: None

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 229.8

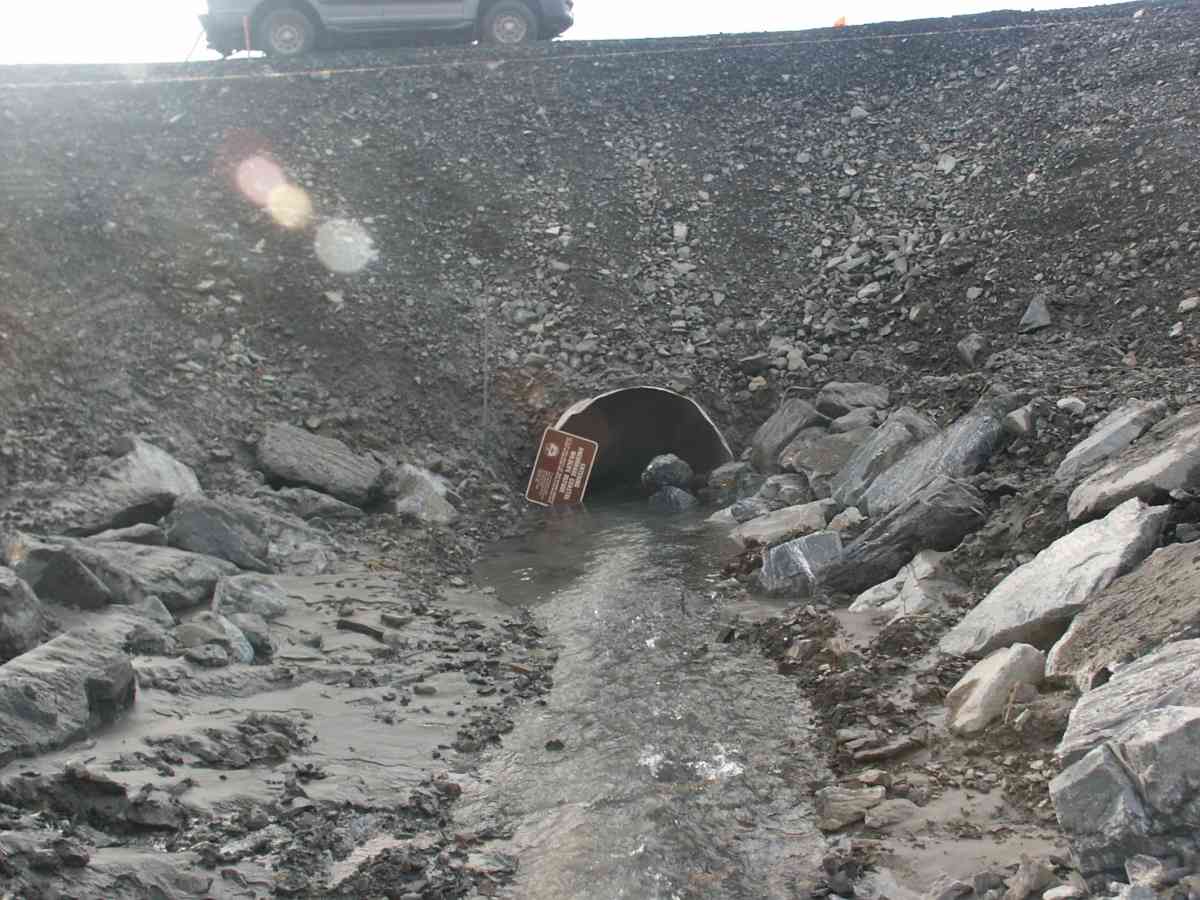

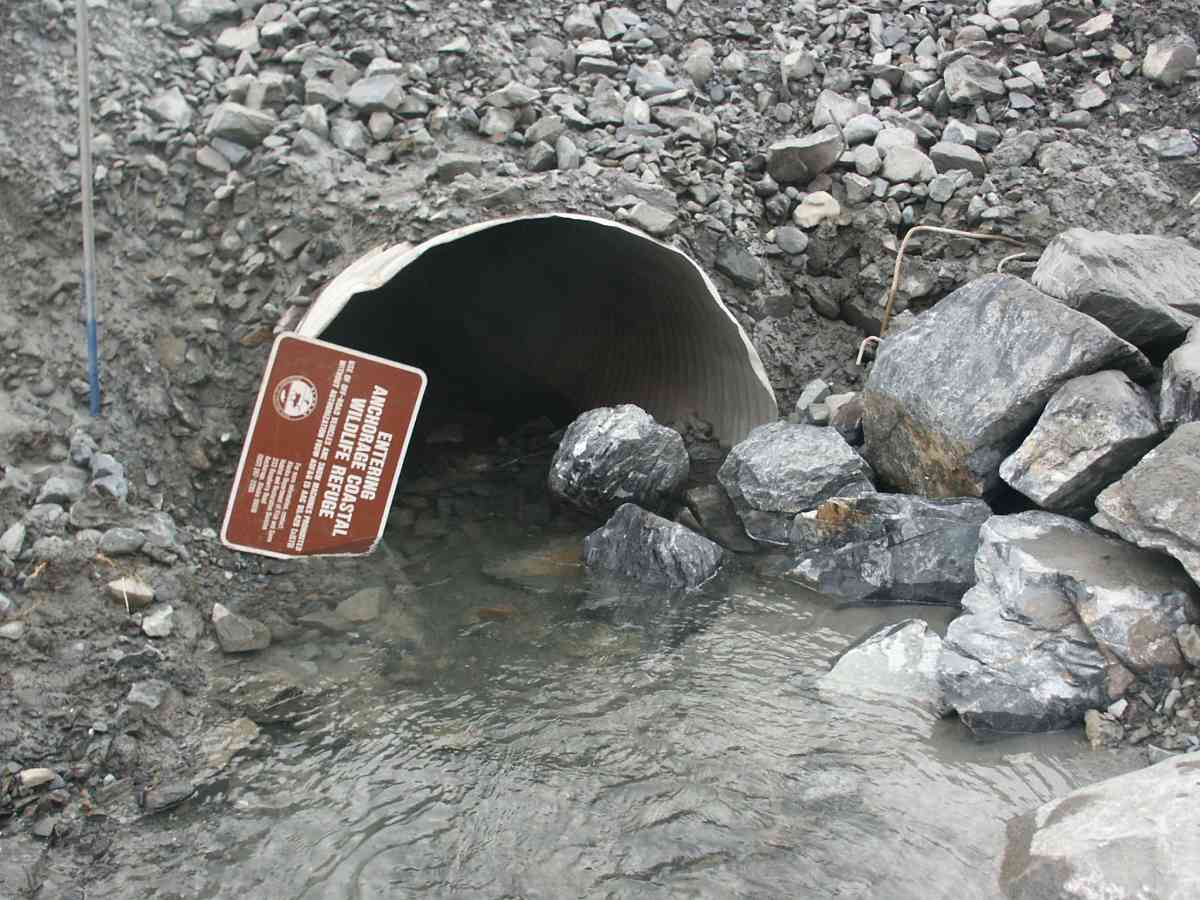

Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):5.0
Height(ft):5.0
Apron Length(ft):
Water Depth(ft): 0.7
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.1
Outfall Type:
Constriction Ratio:
Culvert Gradient: 1.35%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bed width 75.0 2.40
Upstream bed width 100.0 3.90
Upstream bed width 125.0 4.70
Upstream bed width 150.0 9.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 92.93
OHW Left Bank 94.20
U/S Thalweg 1 96.48
Outlet Invert 1 0.00 0.0 93.40
Road Elev 114.50 113.46
Inlet Culvert Invert 1 229.00 0.0 96.50

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
