Fish Passage Site 20300226

Coordinates (dec. deg.): 60.87360°, -149.03737°
Legal Description: S009N002E14
Region: South Central
Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Seward D-6
AWC Stream #:
Stream Name: Unnamed

Elevation:

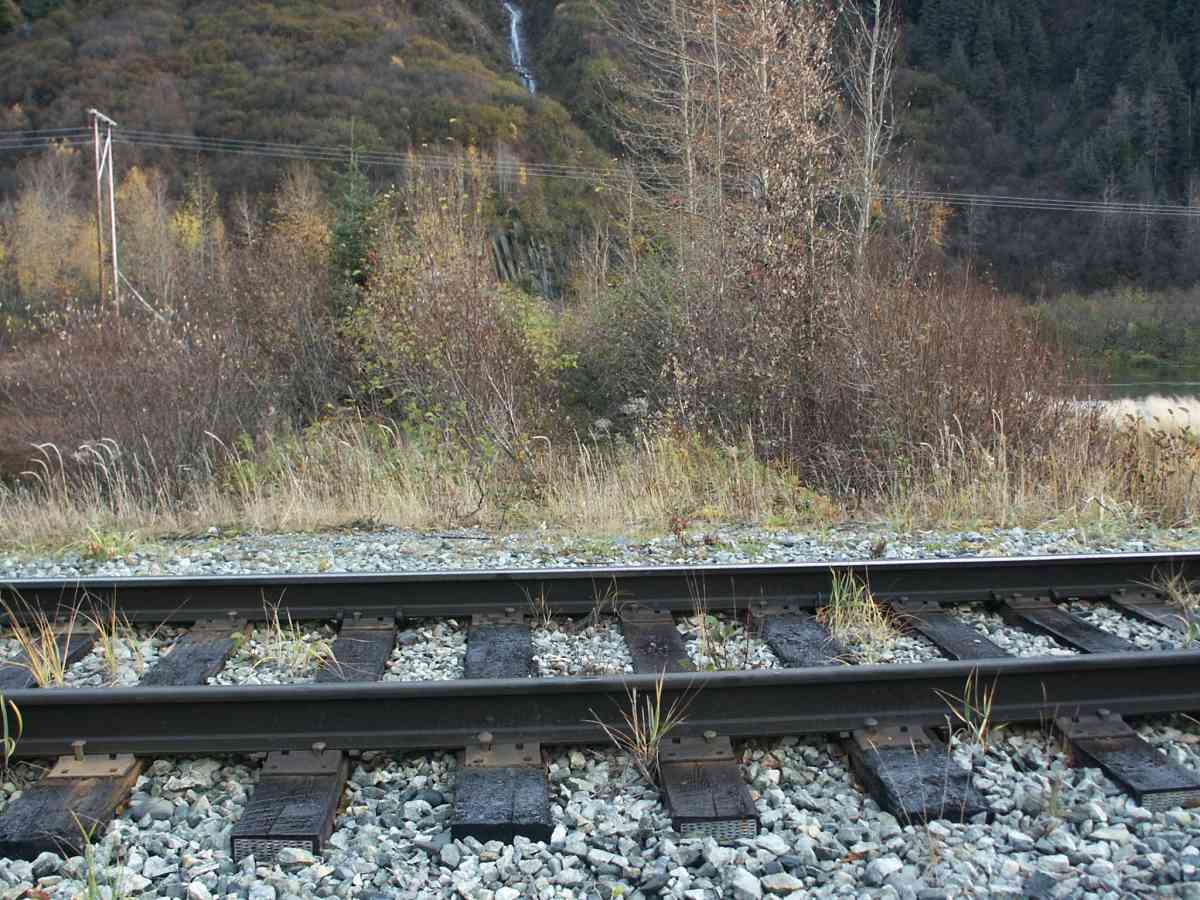

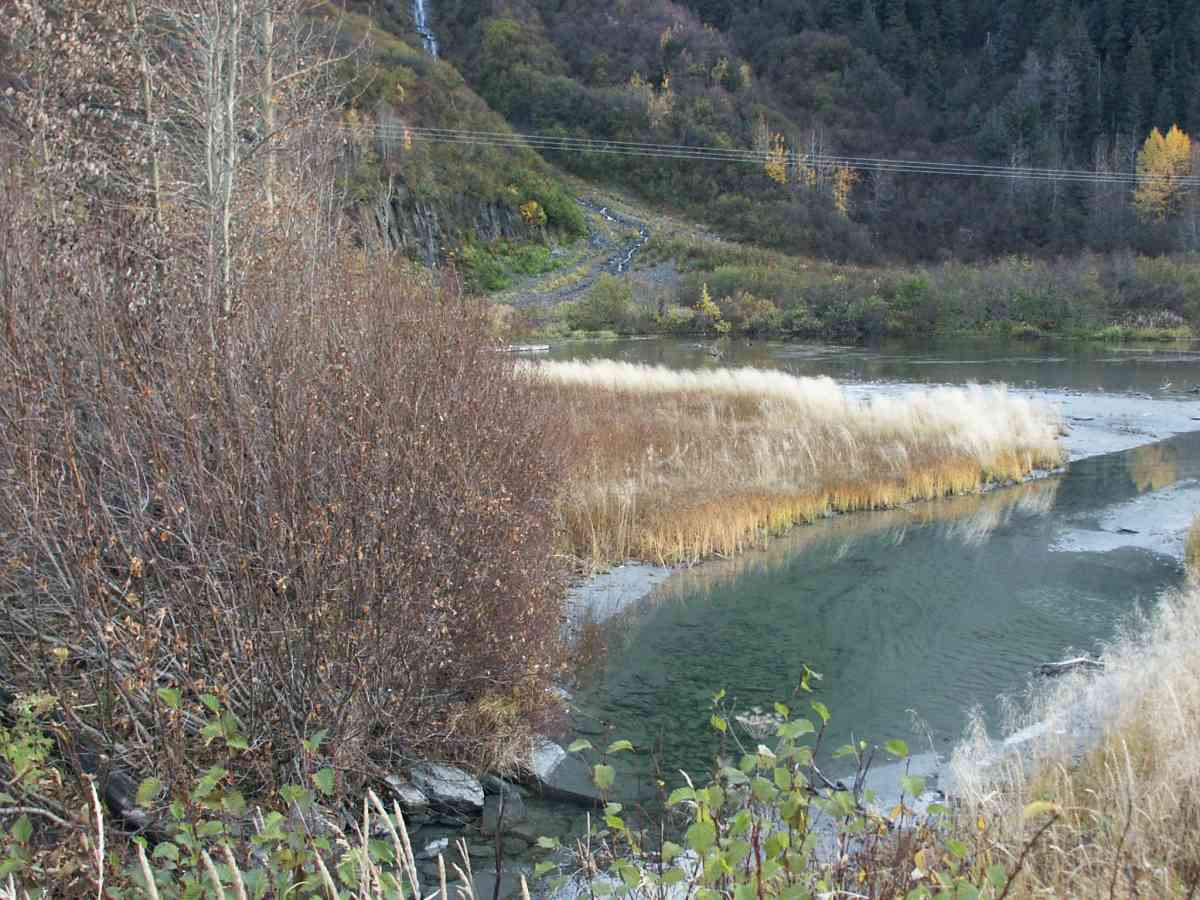

Site Comments: NO NAME WATERSHED, CULVERT PASSES UNDER RR TRACKS, POND/MARSH ABOVE TRACKS.

Survey Date: Oct 18, 2004

Survey ANC04-4A226

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Green

Tidal: Yes
Backwatered: No

Step Pools:
Construction Year:

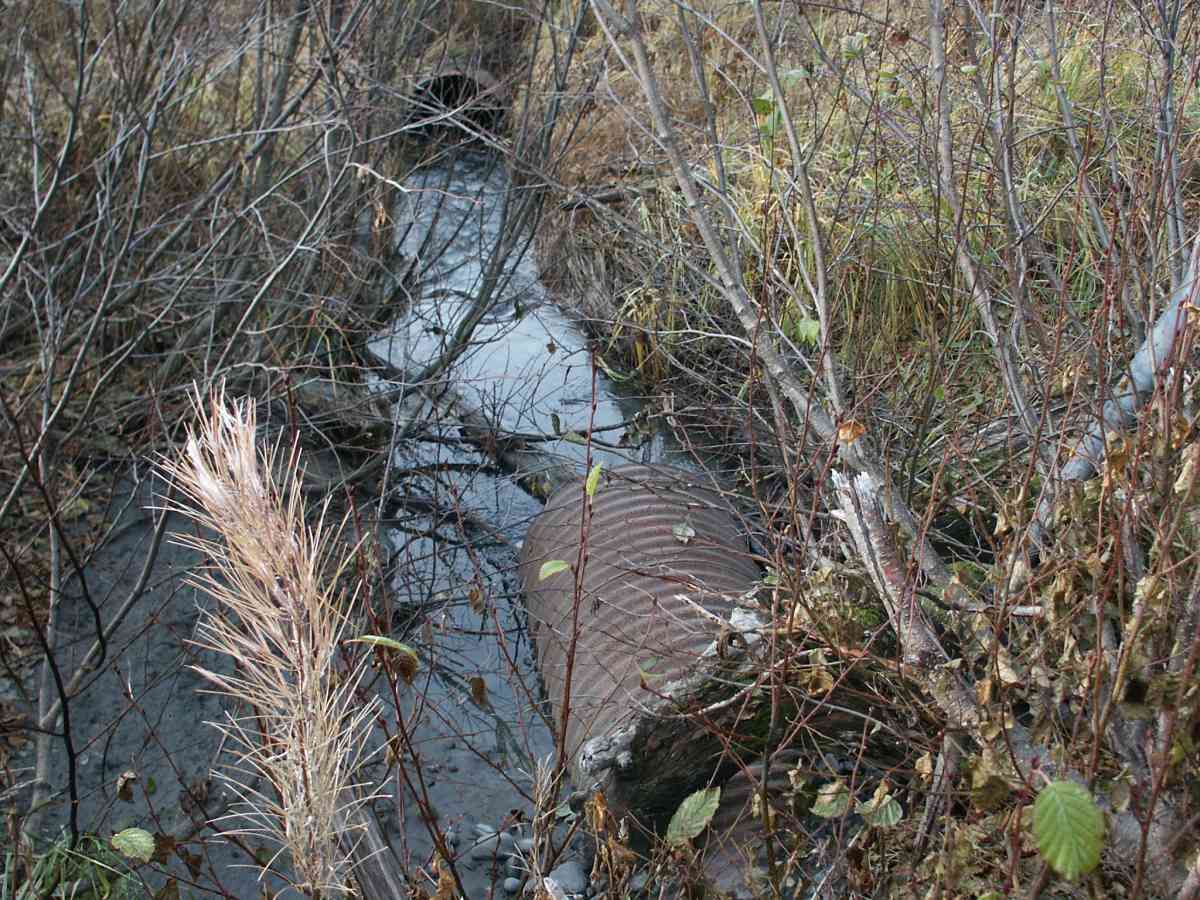

Comments: NO NAME WATERSHED, CULVERT PASSES UNDER RR TRACKS, POND/MARSH ABOVE TRACKS, NO UPSTREAM MEASUREMENTS TAKEN, 2 STICKLEBACK OBSERVED, OTHER SPECIES LIKELY. This culvert drains southern pond and there is another culvert about 40 feet downstream that runs under the Seward Highway.

Culvert Measurements

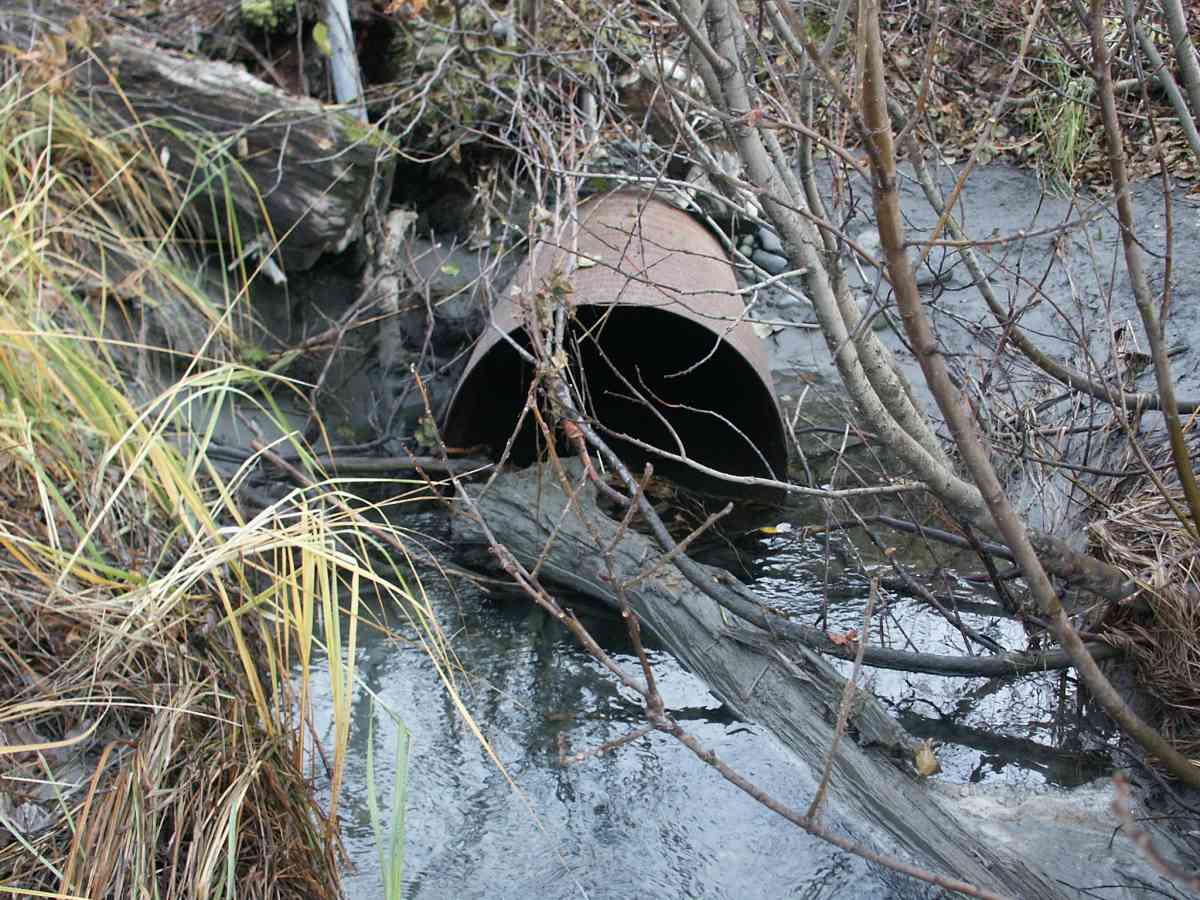

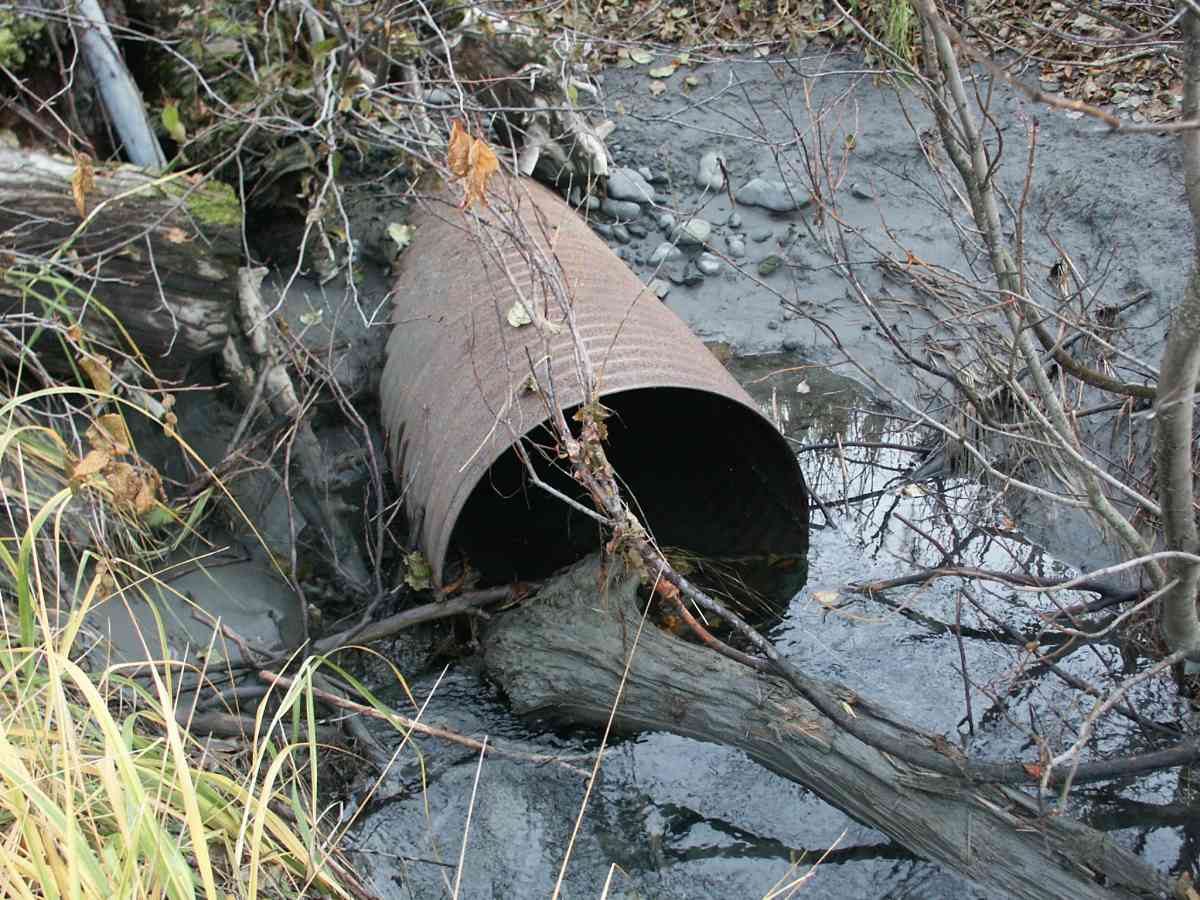

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 61.1

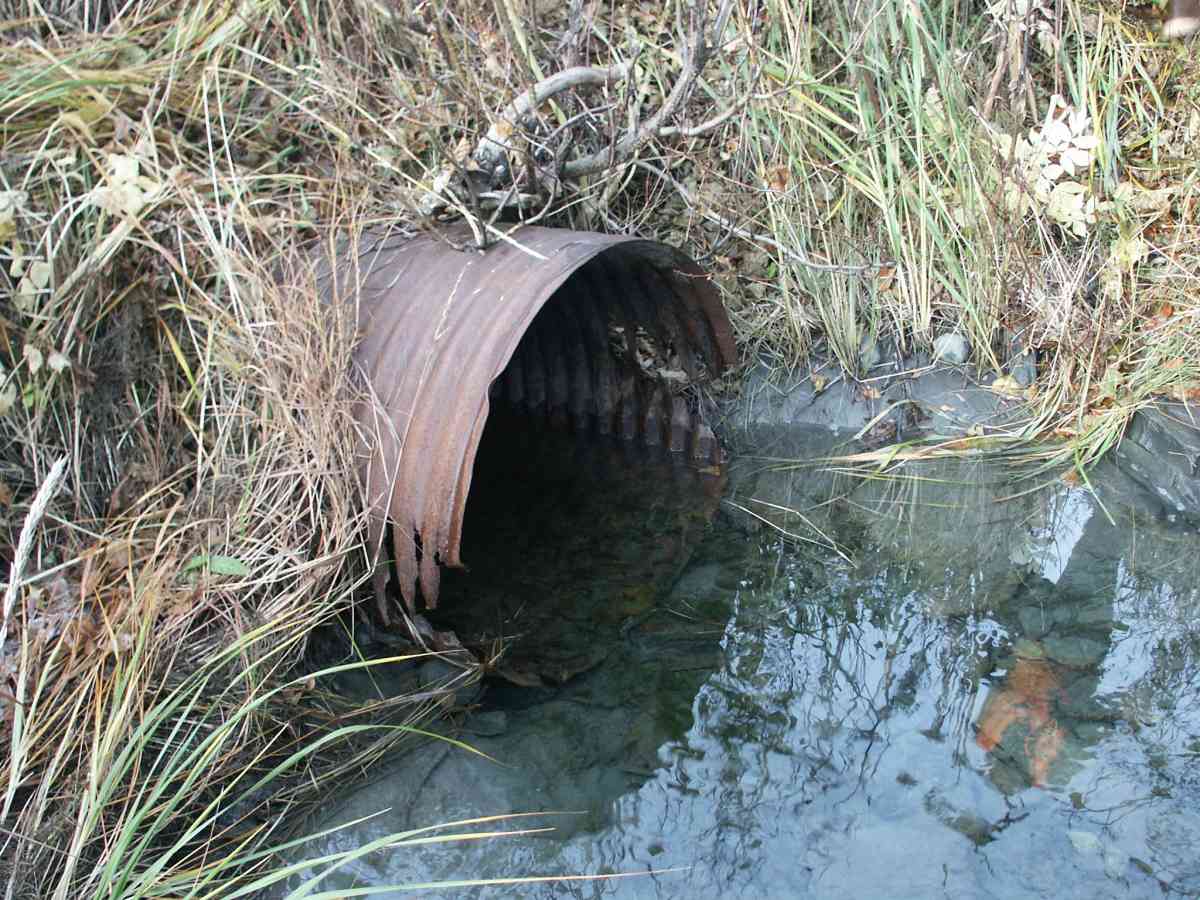

Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.0
Height(ft):3.0
Apron Length(ft):
Water Depth(ft): 1.4
Rustline Height(ft):3.0
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type:
Constriction Ratio:
Culvert Gradient: 0.62%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 96.45
Max Pool Depth 96.72
U/S Thalweg 1 97.14
D/S Tailcrest or 1st Thalweg 97.42
OHW Left Bank 97.92
OHW Left Bank 97.92
Outlet Invert 1 0.00 0.0 96.52
Road Elev 30.50 106.99
Inlet Culvert Invert 1 61.00 0.0 96.90

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
