Fish Passage Site 20200191

Coordinates (dec. deg.): 60.77503°, -148.72903°
Legal Description: S008N004E22
Region: South Central

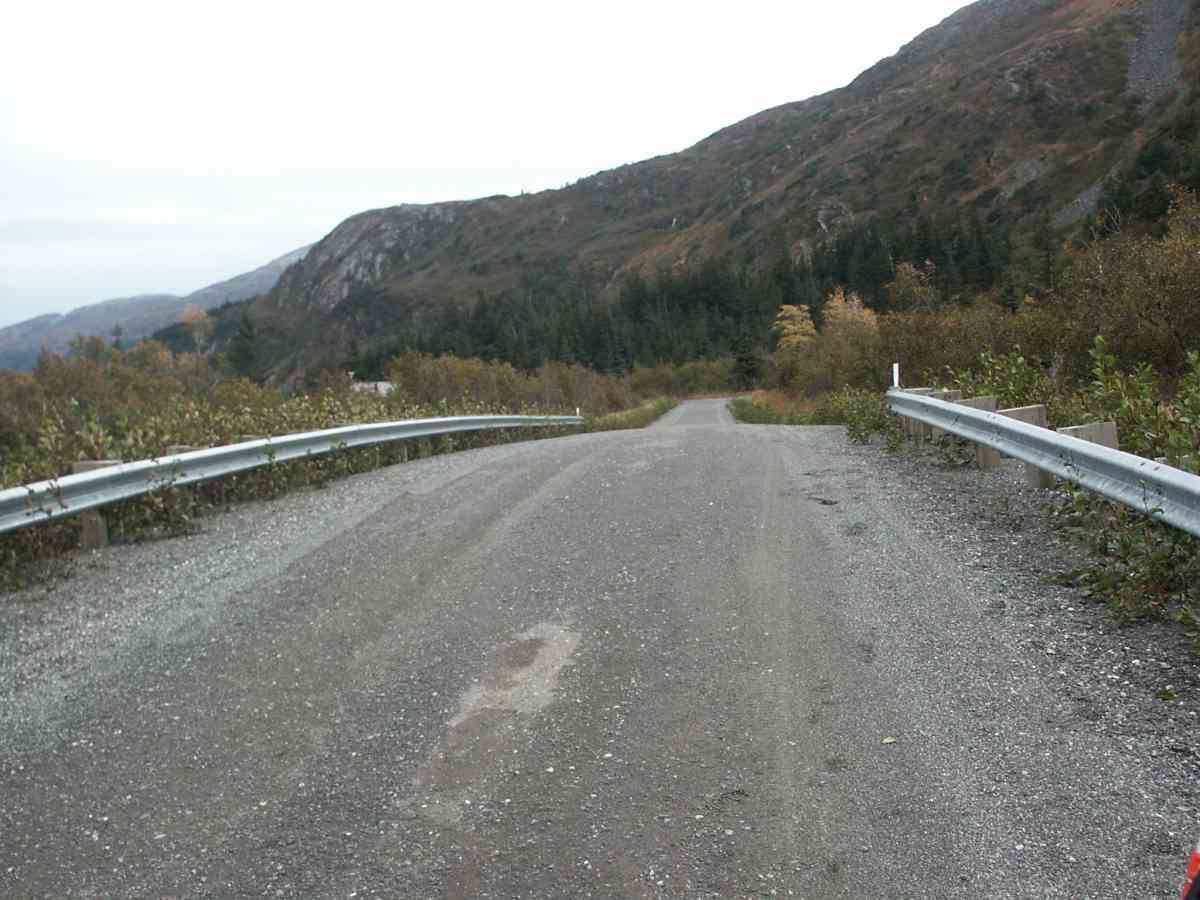

Road Name: Portage Pass Trailhead Road

Datum: NAD83
Quad Name / ITM: Seward D-5
AWC Stream #: 224-10-14400
Stream Name: Shakespeare Creek

Elevation:

Site Comments: SHAKESPEARE CREEK WATERSHED, SITE DRAINS INTO PASSAGE CANAL (WHITTIER)

Survey Date: Oct 05, 2004

Survey ANC04-4A191

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: SHAKESPEARE CREEK WATERSHED, SITE DRAINS INTO PASSAGE CANAL (WHITTIER)

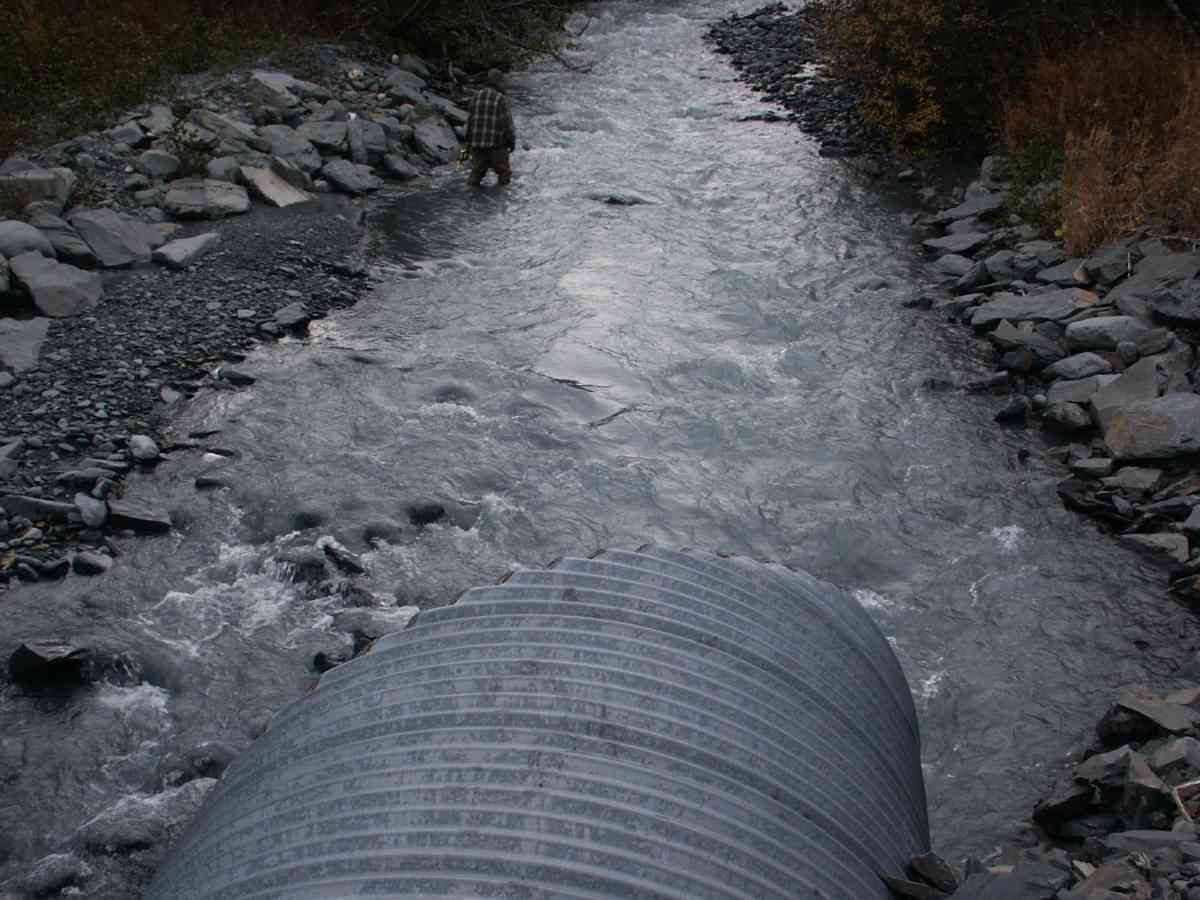

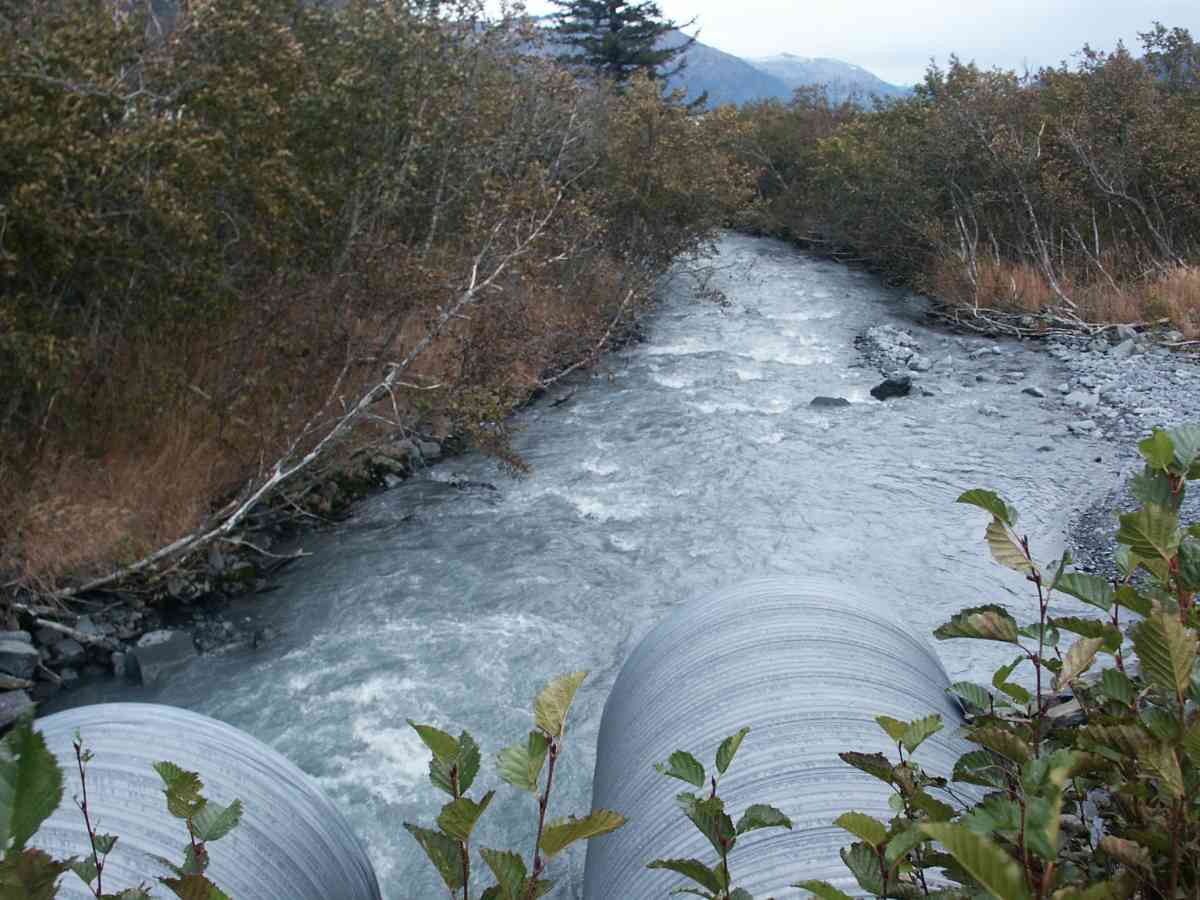

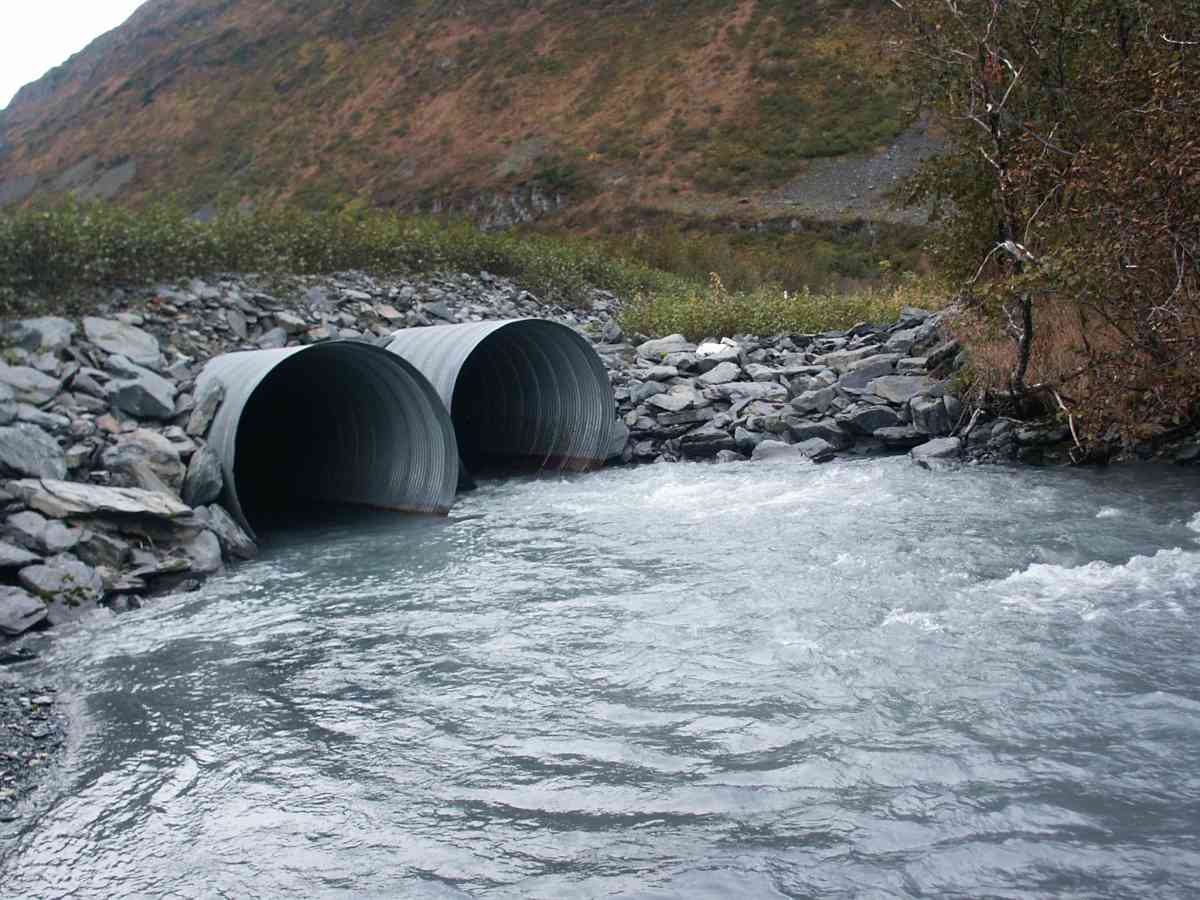

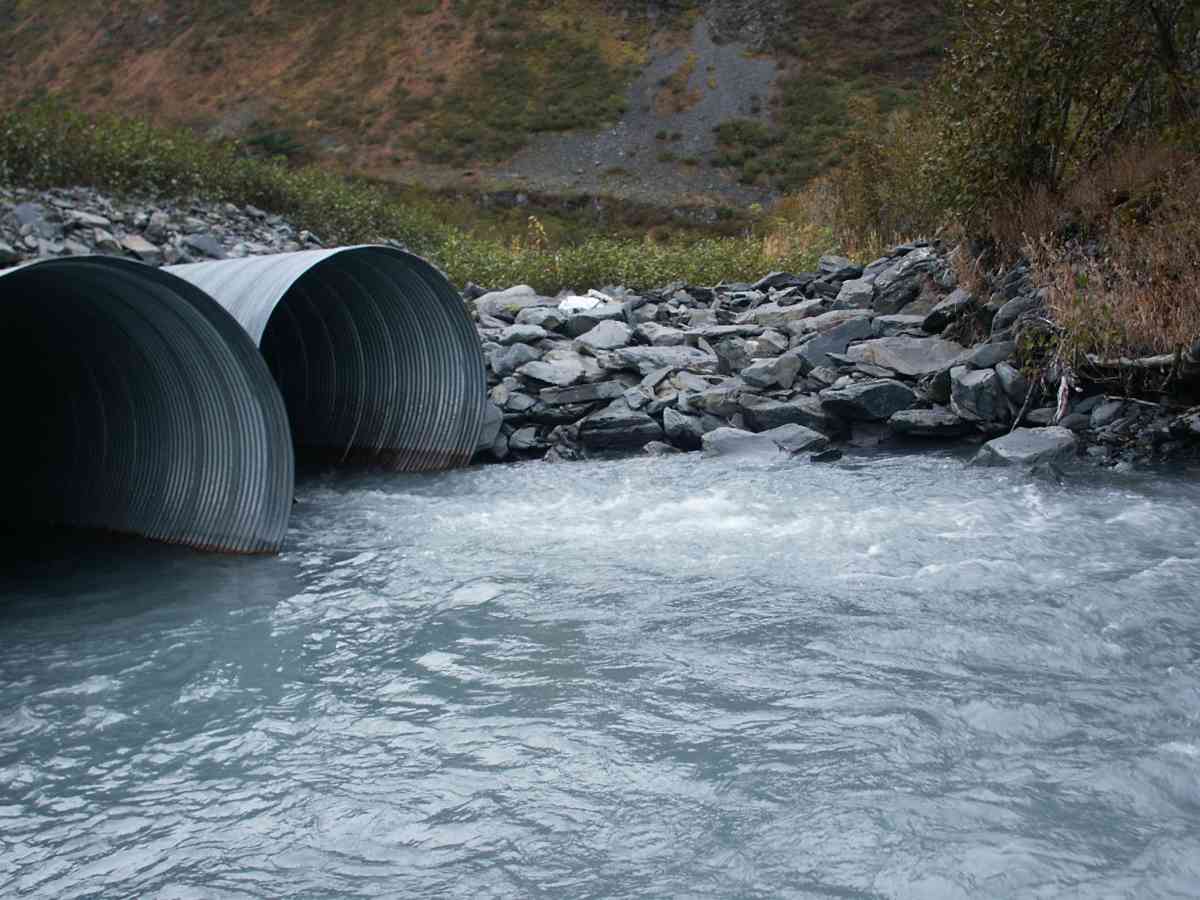

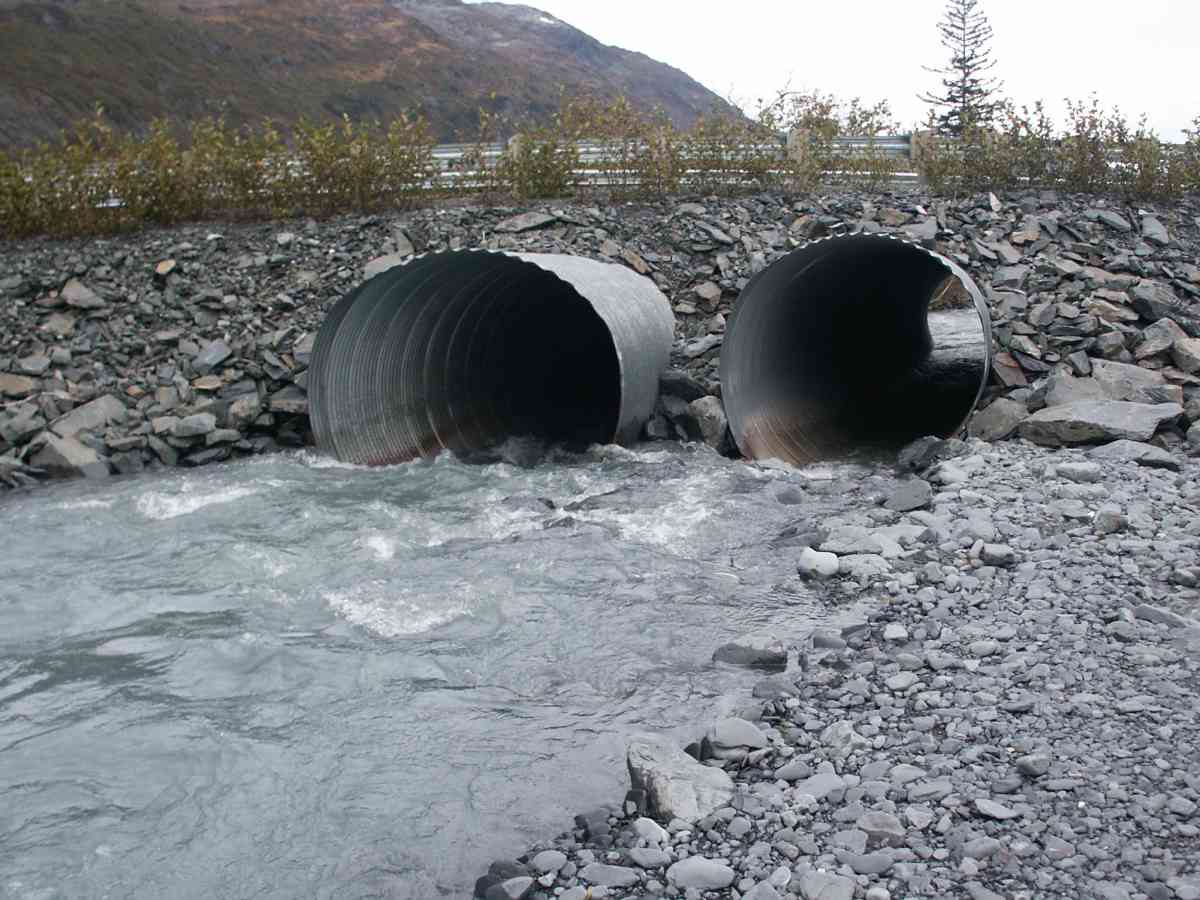

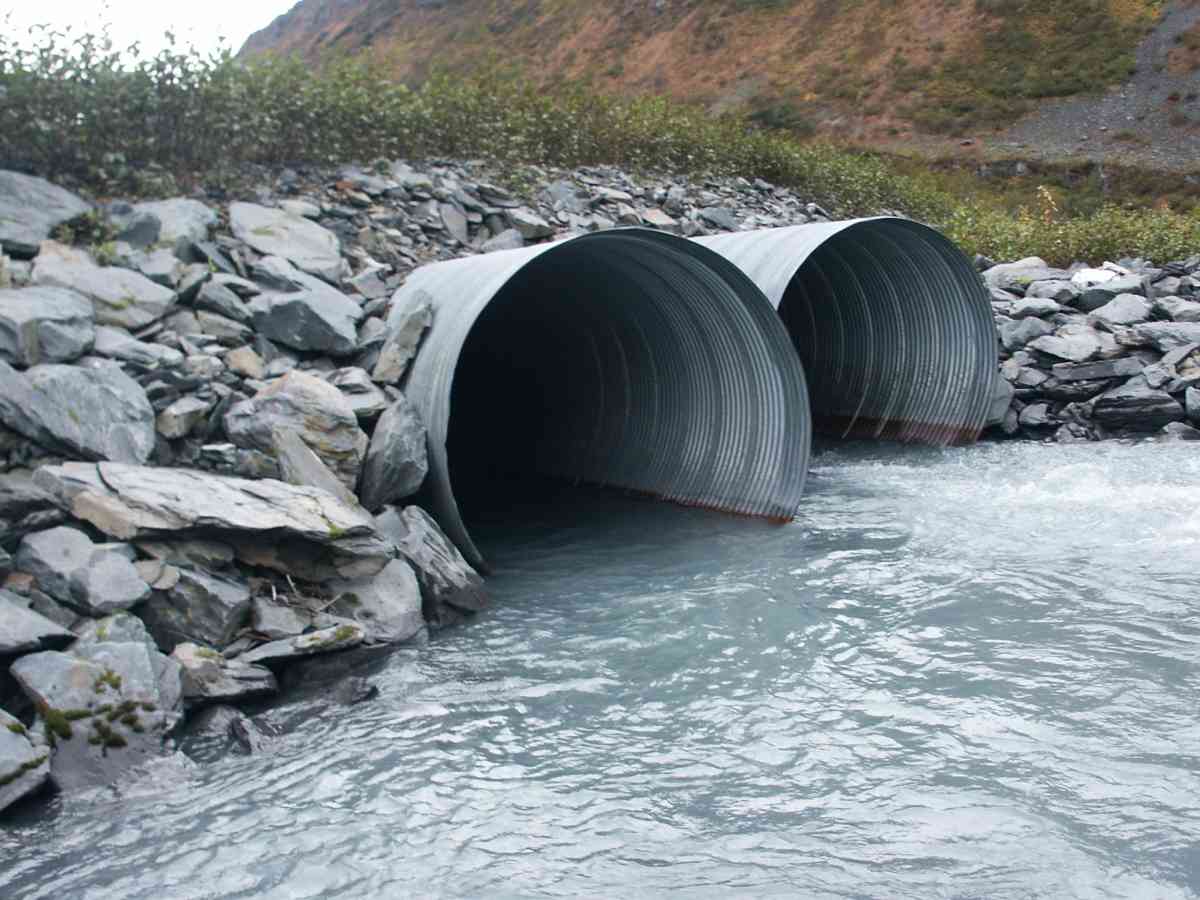

Culvert Measurements

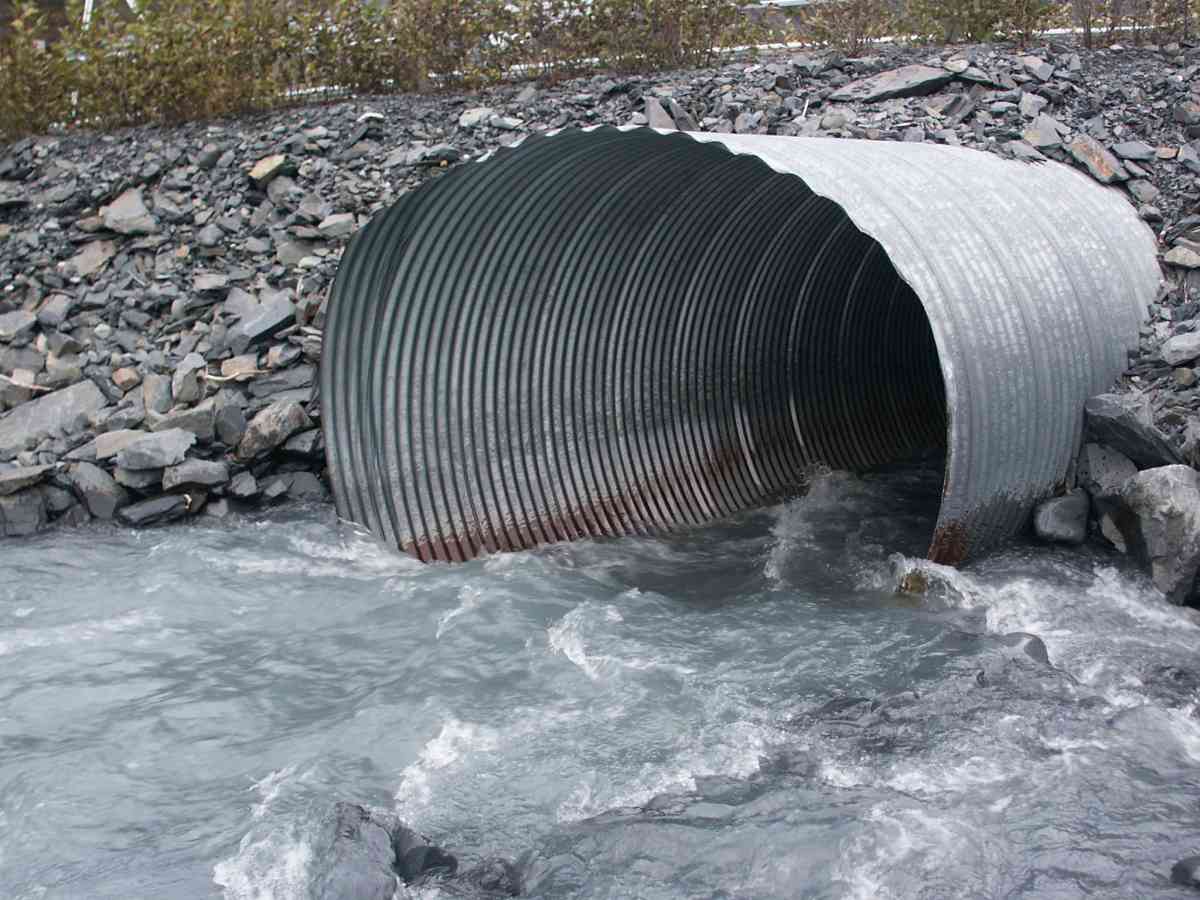

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 77.1
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):8.0
Height(ft):8.0
Apron Length(ft):
Water Depth(ft): 1.3
Rustline Height(ft):1.9
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.23
Outfall Type:
Constriction Ratio: 0.64
Culvert Gradient: 3.76%
Max Slope:
Max Slope Length:

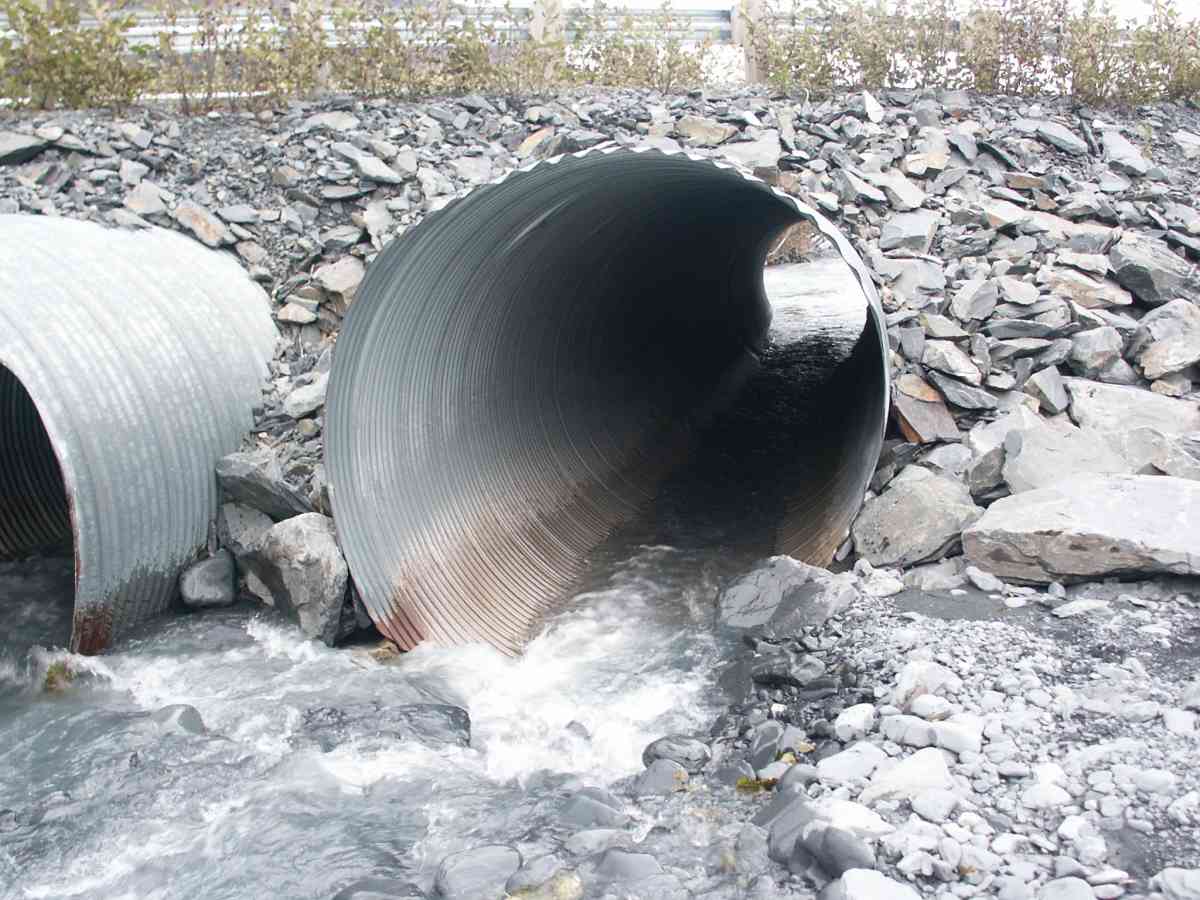

ID: 2 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 76.7
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):8.0
Height(ft):8.0
Apron Length(ft):
Water Depth(ft): 1.6
Rustline Height(ft):1.0
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.23
Outfall Type:
Constriction Ratio: 0.64
Culvert Gradient: 3.79%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 28.50
Upstream bank full 100.0 31.50
Upstream bank full 125.0 34.40
Upstream bank full 150.0 36.00
Upstream bed width 75.0 18.20
Upstream bed width 100.0 26.50
Upstream bed width 125.0 22.30
Upstream bed width 150.0 20.10
Upstream ordinary high water 75.0 21.10
Upstream ordinary high water 100.0 29.00
Upstream ordinary high water 125.0 26.50
Upstream ordinary high water 150.0 23.40

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 88.04
Max Pool Depth 88.35
D/S Tailcrest or 1st Thalweg 89.68
OHW Left Bank 90.43
OHW Left Bank 90.97
U/S Thalweg 1 93.33
U/S Thalweg 2 93.44
Outlet Invert 2 0.00 0.0 89.06
Outlet Invert 1 0.00 0.0 89.10
Road Elev 38.00 102.44
Inlet Culvert Invert 2 76.00 0.0 91.97
Inlet Culvert Invert 1 76.00 0.0 92.00

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
