Fish Passage Site 60401786

Coordinates (dec. deg.): 68.89678°, -148.87595°
Legal Description: U006S014E30
Region: Arctic

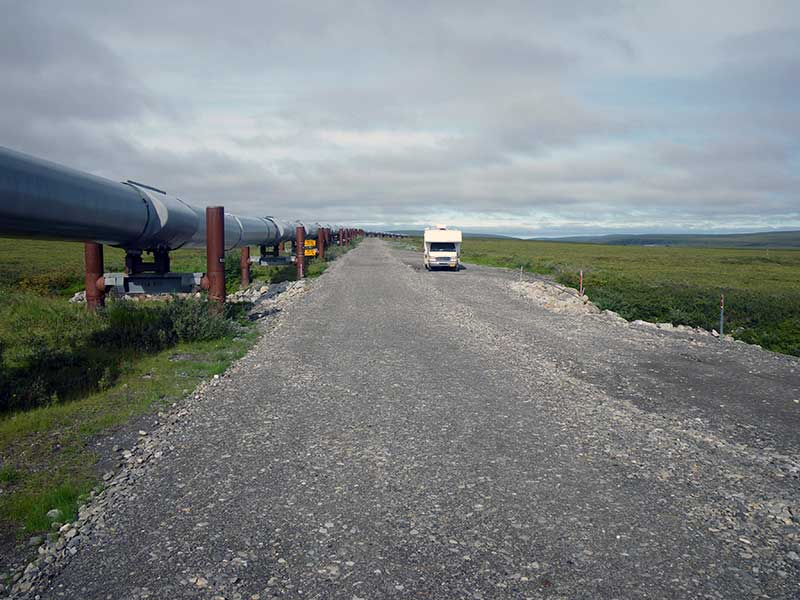

Road Name: TAPS Access Road

Datum: WGS84
Quad Name / ITM: Philip Smith Mts D-4
AWC Stream #:
Stream Name: Climb Creek

Elevation:

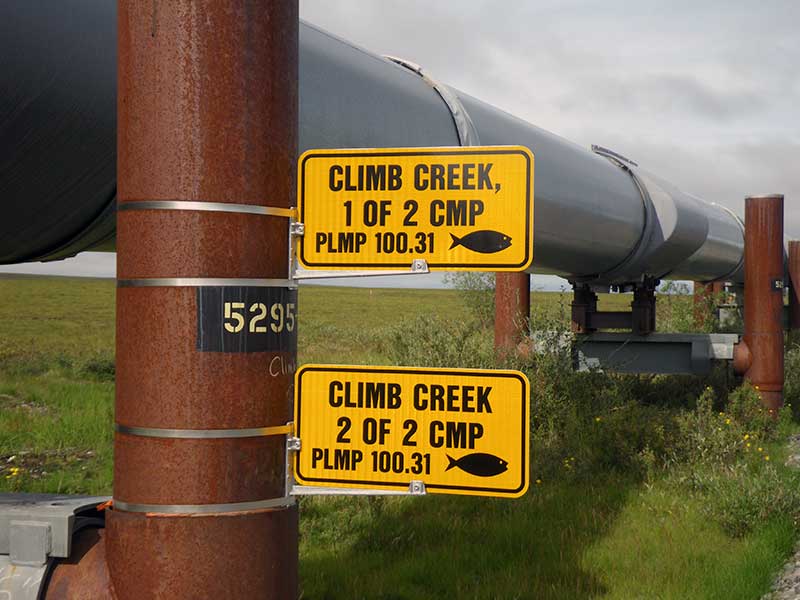

Site Comments: PLMP 100.31. - 121-APL-1A

Survey Date: Aug 09, 2010

Survey EDS10-TAP03

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


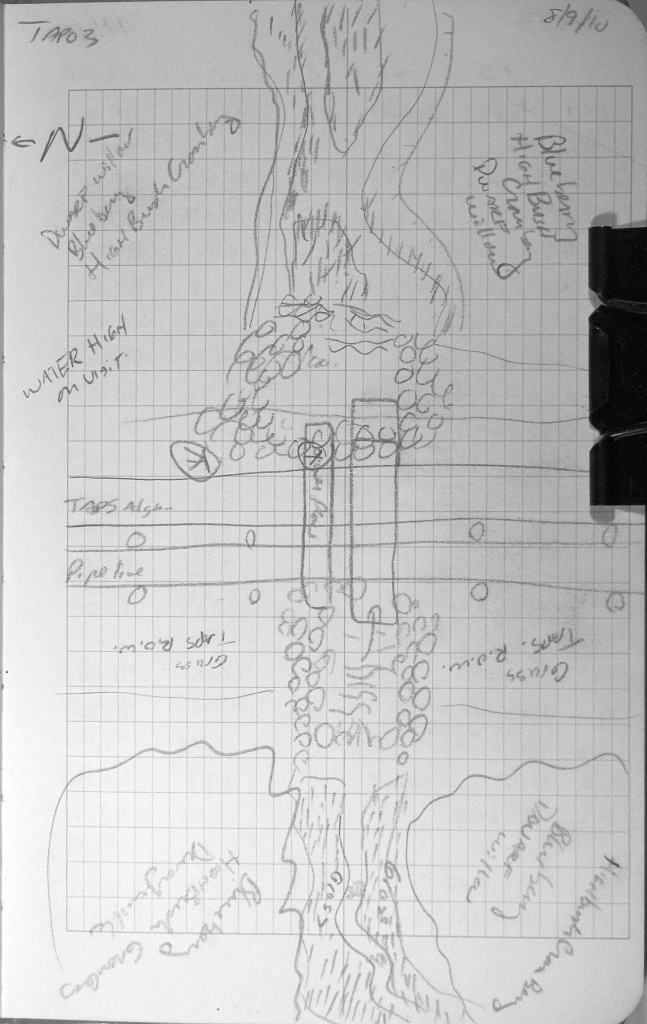

Site Observations:

  1. Culvert gradient gray

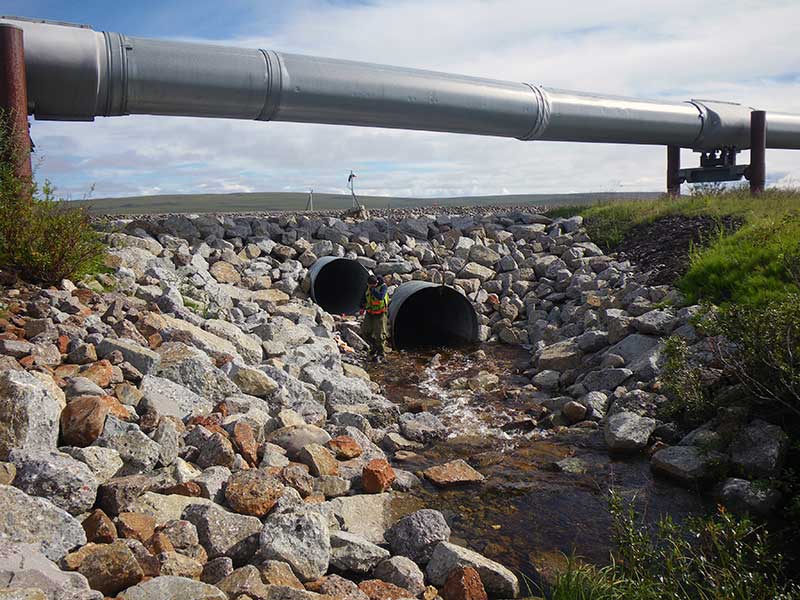

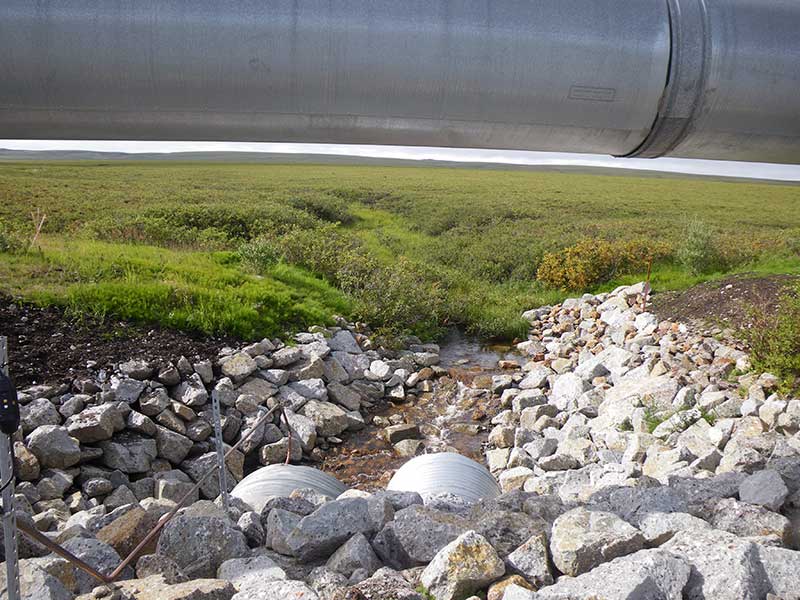

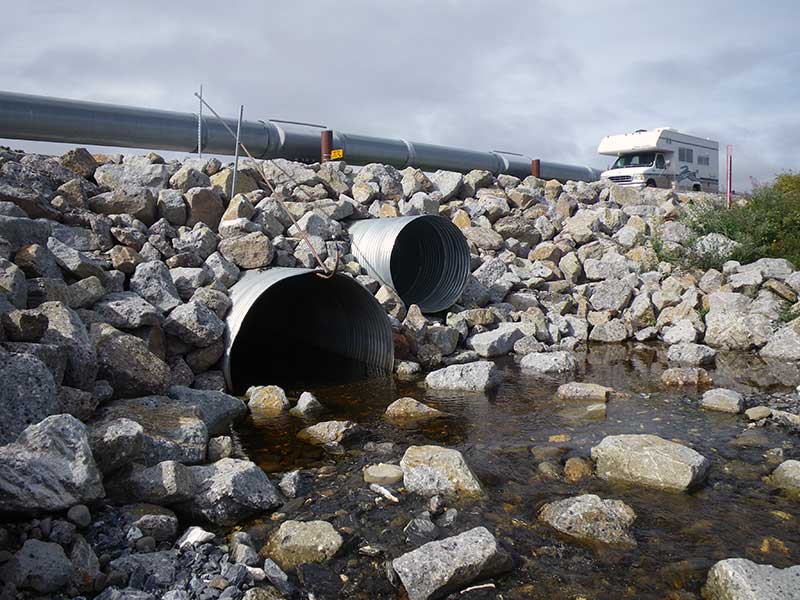

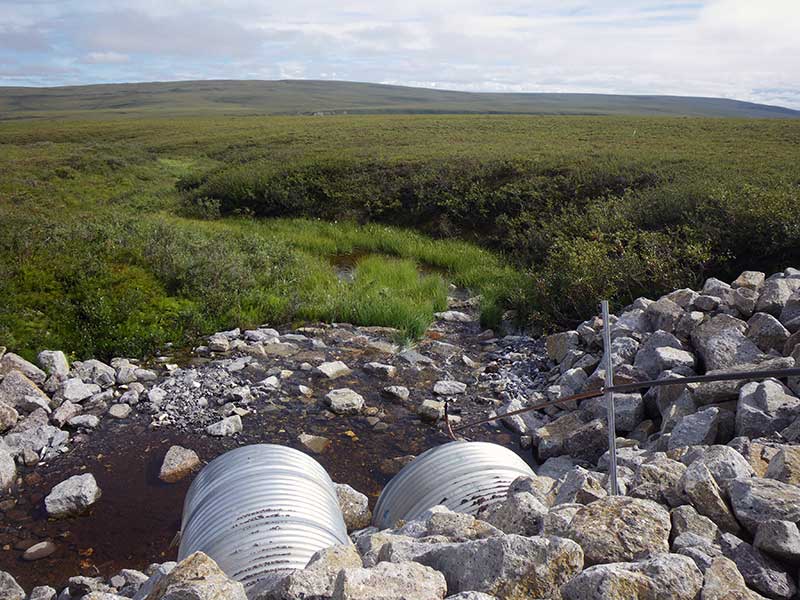

Comments: PLMP 100.31. This culvert had very high water while this survey was taking place. The overflow pipe is almost as big as the major pipe. It looks to have been recently replaced. Very nice new fish pass pipe, most likely not a barrier, however there is a downstream culvert under the Dalton Highway that is.

Culvert Measurements

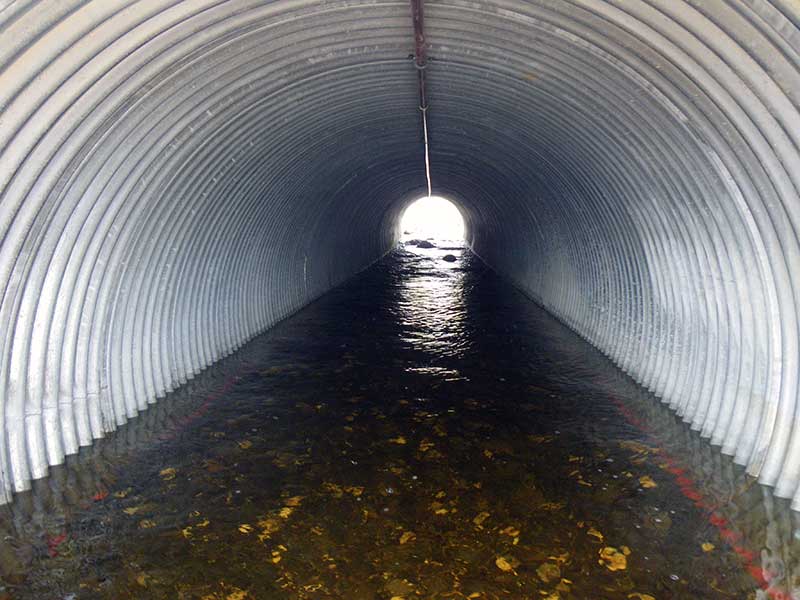

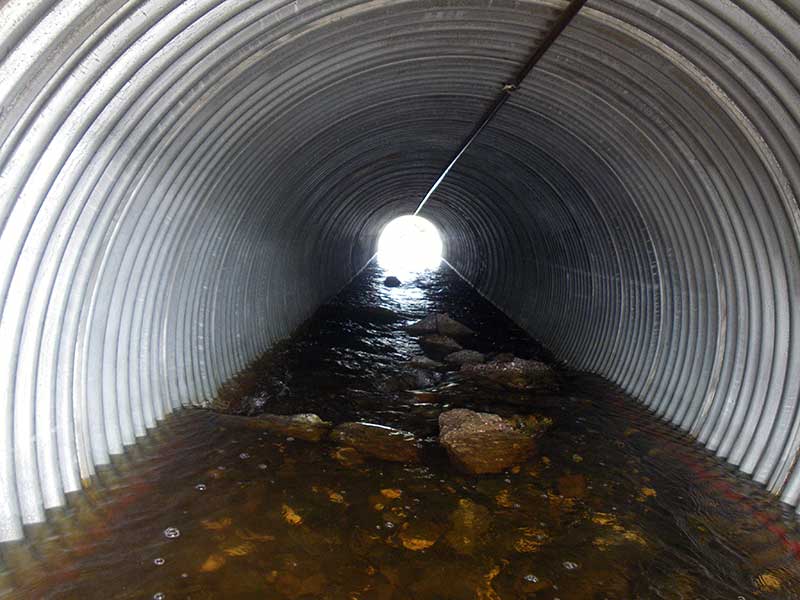

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 65.76
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 5
Approach Angle: 25.0
Sedimentation At Inlet: Yes
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):6.0 6.0
Height(ft):4.7 4.6
Apron Length(ft):
Water Depth(ft): 0.98
Rustline Height(ft):3.6
Substrate Depth(ft):1.3 1.5
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 1.4
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 3.68
Culvert Gradient: 1.40%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient gray
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 60.74
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.1 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Overflow Pipe
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: This pipe was an overflow and that is why the other data is not included for this pipe.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:CobbleCobble
Stream Slope(deg.):3.43
Stream Flow Stage:High
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 44.0 2.00
Upstream ordinary high water 64.0 1.70
Upstream ordinary high water 102.0 1.20

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Inlet Culvert Invert (Bottom of Pipe) 2 93.36
Inlet Culvert Top (Top of Pipe) 2 97.40
Road Elev (Road Surface) 100.94
D/S Grade Ctrl (Thalweg) (Thalweg) 0.00 85.99
D/S Grade Ctrl (Thalweg) (Water Surface) 0.00 89.18
D/S Tailcrest or 1st Thalweg (Thalweg) 61.00 90.28
D/S Tailcrest or 1st Thalweg (Water Surface) 61.00 90.87
D/S Water Surface Elev (Pool Water Surface) 63.00 90.86
Max Pool Depth (Max Pool Depth) 63.00 89.62
Outlet Invert (Substrate) 1 69.00 89.89
Outlet Invert (Water Surface) 1 69.00 90.87
Outlet Invert (Bottom of Pipe) 2 69.00 96.62
Outlet Culvert Top (Top of Pipe) 2 69.00 92.57
Outlet Culvert Top (Top of Pipe) 1 69.00 94.57
Inlet Culvert Top (Top of Pipe) 1 134.80 95.49
Inlet Culvert Invert (Water Surface) 1 134.80 91.44
Inlet Culvert Invert (Substrate) 1 134.80 90.55
U/S Headwater (Substrate) 136.80 90.55
U/S Headwater (Water Surface) 136.80 91.48
U/S Grade Ctrl (Thalweg) (Thalweg) 161.80 92.42
U/S Grade Ctrl (Thalweg) (Water Surface) 161.80 93.06
U/S Grade Ctrl (Thalweg) (Thalweg) 175.80 92.54
U/S Grade Ctrl (Thalweg) (Water Surface) 175.80 93.44
U/S Grade Ctrl (Thalweg) (Water Surface) 200.80 93.97
U/S Grade Ctrl (Thalweg) (Thalweg) 200.80 93.12
U/S Grade Ctrl (Thalweg) (Water Surface) 221.80 95.20
U/S Grade Ctrl (Thalweg) (Thalweg) 221.80 94.49
U/S Grade Ctrl (Thalweg) (Water Surface) 262.80 95.71
U/S Grade Ctrl (Thalweg) (Thalweg) 262.80 94.66
U/S Grade Ctrl (Thalweg) (Thalweg) 269.80 95.59
U/S Grade Ctrl (Thalweg) (Water Surface) 269.80 96.66

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.5
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 1.5
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
