Fish Passage Site 60401664

Coordinates (dec. deg.): 69.30453°, -148.73705°
Legal Description: U002S014E03
Region: Arctic

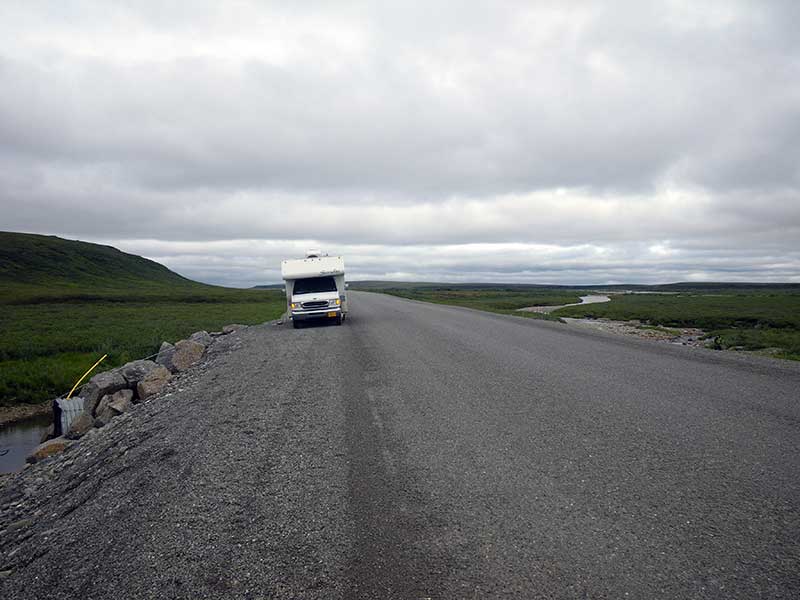

Road Name: Dalton Highway

Datum: NAD83
Quad Name / ITM: Sagavanirktok B-3
AWC Stream #:
Stream Name: Mark Creek

Elevation:

Site Comments: DOT#19+080

Survey Date: Aug 07, 2010

Survey EDS10-DAL04

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Inlet perch
  2. Constriction ratio red
  3. Mechanical damage or joints parting
  4. Outfall height red
  5. Damage associated with ice problems
  6. Culvert gradient gray

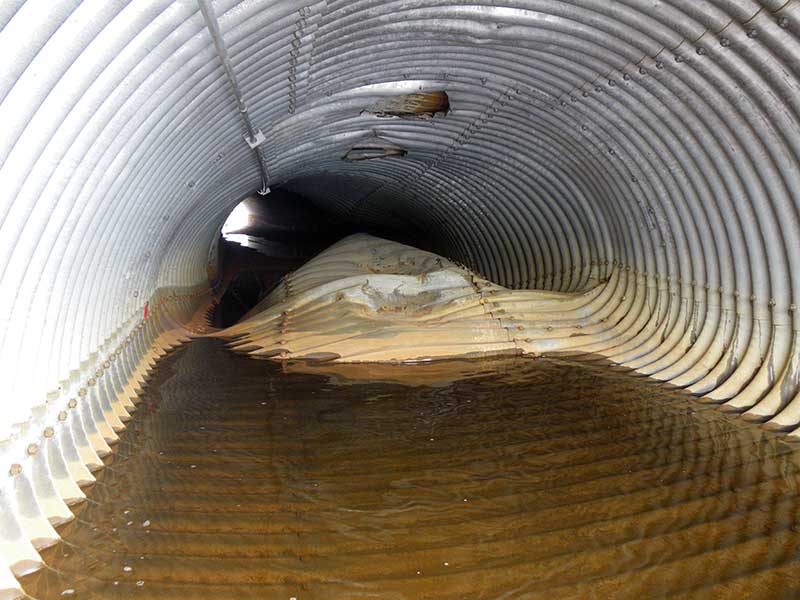

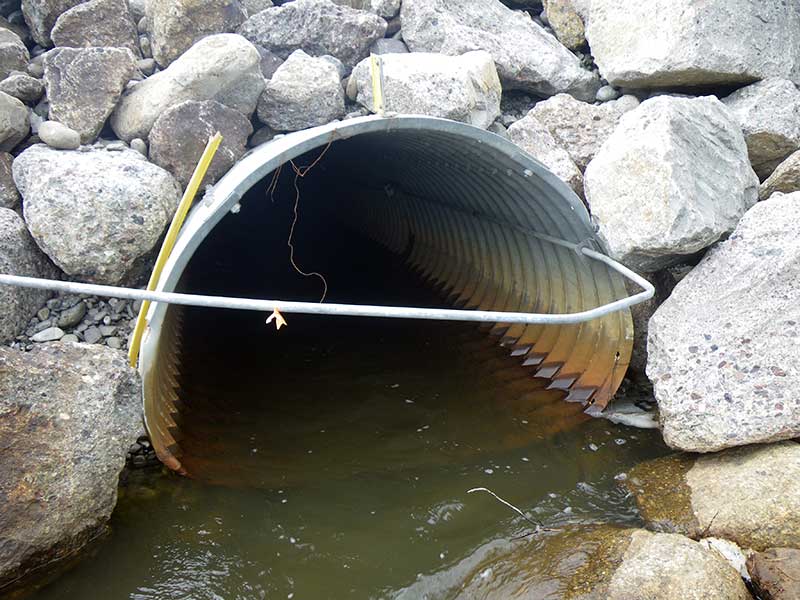

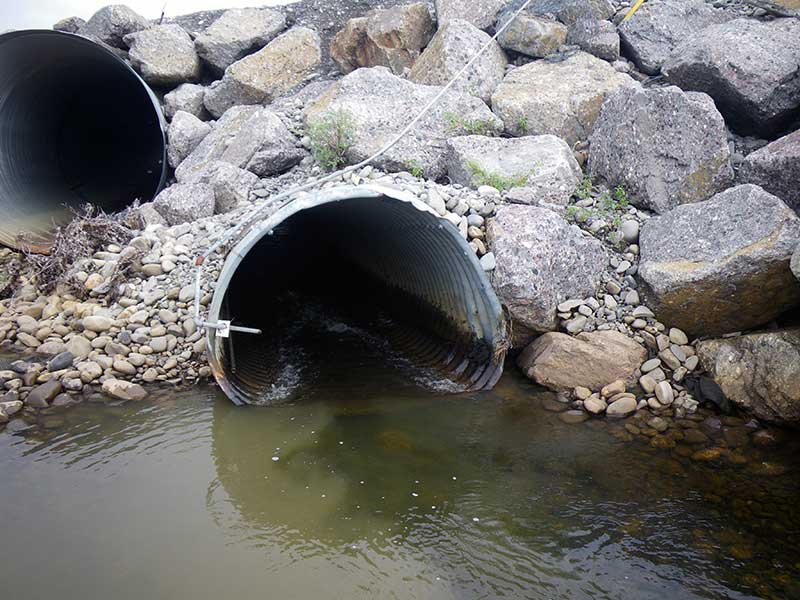

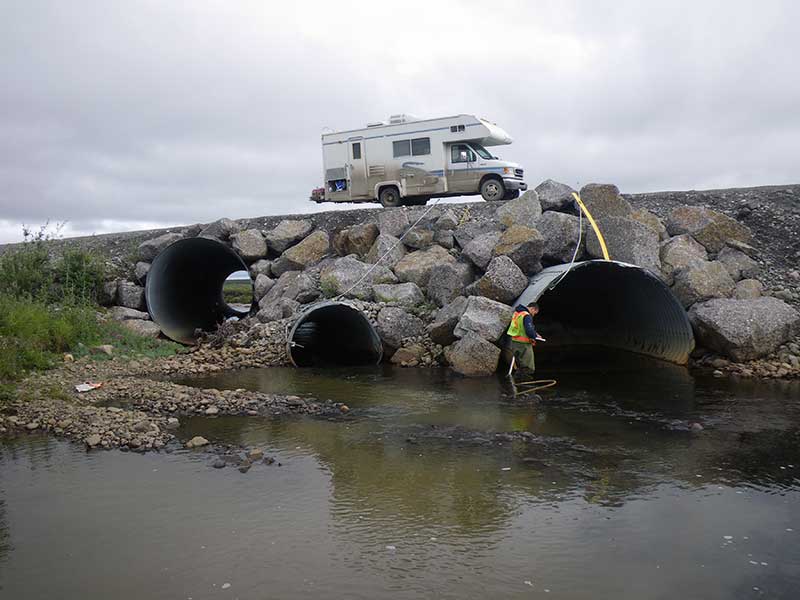

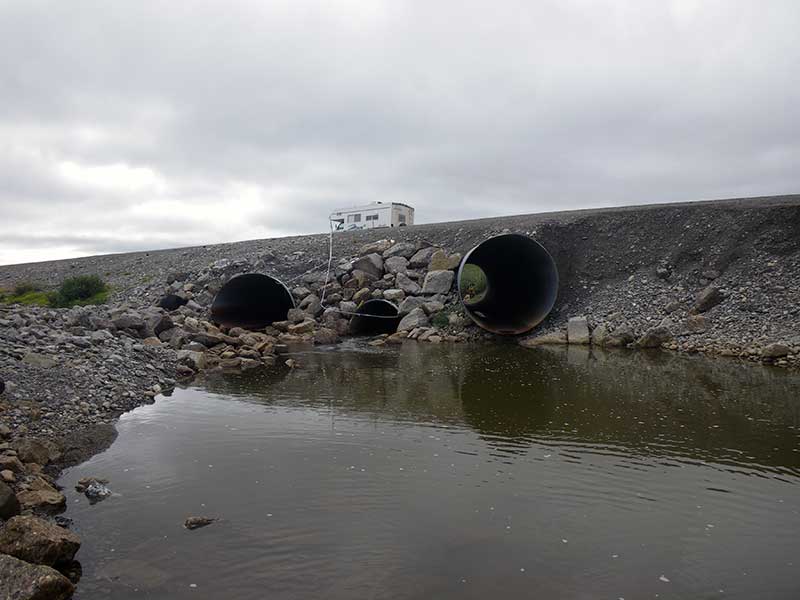

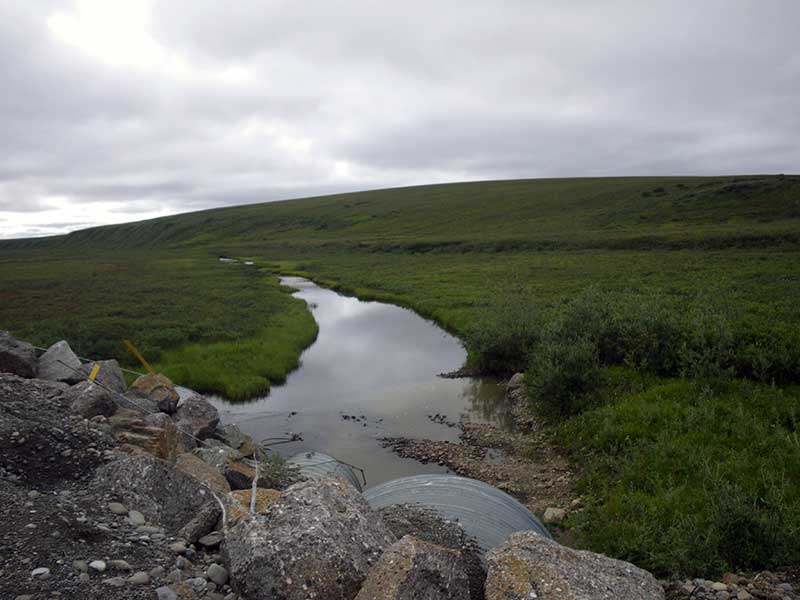

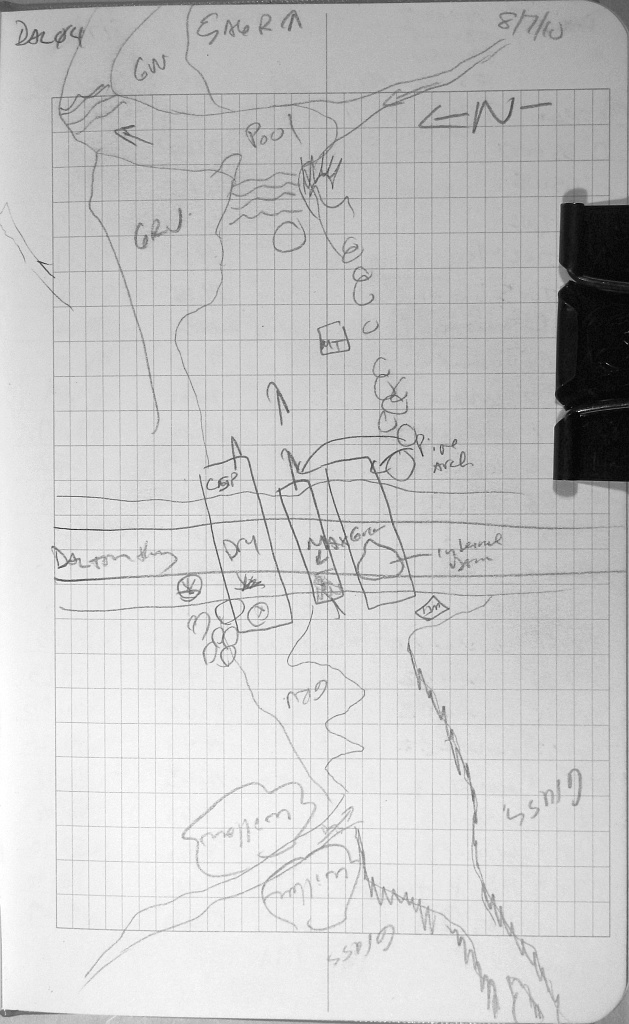

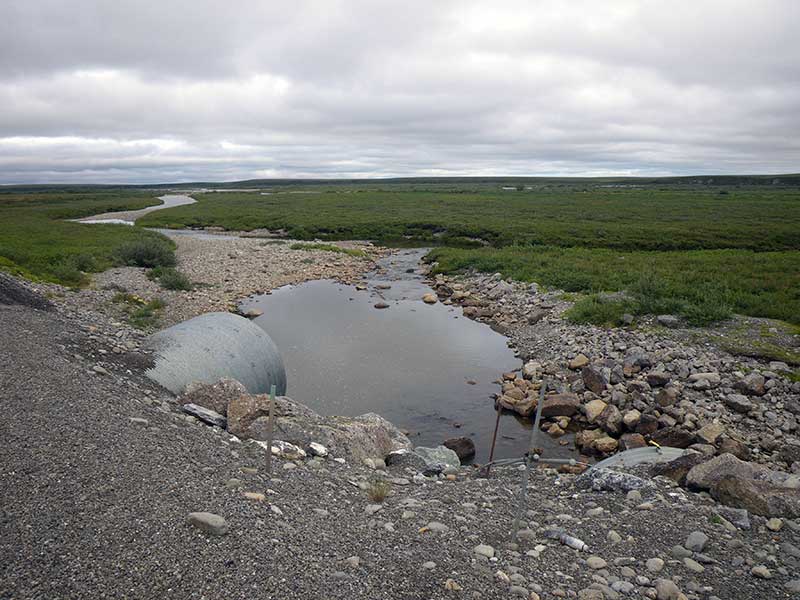

Comments: 3 pipes. C1 has no flow and may be acting as an overflow pipe. C2 takes most of the flow. It has an inlet perch and a max gradient at 14 feet from the inlet. C3 is severely damaged at the inlet and no water passes through it there. It does appear to have a small amount of flow, but it must be coming up into the pipe from underneath it. During the survey a fish was seen at the inlet of C3.

Culvert Measurements

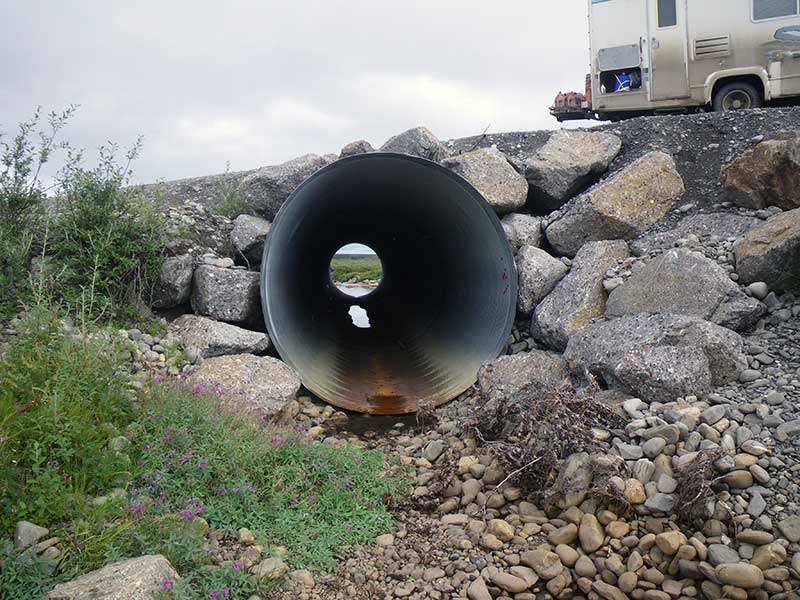

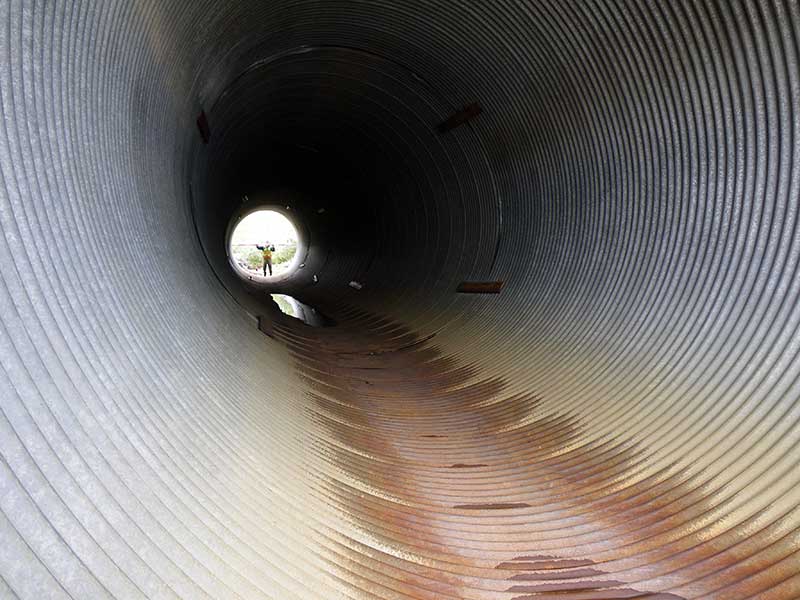

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 100.7
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 4
Approach Angle: 11.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):9.7 9.7
Height(ft):9.8 9.8
Apron Length(ft):
Water Depth(ft): 0.0
Rustline Height(ft):0.6
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Overflow Pipe
Constriction Ratio:
Culvert Gradient: 0.99%
Max Slope:
Max Slope Length:


Comments: There was no flow in this pipe. It is used as an overflow pipe.
  Culvert Observations:
  1. Culvert gradient gray

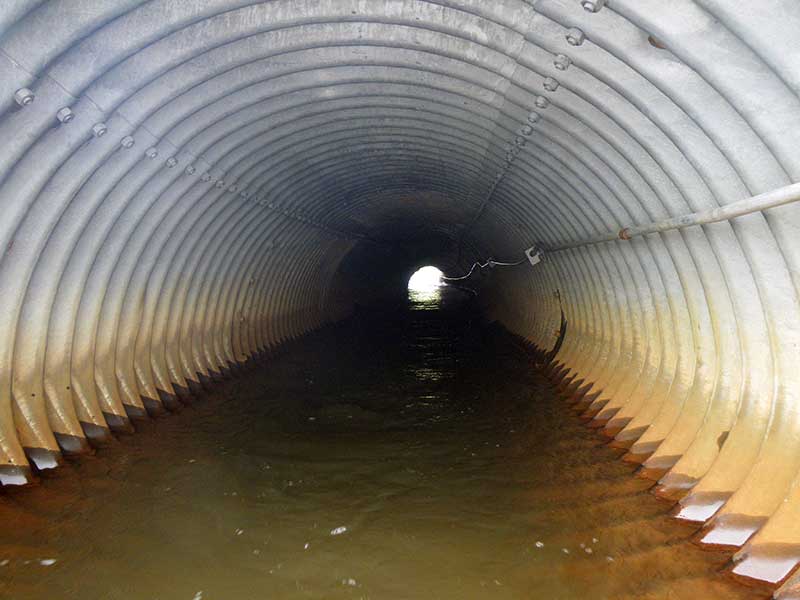

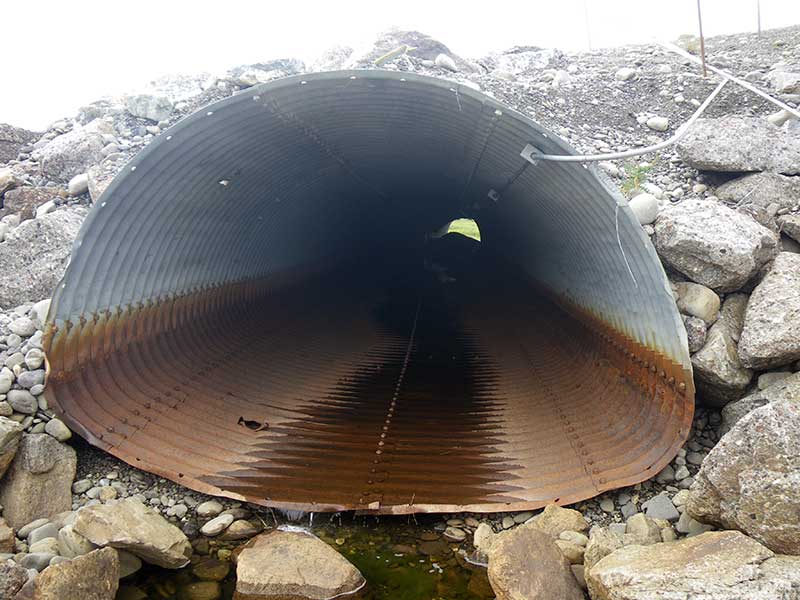

ID: 2 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Red

Length(ft): 111.5
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 2
Approach Angle: 11.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):6.1 6.3
Height(ft):5.1 4.9
Apron Length(ft):
Water Depth(ft): 0.78
Rustline Height(ft):1.8
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.37
Culvert Gradient: 1.43%
Max Slope:
Max Slope Length:

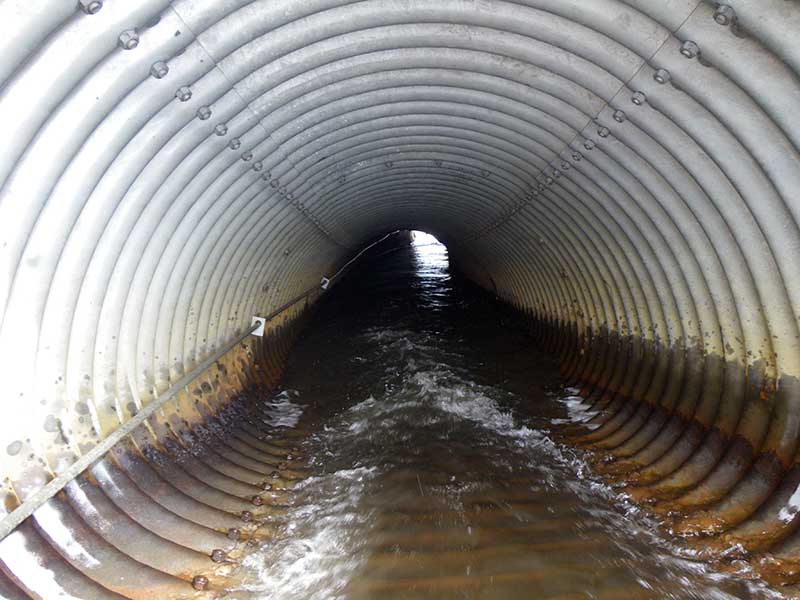

Comments: Culvert 2 takes most of the flow and was used as the sole factor in constriction ratio as C1 is set as overflow and C3 is severly damaged at the inlet an no water passes though it.
  Culvert Observations:
  1. Inlet perch
  2. Structural Problem
  3. Damage associated with ice problems
  4. Culvert gradient gray
  5. Constriction ratio red
ID: 3 Structure Type: Pipe-arch (Structural steel plate) Fish Passage Rating: Red

Length(ft): 115.1
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 1
Approach Angle: 11.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):11.0 10.9
Height(ft):7.0 7.1
Apron Length(ft):
Water Depth(ft): 0.0
Rustline Height(ft):2.2
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.33
Outfall Type:
Constriction Ratio:
Culvert Gradient: 0.53%
Max Slope:
Max Slope Length:


Comments: There was no flow in this pipe.
  Culvert Observations:
  1. Structural Problem
  2. Mechanical damage or joints parting
  3. Outfall height red
  4. Damage associated with ice problems
  5. Culvert gradient gray

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:BoulderBoulder
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 143.0 26.50
Upstream ordinary high water 187.0 21.30
Upstream ordinary high water 268.0 16.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 104.20
D/S Grade Ctrl (Thalweg) (Thalweg) 0.00 86.10
D/S Water Surface Elev (Water Surface) 0.00 86.56
D/S Tailcrest or 1st Thalweg (Thalweg) 116.00 87.57
D/S Water Surface Elev (Water Surface) 116.00 88.17
D/S Water Surface Elev ( Tail Water Surface) 192.00 88.46
D/S Water Surface Elev (Water Surface) 2 208.00 88.47
Outlet Culvert Top (Top of Pipe) 2 208.00 88.79
Outlet Invert (Bottom of Pipe) 3 208.00 88.79
Outlet Culvert Top (Top of Pipe) 1 208.00 87.69
Outlet Invert (Bottom of Pipe) 2 208.00 87.69
Outlet Culvert Top (Top of Pipe) 3 208.00 95.86
Outlet Invert (Bottom of Pipe) 1 208.00 98.11
Inlet Culvert Top (Top of Pipe) 1 308.70 100.00
Inlet Culvert Invert (Bottom of Pipe) 1 308.70 90.05
U/S Headwater (Water Surface) 2 319.50 90.05
Inlet Culvert Invert (Bottom of Pipe) 2 319.50 89.28
Inlet Culvert Invert (Top of Pipe) 2 319.50 94.23
Inlet Culvert Invert (Bottom of Pipe) 3 323.10 89.40
U/S Headwater (Water Surface) 3 323.10 90.08
Inlet Culvert Top (Top of Pipe) 3 323.10 96.48
U/S Thalweg (Substrate) 371.70 88.40
U/S Water Surface Elev (Water Surface) 371.70 90.09

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 2.0
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 2.0
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Visual Observation, Ground (C)
Channel Type: Main Channel (>50% of water flow)
Comments: Fish observed at inlet of C3.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)

Species: general fish observation, no species information Life History: Not Recorded
Total Fish Observed: 1 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: At Site Visual Observation, Ground (1)
