Fish Passage Site 50101660

Coordinates (dec. deg.): 64.50321°, -165.40585°
Legal Description: K011S034W26
Region: Arctic

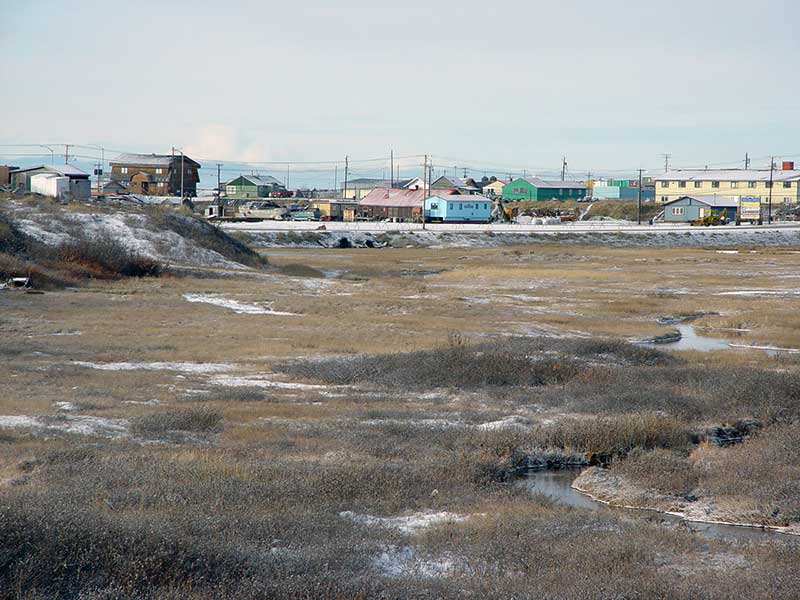

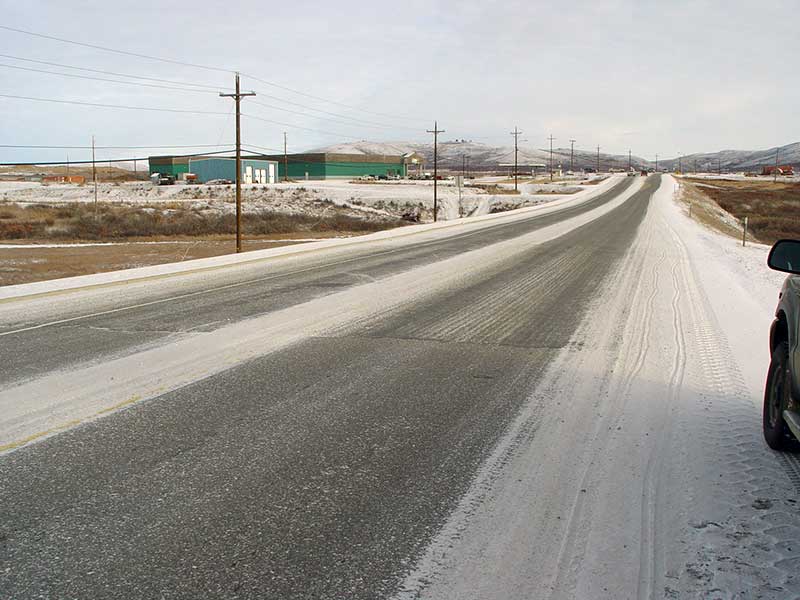

Road Name: Teller Road

Datum: NAD83
Quad Name / ITM: Nome C-1
AWC Stream #:
Stream Name: Dry Creek

Elevation:

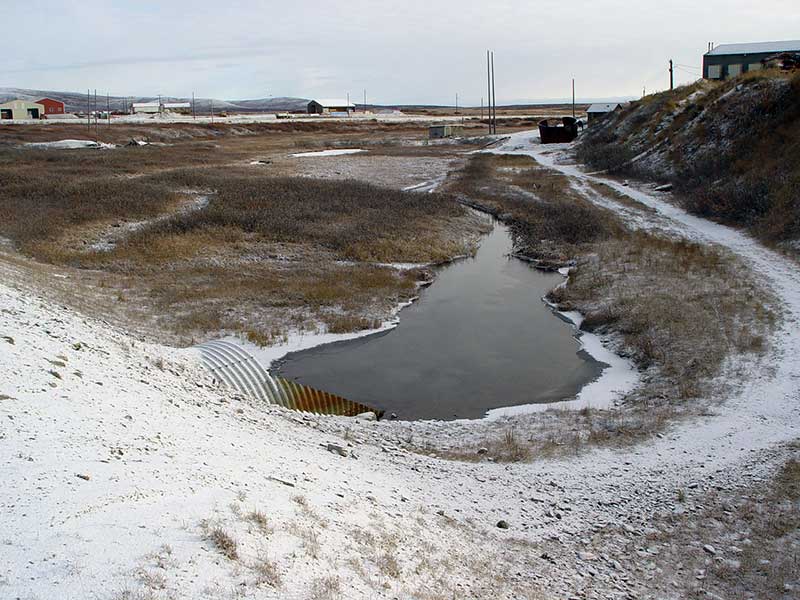

Site Comments: Mile 0.0. Located adjacent to driveway. Concrete sidewalk at site. Can see culvert to Snake River d/s of site

Survey Date: Oct 12, 2005

Survey SEW05-TR21

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Other, including vibrations, cavitation, etc.
  2. Constriction ratio red

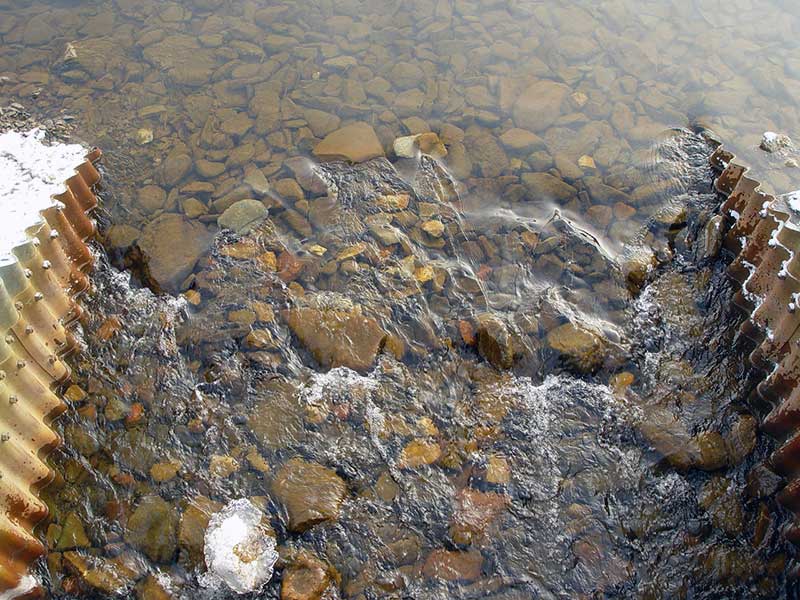

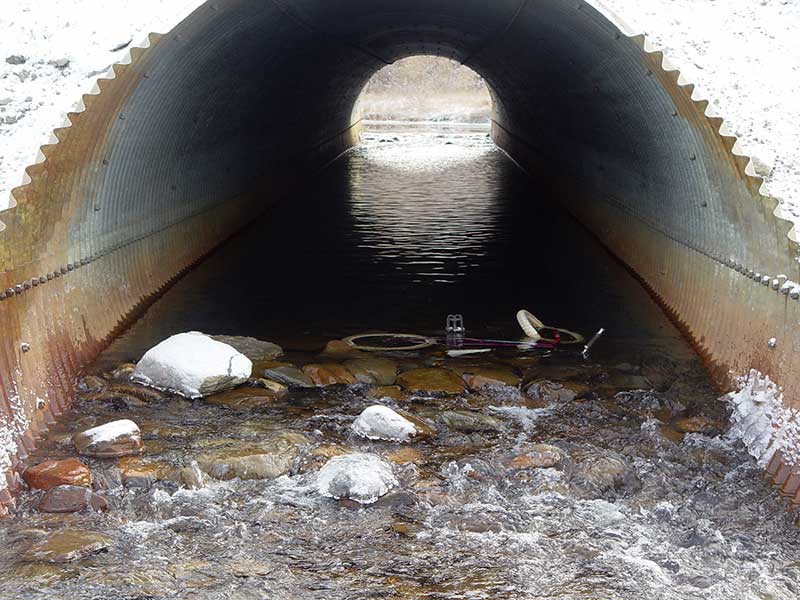

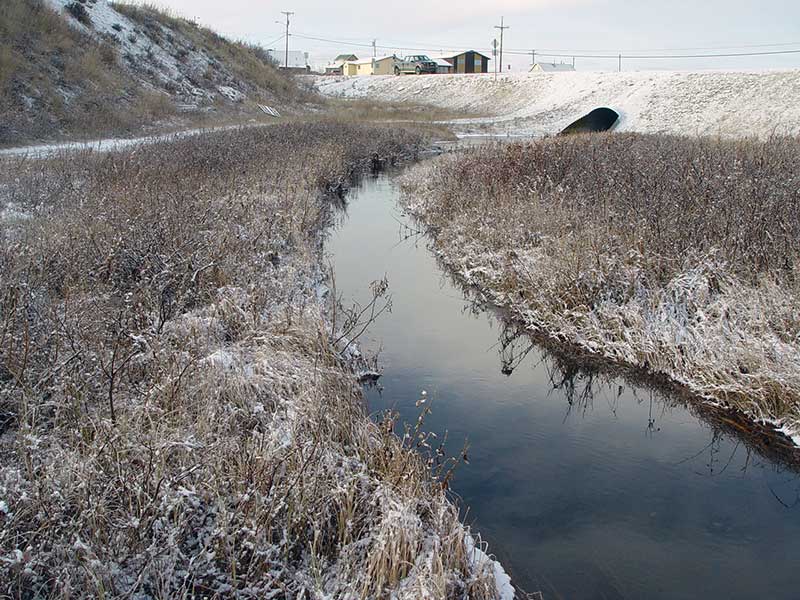

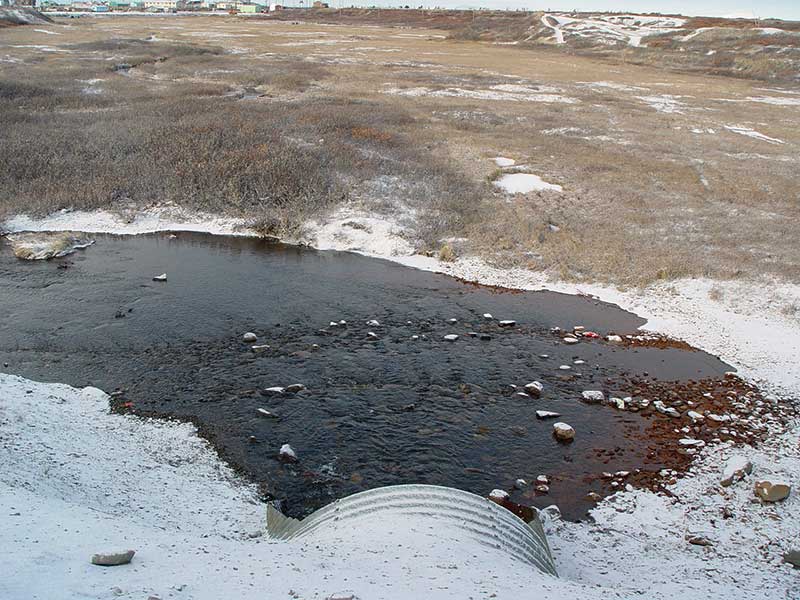

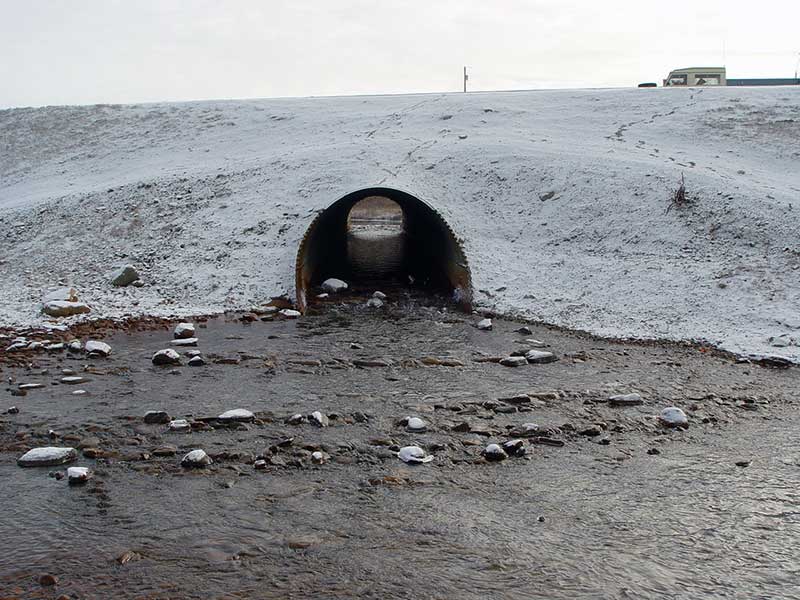

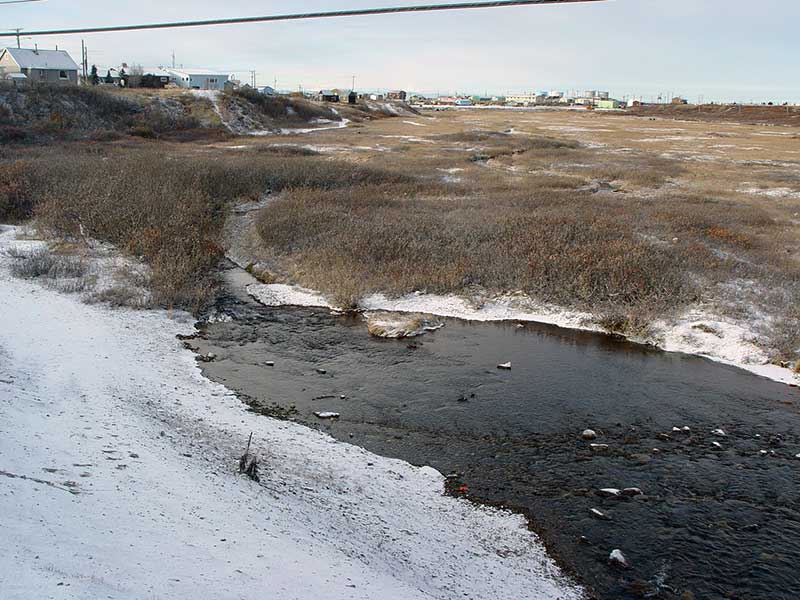

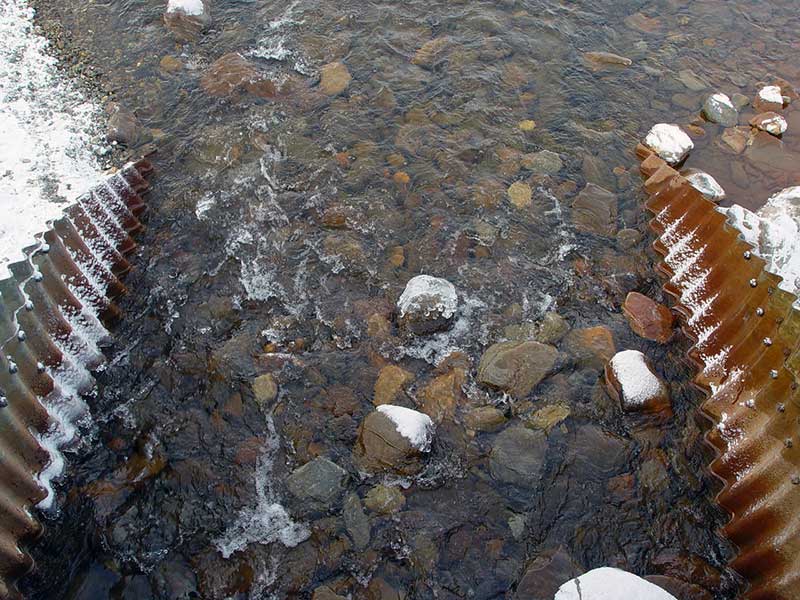

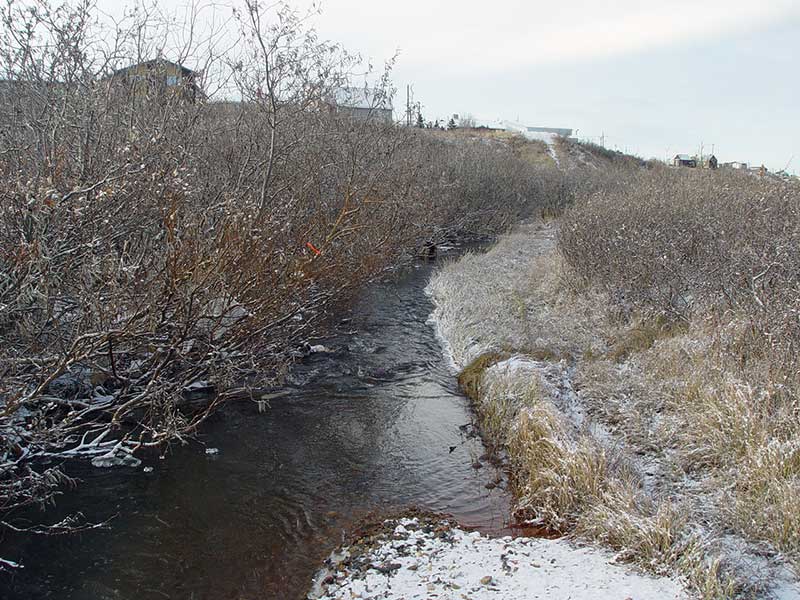

Comments: u/s channel- U-shaped, deep and incised, high water during survey, sand/silt/small gravel substrate. Both inlet and outlet contain deep accumulation of rocks, otherwise channel is deep both in adjacent channel reaches and inside pipe. Outlet profiled, see elevations. Water may be too shallow at inlet and outlet at low water to allow fish passage.

Culvert Measurements

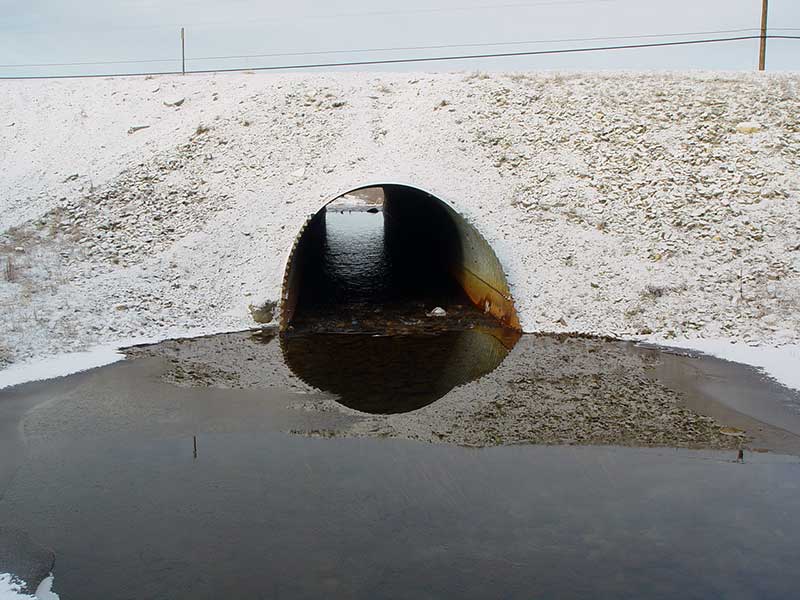

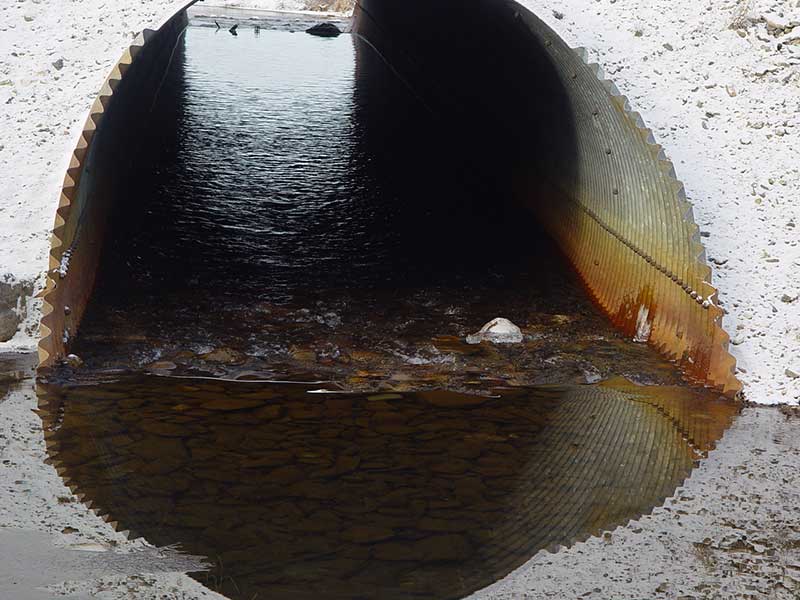

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Gray

Length(ft): 129.4
Inlet Type: Flush
Outlet Type: Flush
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 3
Approach Angle: 20.0
Sedimentation At Inlet:
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):10.0 10.0
Height(ft):6.8
Apron Length(ft):
Water Depth(ft): 0.6
Rustline Height(ft):1.7
Substrate Depth(ft):3.2 3.2
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height:
Outfall Type:
Constriction Ratio: 0.48
Culvert Gradient: 0.99%
Max Slope:
Max Slope Length:


Comments: substrate depths in inlet and outlet are approximate; very little substrate inside pipe.
  Culvert Observations:
  1. Other, including vibrations, cavitation, etc.
  2. Constriction ratio red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:Silt/ClayCobble
Stream Slope(deg.):
Stream Flow Stage:High
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 87.0 15.60
Upstream bank full 75.0 23.00
Upstream bank full 100.0 21.00
Upstream bank full 125.0 20.00
Upstream bank full 150.0 20.00
Upstream bed width 75.0 4.50
Upstream bed width 100.0 5.50
Upstream bed width 125.0 5.00
Upstream bed width 150.0 5.00
Upstream ordinary high water 75.0 23.00
Upstream ordinary high water 100.0 21.00
Upstream ordinary high water 125.0 19.50
Upstream ordinary high water 150.0 19.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
U/S Thalweg 94.42
D/S Grade Ctrl (Thalweg) 0.00 87.0 91.12
D/S Tailcrest or 1st Thalweg 57.00 30.0 91.84
D/S Thalweg 57.00 30.0 91.89
OHW (Outlet Tailcrest) 57.00 30.0 93.14
Bankfull 57.00 30.0 93.57
D/S Grade Ctrl (Thalweg) 65.00 22.0 92.56
D/S Grade Ctrl (Thalweg) 74.20 12.8 92.68
Outlet Invert 1 87.00 0.0 92.62
D/S Grade Ctrl (Thalweg) 97.00 -10.0 93.22
Road Elev 151.50 109.41
U/S Grade Ctrl (Thalweg) 207.40 -8.6 93.49
Inlet Culvert Invert 1 216.00 0.0 93.90
U/S Thalweg 236.00 20.0 92.32
U/S Thalweg 291.00 75.0 91.65
U/S Thalweg 366.00 150.0 92.02

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
