Fish Passage Site 50101650

Coordinates (dec. deg.): 64.55984°, -165.48298°
Legal Description: K011S034W04
Region: Arctic

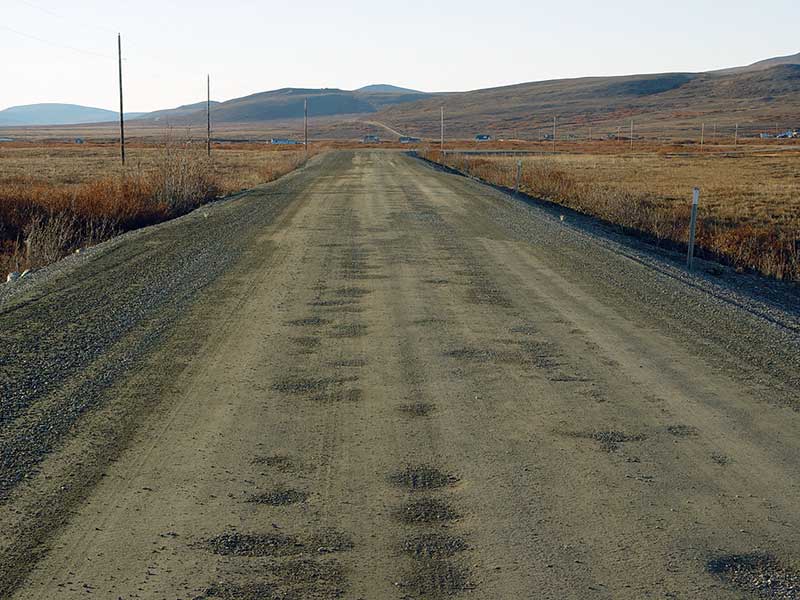

Road Name: Teller Road

Datum: NAD83
Quad Name / ITM: Nome C-1
AWC Stream #:
Stream Name: Crystal Creek

Elevation:

Site Comments: Mile 6.3

Survey Date: Oct 04, 2005

Survey SEW05-TR11

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Culvert gradient gray
  3. Constriction ratio gray

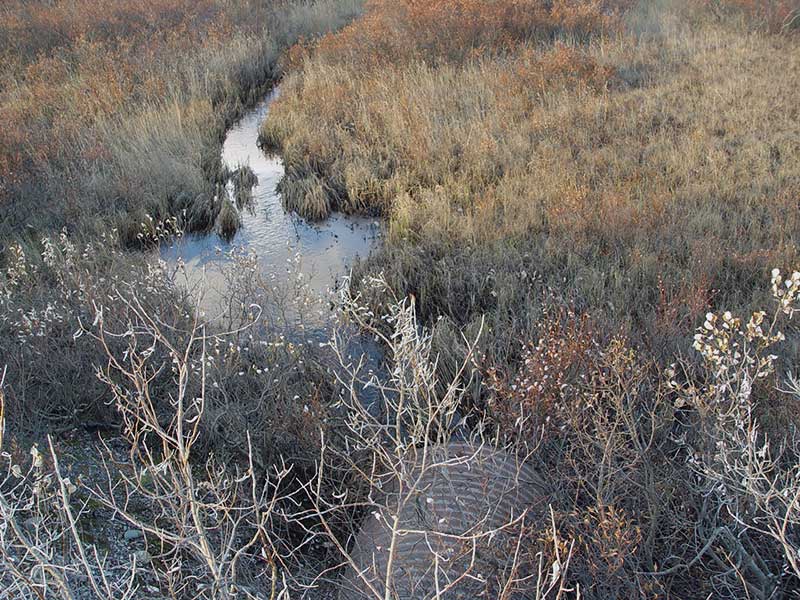

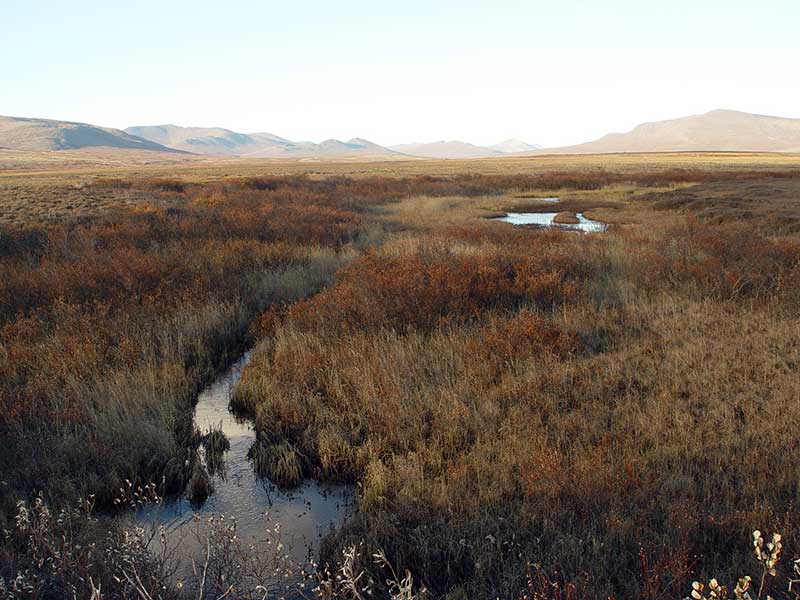

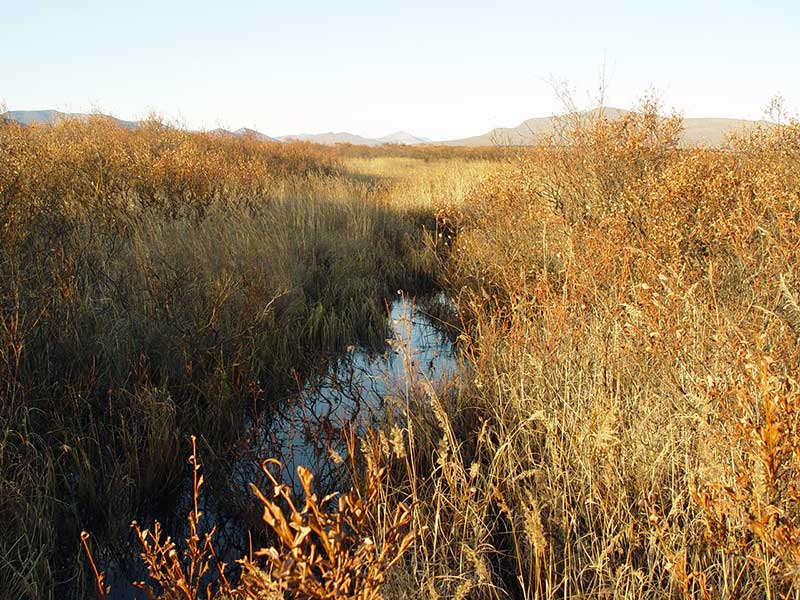

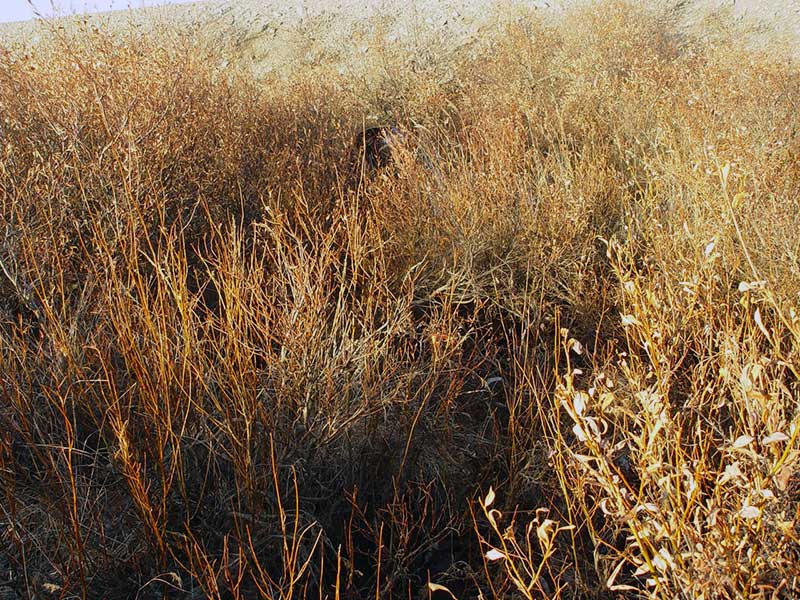

Comments: Channel u/s of inlet incised (deeper than wide) flows through flooded grass. d/s channel choked with willow.

Culvert Measurements

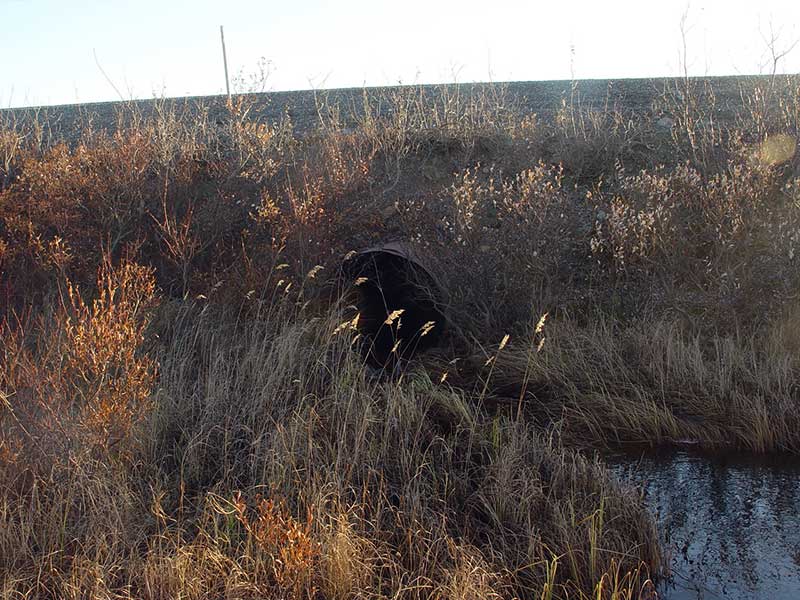

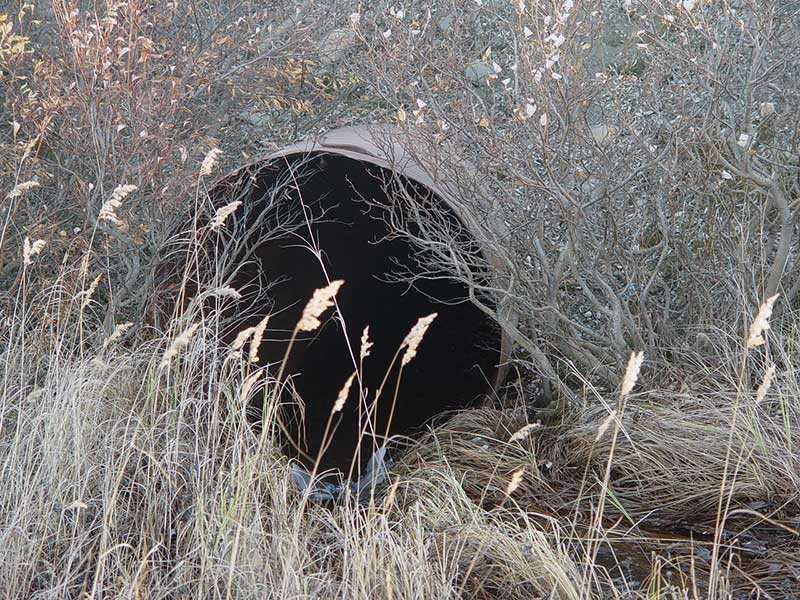

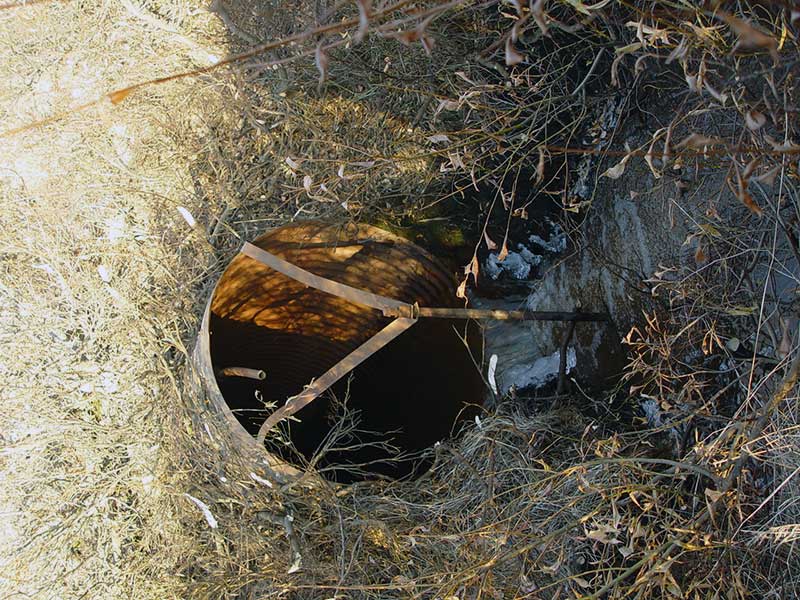

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 72.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 2.75
Condition Rating(1-5): 3
Approach Angle: 21.0
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft): 0.4
Rustline Height(ft):4.0
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.71
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.63
Culvert Gradient: 1.39%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Culvert gradient gray
  3. Constriction ratio gray

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClaySilt/Clay
Subdominant:Silt/ClaySand
Stream Slope(deg.):
Stream Flow Stage:High
Stream Width Type Distance From
Crossing (ft)
Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 30.0 6.20
Upstream bank full 75.0 38.50
Upstream bank full 100.0 56.70
Upstream bank full 125.0 68.60
Upstream bank full 150.0 84.30
Upstream bed width 75.0 1.30
Upstream bed width 100.0 1.90
Upstream bed width 125.0 4.30
Upstream bed width 150.0 1.00
Upstream ordinary high water 75.0 5.60
Upstream ordinary high water 100.0 7.20
Upstream ordinary high water 125.0 37.50
Upstream ordinary high water 150.0 56.10

Elevations

Locator ID Culvert
Number
River
Distance (ft)1
Distance From
Crossing (ft)2
Relative
Elevation (ft)
Outlet Pool Water Elev 94.33
Max Pool Depth 1.90
D/S Grade Ctrl (Thalweg) 0.00 30.0 93.59
D/S Tailcrest or 1st Thalweg 11.00 19.0 93.63
OHW (Outlet Tailcrest) 11.00 19.0 94.38
D/S Thalweg 25.00 5.0 1.50
Outlet Invert 1 30.00 0.0 94.64
Road Elev 66.00 107.58
Inlet Culvert Invert 1 102.00 0.0 95.64
U/S Grade Ctrl (Thalweg) 105.00 3.0 95.86
U/S Thalweg 110.00 8.0 95.28

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
