Fish Passage Site 50101642

Coordinates (dec. deg.): 64.71574°, -165.90190°
Legal Description: K009S036W09
Region: Arctic

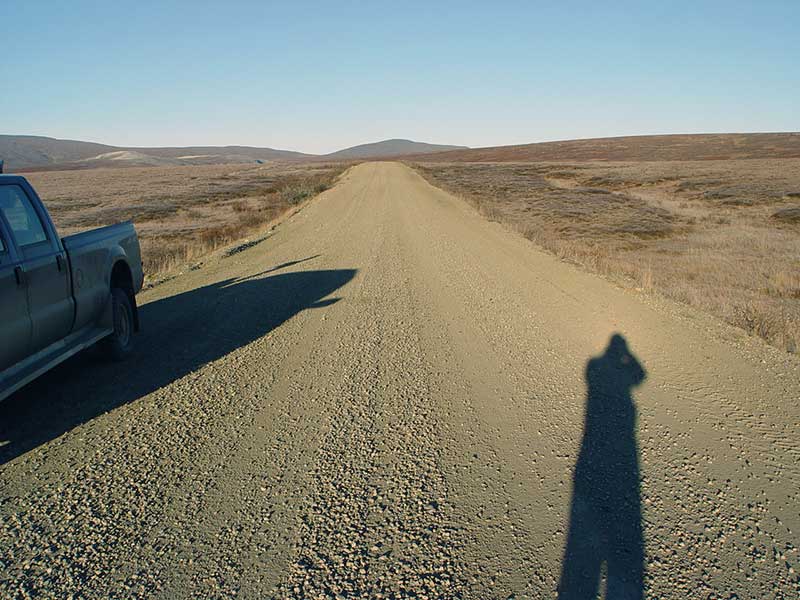

Road Name: Teller Road

Datum: NAD83
Quad Name / ITM: Nome C-2
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Mile 25.3 approx.

Survey Date: Oct 02, 2005

Survey SEW05-TR03

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Mechanical damage or joints parting
  2. Culvert gradient gray

Comments: None

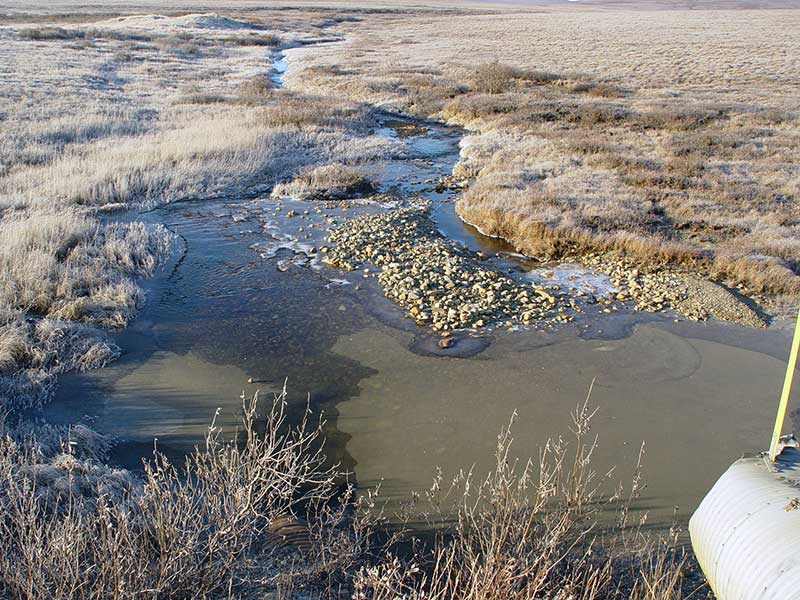

Culvert Measurements

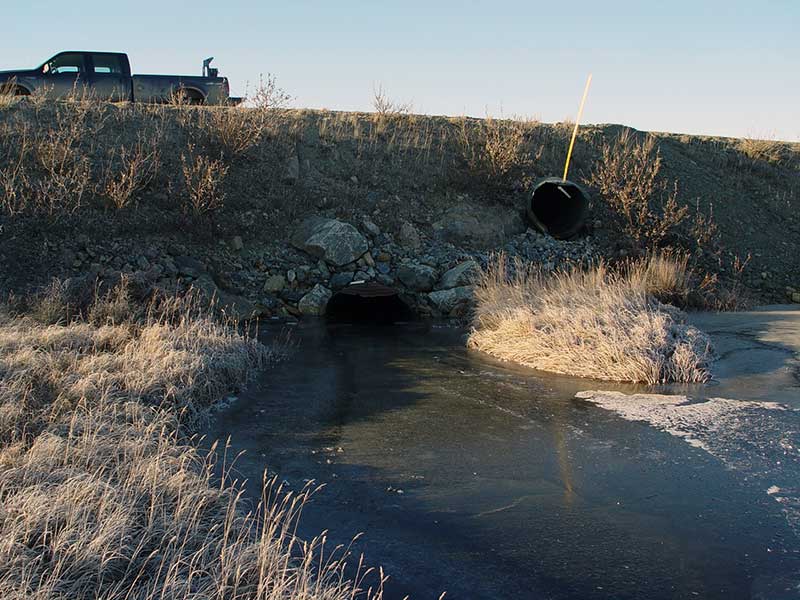

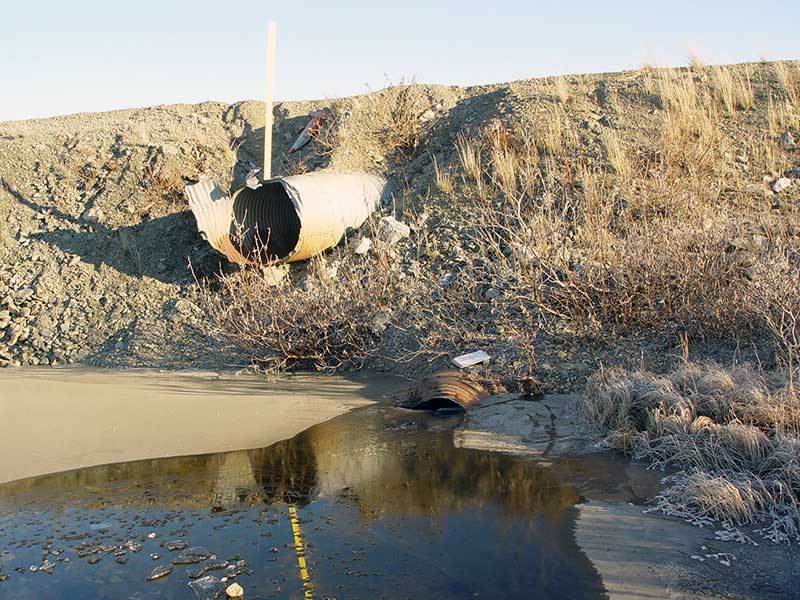

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 76.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 2.75
Condition Rating(1-5): 1
Approach Angle: 13.0
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.3
Height(ft):3.7
Apron Length(ft):
Water Depth(ft): 3.21
Rustline Height(ft):3.7
Substrate Depth(ft):0.0 0.0
Backwatered?:
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.76
Culvert Gradient: 1.25%
Max Slope:
Max Slope Length:


Comments: water depth in outlet calculated
  Culvert Observations:
  1. Mechanical damage or joints parting
  2. Culvert gradient gray

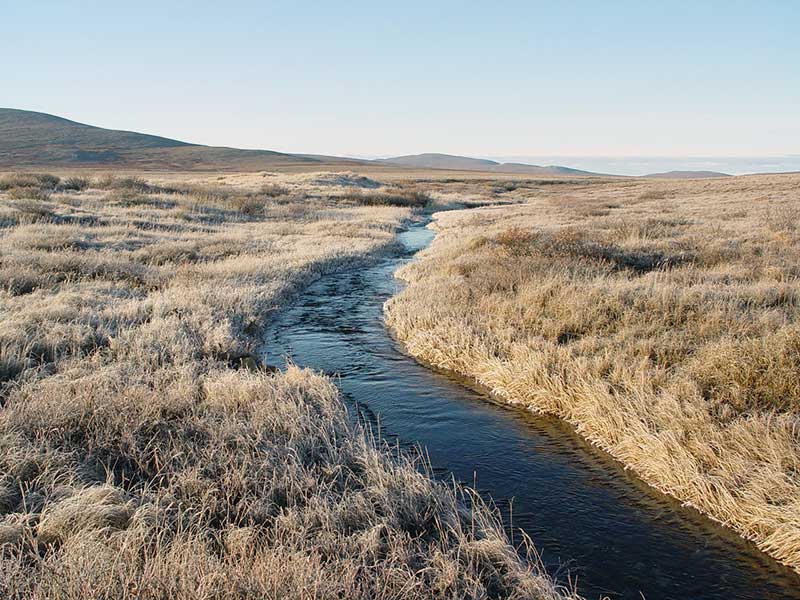

Stream Measurements

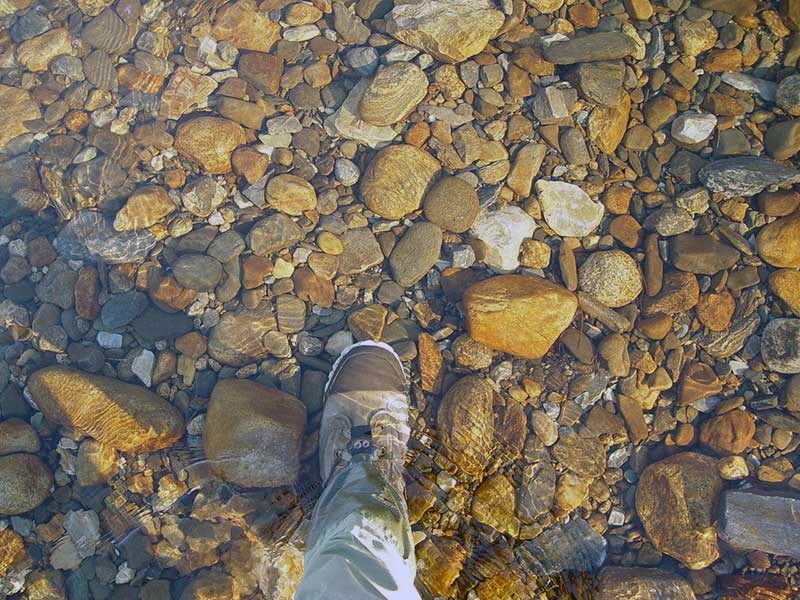

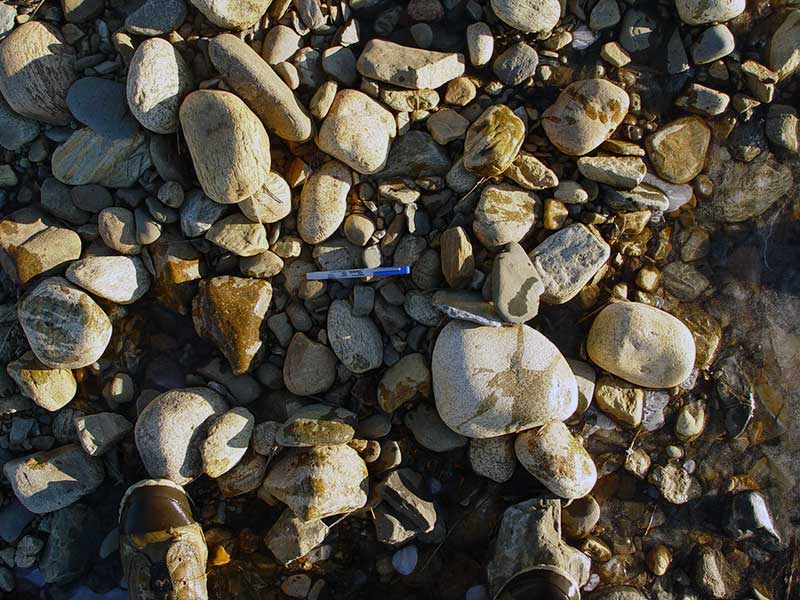

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:GravelCobble
Stream Slope(deg.):
Stream Flow Stage:High
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 101.0 15.80
Upstream bank full 75.0 35.40
Upstream bank full 100.0 33.10
Upstream bank full 125.0 22.80
Upstream bank full 150.0 18.30
Upstream bed width 75.0 11.90
Upstream bed width 100.0 1.50
Upstream bed width 125.0 2.20
Upstream bed width 150.0 4.10
Upstream ordinary high water 75.0 13.20
Upstream ordinary high water 100.0 1.50
Upstream ordinary high water 125.0 3.30
Upstream ordinary high water 150.0 4.50

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 3.30
U/S Thalweg 92.48
Outlet Pool Water Elev 92.99
D/S Grade Ctrl (Thalweg) 0.00 101.0 90.82
OHW (Outlet Tailcrest) 75.00 26.0 92.88
D/S Tailcrest or 1st Thalweg 75.00 26.0 92.01
D/S Thalweg 96.00 5.0 3.10
Outlet Invert 1 101.00 0.0 89.78
Road Elev 139.00 104.98
Inlet Culvert Invert 1 177.00 0.0 90.73
U/S Thalweg 185.00 8.0 91.07
U/S Grade Ctrl (Thalweg) 228.00 51.0 90.30
U/S Grade Ctrl (Thalweg) 274.00 97.0 91.00
U/S Thalweg 277.00 100.0 91.81
U/S Grade Ctrl (Thalweg) 302.00 125.0 92.20

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
