Fish Passage Site 50101633

Coordinates (dec. deg.): 64.55602°, -165.22705°
Legal Description: K011S033W11
Region: Arctic

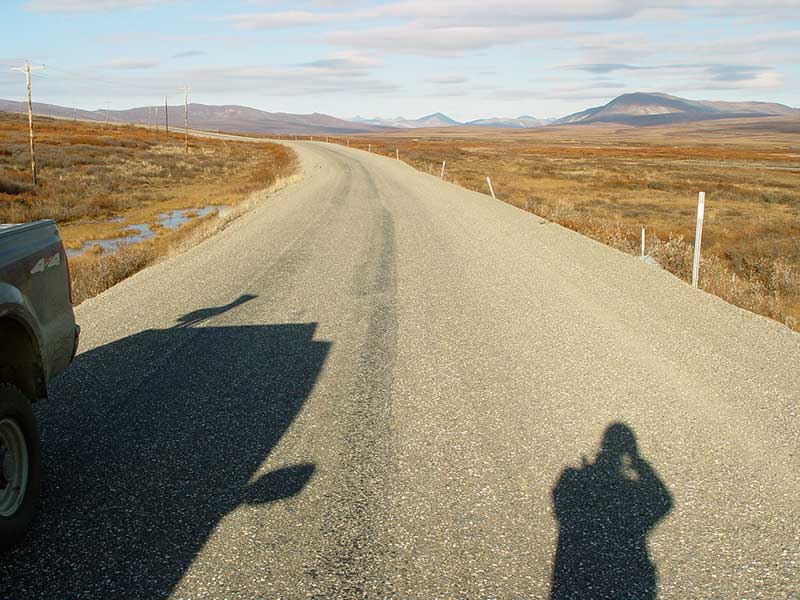

Road Name: Kougarok Road

Datum: NAD83
Quad Name / ITM: Nome C-1
AWC Stream #:
Stream Name: Nome River tributary

Elevation:

Site Comments: Mile 5.8

Survey Date: Oct 10, 2005

Survey SEW05-KR45

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Culvert gradient red
  3. Constriction ratio gray

Comments: None

Culvert Measurements

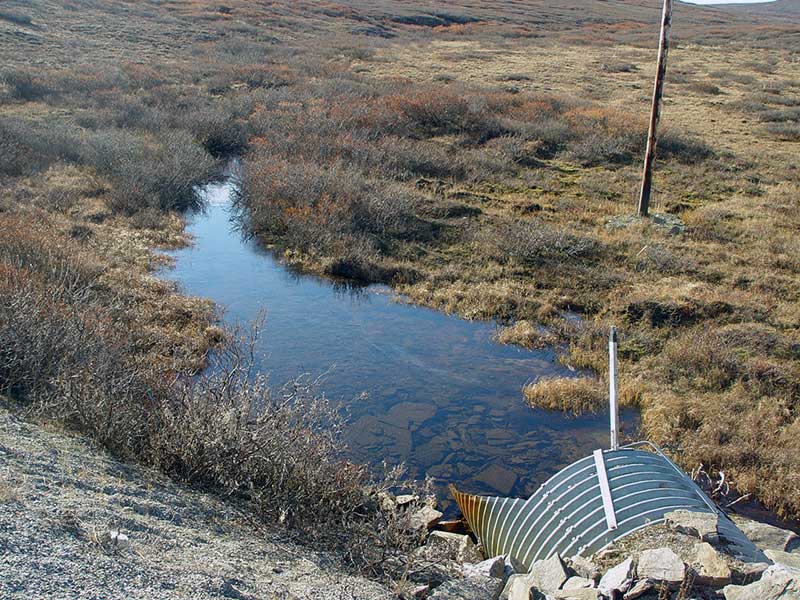

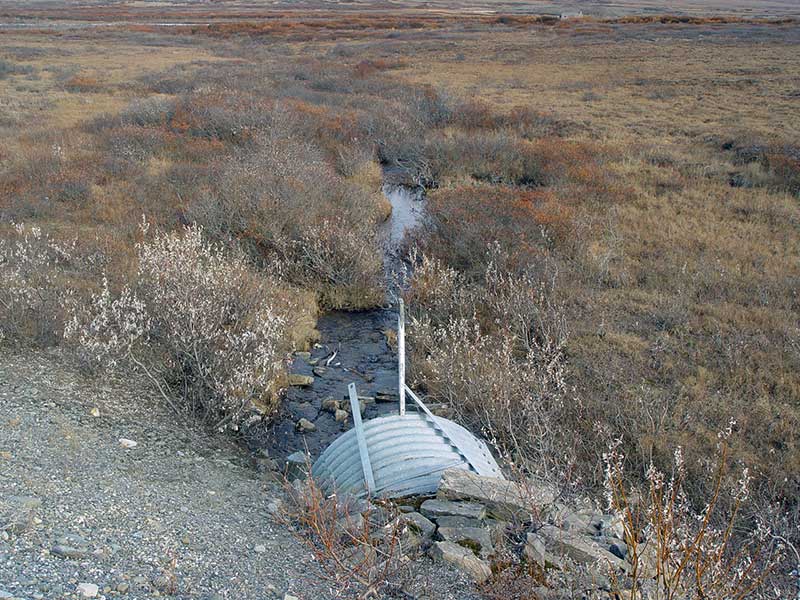

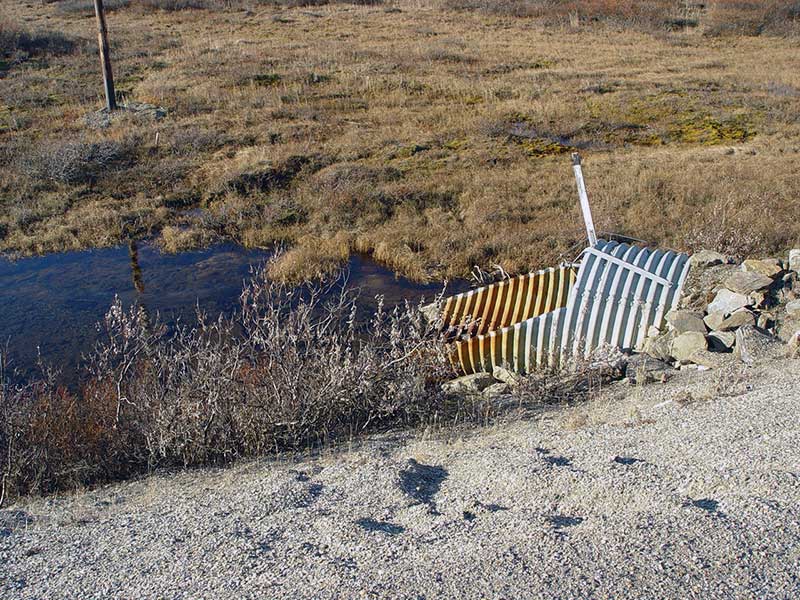

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Red

Length(ft): 118.8
Inlet Type: Flush
Outlet Type: Flush
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 3
Approach Angle: 12.0
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):6.9
Height(ft):6.9
Apron Length(ft):
Water Depth(ft): 0.3
Rustline Height(ft):0.8
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0

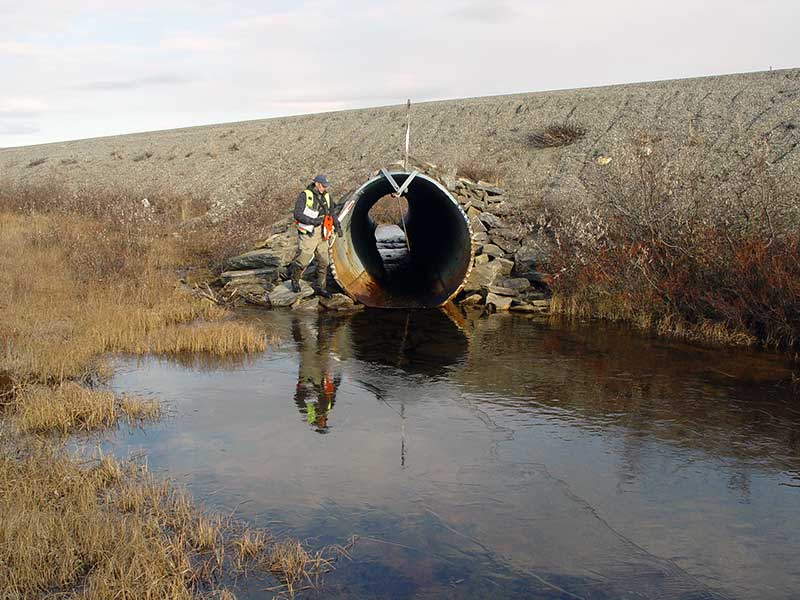

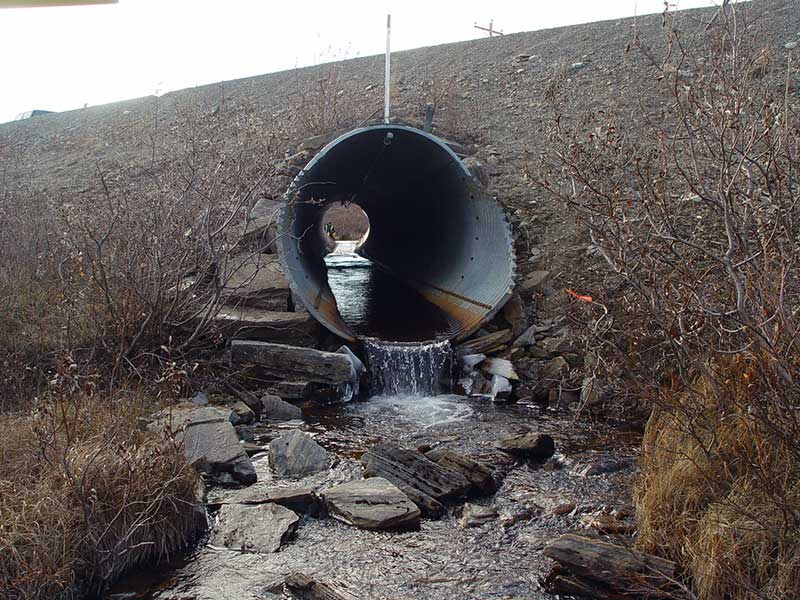

Outfall Height: 1.44
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.61
Culvert Gradient: 1.26%
Max Slope:
Max Slope Length:


Comments: sculpin and juvenile Dolly Varden obs d/s of outlet
  Culvert Observations:
  1. Outfall height red
  2. Culvert gradient gray
  3. Constriction ratio gray

Stream Measurements

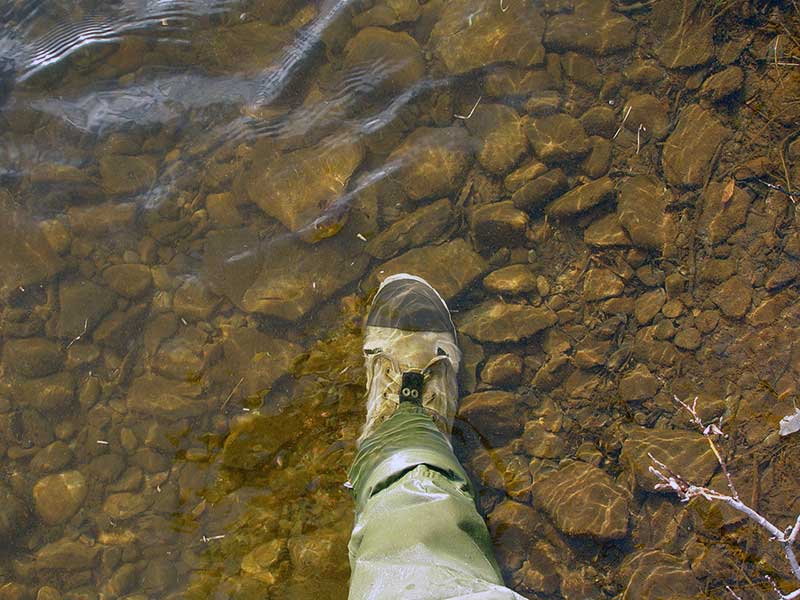

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:Silt/ClayCobble
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 75.0 8.10
Upstream bank full 75.0 15.00
Upstream bank full 100.0 21.30
Upstream bank full 125.0 16.00
Upstream bank full 150.0 21.00
Upstream bed width 75.0 12.50
Upstream bed width 100.0 10.60
Upstream bed width 125.0 7.00
Upstream bed width 150.0 4.90
Upstream ordinary high water 75.0 14.80
Upstream ordinary high water 100.0 15.40
Upstream ordinary high water 125.0 9.20
Upstream ordinary high water 150.0 5.60

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Outlet Pool Water Elev 92.68
Max Pool Depth 1.10
U/S Thalweg 95.72
D/S Grade Ctrl (Thalweg) 0.00 75.0 90.72
D/S Tailcrest or 1st Thalweg 67.00 8.0 92.41
OHW (Outlet Tailcrest) 67.00 8.0 92.78
D/S Thalweg 70.00 5.0 0.90
Outlet Invert 1 75.00 0.0 93.82
Road Elev 134.00 109.15
Inlet Culvert Invert 1 193.00 0.0 95.32
U/S Thalweg 207.00 14.0 93.85
U/S Thalweg 268.00 75.0 94.05
U/S Grade Ctrl (Thalweg) 324.00 131.0 95.88

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
