Fish Passage Site 50101628

Coordinates (dec. deg.): 64.59888°, -165.29098°
Legal Description: K010S033W28
Region: Arctic
Road Name: Kougarok Road

Datum: NAD83
Quad Name / ITM: Nome C-1
AWC Stream #:
Stream Name: Nome River tributary

Elevation:

Site Comments: Mile 9.5

Survey Date: Oct 08, 2005

Survey SEW05-KR40

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Culvert gradient red
  3. Constriction ratio gray

Comments: None

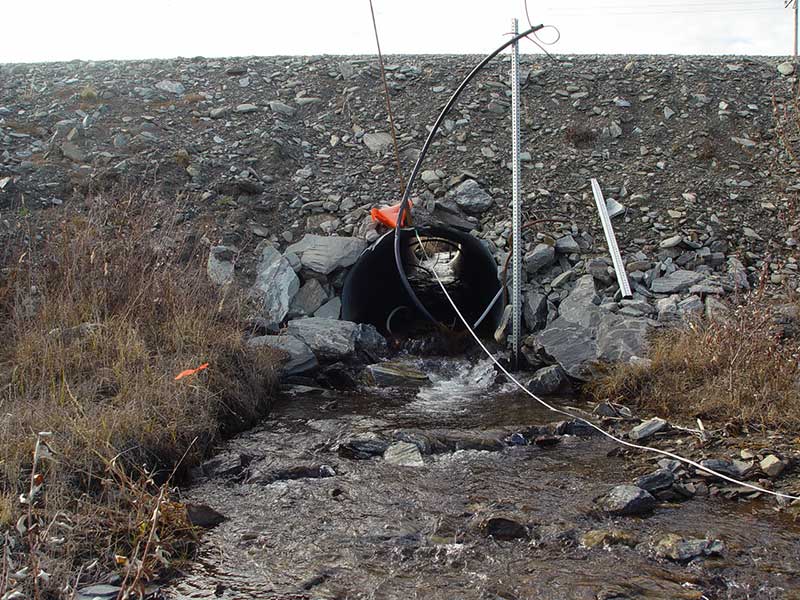

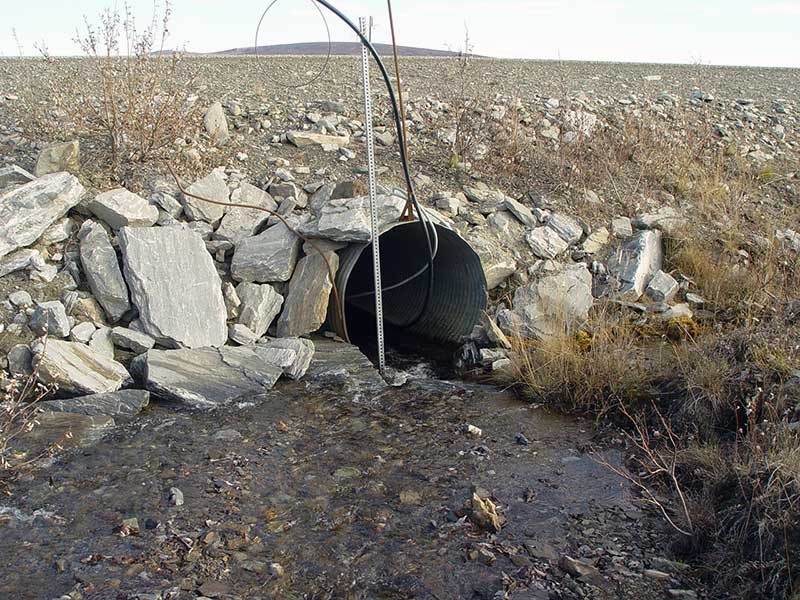

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 54.7
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 2.75
Condition Rating(1-5): 3
Approach Angle: 30.0
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.9
Height(ft):4.0
Apron Length(ft):
Water Depth(ft): 0.4
Rustline Height(ft):0.6
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.71

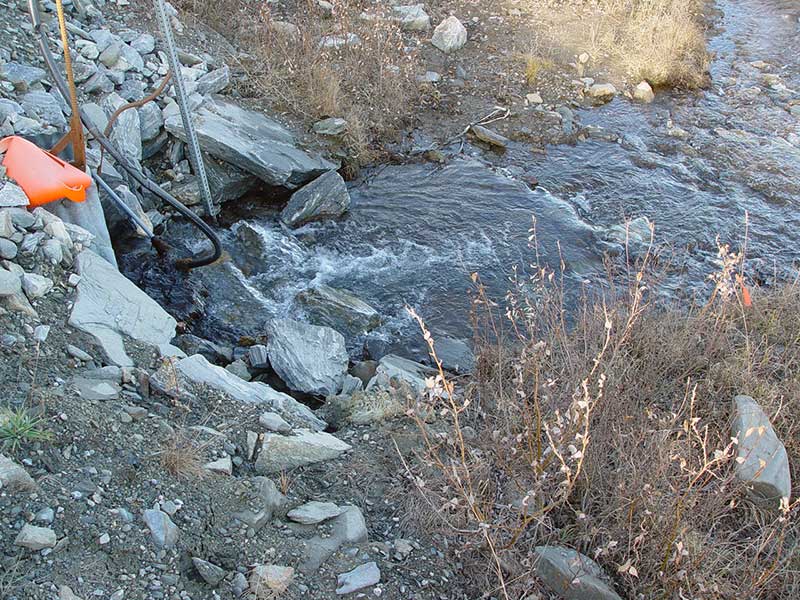

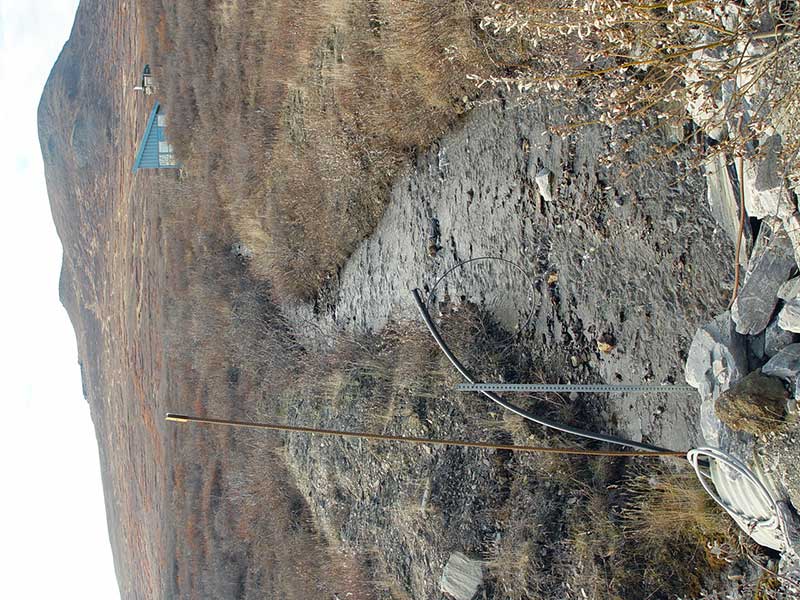

Outfall Type: Cascade Over Rip-Rap
Constriction Ratio: 0.66
Culvert Gradient: 2.60%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Culvert gradient red
  3. Constriction ratio gray

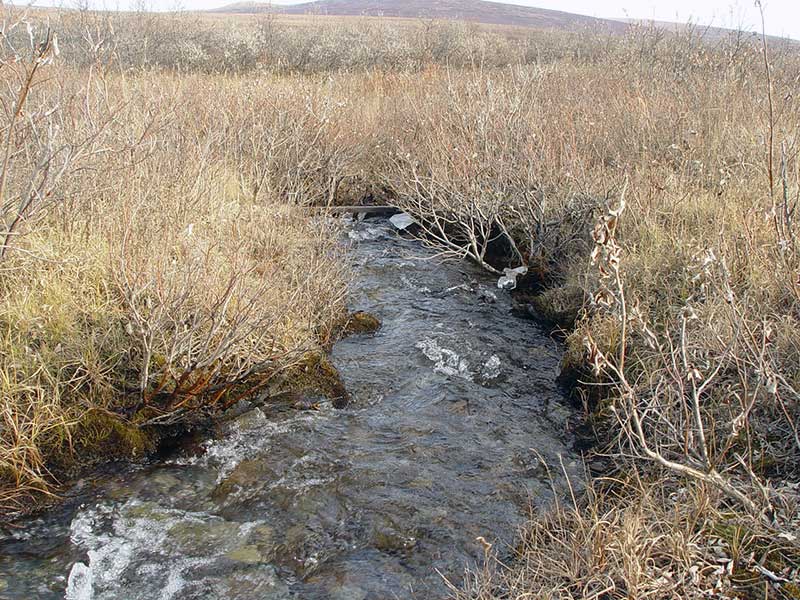

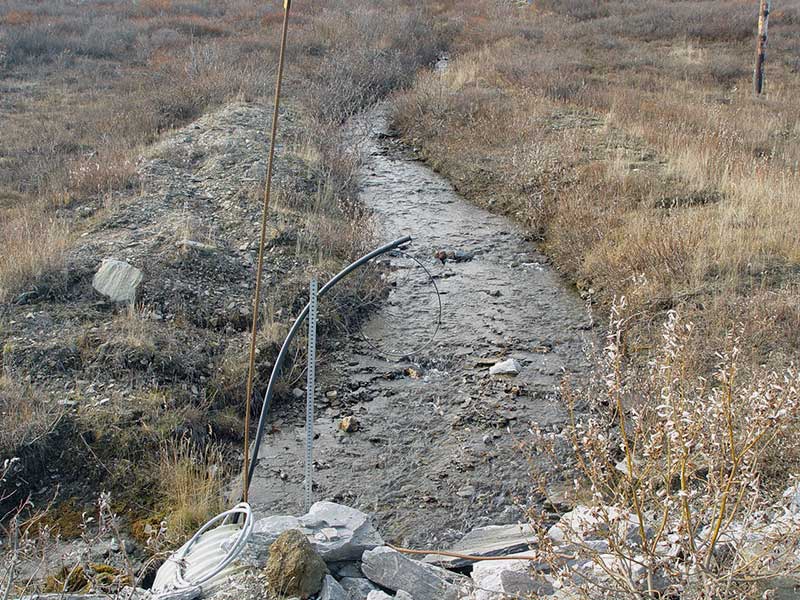

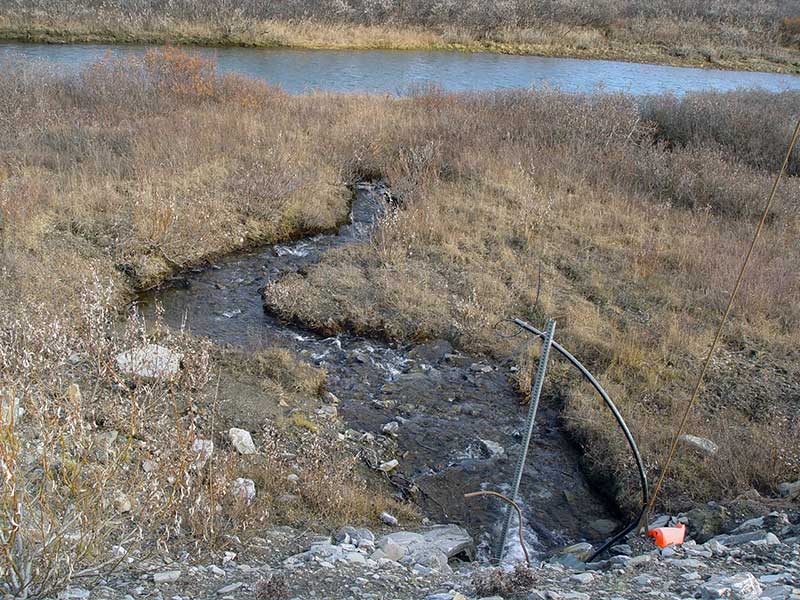

Stream Measurements

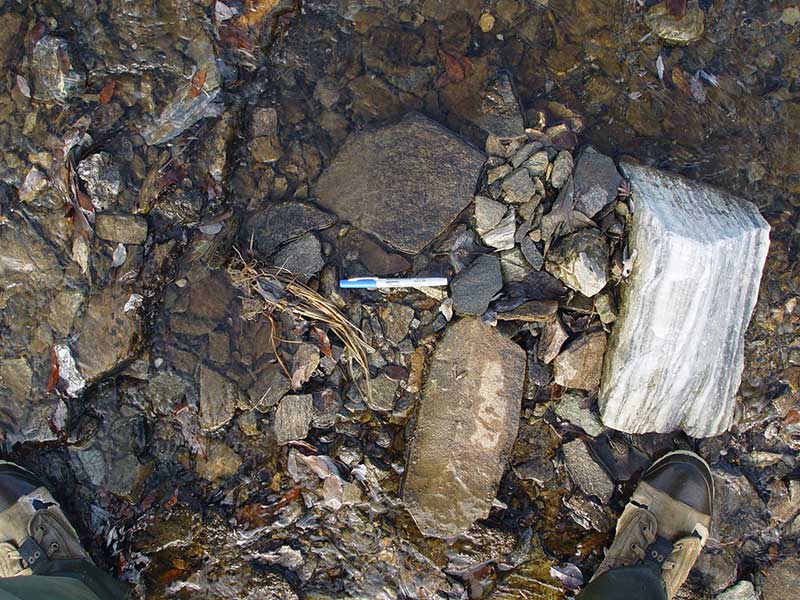

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:GravelGravel
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 27.0 5.90
Upstream bank full 75.0 8.90
Upstream bank full 100.0 7.50
Upstream bank full 125.0 11.30
Upstream bank full 150.0 10.40
Upstream bed width 75.0 5.90
Upstream bed width 100.0 3.90
Upstream bed width 125.0 4.70
Upstream bed width 150.0 3.80
Upstream ordinary high water 75.0 6.30
Upstream ordinary high water 100.0 4.80
Upstream ordinary high water 125.0 7.50
Upstream ordinary high water 150.0 4.90

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 0.80
Outlet Pool Water Elev 94.23
D/S Grade Ctrl (Thalweg) 0.00 27.0 92.79
D/S Tailcrest or 1st Thalweg 18.00 9.0 93.91
OHW (Outlet Tailcrest) 18.00 9.0 94.10
D/S Thalweg 22.00 5.0 0.70
Outlet Invert 1 27.00 0.0 94.54

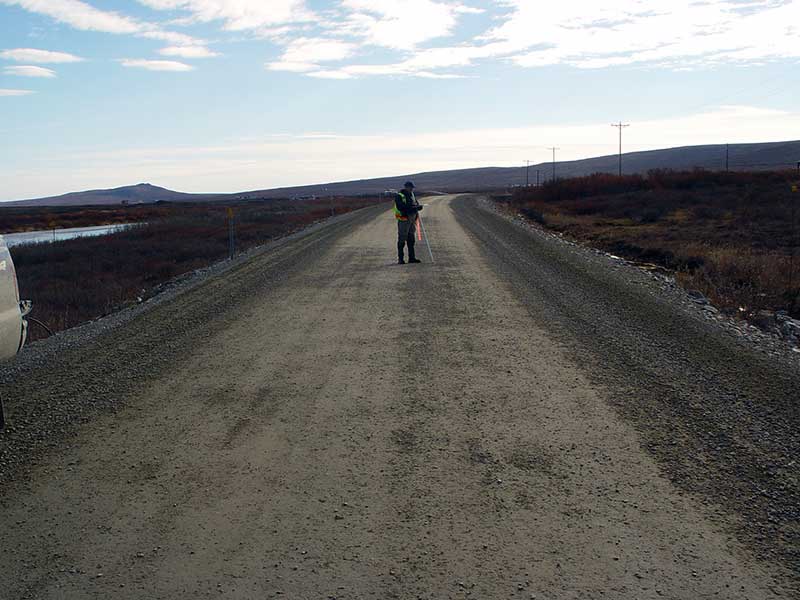

Road Elev 54.00 104.85
Inlet Culvert Invert 1 81.00 0.0 95.96
U/S Thalweg 89.00 8.0 96.83
U/S Thalweg 156.00 75.0 99.36
U/S Thalweg 231.00 150.0 102.14

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
