Fish Passage Site 50101605

Coordinates (dec. deg.): 64.91790°, -164.99613°
Legal Description: K006S031W32
Region: Arctic

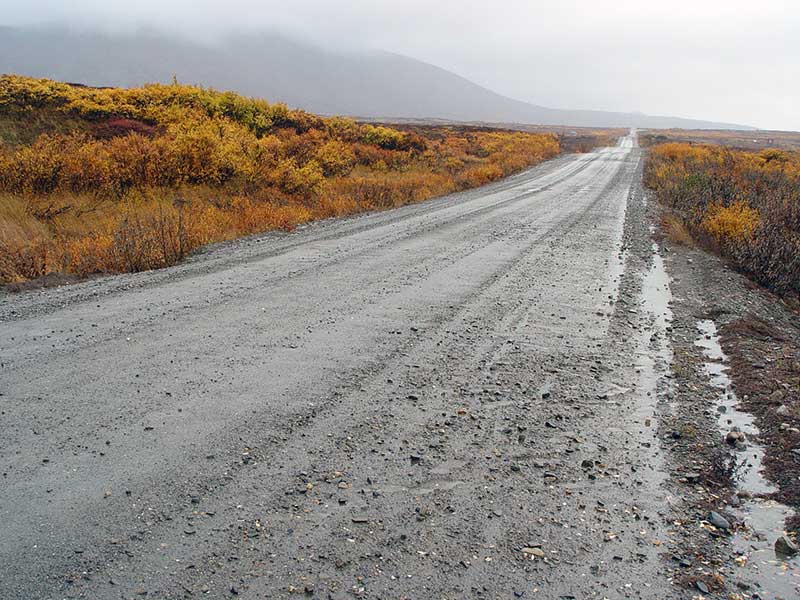

Road Name: Kougarok Road

Datum: NAD83
Quad Name / ITM: Solomon D-6
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Mile 39.1.

Survey Date: Sep 21, 2005

Survey SEW05-KR17

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney, Paul Thompson

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert is poorly aligned
  2. Mechanical damage or joints parting
  3. Road bank erosion
  4. Outfall height gray
  5. Culvert gradient gray
  6. Constriction ratio gray

Comments: None

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 50.6
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 2.75
Condition Rating(1-5): 2
Approach Angle: 43.0
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.2
Height(ft):4.2
Apron Length(ft):
Water Depth(ft): 0.5
Rustline Height(ft):1.2
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.28

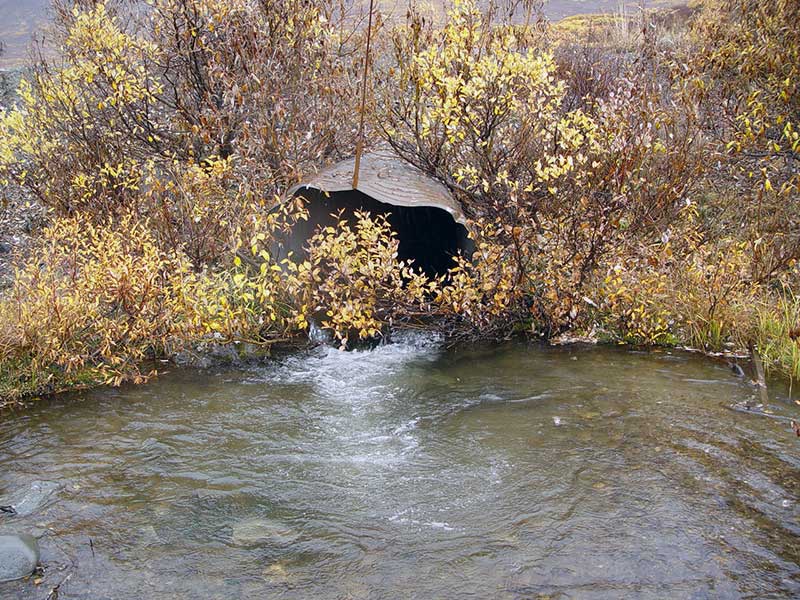

Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.71
Culvert Gradient: 0.83%
Max Slope:
Max Slope Length:

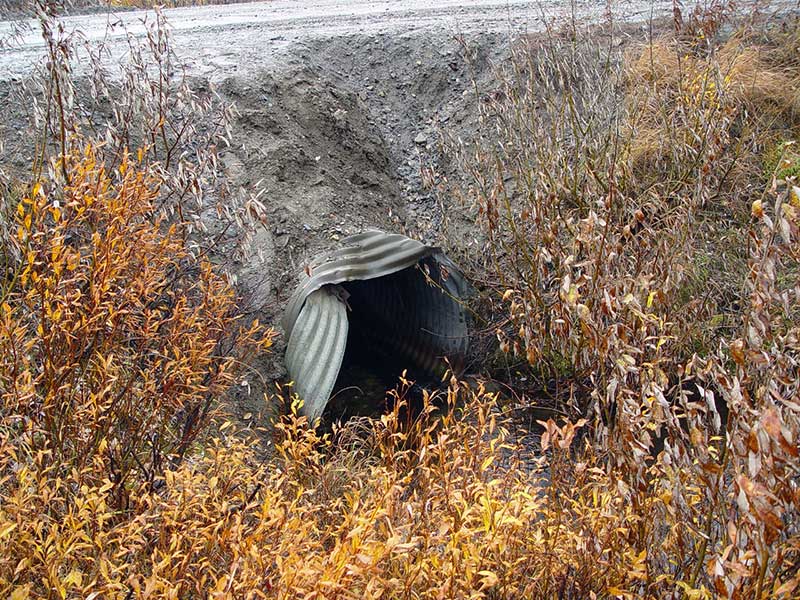

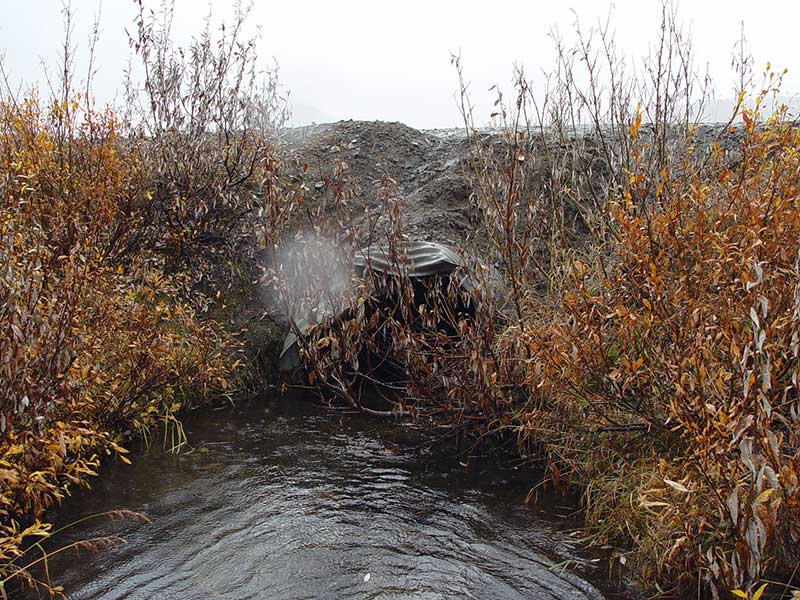

Comments: Inlet and outlet damaged
  Culvert Observations:
  1. Culvert is poorly aligned
  2. Mechanical damage or joints parting
  3. Road bank erosion
  4. Outfall height gray
  5. Culvert gradient gray
  6. Constriction ratio gray

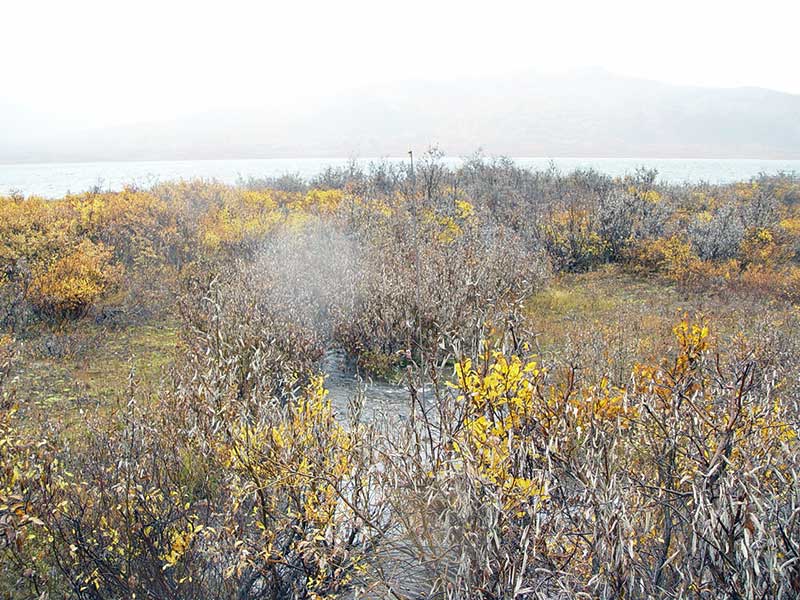

Stream Measurements

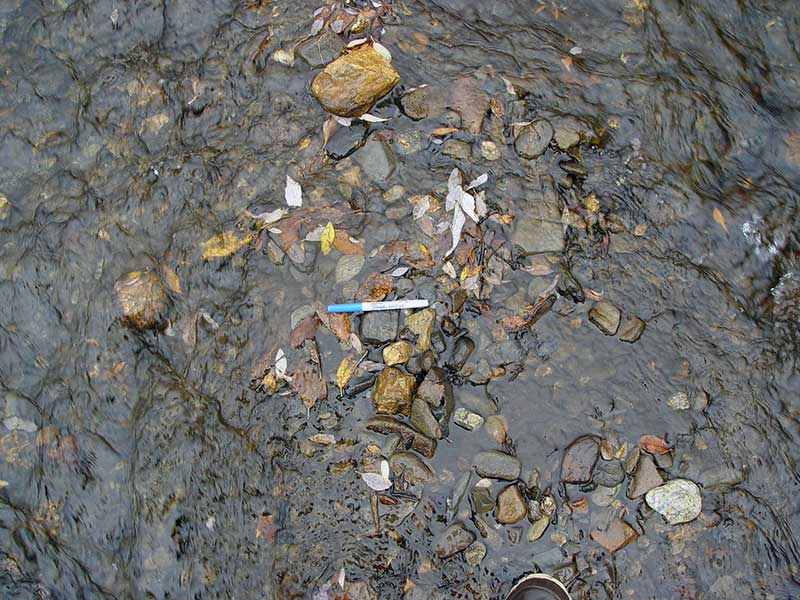

Stream SubstratesUpstreamDownstream
Dominant:SandGravel
Subdominant:Silt/ClayGravel
Stream Slope(deg.):
Stream Flow Stage:High
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 67.0 13.10
Upstream bank full 75.0 11.80
Upstream bank full 100.0 10.20
Upstream bank full 125.0 9.70
Upstream bank full 150.0 9.90
Upstream bed width 75.0 4.90
Upstream bed width 100.0 5.10
Upstream bed width 125.0 4.40
Upstream bed width 150.0 5.10
Upstream ordinary high water 75.0 5.90
Upstream ordinary high water 100.0 6.20
Upstream ordinary high water 125.0 5.70
Upstream ordinary high water 150.0 6.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 2.10
Outlet Pool Water Elev 92.36
U/S Thalweg 93.47
D/S Grade Ctrl (Thalweg) 0.00 67.0 90.90
D/S Tailcrest or 1st Thalweg 54.00 13.0 91.72
OHW (Outlet Tailcrest) 54.00 13.0 92.30
D/S Thalweg 62.00 5.0 2.10
Outlet Invert 1 67.00 0.0 92.14
Road Elev 92.00 99.63
Inlet Culvert Invert 1 117.00 0.0 92.56
U/S Thalweg 125.00 8.0 92.06
U/S Grade Ctrl (Thalweg) 162.00 45.0 92.65

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
