Fish Passage Site 50101603

Coordinates (dec. deg.): 64.92581°, -164.96150°
Legal Description: K006S031W33
Region: Arctic

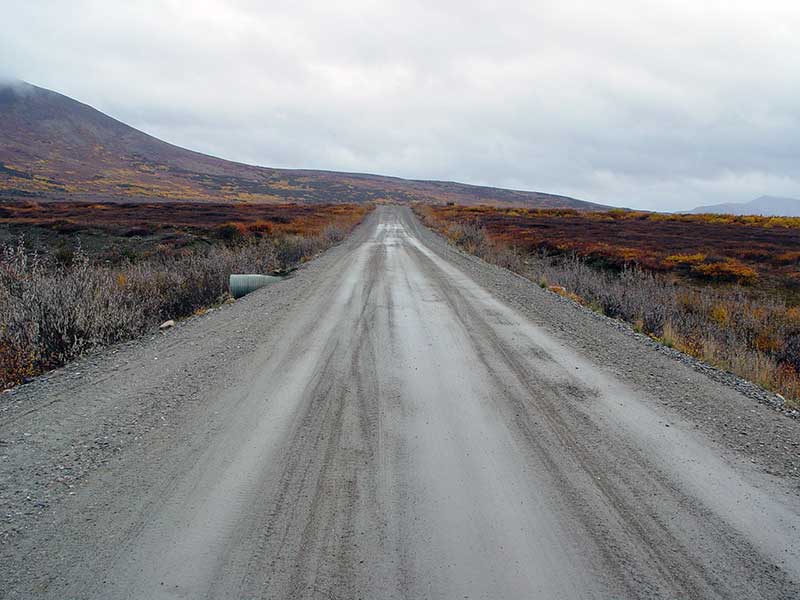

Road Name: Kougarok Road

Datum: NAD83
Quad Name / ITM: Solomon D-6
AWC Stream #:
Stream Name:

Elevation:

Site Comments: Mile 40.3

Survey Date: Sep 20, 2005

Survey SEW05-KR15

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney, Paul Thompson

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Hydraulic flows exceeded capacity
  2. Mechanical damage or joints parting
  3. Culvert gradient red
  4. Constriction ratio red
  5. Inlet perch

Comments: None

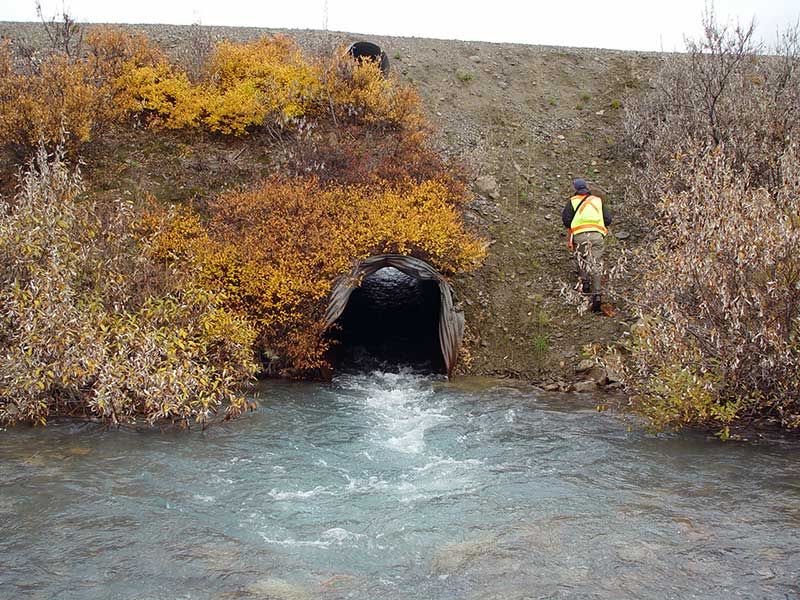

Culvert Measurements

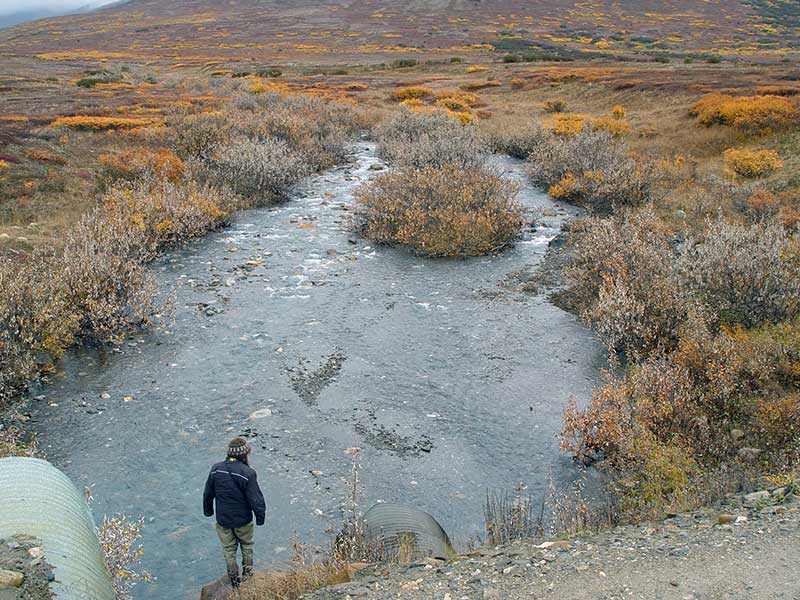

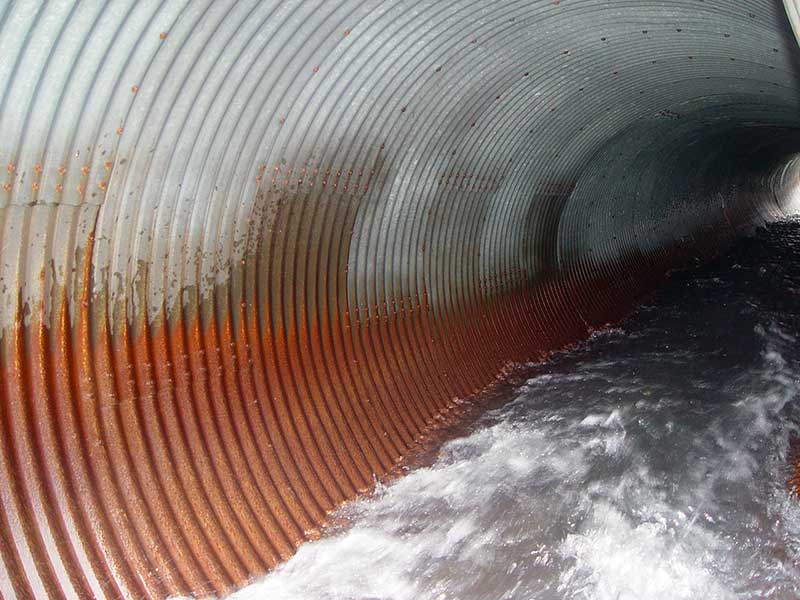

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 72.9
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 2.75
Condition Rating(1-5): 3
Approach Angle: 12.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.8
Height(ft):5.8
Apron Length(ft):
Water Depth(ft): 1.4
Rustline Height(ft):2.5
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.02
Outfall Type: At Stream Grade
Constriction Ratio: 0.11
Culvert Gradient: 4.46%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Hydraulic flows exceeded capacity
  2. Mechanical damage or joints parting
  3. Culvert gradient red
  4. Constriction ratio red
  5. Inlet perch

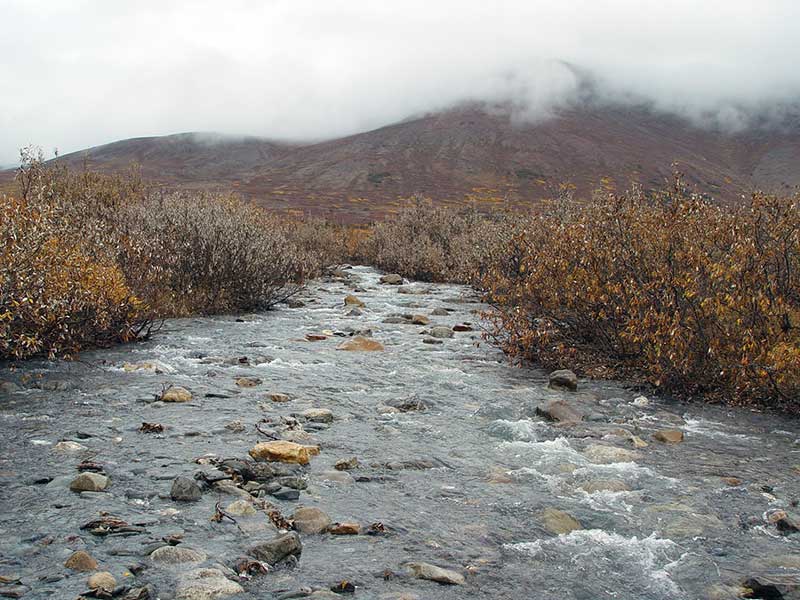

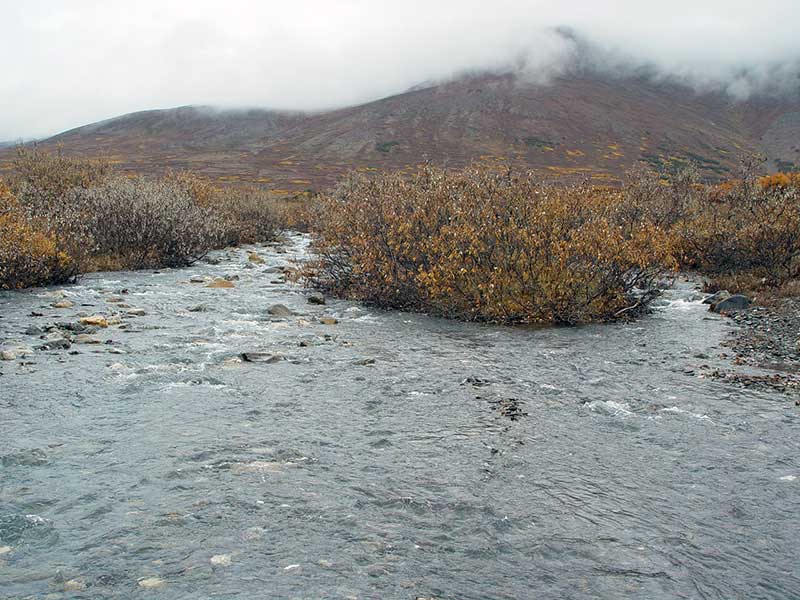

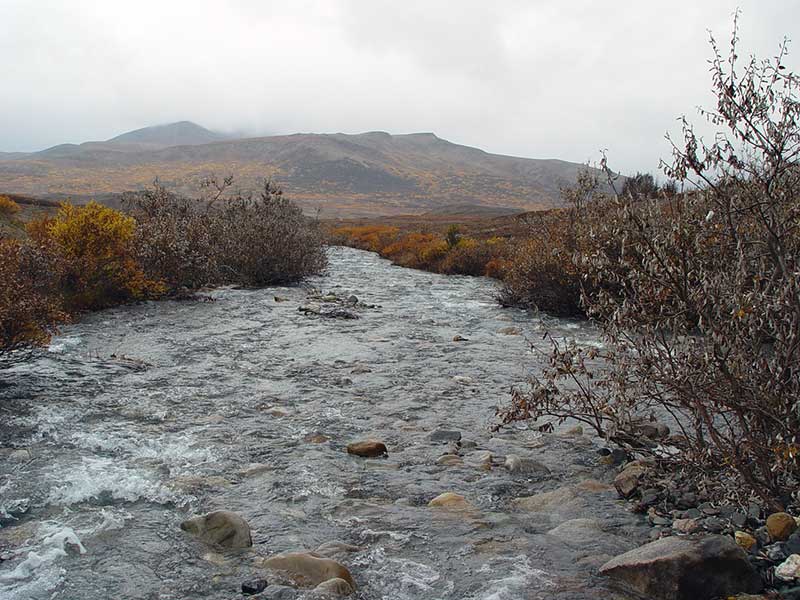

Stream Measurements

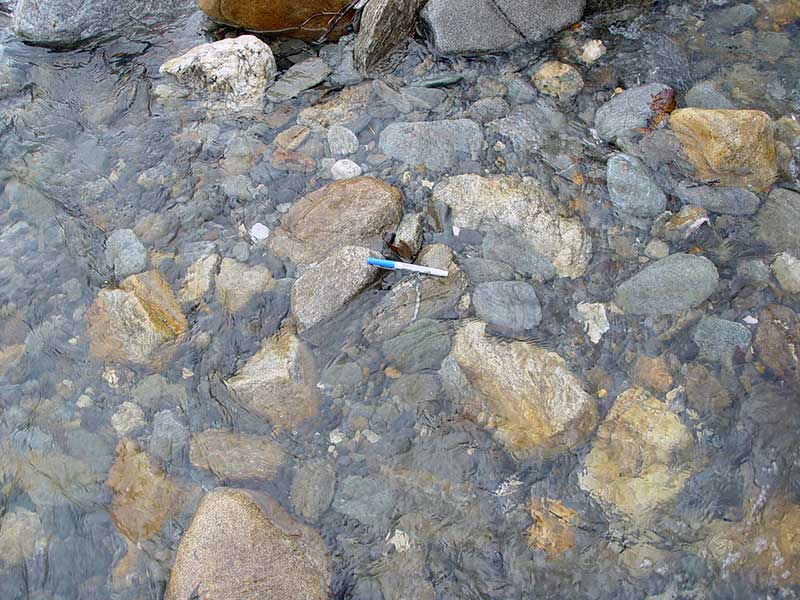

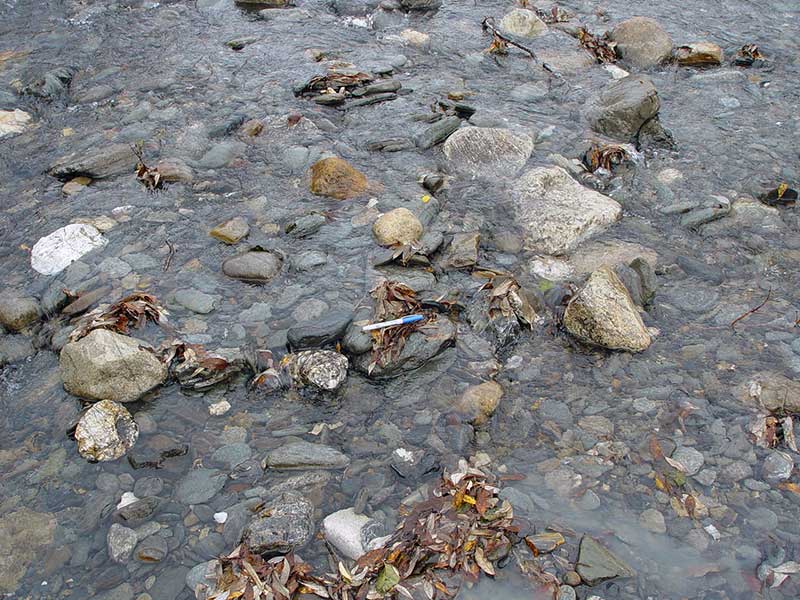

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:GravelGravel
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 200.0 19.60
Upstream bank full 75.0 74.40
Upstream bank full 100.0 66.20
Upstream bank full 125.0 73.80
Upstream bank full 150.0 48.90
Upstream bed width 75.0 48.80
Upstream bed width 100.0 54.80
Upstream bed width 125.0 67.60
Upstream bed width 150.0 33.90
Upstream ordinary high water 75.0 48.80
Upstream ordinary high water 100.0 54.80
Upstream ordinary high water 125.0 67.60
Upstream ordinary high water 150.0 35.60

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 3.50
Outlet Pool Water Elev 81.45
U/S Thalweg 85.64
D/S Thalweg 0.00 200.0 71.39
D/S Tailcrest or 1st Thalweg 166.00 34.0 80.59
OHW (Outlet Tailcrest) 166.00 34.0 81.62
D/S Thalweg 195.00 5.0 2.70
Outlet Invert 1 200.00 0.0 80.07
Road Elev 236.00 101.67
Inlet Culvert Invert 1 272.00 0.0 83.32
U/S Grade Ctrl (Thalweg) 275.00 3.0 83.69
U/S Grade Ctrl (Thalweg) 279.00 7.0 84.68
U/S Thalweg 284.00 12.0 84.29
U/S Thalweg 422.00 150.0 91.23

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
