Fish Passage Site 50101595

Coordinates (dec. deg.): 65.04471°, -164.71998°
Legal Description: K005S030W22
Region: Arctic

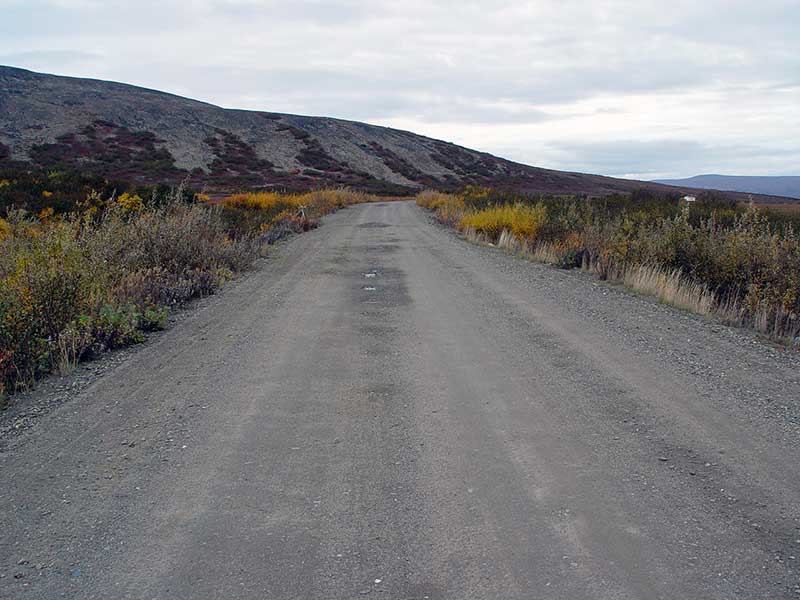

Road Name: Kougarok Road

Datum: NAD83
Quad Name / ITM: Bendeleben A-6
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Mile 53.4

Survey Date: Sep 18, 2005

Survey SEW05-KR07

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney, Paul Thompson

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert is poorly aligned
  2. Hydraulic flows exceeded capacity
  3. Culvert gradient red
  4. Outfall height red
  5. Constriction ratio red

Comments: None

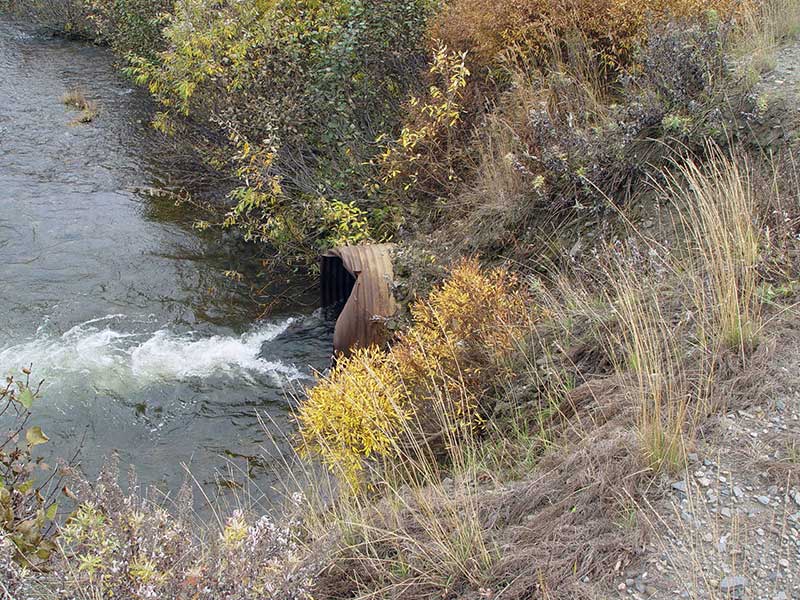

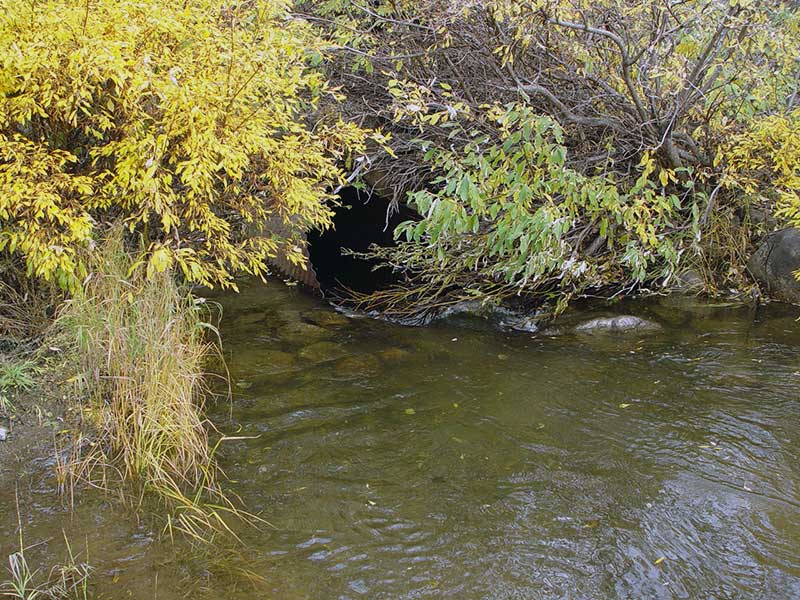

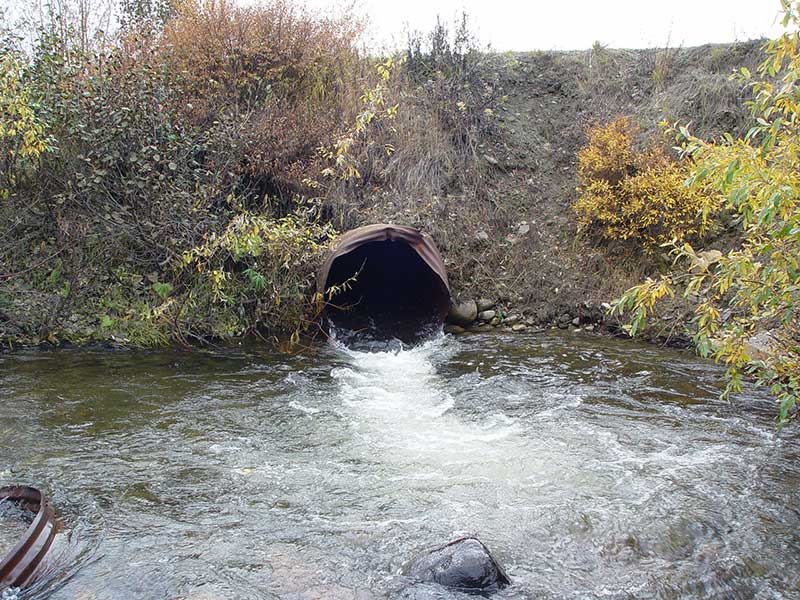

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 73.8
Inlet Type: Flush
Outlet Type: Mitered
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 2.75
Condition Rating(1-5): 3
Approach Angle: 33.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.9
Height(ft):3.9
Apron Length(ft):
Water Depth(ft): 1.3
Rustline Height(ft):2.66
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.95
Outfall Type:
Constriction Ratio: 0.29
Culvert Gradient: 2.07%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert is poorly aligned
  2. Hydraulic flows exceeded capacity
  3. Outfall height red
  4. Culvert gradient red
  5. Constriction ratio red

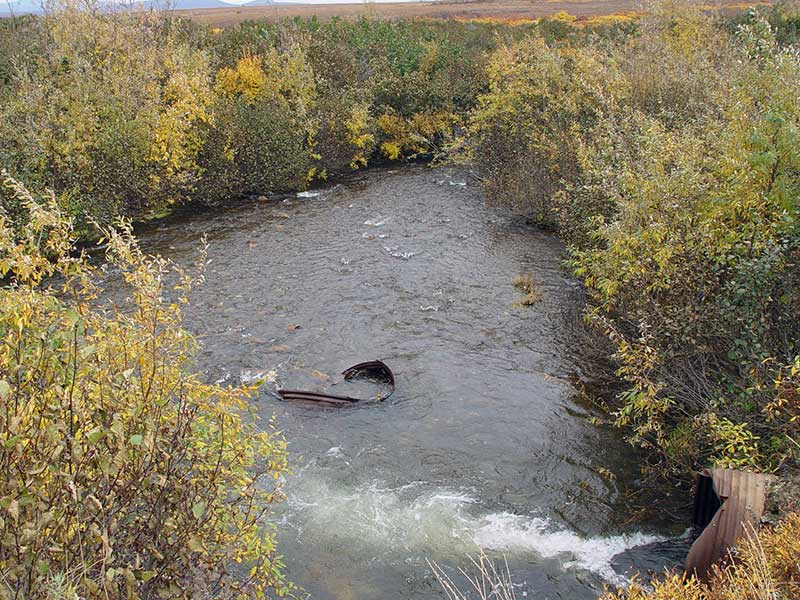

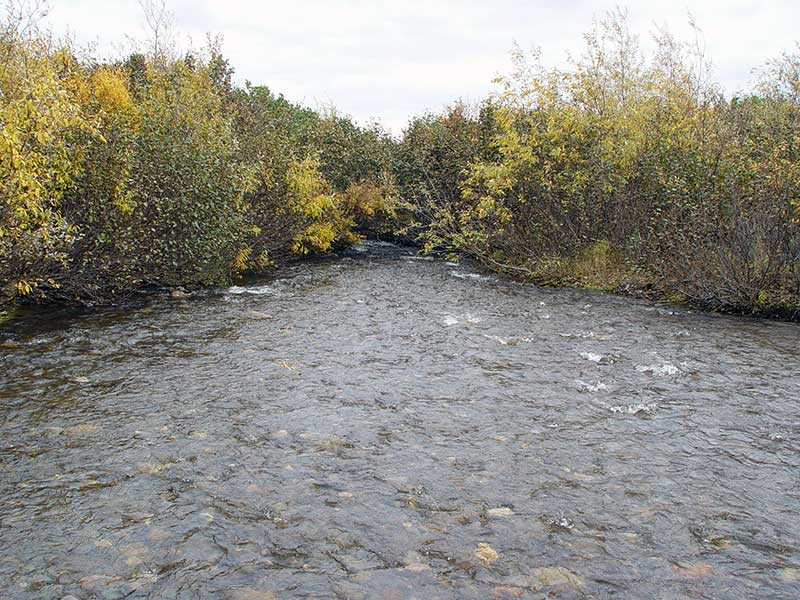

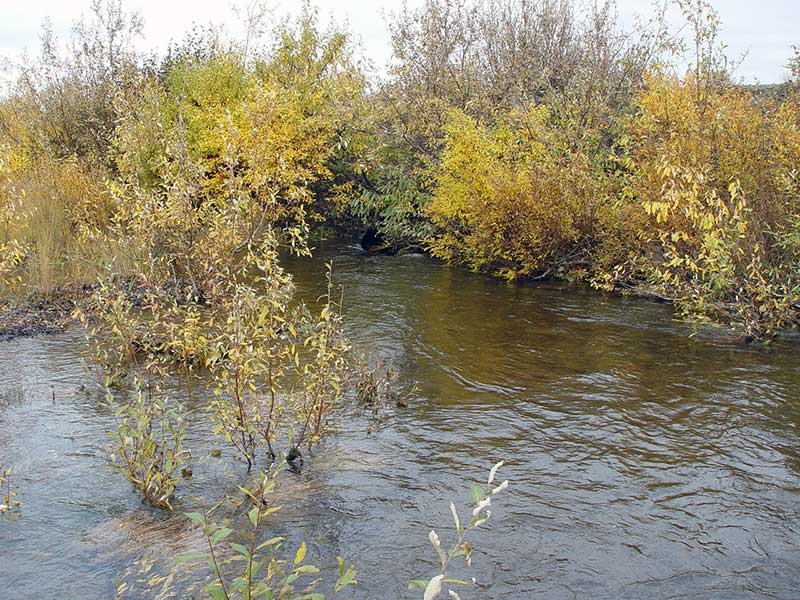

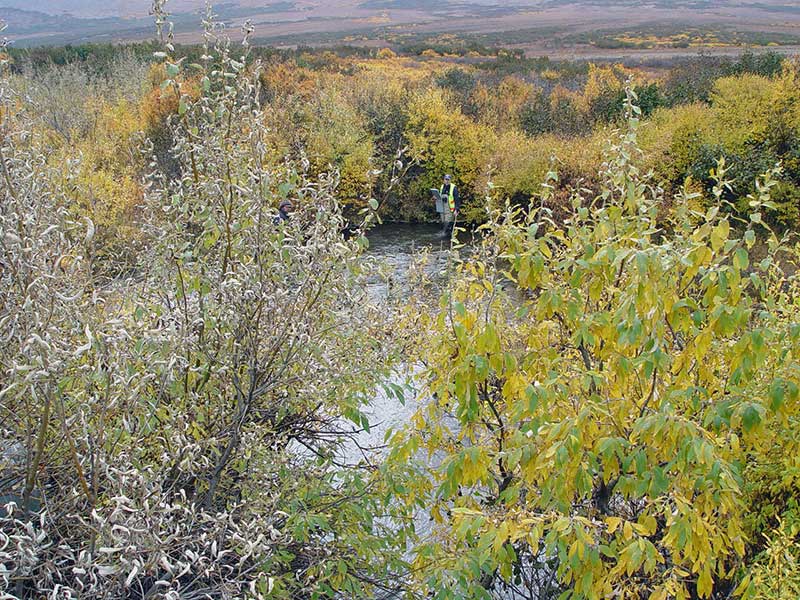

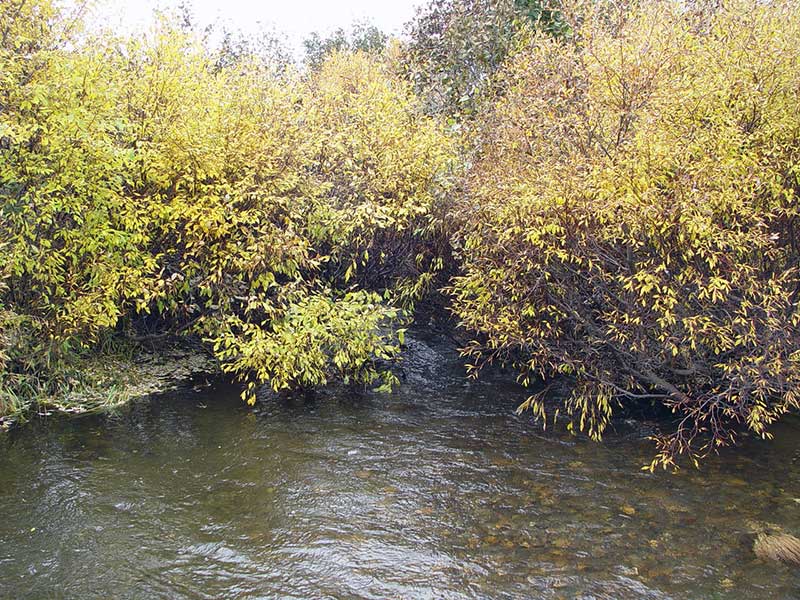

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelCobble
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:High
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 100.0 12.60
Upstream bank full 75.0 8.70
Upstream bank full 100.0 25.80
Upstream bank full 125.0 22.00
Upstream bank full 150.0 18.00
Upstream bed width 75.0 9.00
Upstream bed width 100.0 13.20
Upstream bed width 125.0 8.40
Upstream bed width 150.0 12.00
Upstream ordinary high water 75.0 16.80
Upstream ordinary high water 100.0 14.30
Upstream ordinary high water 125.0 11.20
Upstream ordinary high water 150.0 12.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 3.60
Outlet Pool Water Elev 90.05
U/S Thalweg 93.15
D/S Thalweg 0.00 100.0 86.98
D/S Tailcrest or 1st Thalweg 81.50 18.5 88.77
OHW (Outlet Tailcrest) 81.50 18.5 89.73
D/S Thalweg 95.00 5.0 3.40
Outlet Invert 1 100.00 0.0 89.70
Road Elev 136.50 101.41
Inlet Culvert Invert 1 173.00 0.0 91.23
U/S Thalweg 181.00 8.0 91.40
U/S Thalweg 298.00 125.0 92.51

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
