Fish Passage Site 50101594

Coordinates (dec. deg.): 65.04767°, -164.72049°
Legal Description: K005S030W15
Region: Arctic

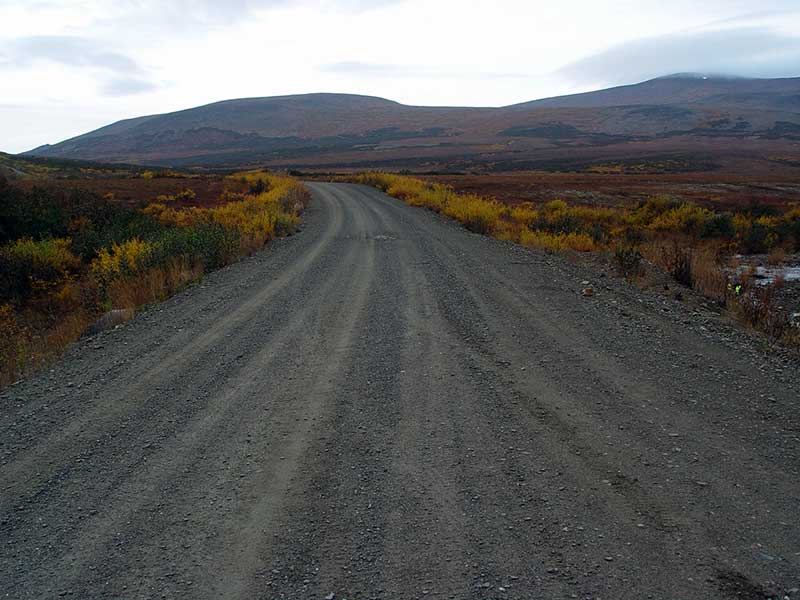

Road Name: Kougarok Road

Datum: NAD83
Quad Name / ITM: Bendeleben A-6
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Mile 53.6. Located adjacent to intersection with Pilgrim Hot Springs Rd.

Survey Date: Sep 18, 2005

Survey SEW05-KR06

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney, Paul Thompson

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

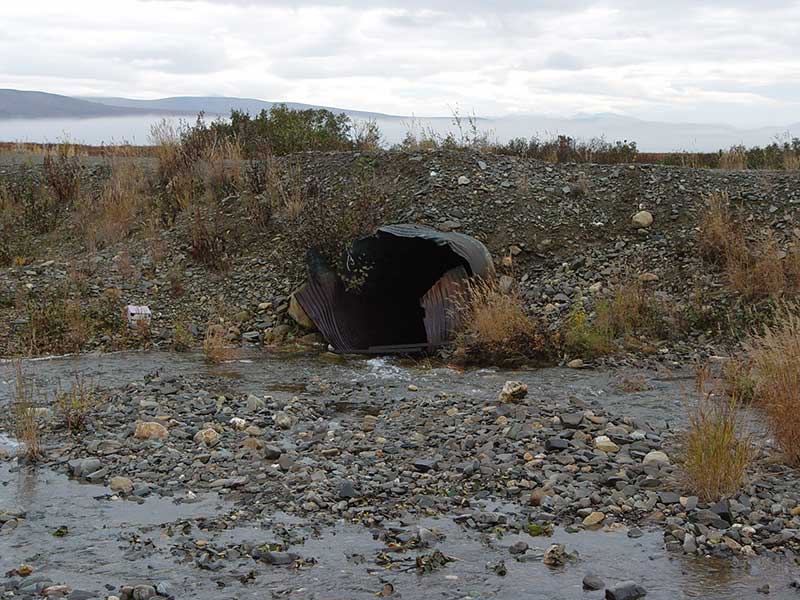

  1. Culvert is poorly aligned

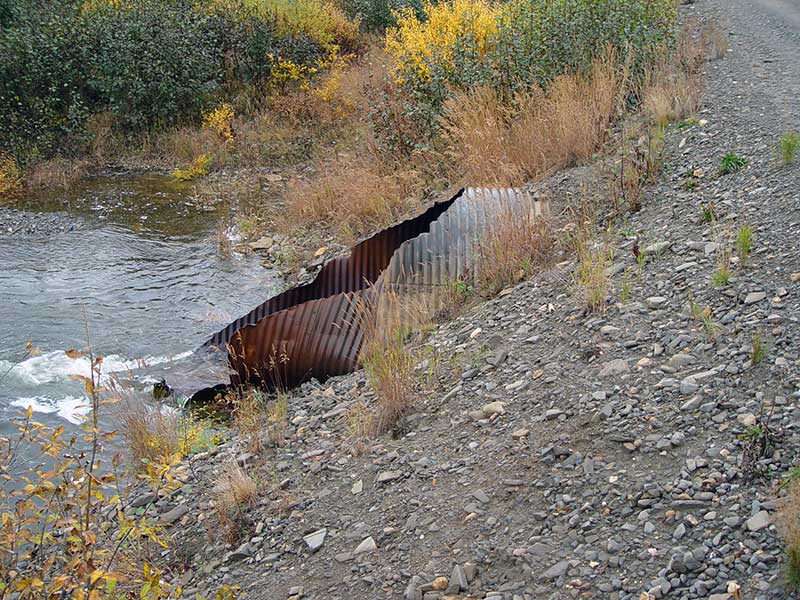

  2. Mechanical damage or joints parting
  3. Constriction ratio red
  4. Culvert gradient red
  5. Outfall height gray

Comments: None

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 63.1
Inlet Type: Flush
Outlet Type: Flush
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 2.75
Condition Rating(1-5): 3
Approach Angle: 27.0
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):6.0
Height(ft):6.0
Apron Length(ft):
Water Depth(ft): 0.6
Rustline Height(ft):1.9
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0

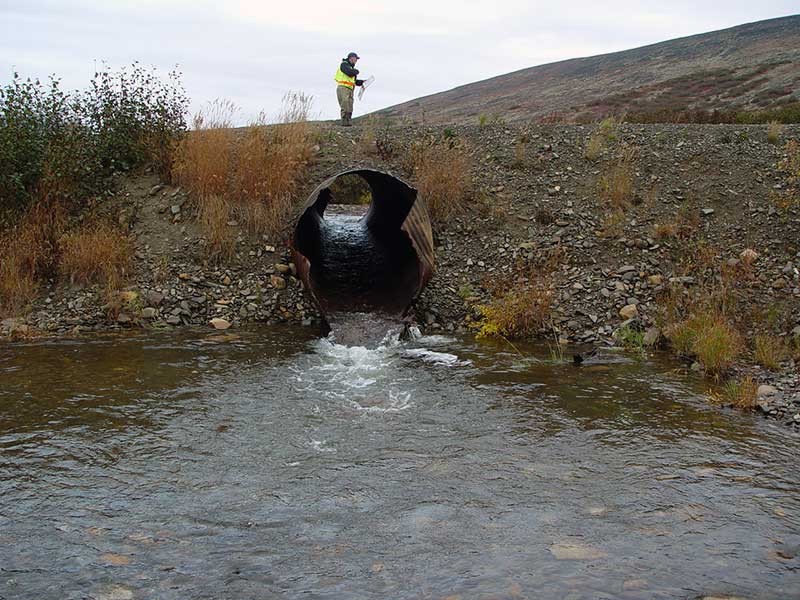

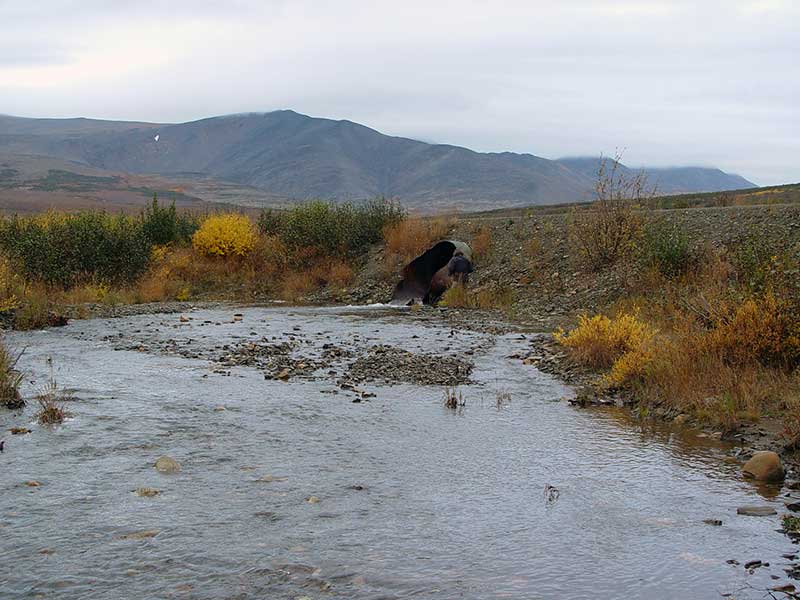

Outfall Height: 0.31
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.28
Culvert Gradient: 3.39%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert is poorly aligned
  2. Mechanical damage or joints parting
  3. Outfall height gray
  4. Culvert gradient red
  5. Constriction ratio red

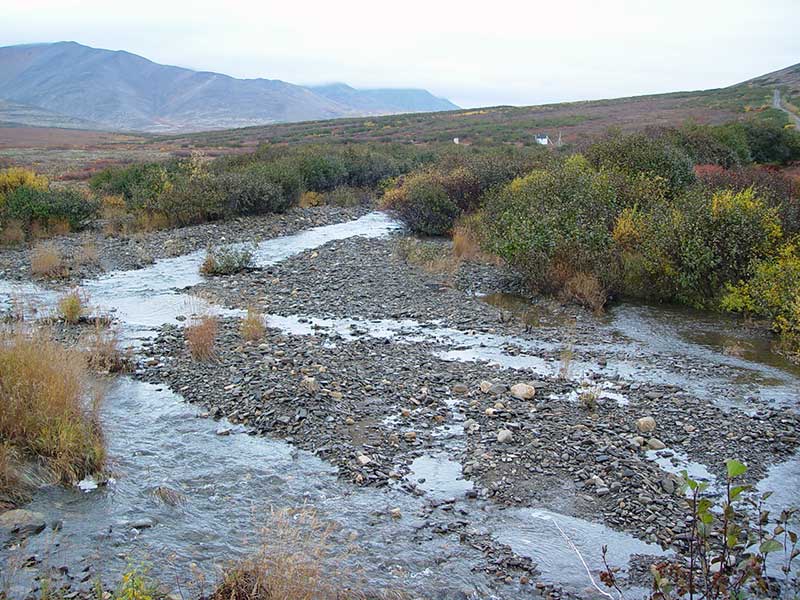

Stream Measurements

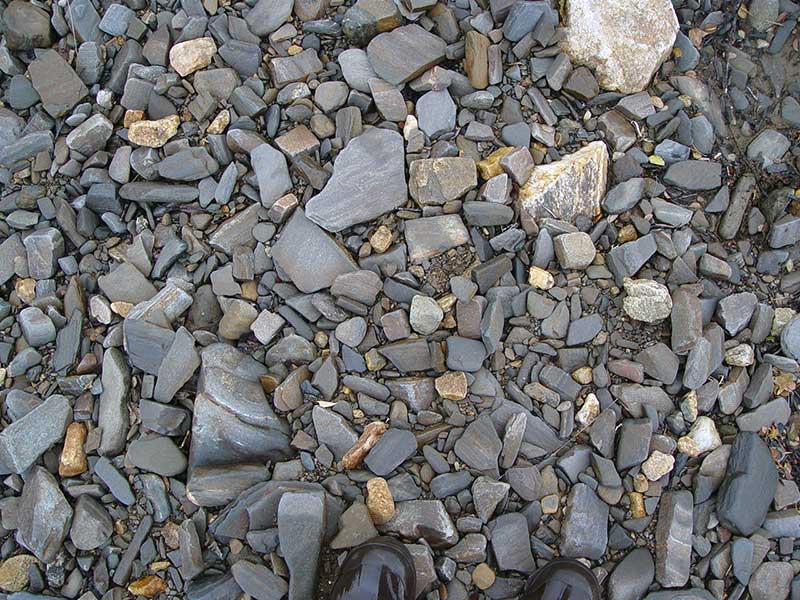

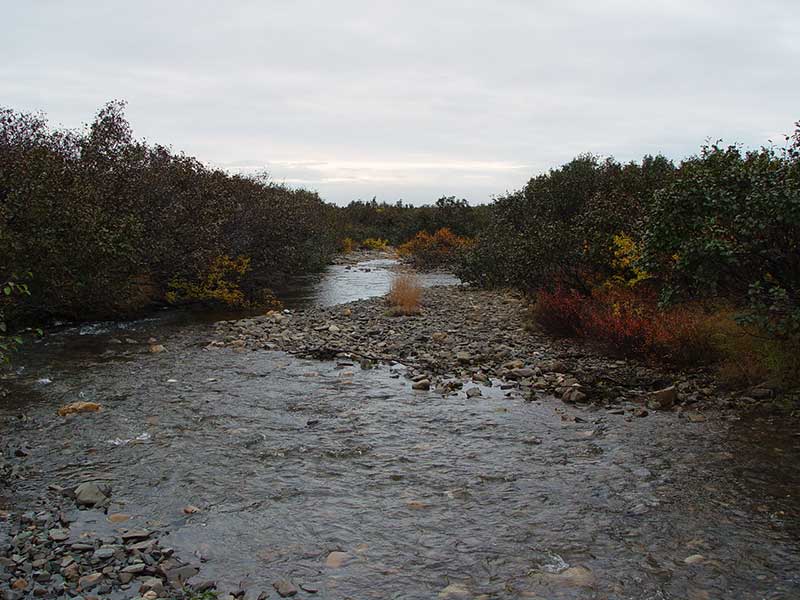

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 200.0 21.10
Upstream bank full 75.0 65.30
Upstream bank full 100.0 65.00
Upstream bank full 125.0 43.00
Upstream bank full 150.0 46.10
Upstream bed width 75.0 60.00
Upstream bed width 100.0 51.80
Upstream bed width 125.0 38.10
Upstream bed width 150.0 31.50
Upstream ordinary high water 75.0 63.00
Upstream ordinary high water 100.0 54.00
Upstream ordinary high water 125.0 41.50
Upstream ordinary high water 150.0 40.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 2.80
Outlet Pool Water Elev 91.81
U/S Thalweg 94.57
D/S Grade Ctrl (Thalweg) 0.00 200.0 88.42
D/S Tailcrest or 1st Thalweg 176.00 24.0 91.40
OHW (Outlet Tailcrest) 176.00 24.0 91.94
D/S Thalweg 195.00 5.0 2.30
Outlet Invert 1 200.00 0.0 91.52
Road Elev 231.50 101.38
Inlet Culvert Invert 1 263.00 0.0 93.66
U/S Thalweg 275.00 12.0 94.74
U/S Grade Ctrl (Thalweg) 307.00 44.0 97.21

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
