Fish Passage Site 50101586

Coordinates (dec. deg.): 64.65880°, -165.42682°
Legal Description: K009S034W35
Region: Arctic

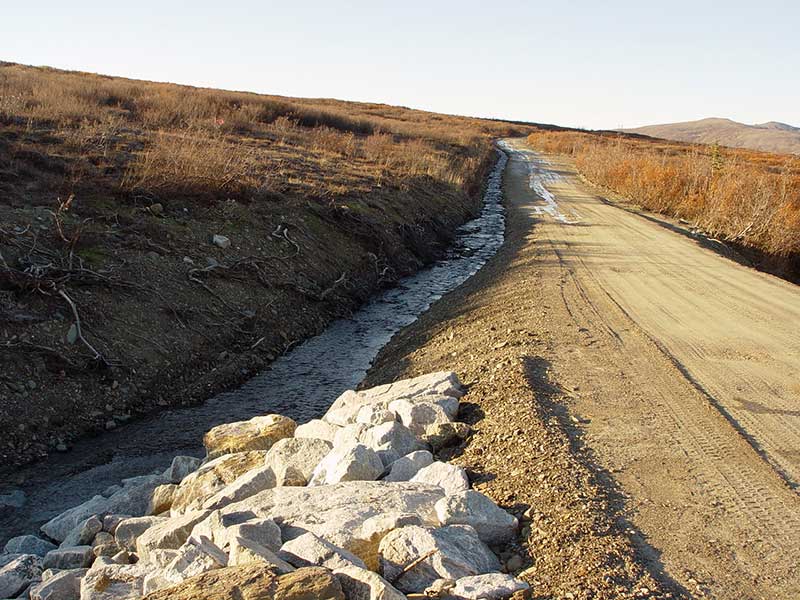

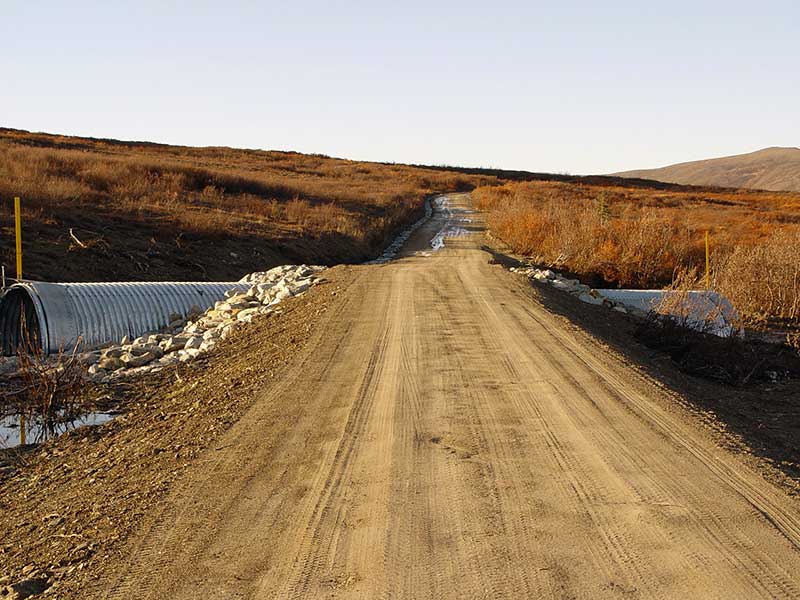

Road Name: Glacier Creek Road

Datum: NAD83
Quad Name / ITM: Nome C-1
AWC Stream #:
Stream Name: Dinning Creek

Elevation:

Site Comments: Mile 8.0 Glacier Creek Rd, from intersection of New Road w/ Teller Road.

Survey Date: Sep 30, 2005

Survey SEW05-GCR05

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Jason Cheney, Paul Thompson

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Comments: None

Culvert Measurements

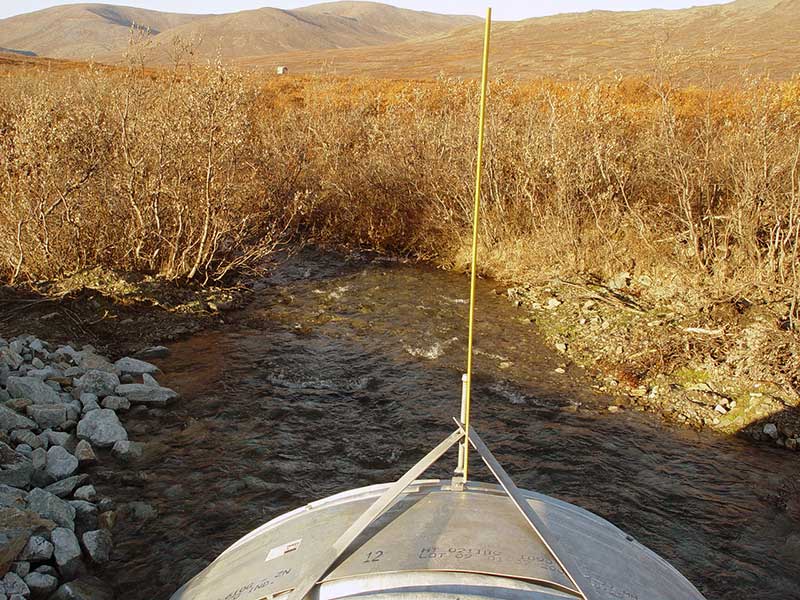

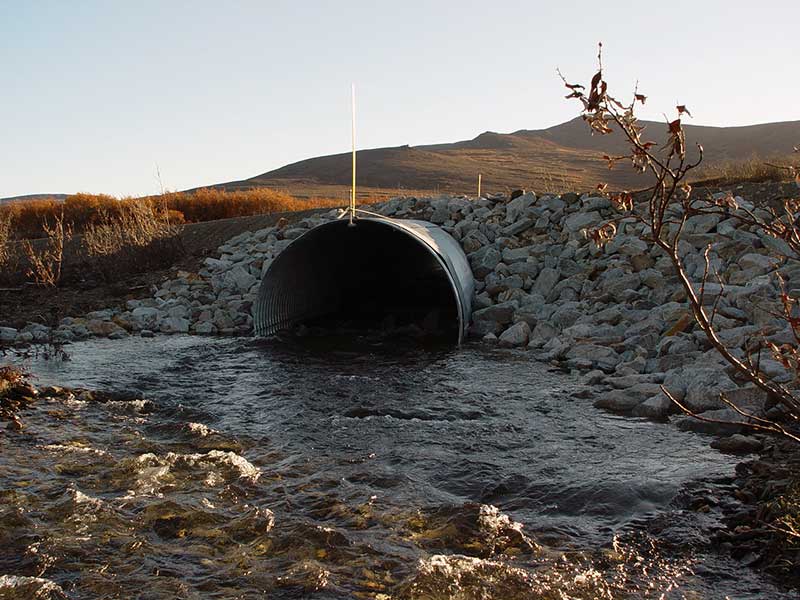

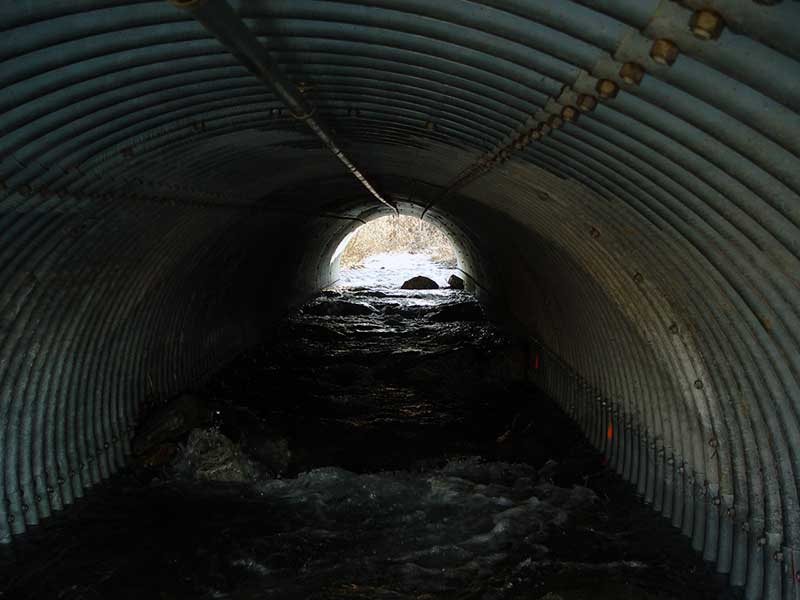

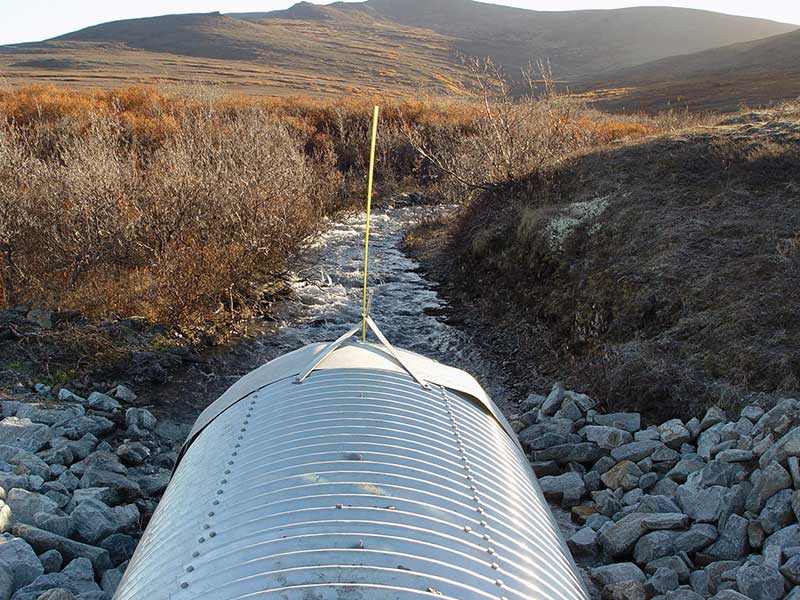

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Green

Length(ft): 78.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 5
Approach Angle: 3.0
Sedimentation At Inlet:
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):10.1 10.1
Height(ft):6.6 6.6
Apron Length(ft):
Water Depth(ft): 0.8
Rustline Height(ft):0.0
Substrate Depth(ft):3.5 3.5
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 3.5
Outfall Height: 0.01
Outfall Type:
Constriction Ratio: 0.94
Culvert Gradient: 3.47%
Max Slope:
Max Slope Length:

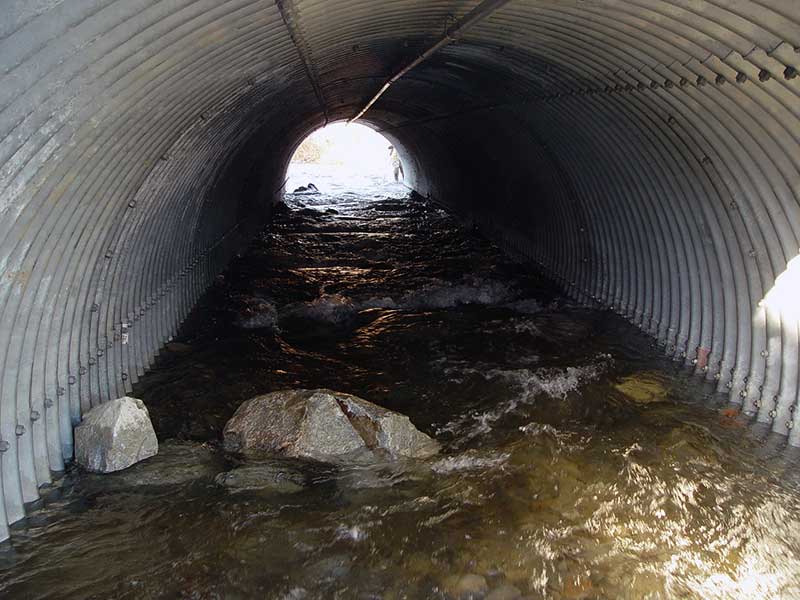

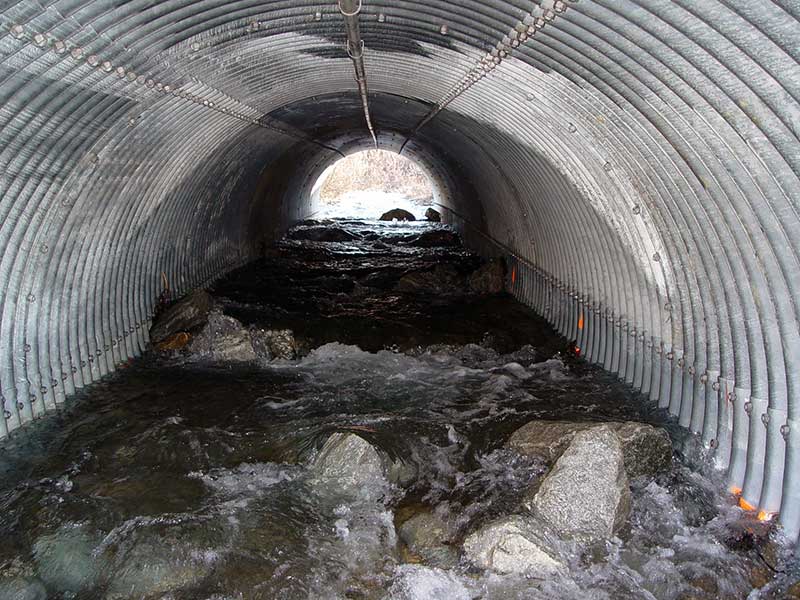

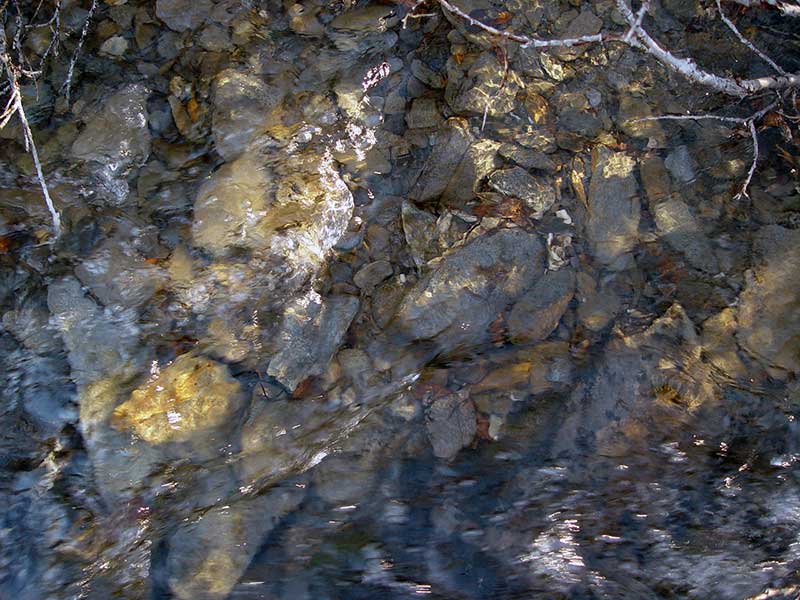

Comments: substrate in pipe = cobble+scattered boulders

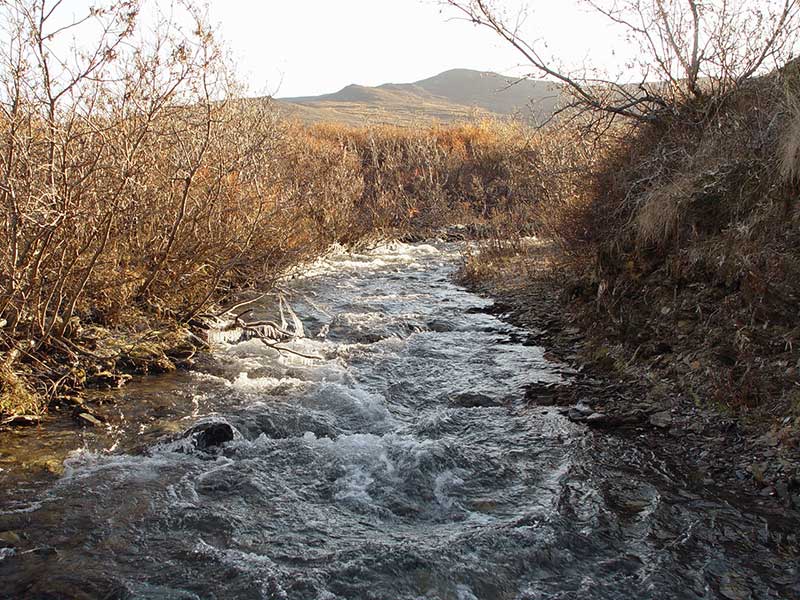

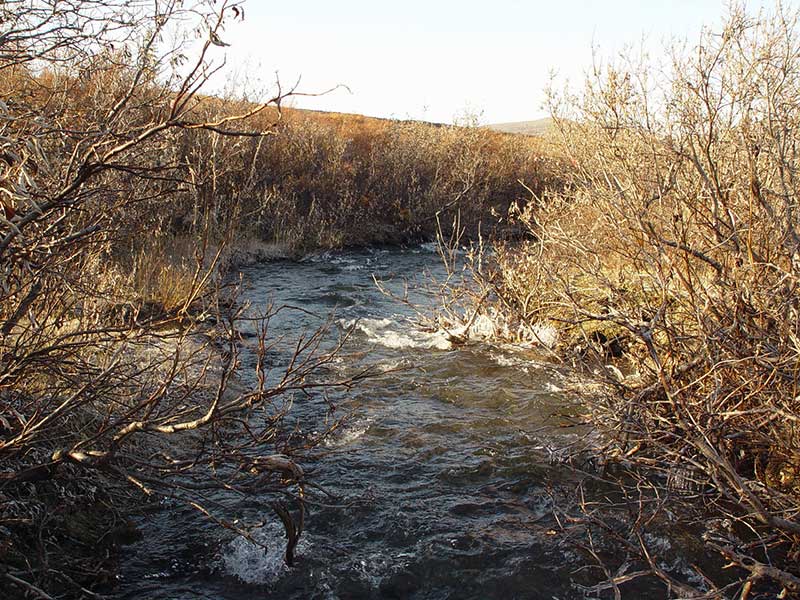

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water
Downstream ordinary high water 108.0 13.70
Upstream bank full 75.0 28.10
Upstream bank full 100.0 19.70
Upstream bank full 125.0 17.80
Upstream bank full 150.0 22.10
Upstream bed width 75.0 8.30
Upstream bed width 100.0 6.60
Upstream bed width 125.0 6.20
Upstream bed width 150.0 8.90
Upstream ordinary high water 75.0 11.30
Upstream ordinary high water 100.0 10.30
Upstream ordinary high water 125.0 9.80
Upstream ordinary high water 150.0 11.80

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 1.90
Outlet Pool Water Elev 93.31
U/S Thalweg 96.30
D/S Grade Ctrl (Thalweg) 0.00 108.0 90.74
D/S Tailcrest or 1st Thalweg 78.00 30.0 92.20
OHW (Outlet Tailcrest) 78.00 30.0 92.88
D/S Thalweg 103.00 5.0 1.10
Outlet Invert 1 108.00 0.0 92.52
Road Elev 147.00 102.34
Inlet Culvert Invert 1 186.00 0.0 95.23
U/S Thalweg 206.00 20.0 96.24
U/S Thalweg 311.00 125.0 99.65

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
