Fish Passage Site 50101568

Coordinates (dec. deg.): 64.69656°, -164.12340°
Legal Description: K009S027W20
Region: Arctic

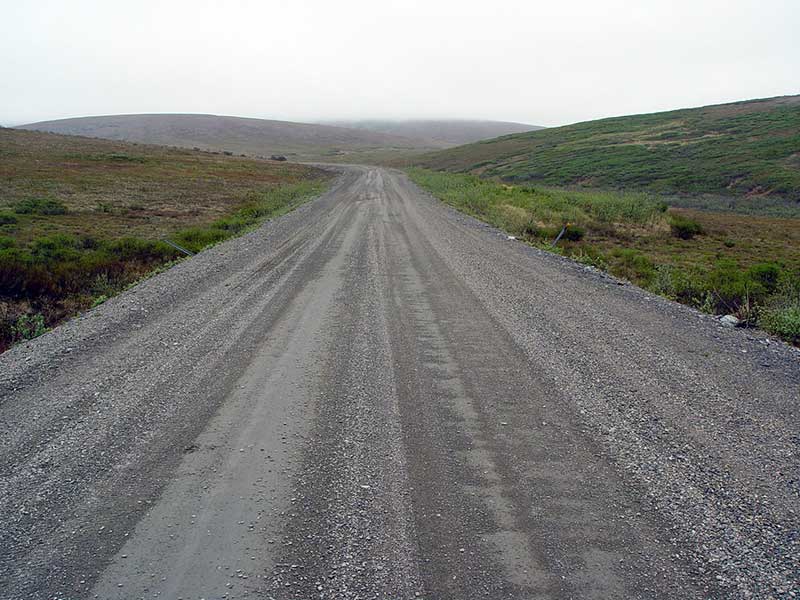

Road Name: Council Road

Datum: NAD83
Quad Name / ITM: Solomon C-5
AWC Stream #:
Stream Name: East Fork Solomon River tributary

Elevation:

Site Comments: Mile 49.9

Survey Date: Jul 03, 2006

Survey SEW05-COR13

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Kyle Negri

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Constriction ratio red
  2. Sediment accumulation

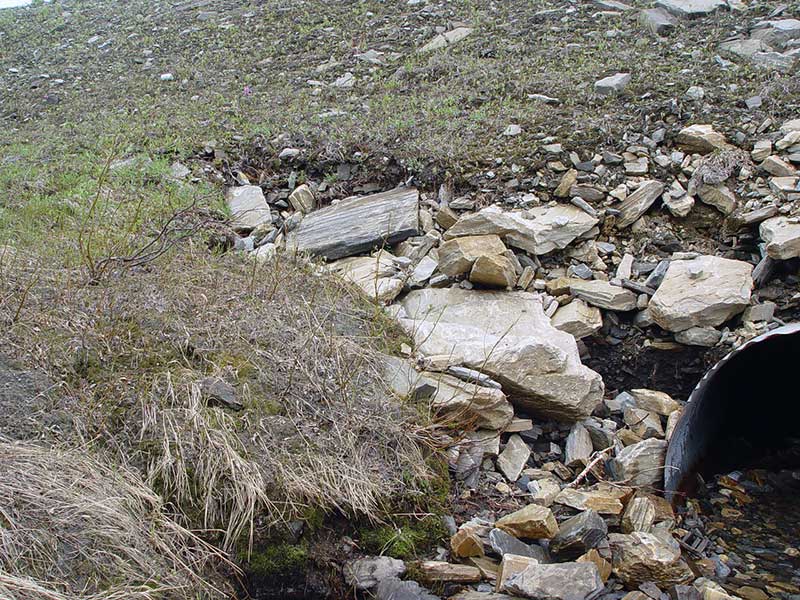

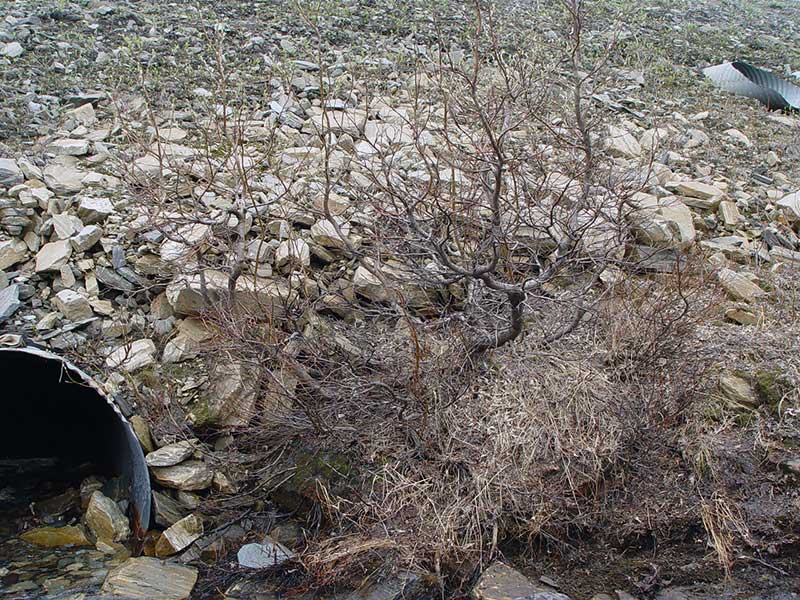

  3. Road bank erosion

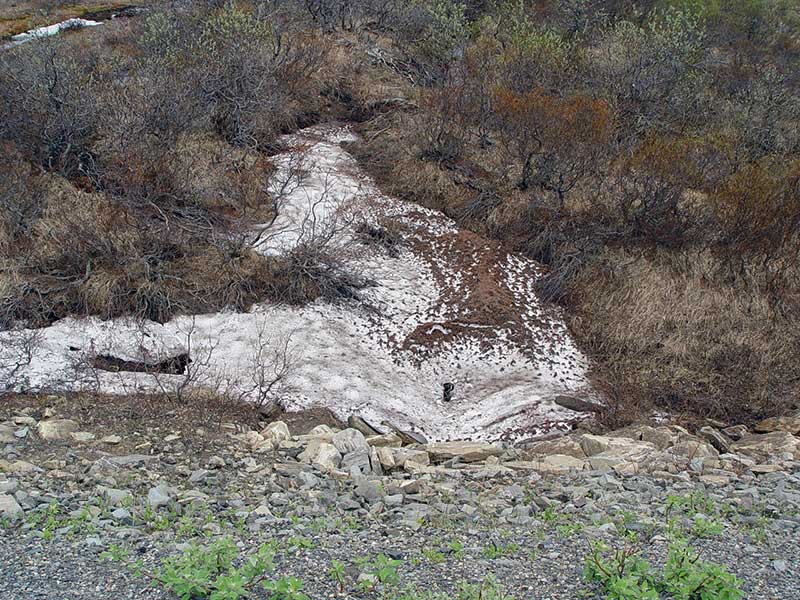

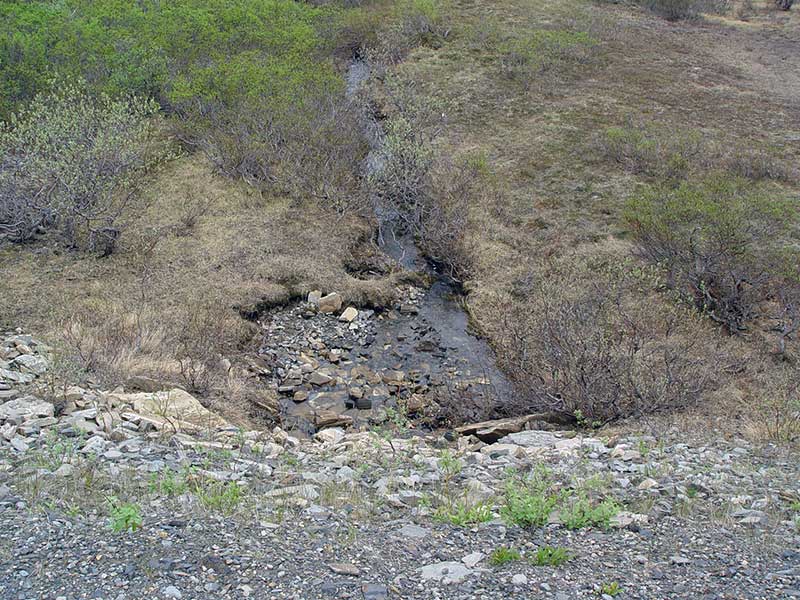

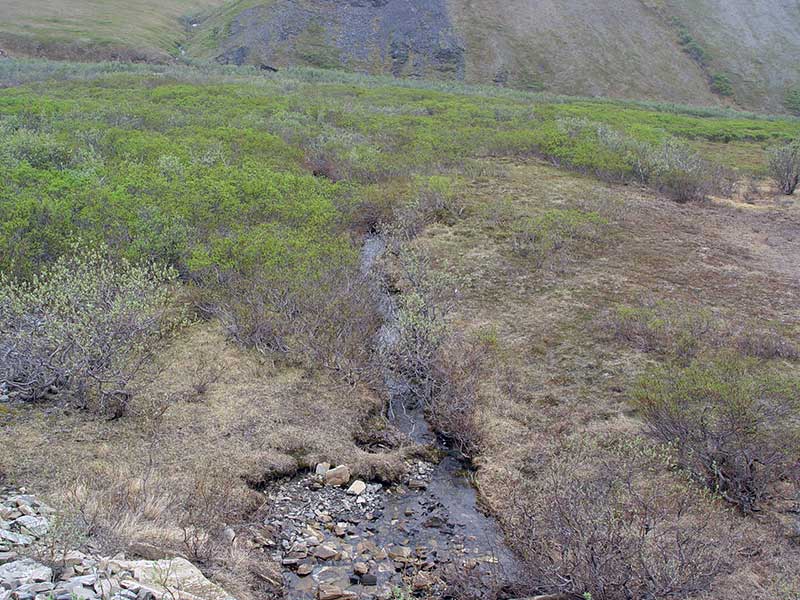

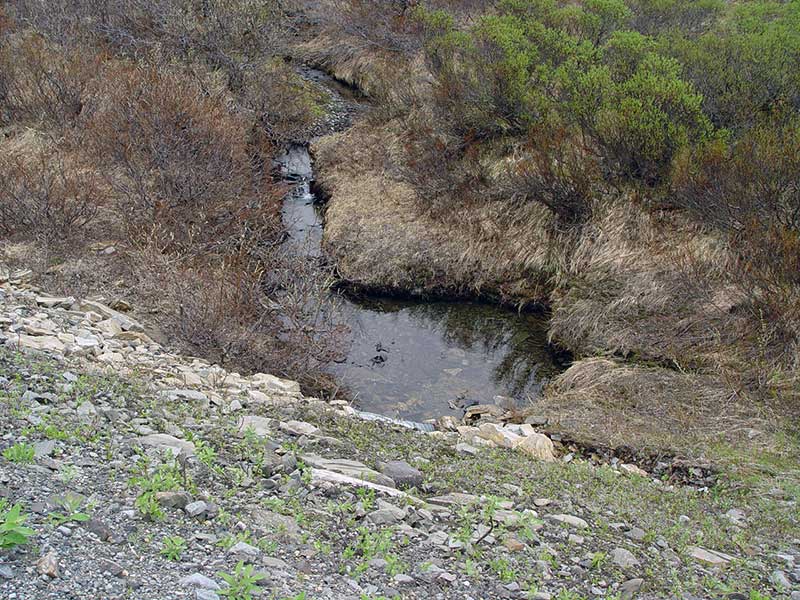

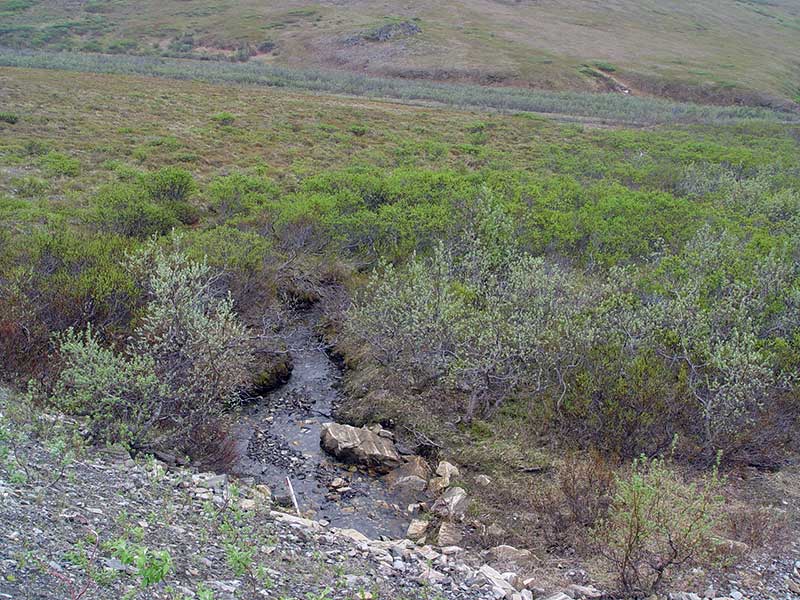

Comments: Flow splits and passes through two pipes, both surveyed. Two additional overflow pipes between the main pipes were not surveyed and were dry at time of survey. Flow remains in two separate channels until confluence with East Fork Solomon River. Snow during survey.

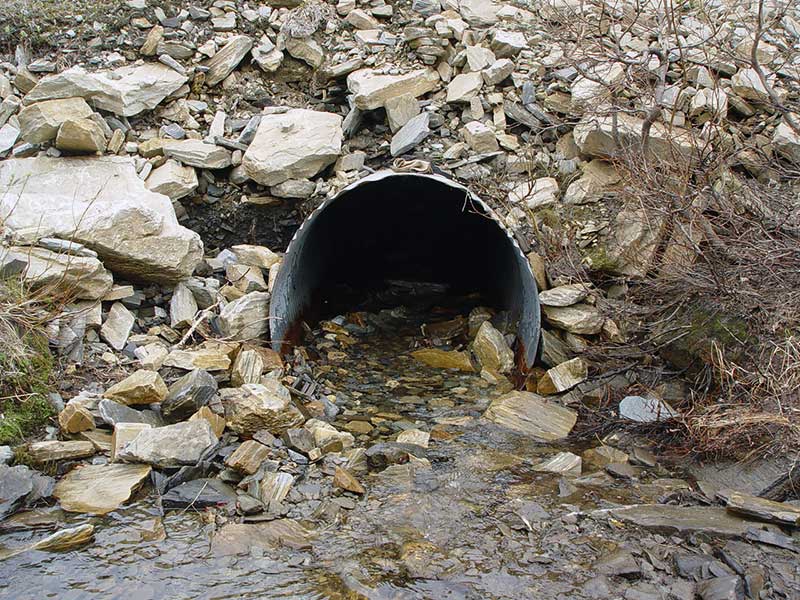

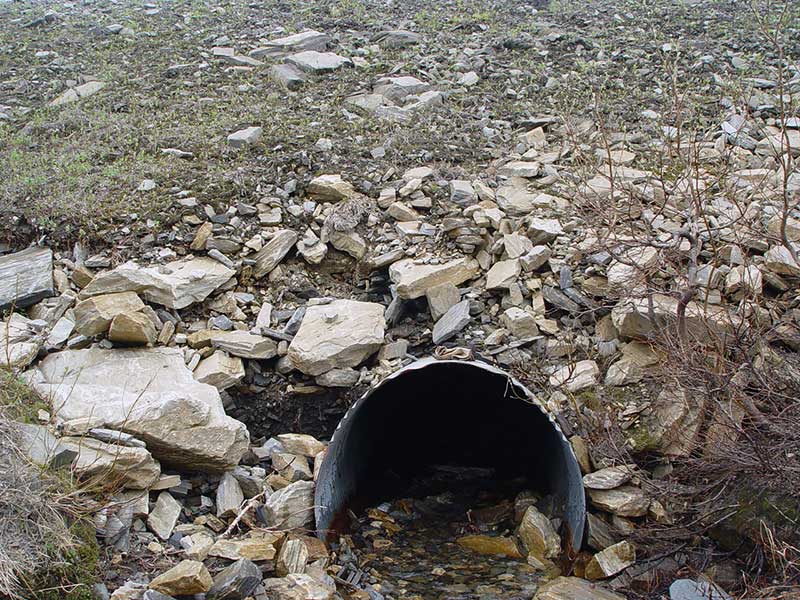

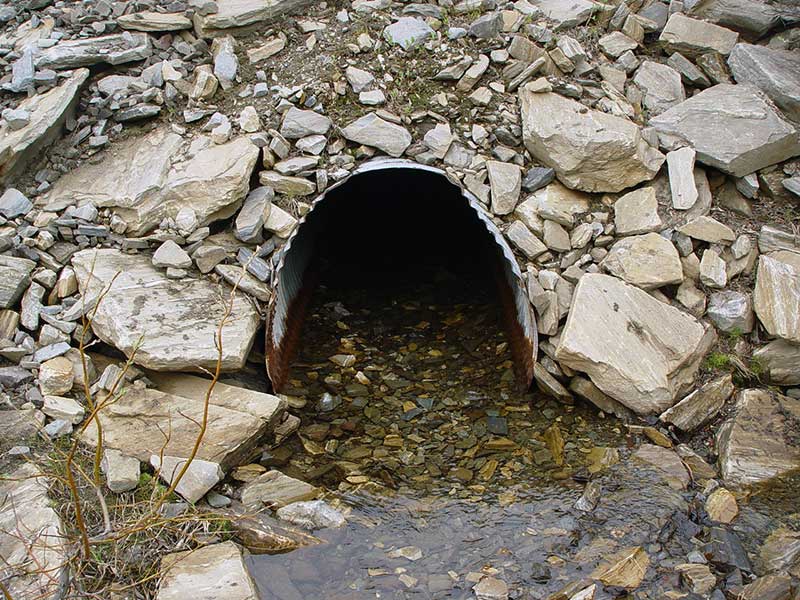

Culvert Measurements

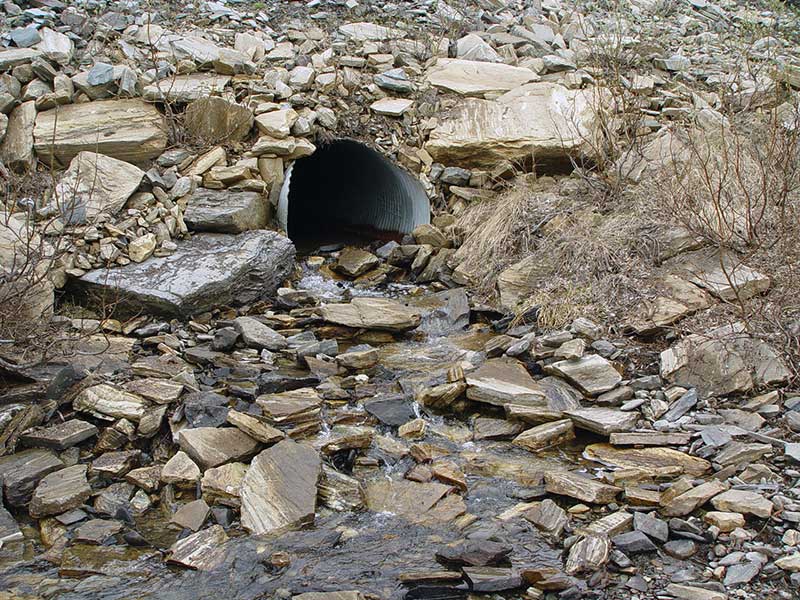

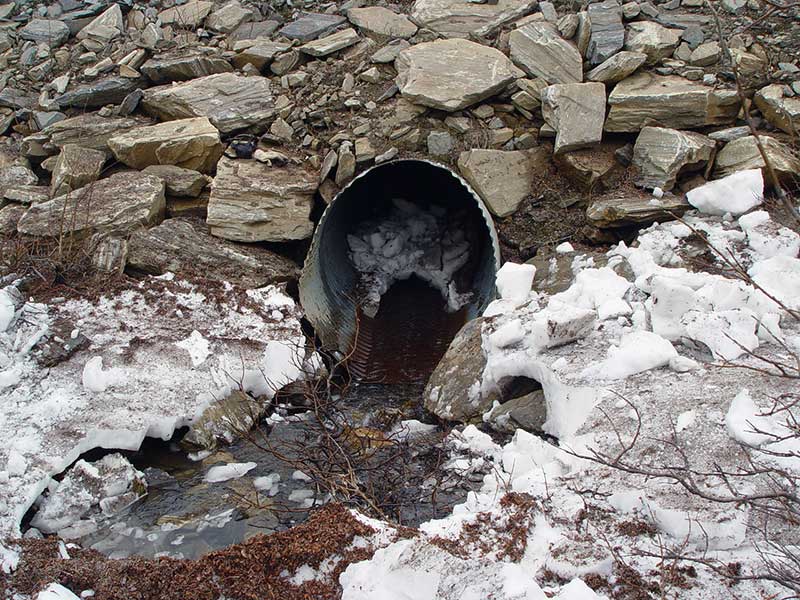

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 84.9
Inlet Type: Flush
Outlet Type: Flush
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle: 25.0
Sedimentation At Inlet:
Inlet Substrate: Gravel
Outlet Substrate: Gravel
InletOutlet
Width(ft):3.9 3.8
Height(ft):4.1 4.1
Apron Length(ft):
Water Depth(ft): 0.2
Rustline Height(ft):1.45
Substrate Depth(ft):0.9 0.95
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.03
Outfall Type:
Constriction Ratio: 0.79
Culvert Gradient: 3.98%
Max Slope:
Max Slope Length:


Comments: sediment accumulation in inlet and outlet, none in center of pipe;
  Culvert Observations:
  1. Road bank erosion
  2. Sediment accumulation
  3. Culvert gradient red

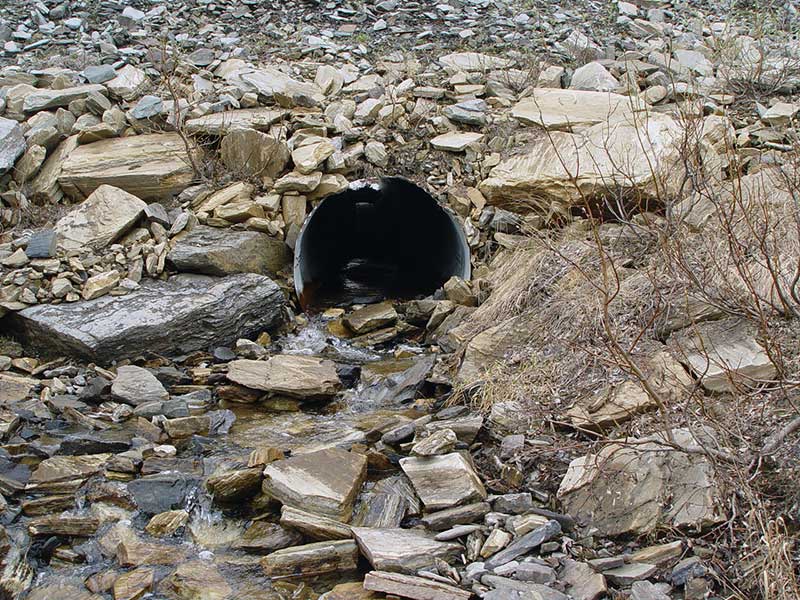

ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 84.7
Inlet Type: Flush
Outlet Type: Flush
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle: 93.0
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: Gravel
InletOutlet
Width(ft):3.85 3.9
Height(ft):4.0 3.5
Apron Length(ft):
Water Depth(ft): 0.18
Rustline Height(ft):0.4
Substrate Depth(ft):0.0 0.4
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.86
Culvert Gradient: 3.72%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Sediment accumulation
  2. Culvert is poorly aligned
  3. Culvert gradient red

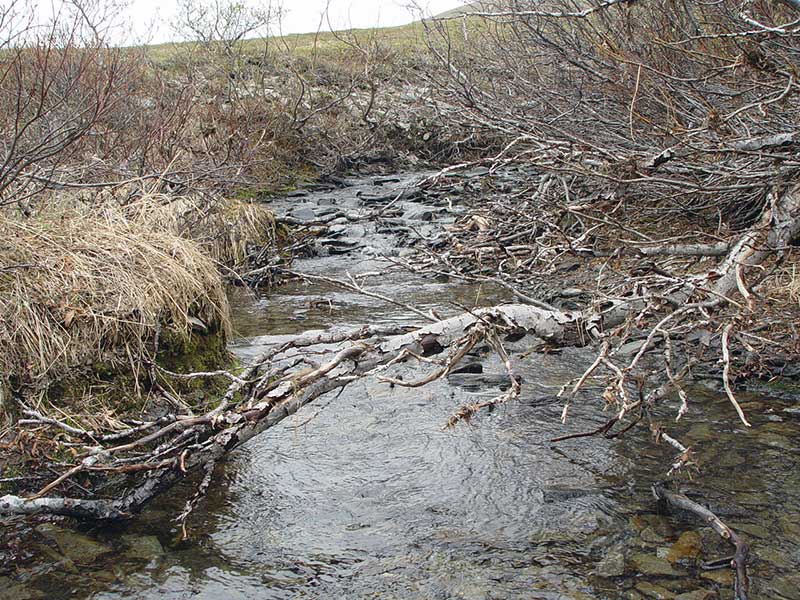

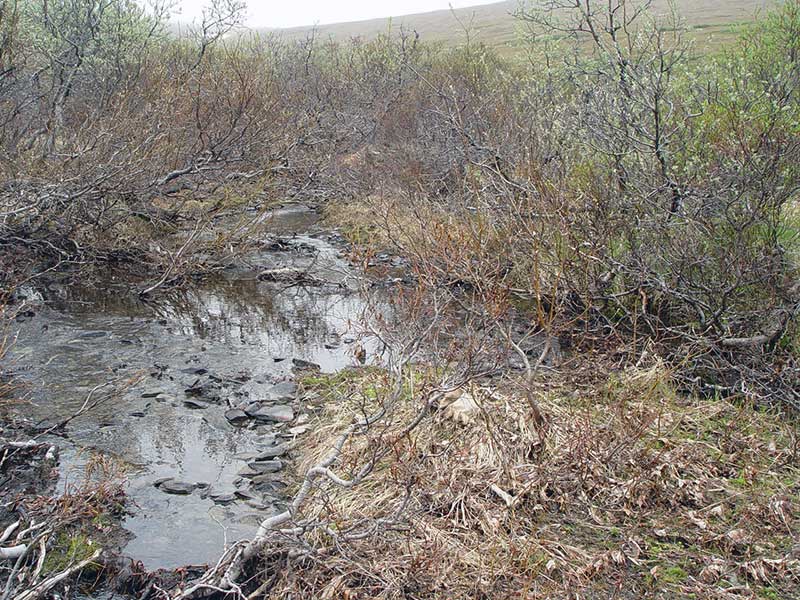

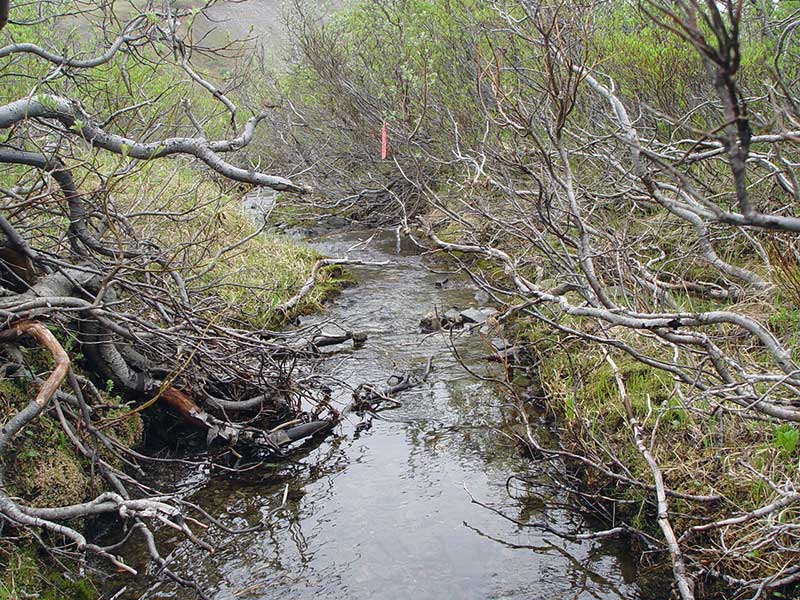

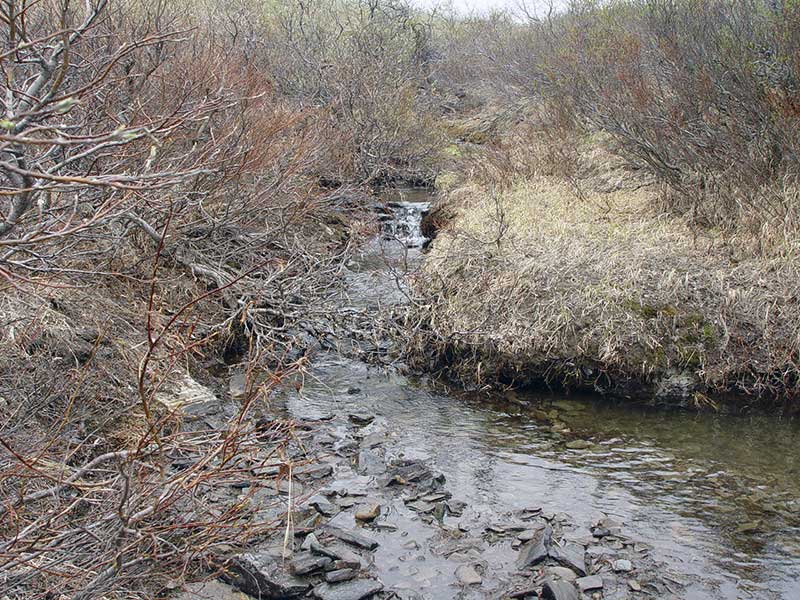

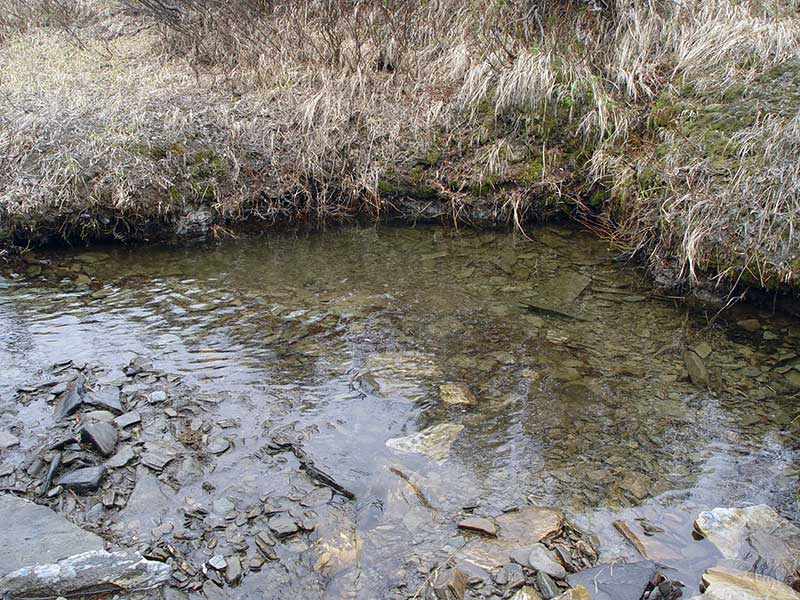

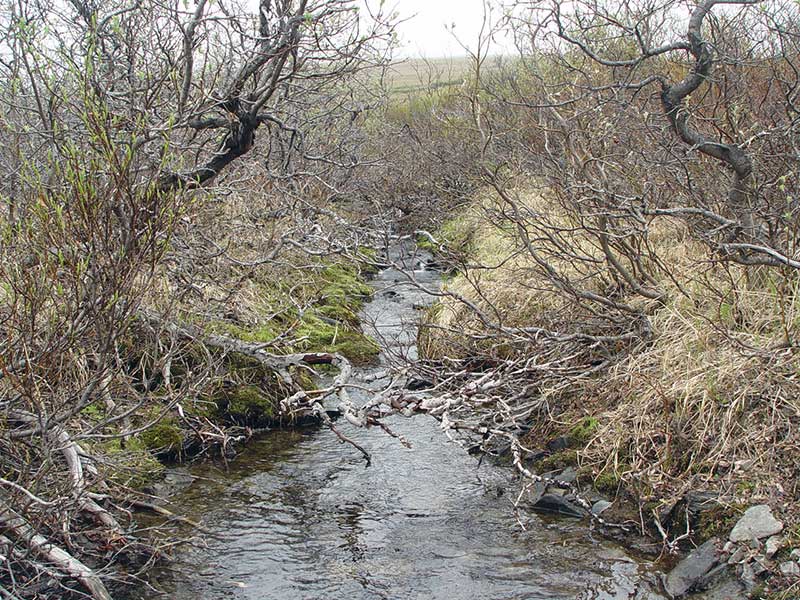

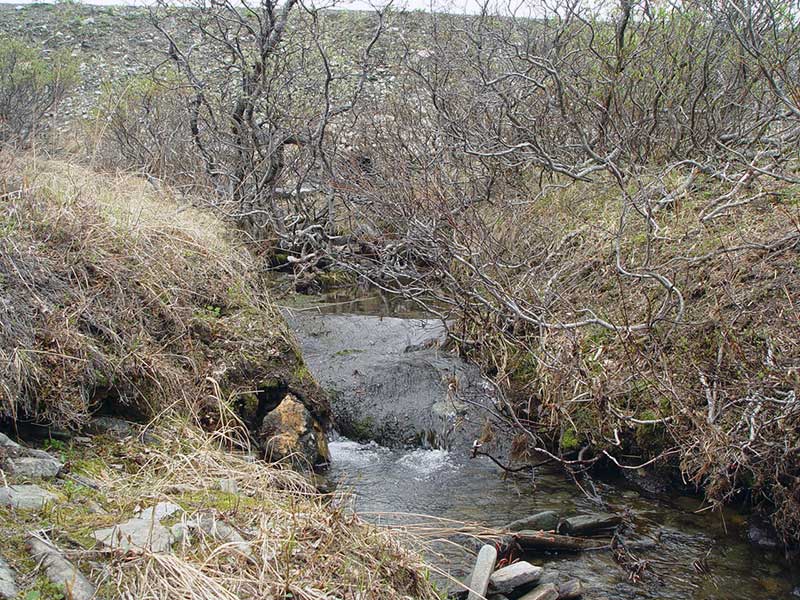

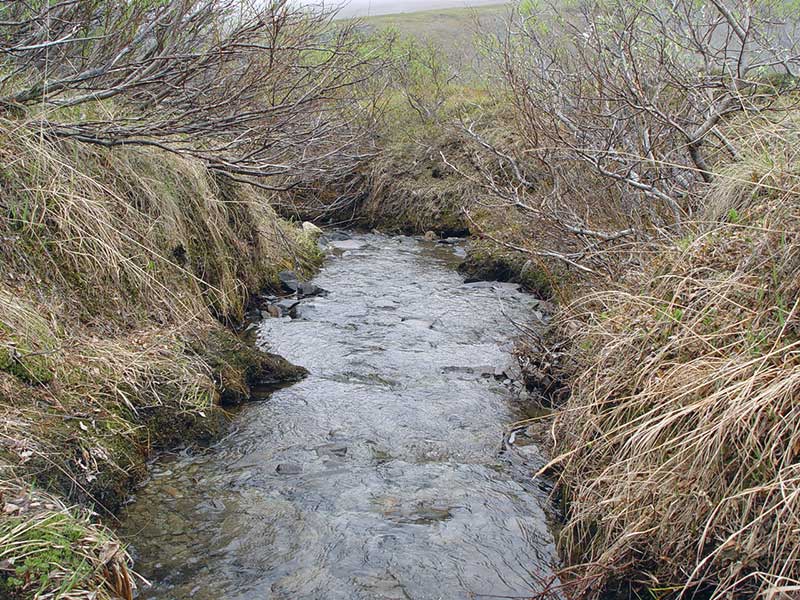

Stream Measurements

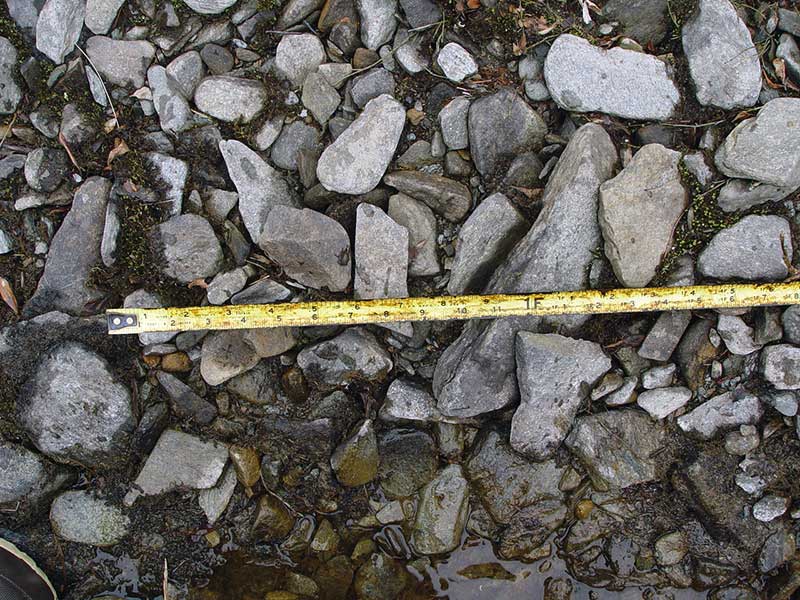

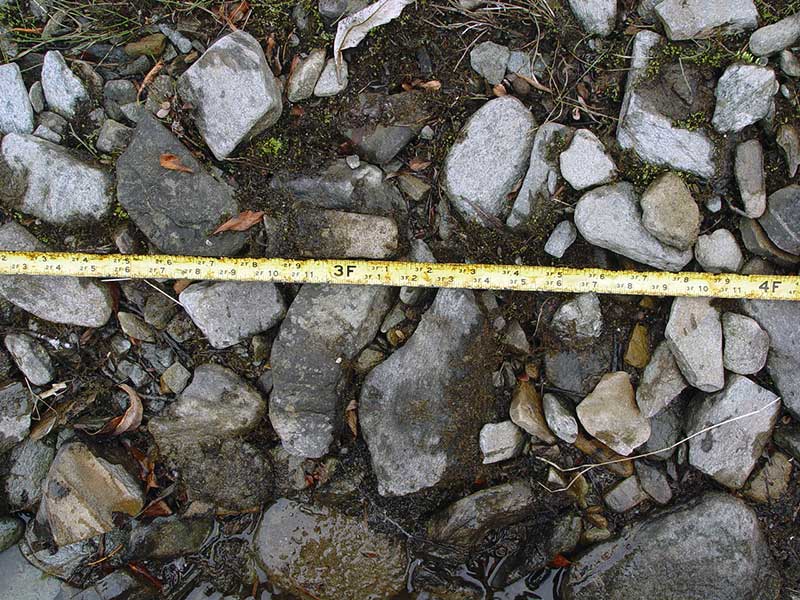

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Outlet Pool Water Elev 1 85.86
D/S Grade Ctrl (Thalweg) 1 0.00 112.0 80.57
D/S Grade Ctrl (Thalweg) 1 38.00 74.0 82.47
D/S Grade Ctrl (Thalweg) 2 39.00 73.0 80.70
D/S Grade Ctrl (Thalweg) 2 51.00 61.0 82.65
D/S Grade Ctrl (Thalweg) 1 62.00 50.0 83.59
D/S Grade Ctrl (Thalweg) 2 70.00 42.0 82.58
D/S Grade Ctrl (Thalweg) 2 84.00 28.0 83.10
D/S Grade Ctrl (Thalweg) 1 96.00 16.0 85.05
D/S Grade Ctrl (Thalweg) 2 99.00 13.0 83.71
D/S Grade Ctrl (Thalweg) 2 103.00 9.0 84.54
D/S Tailcrest or 1st Thalweg 1 106.00 6.0 85.65
Bankfull 1 106.00 6.0 86.38
OHW (Outlet Tailcrest) 1 106.00 6.0 86.05
Bankfull 2 107.00 5.0 85.94
D/S Grade Ctrl (Thalweg) 2 107.00 5.0 84.72
D/S Tailcrest or 1st Thalweg 2 107.00 5.0 84.26
OHW (Outlet Tailcrest) 2 107.00 5.0 85.17
Outlet Invert 2 112.00 0.0 85.25
Outlet Invert 1 112.00 0.0 85.69
Road Elev 154.00 107.03
Inlet Culvert Invert 1 196.00 0.0 89.07
Inlet Culvert Invert 2 196.00 0.0 88.40
U/S Thalweg 2 199.60 3.6 88.59
U/S Grade Ctrl (Thalweg) 2 200.00 4.0 89.23
U/S Grade Ctrl (Thalweg) 1 203.00 7.0 89.54
U/S Grade Ctrl (Thalweg) 2 216.00 20.0 90.01
U/S Grade Ctrl (Thalweg) 1 225.00 29.0 90.66
U/S Grade Ctrl (Thalweg) 2 242.00 46.0 91.01
U/S Grade Ctrl (Thalweg) 1 269.00 73.0 92.11
U/S Grade Ctrl (Thalweg) 1 298.00 102.0 93.57
U/S Grade Ctrl (Thalweg) 2 326.00 130.0 93.51
U/S Grade Ctrl (Thalweg) 1 348.00 152.0 96.10
U/S Grade Ctrl (Thalweg) 2 351.00 155.0 95.12
U/S Grade Ctrl (Thalweg) 1 386.00 190.0 97.65
U/S Thalweg 2 389.00 193.0 96.63
U/S Grade Ctrl (Thalweg) 2 391.00 195.0 97.24

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
