Fish Passage Site 50101561

Coordinates (dec. deg.): 64.77792°, -163.79683°
Legal Description: K008S025W19
Region: Arctic
Road Name: Council Road

Datum: NAD83
Quad Name / ITM: Solomon D-4
AWC Stream #:
Stream Name: Fox River tributary

Elevation:

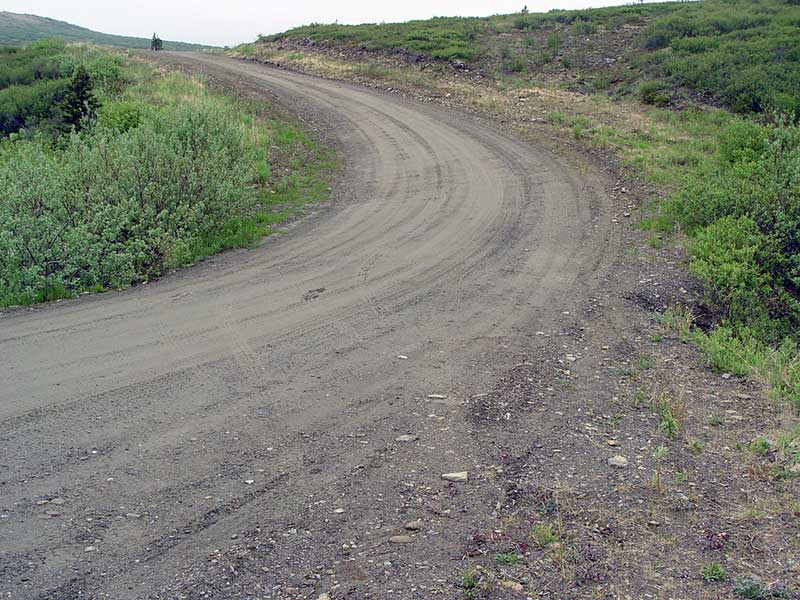

Site Comments: Mile 64.4. On curve. Pull out to SE corner of x-ing. Confluence with Fox River 150' d/s

Survey Date: Jul 01, 2006

Survey SEW05-COR06

Project Supervisor: Dave Ryland,
Observers: Dave Ryland, Kyle Negri

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Mechanical damage or joints parting
  2. Culvert gradient red
  3. Constriction ratio gray

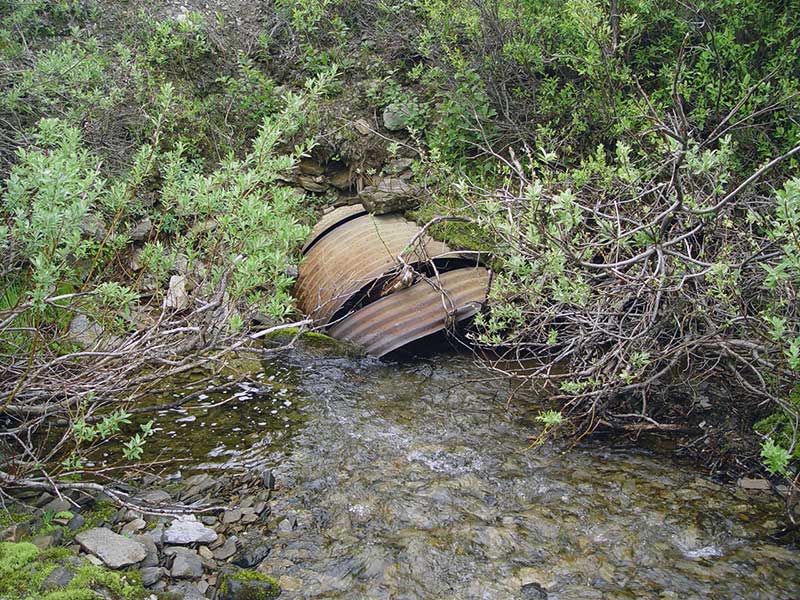

Comments: Pipe crushed at inlet and outlet so invert elevations approximate. Culvert may have been a pipe arch, estimate opening to be approx 3' x 5'. Both inlet and outlet are turned down.

Culvert Measurements

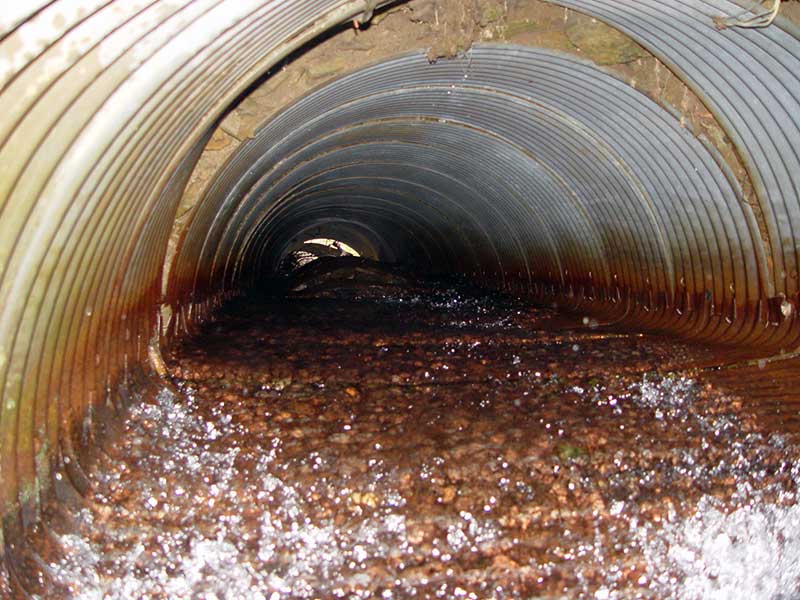

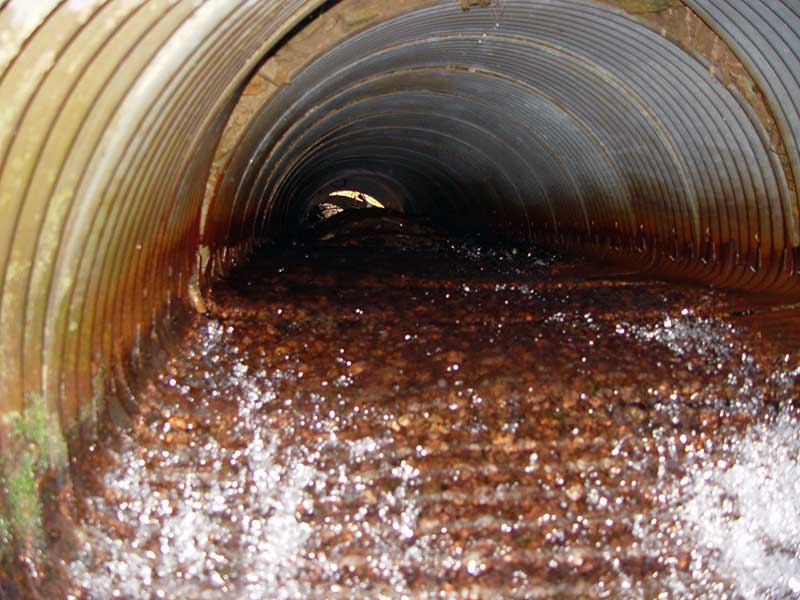

ID: 1 Structure Type: Pipe-arch (Corrugated steel) Fish Passage Rating: Red

Length(ft): 43.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.75
Condition Rating(1-5): 2
Approach Angle: 10.0
Sedimentation At Inlet:
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.7 4.2
Height(ft):3.0 2.48
Apron Length(ft):
Water Depth(ft): 0.83
Rustline Height(ft):3.0
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Embedded Depth(ft): 0.0
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.68
Culvert Gradient: 6.37%
Max Slope:
Max Slope Length:


Comments: water depth in outlet calculated not measured; pipe likely be red due to mech damage. Should be replaced.
  Culvert Observations:
  1. Mechanical damage or joints parting
  2. Culvert gradient red
  3. Constriction ratio gray

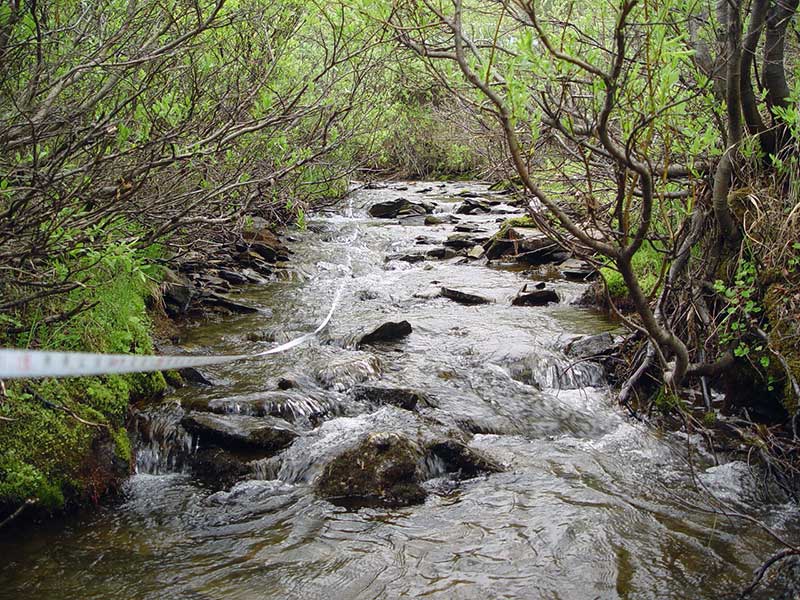

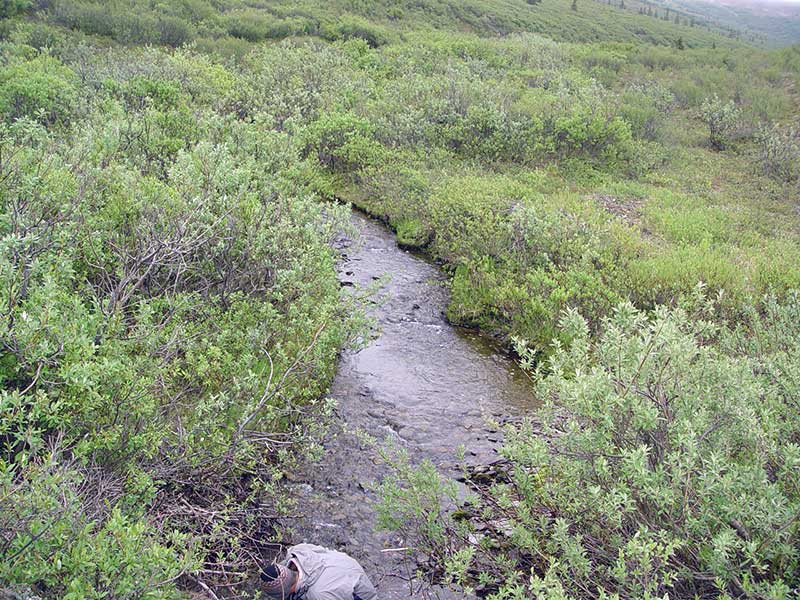

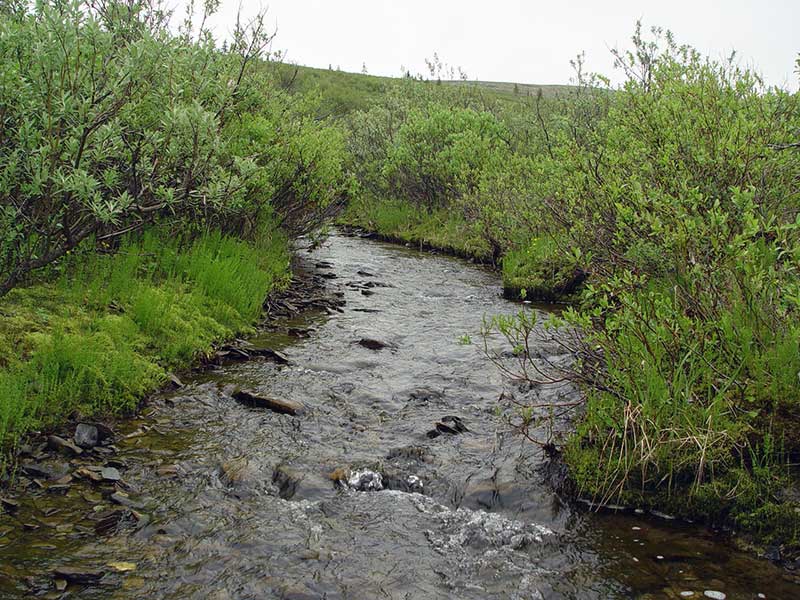

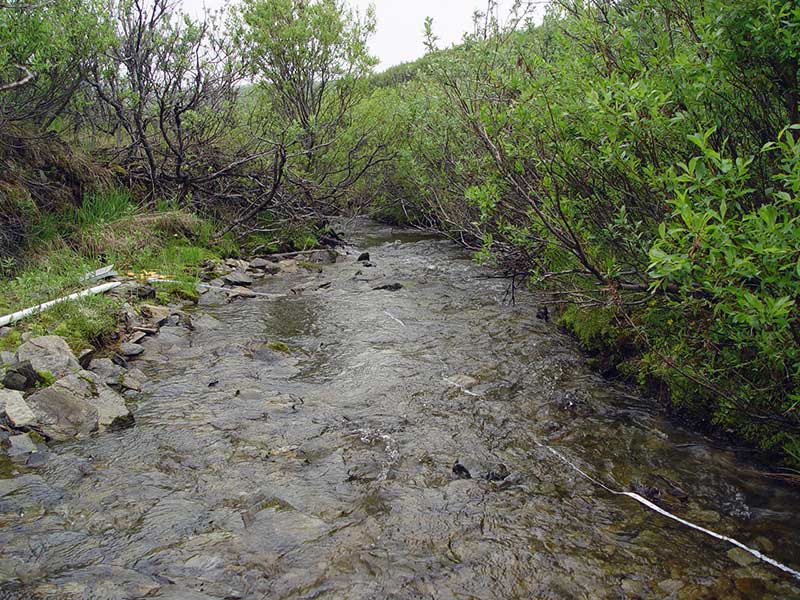

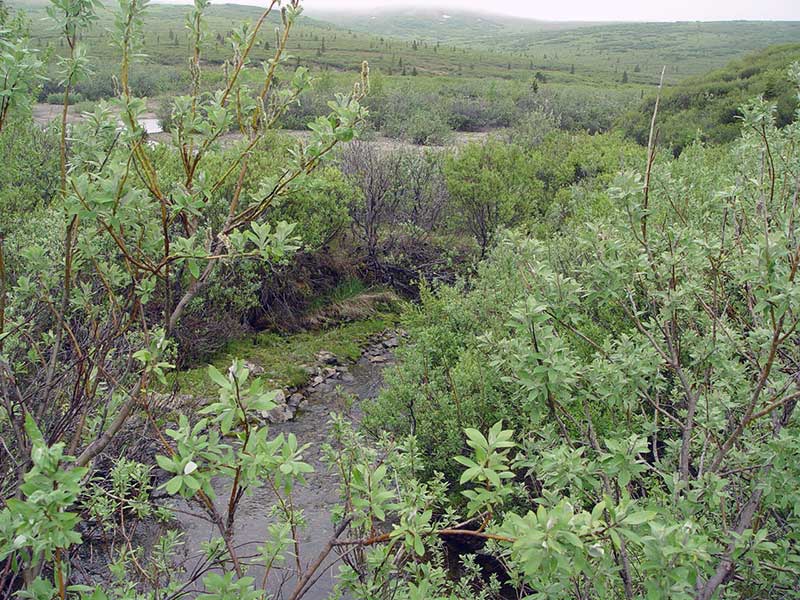

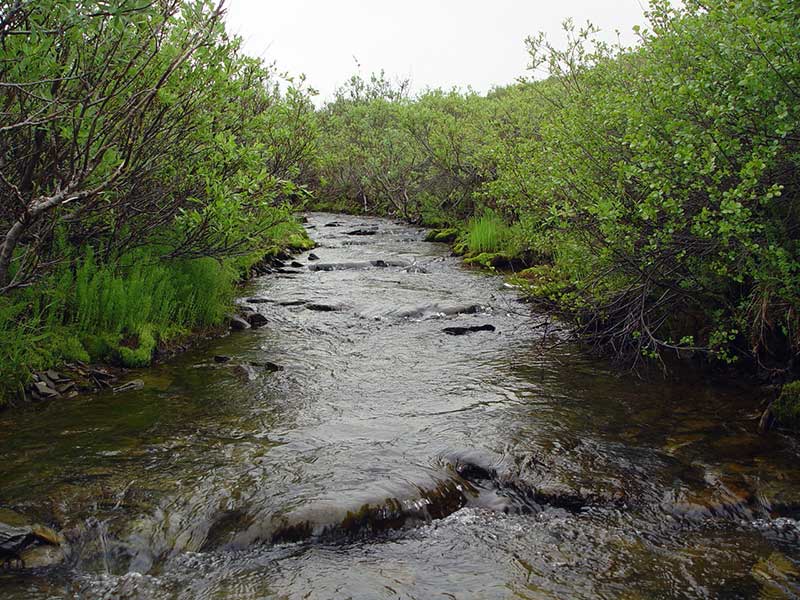

Stream Measurements

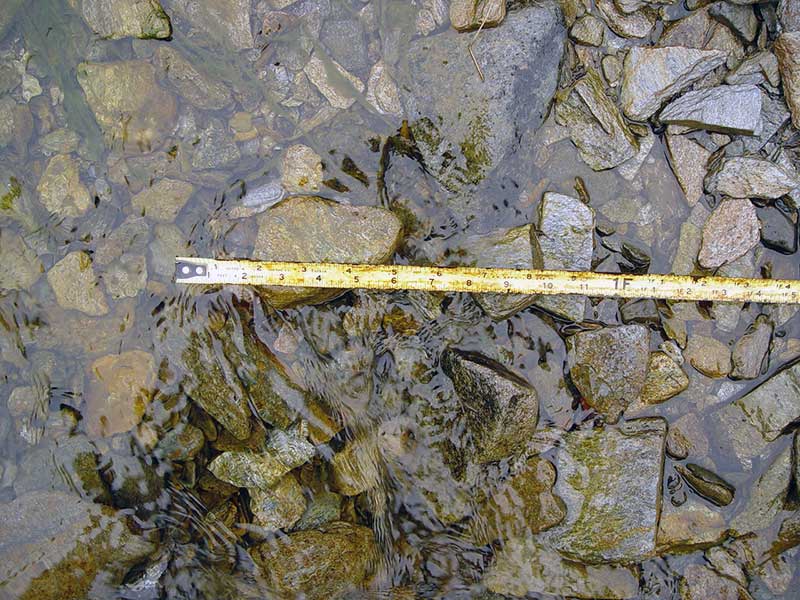

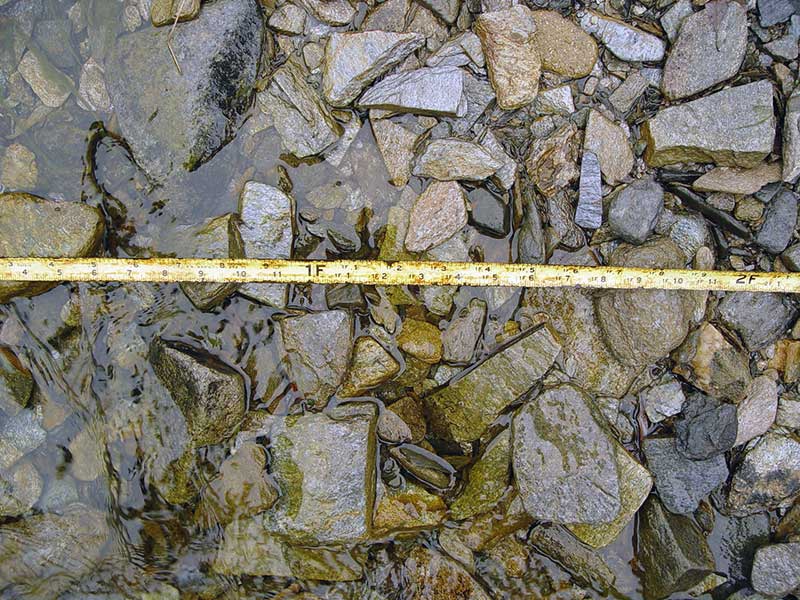

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:GravelCobble
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water 63.0 7.90
Downstream ordinary high water 102.0 8.70
Upstream bank full 75.0 9.60
Upstream bank full 100.0 6.80
Upstream bank full 125.0 8.10
Upstream bank full 150.0 9.80
Upstream bed width
Upstream ordinary high water 75.0 6.80
Upstream ordinary high water 100.0 5.80
Upstream ordinary high water 125.0 6.20
Upstream ordinary high water 150.0 9.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 2.72
Outlet Pool Water Elev 88.85
D/S Grade Ctrl (Thalweg) 0.00 102.0 84.73
D/S Grade Ctrl (Thalweg) 23.00 79.0 85.87
D/S Grade Ctrl (Thalweg) 39.00 63.0 86.36
D/S Grade Ctrl (Thalweg) 48.00 54.0 86.62
D/S Grade Ctrl (Thalweg) 69.00 33.0 87.08
OHW (Outlet Tailcrest) 85.00 17.0 88.92
Bankfull 85.00 17.0 89.28
D/S Tailcrest or 1st Thalweg 85.00 17.0 88.31
D/S Thalweg 97.00 5.0 2.42
D/S Grade Ctrl (Thalweg) 98.00 4.0 86.47
D/S Thalweg 102.00 0.0 87.15
Outlet Invert 1 102.00 0.0 88.02
Road Elev 123.50 99.35
Inlet Culvert Invert 1 145.00 0.0 90.76
U/S Grade Ctrl (Thalweg) 148.00 3.0 91.32
U/S Grade Ctrl (Thalweg) 160.00 15.0 92.23
U/S Grade Ctrl (Thalweg) 177.00 32.0 92.56
U/S Grade Ctrl (Thalweg) 191.00 46.0 92.90
U/S Grade Ctrl (Thalweg) 204.00 59.0 93.21
U/S Grade Ctrl (Thalweg) 225.00 80.0 93.81
U/S Grade Ctrl (Thalweg) 253.00 108.0 94.90

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
