Fish Passage Site 40501773

Coordinates (dec. deg.): 65.35366°, -146.16281°
Legal Description: F006N008E17
Region: Interior
Road Name: Steese Highway Pullout

Datum: WGS84
Quad Name / ITM: Circle B-5
AWC Stream #:
Stream Name: Idaho Creek

Elevation:

Site Comments: Pullout off Steese highway. STS 25 just downstream

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey EDS10-STS24

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

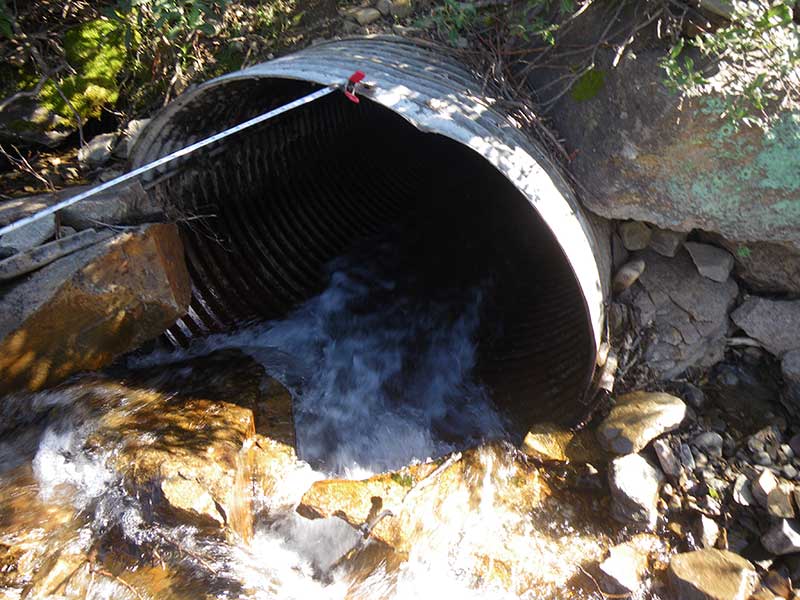

  1. Inlet perch
  2. Outfall height red
  3. Culvert gradient red
  4. Constriction ratio red

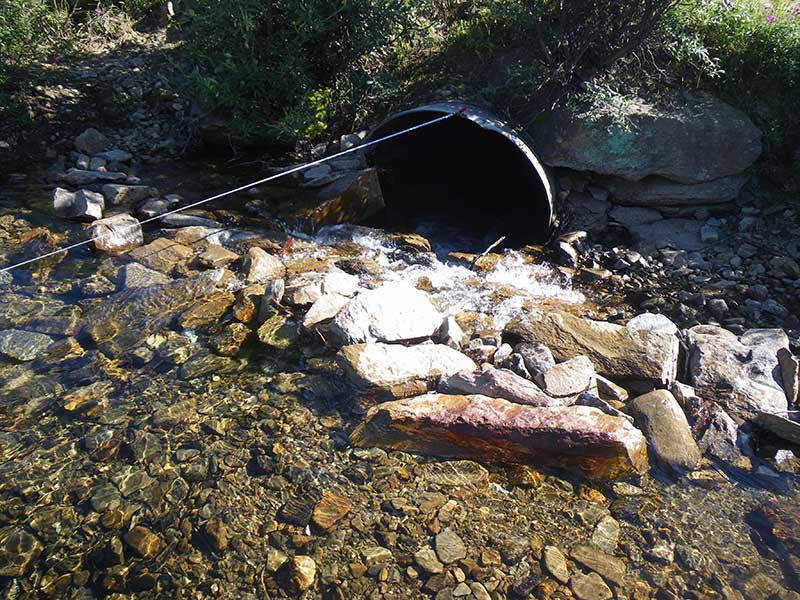

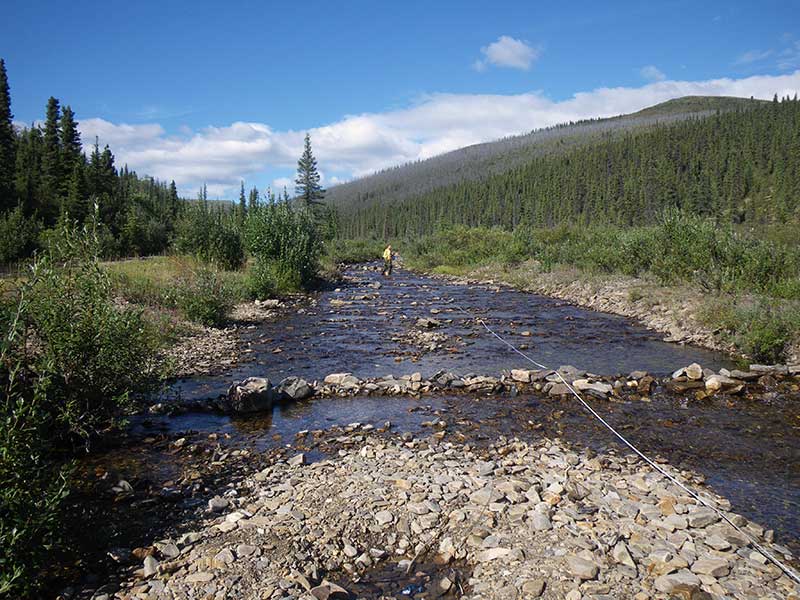

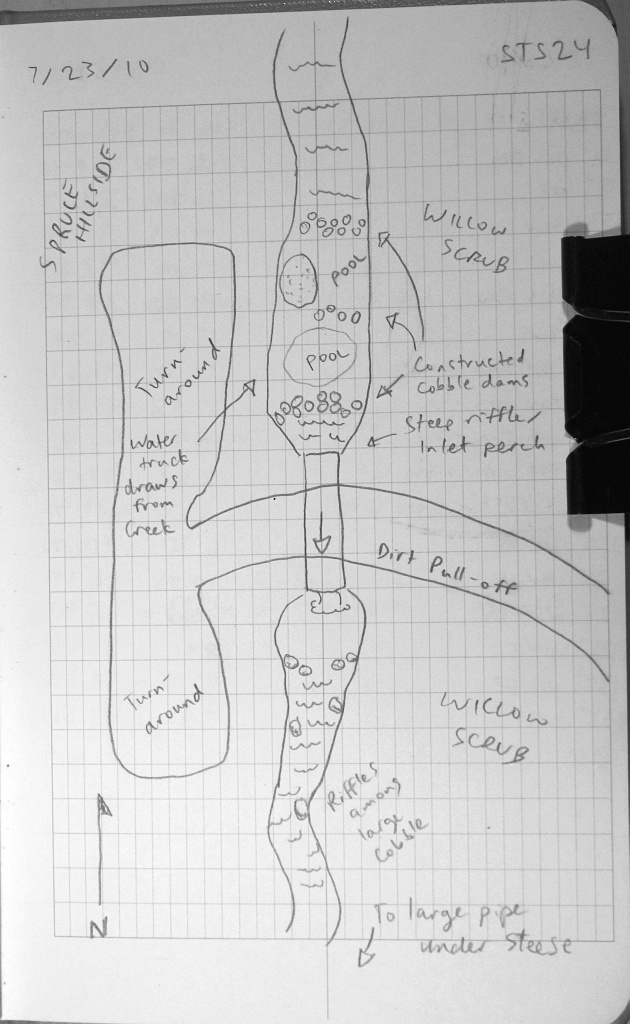

Comments: There is an inlet perch caused by boulders in front of it. This stream appears to be semi-dammed upstream for water trucks. Water is piling up at both sides of the inlet. There is a large outlet pool.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Red

Length(ft): 50.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 2
Approach Angle: 0.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.5 4.4
Height(ft):3.7 4.0
Apron Length(ft):
Water Depth(ft): 0.55
Rustline Height(ft):1.7
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

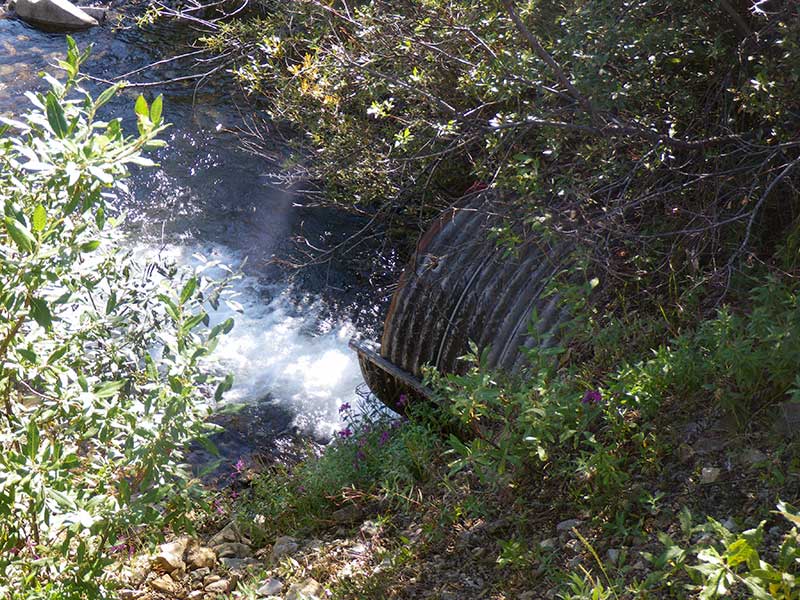

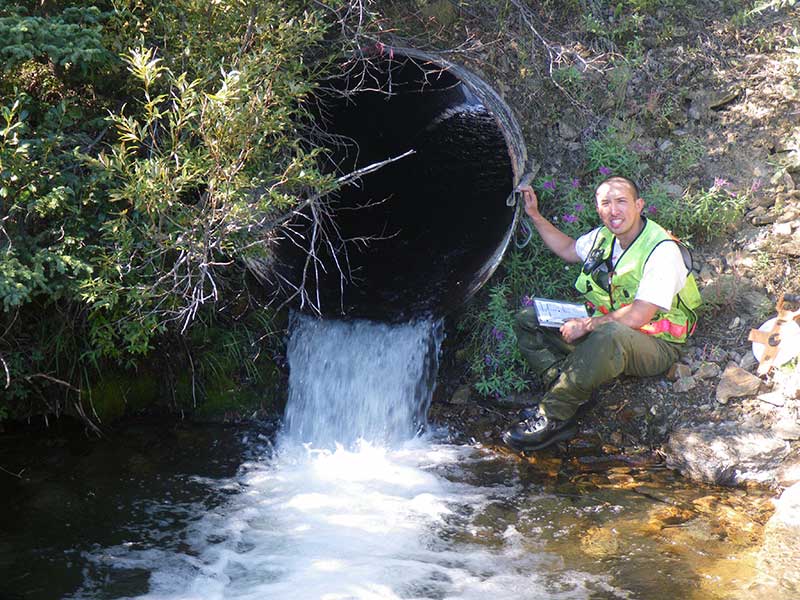

Outfall Height: 1.48
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.23
Culvert Gradient: 4.88%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Inlet perch
  2. Outfall height red
  3. Culvert gradient red
  4. Constriction ratio red

Stream Measurements

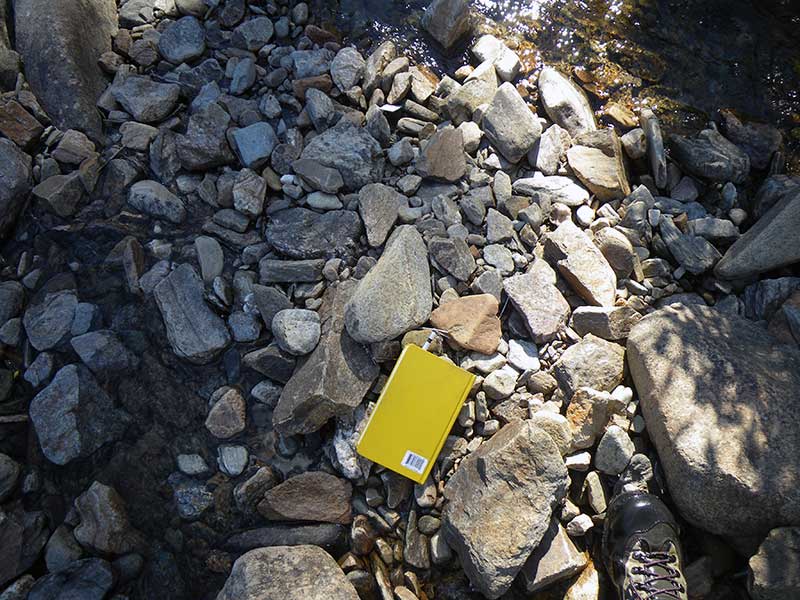

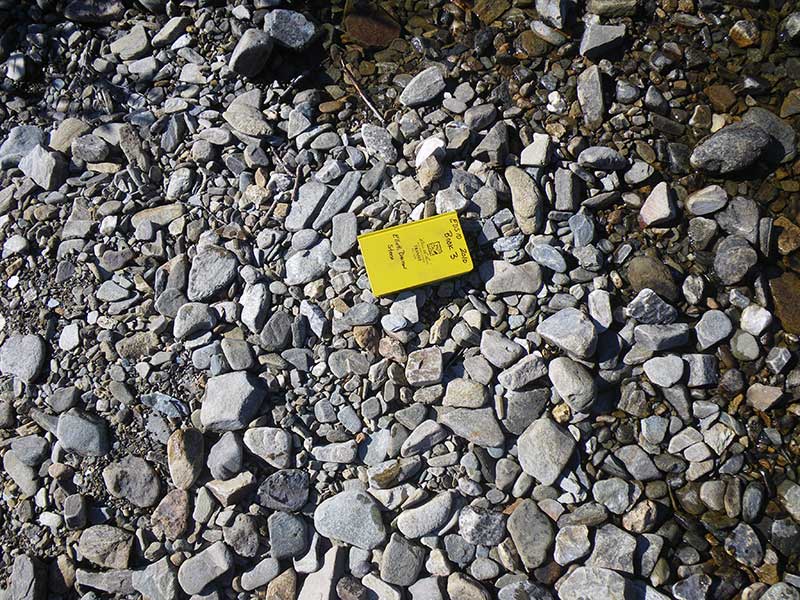

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)
Stream
Width (ft)
Upstream ordinary high water 147.0 17.10
Upstream ordinary high water 229.0 16.50
Upstream ordinary high water 350.0 18.20

Elevations

Locator ID Culvert
Number
River
Distance (ft)1
Distance From
Crossing (ft)2
Relative
Elevation (ft)
Road Elev (Road Surface) 102.71
D/S Thalweg (Tailcrest of Pool Downstream) 0.00 89.40
D/S Water Surface Elev (Water Surface) 0.00 89.77
D/S Tailcrest or 1st Thalweg (Thalweg) 56.00 91.74
D/S Water Surface Elev (Water Surface) 56.00 92.28
D/S Thalweg (Bottom of Plunge Pool/Outlet Pool) 64.00 88.75
D/S Water Surface Elev (Tailwater Surface) 72.00 92.28
Outlet Invert (Bottom of Pipe) 75.00 93.49
D/S Water Surface Elev (Water Surface) 75.00 93.76
D/S Thalweg (Thalweg) 75.00 91.87
Outlet Culvert Top (Top of Pipe) 75.00 97.56
Inlet Culvert Top (Top of Pipe) 125.00 100.00
Inlet Culvert Invert (Bottom of Pipe) 125.00 96.35
U/S Water Surface Elev (Water Surface) 125.00 96.90
U/S Headwater (Headwater Surface) 126.00 97.56
U/S Grade Ctrl (Thalweg) (Thalweg) 132.00 98.23
U/S Water Surface Elev (Water Surface) 132.00 98.50

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.42
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 1.42
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
