Fish Passage Site 40501772

Coordinates (dec. deg.): 65.29781°, -146.42783°
Legal Description: F006N006E36
Region: Interior
Road Name: Steese Highway

Datum: WGS84
Quad Name / ITM: Circle B-5
AWC Stream #:
Stream Name: Tough Luck Creek

Elevation:

Site Comments: MP 67

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey EDS10-STS23

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Culvert gradient red

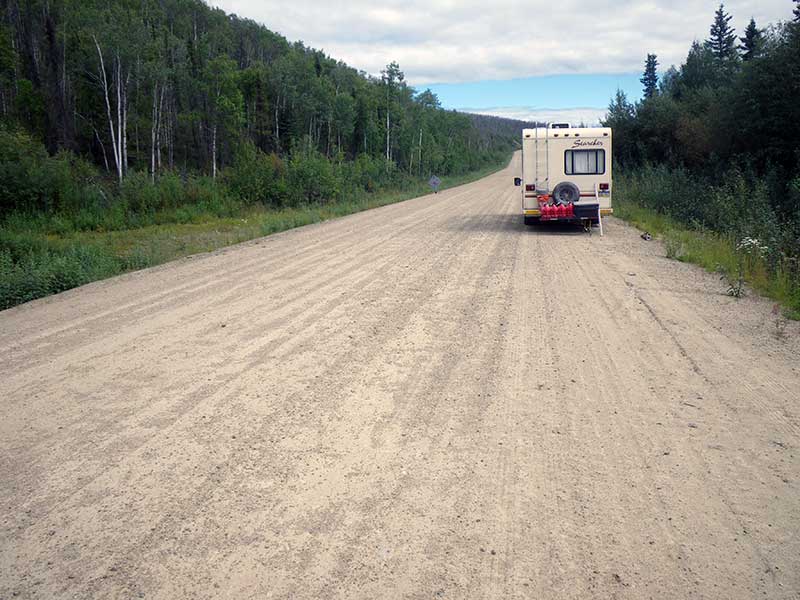

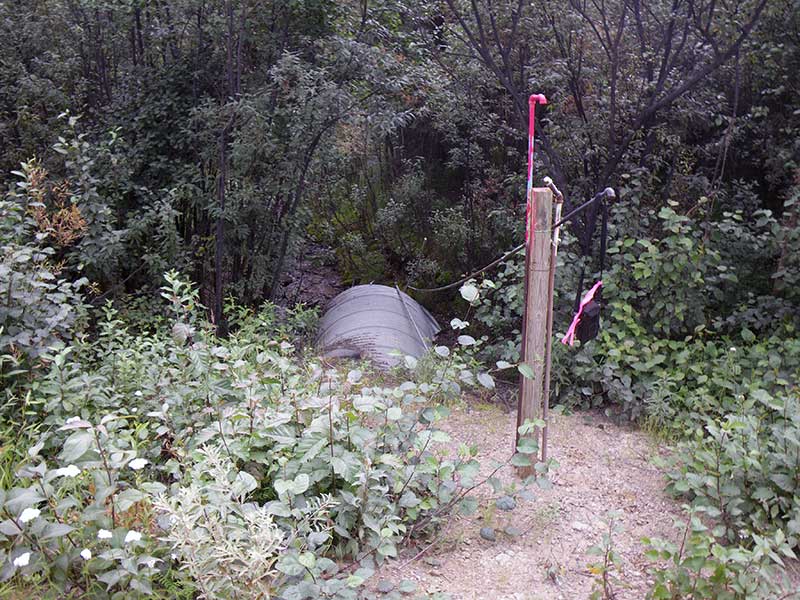

Comments: There is a pond upstream with an unknown liquid resting at the bottom. The outlet is torn on the left side if you are looking upstream. No minnow traps were set out because the water is too shallow other than the pond upstream.

Culvert Measurements

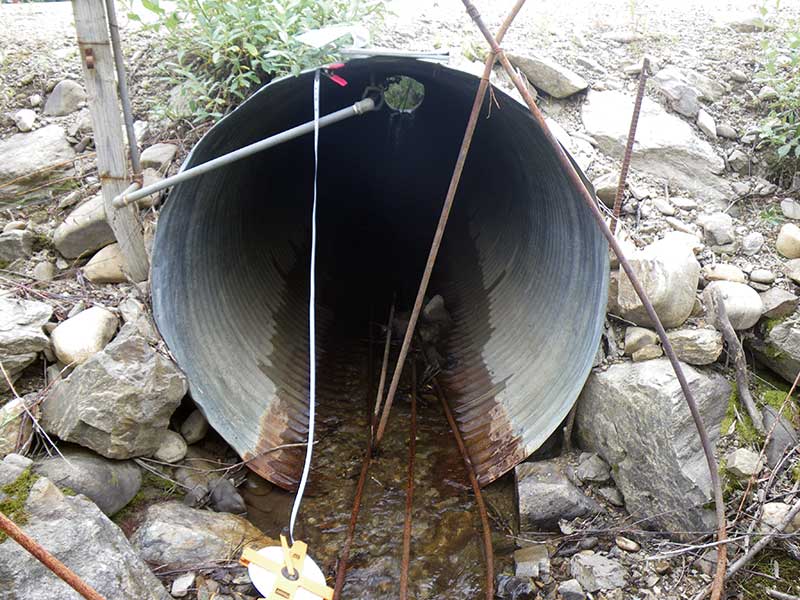

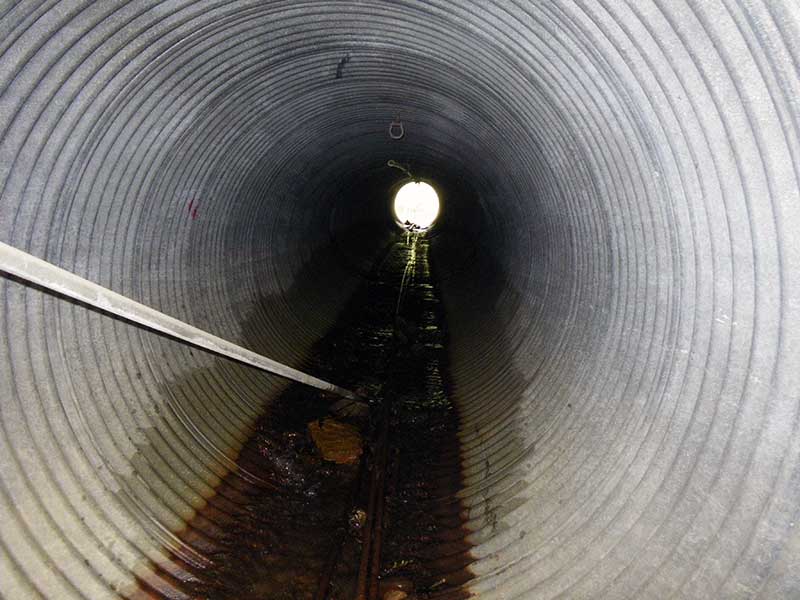

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 76.3
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 3
Approach Angle: 18.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.0 5.0
Height(ft):5.0 5.0
Apron Length(ft):
Water Depth(ft): 0.26
Rustline Height(ft):0.8
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

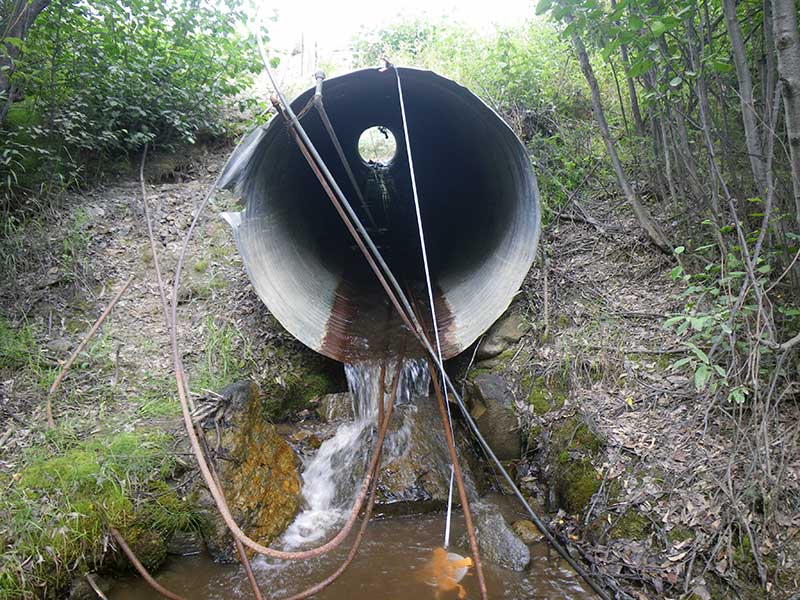

Outfall Height: 1.9
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio: 0.72
Culvert Gradient: 6.80%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Culvert gradient red

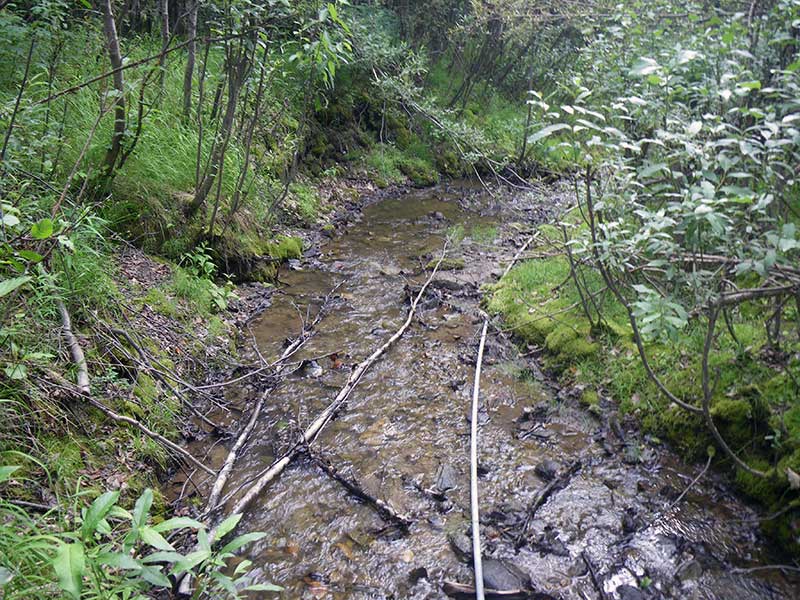

Stream Measurements

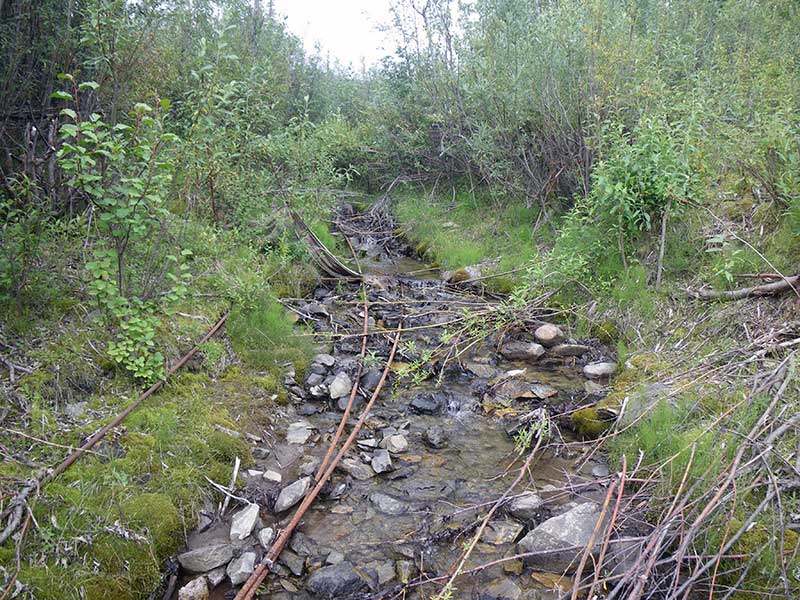

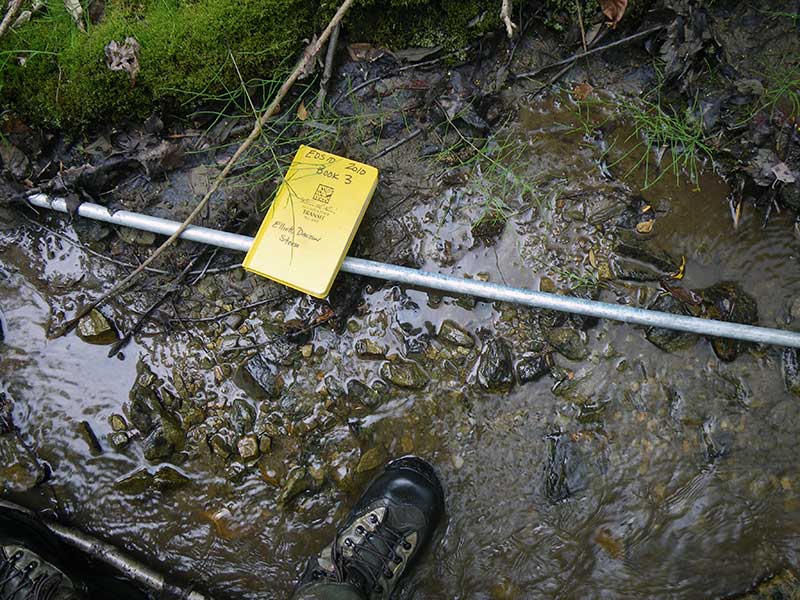

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 68.0 4.40
Upstream ordinary high water 120.0 4.10
Upstream ordinary high water 137.0 2.30

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 101.60
D/S Grade Ctrl (Thalweg) (Tailcrest of Pool in Long Riffle Downstream) 0.00 85.65
D/S Water Surface Elev (Water Surface) 0.00 85.84
D/S Tailcrest or 1st Thalweg (Thalweg) 32.00 87.91
D/S Water Surface Elev (Water Surface) 32.00 88.15
D/S Thalweg (Bottom of Outlet Pool) 36.00 87.49
D/S Thalweg 39.00 88.72
Outlet Invert (Bottom of Pipe) 39.00 89.79
D/S Water Surface Elev (Water Surface) 39.00 90.05
Outlet Culvert Top (Top of Pipe) 39.00 94.81
Inlet Culvert Invert (Bottom of Pipe) 115.30 94.98
U/S Water Surface Elev (Water Surface) 115.30 95.24
Inlet Culvert Top (Top of Pipe) 115.30 100.09
U/S Headwater (Headwater Surface) 116.00 95.24
U/S Grade Ctrl (Thalweg) (Thalweg) 131.00 96.46
U/S Water Surface Elev (Water Surface) 131.00 96.61

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
