Fish Passage Site 40501771

Coordinates (dec. deg.): 65.29315°, -146.50406°
Legal Description: F005N006E03
Region: Interior
Road Name: Steese Highway

Datum: WGS84
Quad Name / ITM: Circle B-6
AWC Stream #:
Stream Name: No Name Creek

Elevation:

Site Comments: MP 65

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey EDS10-STS22

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Road bank erosion
  2. Structural Problem
  3. Inlet perch
  4. Compound gradient in pipe
  5. Mechanical damage or joints parting
  6. Culvert gradient red

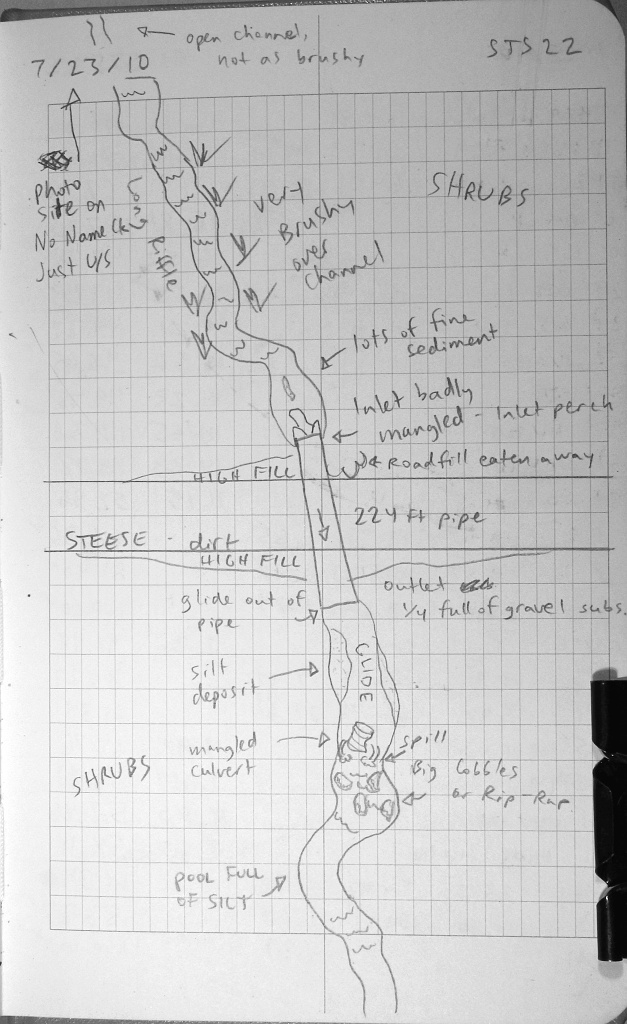

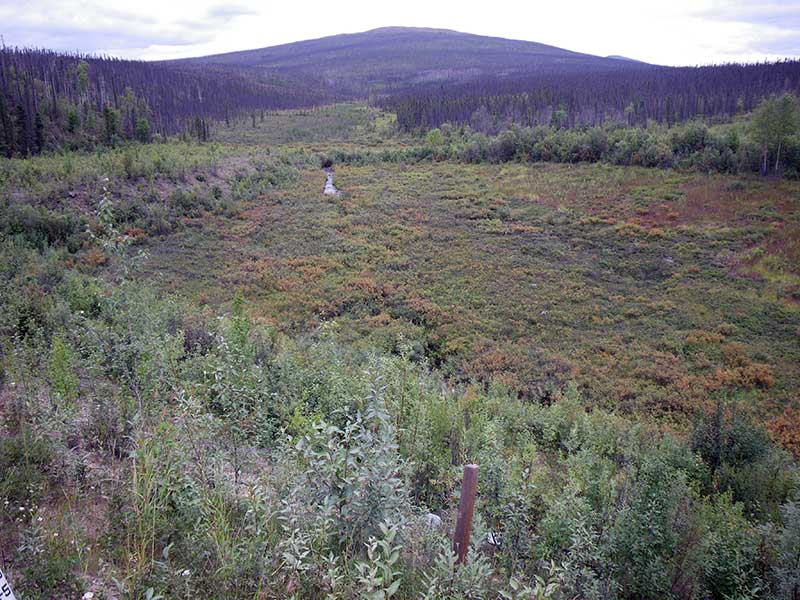

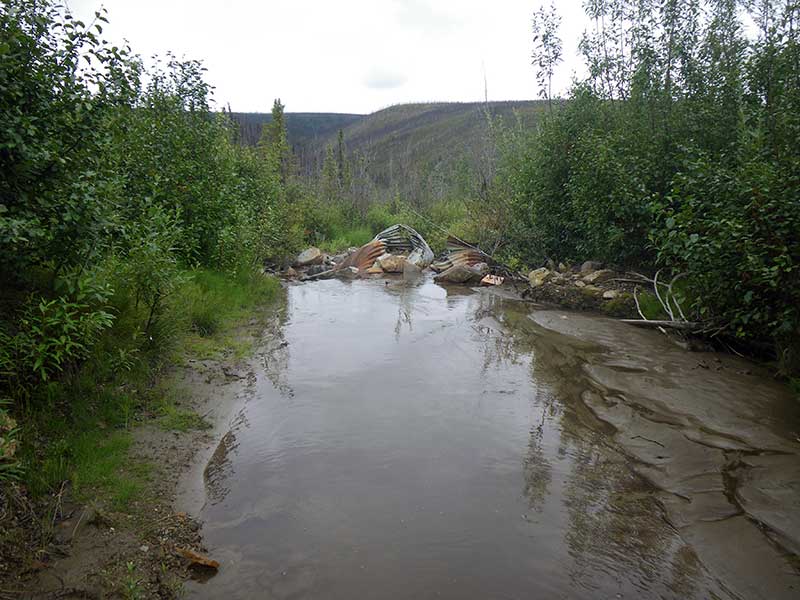

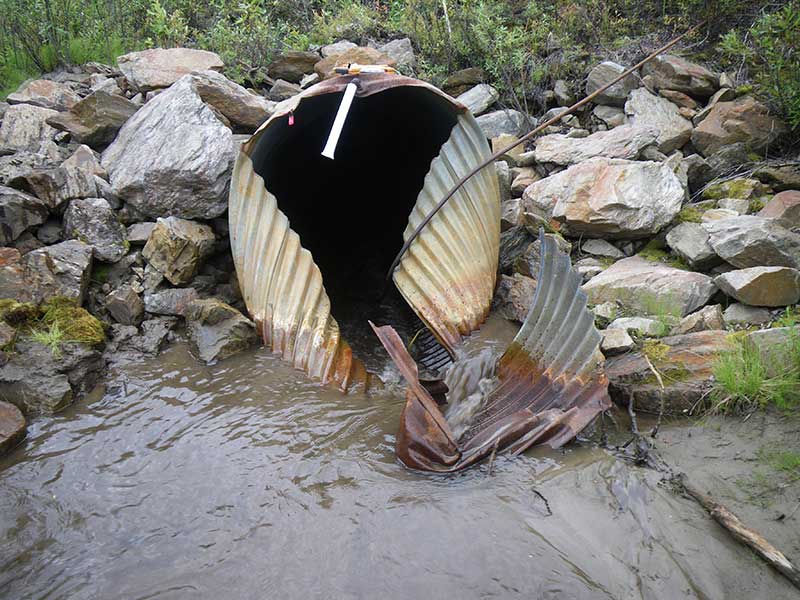

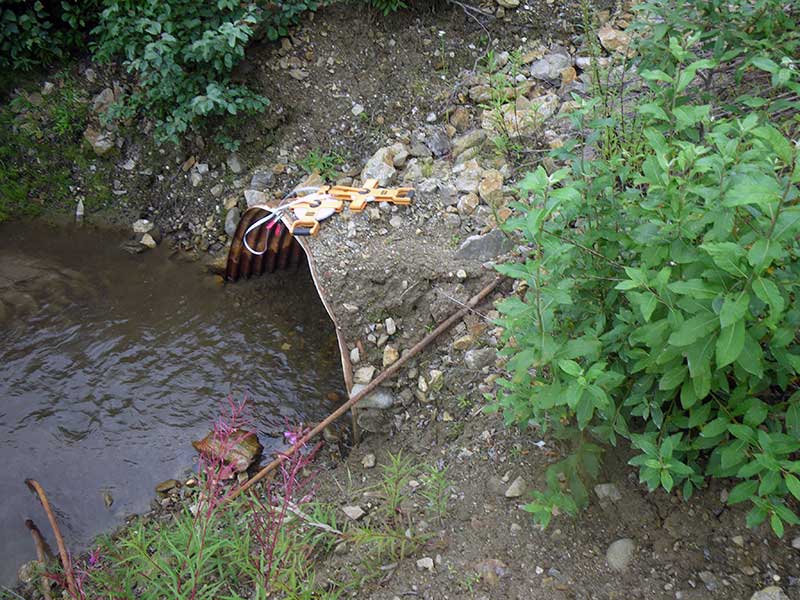

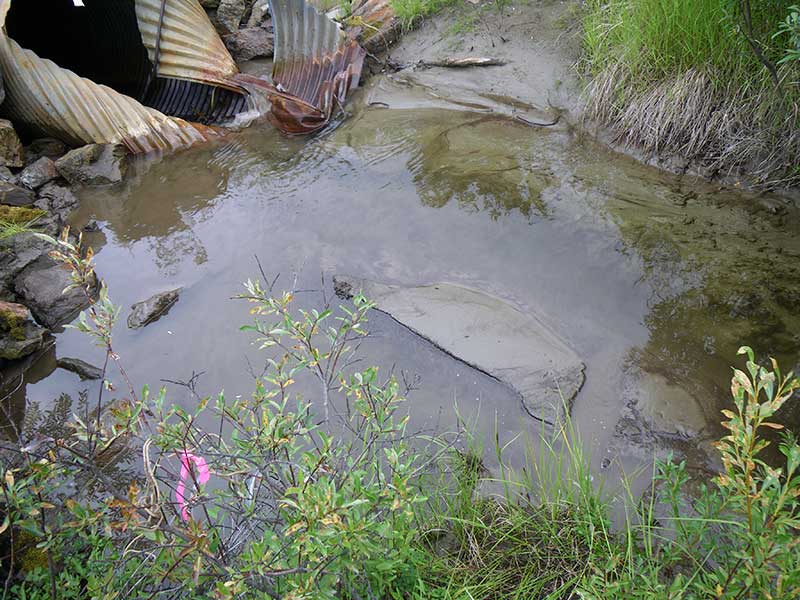

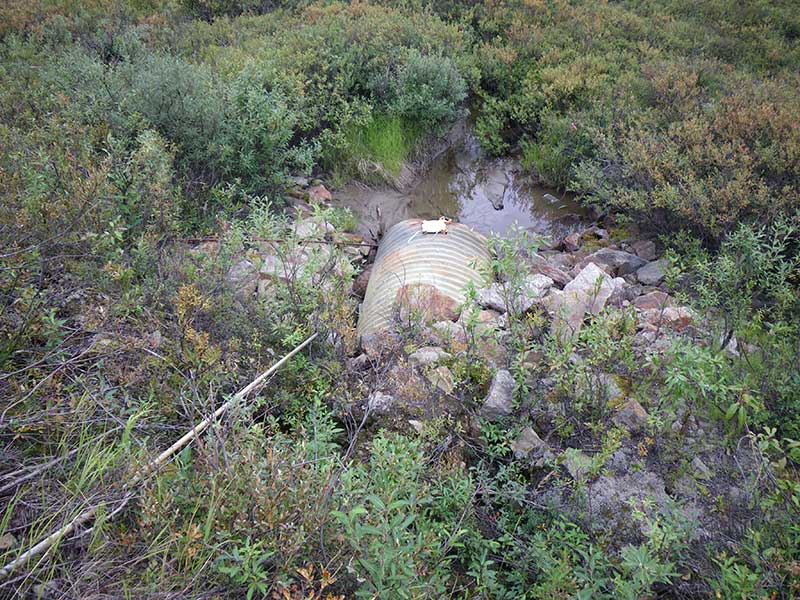

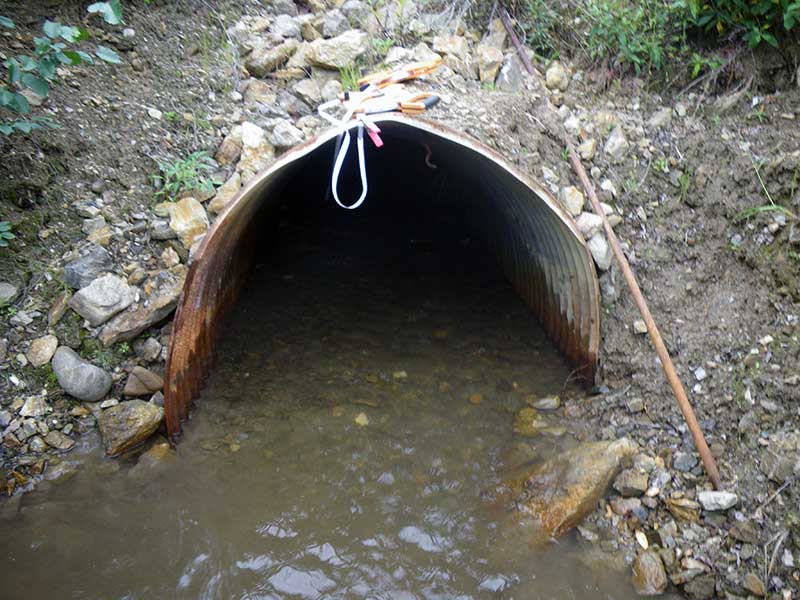

Comments: The outlet has a large portion broken off and it is about 50 feet downstream. The inlet is ripping apart and it is extremely bent in. There is an inlet perch present. There is also a 4.5 foot mitered section on the inlet. This pipe is coming apart throughout. The rust line height was taken from inside the mitered section.

Culvert Measurements

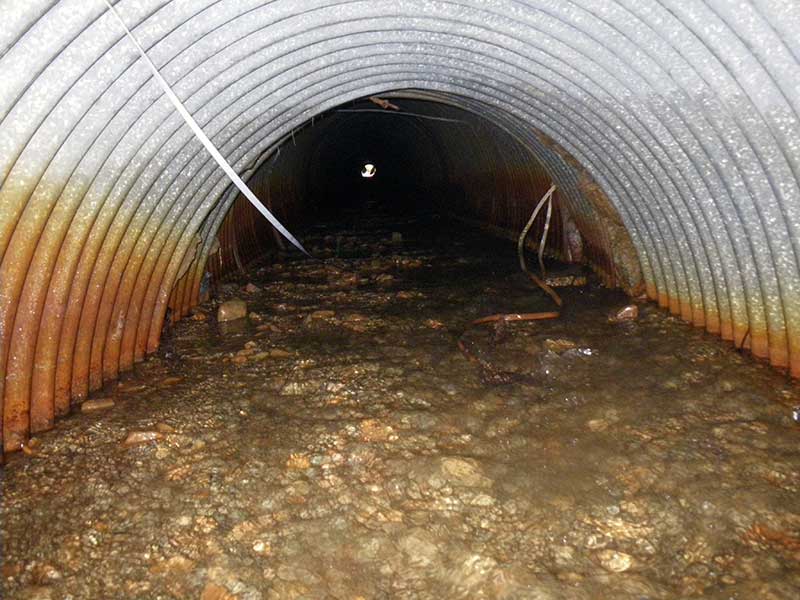

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 224.0
Inlet Type: Mitered
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 1
Approach Angle: 11.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: Cobble
InletOutlet
Width(ft):5.0 4.5
Height(ft):4.7 5.0
Apron Length(ft):
Water Depth(ft): 0.42
Rustline Height(ft):0.7
Substrate Depth(ft):0.0 1.65
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.96
Culvert Gradient: 3.79%
Max Slope: 23.33
Max Slope Length: 4.5
  Culvert Observations:
  1. Road bank erosion
  2. Inlet perch
  3. Structural Problem
  4. Mechanical damage or joints parting
  5. Compound gradient in pipe
  6. Culvert gradient red

Stream Measurements

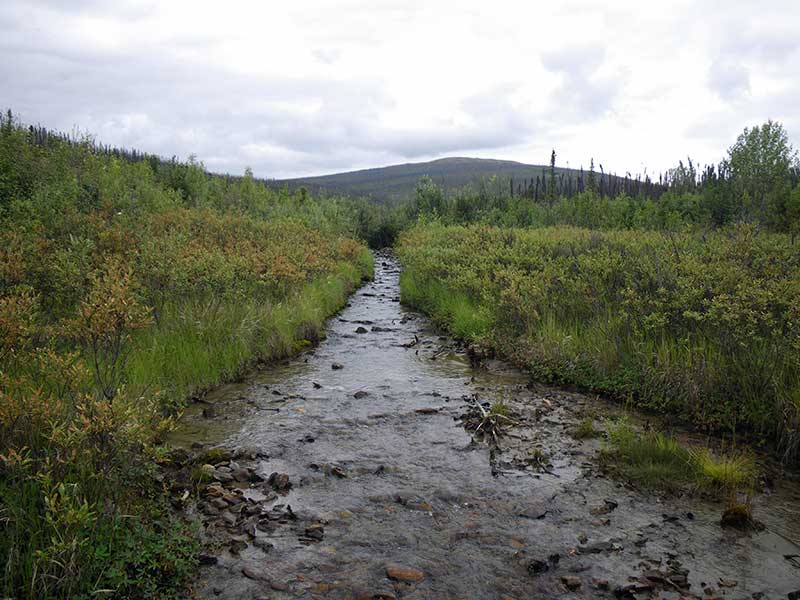

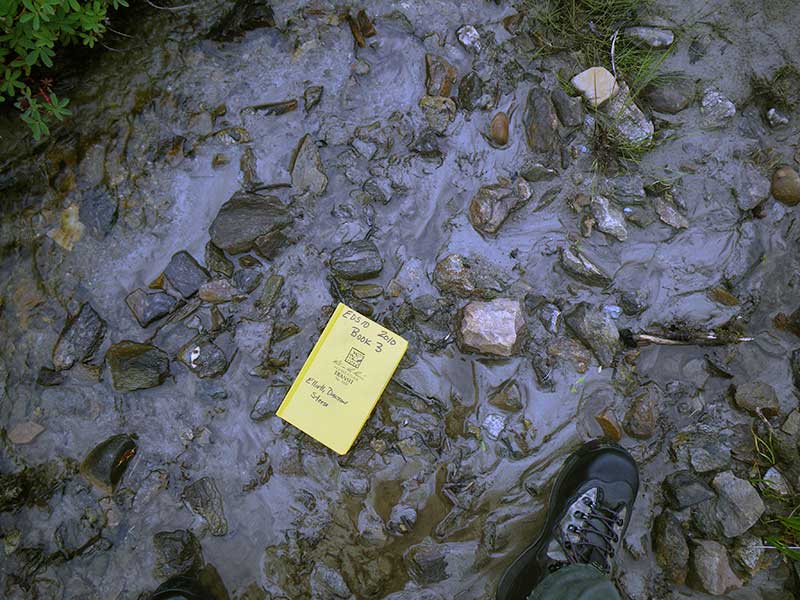

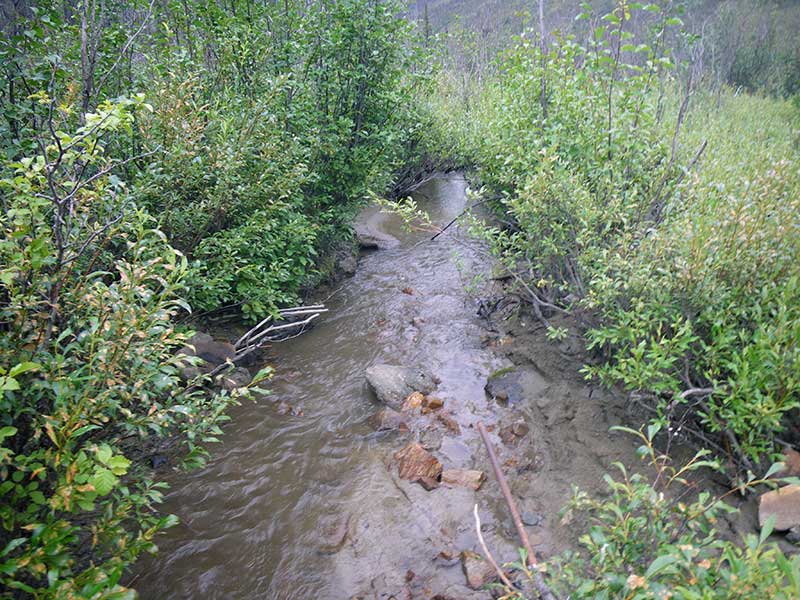

Stream SubstratesUpstreamDownstream
Dominant:GravelSilt/Clay
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 132.0 2.90
Upstream ordinary high water 189.0 5.50
Upstream ordinary high water 243.0 6.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 98.98
D/S Grade Ctrl (Thalweg) (Tailcrest of Pool Downstream) 0.00 47.20
D/S Water Surface Elev (Water Surface) 0.00 47.48
D/S Tailcrest or 1st Thalweg (Tailcrest of Outlet Pool - Full of Silt) 24.00 49.43
D/S Water Surface Elev (Water Surface) 24.00 49.77
D/S Thalweg (Bottom of Outlet Pool) 52.00 48.65
D/S Water Surface Elev (Water Surface) 55.00 49.78
D/S Water Surface Elev (Water Surface) 57.00 49.78
Outlet Culvert Top (Top of Pipe) 57.00 52.86
Outlet Invert (On Gravel Substrate) 57.00 49.36
Inlet Culvert Top (Top of Miter) 276.50 61.76
U/S Thalweg (Elevation of the Bottom of the Pipe Below the Top of the Miter) 276.50 56.81
Inlet Culvert Invert (Inlet Bent Back - Water Flows Over Bent Part) 281.00 57.86
U/S Headwater (Water Surface = Headwater Surface, Calm Pool at Inlet) 281.00 58.11

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 2.5
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 2.5
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
