Fish Passage Site 40501768

Coordinates (dec. deg.): 65.28640°, -146.56053°
Legal Description: F005N006E05
Region: Interior

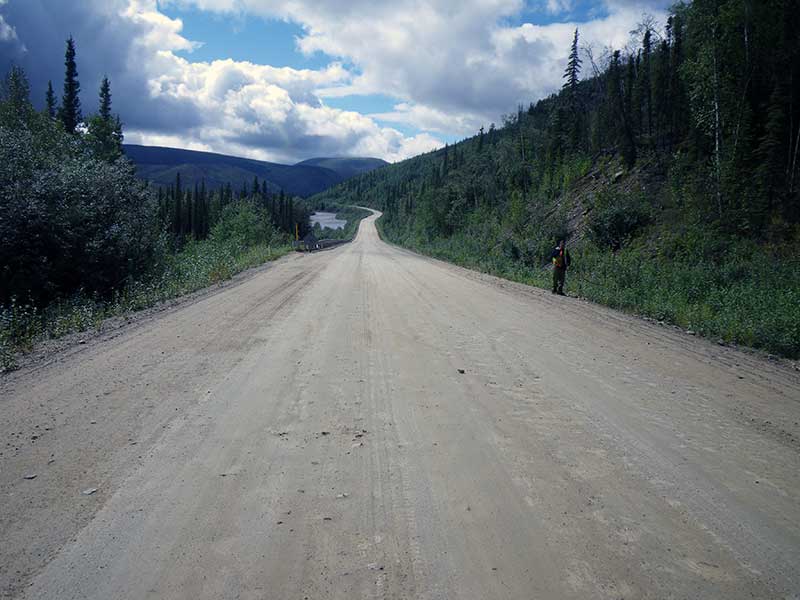

Road Name: Steese Highway

Datum: WGS84
Quad Name / ITM: Circle B-6
AWC Stream #:
Stream Name: Little Caribou Creek

Elevation:

Site Comments: None

Survey Date: Jul 22, 2010

Survey EDS10-STS19

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Culvert gradient red

Comments: No longitudinal profile was done here because the outfall height is red and there is questionable habitat upstream. The gradient would most likely be red. No minnow traps were set out because the water is too shallow.

Culvert Measurements

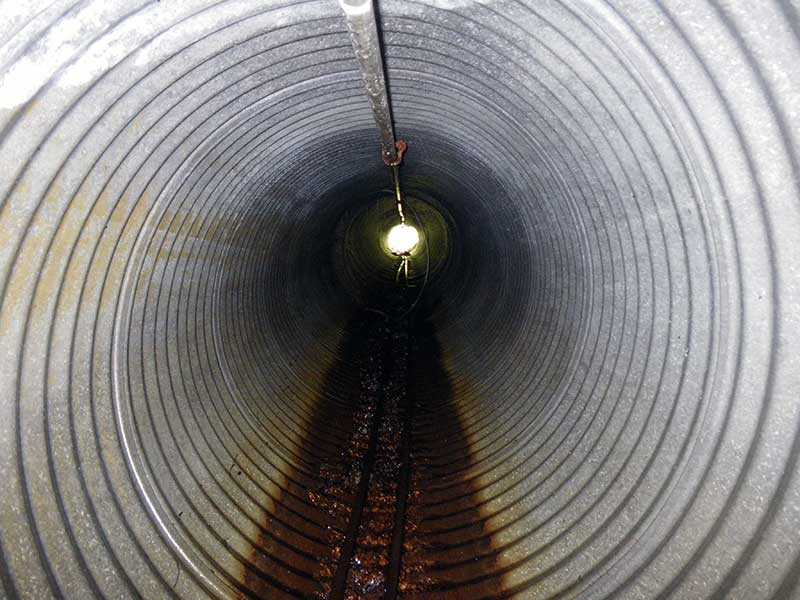

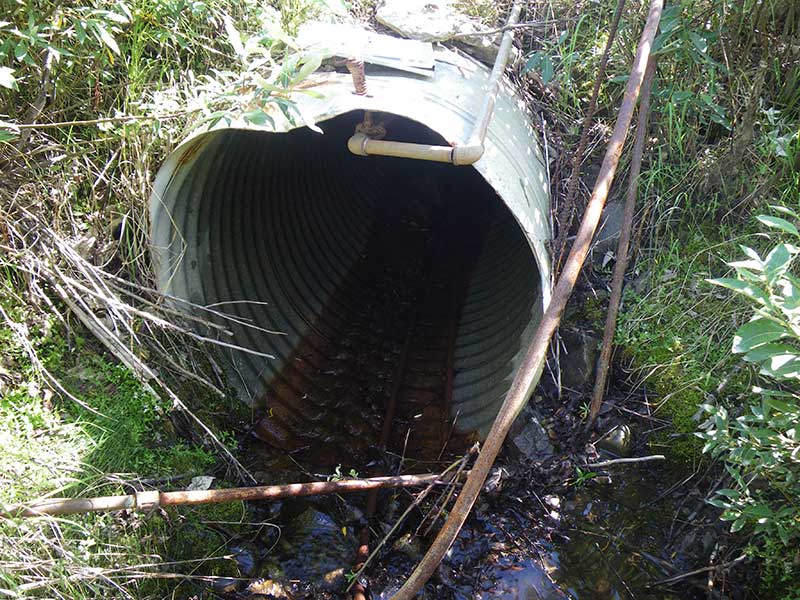

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 67.6

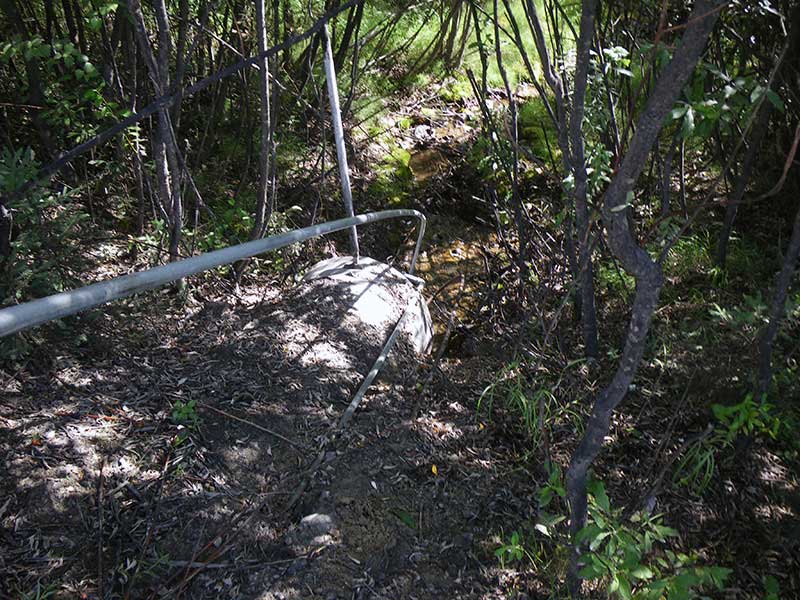

Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 3
Approach Angle: 45.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.0 2.8
Height(ft):3.0 3.1
Apron Length(ft):
Water Depth(ft): 0.05
Rustline Height(ft):0.3
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

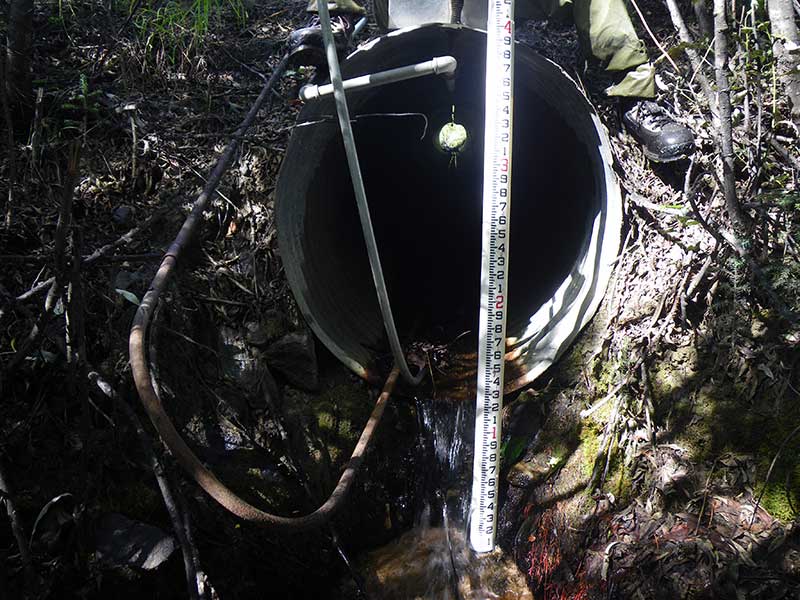

Outfall Height: 1.4
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.97
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Culvert gradient red

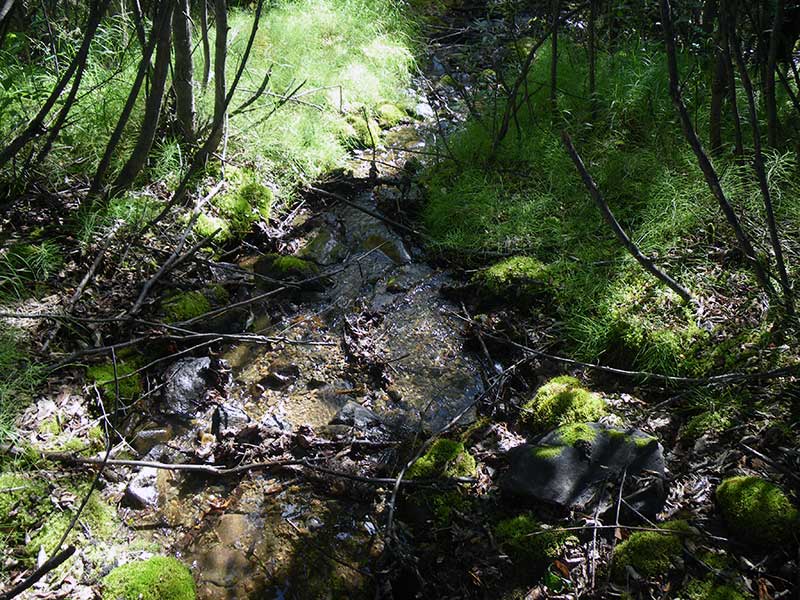

Stream Measurements

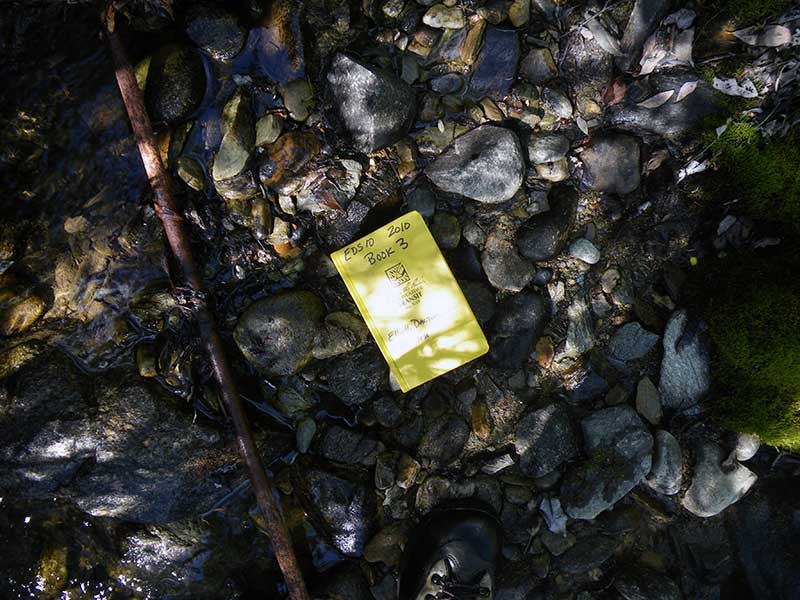

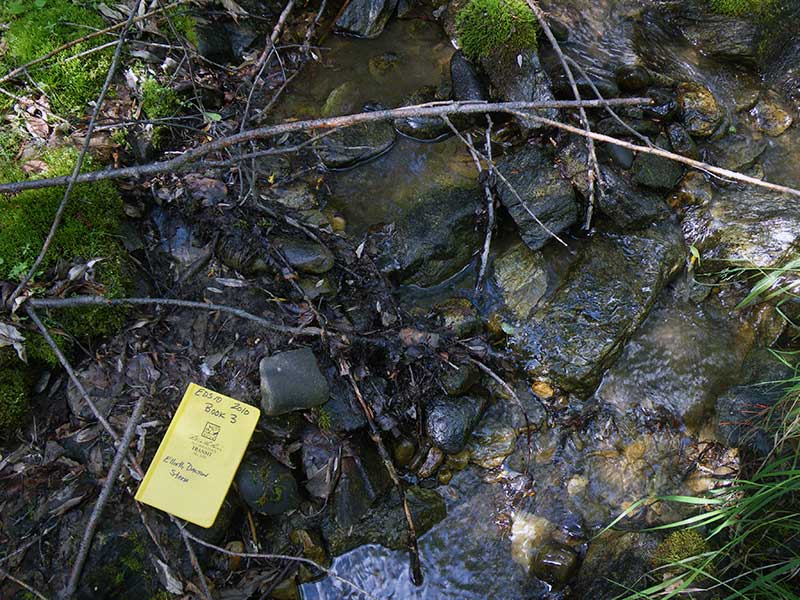

Stream SubstratesUpstreamDownstream
Dominant:CobbleGravel
Subdominant:GravelCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 27.0 4.50
Upstream ordinary high water 55.0 2.60
Upstream ordinary high water 101.0 2.10

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set water too shallow, no fish observed.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
