Fish Passage Site 40501766

Coordinates (dec. deg.): 65.27636°, -146.64987°
Legal Description: F005N005E11
Region: Interior
Road Name: Cripple Creek Camp Road

Datum: WGS84
Quad Name / ITM: Circle B-6
AWC Stream #:
Stream Name: Cripple Creek

Elevation:

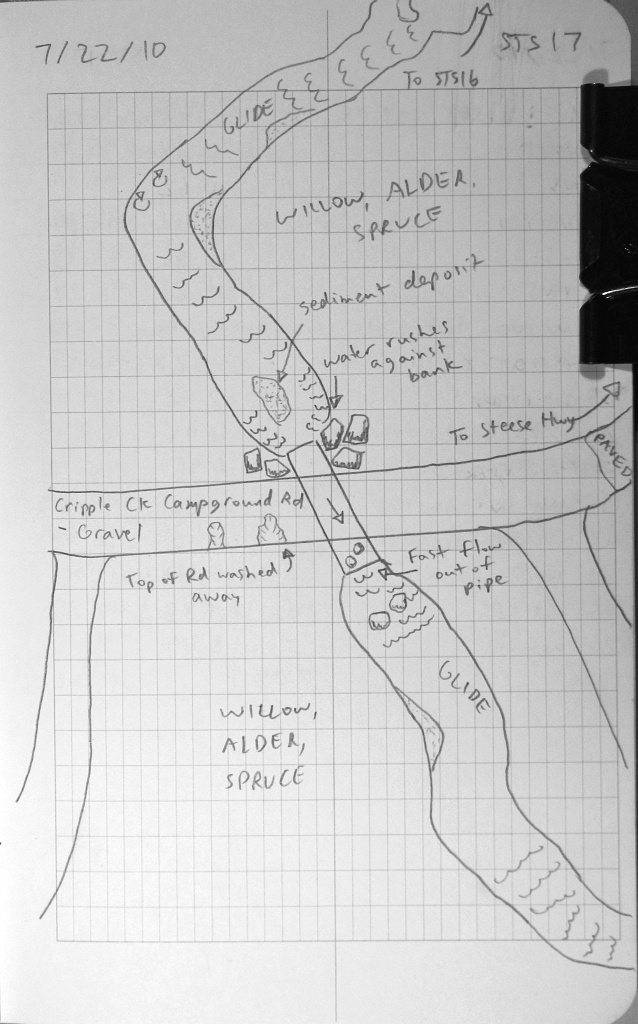

Site Comments: On the campground road. Site is downstream from STS16.

Survey Date: Jul 22, 2010

Survey EDS10-STS17

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Mechanical damage or joints parting
  2. Structural Problem
  3. Constriction ratio gray

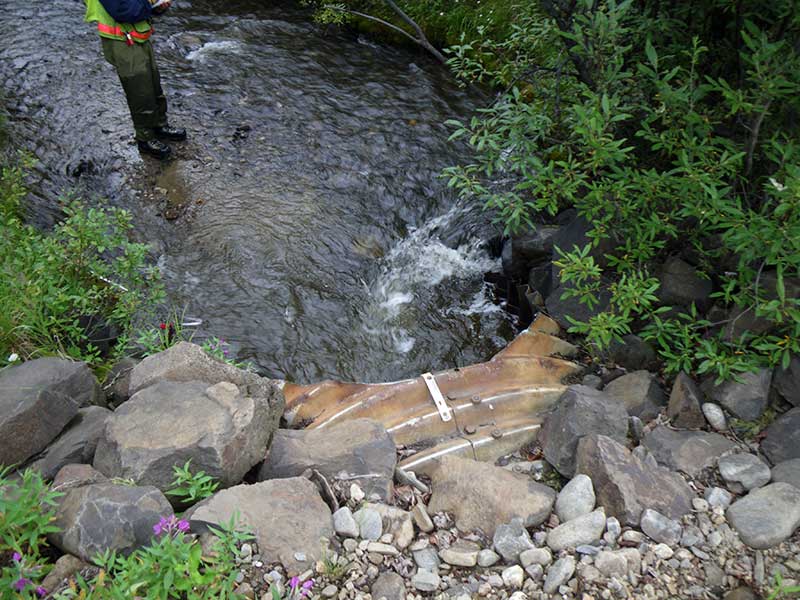

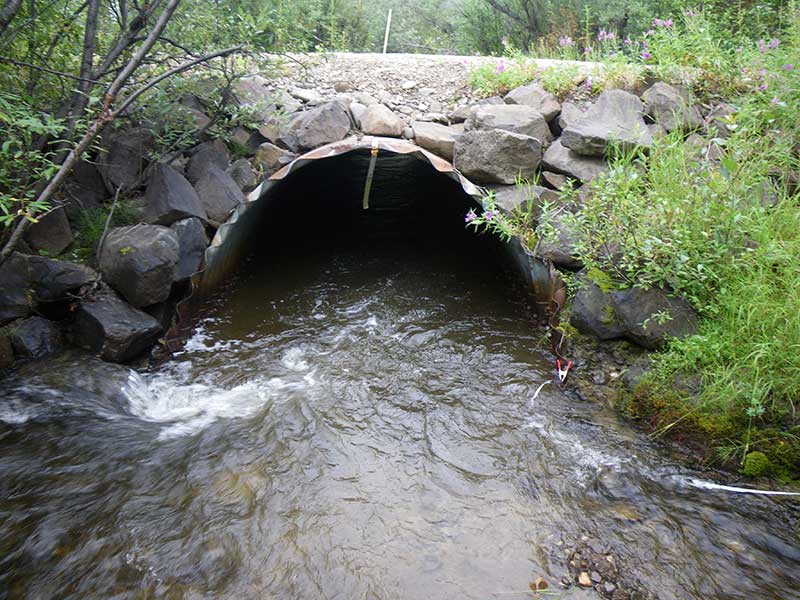

Comments: Water piles up to the left of the inlet if you're looking downstream. Water pours into the culvert after this. There is a 5 foot mitered section at the outlet and a 5 foot mitered section at the inlet. The outlet is bent up. Water surface measurements were used to calculate the gradient through the pipe.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Gray

Length(ft): 53.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5): 2
Approach Angle: 38.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):6.4 6.1
Height(ft):5.0 4.6
Apron Length(ft):
Water Depth(ft): 0.9
Rustline Height(ft):2.9
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.61
Culvert Gradient: 0.25%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Mechanical damage or joints parting
  2. Structural Problem
  3. Constriction ratio gray

Stream Measurements

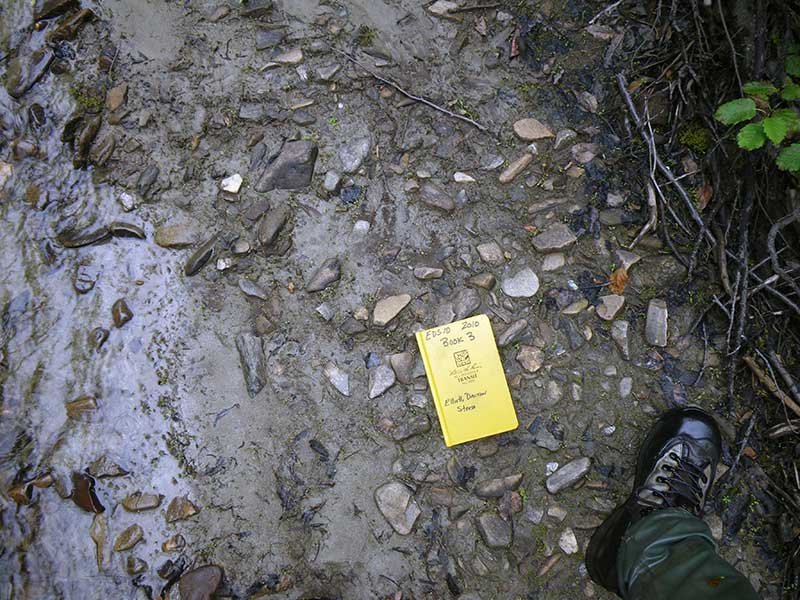

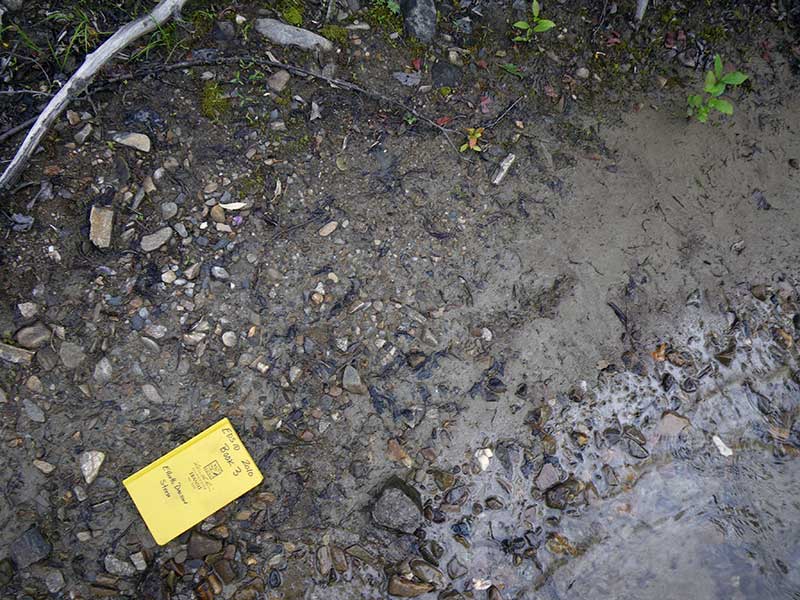

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:High
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)

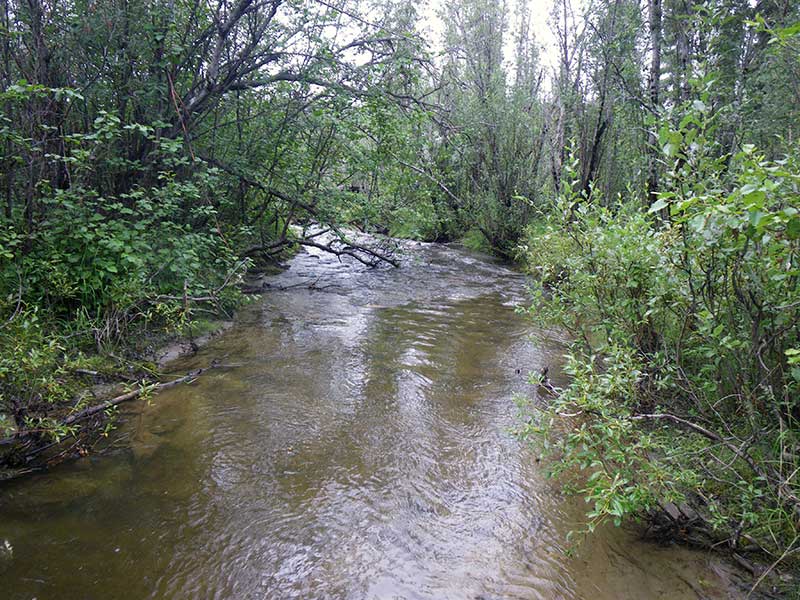

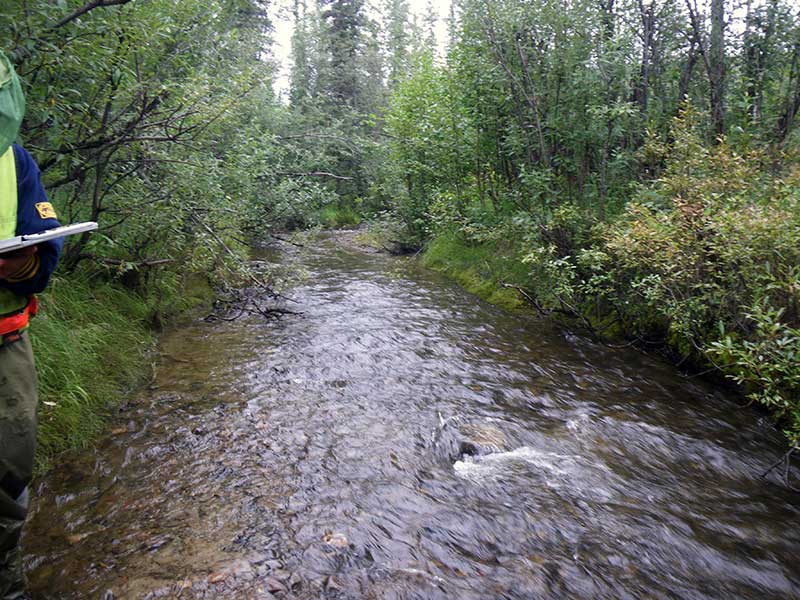

Upstream ordinary high water 99.0 9.90
Upstream ordinary high water 162.0 9.40
Upstream ordinary high water 229.0 10.70

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 102.13
D/S Water Surface Elev (Water Surface) 0.00 96.46
D/S Grade Ctrl (Thalweg) (Top of 1st Riffle Downstream) 0.00 95.70
D/S Thalweg (High Point on Riffle at Outlet) 80.00 96.16
D/S Water Surface Elev (Water Surface) 80.00 96.78
D/S Water Surface Elev (Tailwater Surface) 87.00 96.87
Outlet Invert (Pipe is Bent up to Form a Lip at the End of the Miter) 90.00 95.95
D/S Water Surface Elev (Turbulent) 90.00 96.85
Outlet Culvert Top (Top of Miter) 96.50 100.00
Inlet Culvert Top (Top of Miter) 138.00 100.12
Inlet Culvert Invert (Bottom of Pipe) 143.00 95.28
U/S Water Surface Elev (Water Surface) 143.00 96.98
U/S Headwater (Just Outside Inlet.) 143.00 97.09
U/S Grade Ctrl (Thalweg) (Tailcrest of 1st Pool Upstream) 226.00 97.25
U/S Water Surface Elev (Water Surface) 226.00 98.09

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.0
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 1.0
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
