Fish Passage Site 40501761

Coordinates (dec. deg.): 65.22720°, -146.94063°
Legal Description: F005N004E28
Region: Interior
Road Name: Steese Highway

Datum: WGS84
Quad Name / ITM: Circle A-6
AWC Stream #:
Stream Name: Moose Creek

Elevation:

Site Comments: None

Survey Date: Jul 20, 2010

Survey EDS10-STS12

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Compound gradient in pipe
  2. Culvert gradient red
  3. Structural Problem
  4. Mechanical damage or joints parting
  5. Constriction ratio gray

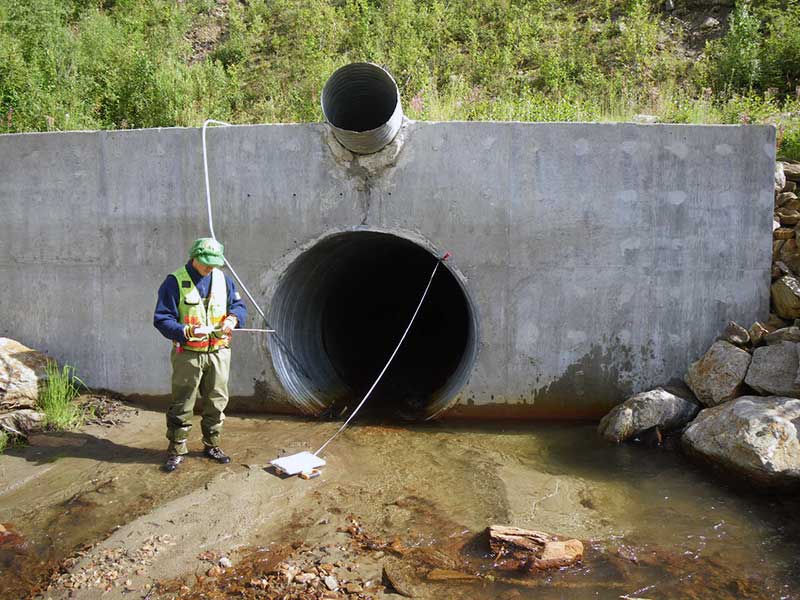

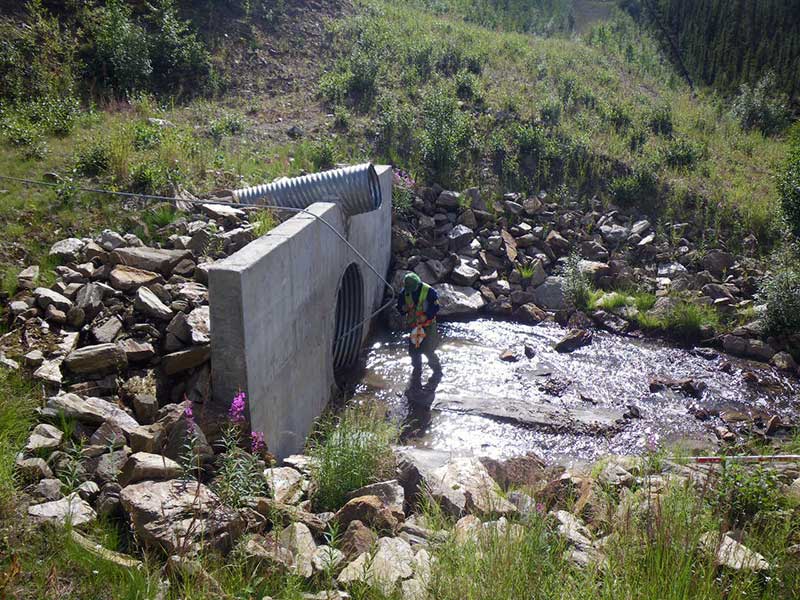

Comments: This pipe has very deep fill. Overflow pipe above main pipe. There is a compound gradient in the pipe but the pipe is too damaged to measure it. No longitudinal profile. No minnow traps were set out

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 303.4
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 2
Approach Angle: 3.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):6.1 5.5
Height(ft):6.1 6.3
Apron Length(ft):
Water Depth(ft): 1.0
Rustline Height(ft):0.8
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.73
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Compound gradient in pipe
  2. Culvert gradient red
  3. Structural Problem
  4. Mechanical damage or joints parting
  5. Constriction ratio gray

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 67.0 4.70
Upstream ordinary high water 90.0 4.20
Upstream ordinary high water 123.0 3.10

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set out, no fish observed.

Fish Observations

No fish observations occurred during this survey.
