Fish Passage Site 40501751

Coordinates (dec. deg.): 65.00539°, -147.51402°
Legal Description: F002N001E15
Region: Interior

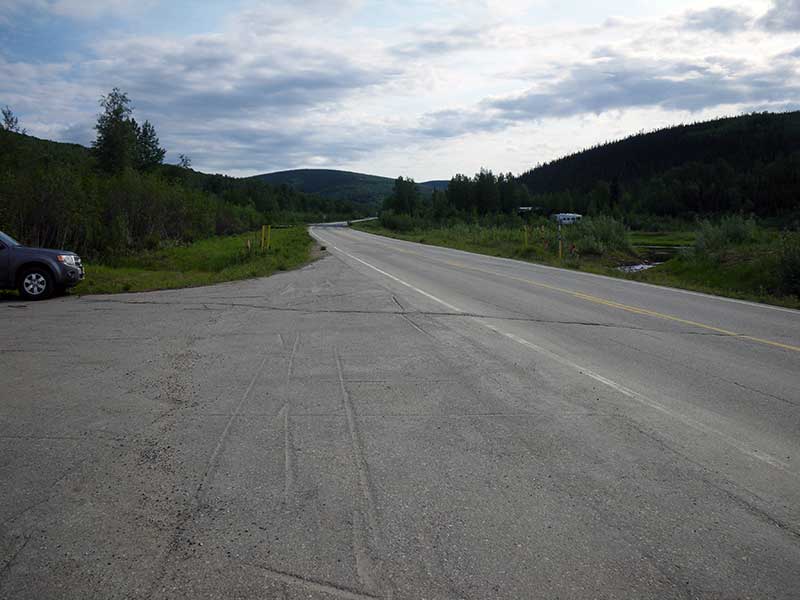

Road Name: Steese Highway

Datum: WGS84
Quad Name / ITM: Livengood A-2
AWC Stream #:
Stream Name: Steamboat Creek

Elevation:

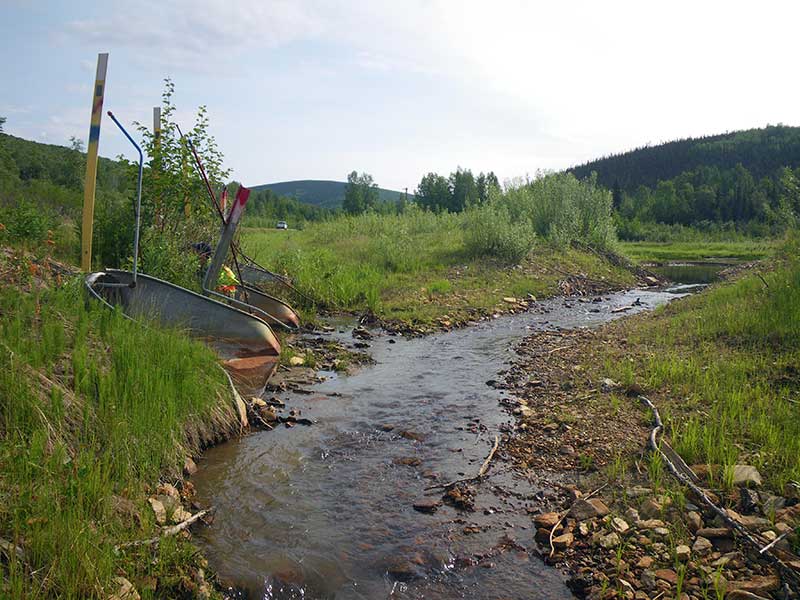

Site Comments: Steamboat Cr flows right into Pedro Creek after it passes under the Steese Highway.

Survey Date: Jun 11, 2010

Survey EDS10-STS02

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert gradient red
  2. Damage associated with ice problems
  3. Outfall height gray

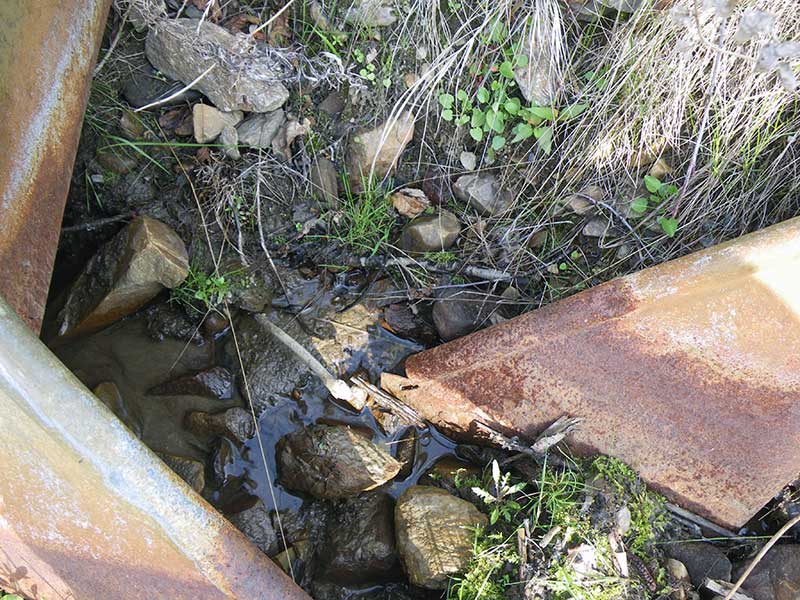

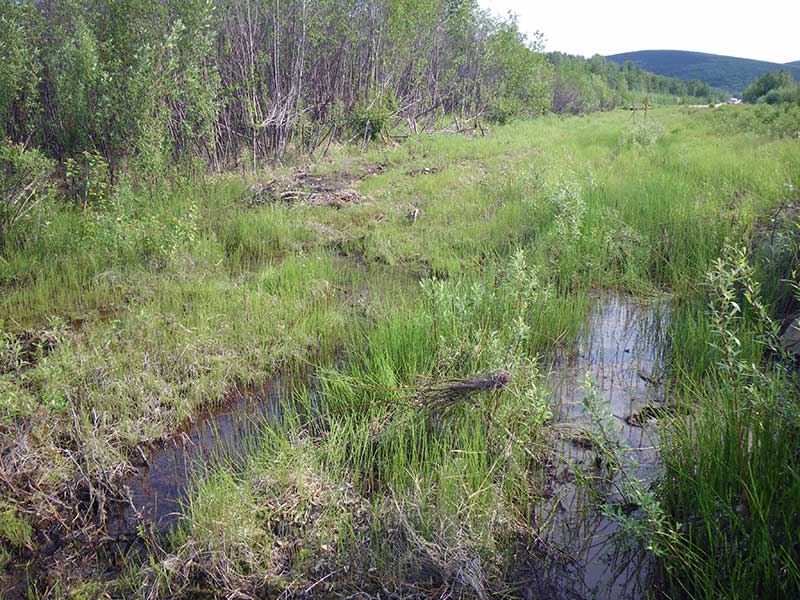

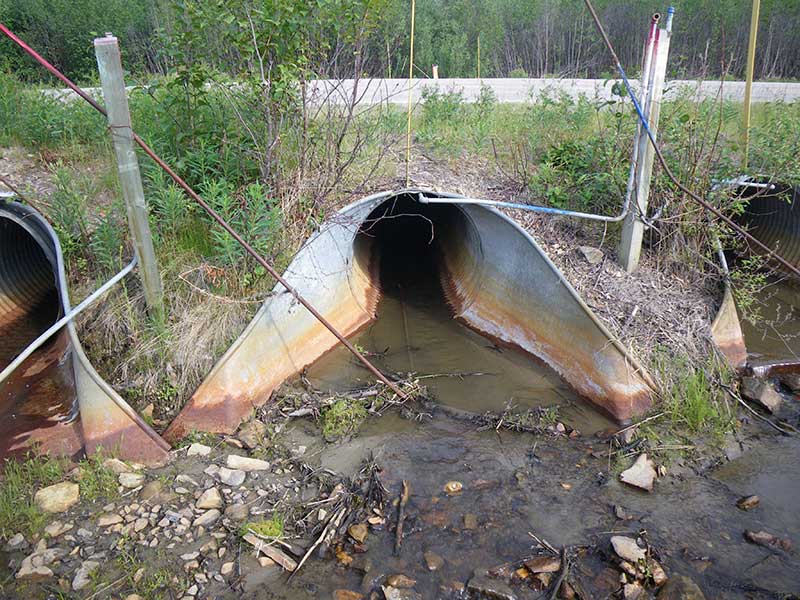

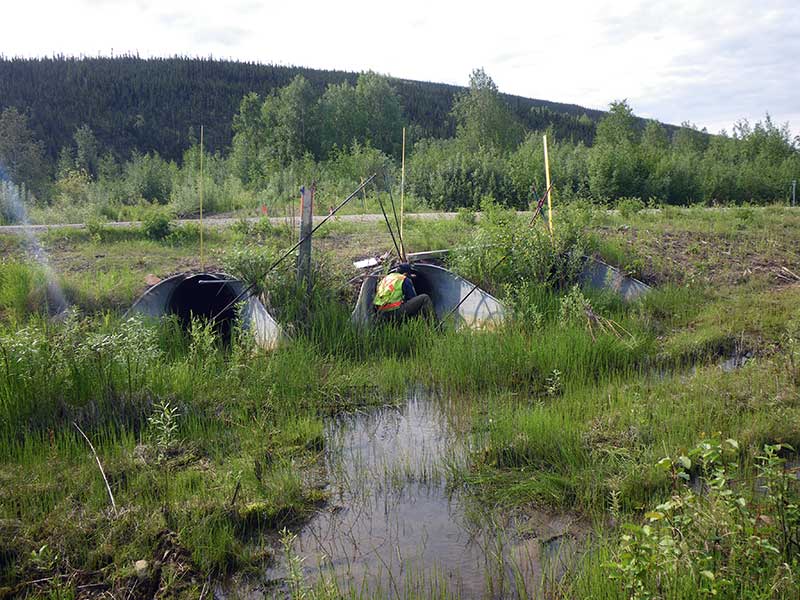

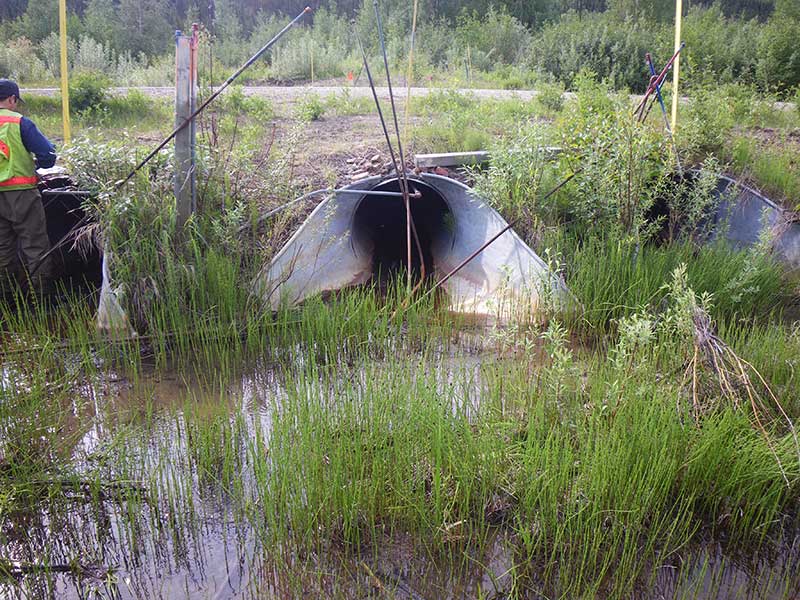

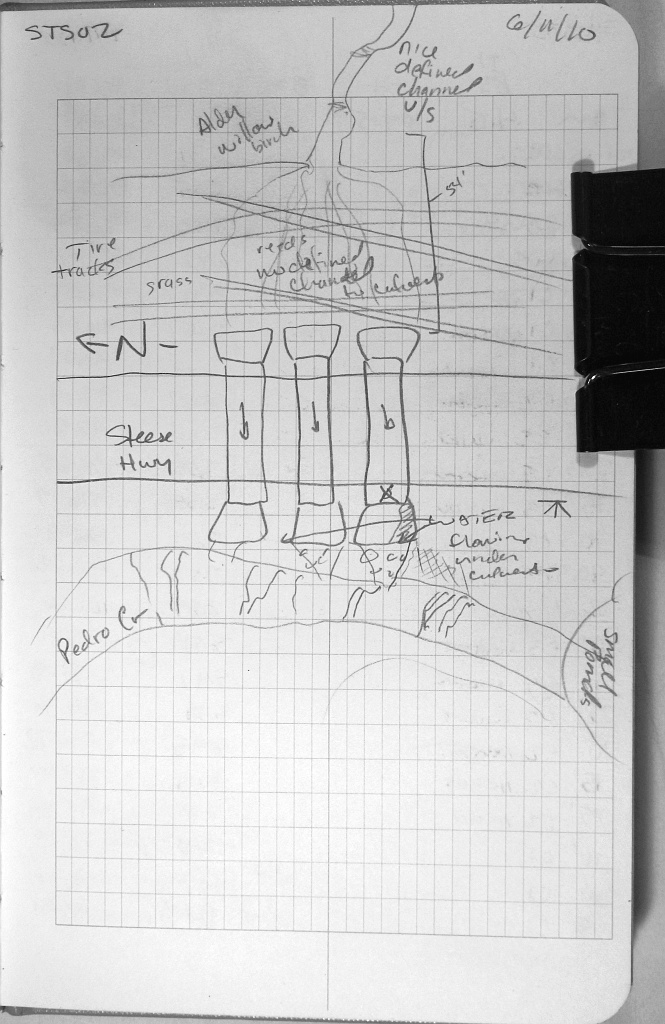

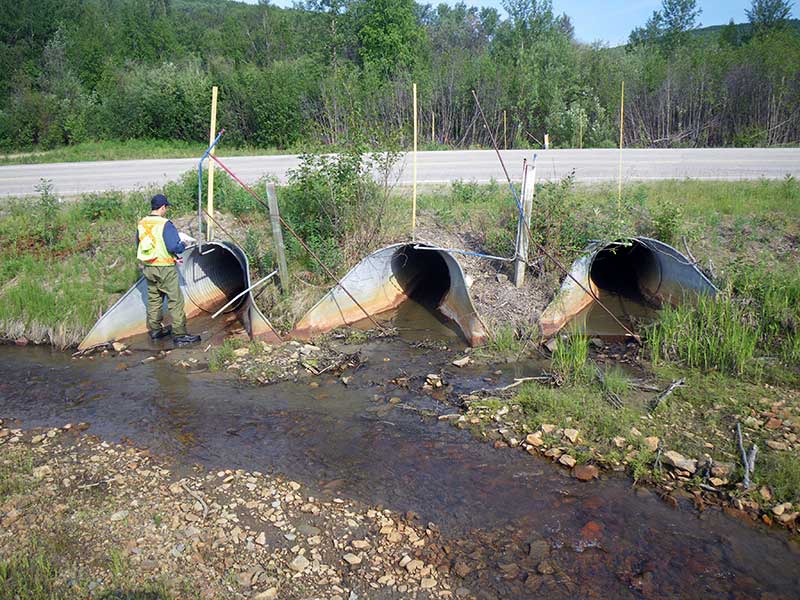

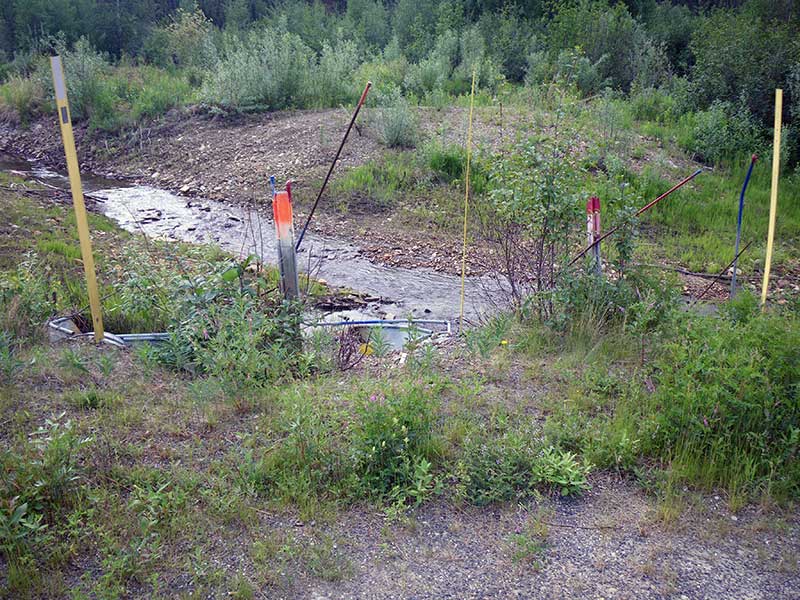

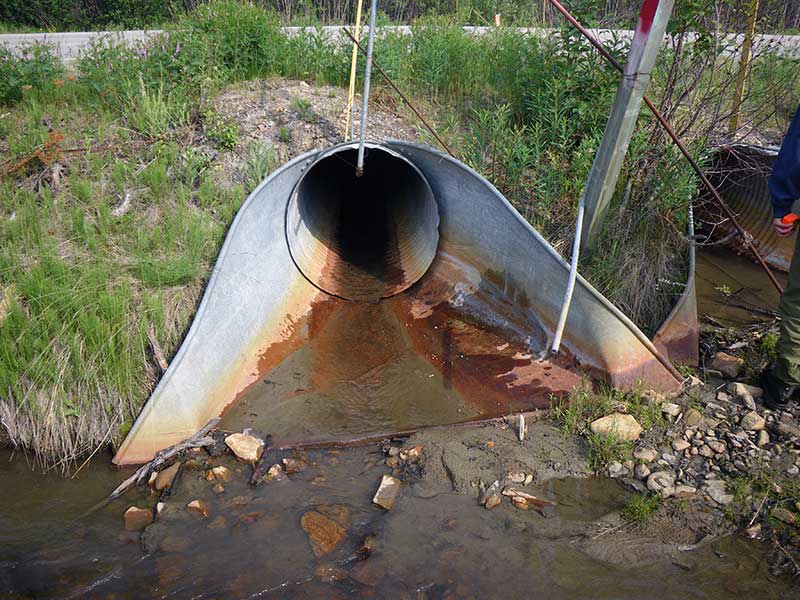

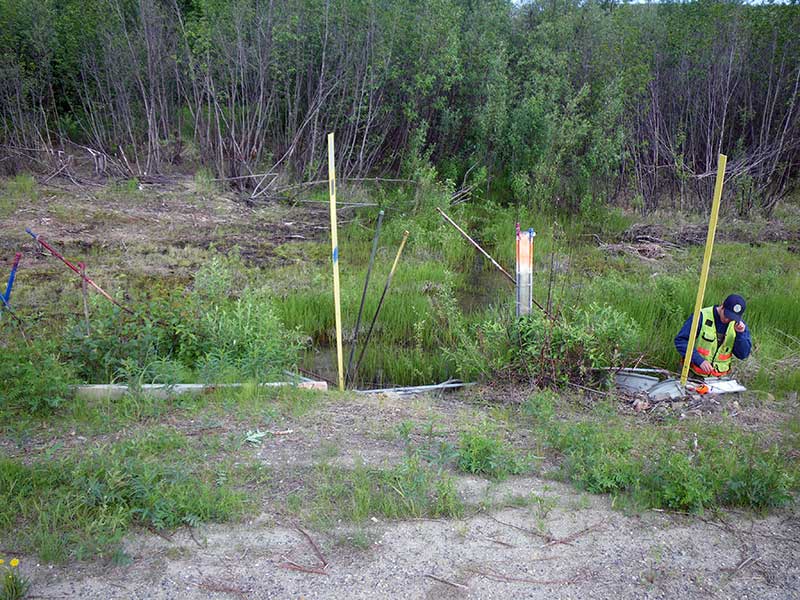

Comments: Marginal Habitat. Steamboat Cr flows right into Pedro Creek after it passes under the Steese Highway. C1, C2, C3 all have flares on inlet and outlet and are bent up and have water flowing under pipe. C2 flare is separating from pipe. Water level too low for minnow trapping. 54' U/S to natural stream, inlet area degraded by construction traffic.

Culvert Measurements

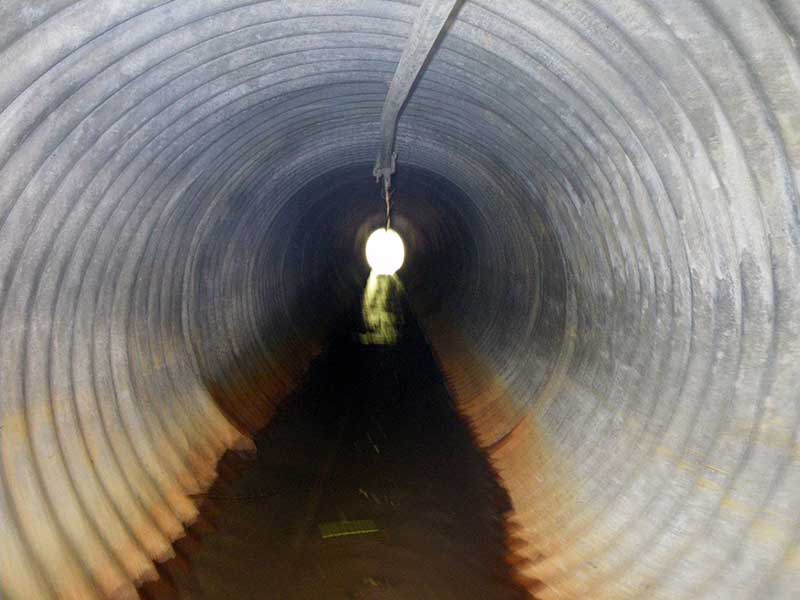

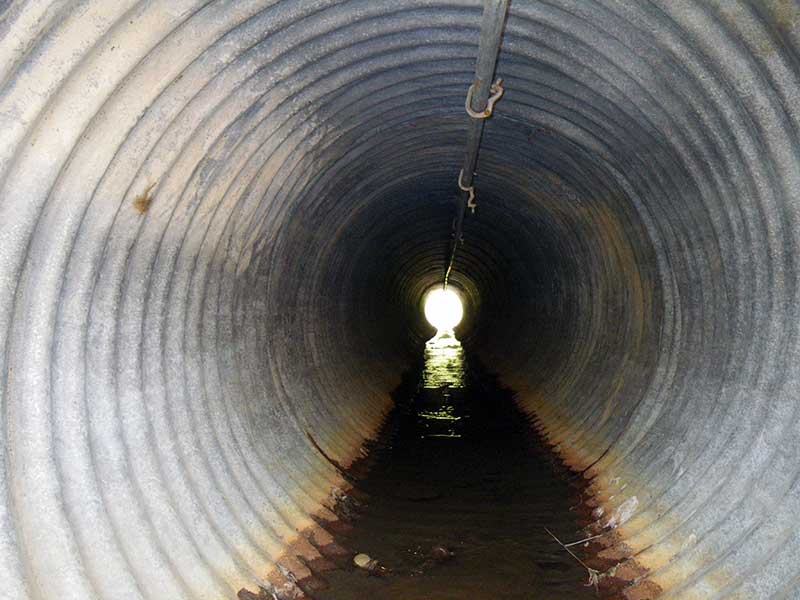

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 55.3

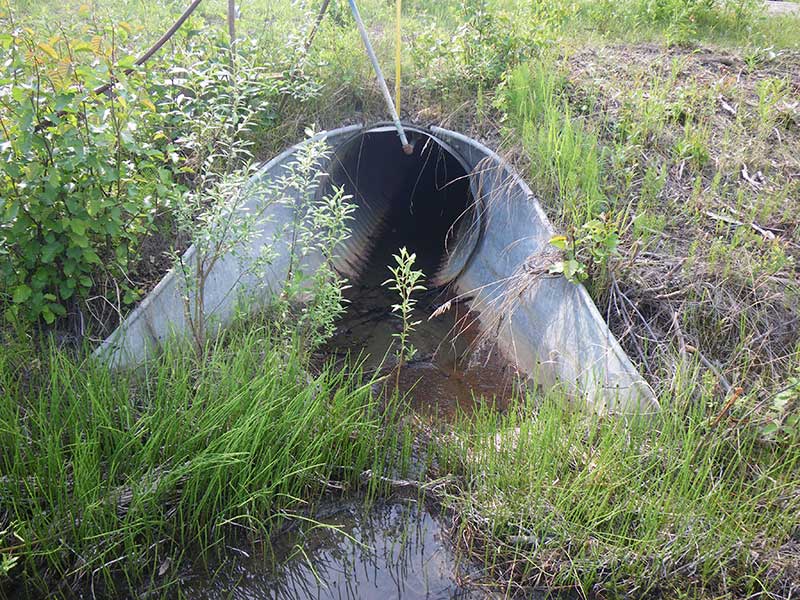

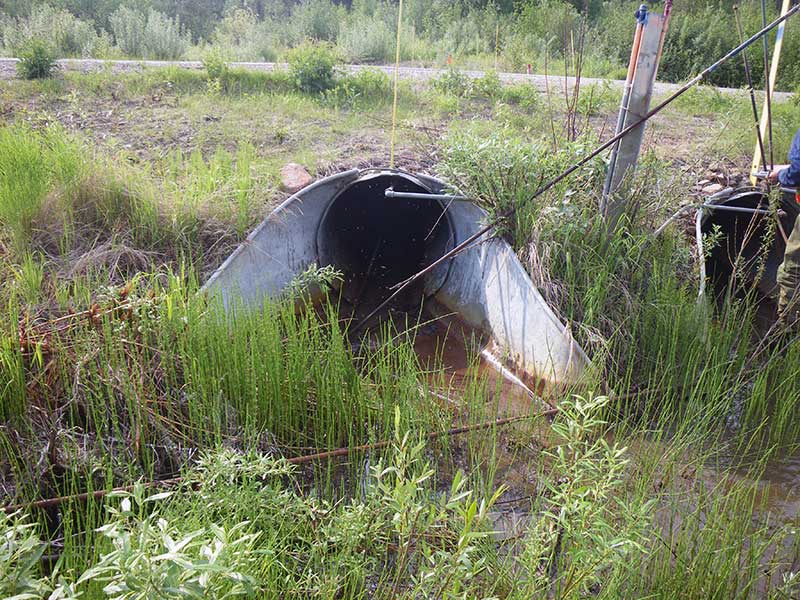

Inlet Type: Flared Inlet
Outlet Type: Flared Inlet
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.8
Condition Rating(1-5): 2
Approach Angle: 4.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.98 2.98
Height(ft):2.92 3.06
Apron Length(ft):4.94 4.99
Water Depth(ft): 0.34
Rustline Height(ft):0.37
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.25
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio: 2.39
Culvert Gradient: 1.50%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Outfall height gray
  3. Damage associated with ice problems
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 55.3
Inlet Type: Flared Inlet
Outlet Type: Flared Inlet
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.8
Condition Rating(1-5): 2
Approach Angle: 4.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.97 2.94
Height(ft):3.12 3.0
Apron Length(ft):4.97 4.98
Water Depth(ft): 0.18
Rustline Height(ft):0.34
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 2.39
Culvert Gradient: 1.54%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Damage associated with ice problems
ID: 3 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 55.2
Inlet Type: Flared Inlet
Outlet Type: Flared Inlet
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.8
Condition Rating(1-5): 2
Approach Angle: 4.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.97 2.98
Height(ft):2.97 3.13
Apron Length(ft):4.96 4.62
Water Depth(ft): 0.08
Rustline Height(ft):0.26
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 2.39
Culvert Gradient: 1.45%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Damage associated with ice problems

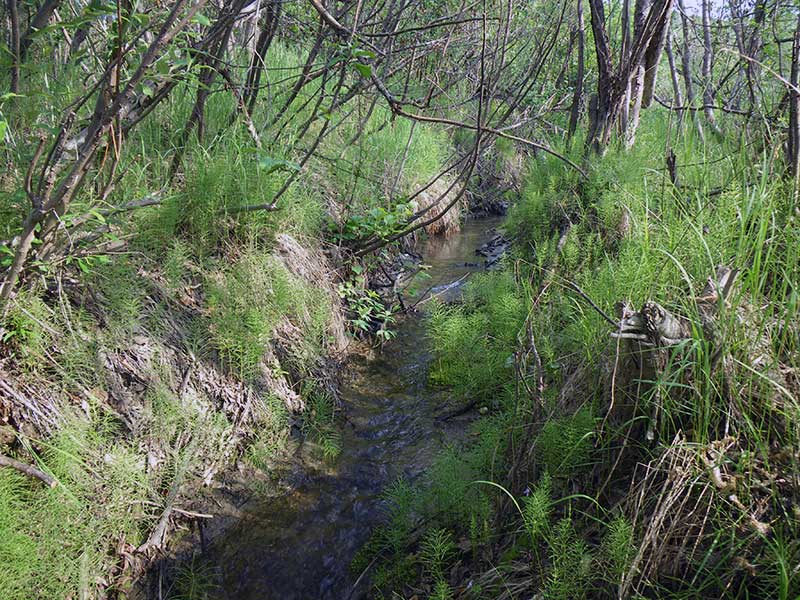

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayGravel
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 99.0 3.36
Upstream ordinary high water 117.0 3.06
Upstream ordinary high water 160.0 3.27

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 101.26
D/S Water Surface Elev 0.00 99.99
D/S Tailcrest or 1st Thalweg 0.00 95.34
Misc. (End of Apron outlet) 3 10.00 95.64
Misc. (End of Apron D/S) 2 10.00 95.72
Misc. (Outfall at end of Apron) 1 10.00 95.91
Misc. (End of Apron Invert out) 1 10.00 96.10
D/S Water Surface Elev (Water Surface at end of apron) 1 10.00 96.16
D/S Water Surface Elev (Water Surface at invert out) 1 15.00 96.19
D/S Water Surface Elev (Water surface at invert out.) 3 15.00 95.76
D/S Water Surface Elev (Water Surface at outlet) 2 15.00 95.84
Outlet Invert 1 15.00 95.85
Outlet Invert 2 15.00 95.66
Outlet Invert 3 15.00 95.68
Inlet Culvert Invert 3 70.30 96.48
Inlet Culvert Invert 2 70.30 96.51
U/S Water Surface Elev (Water Surface at Invert in) 3 70.30 96.62
U/S Water Surface Elev (Water surface at inlet) 2 70.30 96.65
Inlet Culvert Invert 1 70.30 96.68
U/S Water Surface Elev (Water Surface at invert in) 1 70.30 96.79
Misc. (End of Apron Inlet) 1 75.30 97.04
Misc. (End of Apron) 2 75.30 97.08
Misc. (End of Apron Inlet) 3 75.30 96.77
U/S Headwater (Water Surface) 77.30 97.16
U/S Thalweg (Substrate) 77.30 96.73
U/S Grade Ctrl (Thalweg) 124.00 97.84
U/S Water Surface Elev 124.00 98.20

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
