Fish Passage Site 40501721

Coordinates (dec. deg.): 65.51074°, -148.59705°
Legal Description: F008N005W21
Region: Interior

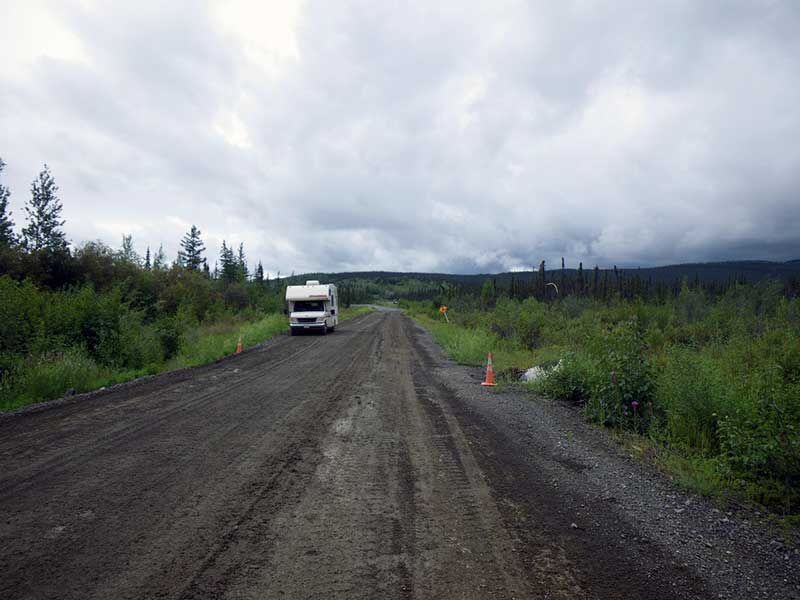

Road Name: Livengood Road

Datum: WGS84
Quad Name / ITM: Livengood C-4
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Survey Date: Jul 05, 2010

Survey EDS10-LIV01

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Compound gradient in pipe
  2. Constriction ratio red
  3. Culvert gradient red
  4. Structural Problem
  5. Mechanical damage or joints parting
  6. Outfall height red

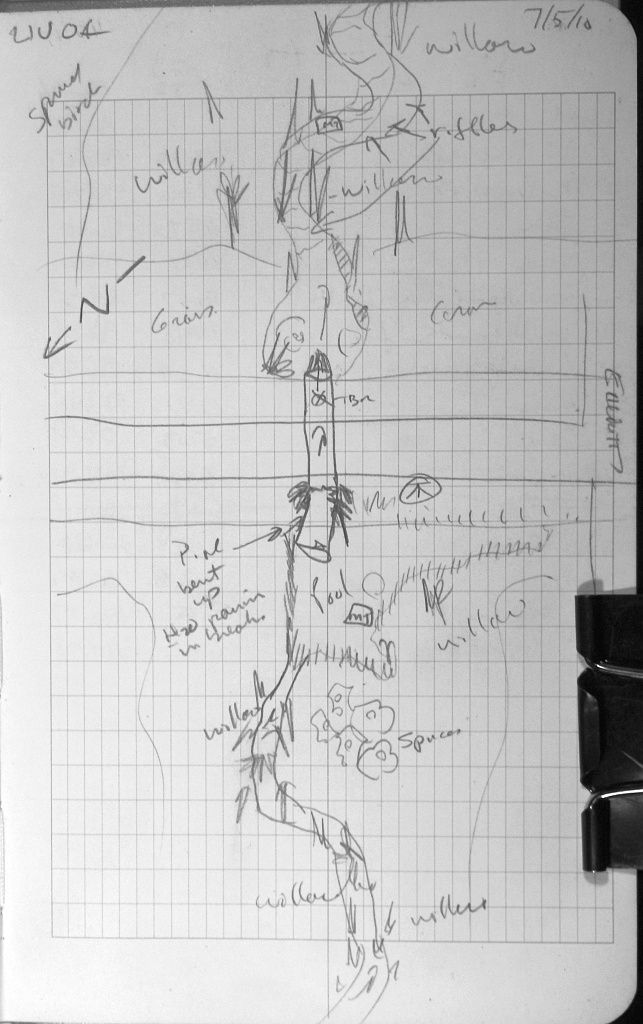

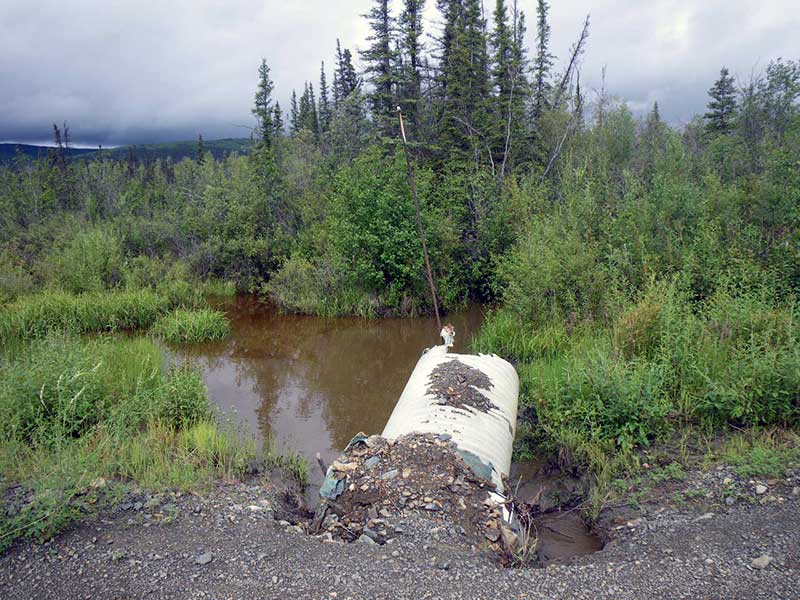

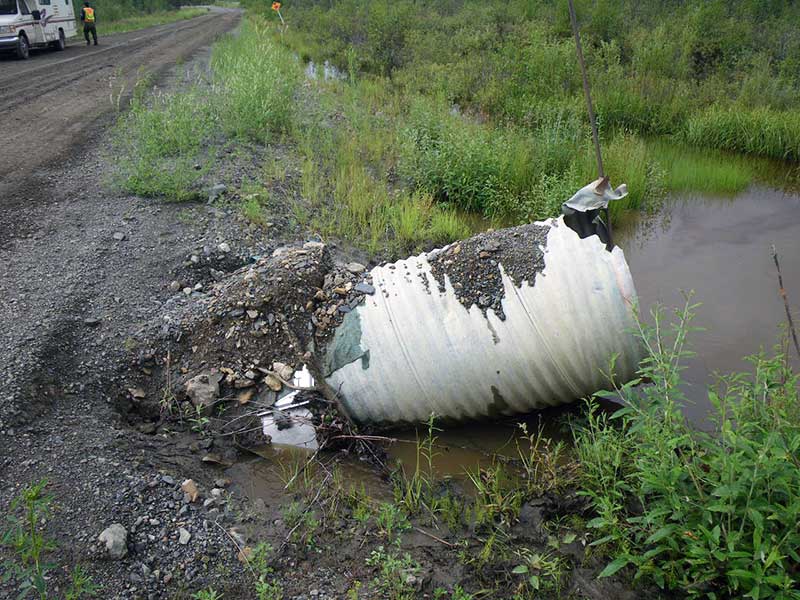

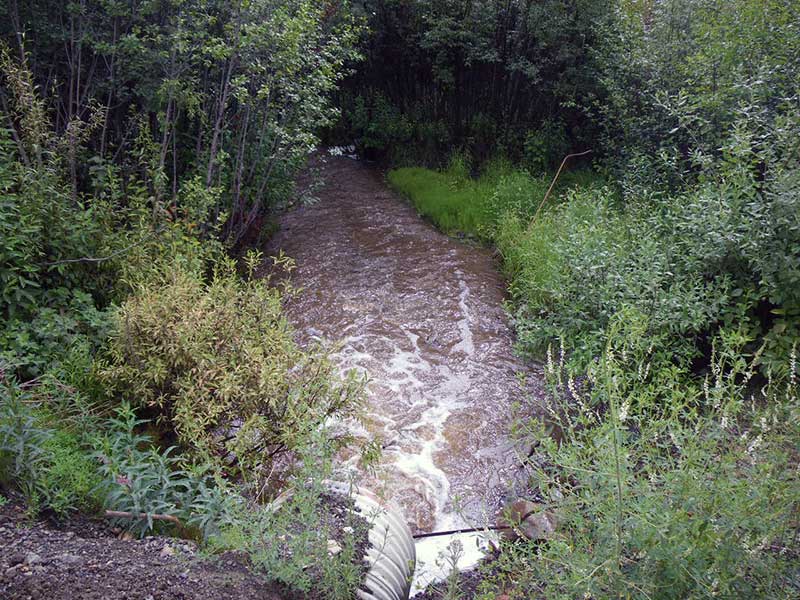

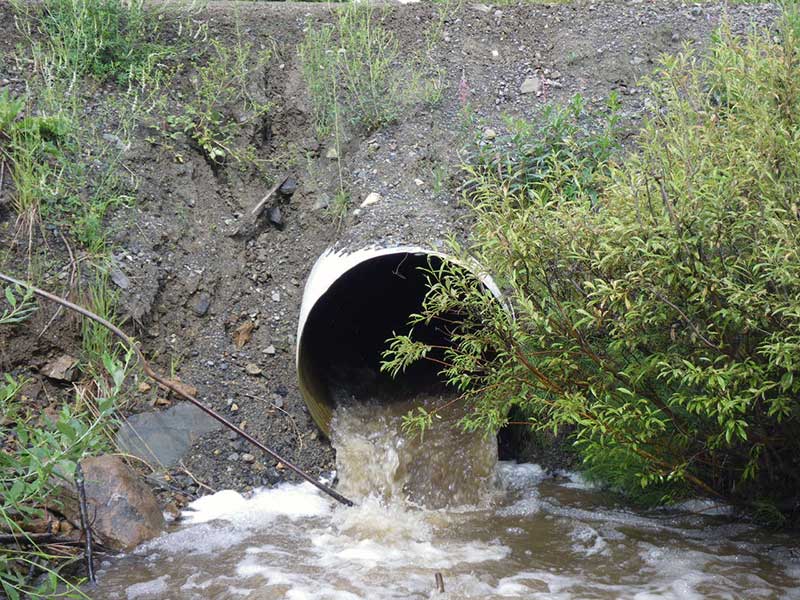

Comments: The inlet of this culvert is bent up severely and no water passes through it. The end section of the inlet has been ripped away. The pipe is separating, allowing water to pass through the separated spots as well as underneath the pipe itself. The outlet of this pipe is releasing water too fast. There is a compound gradient within the pipe.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 40.9
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 1
Approach Angle: 34.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.0 3.0
Height(ft):2.8 2.9
Apron Length(ft):
Water Depth(ft): 0.46
Rustline Height(ft):0.8
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.57
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.34
Culvert Gradient: 13.35%
Max Slope:
Max Slope Length:


Comments: The length could not shot with a laser so it was measured with a measuring tape.
  Culvert Observations:
  1. Compound gradient in pipe
  2. Constriction ratio red
  3. Culvert gradient red
  4. Structural Problem
  5. Mechanical damage or joints parting
  6. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayGravel
Subdominant:OrganicSilt/Clay
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 55.0 9.70
Upstream ordinary high water 91.0 8.90
Upstream ordinary high water 119.0 7.60

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 103.29
D/S Thalweg (Substrate) 0.00 95.53
D/S Water Surface Elev (Water Surface) 0.00 96.26
D/S Tailcrest or 1st Thalweg (Thalweg) 41.00 96.40
D/S Water Surface Elev (Water Surface) 41.00 97.01
Outlet Pool Water Elev (Water Surface) 46.00 96.84
Max Pool Depth (Outlet Pool Max Depth) 46.00 94.95
Outlet Invert (Bottom of Pipe) 50.00 96.95
D/S Water Surface Elev (Water Surface) 50.00 97.41
U/S Thalweg (Substrate) 90.90 100.98
U/S Headwater (Water Surface) 90.90 101.90
Inlet Culvert Invert (Bottom of Pipe) 90.90 102.41
U/S Water Surface Elev (Water Surface) 140.90 101.90
U/S Thalweg (Thalweg/Subsrate) 140.90 100.17

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.33
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 1.33
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
