Fish Passage Site 40501719

Coordinates (dec. deg.): 64.95959°, -147.62299°
Legal Description: F002N001E31
Region: Interior
Road Name: Private Drive

Datum: WGS84
Quad Name / ITM: Fairbanks D-2
AWC Stream #:
Stream Name: Fox Creek

Elevation:

Site Comments: None

Survey Date: Jun 05, 2010

Survey EDS10-FOX01

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Black

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Road bank erosion
  3. Inlet perch
  4. Damage associated with ice problems

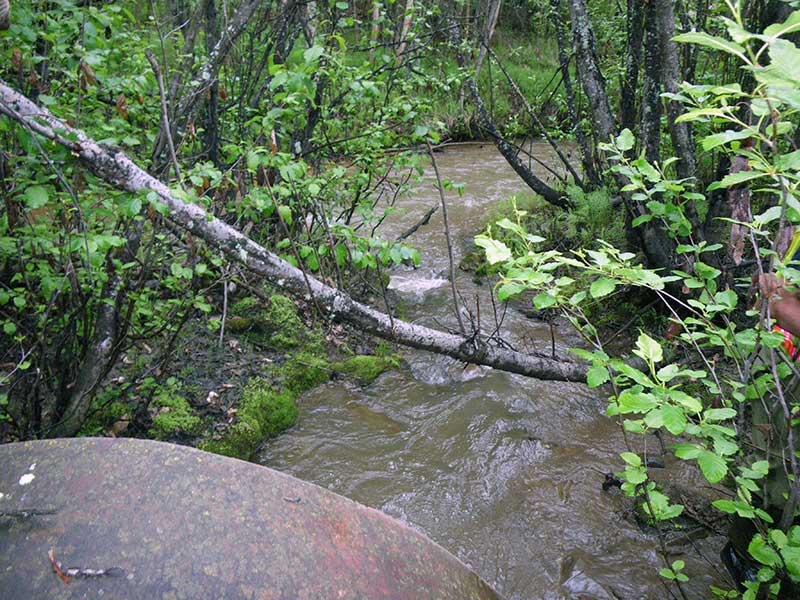

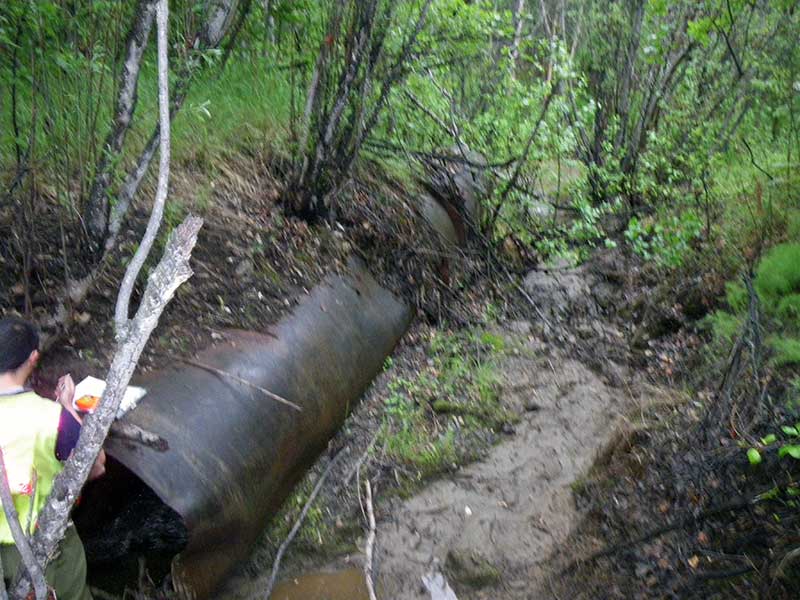

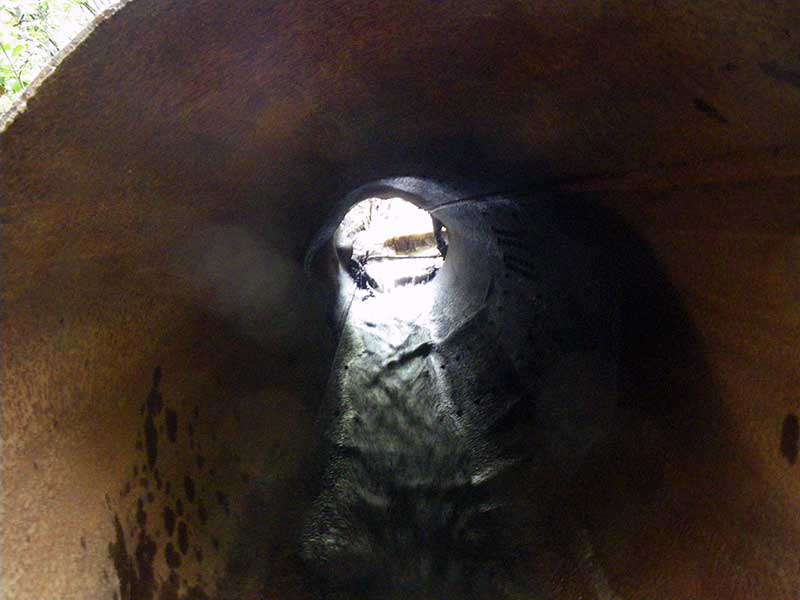

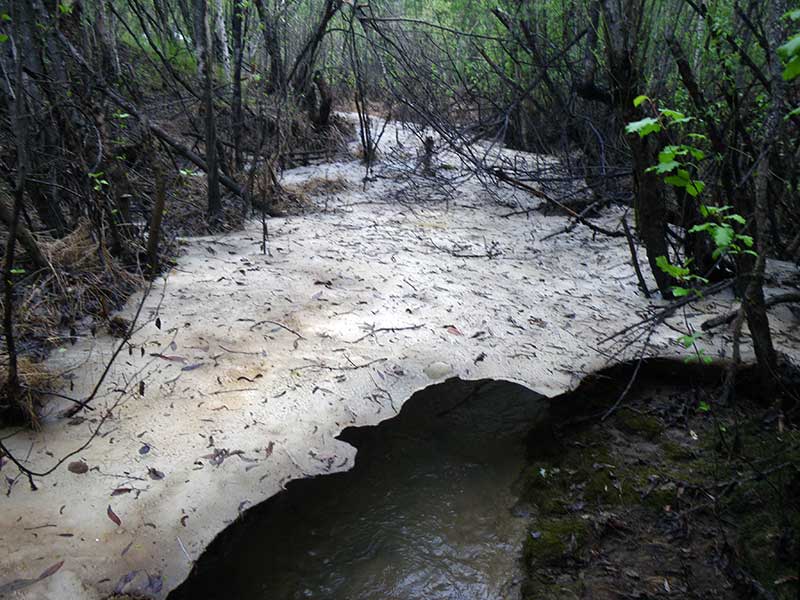

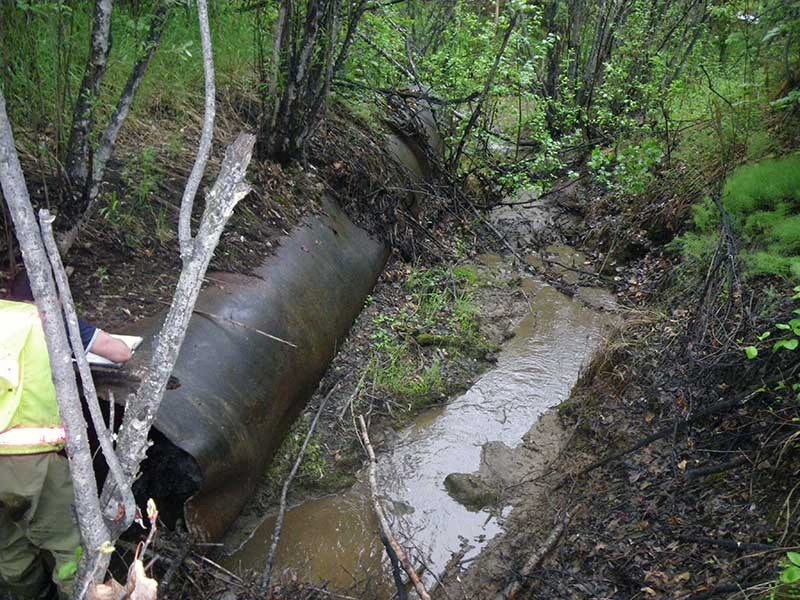

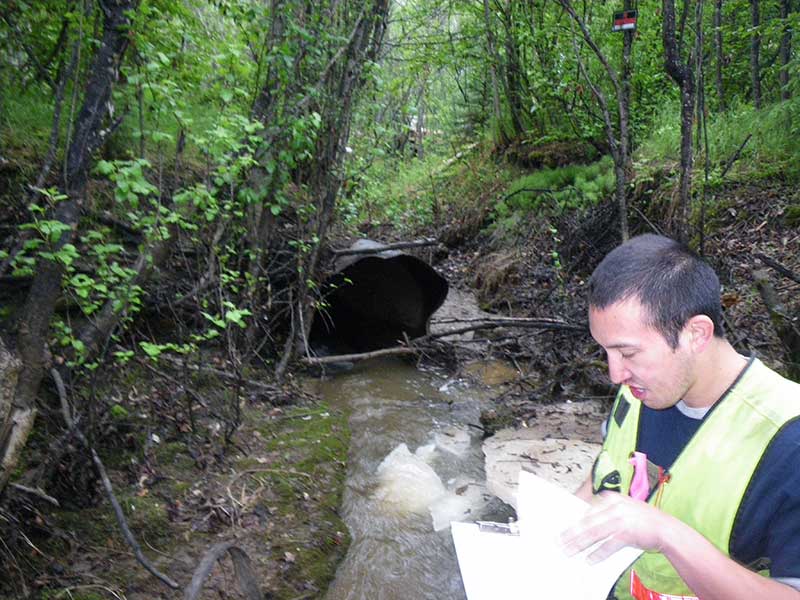

Comments: Abandoned culvert. We talked to the landowner of the property that this culvert is on. This pipe is a piece of the old Davidson Ditch pipeline. It looks to be over 100 years old. No constriction ratio was calculated because the upstream of the culvert is still ice. Some flow bypassing culvert.

Culvert Measurements

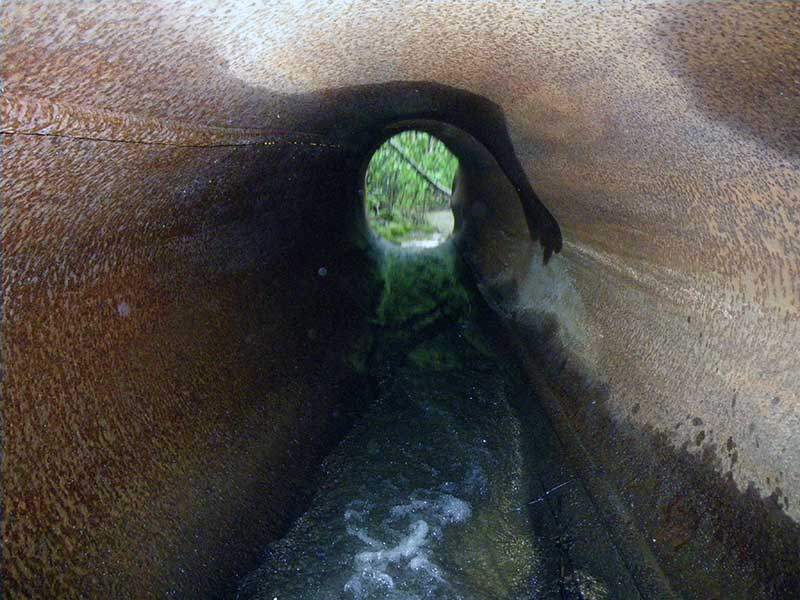

ID: 1 Structure Type: Circular pipe (Non-corrugated metal) Fish Passage Rating: Black

Length(ft): 25.5
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 1.33
Condition Rating(1-5): 1
Approach Angle: 15.0
Sedimentation At Inlet: Yes
Inlet Substrate: Silt/Clay
Outlet Substrate: None
InletOutlet
Width(ft):4.18 3.32
Height(ft):3.11 4.51
Apron Length(ft):
Water Depth(ft): 0.3
Rustline Height(ft):
Substrate Depth(ft):0.6 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

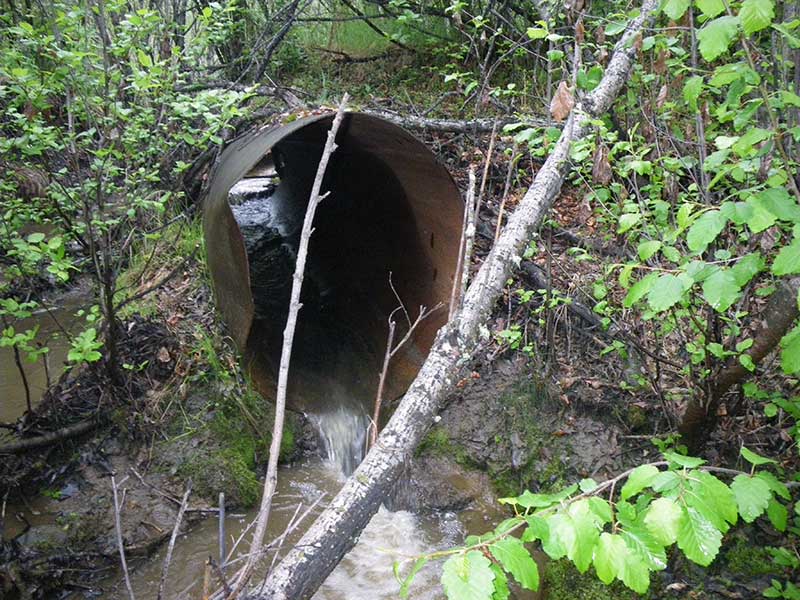

Outfall Height: 0.75
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient: 1.33%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayCobble
Subdominant:GravelGravel
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)

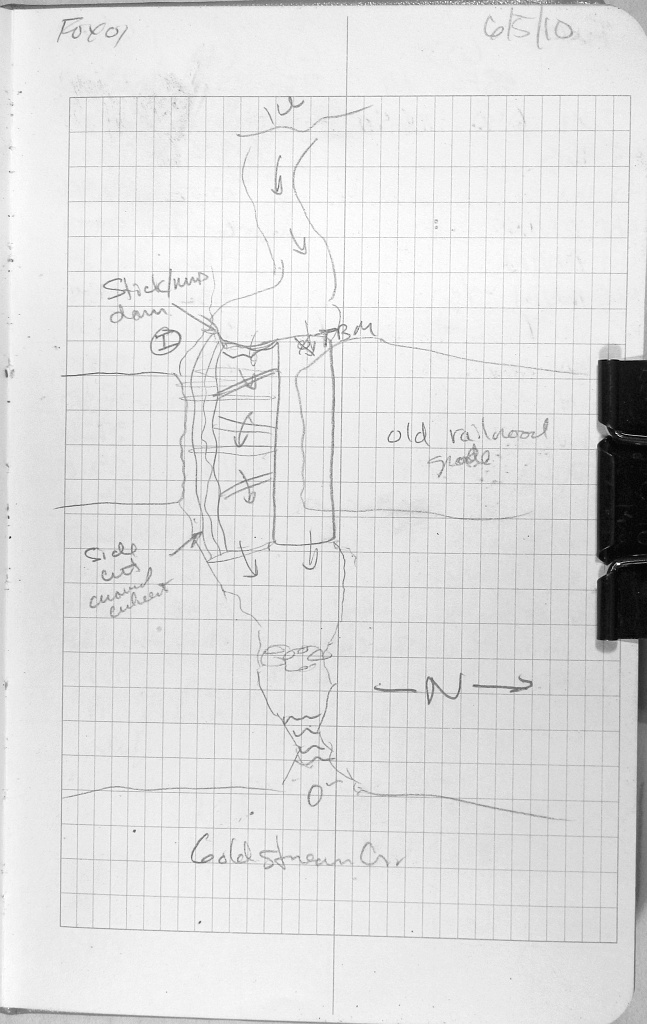

Road Elev (Old Road Grade) 102.59
Misc. (Outlet into Goldstream Creek Substrate) 0.00 93.40
D/S Water Surface Elev (Mouth of Stream Water Surface) 0.00 94.02
D/S Tailcrest or 1st Thalweg (Substrate) 9.00 94.57
D/S Water Surface Elev (Water Surface) 9.00 94.94
Outlet Pool Water Elev 17.00 94.06
Outlet Invert (Bottom of Pipe) 18.00 95.50
D/S Water Surface Elev (Water Surface) 18.00 95.76
Outlet Culvert Top (Top of Pipe) 18.00 100.00
U/S Water Surface Elev (Water Surface) 44.00 97.08
Inlet Culvert Top (Top of Pipe) 44.00 99.93
Inlet Culvert Invert (Substrate) 44.00 96.44
U/S Water Surface Elev (Water Surface) 45.00 97.04
U/S Headwater (Thalweg) 45.00 96.38

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
