Fish Passage Site 40501708

Coordinates (dec. deg.): 65.50183°, -148.65613°
Legal Description: F008N005W19
Region: Interior
Road Name: Elliott Highway

Datum: WGS84
Quad Name / ITM: Livengood C-4
AWC Stream #:
Stream Name: Rosebud Creek

Elevation:

Site Comments: None

Survey Date: Jul 06, 2010

Survey EDS10-ELH23

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Damage associated with ice problems
  2. Structural Problem
  3. Mechanical damage or joints parting
  4. Inlet perch
  5. Compound gradient in pipe
  6. Road bank erosion

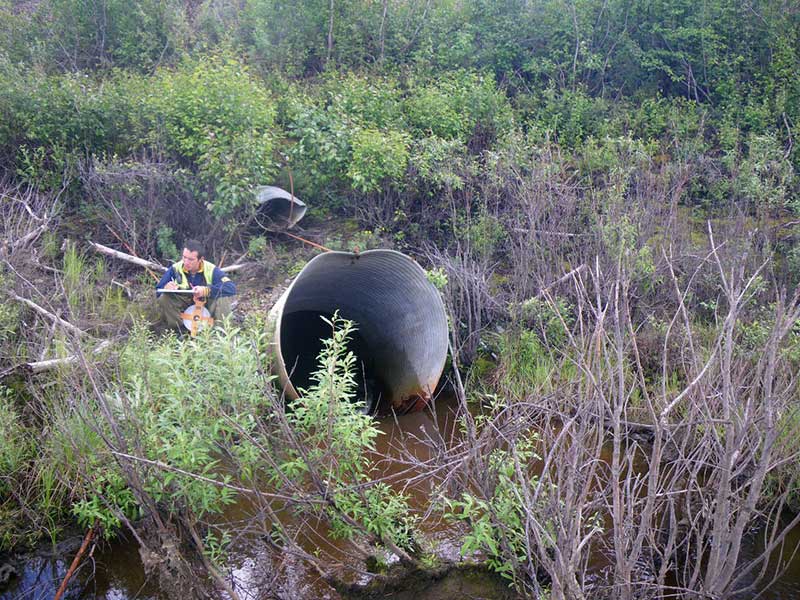

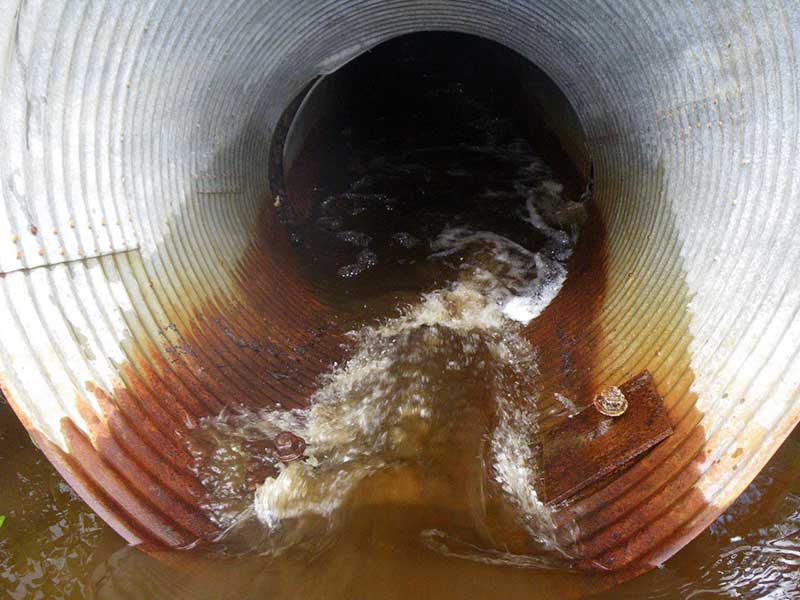

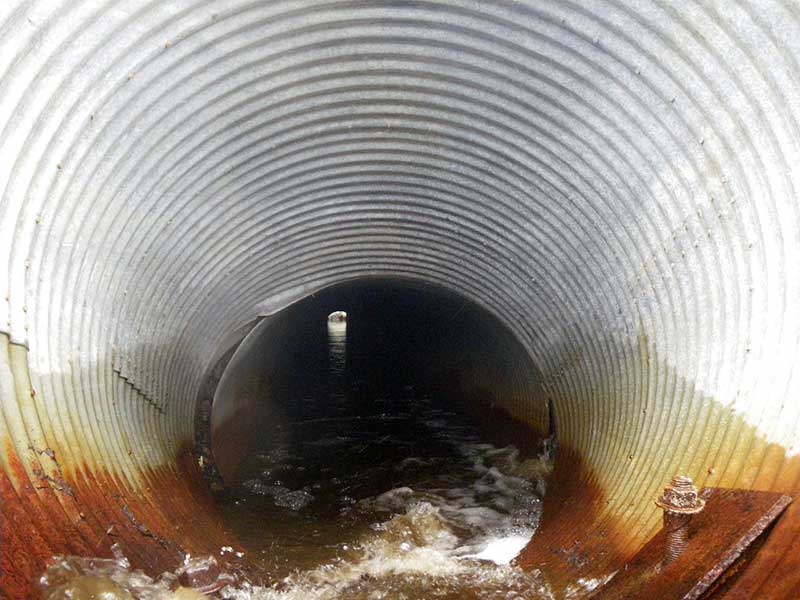

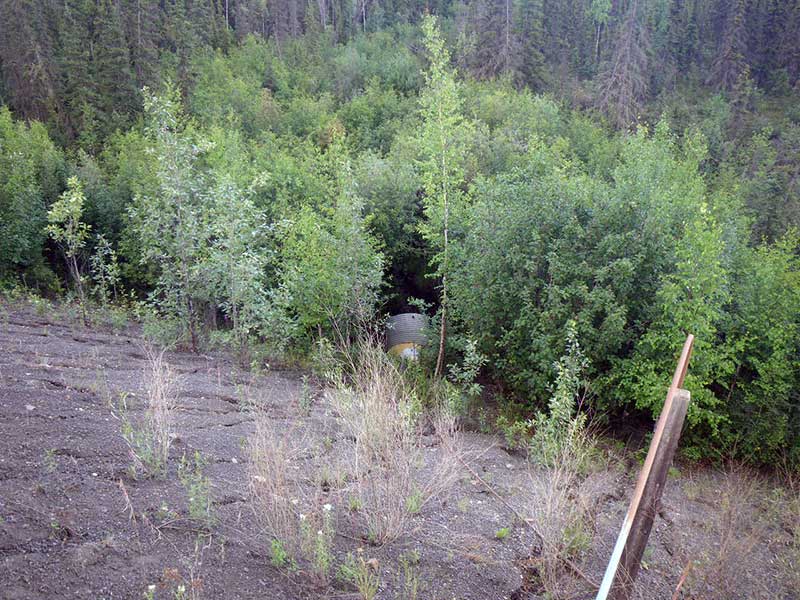

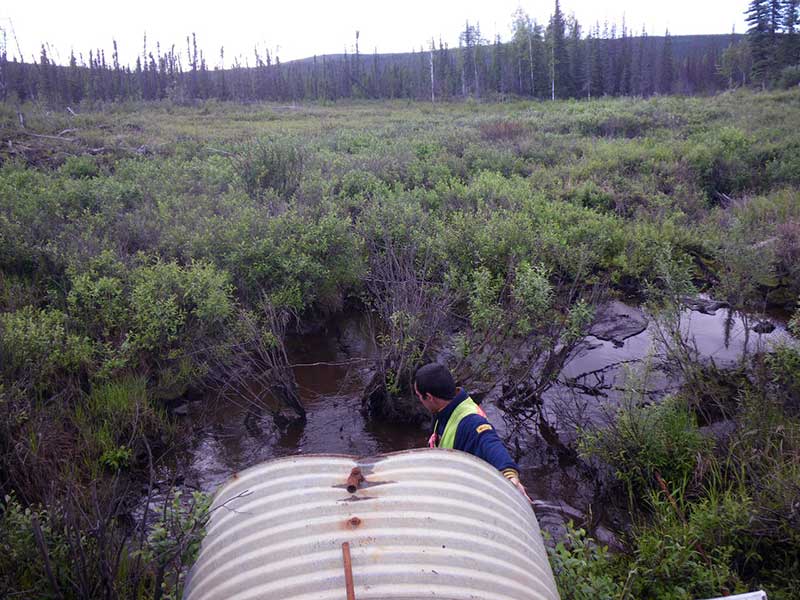

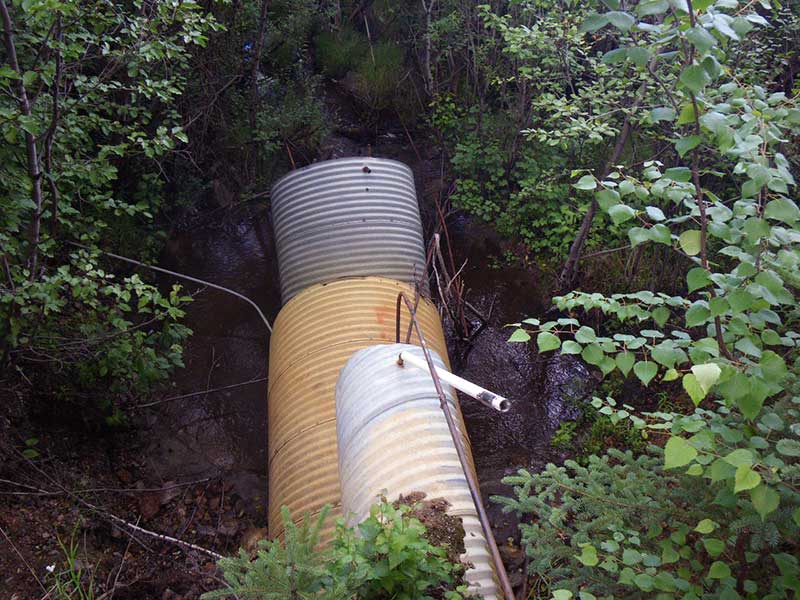

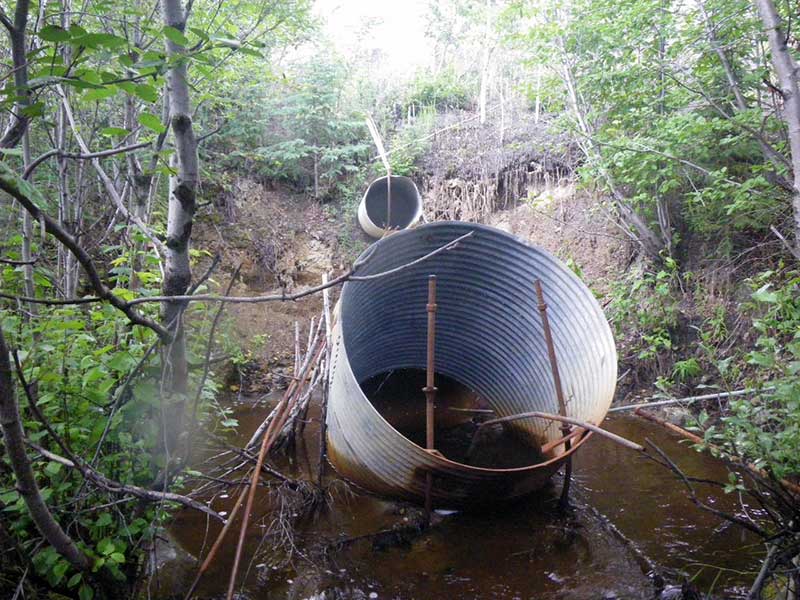

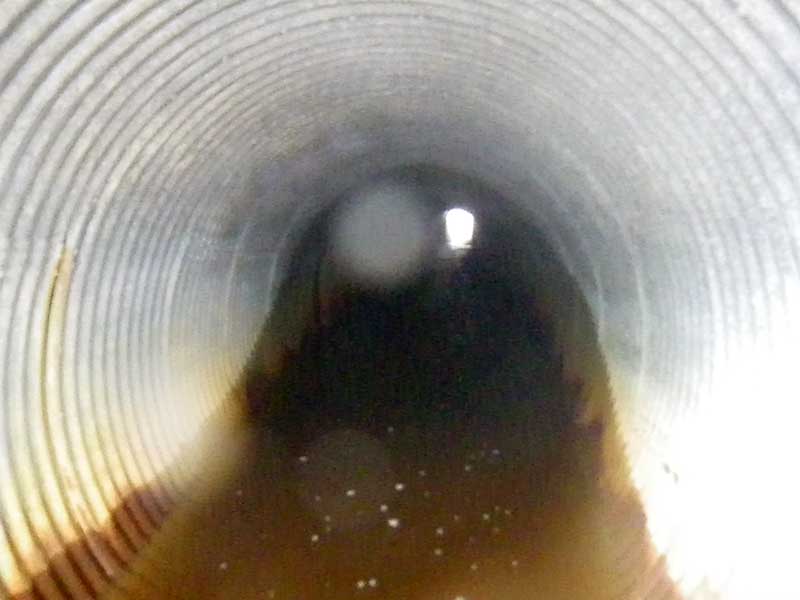

Comments: The inlet of this bent was extremely bent up, causing a big inlet perch. The pipe is also disconnected at the inlet. No minnow traps were set out at this site because the water was too shallow. About 5' of the outlet is completely disconnected and sticking up in the air. There is an apparent compound gradient, but it could not be calculated because it was unsafe to go inside the pipe. No length could be determined because there was no DOT information on the pipe and the laser could not be used to obtain the length.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 1
Approach Angle: 26.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):4.9 4.8
Height(ft):5.1 5.1
Apron Length(ft):
Water Depth(ft): 0.44
Rustline Height(ft):1.0
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.22
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Damage associated with ice problems
  2. Structural Problem
  3. Mechanical damage or joints parting
  4. Inlet perch
  5. Compound gradient in pipe
  6. Road bank erosion

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicSilt/Clay
Subdominant:Silt/ClayGravel
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 33.0 4.70
Upstream ordinary high water 48.0 3.40
Upstream ordinary high water 62.0 4.20

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set, no fish observed.

Fish Observations

No fish observations occurred during this survey.
