Fish Passage Site 40501704

Coordinates (dec. deg.): 65.46371°, -148.25490°
Legal Description: F007N003W06
Region: Interior
Road Name: Elliott Highway

Datum: WGS84
Quad Name / ITM: Livengood B-3
AWC Stream #:
Stream Name: Bride Creek

Elevation:

Site Comments: DOT# 3073+88

Survey Date: Jun 29, 2010

Survey EDS10-ELH19

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Compound gradient in pipe
  2. Culvert gradient red

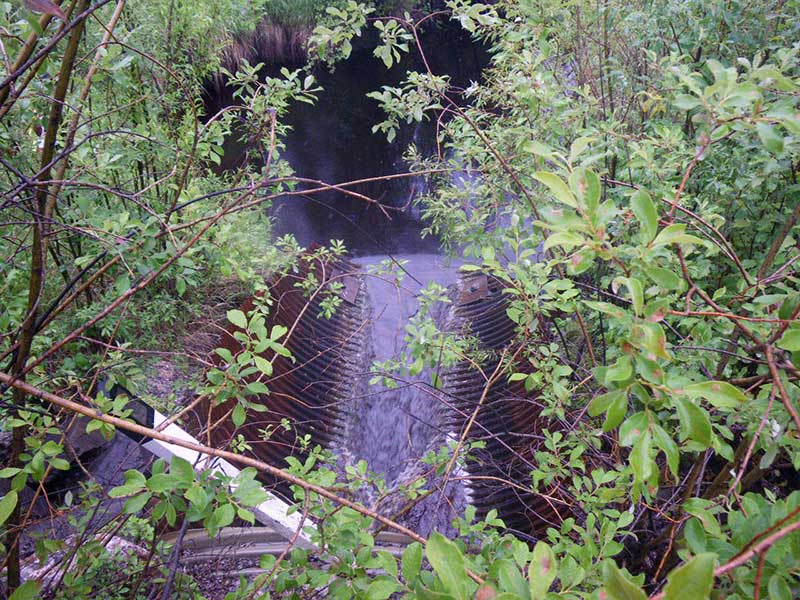

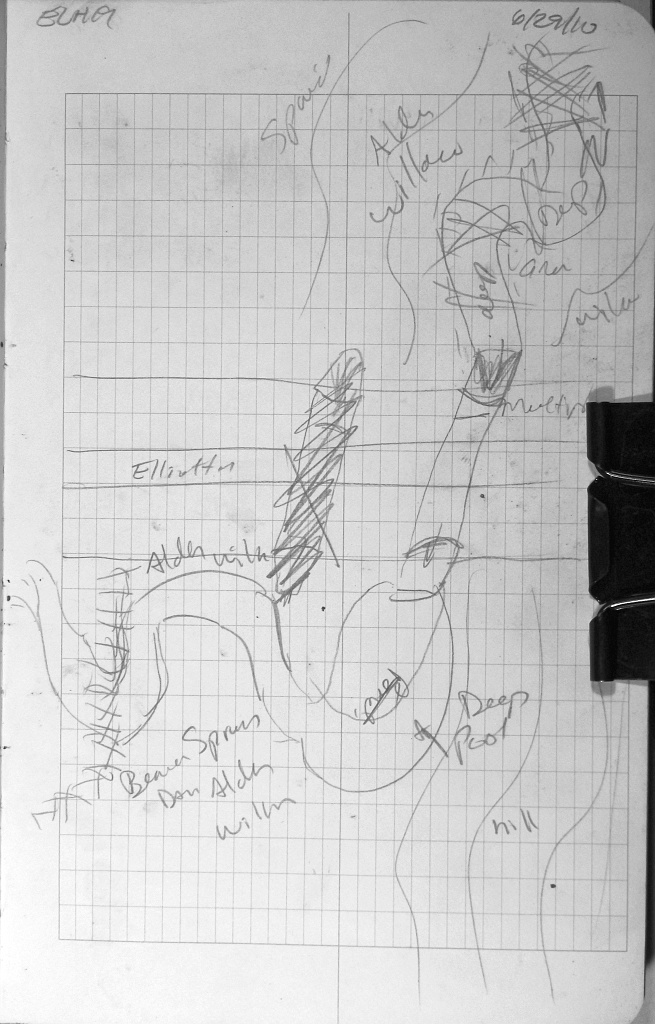

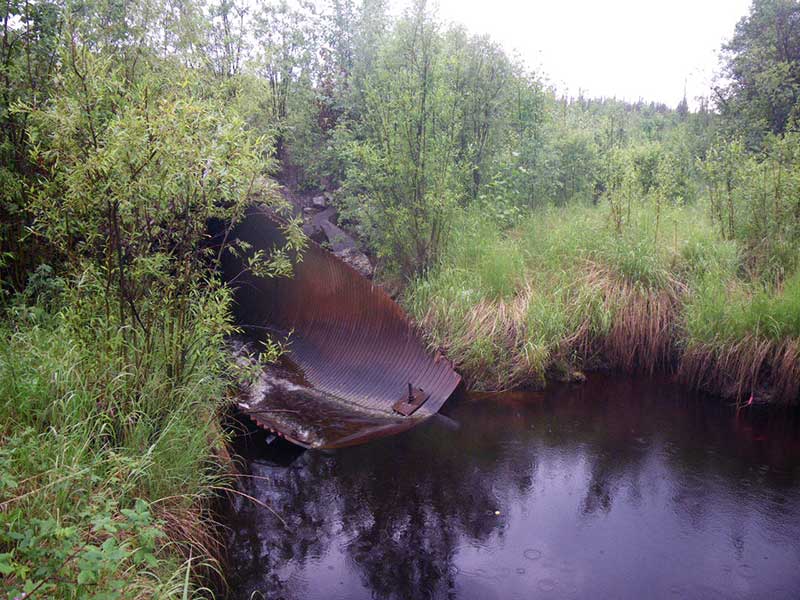

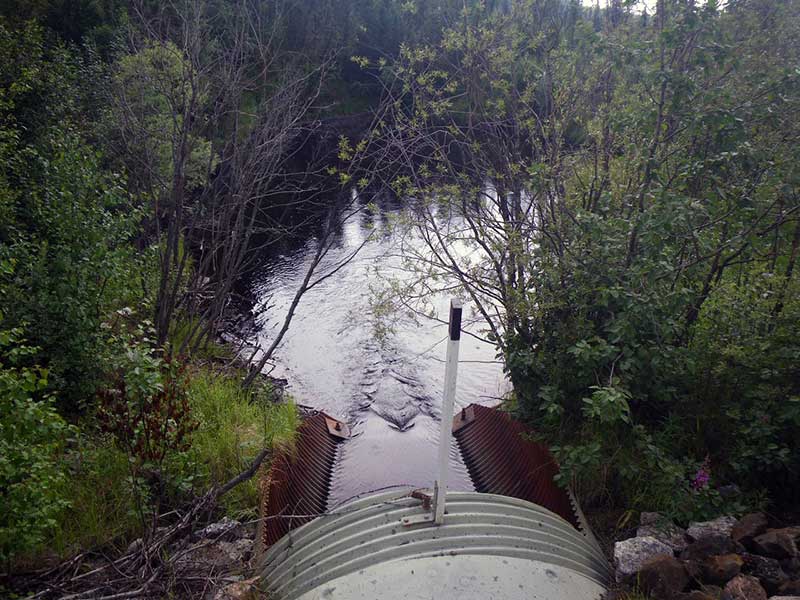

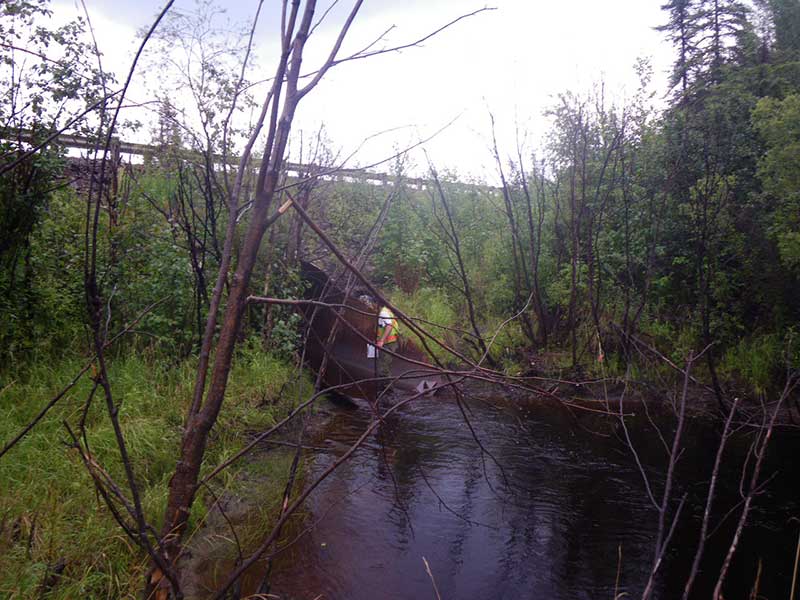

Comments: The mitered piece at the outlet of this culvert is starting to separate. No stream widths were taken and no constriction ratio was calculated because this culvert connected a pond to a pond. An adult arctic grayling was seen going upstream through this culvert.

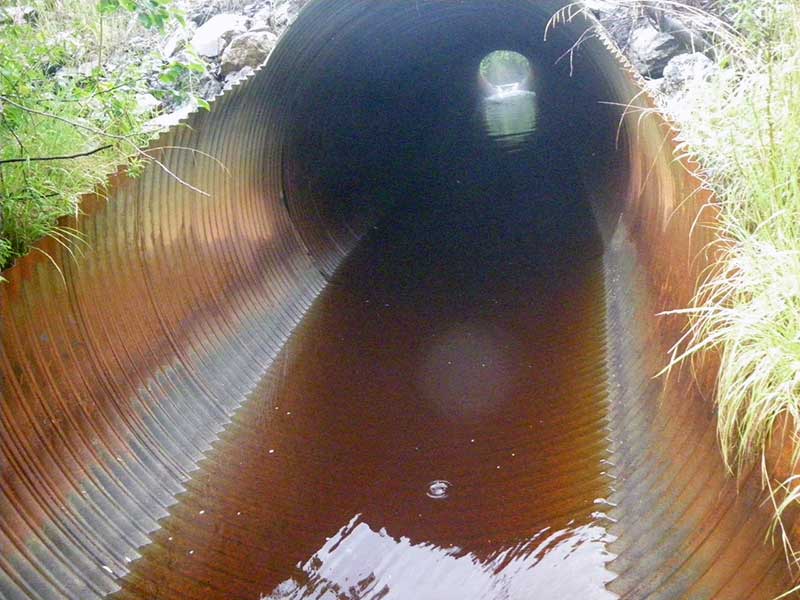

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 113.7
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle: 0.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):8.2 8.2
Height(ft):8.3 8.3
Apron Length(ft):
Water Depth(ft): 0.44
Rustline Height(ft):1.8
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.86%
Max Slope: 9.8
Max Slope Length: 19.7
  Culvert Observations:
  1. Compound gradient in pipe
  2. Culvert gradient red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClaySilt/Clay
Subdominant:OrganicOrganic
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 115.42
Outlet Pool Water Elev 0.00 98.75
D/S Water Surface Elev (Water Surface) 1.00 98.79
Outlet Invert (Bottom of Pipe) 1.00 98.31
Misc. (Substrate of Grade Point in Pipe) 94.00 97.36
Misc. (Water Surface of Grade Point in Pipe) 94.00 98.80
Inlet Culvert Invert (Bottom of Pipe) 113.70 99.29
U/S Water Surface Elev (Water Surface) 113.70 99.87
U/S Water Surface Elev (U/S Pond Water Surface) 114.70 99.89

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.75
Channel Type: Main Channel (>50% of water flow)
Comments: No fish were caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 1.75
Channel Type: Main Channel (>50% of water flow)
Comments: No fish were caught.

Gear Type: Visual Observation, Fixed Wing (C)
Comments: Adult grayling observed swimming though pipe.

Fish Observations

Species: adult Arctic grayling Life History: Resident
Total Fish Observed: 1 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Visual Observation, Fixed Wing (1)

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
