Fish Passage Site 40501703

Coordinates (dec. deg.): 65.34469°, -148.29532°
Legal Description: F006N004W13
Region: Interior

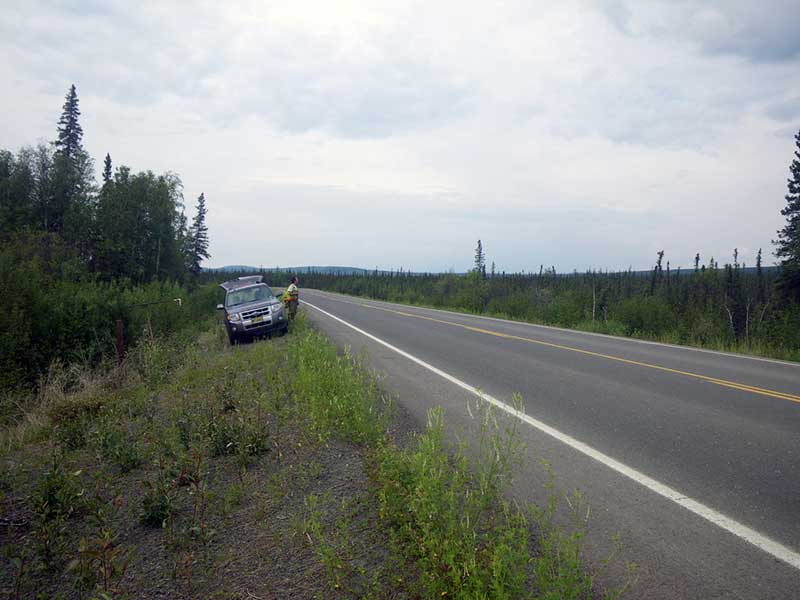

Road Name: Elliott Highway

Datum: WGS84
Quad Name / ITM: Livengood B-3
AWC Stream #:
Stream Name: Tatalina River tributary

Elevation:

Site Comments: DOT# 2528+96 and 2528+91

Survey Date: Jun 29, 2010

Survey EDS10-ELH18

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert gradient red
  2. Woody Debris
  3. Inlet perch
  4. Sediment accumulation

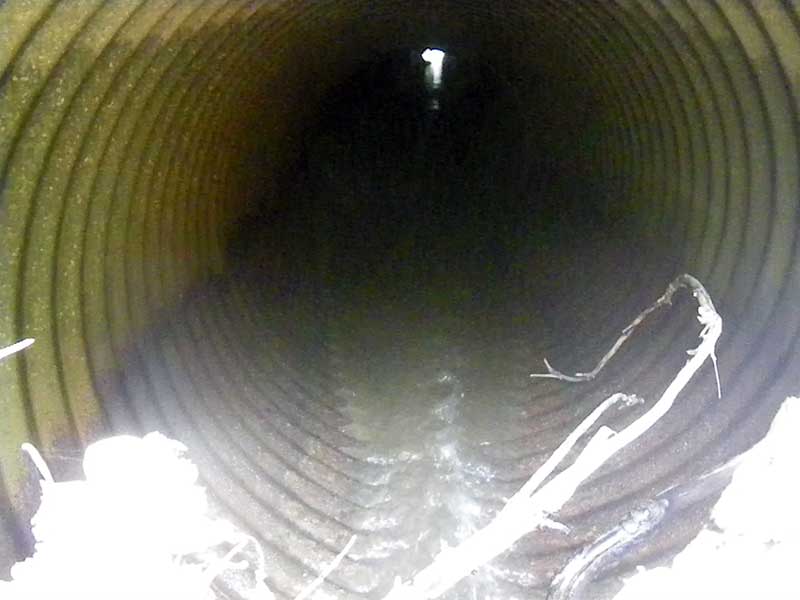

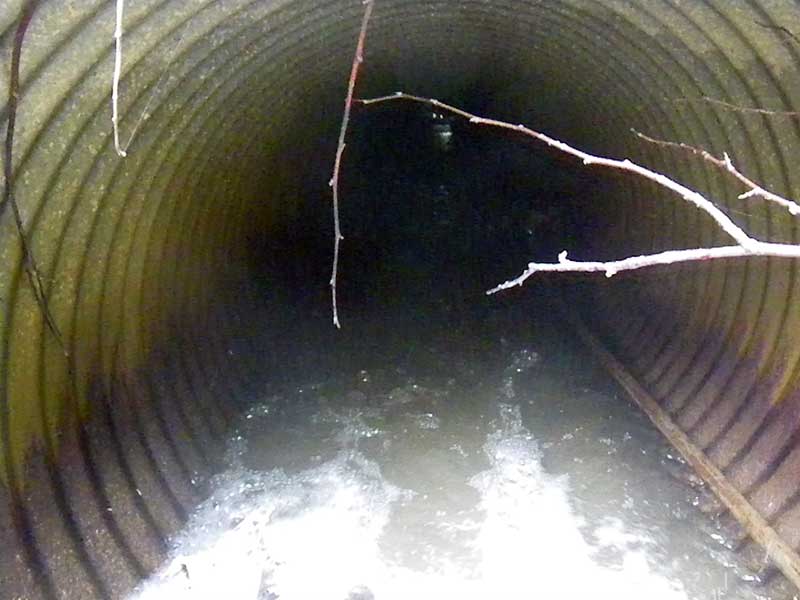

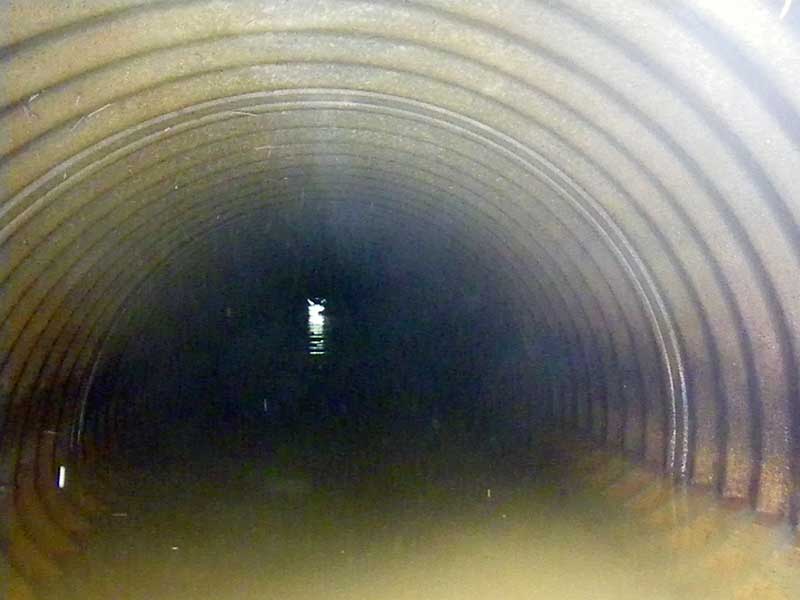

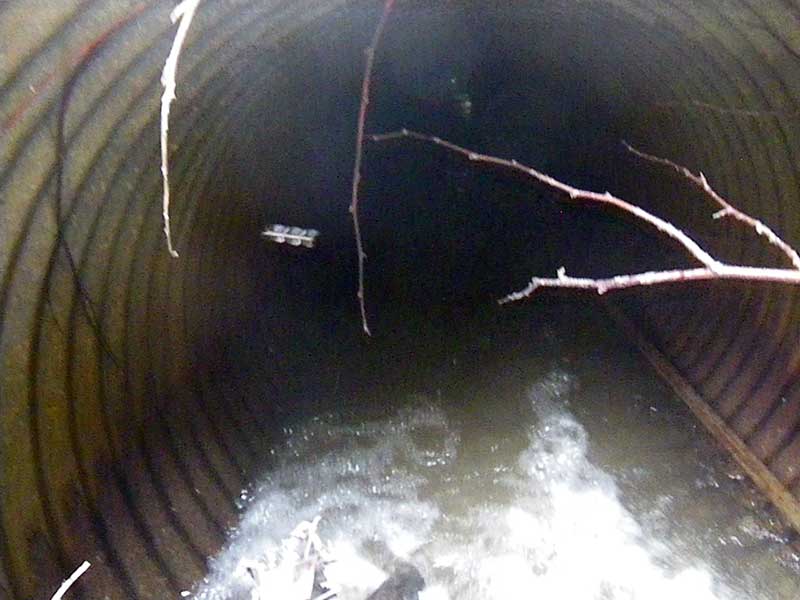

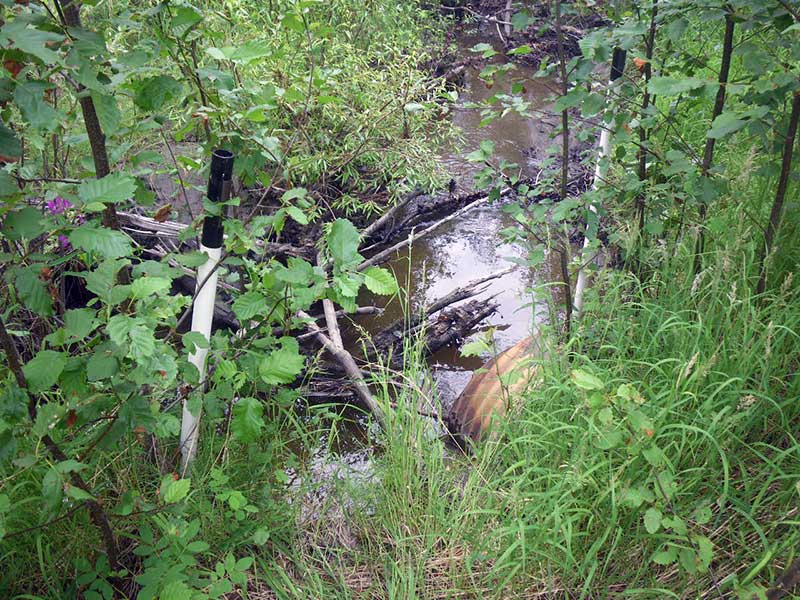

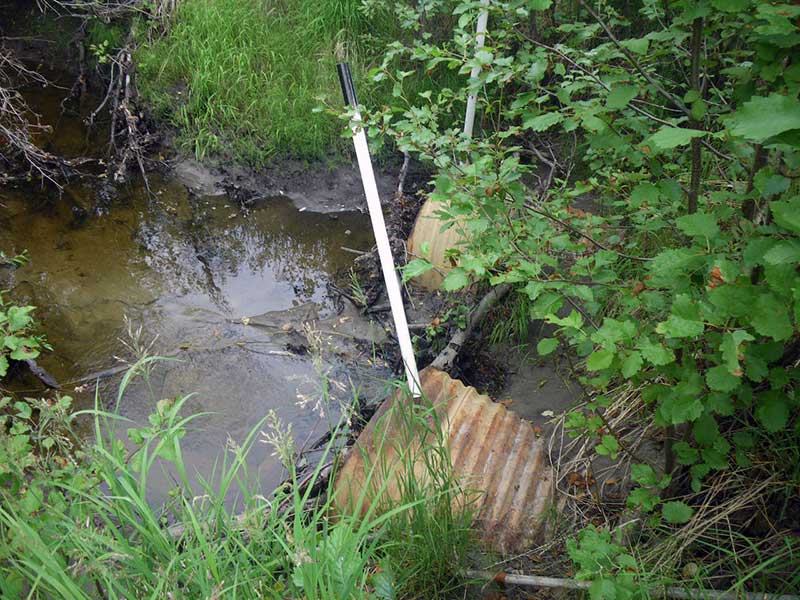

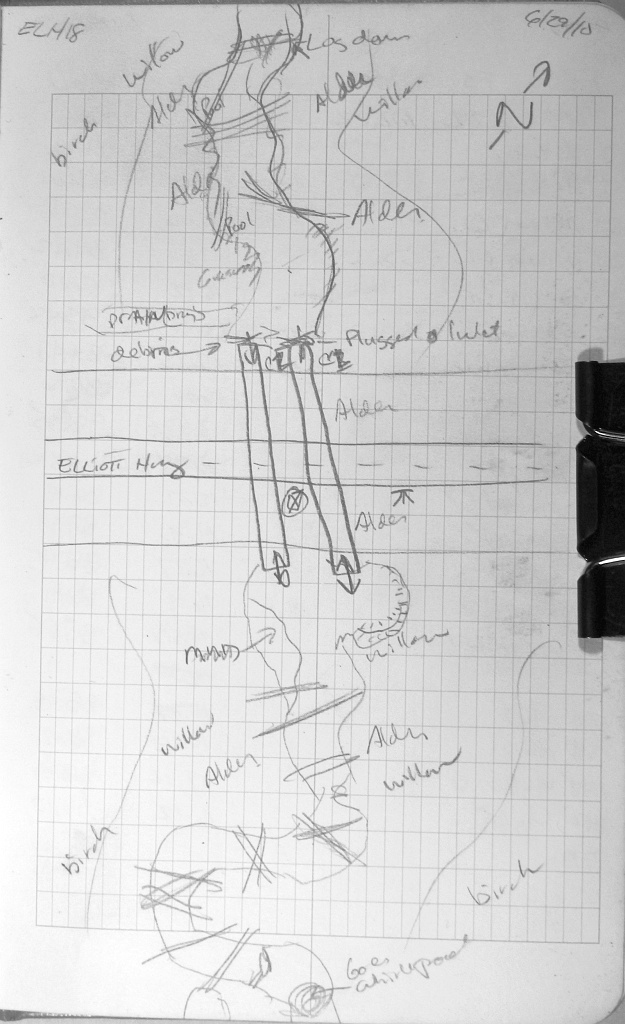

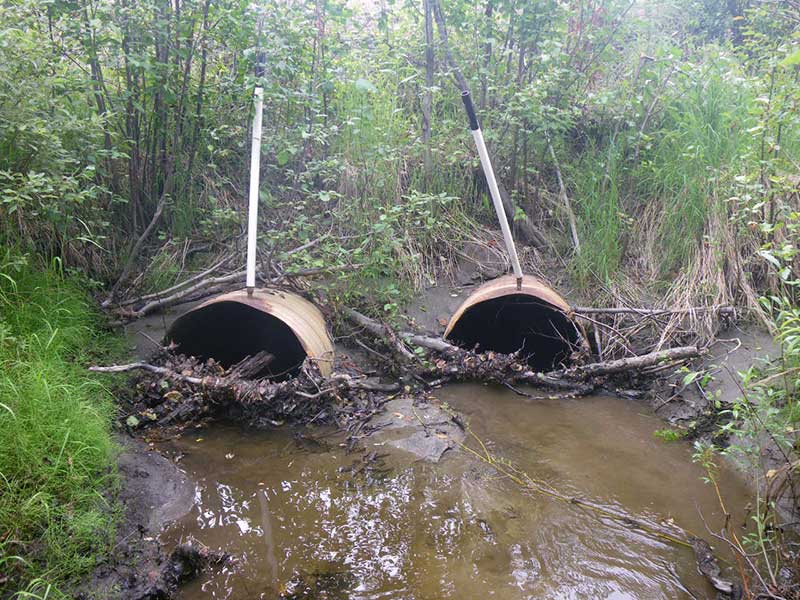

Comments: This culvert has 2 pipes. C1 is almost completely clogged with woody debris. C2 has a big inlet perch and is also heavily clogged with woody debris. The length of these pipes could not be shot with a laser so DOT placard lengths were used.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 104.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 2
Approach Angle: 5.0
Sedimentation At Inlet: Yes
Inlet Substrate: Organic
Outlet Substrate: Silt/Clay
InletOutlet
Width(ft):2.9 3.0
Height(ft):1.5 2.8
Apron Length(ft):
Water Depth(ft): 1.26
Rustline Height(ft):1.3
Substrate Depth(ft):1.5 0.2
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.02
Culvert Gradient: 1.67%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Debris Flow
  3. Inlet perch
  4. Sediment accumulation
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 104.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 2
Approach Angle: 5.0
Sedimentation At Inlet: Yes
Inlet Substrate: Organic
Outlet Substrate: Silt/Clay
InletOutlet
Width(ft):2.9 3.0
Height(ft):1.8 2.5
Apron Length(ft):
Water Depth(ft): 0.99
Rustline Height(ft):1.3
Substrate Depth(ft):1.3 0.5
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.02
Culvert Gradient: 1.43%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Debris Flow
  3. Inlet perch
  4. Sediment accumulation

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClaySilt/Clay
Subdominant:GravelGravel
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 62.0 5.00
Upstream ordinary high water 83.0 4.40
Upstream ordinary high water 106.0 3.20

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 98.75
D/S Thalweg (Thalweg) 0.00 83.81
D/S Water Surface Elev (Water Surface) 0.00 84.38
D/S Water Surface Elev (Water Surface) 1 27.00 84.42
D/S Water Surface Elev (Water Surface) 2 27.00 84.47
Outlet Invert (Substrate) 1 27.00 83.16
Outlet Invert (Substrate) 2 27.00 83.48
Outlet Culvert Top (Top of Pipe) 2 27.00 86.16
Outlet Culvert Top (Top of Pipe) 1 27.00 86.10
U/S Water Surface Elev (Water Surface) 2 131.00 86.11
U/S Water Surface Elev (Water Surface) 1 131.00 86.15
Inlet Culvert Top (Top of Pipe) 2 131.00 87.65
Inlet Culvert Top (Top of Pipe) 1 131.00 87.84
Inlet Culvert Invert (Substrate) 2 131.00 85.45
Inlet Culvert Invert (Substrate - debris in front of pipe) 1 131.00 85.59
U/S Thalweg (Substrate) 134.00 85.45
U/S Headwater (Water Surface) 134.00 86.12
U/S Water Surface Elev (Water Surface) 142.00 86.10
U/S Thalweg (Thalweg) 142.00 85.06

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.5
Channel Type: Main Channel (>50% of water flow)
Comments: No fish were caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 1.5
Channel Type: Main Channel (>50% of water flow)
Comments: No fish were caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
