Fish Passage Site 40501700

Coordinates (dec. deg.): 65.09994°, -147.74605°
Legal Description: F003N001W09
Region: Interior

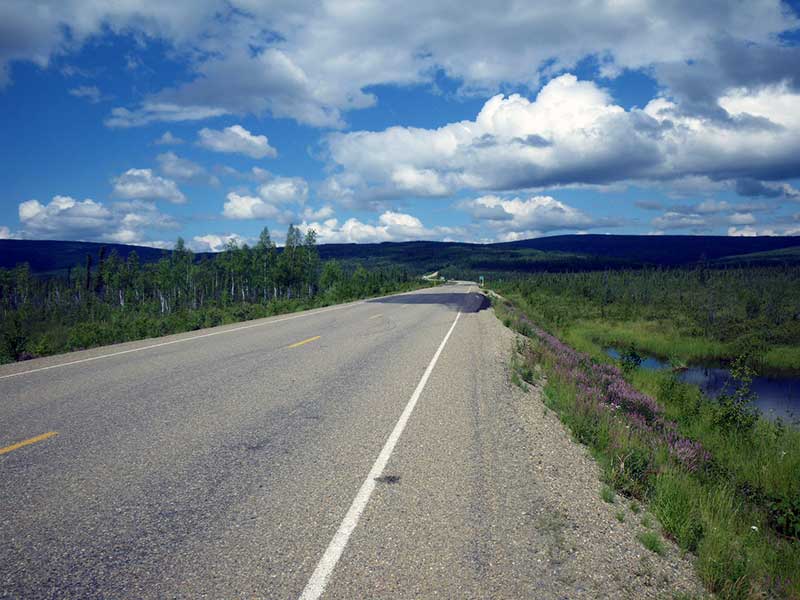

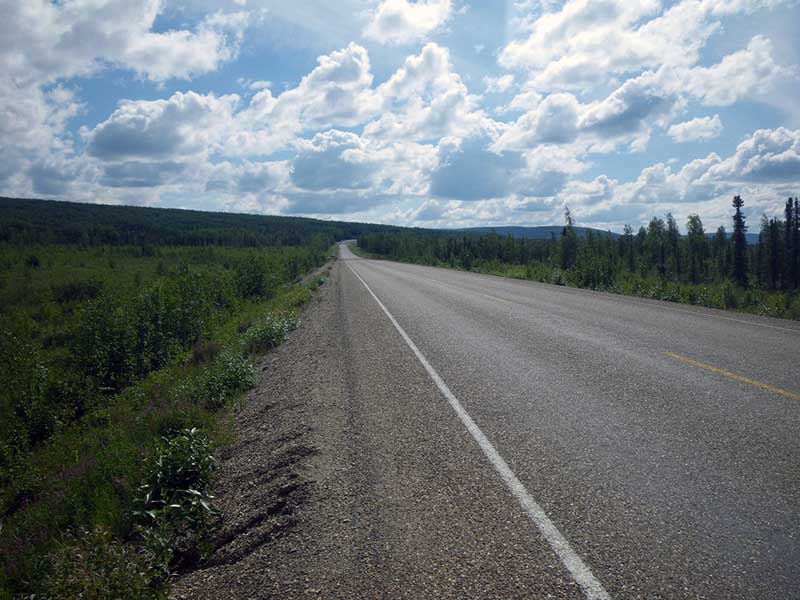

Road Name: Elliott Highway

Datum: WGS84
Quad Name / ITM: Livengood A-2
AWC Stream #:
Stream Name: Willow Creek, ponds off of

Elevation:

Site Comments: DOT# 868+30 Milepost 13.

Survey Date: Jun 28, 2010

Survey EDS10-ELH15

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: Yes

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert gradient red
  2. Culvert gradient gray

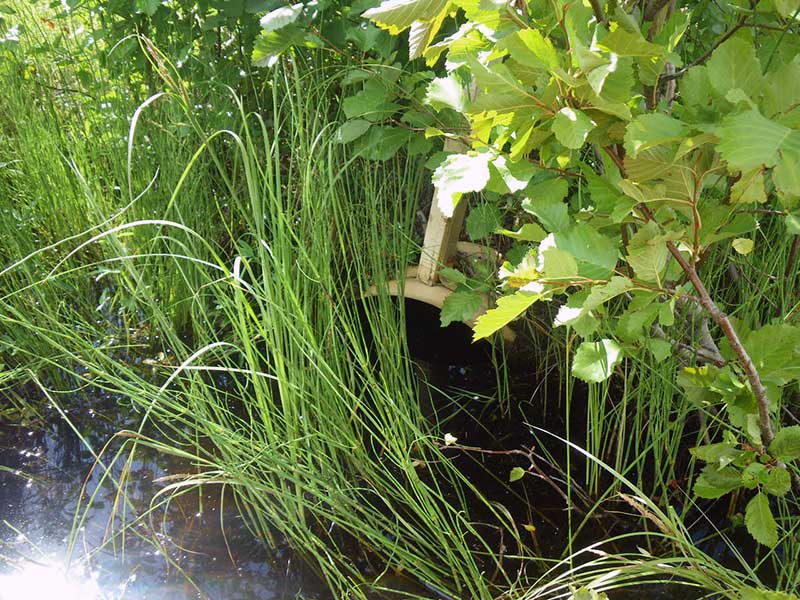

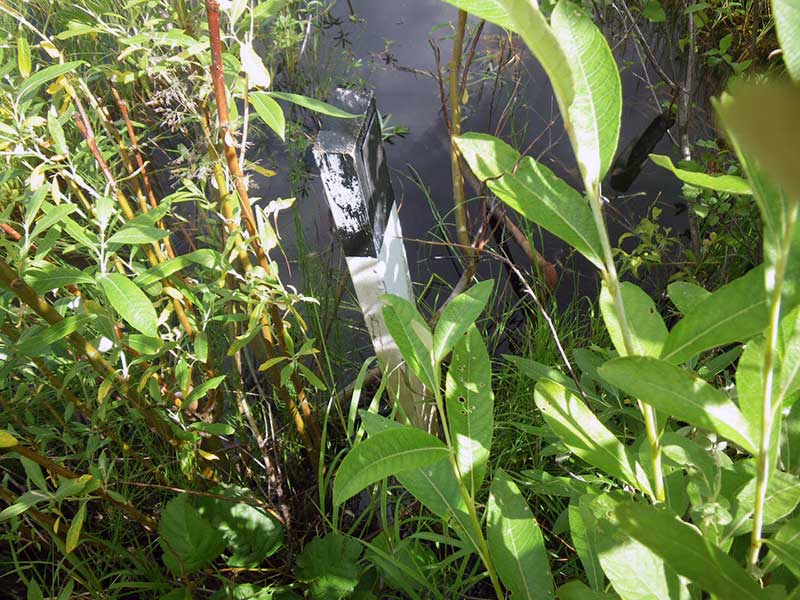

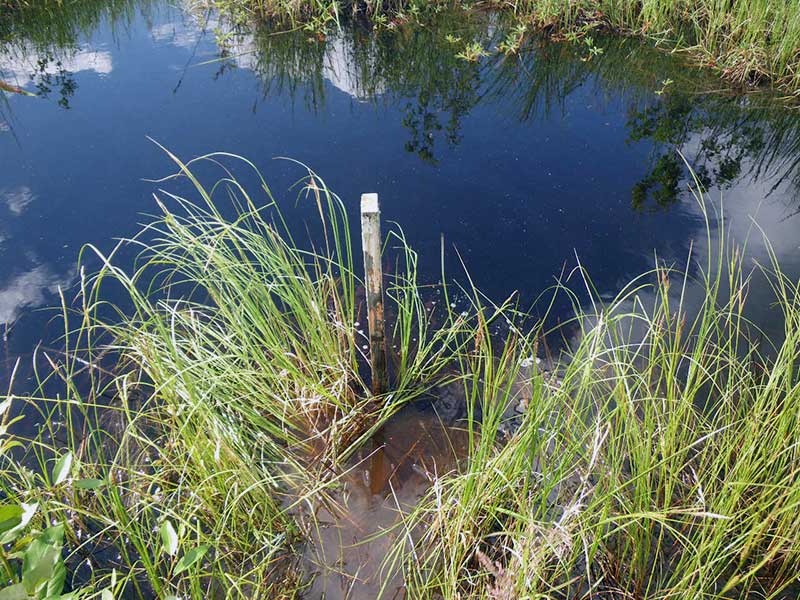

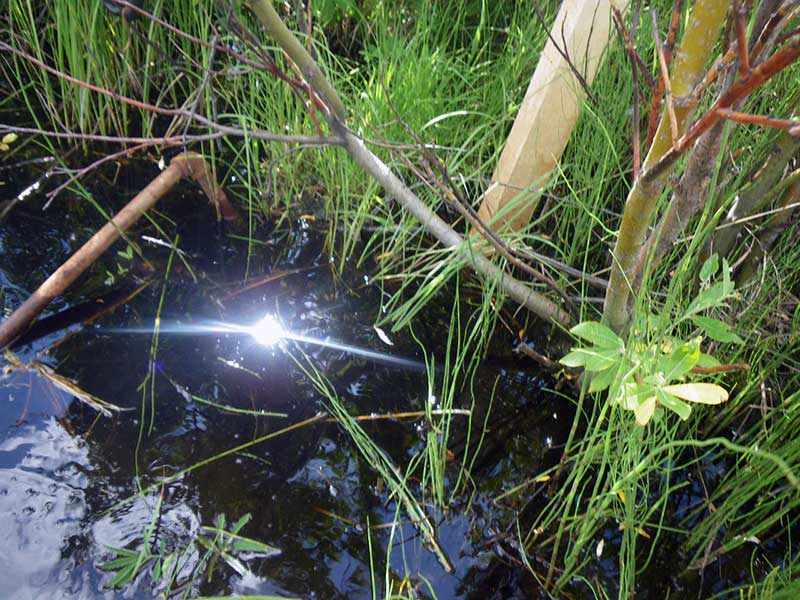

Comments: There are 2 pipes here. C1 is submerged and C2 is as well. The water is murky, it was difficult to find the inlet and outlet and it could not be confirmed if there was an apron or not. C1 appears to be fully clogged at the outlet. There is a deep pool at the outlet of C1. No constriction ratio was calculated because this culvert connects a pond to another pond. Also, any other measurements or calculations that are not present are because the pipe was fully submerged and clogged with debris.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 72.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 2
Approach Angle: 0.0
Sedimentation At Inlet: Yes
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):2.0 2.0
Height(ft):1.7 2.0
Apron Length(ft):
Water Depth(ft): 2.0
Rustline Height(ft):
Substrate Depth(ft):0.3
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 2.15%
Max Slope:
Max Slope Length:


Comments: Culvert length taken from DOT placard.
  Culvert Observations:
  1. Culvert gradient red
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Green

Length(ft): 66.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 2
Approach Angle: 0.0
Sedimentation At Inlet: Yes
Inlet Substrate: Organic
Outlet Substrate: Organic
InletOutlet
Width(ft):2.0 2.0
Height(ft):1.8 1.9
Apron Length(ft):
Water Depth(ft): 1.9
Rustline Height(ft):
Substrate Depth(ft):0.2 0.1
Backwatered?: Yes
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 1.24%
Max Slope:
Max Slope Length:


Comments: Any measurements or calculations that are not present is because the pipe was fully submerged and clogged with debris. Culvert length taken from DOT placard.
  Culvert Observations:
  1. Culvert gradient gray

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 92.51
D/S Water Surface Elev (Pond Surface) 0.00 94.12
D/S Water Surface Elev (Water Surface) 1 6.00 94.12
D/S Water Surface Elev (Water Surface) 2 6.00 94.12
Outlet Culvert Top (Top of Pipe) 2 6.00 94.37
Outlet Invert (Substrate) 2 6.00 92.51
Outlet Culvert Top (Top of Pipe) 1 6.00 93.25
Outlet Invert (Substrate) 1 6.00 91.48
Inlet Culvert Invert (Substrate) 2 72.00 91.60
Inlet Culvert Top (Top of Pipe) 2 72.00 93.55
U/S Headwater (Water Surface) 2 72.00 93.84
U/S Headwater (Water Surface) 1 78.00 93.85
Inlet Culvert Top (Top of Pipe) 1 78.00 91.70
Inlet Culvert Invert (End of Pipe - deep drop off) 1 78.00 89.09

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.0
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught. No fish observed.

Gear Type: Minnow Trap (B) Trap Duration(h): 1.0
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
