Fish Passage Site 40501696

Coordinates (dec. deg.): 65.20986°, -148.10448°
Legal Description: F004N003W02
Region: Interior

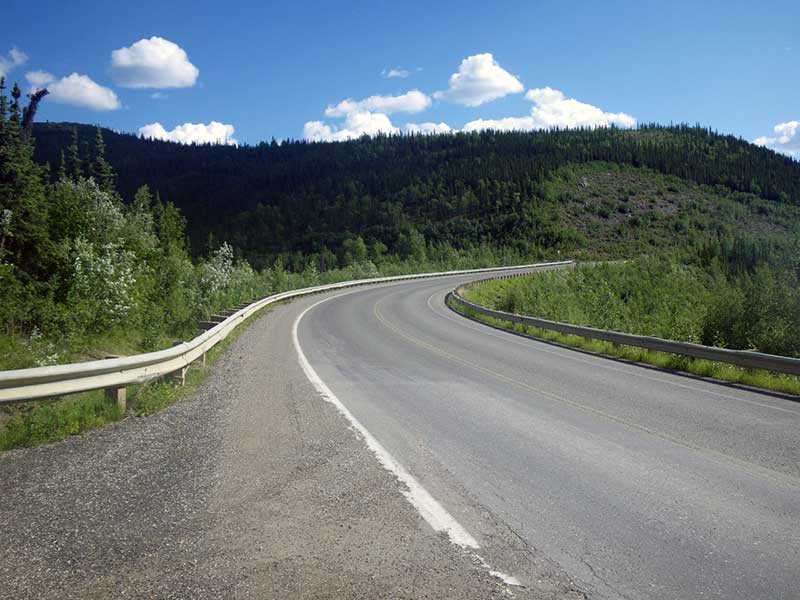

Road Name: Elliott Highway

Datum: WGS84
Quad Name / ITM: Livengood A-3
AWC Stream #:
Stream Name:

Elevation:

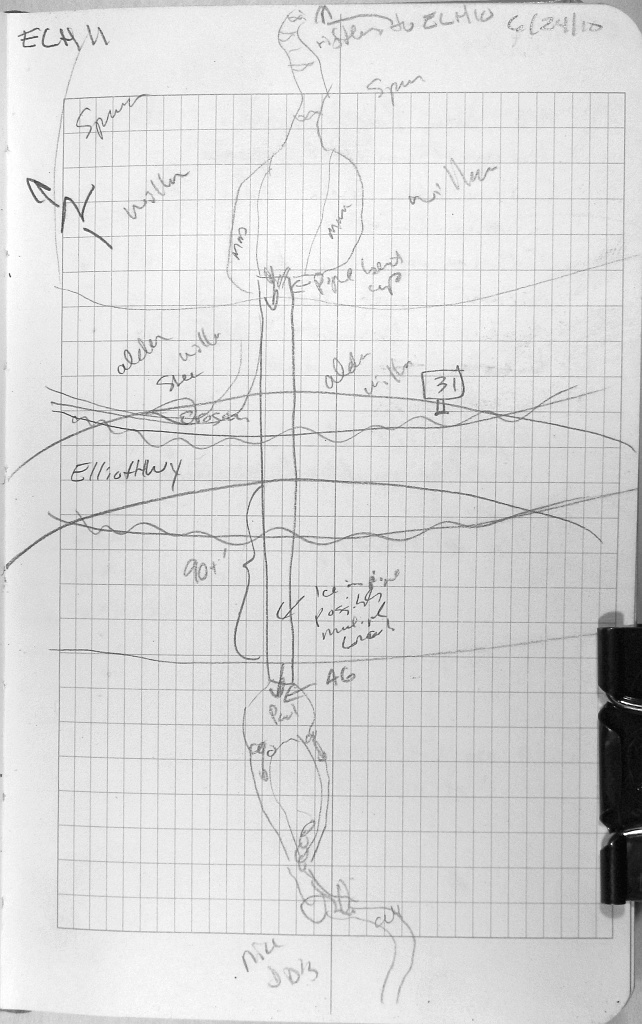

Site Comments: 31 mile on the highway, pull out culvert just upstream. DOT#1729+90.

Survey Date: Jun 24, 2010

Survey EDS10-ELH11

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Structural Problem
  2. Mechanical damage or joints parting
  3. Damage associated with ice problems

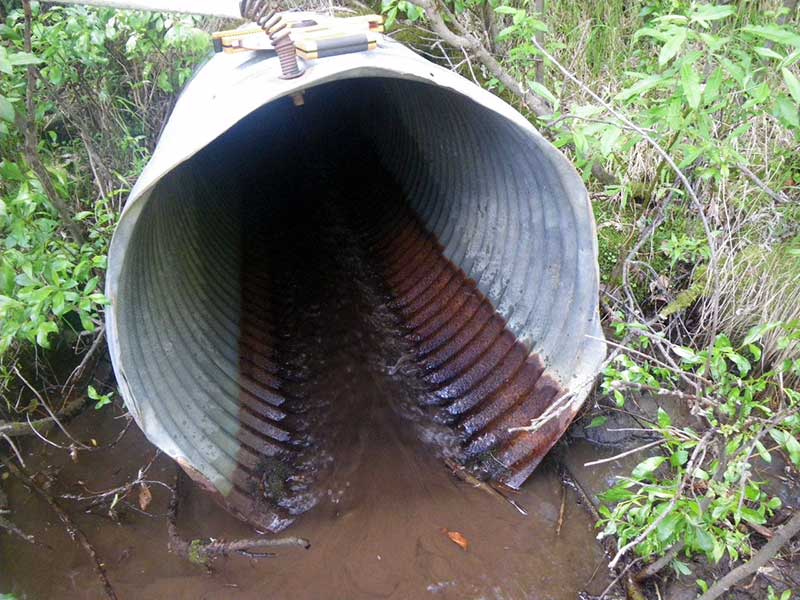

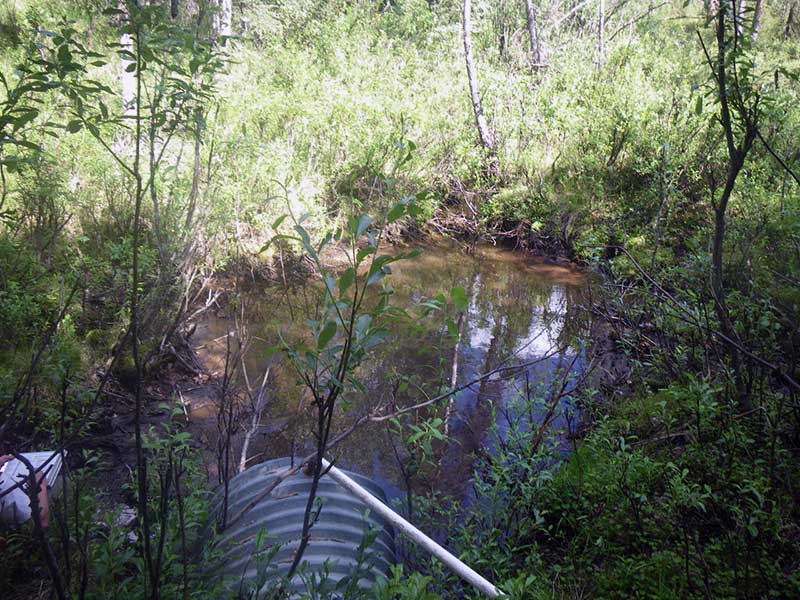

Comments: The inlet of this pipe is bent in and up. This looks like prior ice damage. This is backing up water before the pipe. The max outlet pool depth = 1.10ft at 3ft from the outlet. The stream grade seems to be a good habitat. There are not too many drop offs. The length was obtained from the DOT placard. No longitudinal profile was done at this site because it was too steep and there was too much brush. No minnow traps set.

Culvert Measurements

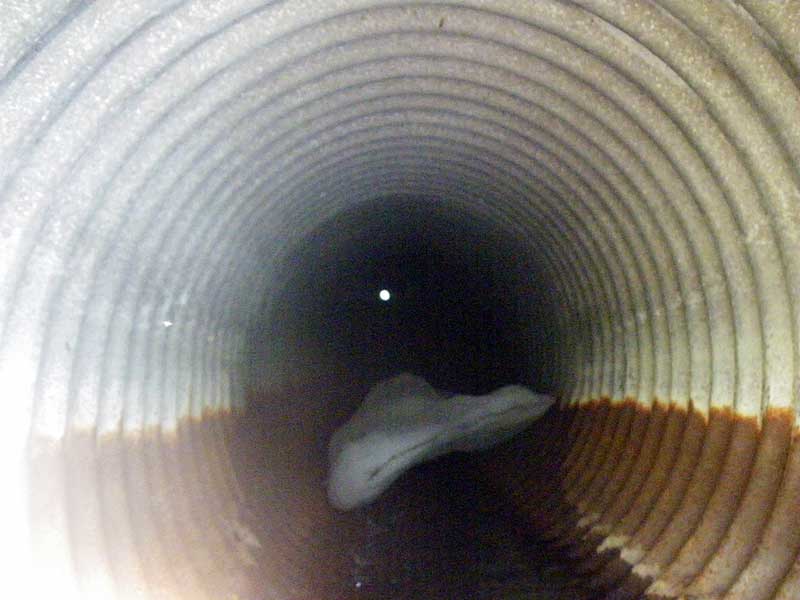

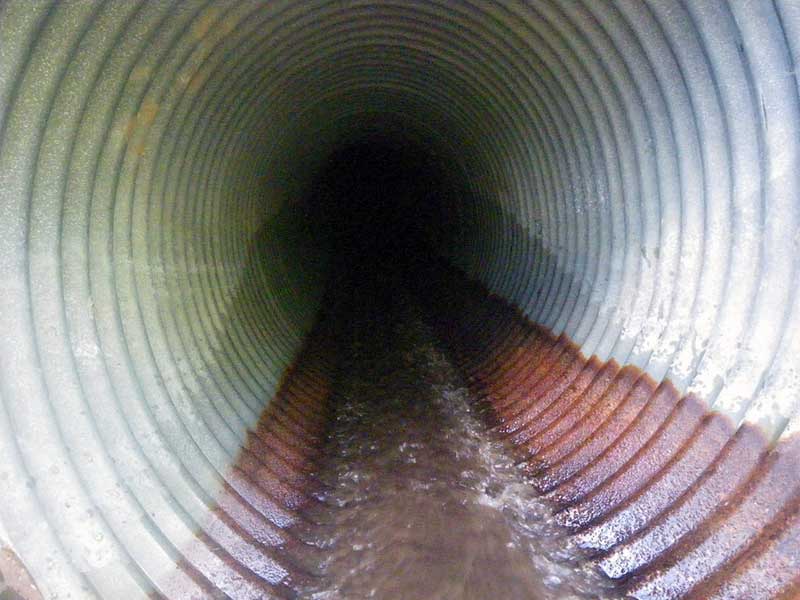

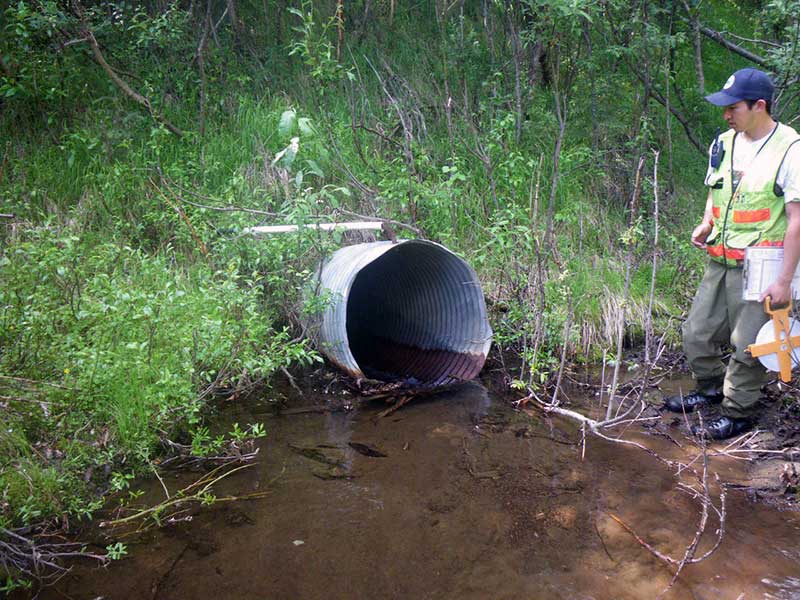

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 240.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 2
Approach Angle: 50.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.9 2.9
Height(ft):3.2 3.2
Apron Length(ft):
Water Depth(ft): 0.4
Rustline Height(ft):1.0
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.48
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Structural Problem
  2. Mechanical damage or joints parting
  3. Damage associated with ice problems

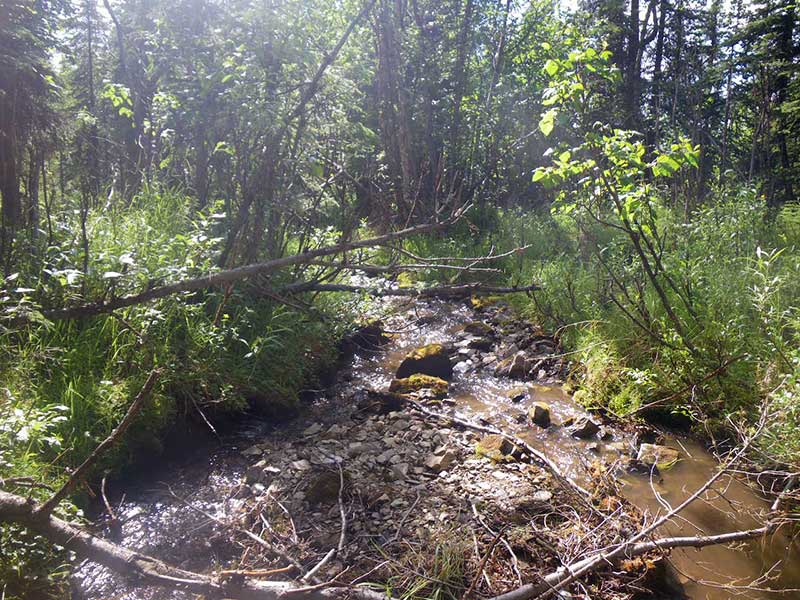

Stream Measurements

Stream SubstratesUpstreamDownstream

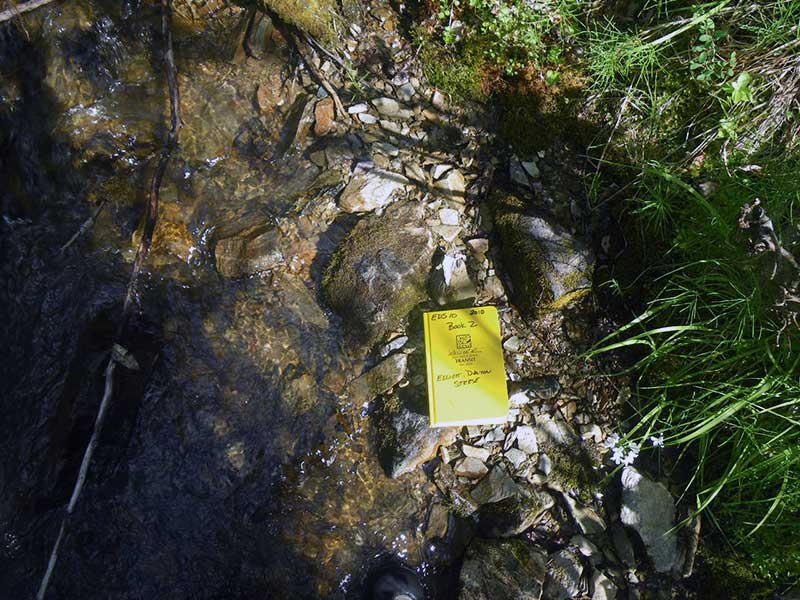

Dominant:CobbleCobble
Subdominant:GravelGravel
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 32.0 2.10
Upstream ordinary high water 51.0 2.20
Upstream ordinary high water 67.0 1.80

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set. No fish observed.

Fish Observations

No fish observations occurred during this survey.
