Fish Passage Site 40501695

Coordinates (dec. deg.): 65.20977°, -148.10057°
Legal Description: F004N003W02
Region: Interior
Road Name: Elliott Highway Pullout

Datum: WGS84
Quad Name / ITM: Livengood A-3
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: On 31 mile pullout.

Survey Date: Jun 24, 2010

Survey EDS10-ELH10

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Inlet perch
  3. Structural Problem
  4. Mechanical damage or joints parting
  5. Compound gradient in pipe

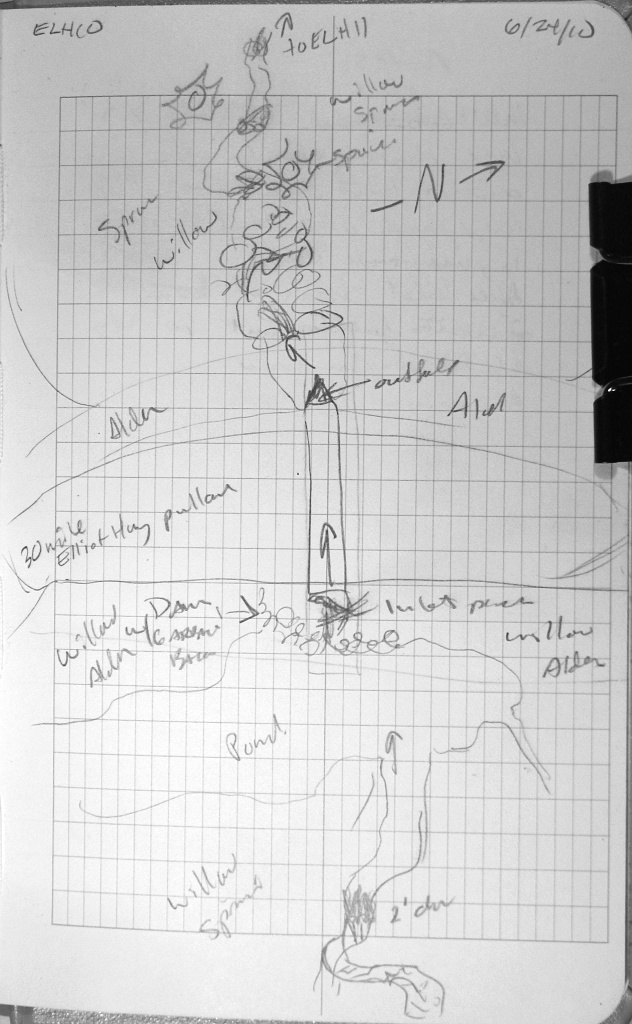

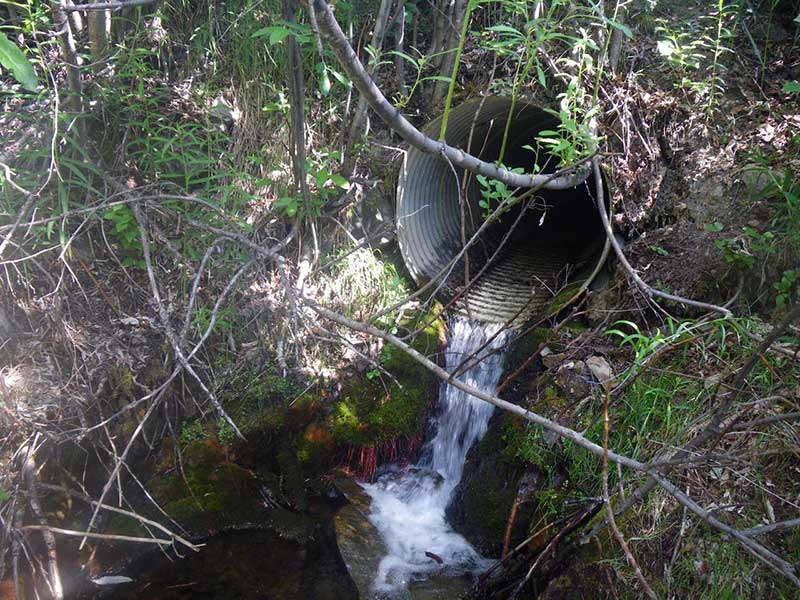

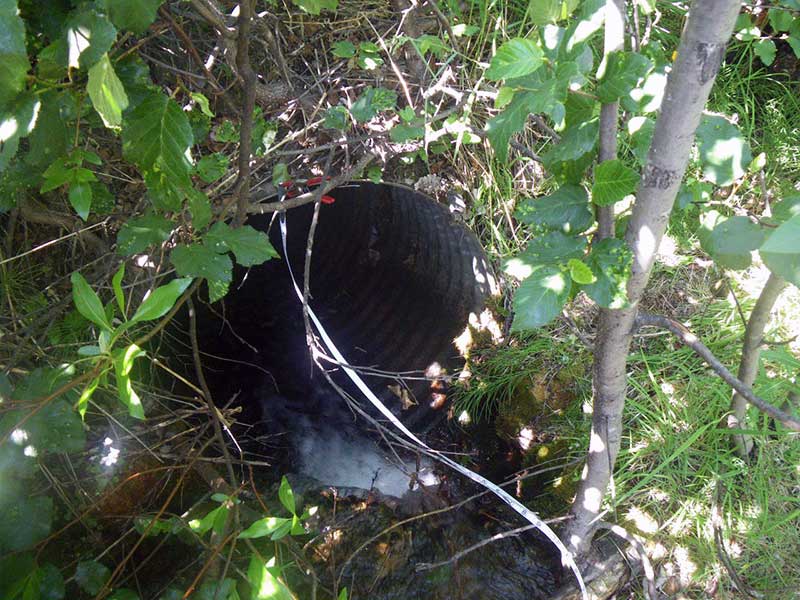

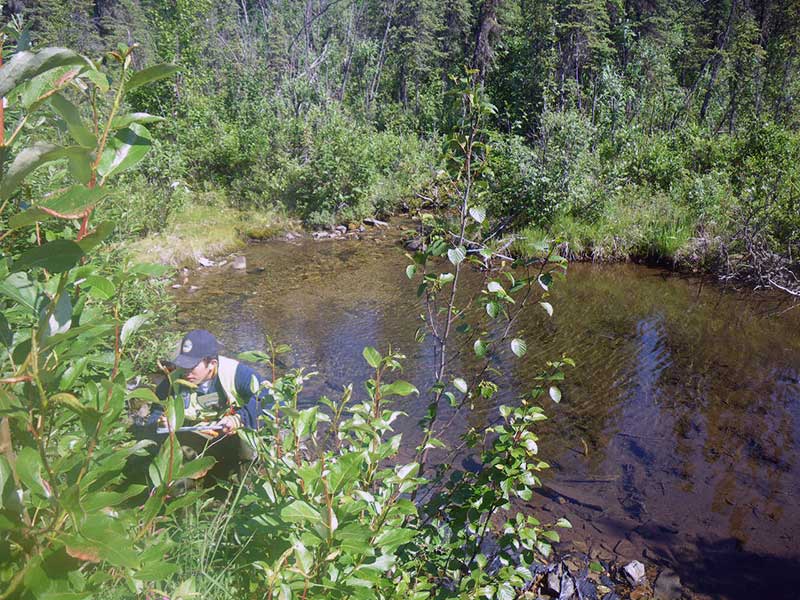

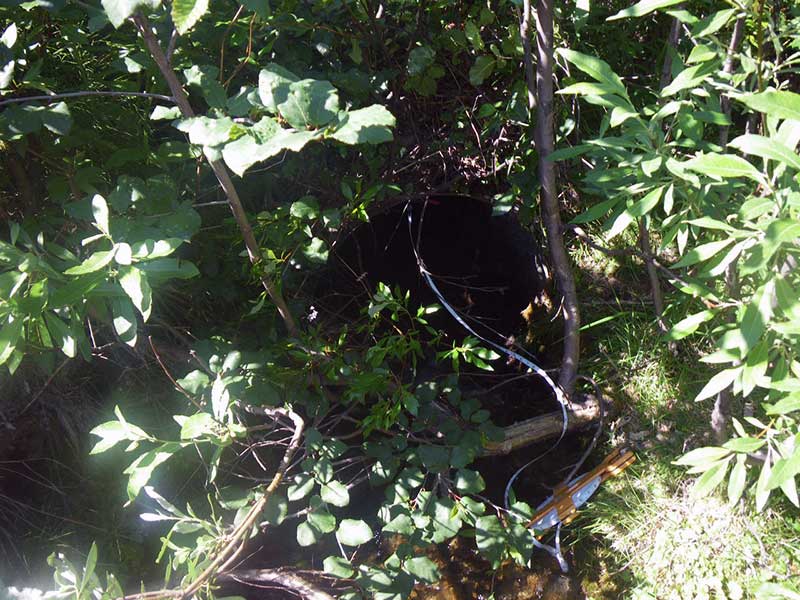

Comments: On 31 mile pullout. This culvert has a big inlet perch approx 1.10ft. The pipe is broken and crushed down towards the inlet and length could not be measured. The pipe is separating into sections. The outlet appears to be a different pipe. It looks as if it could be aluminum.There is also a compound gradient in this pipe. It looks like a small pond has been created by the inlet. Max pool depth is 1.70ft at 4ft from the outlet. No longitudinal profile was taken because of the terrain.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated aluminum) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 2
Approach Angle: 31.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.9 2.9
Height(ft):3.1 3.1
Apron Length(ft):
Water Depth(ft): 0.2
Rustline Height(ft):0.9
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 2.3
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio: 0.8
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Inlet perch
  3. Structural Problem
  4. Mechanical damage or joints parting
  5. Compound gradient in pipe

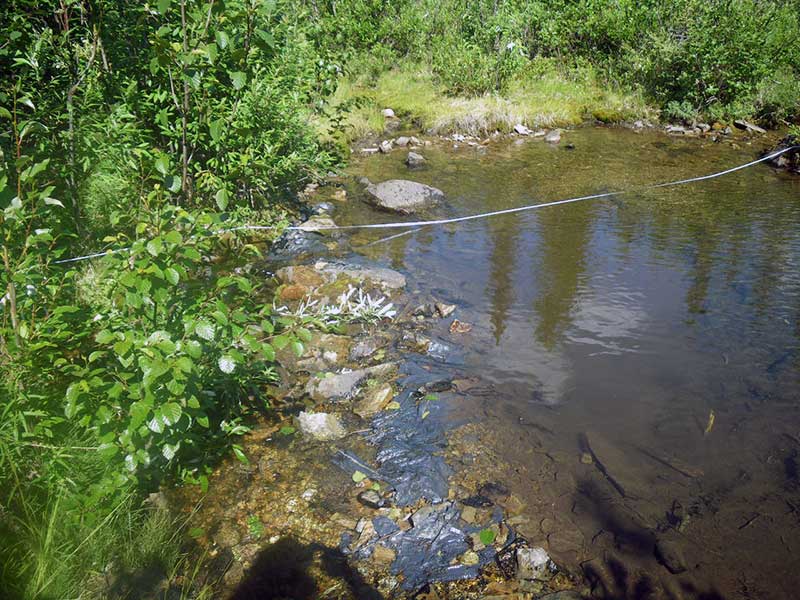

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleBoulder
Subdominant:GravelCobble
Stream Slope(deg.):
Stream Flow Stage:Medium

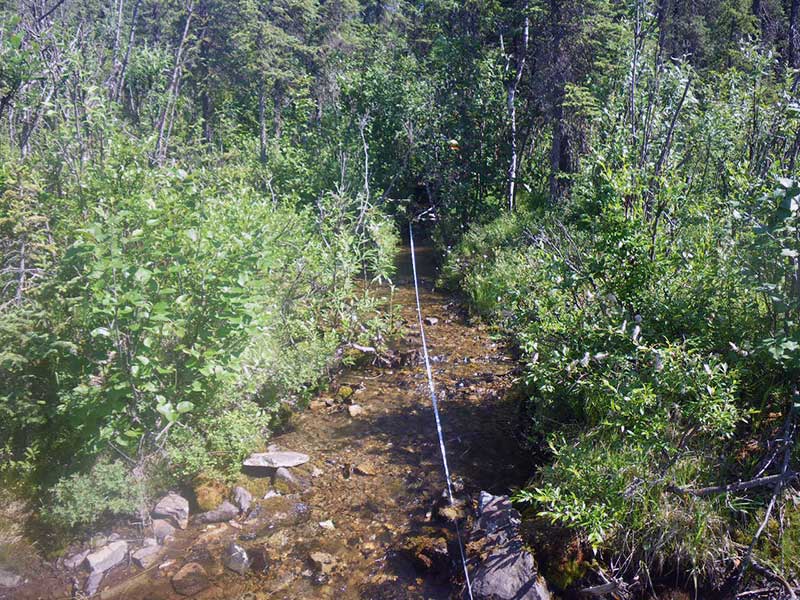

Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 46.0 3.00
Upstream ordinary high water 80.0 5.40
Upstream ordinary high water 116.0 2.90

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set water too shallow. No fish observed.

Fish Observations

No fish observations occurred during this survey.
