Fish Passage Site 40501693

Coordinates (dec. deg.): 65.19767°, -148.08212°
Legal Description: F004N003W01
Region: Interior
Road Name: Elliott Highway Pullout

Datum: WGS84
Quad Name / ITM: Livengood A-3
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: On 29 mile pullout. Remains of an old bridge upstream from this culvert.

Survey Date: Jun 24, 2010

Survey EDS10-ELH08

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


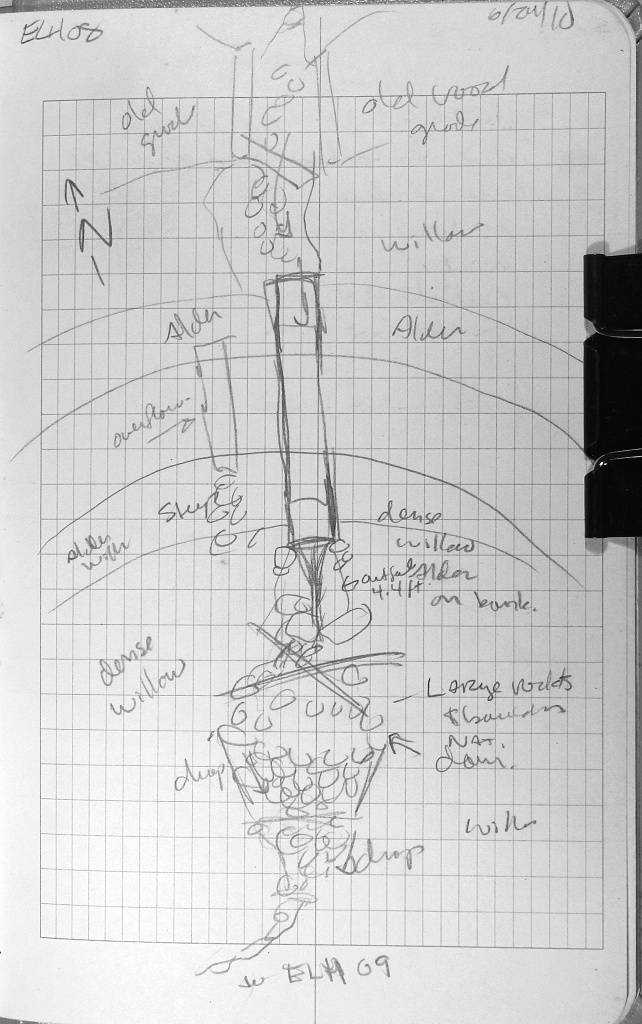

Site Observations:

  1. Outfall height red
  2. Mechanical damage or joints parting
  3. Structural Problem
  4. Constriction ratio red

Comments: This pipe is rusted throughout. No minnow traps were set here because the water level was too low. There are the remains of an old bridge upstream from this culvert. The pipe gradient and the length could not be calculated because of ice blockage and a bend in the pipe but the pipe is red by the outfall height alone. The constriction ratio should be disregarded - there are big pools throughout and no real runs.

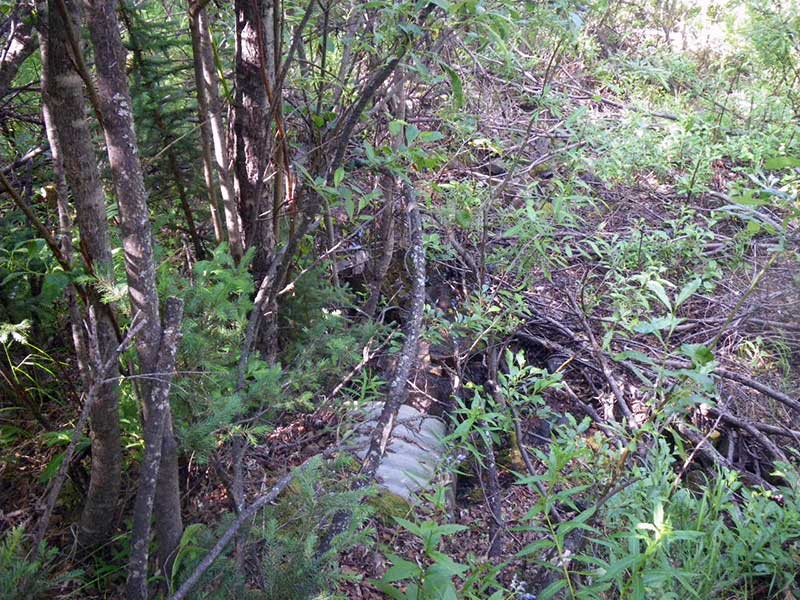

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 1
Approach Angle: 14.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.0 2.1
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft): 0.05
Rustline Height(ft):1.2
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

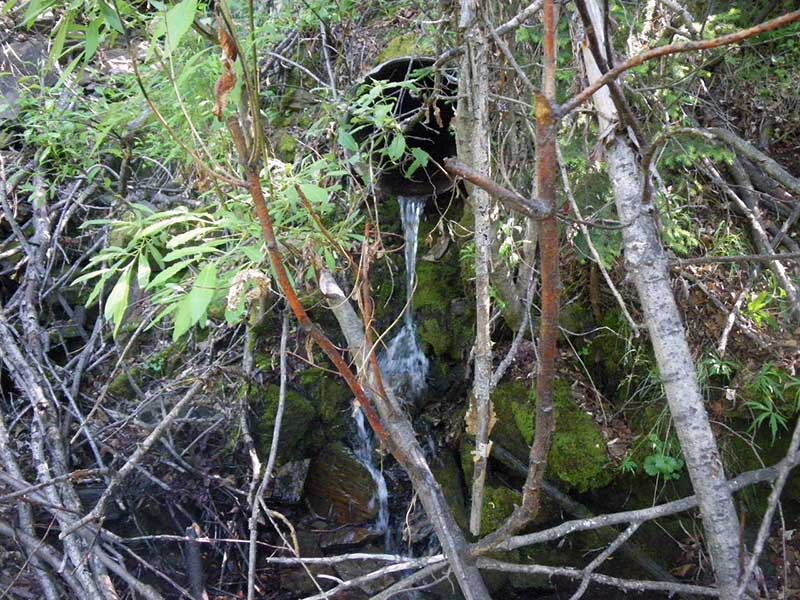

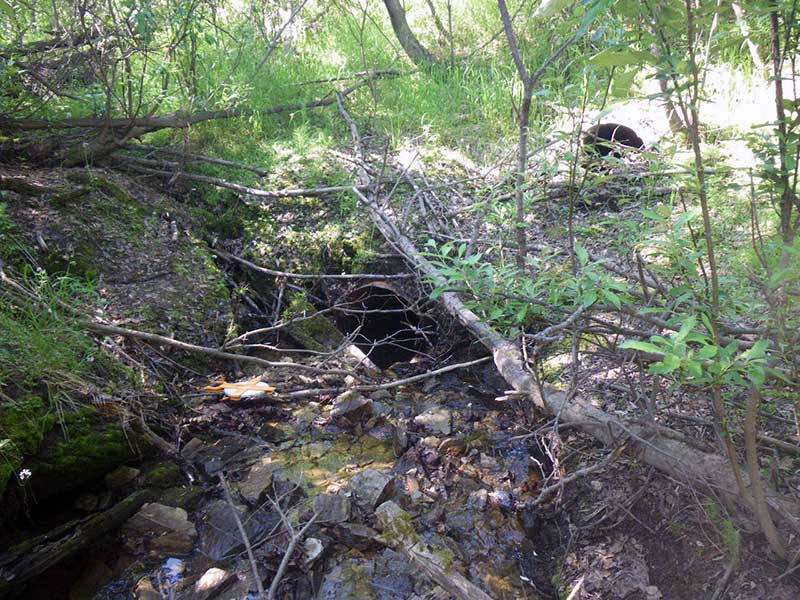

Outfall Height: 4.4
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio: 0.42
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: The water surface at the bottom of the rip-rap = 0.20ft.
  Culvert Observations:
  1. Outfall height red
  2. Mechanical damage or joints parting
  3. Structural Problem
  4. Constriction ratio red

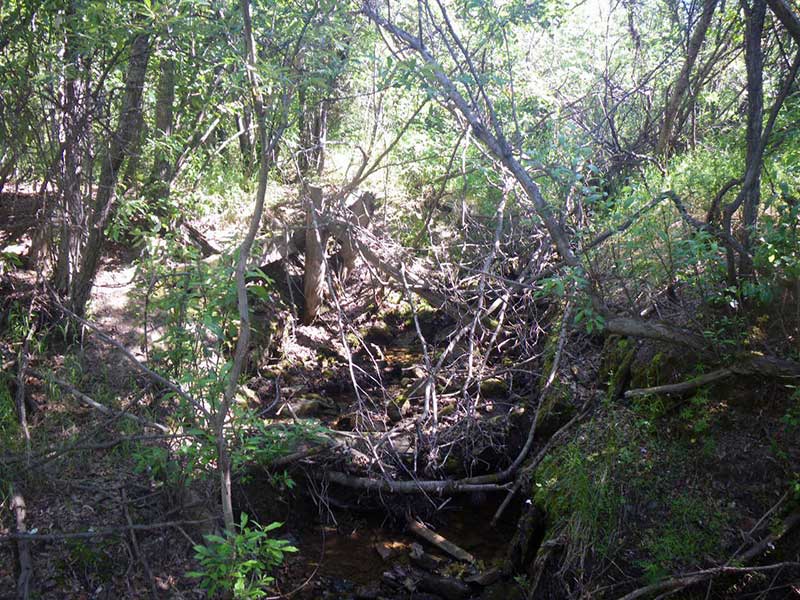

Stream Measurements

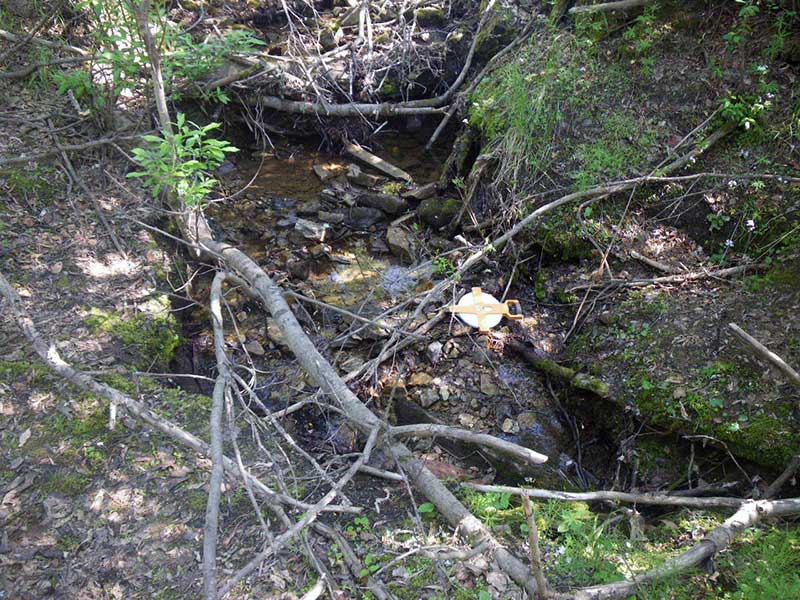

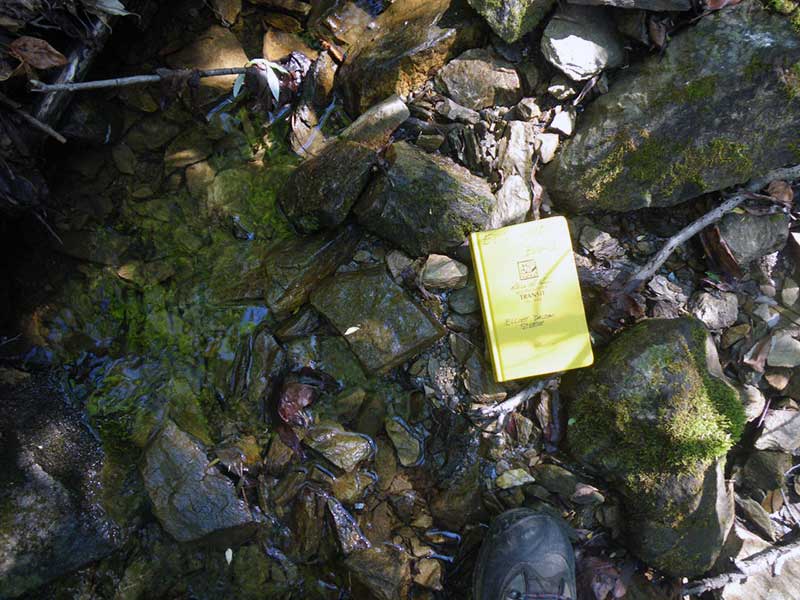

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayCobble
Subdominant:CobbleGravel
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 79.0 6.40
Upstream ordinary high water 101.0 4.30
Upstream ordinary high water 112.0 3.70

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set water too shallow. No fish observed.

Fish Observations

No fish observations occurred during this survey.
