Fish Passage Site 40501692

Coordinates (dec. deg.): 65.18432°, -147.99702°
Legal Description: F004N002W08
Region: Interior
Road Name: Elliott Highway

Datum: WGS84
Quad Name / ITM: Livengood A-2
AWC Stream #:
Stream Name: Snowshoe Creek tributary

Elevation:

Site Comments: DOT #1427 +50. Approx. 500' downstream from EDS10 ELH06 which is on 25 mile pullout..

Survey Date: Jun 23, 2010

Survey EDS10-ELH07

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Mechanical damage or joints parting
  3. Structural Problem
  4. Road bank erosion

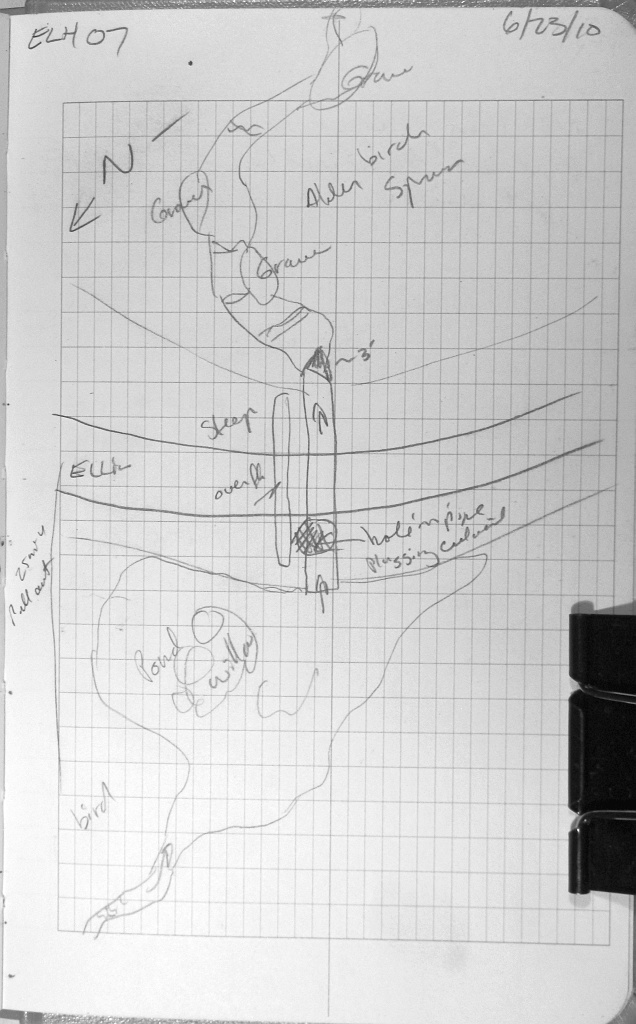

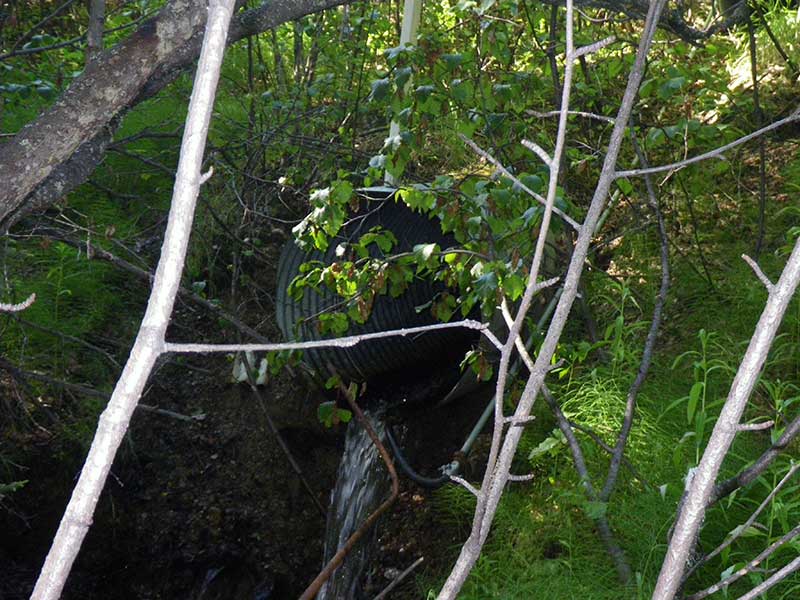

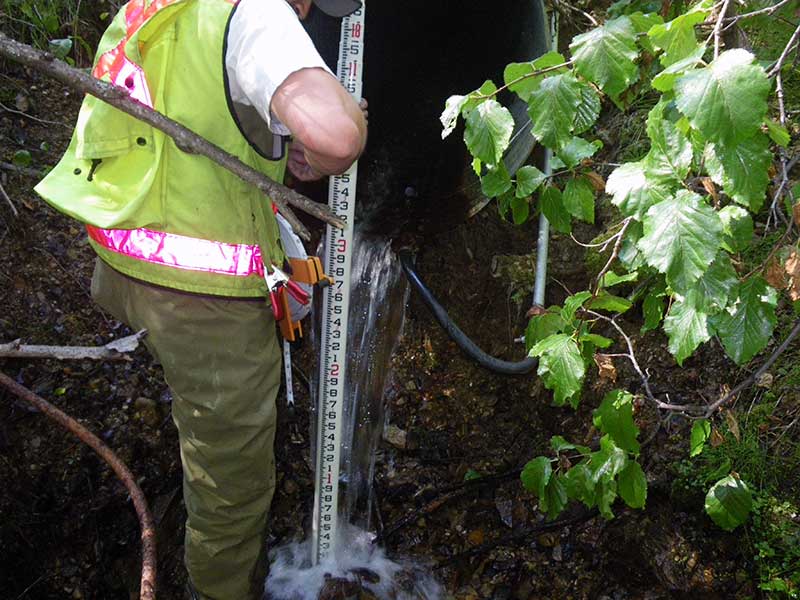

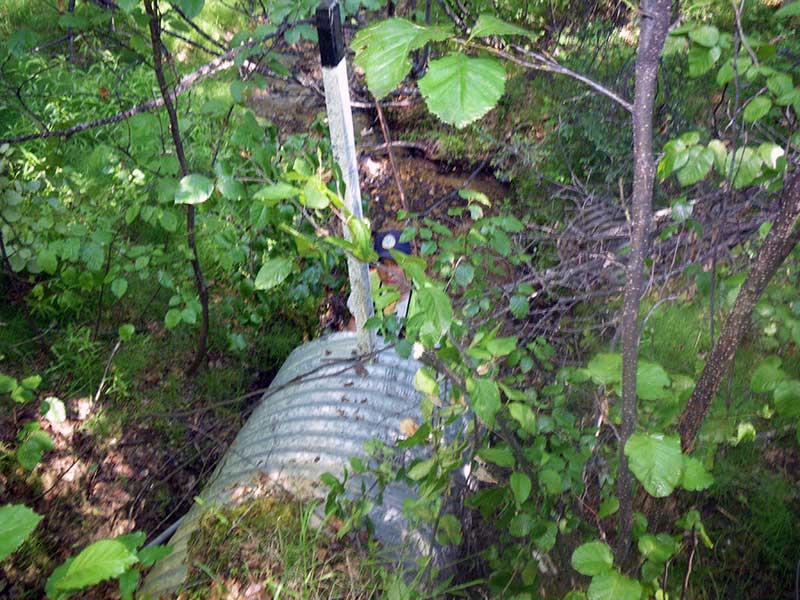

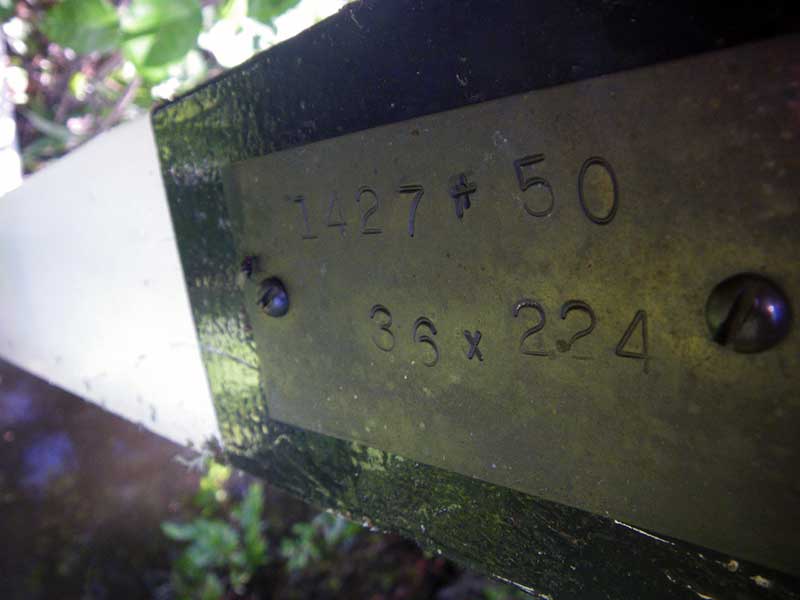

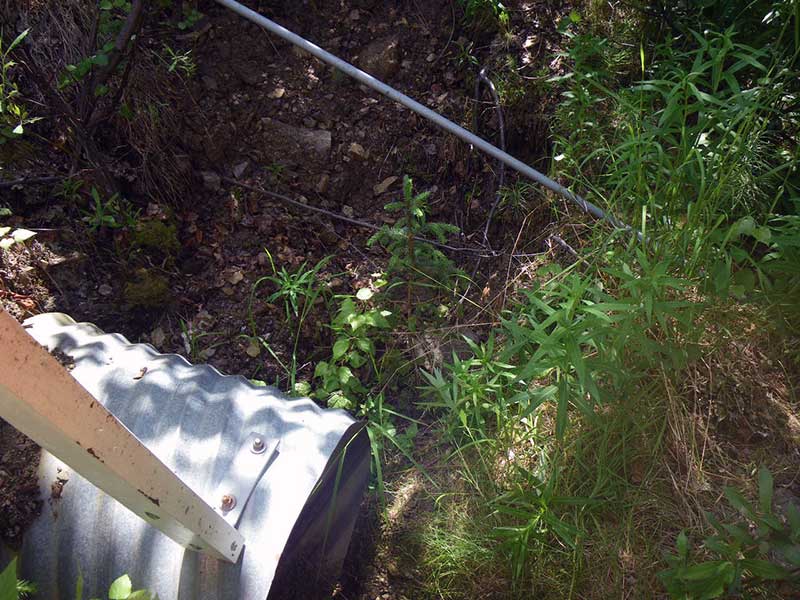

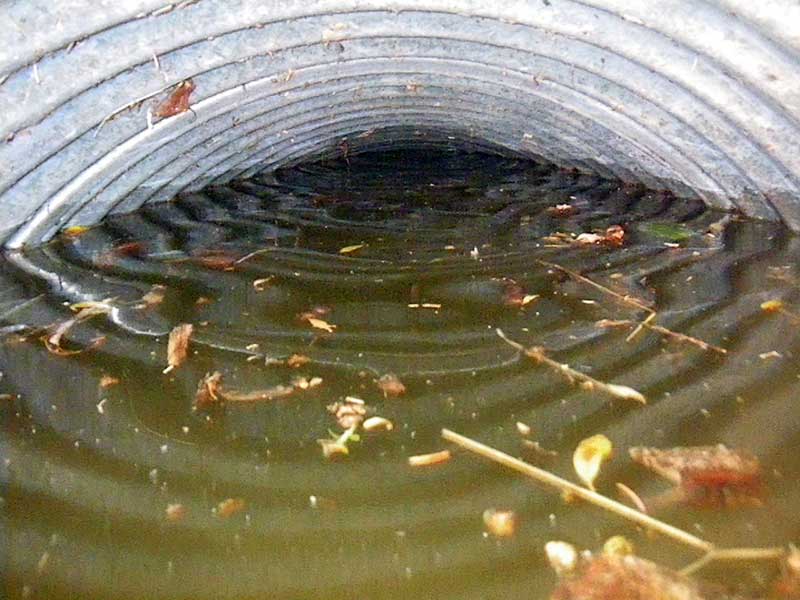

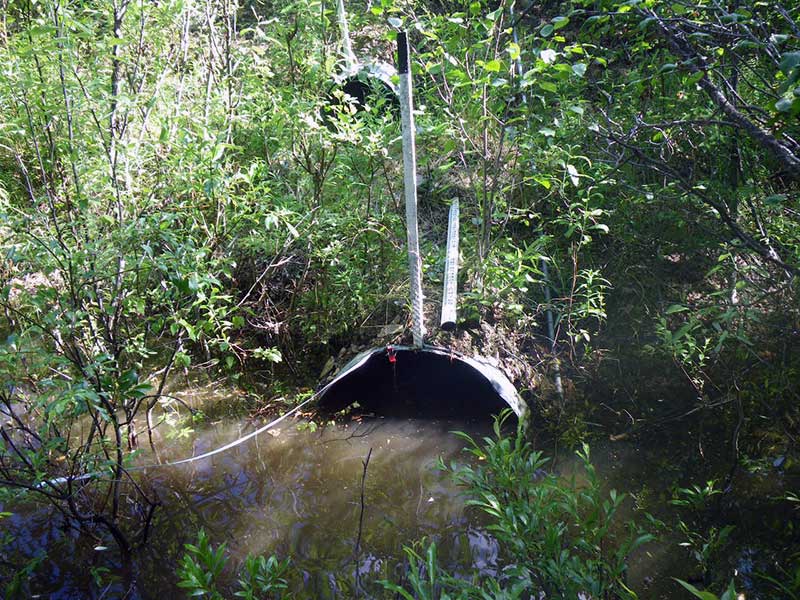

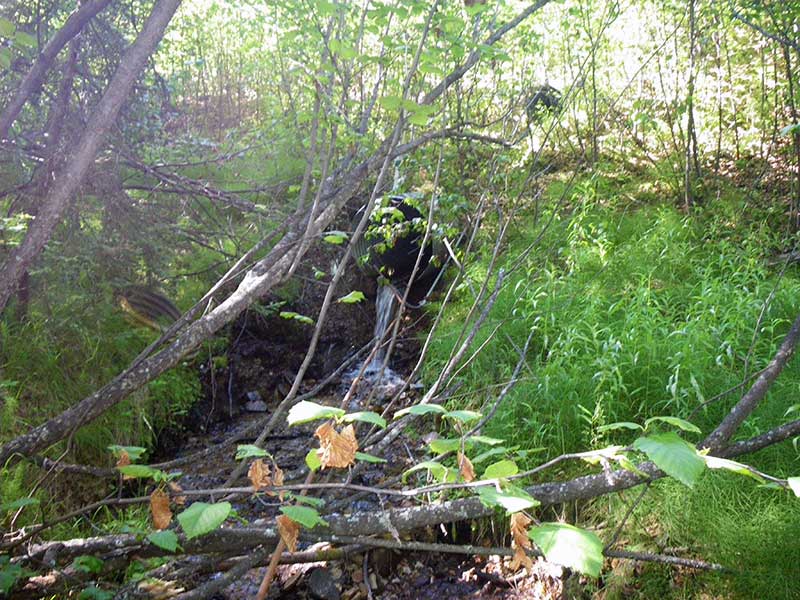

Comments: No traps set water to shallow. Approx. 500' downstream from ELH06. Pipe is plugged somewhere and inlet is backwatered with a small pond formed behind it, up to 3' deep. Outlet damage, pieces of outlet lying around downstream. DOT #1427 +50 (36"x224'). Culvert Length could not be determined on site. We could not float a tape or shoot a laser down the pipe due to obstruction and the outlet appears to have been sheared off. DOT placard states that culvert length is 224 feet.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 1
Approach Angle: 59.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 3.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.1
Rustline Height(ft):0.98
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 2.96
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio: 0.91
Culvert Gradient:
Max Slope:
Max Slope Length:

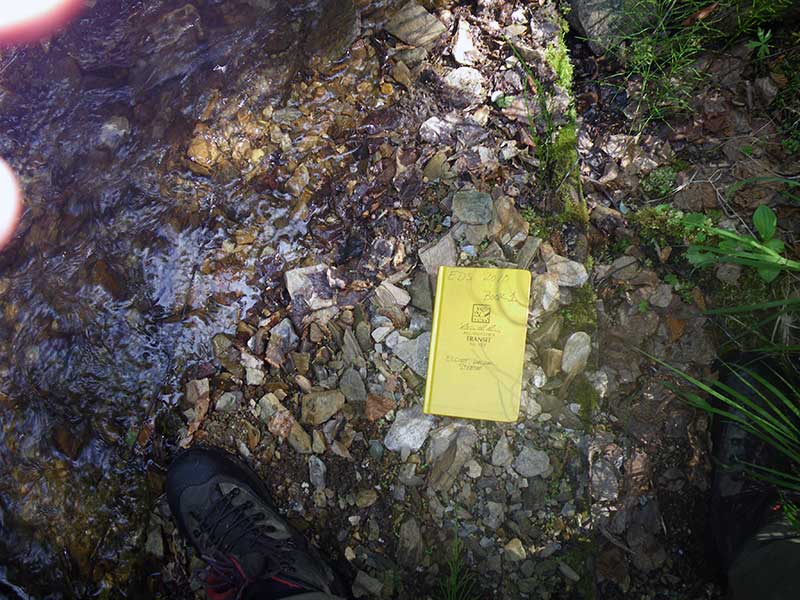

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:GravelGravel
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 85.0 3.20
Upstream ordinary high water 115.0 2.90
Upstream ordinary high water 171.0 3.00

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No Traps set water too shallow. No fish seen.

Fish Observations

No fish observations occurred during this survey.
