Fish Passage Site 40501691

Coordinates (dec. deg.): 65.18571°, -147.99879°
Legal Description: F004N002W08
Region: Interior

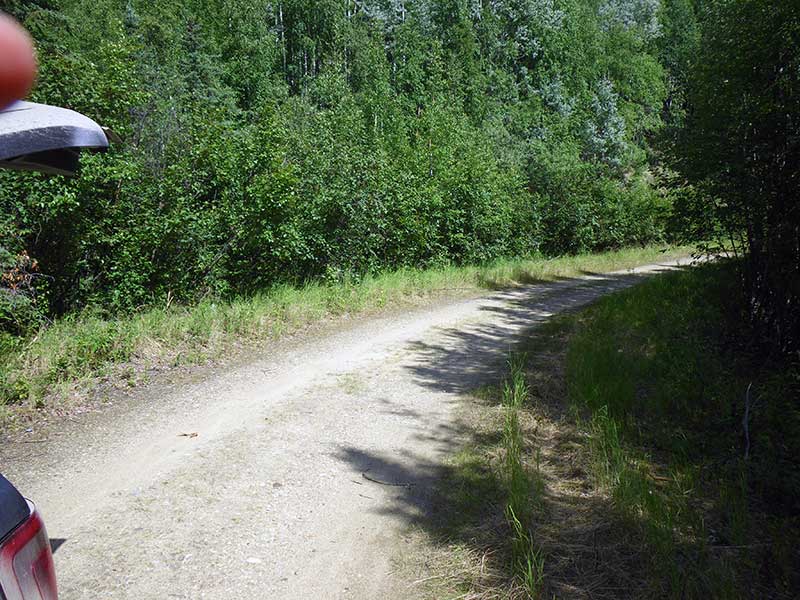

Road Name: Elliott Highway Pullout

Datum: NAD83
Quad Name / ITM: Livengood A-2
AWC Stream #:
Stream Name: Snowshoe Creek tributary

Elevation:

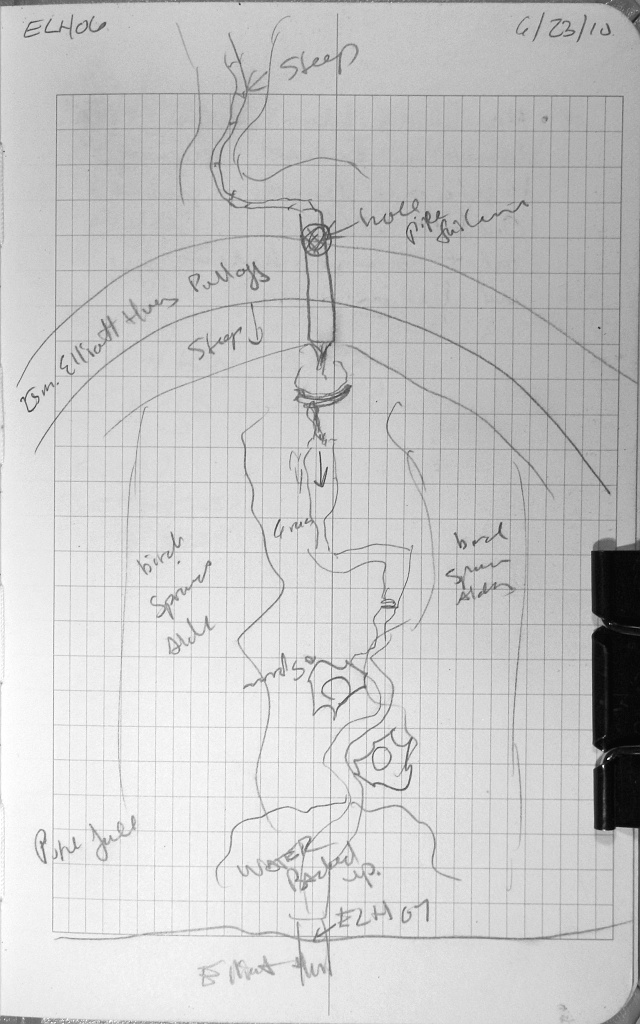

Site Comments: 25 mile Elliott Hwy Pullout. Approx. 500' upstream from EDS10 ELH07.

Survey Date: Jun 23, 2010

Survey EDS10-ELH06

Observers: Mark Eisenman, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Mechanical damage or joints parting
  3. Structural Problem
  4. Culvert is poorly aligned

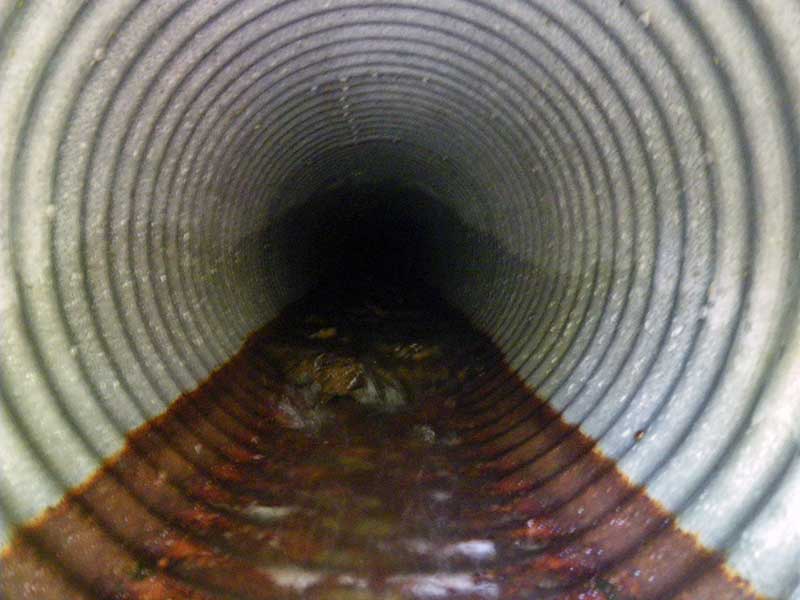

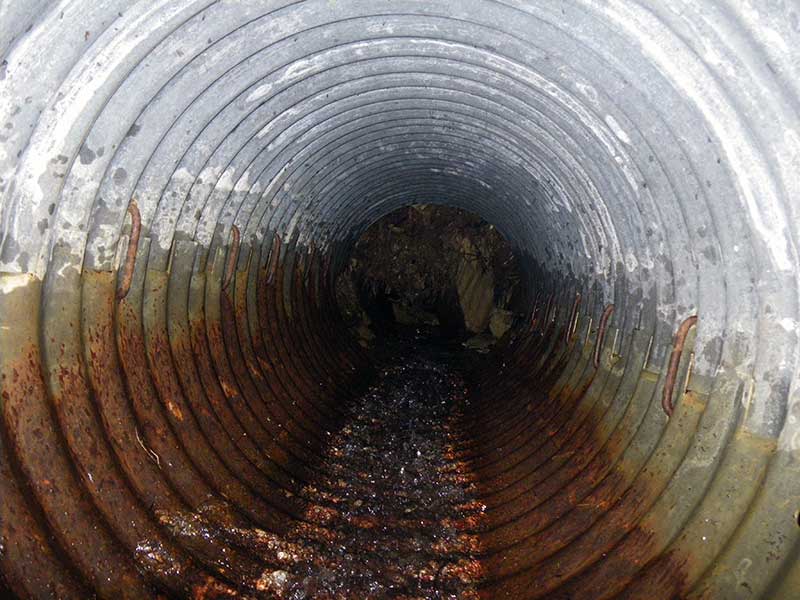

Comments: Max outlet pool depth 0.75'. Pipe appears to be rusted out water is leaking into pipe from surrounding surface. Part of inlet has broken and substrate is washing into pipe. Pipe length could not be measured and there was no DOT placard. 25 mile Elliott Hwy Pullout.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft):

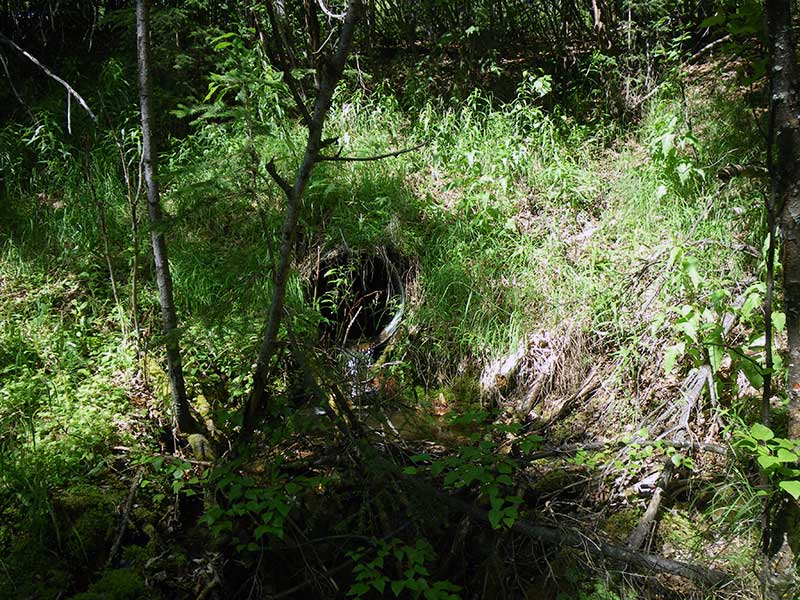

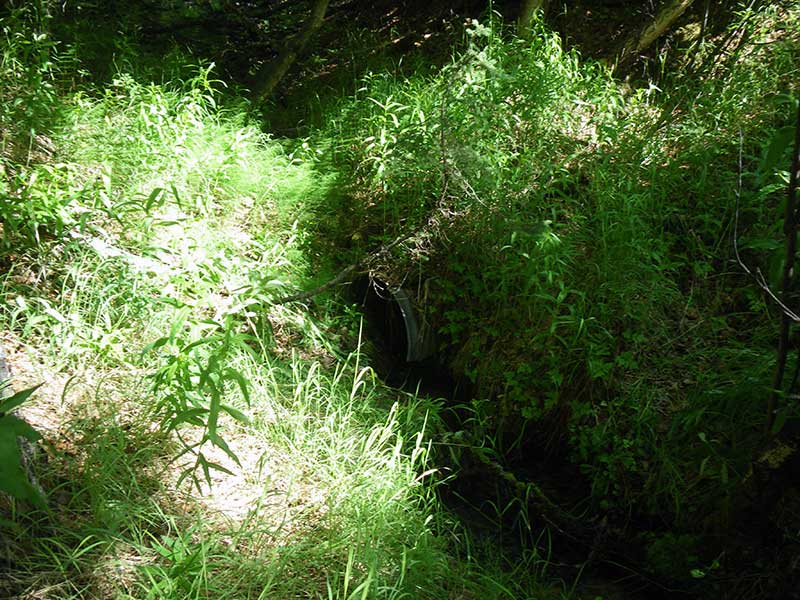

Inlet Type: Projecting

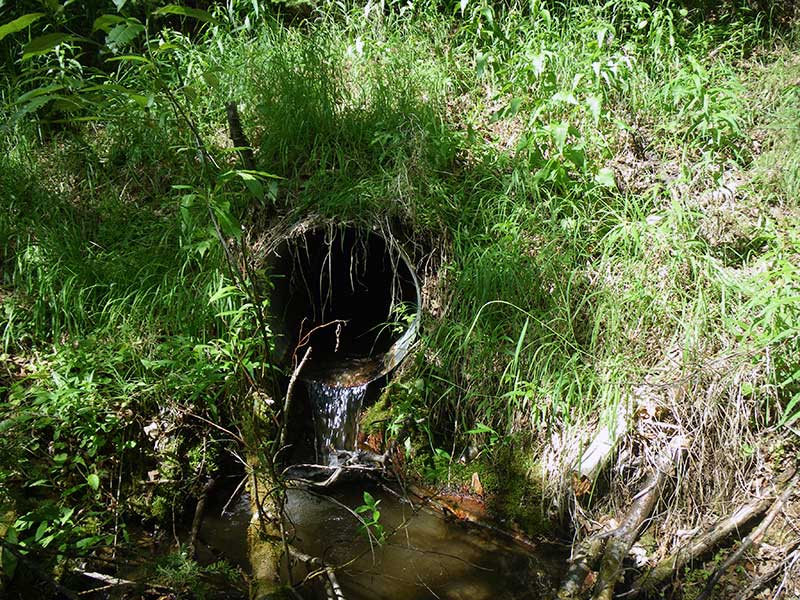

Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 1
Approach Angle: 82.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.0 2.1
Height(ft):2.0 2.1
Apron Length(ft):0.0 0.0

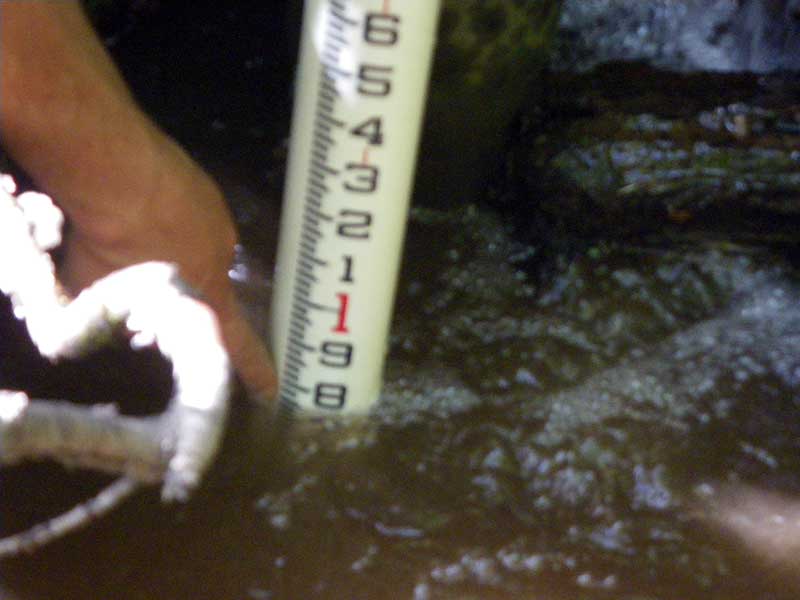

Water Depth(ft): 0.1
Rustline Height(ft):0.5
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

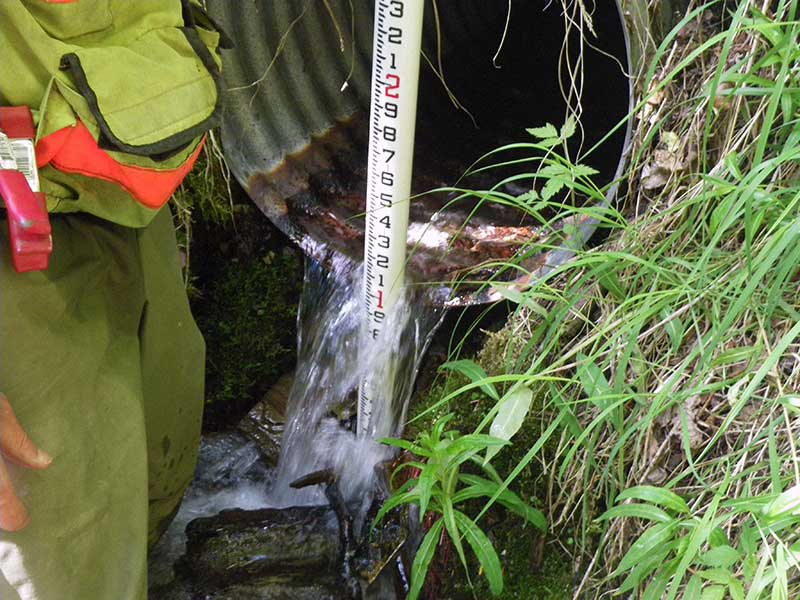

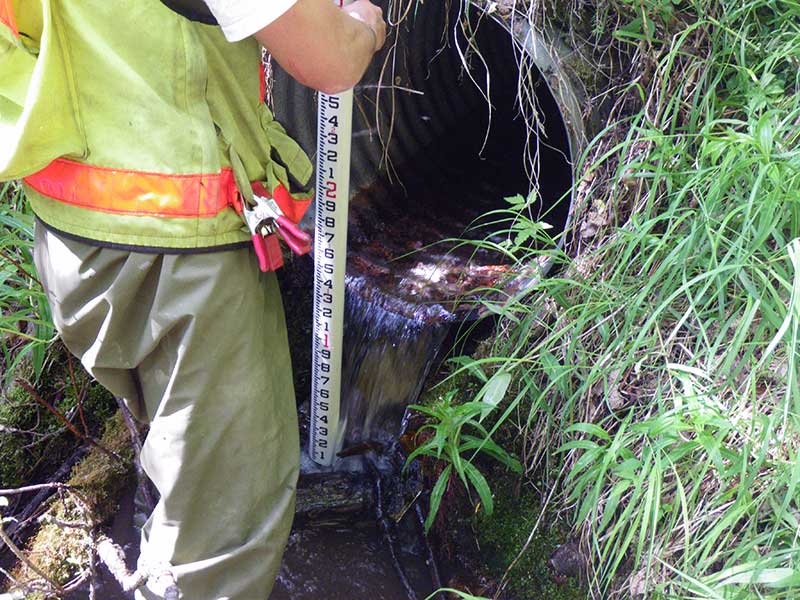

Outfall Height: 1.2
Outfall Type: Free Fall In To Pool
Constriction Ratio: 0.91
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Mechanical damage or joints parting
  3. Structural Problem
  4. Culvert is poorly aligned

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:GravelGravel
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 29.0 1.90
Upstream ordinary high water 57.0 2.10
Upstream ordinary high water 71.0 1.50

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: None (A)
Comments: No traps set watet too shallow. No fish seen.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
