Fish Passage Site 40401783

Coordinates (dec. deg.): 65.63200°, -144.45317°
Legal Description: F009N016E05
Region: Interior
Road Name: Steese Highway

Datum: WGS84
Quad Name / ITM: Circle C-1
AWC Stream #:
Stream Name: Jumpoff Creek

Elevation:

Site Comments: None

Survey Date: Jul 27, 2010

Survey EDS10-STS34

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Road bank erosion
  2. Culvert gradient red

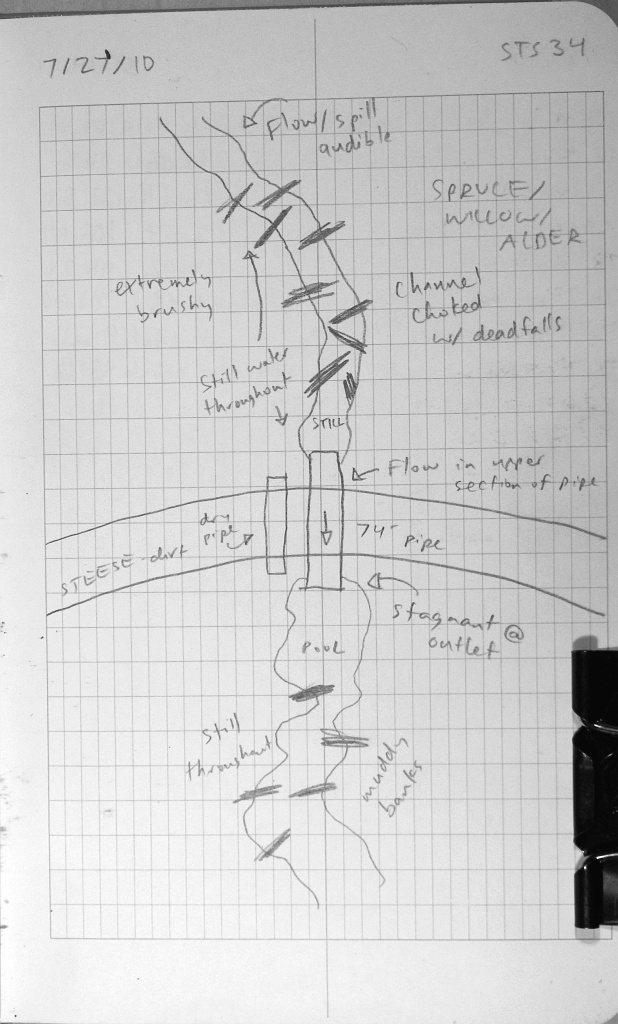

Comments: There are pieces of culvert scattered upstream of this culvert. Downstream of this culvert the creek bed can be seen, but it is almost completely dry. No stream widths were taken here because the channel is in flux and there would be no consistent widths.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 73.7
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 3
Approach Angle: 0.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.0 3.0
Height(ft):3.0 3.0
Apron Length(ft):
Water Depth(ft): 1.68
Rustline Height(ft):1.8
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 3.42%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Road bank erosion
  2. Culvert gradient red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:OrganicOrganic
Subdominant:Silt/ClaySilt/Clay
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev (Road Surface) 106.69
D/S Water Surface Elev (Still, Stagnant Water Downstream) 0.00 94.27
Outlet Invert (Bottom of Pipe) 3.00 92.59
U/S Thalweg (Substrate Below Inlet) 76.70 94.80
Inlet Culvert Invert (Bottom of Pipe) 76.70 95.11
U/S Headwater (Water Surface) 76.70 95.18

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 0.67
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 0.67
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
