Fish Passage Site 40401778

Coordinates (dec. deg.): 65.54918°, -145.15768°
Legal Description: F008N013E06
Region: Interior
Road Name: Steese Highway

Datum: WGS84
Quad Name / ITM: Circle C-3
AWC Stream #:
Stream Name: Stack Pup Creek

Elevation:

Site Comments: MP 117 DOT#418+25

Survey Date: Jul 26, 2010

Survey EDS10-STS29

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Structural Problem
  3. Road bank erosion
  4. Constriction ratio gray
  5. Compound gradient in pipe

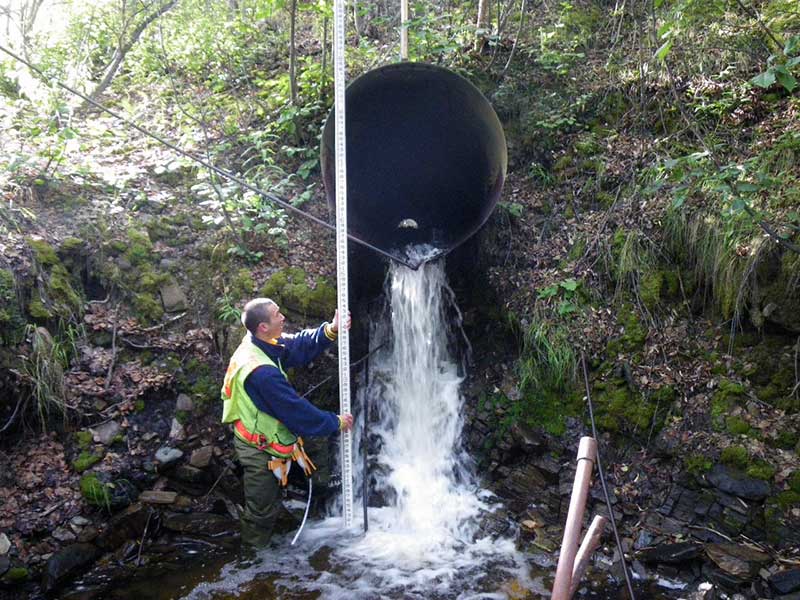

Comments: The outlet of this pipe has a very large outfall height. For this reason, no longitudinal profile was done. The pipe is rusted through and water is pouring through it. The fall from the pipe to the water surface is about 5.20 feet. The max pool depth is about 2.90 feet at 10 feet from the pipe. There are pieces of culvert upstream from this culvert.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Red

Length(ft): 113.9
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 2
Approach Angle: 40.0
Sedimentation At Inlet: Yes
Inlet Substrate: Cobble
Outlet Substrate: None
InletOutlet
Width(ft):3.6 4.0
Height(ft):3.5 4.2
Apron Length(ft):
Water Depth(ft): 0.06
Rustline Height(ft):2.0
Substrate Depth(ft):0.5 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 4.6
Outfall Type: Free Fall on To Rip Rap
Constriction Ratio: 0.56
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Structural Problem
  3. Road bank erosion
  4. Constriction ratio gray
  5. Compound gradient in pipe

Stream Measurements

Stream SubstratesUpstreamDownstream

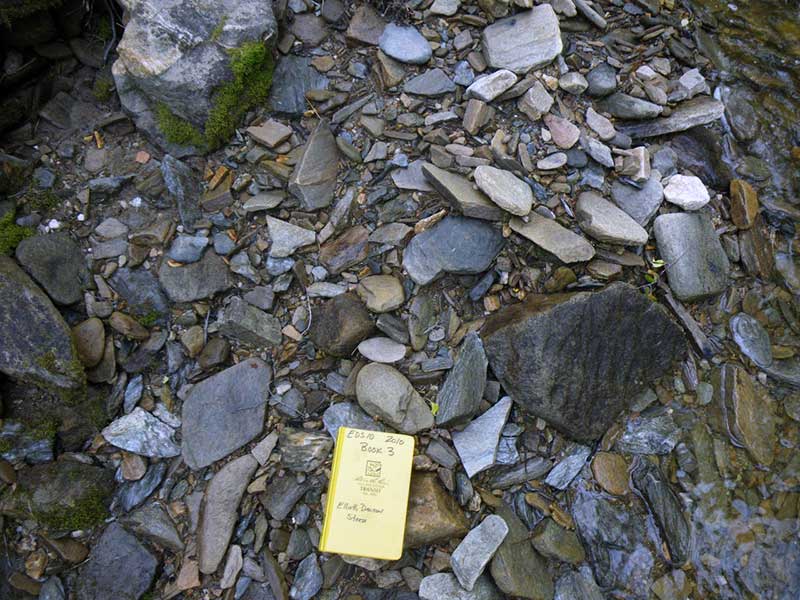

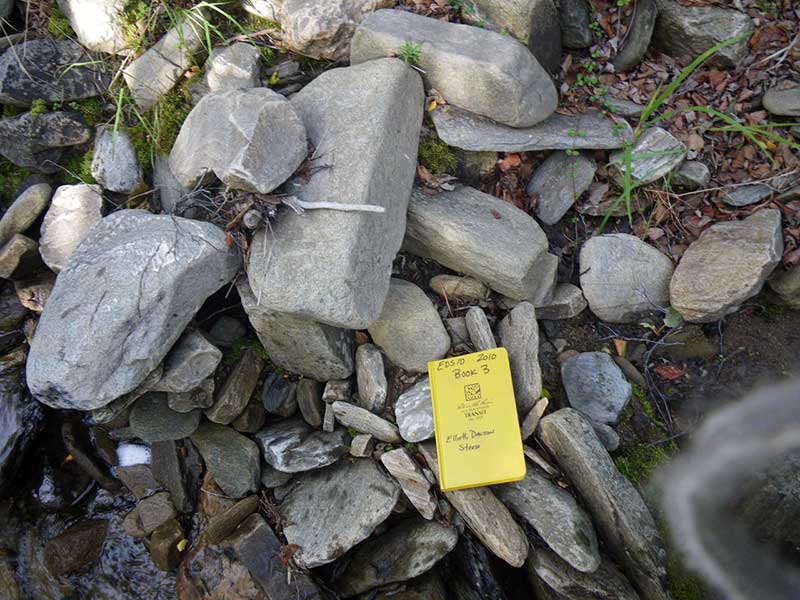

Dominant:GravelGravel
Subdominant:CobbleCobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 37.0 6.70
Upstream ordinary high water 71.0 7.80
Upstream ordinary high water 118.0 7.00

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 0.5
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Gear Type: Minnow Trap (B) Trap Duration(h): 0.5
Channel Type: Main Channel (>50% of water flow)
Comments: Nothing was caught.

Fish Observations

Species: no fish collected or observed Life History: Not Applicable
Total Fish Observed: 0 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: Downstream Minnow Trap (0)  Upstream Minnow Trap (0)
