Fish Passage Site 40401742

Coordinates (dec. deg.): 65.55707°, -144.79771°
Legal Description: F009N014E34
Region: Interior

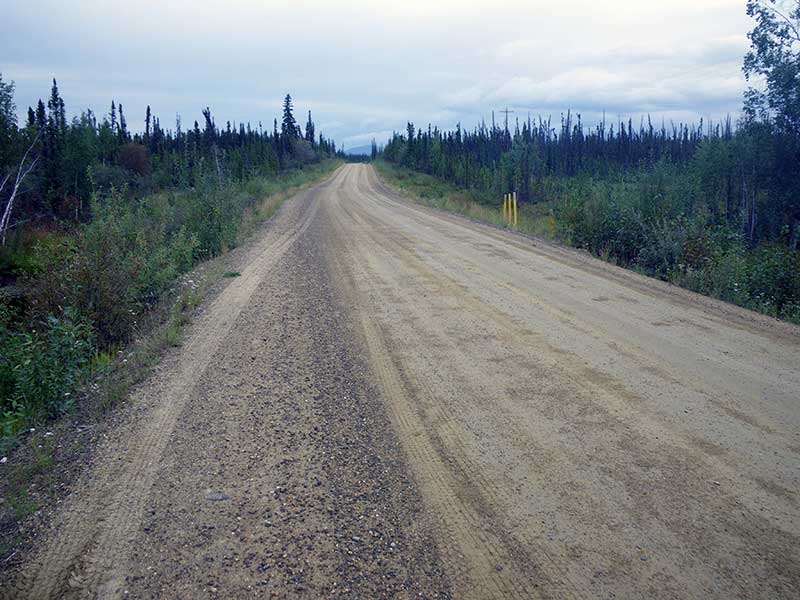

Road Name: Circle Hot Springs Road

Datum: WGS84
Quad Name / ITM: Circle C-2
AWC Stream #:
Stream Name: Graveyard Creek

Elevation:

Site Comments: Milepost 2

Survey Date: Jul 27, 2010

Survey EDS10-PS011

Observers: Ben Histand, Justin Leon

Overall Fish Passage Rating: Black

Tidal:
Backwatered:

Step Pools:
Construction Year:

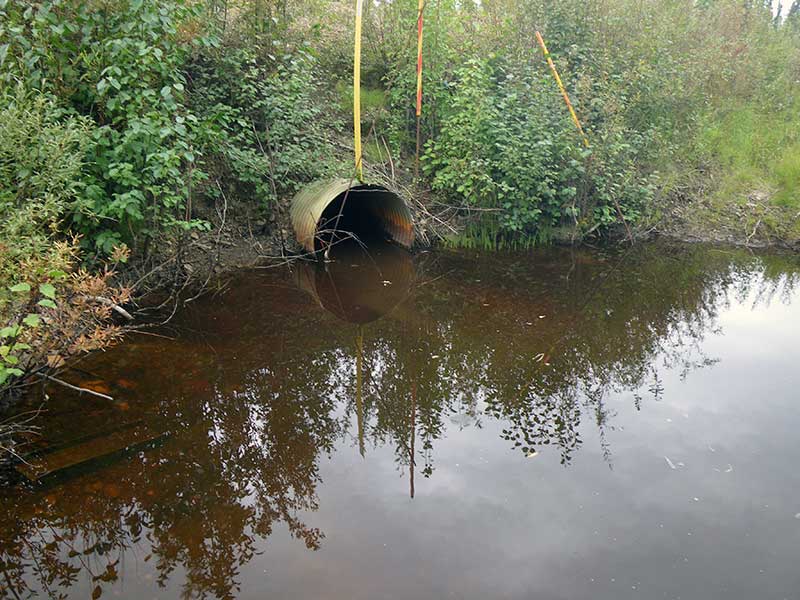

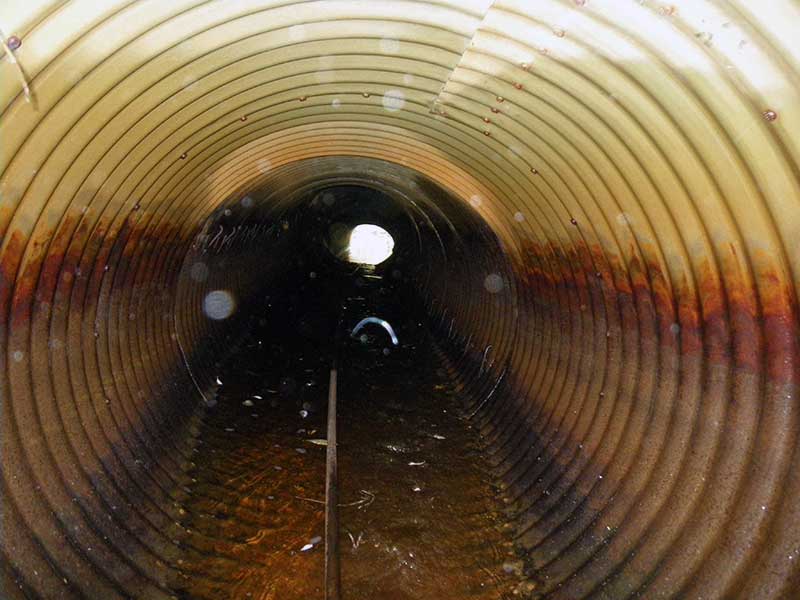

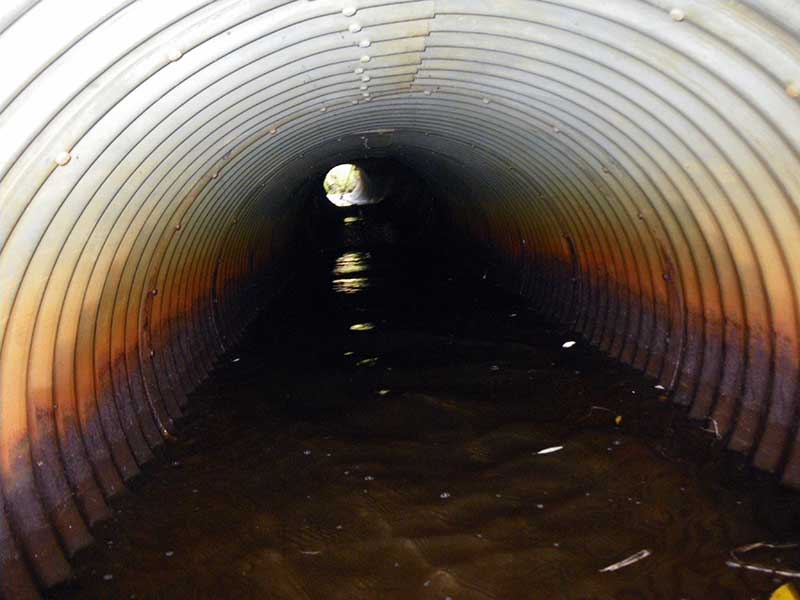

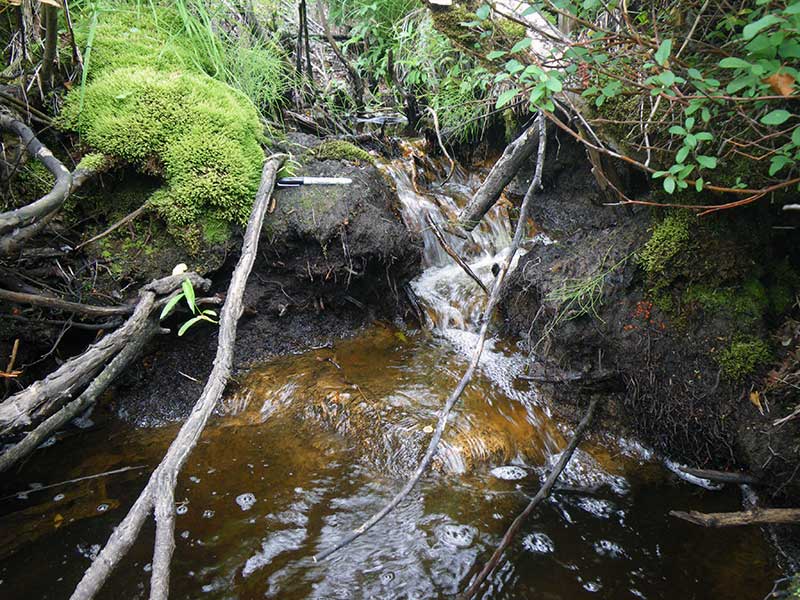

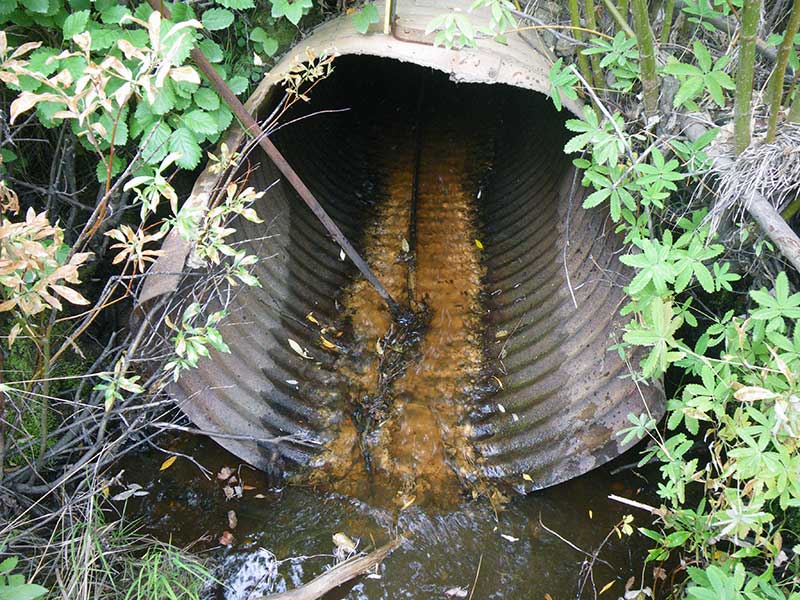

Comments: There is a jump barrier upstream of this habitat. There is also questionable habitat upstream. The pipe is coming apart at the joints and there is a hydraulic jump in the pipe. Milepost 2

Culvert Measurements

No measurement data available.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
