Fish Passage Site 30103663

Coordinates (dec. deg.): 51.92392°, -176.64532°
Legal Description: S095S195W26
Region: Southwest

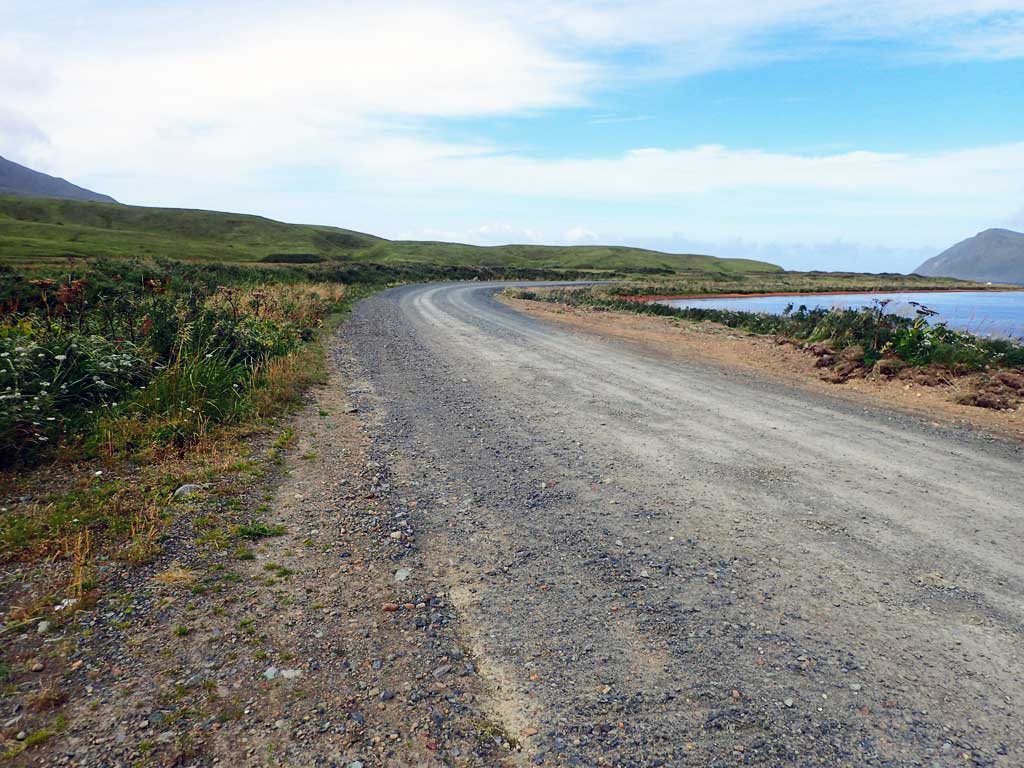

Road Name: Andrew Lake Road

Datum: NAD83
Quad Name / ITM: Adak C-2
AWC Stream #: 306-50-12000-2030
Stream Name: Nurse Creek

Elevation:

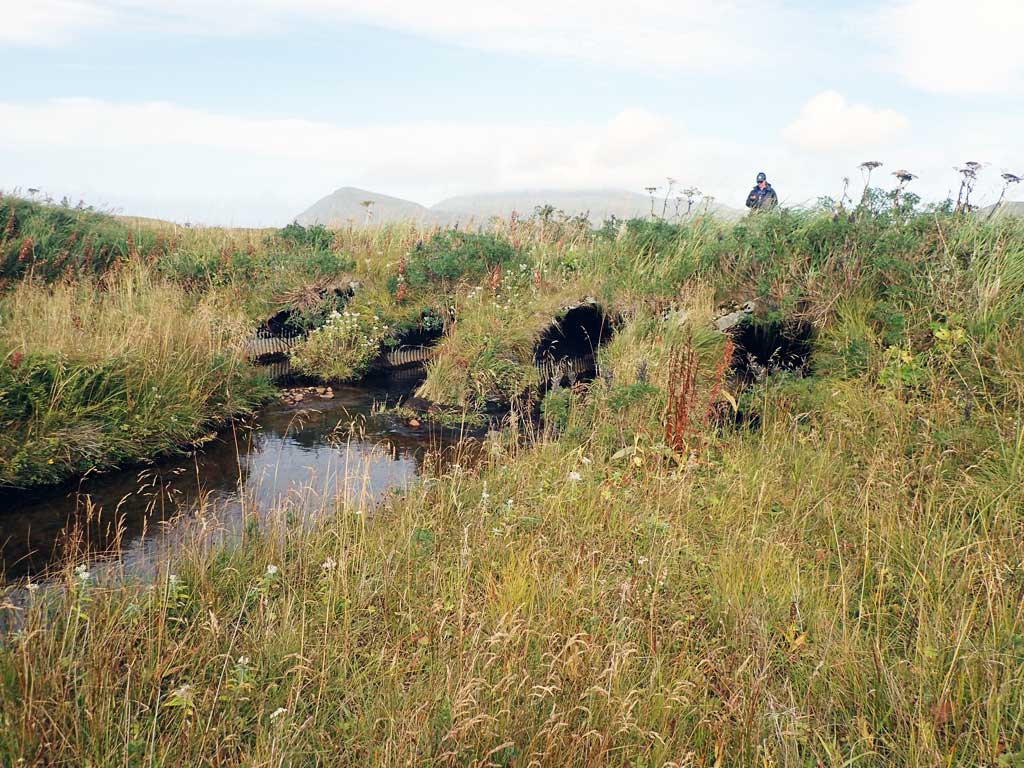

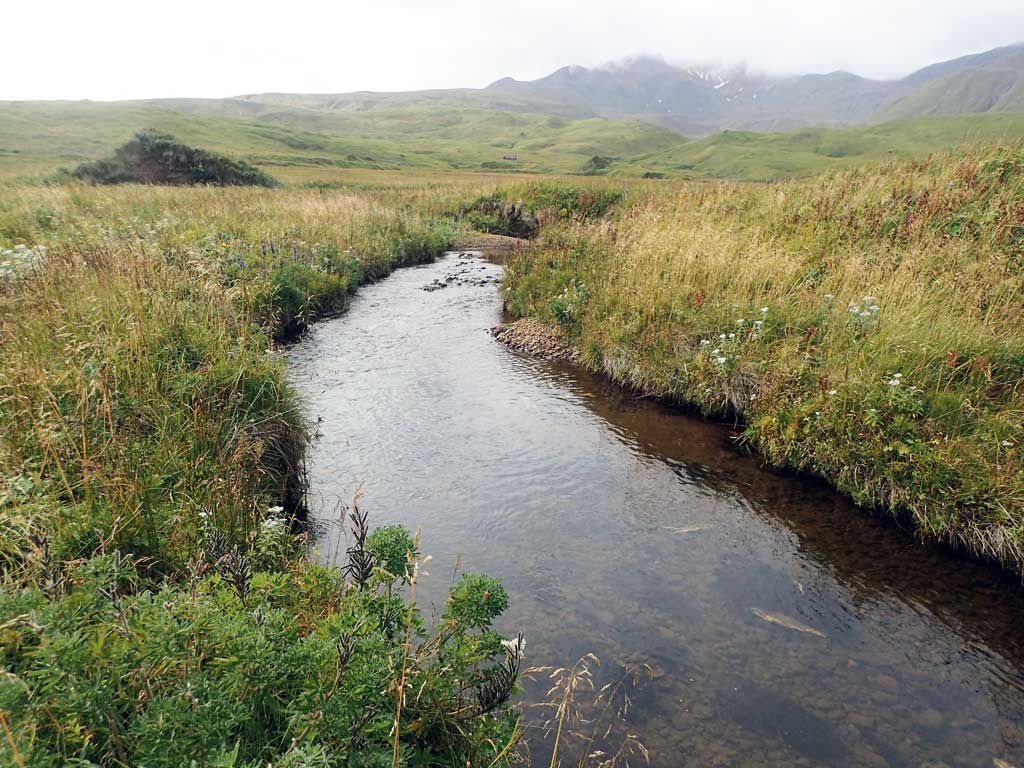

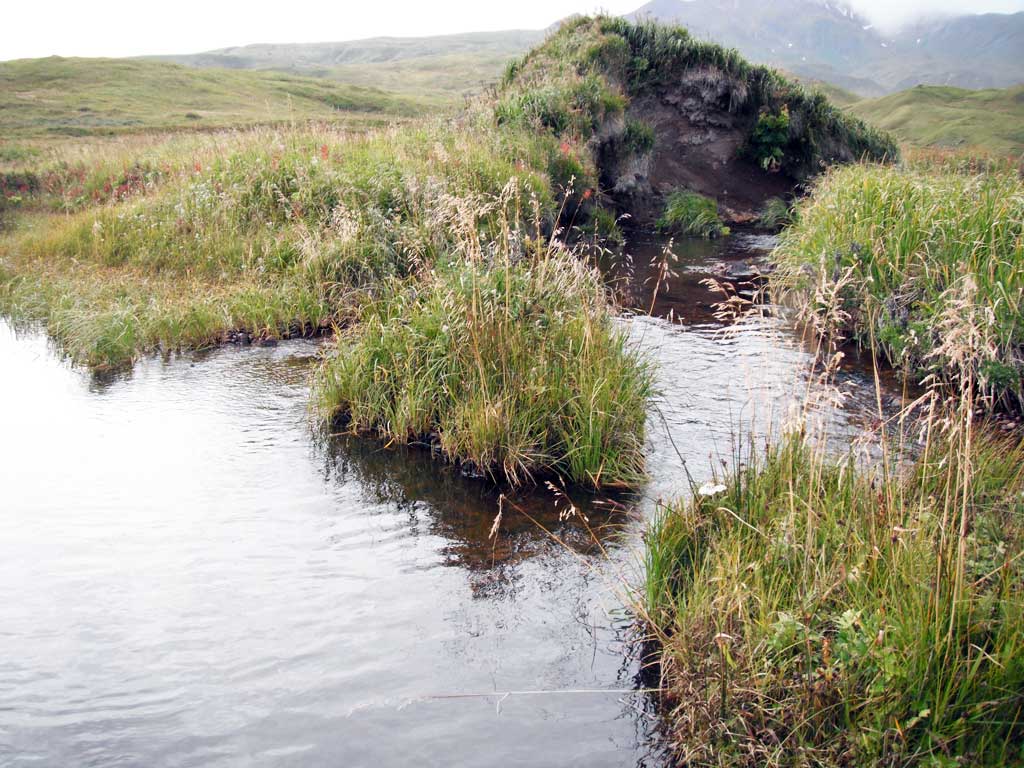

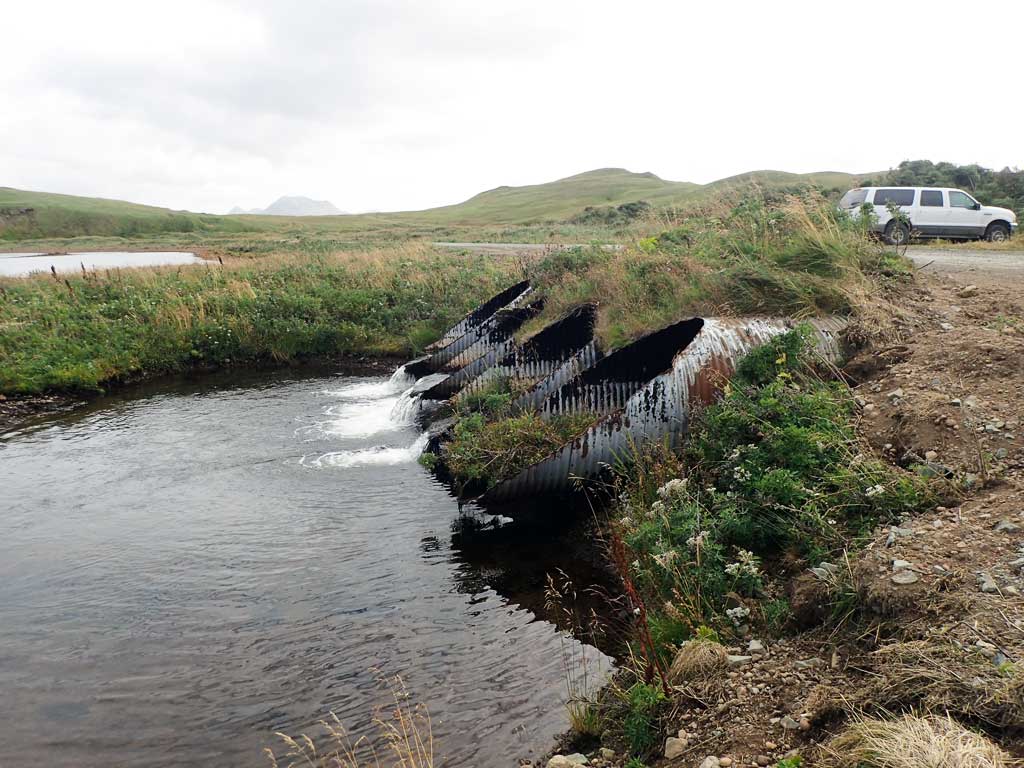

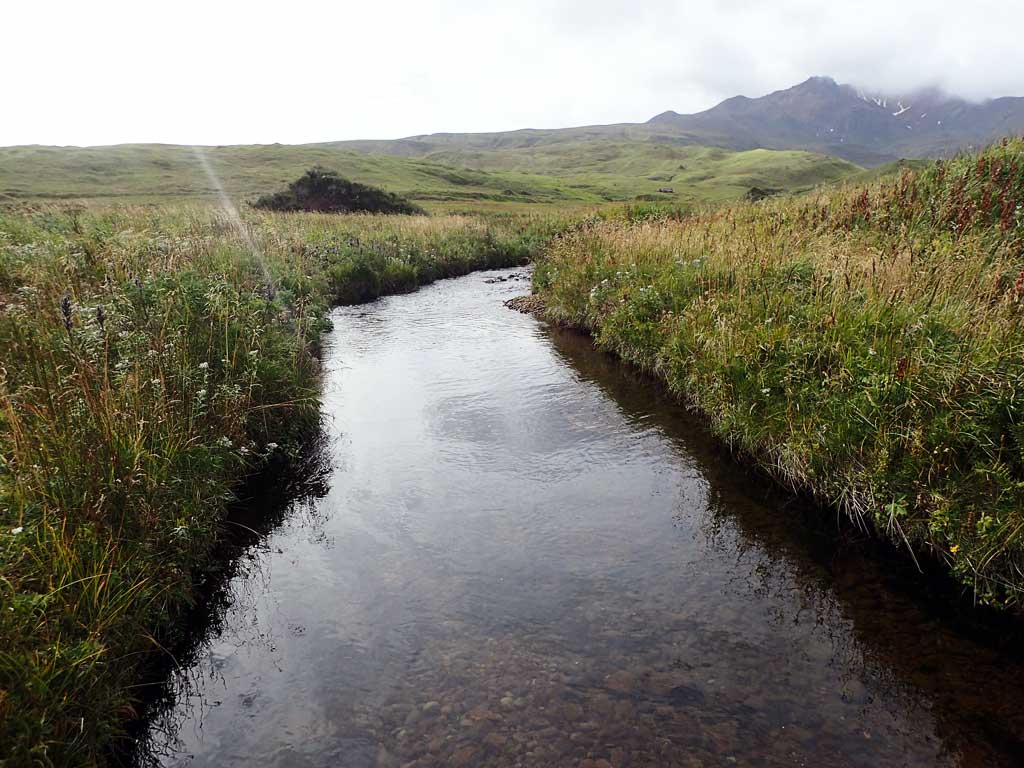

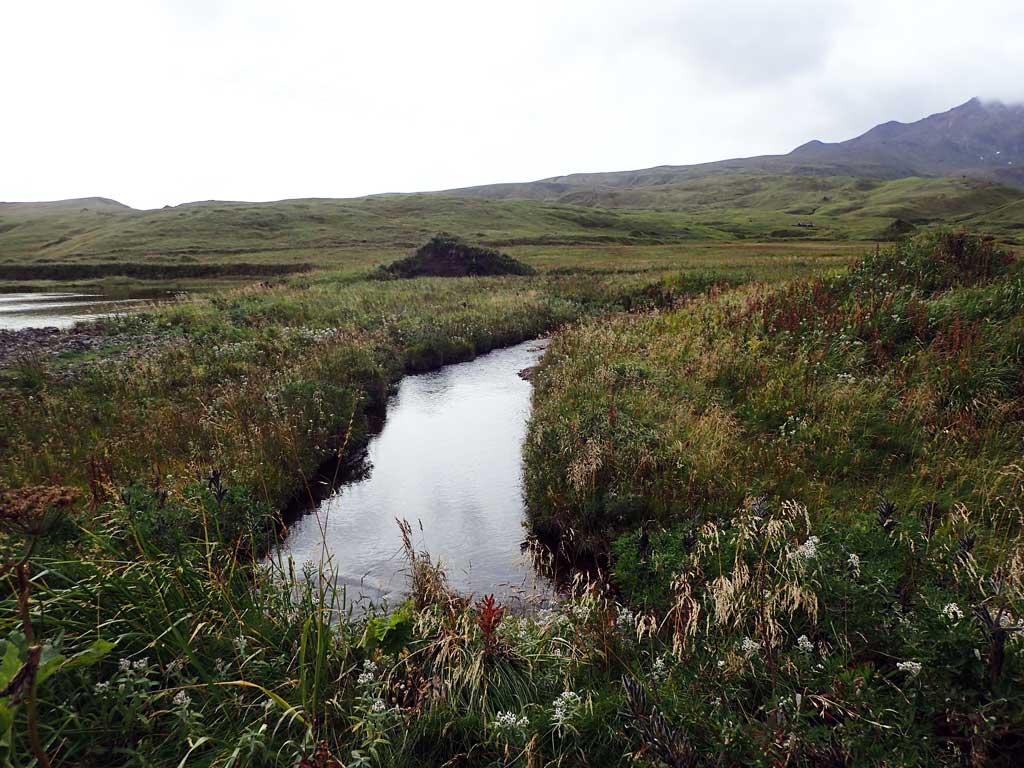

Site Comments: Nurse Creek has cut into and is connected with a pond a few hundred feet upstream from the crossing. There is a bridge crossing about 0.50 miles upstream.

Survey Date: Sep 16, 2017

Survey ADAK17-C43

Observers: Mark Eisenman, Jeanette Alas

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red

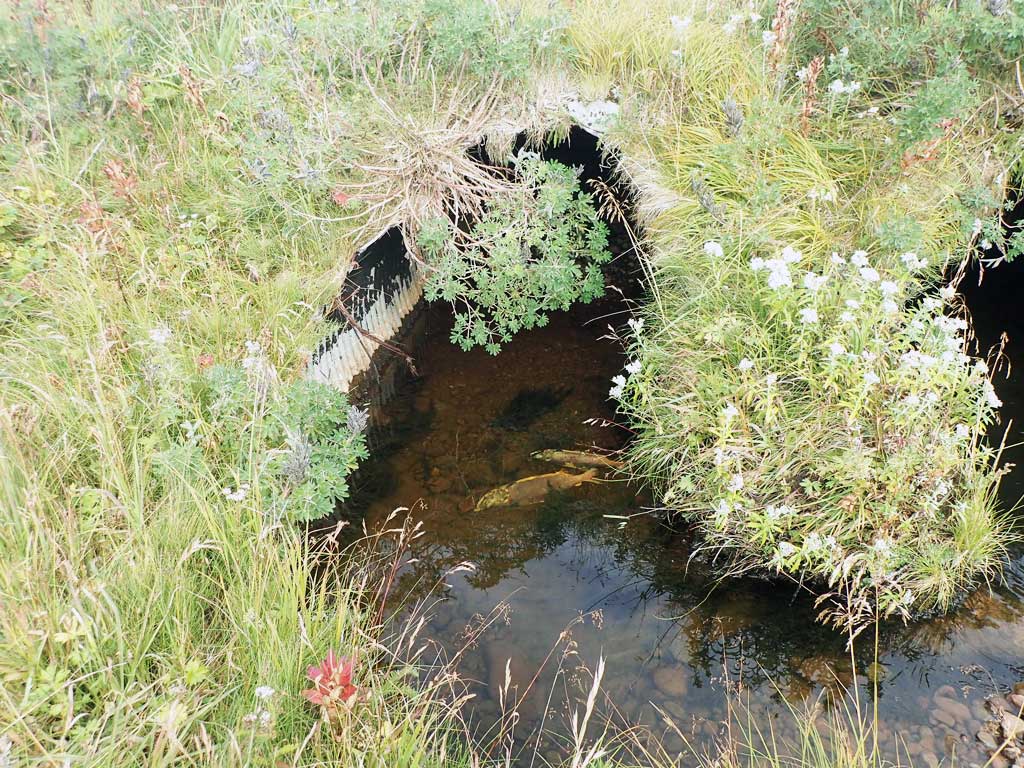

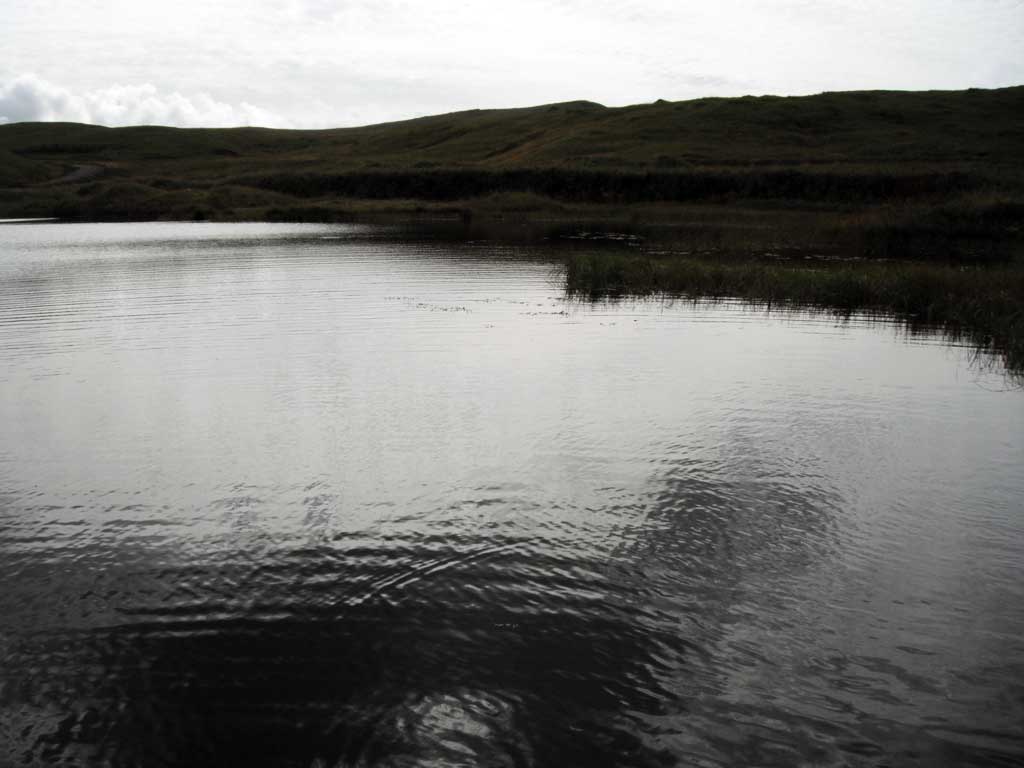

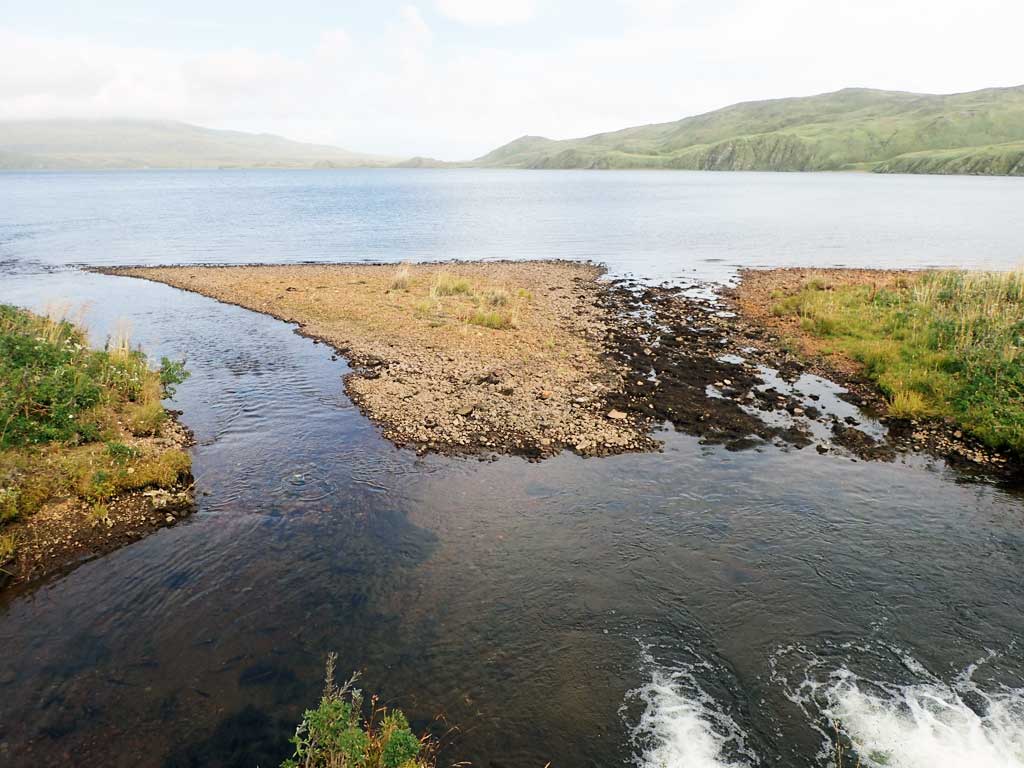

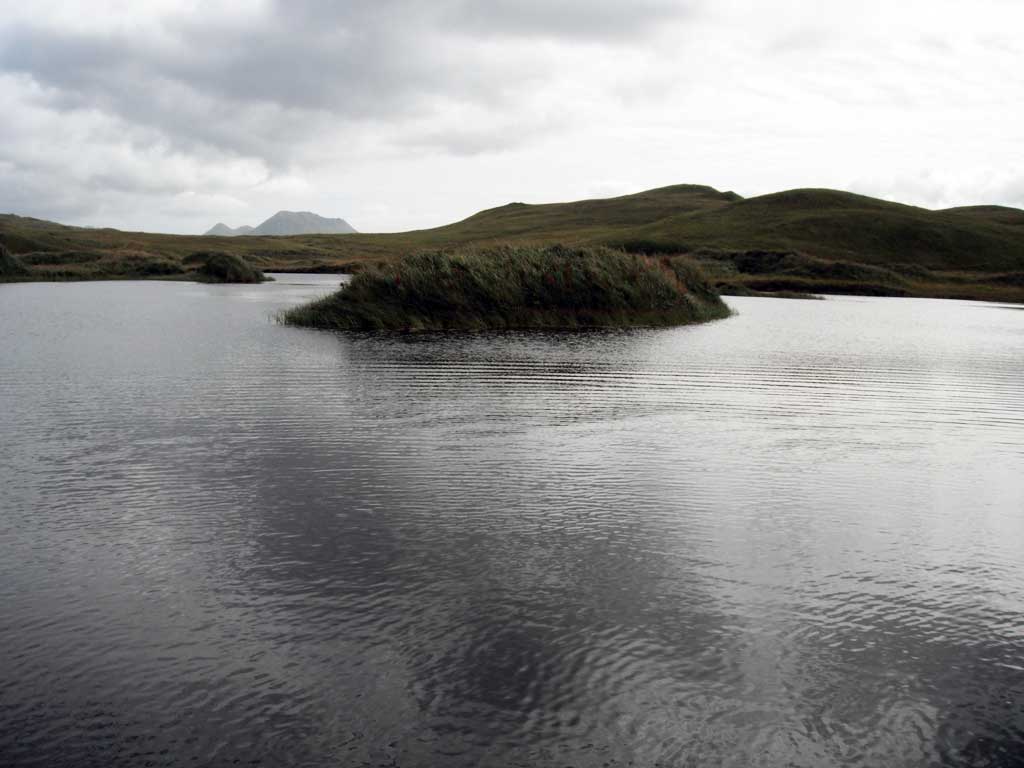

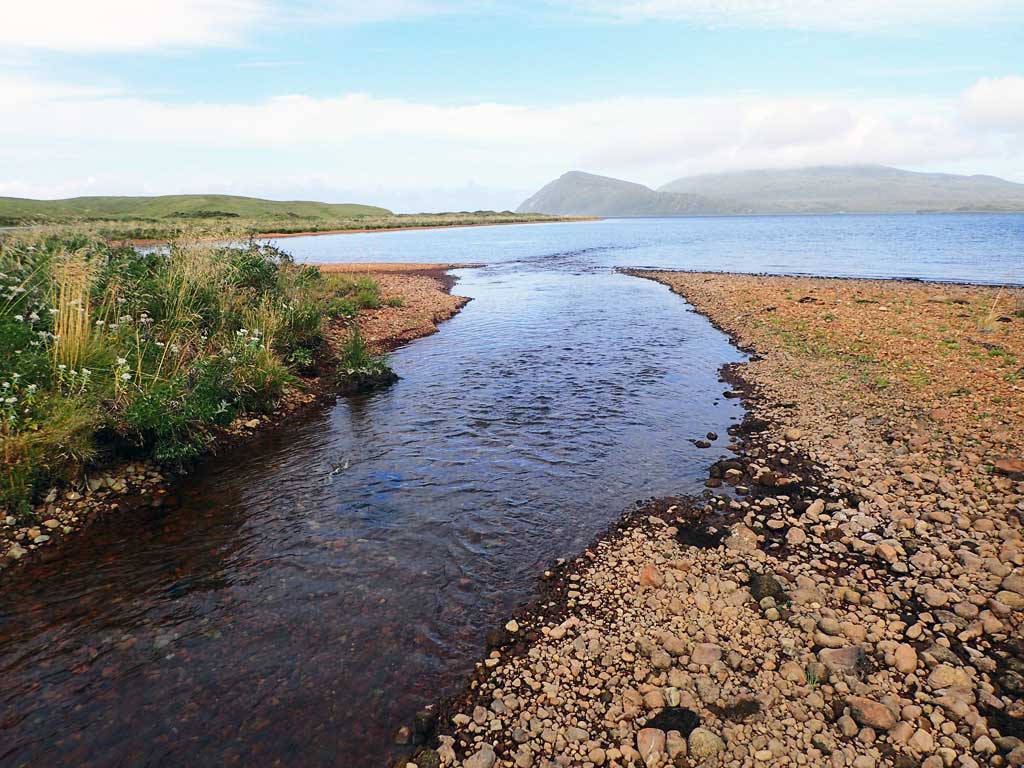

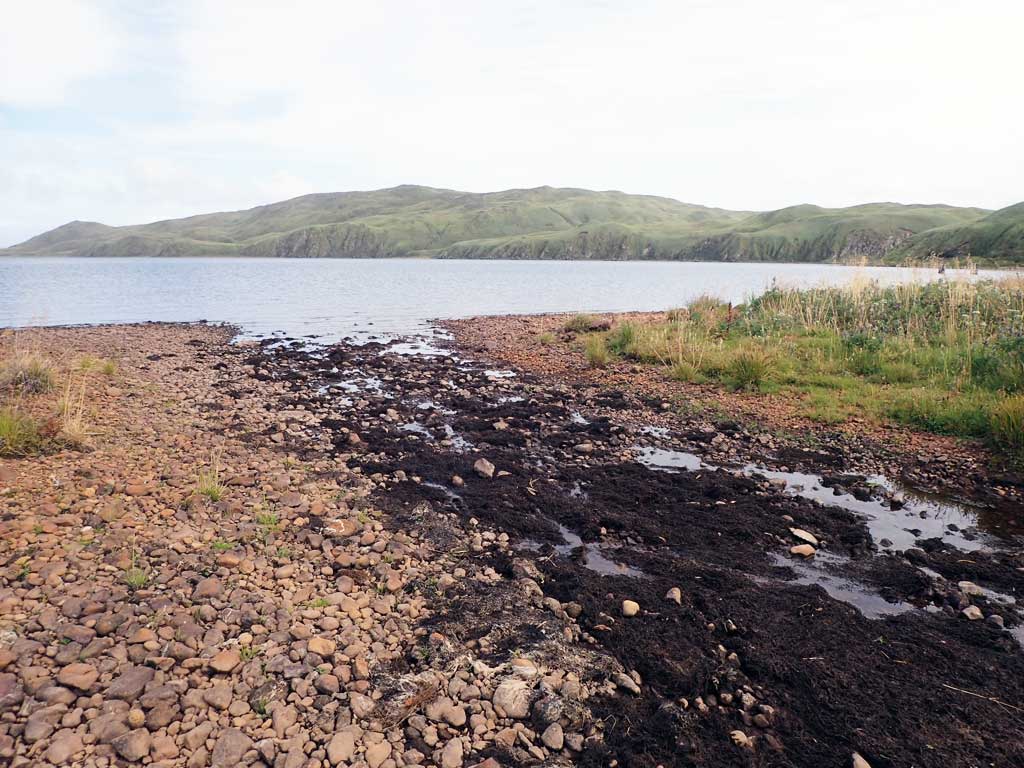

Comments: This information was gathered as part of the joint reconnaissance level project between the ADF&G Habitat Division and the Fish Passage Assessment Project on Adak Island. Due to time constraints full site assessments were not conducted, but base line information was collected. Pond upstream is connected to Nurse Creek. Upstream pond electrofished and juvenile coho salmon captured. Adult Sockeye salmon observed above, below and inside culverts. Nurse Creek empites into Andrew Lake directly downstream.

Culvert Measurements

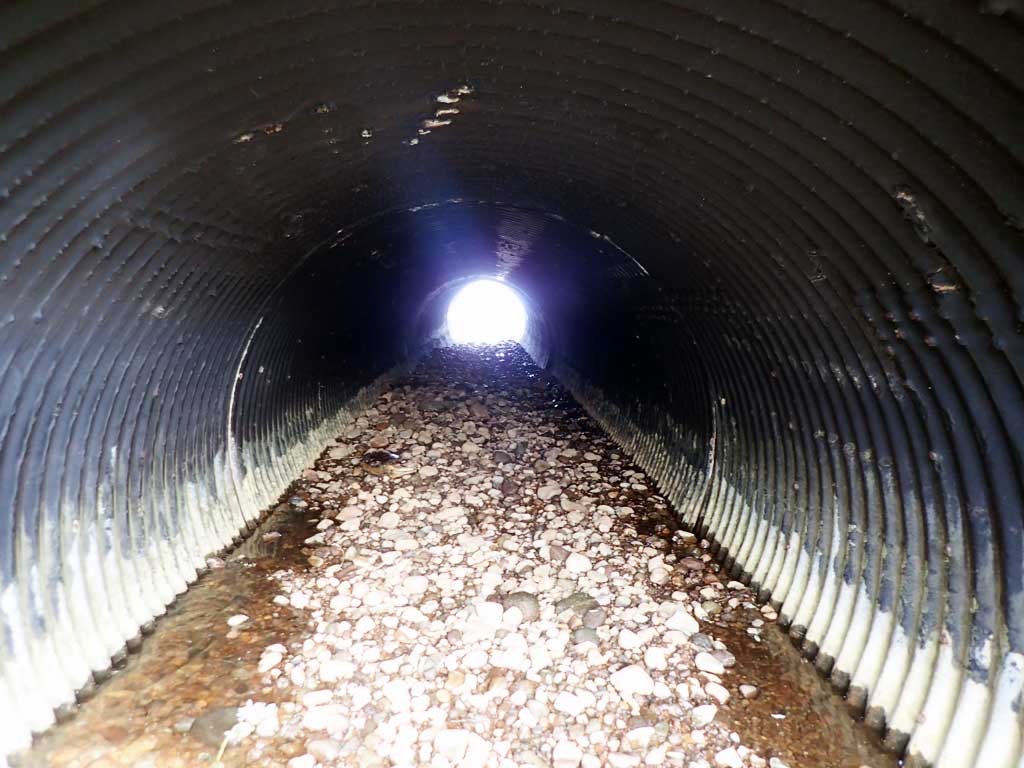

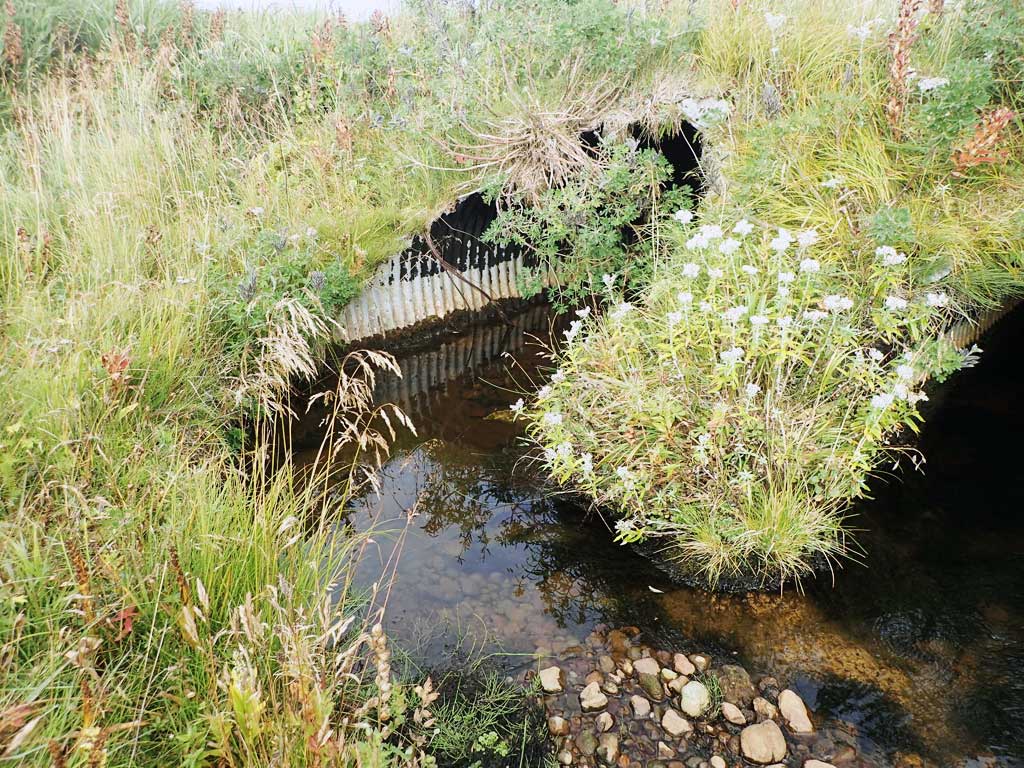

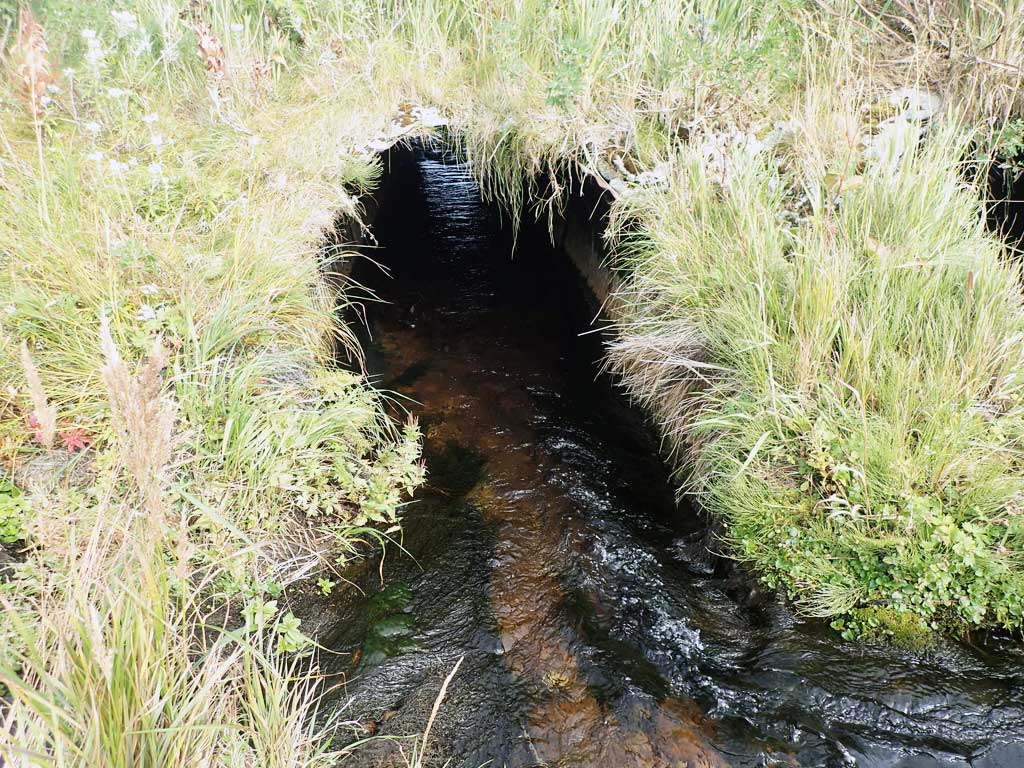

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 66.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?:
Outfall Height:

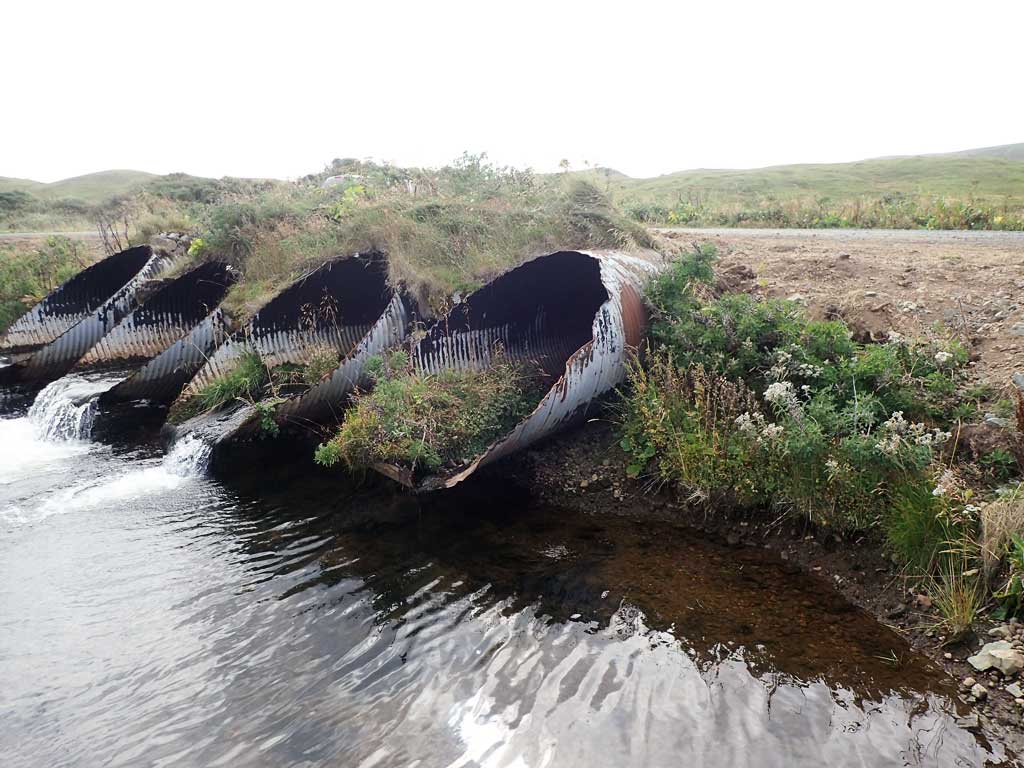

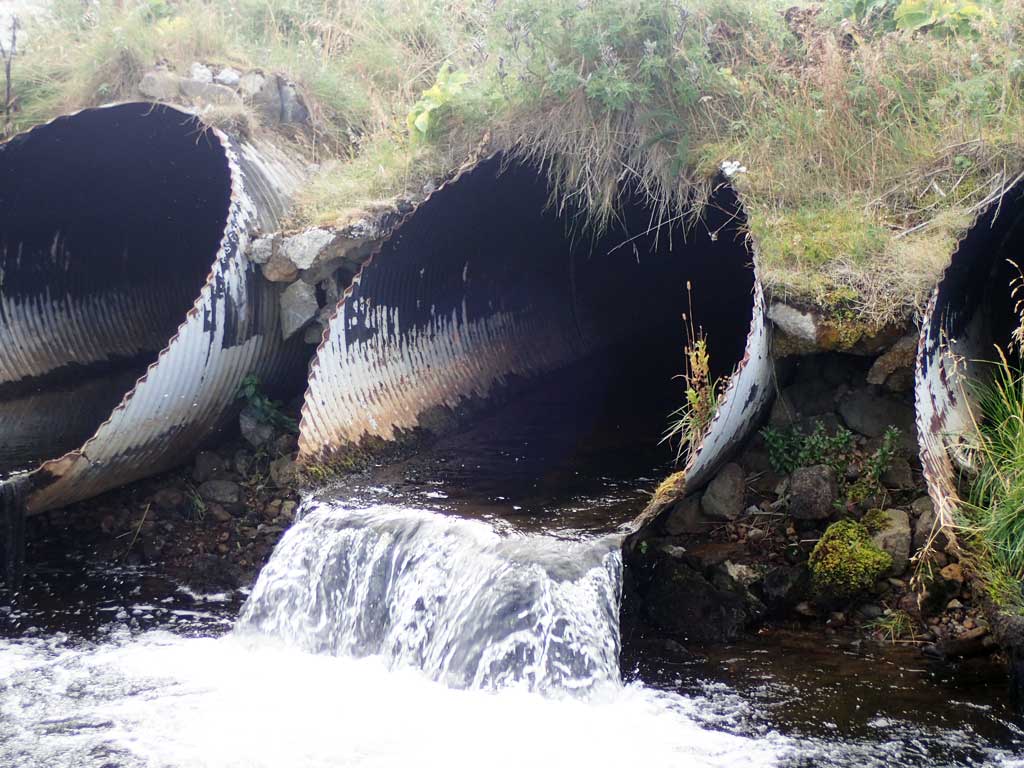

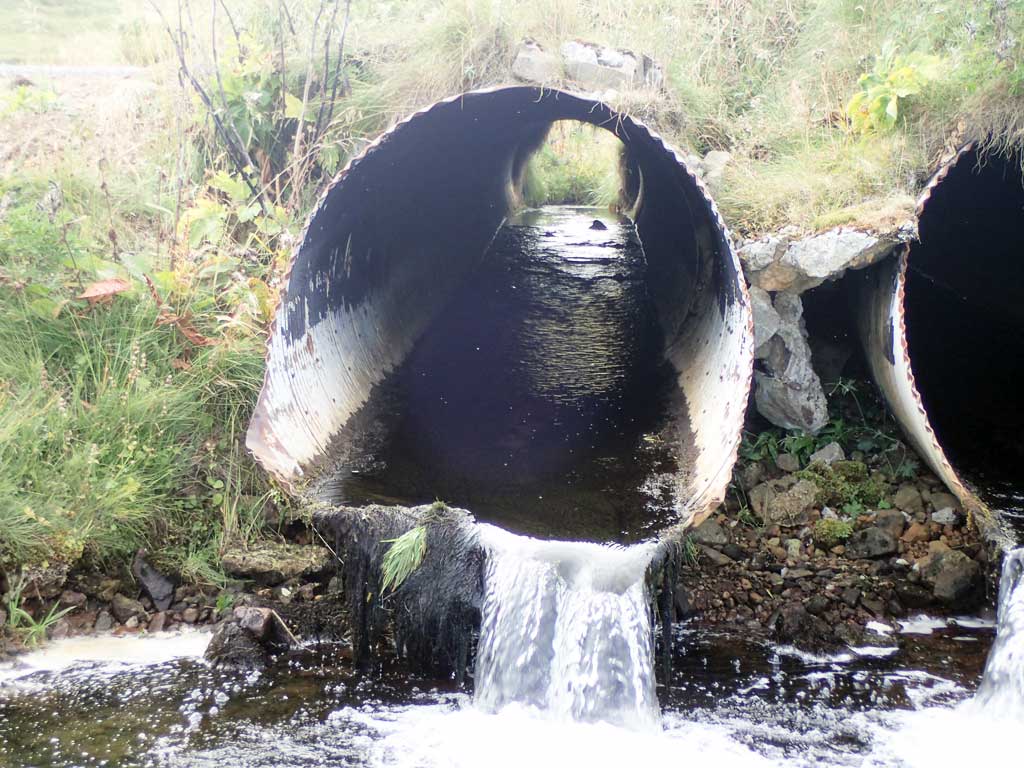

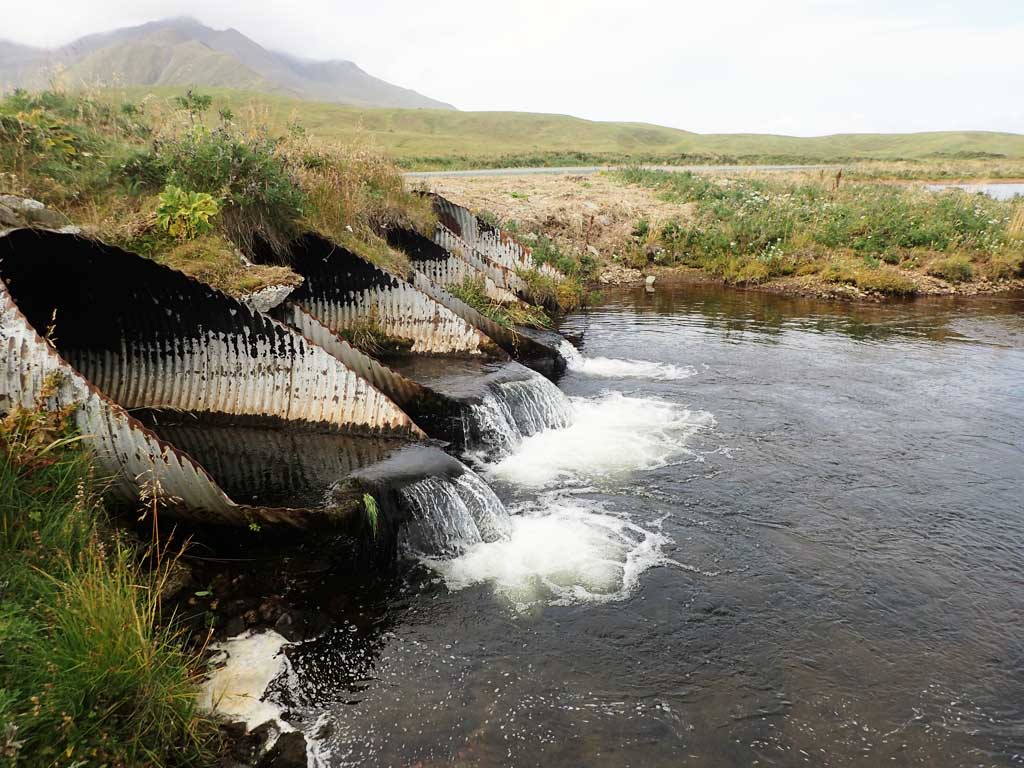

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

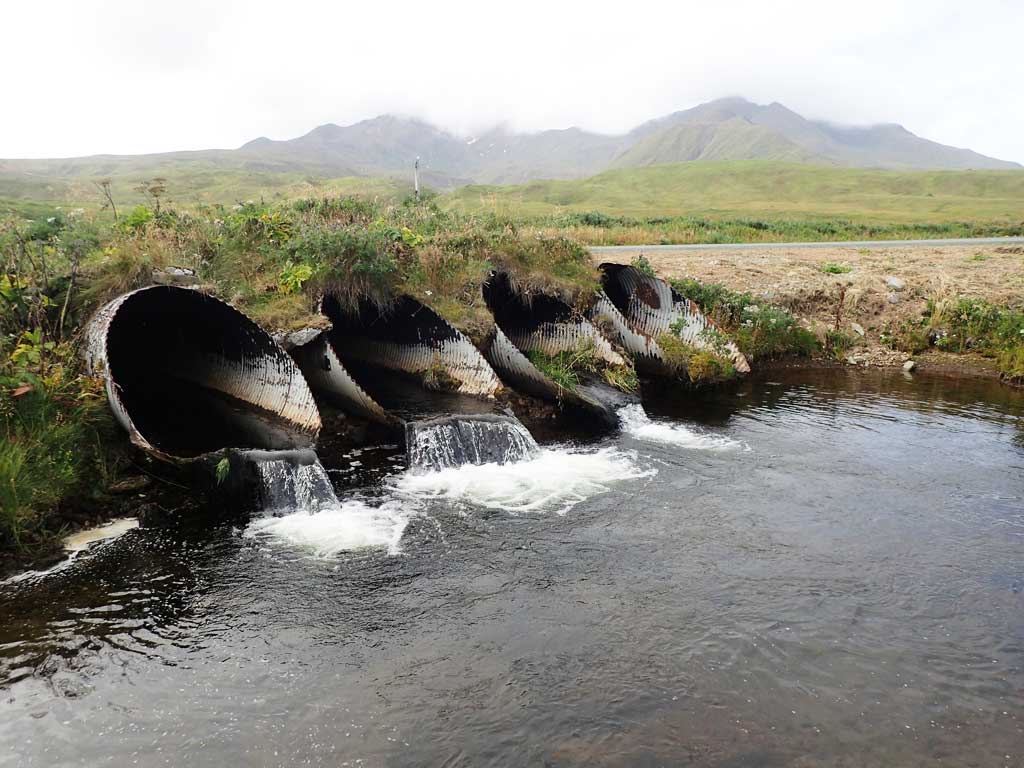

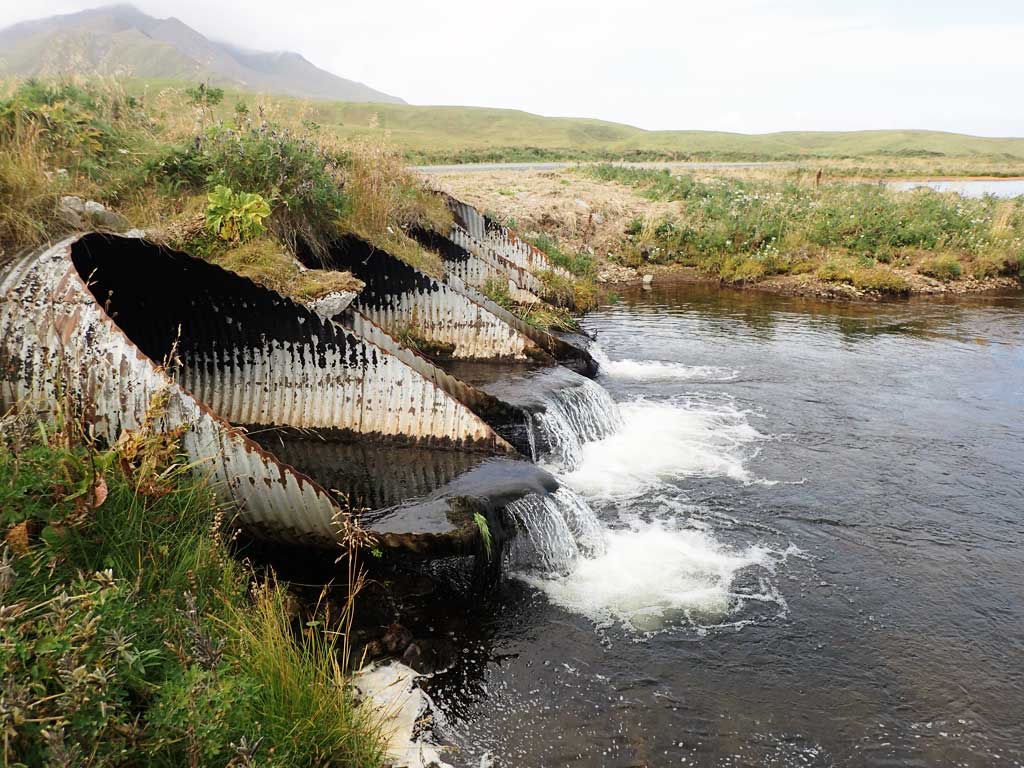

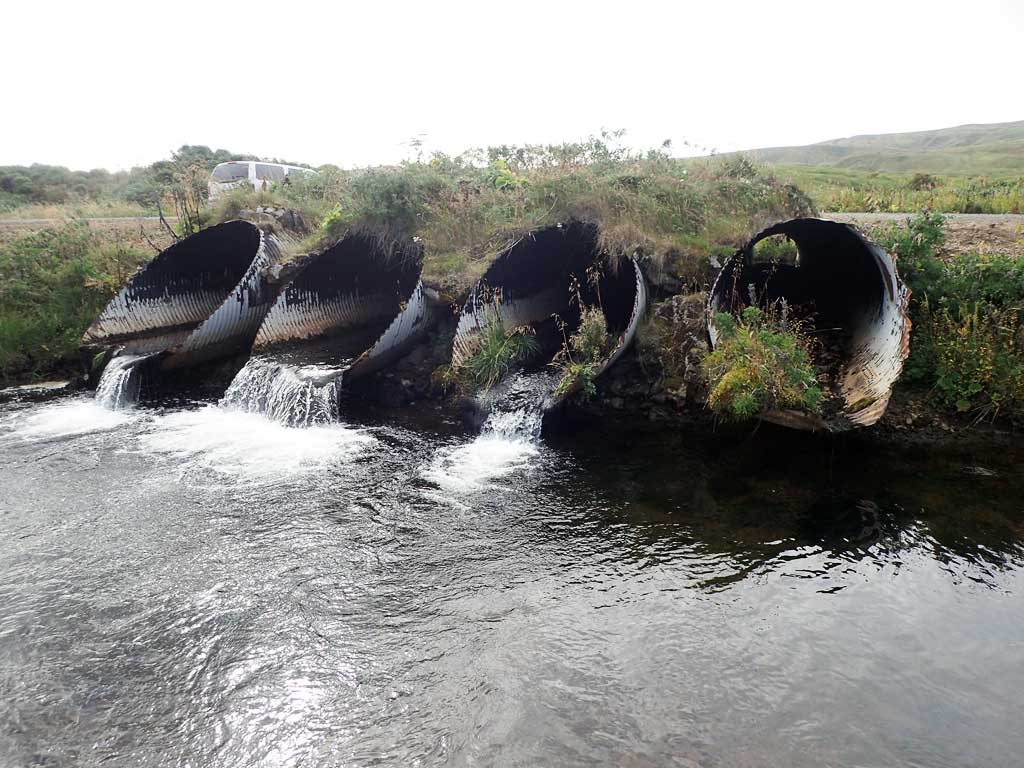

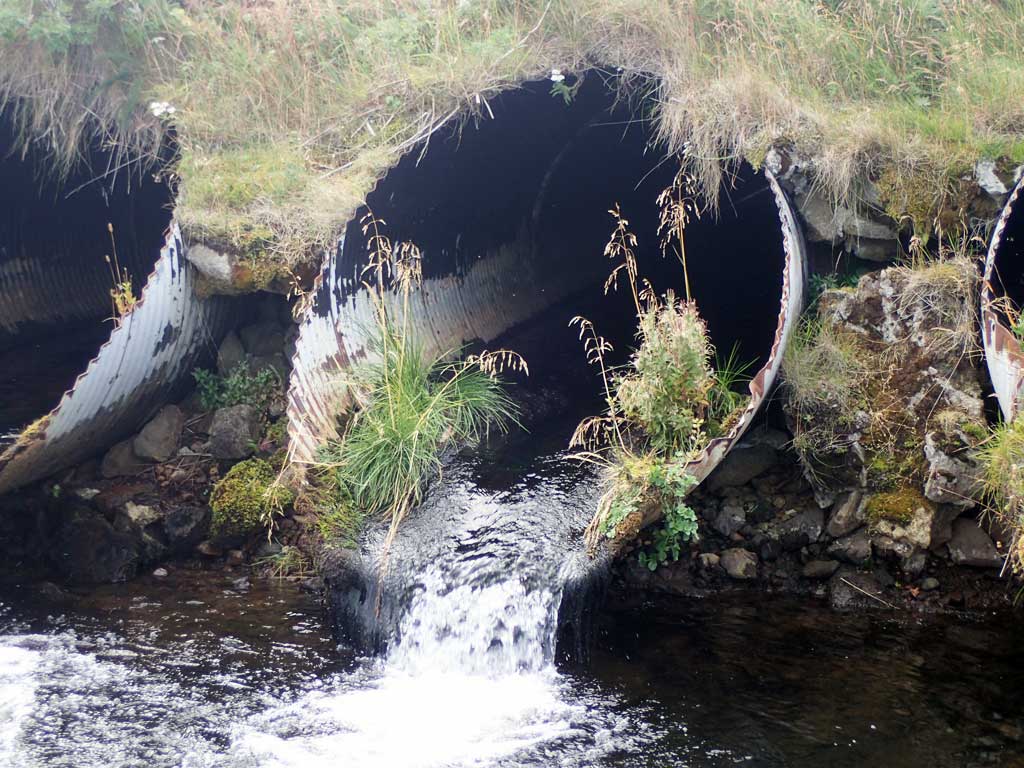

Comments: Culvert length estimated using aerial imagery. Outfall height over 1 foot. Culvert not taking any flow at water assessed water level.
  Culvert Observations:
  1. Outfall height red
ID: 2 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 66.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: Yes
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert length estimated using aerial imagery. Outfall height over 1 foot.
  Culvert Observations:
  1. Outfall height red
ID: 3 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 66.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

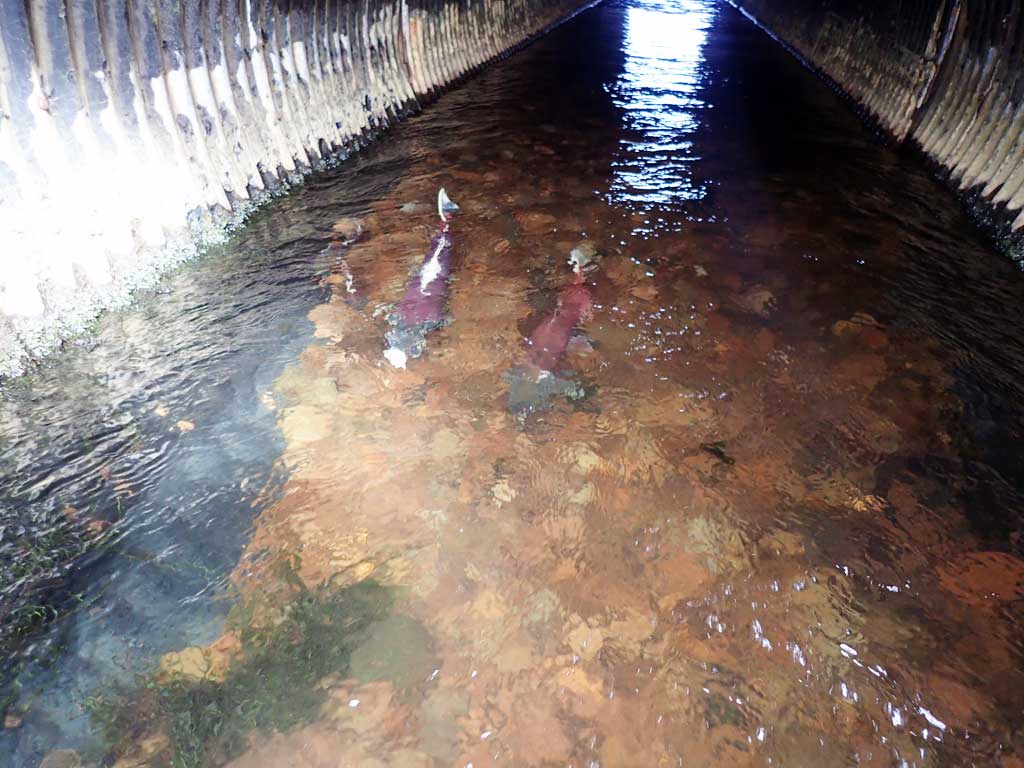

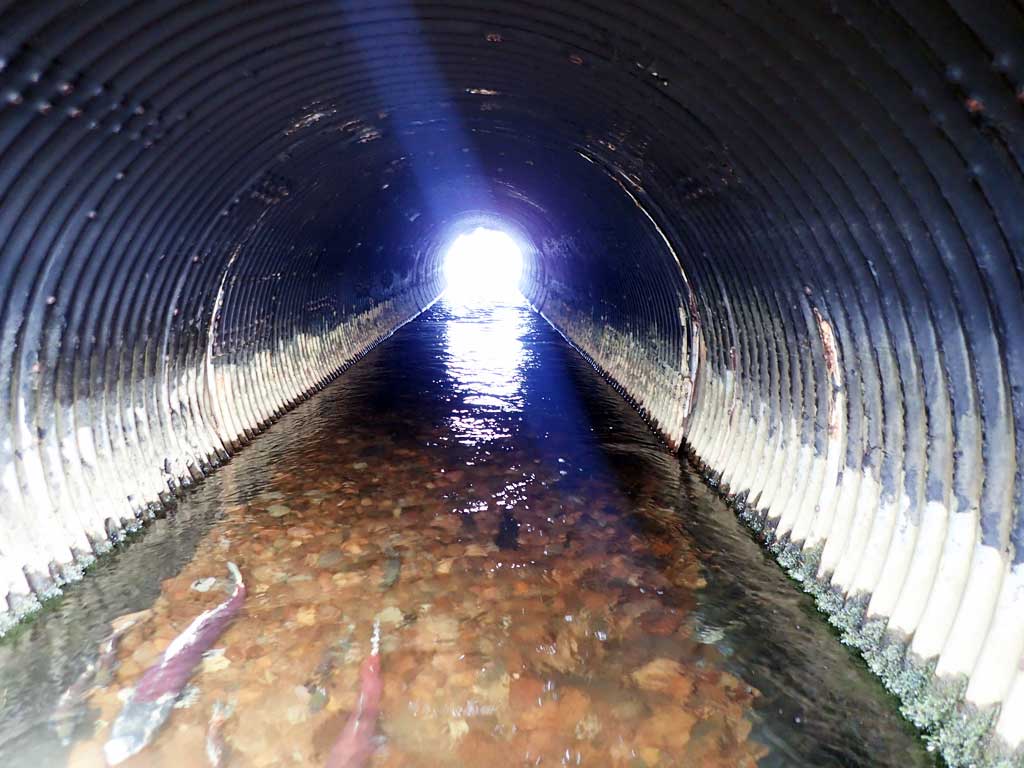

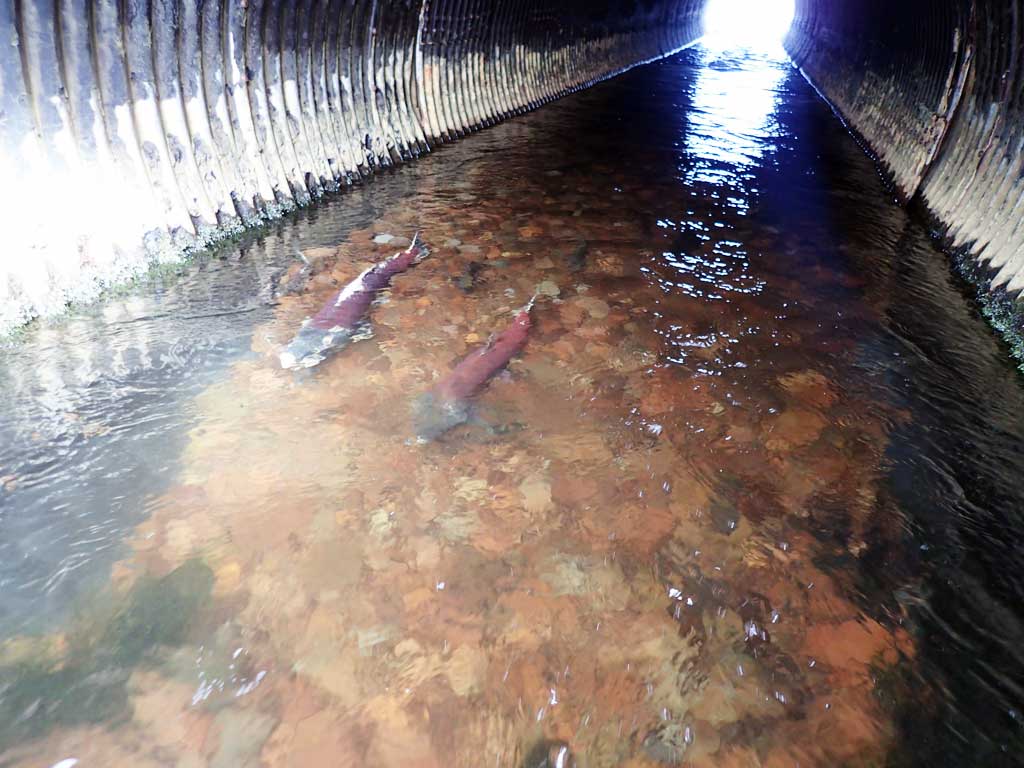

Comments: Culvert length estimated using aerial imagery. Outfall height over 1 foot. Adult Sockeye salmon observed in culvert.
  Culvert Observations:
  1. Outfall height red
ID: 4 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 66.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet: No
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.0 4.0
Height(ft):4.0 4.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:


Comments: Culvert length estimated using aerial imagery. Outfall height over 1 foot.
  Culvert Observations:
  1. Outfall height red

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

Species: adult spawning sockeye salmon Life History: Anadromous
Total Fish Observed: 10 Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: At Site Visual Observation, Ground (10)
Comments: Adult sockey observed upstream and downstream and inside culverts.

Species: Life History:
Total Fish Observed: 0 Fish Measured: 0 Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type: At Site Visual Observation, Ground (0)

Species: general fish observation, no species information Life History:
Total Fish Observed: Fish Measured: Fork Lengths (mm) Min: Max: Mean:
Collected/Observed by Gear Type:
